HOW TO CHOOSE THE RIGHT HOIST FOR YOUR DUMP BODY

Choosing the right hoist for your dump body is one of the most consequential decisions in the entire build. Get it right, and the body lifts cleanly, dumps at the correct angle, and runs for years without issues. Get it wrong, and you're dealing with slow cycles, premature cylinder failure, overstressed subframes, and builds that come back to your shop under warranty.

This guide breaks down every factor that goes into selecting the correct hoist — type, tonnage, stroke, pump matching, and mounting — written specifically for fabricators, trailer builders, and fleet buyers who need the right answer before they order, not after.

Start Here: What Type of Dump Body Are You Building?

The hoist selection process starts with understanding the application. Different dump body types have different underbody clearance requirements, payload profiles, and dump angle targets — all of which drive the hoist type decision.

Hoist Types Explained: Scissor vs. Telescopic vs. Underbody

There are three main hoist types used in dump body fabrication, and each has a specific set of strengths and ideal applications. Understanding the mechanical differences will help you match the right hoist to the right build every time.

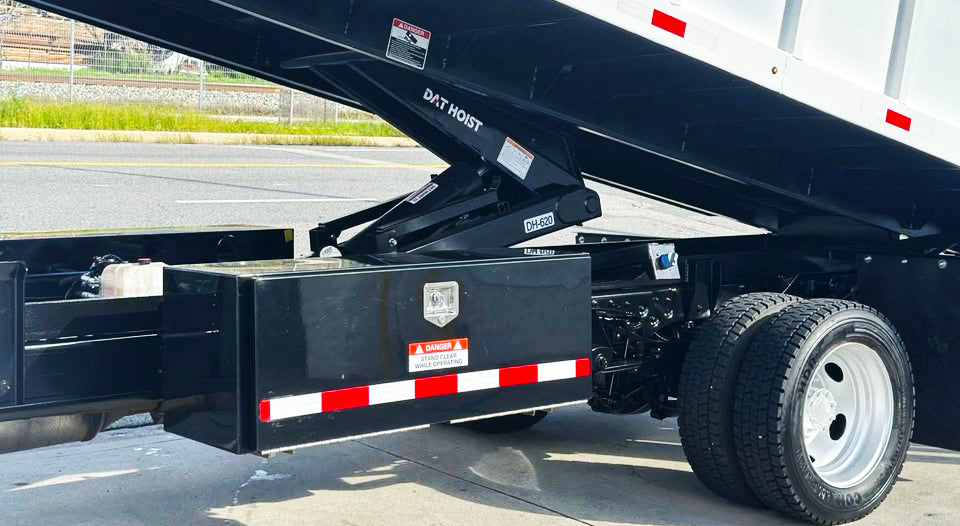

Scissor Hoists use a cross-arm mechanism that folds flat when collapsed, giving them a very low profile. This makes them the go-to choice for landscape bodies, low-profile dump trailers, and any application where underbody clearance is tight. Key advantages of scissor hoists:

• Consistent lifting force throughout the entire stroke — no drop-off at the top of the cycle.
• Collapsed height as low as 5–7 inches, ideal for low-floor trailer builds.
• Side-stable geometry reduces body sway during the dump cycle.
• Available in ratings from 10 tons up to 30+ tons for heavier dump trailer applications.

Telescopic Cylinders (Front-Mount) are the standard choice for steel dump truck bodies and most contractor-grade builds. They mount at the front of the body and push up from below, extending through multiple stages as the body rises. Key advantages:

• Longer stroke capability — easier to achieve 45–50 degree dump angles on longer bodies.
• Lower initial cost compared to equivalent-capacity scissor hoists.
• Simple, proven design with widely available replacement seals and parts.
• Available in 2-, 3-, and 4-stage configurations to match body length and required dump angle.

Underbody Hoists mount below the trailer frame and push up from the center of the body, keeping the entire body structure clean and unobstructed from the sides. They're a popular choice for specialty builds, snow removal bodies, and applications where the body sides need to be fully accessible. They require more precision in mounting but deliver excellent stability under load.

Quick Rule: If underbody clearance is a priority — go scissor. If stroke length and dump angle on a longer body is the primary concern — go telescopic. If you need a completely clean body underside — go underbody hoist.

Tonnage Rating: How to Size Your Hoist Correctly

Every hoist has a rated lifting capacity in tons. This rating must exceed the combined weight of your dump body and its maximum payload — with margin to spare. Undersizing your hoist is one of the most common and most expensive mistakes in dump body fabrication.

• Calculate the body weight (steel or aluminum) plus the maximum payload the body will ever carry.
• Add at least 20% safety margin on top of that combined weight.
• For example: a 1,200 lb steel landscape body carrying a maximum 8,000 lb payload needs a hoist rated for at least 11,000 lb — not a 10,000 lb unit.
• For dump trailers used in aggregate or demolition work, the load is rarely consistent — spec your hoist for the absolute worst-case load, not the average.

Stroke Length and Dump Angle: Getting the Geometry Right

The stroke length of your hoist directly determines the maximum dump angle of your body. This is a geometry calculation based on three measurements: the body length, the hoist mounting position (fore-aft), and the hinge point location at the rear of the body.

• Most dump bodies are designed for a 45–50 degree dump angle — enough to clear wet or sticky material reliably.
• A 14-foot body mounted with the hoist at the standard 40% position requires a specific stroke length to reach 48 degrees — this is different from what a 12-foot or 16-foot body needs at the same angle.
• Always verify your geometry with a dump angle calculation before finalizing your hoist order. The DAT Hoist team can run this calculation for you if you provide your body dimensions and target dump angle.
• Going with a longer stroke than needed wastes hydraulic energy and increases cycle time — don't oversize stroke any more than you oversize tonnage.

Matching the Pump to the Hoist

A hoist is only as good as the pump and power unit driving it. Mismatched pumps are responsible for a significant share of premature hoist failures and slow cycle complaints. Here's what to confirm before you pair a pump to a hoist:

• Pressure (PSI): Your pump must be rated at or above the hoist's maximum operating pressure. Most dump body hoists operate in the 2,000–3,000 PSI range — confirm the hoist spec sheet before selecting a pump.
• Flow rate (GPM): Higher flow means faster cycle times. For most dump trailer applications, 2–4 GPM is standard. Don't undersize flow rate if your customer expects fast lift cycles.
• Power source: 12V DC electric pumps are standard for dump trailers. PTO-driven pumps are more common for truck-mounted bodies. Confirm your power source before ordering — they are not interchangeable.
• Reservoir capacity: The reservoir must hold enough fluid to complete a full lift-and-lower cycle with fluid to spare. For most dump trailer hoist kits, a 5–8 quart reservoir is appropriate.

Subframe and Mounting Hardware

Even a perfectly spec'd hoist will fail prematurely if the subframe and mounting hardware aren't up to the job. The subframe is what transfers the full hoist load into the trailer frame — it needs to be built and welded to match the hoist's rated capacity.

• Use full-perimeter welds on all base plate connections — never rely on tack welds as final welds on a hoist subframe.
• Gusset all four corners of the subframe to the main trailer rails.
• All pivot pins and mounting hardware should be Grade 8 or equivalent — never substitute standard hardware on hoist pivot points.
• Inspect mounting welds at every service interval. Subframe cracks at the rail connection are the most common sign of an underbuilt mounting system.

Ready to Spec Your Hoist?

DAT HOIST carries a full line of scissor hoist kits, telescopic cylinders, underbody hoists, and matched pump units for every dump body application — from light landscape trailers to heavy-duty steel contractor bodies. If you have your body dimensions and payload target, our team will help you confirm the right hoist type, tonnage, stroke, and pump before you order.

Browse our complete hoist kit inventory at dathoist.com or call us directly for a build-specific recommendation.
