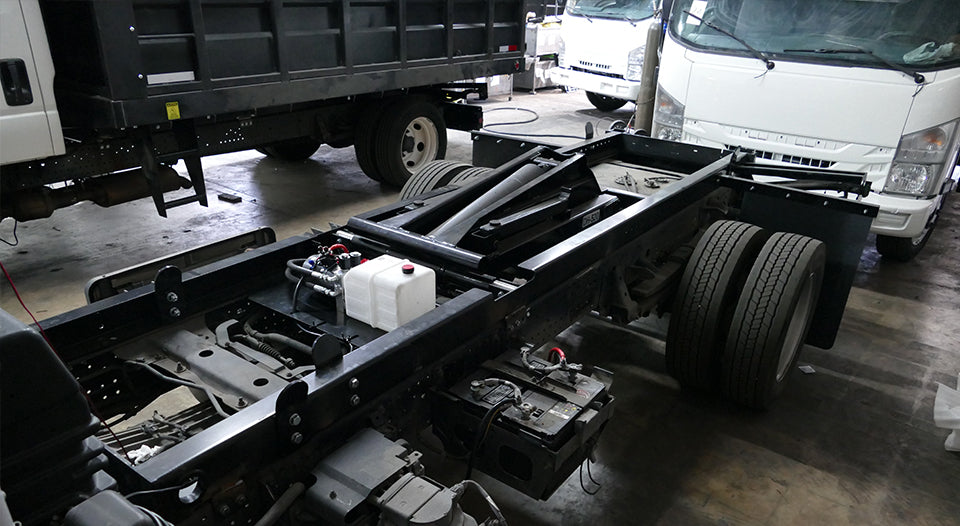

Installing a Scissor Hoist Kit: Step-by-Step for First-Time Builders

A scissor hoist kit installation is well within reach for any experienced fabricator — but the margin for error is smaller than most first-timers expect. The hoist itself is mechanically straightforward. The challenges are in the prep work: subframe alignment, pump placement, hydraulic line routing, and getting the pivot geometry right so the body dumps cleanly at the correct angle.

This step-by-step guide walks through a complete scissor hoist installation on a standard dump trailer or truck body, covering every step where first-time builders typically run into trouble.

Tools and Materials You'll Need

• Scissor hoist kit (cylinder, base plate, and mounting hardware)
• Hydraulic pump and reservoir (matched to hoist tonnage rating)
• Hydraulic hose and fittings (SAE or JIC — match your pump's port spec)
• Steel subframe channel (typically 4" or 6" C-channel)
• Welder (MIG or stick) and angle grinder
• Torque wrench, grade 8 hardware, and thread-locking compound
• Hydraulic fluid (check pump manufacturer's spec — typically AW32 or AW46)
• Safety stands rated for the full trailer weight

Step 1: Build or Verify the Subframe

The subframe is what the hoist base plate mounts to, and it needs to be strong enough to distribute the full hoist load across the trailer frame. On most dump trailer builds, this means a welded C-channel subframe running the full width of the trailer, with gussets at each corner.

• The subframe should sit level — check with a precision level across the full width before welding.
• Gusset all four corners of the subframe to the trailer main rails with full-penetration welds.
• The subframe must be flat within 1/8" across its full surface. Any twist will stress the hoist base plate under load.

Step 2: Position the Hoist Base Plate

Scissor hoists require careful fore-aft positioning to achieve the correct dump angle. The standard rule of thumb is to mount the hoist base plate at approximately 40% of the body length from the front. On a 14-foot body, that's about 5.5 feet from the front of the body.

• Measure from the hinge point at the rear of the body back to the hoist mounting location to confirm your geometry gives you the target dump angle (typically 45–50 degrees).
• Use a dump angle calculator or ask the DAT Hoist team to verify your geometry before welding.
• The base plate must be centered exactly on the trailer's centerline — even a 1/4" offset will cause uneven loading on the scissor arms.

Step 3: Weld the Hoist Base Plate to the Subframe

With the base plate positioned and confirmed level and centered, weld it to the subframe using full-perimeter welds. Do not skip corners or use tack welds as final welds — the hoist base sees full dynamic load on every lift cycle.

• Minimum weld size: 5/16" fillet weld on all four sides of the base plate.
• Allow welds to cool fully before loading the assembly.
• Inspect welds for porosity, undercut, or incomplete fusion before proceeding.

Step 4: Install the Top Mounting Bracket to the Body

The top of the scissor hoist attaches to a mounting bracket welded to the underside of the dump body floor. This bracket must be positioned directly above the base plate, centered on the body's longitudinal centerline.

• The top bracket should be welded to a reinforcing plate on the underside of the body floor — never weld directly to thin floor sheeting without backing.
• Use a plumb bob or laser level to confirm the top bracket is directly above the base plate before welding.

Step 5: Mount the Pump and Route Hydraulic Lines

The hydraulic pump should be mounted in a protected location — typically on the trailer tongue or inside a tool box — where it's accessible for service but protected from road debris and moisture.

• Route hydraulic lines away from heat sources, sharp edges, and moving parts. Use clamps every 18–24 inches.
• Use hydraulic-rated hose only — never substitute regular fuel hose or air line.
• Keep hose runs as short and direct as possible to minimize pressure drop.
• Wrap any hose that passes near the exhaust or hot surfaces with fire-rated sleeving.

Step 6: Fill, Bleed, and Test

Before your first full-load test, fill the reservoir with the correct hydraulic fluid and bleed all air from the system.

1. Fill the reservoir to the full mark with clean AW32 or AW46 hydraulic fluid.
2. With the body empty and all connections tight, cycle the hoist up and down 3–5 times at low speed to purge air from the lines.
3. Check all fittings and connections for leaks after the first 5 cycles.
4. Check fluid level again after bleeding — air purging typically drops the level slightly.
5. Perform a full-load test: raise the body with a rated load and hold for 60 seconds to verify no pressure drop or uncontrolled descent.

Common First-Timer Mistakes to Avoid

• Skipping the subframe gussets — the hoist will eventually crack the subframe at the rail connection under repeated load.
• Using undersized hydraulic hose — check the pump's recommended hose ID before ordering fittings.
• Incorrect hoist positioning — always verify dump angle geometry before final welding.
• Not torquing the pivot pin hardware — loose pivot pins will wear rapidly and can cause the hoist to shift under load.

If you have questions at any point in your scissor hoist installation, the DAT Hoist team is available by phone to walk you through it. We'd rather spend 10 minutes on the phone with you than have you call us with a warranty issue six months later.
