When choosing a hydraulic power system for a dump trailer, dump truck, hydraulic hoist, trailer jack, lift gate, or other mobile equipment, one of the first questions is often:
Should I use a single-acting or double-acting hydraulic pump?
Both systems are widely used, and both can provide reliable hydraulic power when correctly matched to the cylinder and application.
However, they operate differently.
A single-acting hydraulic system typically uses hydraulic pressure to move the cylinder in one direction and relies on gravity, load weight, or a spring to return it.
A double-acting hydraulic system uses hydraulic pressure to move the cylinder in both directions.
That difference affects:
-
Hydraulic plumbing
-
Cylinder design
-
Control
-
Installation
-
Retraction speed
-
Maintenance
-
Cost
-
Application suitability
There is no universal answer that makes one system better for every application.
The correct choice depends on what the hydraulic cylinder needs to do, how much control is required, and how the equipment is expected to operate.
First: What Does “Single-Acting Pump” Actually Mean?
The terms single-acting hydraulic pump and double-acting hydraulic pump are commonly used in the trailer and mobile-hydraulic industry.
Technically, however, the difference involves more than the pump itself.
A hydraulic power unit normally includes:
-
Electric motor
-
Hydraulic pump
-
Reservoir
-
Directional control valve
-
Relief valve
-
Solenoid valves
-
Electrical controls
-
Hydraulic ports
The complete power unit and control circuit are configured to operate either a single-acting cylinder or a double-acting cylinder.
Therefore, when people refer to a:
Single-Acting Hydraulic Pump
they usually mean a hydraulic power unit designed to operate a single-acting hydraulic circuit.
Likewise:
Double-Acting Hydraulic Pump
normally refers to a power unit designed to direct hydraulic pressure to both sides of a double-acting cylinder.
Understanding this distinction is important when matching a replacement pump or designing a new hydraulic system.
What Is a Single-Acting Hydraulic System?
A single-acting hydraulic cylinder normally has one hydraulic working port.
Hydraulic pressure enters the cylinder and moves the piston or ram in one direction.
When hydraulic pressure is released, the cylinder returns using another force.
Depending on the application, that return force may come from:
-
Gravity
-
Weight of the load
-
An internal spring
-
An external mechanical force
Enerpac describes single-acting cylinders as using hydraulic pressure in one direction while relying on a spring or the load itself for return.
For dump trailers, one of the most common configurations is:
Power Up / Gravity Down
The hydraulic power unit pumps oil into the cylinder to raise the dump body.
To lower the body, the hydraulic valve opens the return path and the weight of the dump body pushes the cylinder back while oil flows into the reservoir.
How Does a Single-Acting Hydraulic Pump Work?
A typical 12V single-acting hydraulic power unit operates approximately like this:
Raising
-
The operator presses the UP button.
-
The electric motor drives the hydraulic pump.
-
The pump draws hydraulic oil from the reservoir.
-
Pressurized oil flows through the hydraulic line.
-
Oil enters the cylinder.
-
The cylinder extends.
-
The dump body or equipment rises.
Lowering
-
The operator presses the DOWN button.
-
The hydraulic return valve opens.
-
The electric motor normally does not need to drive the cylinder downward.
-
Gravity or load weight retracts the cylinder.
-
Hydraulic oil flows from the cylinder back into the reservoir.
This configuration is relatively simple and is widely used where gravity can reliably return the load.
DAT HOIST's current 12V Single-Acting Hydraulic Power Unit, for example, is designed around power-up / gravity-down operation for applications such as dump trailers and dump trucks.
What Is a Double-Acting Hydraulic System?
A double-acting hydraulic cylinder normally has two hydraulic ports.
One port supplies pressure to one side of the piston.
The second port supplies pressure to the opposite side.
This allows hydraulic pressure to control cylinder movement in both directions.
In simple terms:
Port A → Cylinder Extends
Port B → Cylinder Retracts
Instead of relying only on gravity or a spring for return movement, the hydraulic system actively moves the cylinder in both directions.
Enerpac notes that double-acting cylinders use hydraulic pressure for both extension and retraction, providing more controlled and predictable return movement.
How Does a Double-Acting Hydraulic Pump Work?
A typical double-acting hydraulic power unit controls hydraulic flow between two cylinder ports.
Extending the Cylinder
-
The operator activates the extend function.
-
The electric motor drives the pump.
-
Pressurized hydraulic oil flows into one side of the cylinder.
-
Oil on the opposite side returns to the reservoir.
-
The cylinder extends.
Retracting the Cylinder
-
The operator activates the retract function.
-
The hydraulic control valve reverses the flow path.
-
Pressurized oil enters the opposite side of the cylinder.
-
Oil from the first side returns to the reservoir.
-
The cylinder retracts under hydraulic power.
This is often described as:
Power Up / Power Down
or, more generally:
Power Extend / Power Retract
DAT HOIST's current 12V Double-Acting 4L Hydraulic Power Unit uses this type of two-way hydraulic operation.
Single-Acting vs. Double-Acting Hydraulic Pump: Quick Comparison
| Factor | Single-Acting | Double-Acting |
|---|---|---|
| Powered Movement | One direction | Both directions |
| Return Method | Gravity, load, or spring | Hydraulic pressure |
| Cylinder Ports | Usually 1 | Usually 2 |
| Hydraulic Lines | Usually 1 working line | Usually 2 working lines |
| Valve Circuit | Simpler | More complex |
| Powered Retraction | No | Yes |
| Lowering / Return Control | Depends on gravity/load and valve | Hydraulic control |
| Plumbing | Simpler | More hydraulic connections |
| Installation | Generally simpler | Generally more involved |
| Typical Dump Trailer Use | Very common | Also widely used |
| Trailer Jacks | Application-dependent | Often advantageous |
| Bidirectional Equipment | Limited | Well suited |
| Cost | Often simpler/lower system cost | Often higher system complexity |
| Best Choice | Depends on application | Depends on application |
This table represents general differences only.
Actual performance depends on the specific power unit, cylinder, valve system, load, hydraulic pressure, and equipment design.
1. Control: The Biggest Difference
The most important practical difference is control of the return stroke.
Single-Acting System
A single-acting system controls hydraulic pressure primarily in one working direction.
For a dump trailer, hydraulic power raises the body.
Gravity then provides the force required to lower it.
This works extremely well when:
-
The load naturally returns in the required direction
-
Gravity is reliable
-
Powered retraction is unnecessary
-
Simplicity is desirable
Double-Acting System
A double-acting system provides hydraulic control in both directions.
The operator does not need to rely entirely on gravity or a return spring.
This can be valuable when:
-
Controlled retraction is important
-
The load must move in either direction
-
Equipment orientation can change
-
Gravity may not provide reliable return force
-
More predictable motion is required
For this reason, double-acting cylinders are commonly selected for applications where controlled hydraulic retraction is important.
2. Hydraulic Plumbing
Another major difference is the number of hydraulic lines required.
Single-Acting
A conventional single-acting cylinder generally requires:
One working hydraulic line
Oil enters the cylinder through the same hydraulic circuit used for pressure release and return.
This simplifies:
-
Hose routing
-
Fittings
-
Installation
-
Troubleshooting
Double-Acting
A double-acting cylinder generally requires:
Two hydraulic lines
One operates one side of the piston.
The second operates the opposite side.
A compatible directional valve controls which side receives pressure.
Enerpac's installation guidance specifies a pump with a three-way type arrangement and one hose for typical single-acting cylinders, while double-acting cylinders require a four-way control arrangement and two hydraulic hoses.
That makes the double-acting system more capable, but it also adds components.
3. Which System Lowers Faster?
There is no universal answer.
Lowering speed depends on several factors, including:
-
Cylinder size
-
Load weight
-
Hydraulic hose diameter
-
Hose length
-
Flow restrictions
-
Control valve
-
Return-port size
-
Hydraulic oil viscosity
-
Power-unit flow rate
Single-Acting
Because gravity provides the return force, lowering speed may change depending on the load.
A heavily loaded mechanism can behave differently from an unloaded one.
Flow-control valves can be used to regulate return speed.
Double-Acting
Because the system actively supplies hydraulic pressure during retraction, return movement can generally be made more predictable.
However, powered retraction is not automatically faster.
The actual speed still depends on pump flow, cylinder area, valve capacity, and circuit design.
Therefore:
Single-acting does not automatically mean slow.
And:
Double-acting does not automatically mean fast.
The complete hydraulic circuit determines actual cycle time.
4. Which System Uses Less Battery Power?
For 12V trailer applications, electrical demand is important.
Hydraulic power units can draw substantial current while the electric motor is operating.
Single-Acting
In a typical power-up / gravity-down dump trailer system, the motor runs primarily during lifting.
During gravity-down operation, the electric motor may not need to perform the hydraulic work of retracting the cylinder.
This can reduce powered motor runtime during a complete up/down cycle.
Double-Acting
A double-acting system uses hydraulic power to move the cylinder in both directions.
That means the electric motor may operate during both extension and retraction.
Depending on the equipment and cycle, this can result in more motor operating time.
However, battery consumption cannot be compared by acting type alone.
It also depends on:
-
Motor size
-
Pump efficiency
-
Hydraulic pressure
-
Cycle time
-
Load
-
Battery capacity
-
Cable size
-
Electrical connections
-
Number of operating cycles
A correctly sized battery and charging system are essential for either configuration.
5. Which System Is Simpler?
In general, a single-acting circuit is mechanically and hydraulically simpler.
It typically requires fewer:
-
Hydraulic hoses
-
Working ports
-
Directional flow paths
-
Fittings
This can make installation and troubleshooting easier.
A double-acting system adds a second hydraulic circuit to the cylinder and requires directional control for both sides.
However, “simpler” does not necessarily mean “better.”
The additional components in a double-acting system provide additional control.
The correct design should be based on what the equipment needs to do.
6. Reliability and Maintenance
Both systems can provide long service life when correctly designed and maintained.
Single-Acting Maintenance
Typical inspection points include:
-
Hydraulic hose
-
Fittings
-
Cylinder seals
-
Hydraulic oil
-
Reservoir
-
Electrical connections
-
Solenoids
-
Pump motor
-
Return valve
Because there are fewer working hydraulic lines, there may be fewer external hydraulic connections to inspect.
Double-Acting Maintenance
Double-acting systems require similar maintenance but include additional hydraulic components.
Inspection should include:
-
Both hydraulic hoses
-
Both cylinder ports
-
Directional valve operation
-
Fittings
-
Cylinder seals
-
Hydraulic power unit
-
Electrical system
The additional hose and fittings do not make the system unreliable, but they create additional connection points that should be inspected.
For either design, proper hose routing is important.
Hydraulic hoses should be protected from:
-
Abrasion
-
Sharp edges
-
Excessive heat
-
Pinching
-
Kinking
-
Moving suspension components
7. Single-Acting Systems for Dump Trailers
Single-acting hydraulic power units are extremely common on dump trailers.
The reason is simple:
A dump trailer already has a large natural return force.
When the dump body is raised, gravity wants to bring it back down.
Therefore, it often makes sense to use:
Hydraulic Power → Raise
and
Gravity → Lower
Advantages can include:
-
Simple hydraulic circuit
-
Fewer hoses
-
Straightforward installation
-
Proven dump-trailer configuration
-
Reduced need for powered retraction
For standard dump-trailer applications where reliable gravity-down operation is available, single-acting can be an efficient solution.
8. Double-Acting Systems for Dump Trailers
Double-acting systems are also used on dump trailers and hydraulic scissor-hoist applications.
They may be preferred when the system requires more positive hydraulic control over cylinder movement.
DAT HOIST, for example, currently pairs double-acting power units with several hydraulic products and kits, including its 3536 10 Ton Cylinder Complete Kit and compatible subframe/hoist systems.
Potential reasons to use a double-acting configuration include:
-
Powered cylinder retraction
-
More controlled movement
-
Specific hoist design requirements
-
Hydraulic operation in both directions
-
Applications where gravity return alone is not ideal
The power unit must always be matched to the cylinder and hydraulic circuit specified for the equipment.
9. Hydraulic Trailer Jacks
Trailer jacks are a good example of an application where double-acting hydraulics can provide an important functional advantage.
A hydraulic jack may need to:
-
Extend under hydraulic power
-
Retract completely
-
Operate predictably without relying only on gravity
-
Work under different trailer positions
For this reason, many hydraulic trailer-jack systems use double-acting cylinders.
DAT HOIST's current 12,000 lb Bolt-On Hydraulic Trailer Jack Kit uses a 1.6KW 4L double-acting hydraulic power unit with two hydraulic hoses, allowing powered cylinder movement in both directions.
10. Reservoir Size: Does Single or Double Acting Require More Oil?
Reservoir capacity should not be selected simply according to whether the system is single acting or double acting.
The correct oil capacity depends on:
-
Cylinder bore
-
Rod diameter
-
Stroke
-
Number of cylinders
-
Hose volume
-
Cylinder orientation
-
Required reserve oil
-
System cooling requirements
The power unit reservoir must contain enough usable hydraulic oil to operate the cylinder through its required stroke without starving the pump or overfilling the reservoir during return.
This becomes especially important with:
-
Long-stroke cylinders
-
Large-bore cylinders
-
Multiple cylinders
-
Hydraulic jacks
-
Large dump-hoist systems
Always calculate the required oil displacement before selecting a hydraulic power unit.
11. Pressure and Lifting Force
Single acting versus double acting does not determine the lifting capacity by itself.
Cylinder force primarily depends on:
Hydraulic Pressure × Effective Piston Area
For extension, theoretical cylinder force can be approximated as:
Force = Pressure × Piston Area
For double-acting cylinder retraction, the rod occupies part of the piston area.
Therefore, the effective retract area is smaller:
Retract Area = Piston Area − Rod Area
This means a typical double-acting cylinder produces less theoretical force during retraction than during extension at the same hydraulic pressure.
However, many applications do not require equal force in both directions.
The system should therefore be sized according to the actual load requirements in each direction.
12. Do You Need Power Down?
This is often the simplest question to ask when choosing between systems.
Ask:
Does the cylinder need hydraulic force to return?
If the answer is no, a single-acting system may be sufficient.
If gravity or spring return can reliably complete the return stroke, there may be no reason to add a powered return circuit.
If the answer is yes, a double-acting system is usually the appropriate starting point.
Applications that often benefit from power return include:
-
Hydraulic trailer jacks
-
Hydraulic positioning systems
-
Some scissor hoists
-
Snow-plow functions
-
Lift gates
-
Industrial equipment
-
Equipment requiring controlled bidirectional movement
13. Which System Costs More?
A double-acting hydraulic system can involve more components:
-
Two hydraulic lines
-
Additional fittings
-
More complex directional control
-
Double-acting cylinder design
Therefore, total installation cost may be higher in some applications.
However, purchase price alone should not determine system selection.
You should also consider:
-
Installation labor
-
Equipment productivity
-
Required control
-
Serviceability
-
Replacement parts
-
Downtime
-
Operating environment
If powered retraction is necessary, choosing a less expensive single-acting system simply because it has fewer components would not be a practical engineering decision.
14. Which System Is More Efficient?
The answer depends on the application.
Single-Acting Can Be Efficient When:
Gravity is already available to perform the return stroke.
Using hydraulic power only when it is needed can create a simple and effective system.
A dump trailer is a good example.
Double-Acting Can Be Efficient When:
Both directions require controlled movement.
Instead of designing additional springs, mechanical return mechanisms, or relying on uncertain gravity return, hydraulic pressure performs both functions.
Therefore, efficiency should not be judged only by:
-
Number of hoses
-
Reservoir size
-
Pump type
The correct question is:
Which system accomplishes the required movement with the least unnecessary complexity?

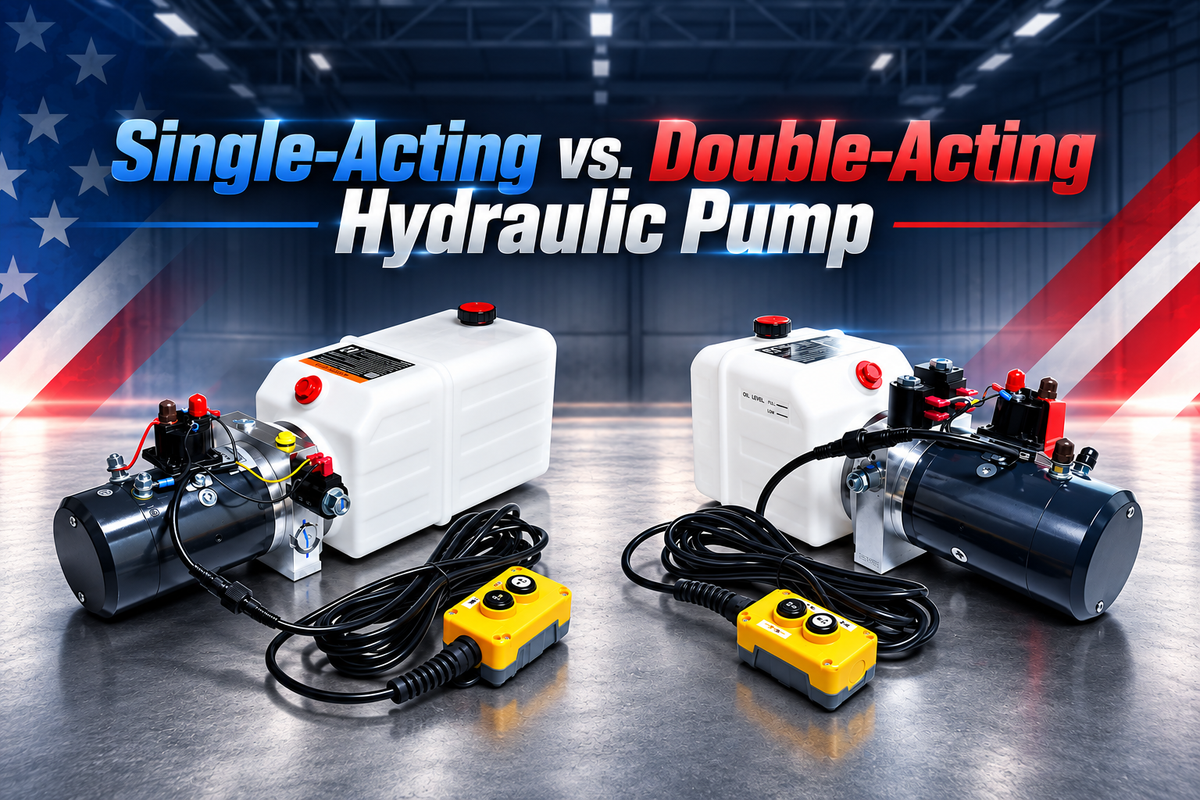

Single-Acting vs. Double-Acting Hydraulic Pump: Which One Should You Choose?
Choose Single Acting When:
A single-acting system is often a good choice when:
-
Hydraulic force is only required in one direction
-
Gravity can reliably return the load
-
A spring provides the return force
-
Power-down operation is unnecessary
-
Simple plumbing is preferred
-
The equipment was designed for a single-acting cylinder
Typical applications may include:
-
Dump trailers
-
Certain dump trucks
-
Lift equipment
-
Gravity-return hydraulic systems
Choose Double Acting When:
A double-acting system is often a better choice when:
-
Hydraulic force is required in both directions
-
Powered cylinder retraction is necessary
-
Controlled return movement is important
-
Gravity cannot provide reliable return force
-
Equipment position may change
-
The equipment was designed around a double-acting cylinder
Typical applications may include:
-
Hydraulic trailer jacks
-
Hydraulic scissor hoists
-
Snow plows
-
Lift gates
-
Positioning equipment
-
Industrial hydraulic systems
-
Certain dump-trailer and dump-truck systems
Five Questions to Ask Before Buying a Hydraulic Power Unit
Before selecting a hydraulic pump or power unit, answer these five questions:
1. Is My Cylinder Single Acting or Double Acting?
This should normally be determined first.
Do not assume that any hydraulic pump can operate any hydraulic cylinder.
2. How Much Oil Does the Cylinder Require?
Calculate cylinder displacement based on:
-
Bore
-
Rod diameter
-
Stroke
Then make sure the reservoir provides sufficient usable oil capacity.
3. What Hydraulic Pressure Is Required?
The power unit pressure must match the requirements and safe working limits of the cylinder and hydraulic system.
Higher pressure is not automatically better.
4. What Flow Rate Do I Need?
Flow affects cylinder speed.
Too little flow can make the system unnecessarily slow.
Excessive flow may create undesirable speed, heat, pressure loss, or control problems.
5. Does the Application Need Powered Return?
If the answer is yes, a double-acting system is usually required.
If gravity or spring return performs the job reliably, a single-acting system may be simpler.
Frequently Asked Questions
Is a double-acting hydraulic pump stronger than a single-acting pump?
Not necessarily.
Acting type describes how hydraulic power controls cylinder movement, not the maximum lifting force.
Lifting force depends primarily on:
-
Hydraulic pressure
-
Cylinder area
-
System design
A single-acting system can produce very high lifting force.
A double-acting system simply provides hydraulic control in both directions.
Can I use a double-acting pump on a single-acting cylinder?
A hydraulic system should be configured according to the cylinder and valve requirements specified by the equipment manufacturer.
Although hydraulic circuits can sometimes be modified, a double-acting power unit should not simply be connected to a single-acting cylinder without understanding the valve arrangement, return path, pressure settings, and port configuration.
Use a power unit designed or correctly configured for the intended cylinder.
Can I use a single-acting pump on a double-acting cylinder?
A conventional single-acting power unit does not provide the normal two-way hydraulic control required by a double-acting cylinder.
A double-acting cylinder typically requires pressure and return flow to be correctly managed at both ports.
Therefore, a compatible double-acting hydraulic circuit should generally be used.
What is power up / gravity down?
Power up / gravity down means:
Hydraulic pressure raises the load.
When lowering is commanded, the hydraulic return path opens and gravity pushes the cylinder back.
This configuration is commonly used on dump trailers.
What is power up / power down?
Power up / power down means:
Hydraulic pressure is used to move the cylinder in both directions.
This is a common operating description for double-acting hydraulic systems used in mobile equipment.
Is single acting better for a dump trailer?
For many traditional dump trailers, single-acting power-up / gravity-down systems are simple and effective.
However, some dump trailers and hydraulic scissor-hoist designs use double-acting cylinders.
The correct choice depends on the equipment design rather than the fact that it is a dump trailer.
Is double acting better for a hydraulic trailer jack?
Double-acting operation is often advantageous for hydraulic trailer jacks because hydraulic pressure can both extend and retract the jack.
This provides more positive control than relying entirely on gravity for retraction.
Safety Considerations
Regardless of whether the hydraulic system is single acting or double acting:
-
Never exceed the rated working pressure of the cylinder or hydraulic components.
-
Use hoses and fittings rated for the system pressure.
-
Keep hydraulic hoses protected from abrasion and heat.
-
Inspect the system regularly for leaks or damage.
-
Do not use your hands to search for high-pressure hydraulic leaks.
-
Make sure all hydraulic connections are secure before operating the equipment.
-
Do not modify pressure-relief settings without proper engineering information.
-
Never work beneath a raised dump body supported only by hydraulic pressure.
A raised dump body should be mechanically supported with an appropriate body-prop or approved support system before service work is performed underneath it.
Hydraulics should perform the lifting function—not serve as the sole safety support for personnel.
Conclusion
Both single-acting and double-acting hydraulic power units are proven solutions.
The fundamental difference is simple:
Single Acting
Hydraulic power in one direction.
Gravity, load, or spring return in the other direction.
Double Acting
Hydraulic power in both directions.
Single-acting systems are often ideal when gravity can reliably provide the return force, making them a simple and practical choice for many dump-trailer applications.
Double-acting systems are often preferred when controlled powered movement is required in both directions, such as hydraulic trailer jacks, certain hydraulic hoists, and equipment requiring positive cylinder retraction.
Neither system is automatically better.
The correct hydraulic power unit should be selected based on:
-
Cylinder type
-
Cylinder displacement
-
Required pressure
-
Required flow
-
Load
-
Duty cycle
-
Available electrical power
-
Reservoir capacity
-
Operating environment
-
Required control
The most important rule is:
Match the hydraulic power unit to the cylinder and the application—not simply to the advertised pressure or motor size.
DAT HOIST offers both single-acting and double-acting 12V hydraulic power units for compatible dump trailer, dump truck, hydraulic hoist, trailer jack, and mobile-equipment applications.
