10 Ton Heavy-Duty MAX Hydraulic Scissor Hoist for 12–16' Dump Body | DH-520HD MAX
Product Overview
The DH-520HD MAX Scissor Hoist is a 10 ton heavy-duty MAX hydraulic scissor hoist assembly engineered with additional structural reinforcement beyond the standard HD design for demanding commercial applications. Designed for 12–16 ft dump beds, the HD MAX version delivers superior lifting strength, enhanced rigidity, and long-term durability under heavy loads and frequent use.
Manufactured by DAT HOIST from reinforced structural steel and strengthened at critical load-bearing points, the DH-520HD MAX is ideal for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month warranty.
Key Features
-
10 Ton Lifting Capacity – Confidently handles heavy commercial loads
-
HD MAX Reinforced Design – Enhanced reinforcement beyond standard HD for maximum strength and stability
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Minimizes flexing under load and extends service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied hydraulic systems
Recommended Applications
The DH-520HD MAX hydraulic scissor hoist is commonly used for:
-
Heavy-duty dump trailers carrying high payloads
-
Contractor and commercial dump bodies
-
Utility and municipal dump applications
-
Equipment rebuilds and structural upgrades
-
Custom hydraulic system installations
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist (HD MAX Reinforced) |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

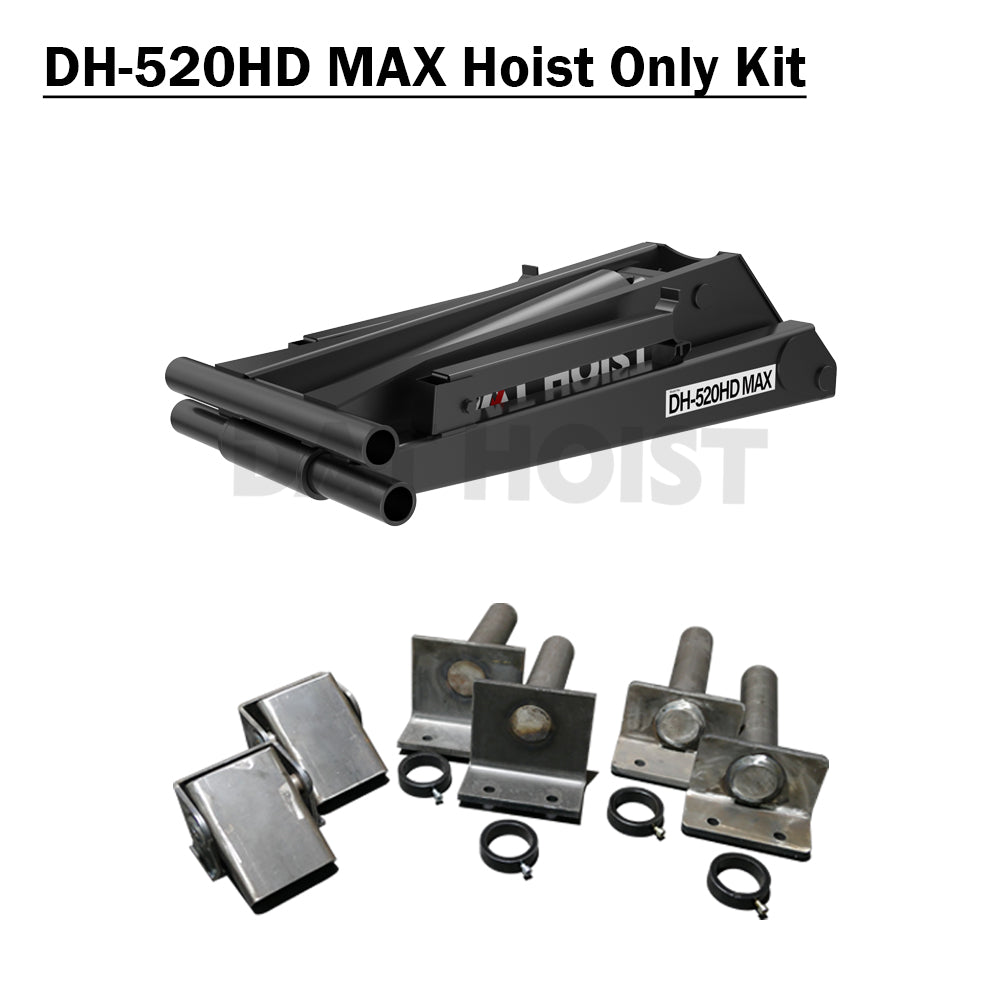

What’s Included in the DH-520HD MAX Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-520HD MAX | Frame | 1 |
| CY-520MAX | Cylinder | 1 |
| DH-G1-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |
| DH-G1-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |
| DH-G1-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-520HD MAX hydraulic scissor hoist is designed for installation on 12–16 ft dump beds and must be paired with a compatible external hydraulic power unit. It can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets required flow and pressure specifications. Professional installation is recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-520HD MAX include a hydraulic power unit?
A: No. The DH-520HD MAX Scissor Hoist includes the hoist assembly and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between DH-520HD and DH-520HD MAX?
A: The HD MAX version features additional structural reinforcement beyond the standard HD model, providing greater rigidity and durability for heavier and more demanding applications.
Q: Is this hoist suitable for dump trailers?
A: Yes. It is ideal for dump trailers and dump bodies requiring maximum strength within a 10-ton capacity range.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-520HD MAX Scissor Hoist is built for operators who need maximum structural strength without a bundled power unit, backed by proven engineering and a 24-month warranty.
