10 Ton Heavy-Duty Hydraulic Scissor Hoist for 12–16' Dump Body | DH-520HD
Product Overview

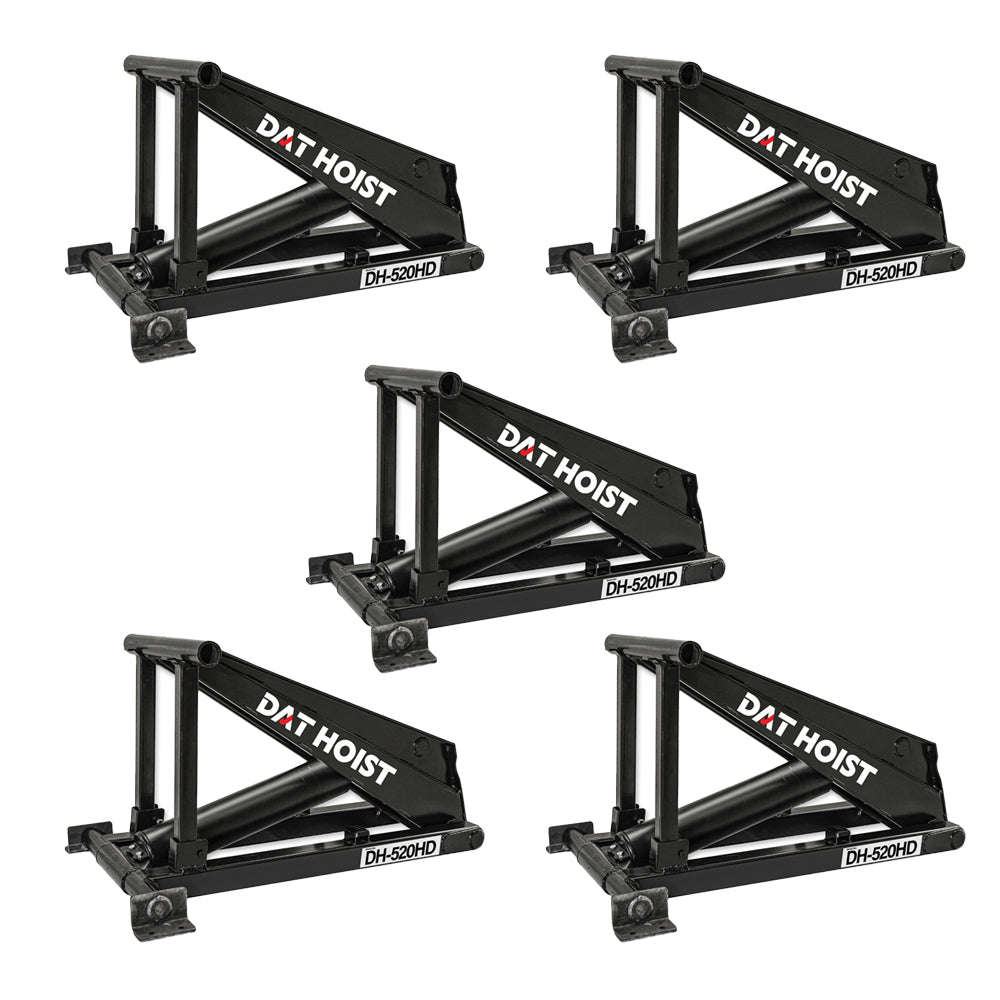

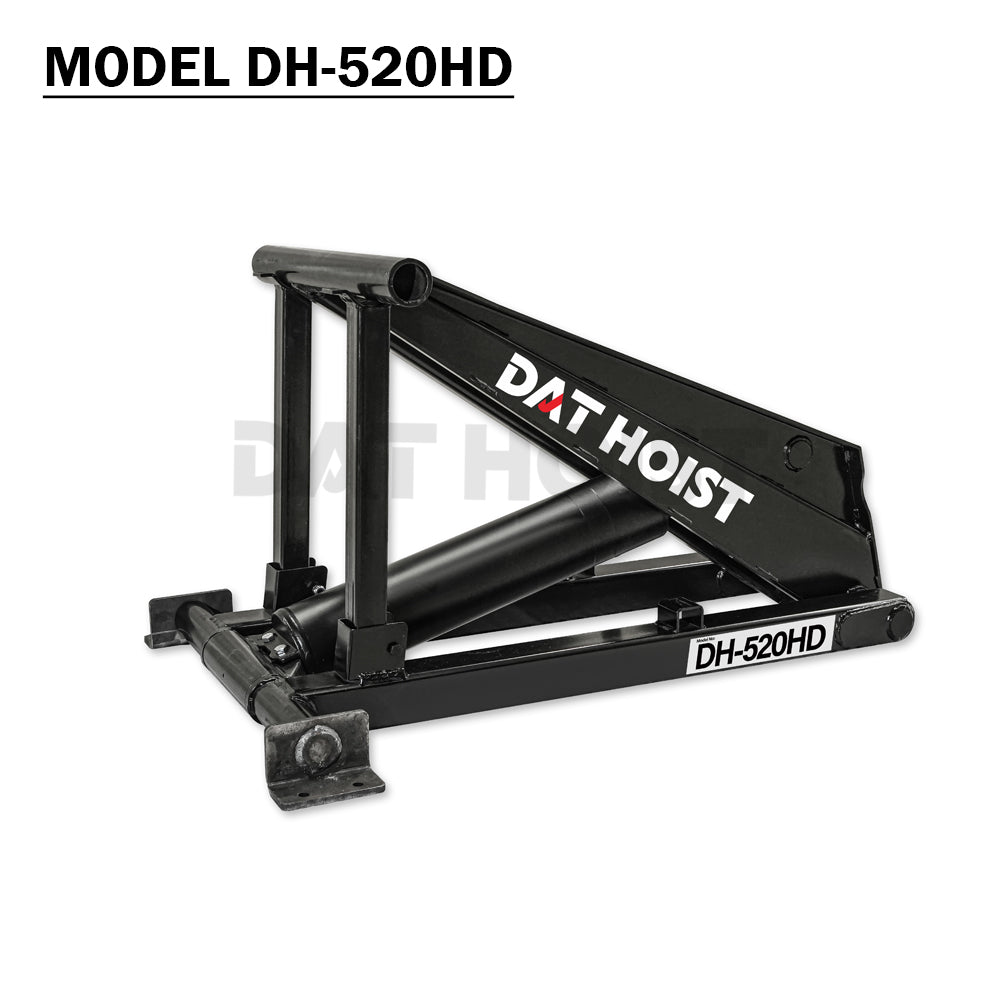

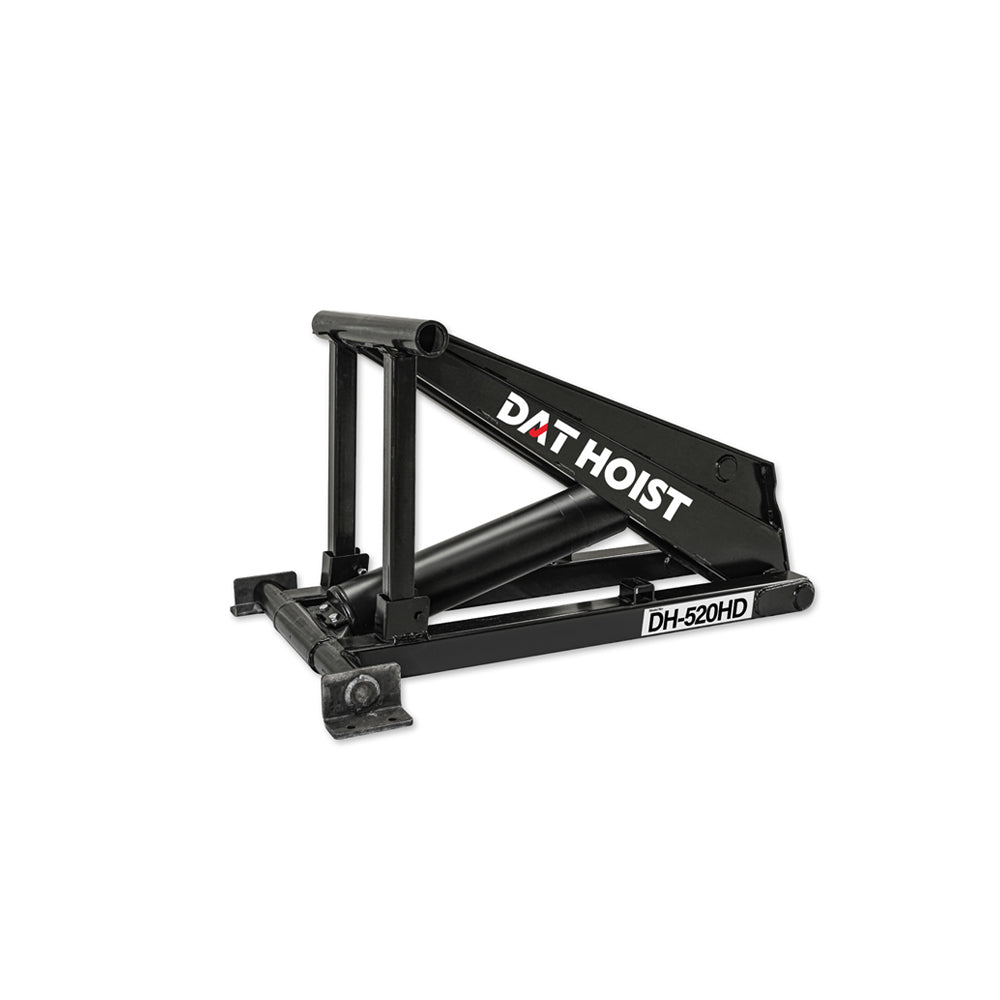

The DH-520HD Scissor Hoist is an upgraded 10 ton heavy-duty hydraulic scissor hoist assembly, engineered with enhanced structural reinforcements and refined design details for demanding commercial applications. While maintaining the proven DH-520HD platform, this latest version delivers improved load stability, reduced flex, and smoother lifting performance, even under heavier payloads and frequent, high-cycle use.
Built by DAT HOIST from reinforced structural steel and strengthened at multiple critical load-bearing and pivot points, the upgraded DH-520HD is ideal for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month manufacturer warranty, ensuring long-term durability and dependable performance in real-world working conditions.
Key Features
-
10 Ton Lifting Capacity – Confidently handles heavy commercial loads
-

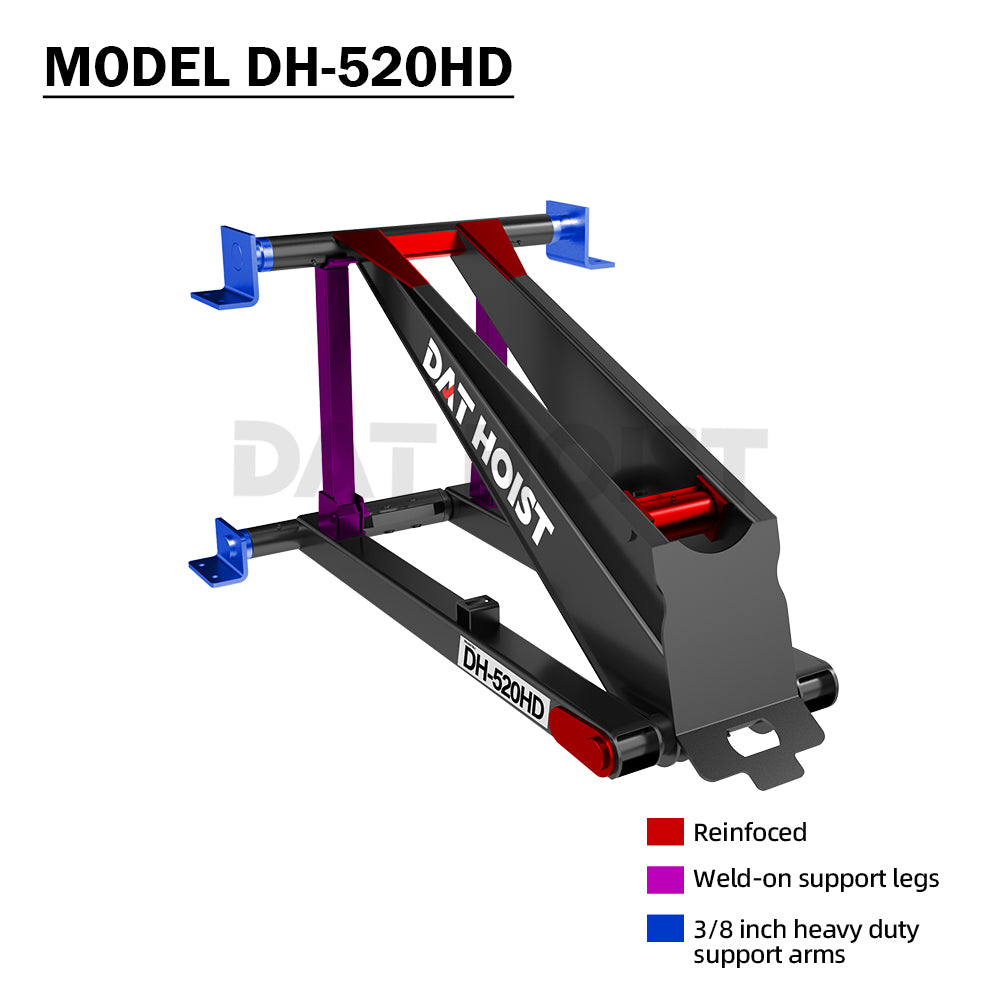

HD Reinforced Design – Added reinforcement at critical stress points for increased strength and longevity
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Minimizes flexing under load and extends service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied hydraulic systems
Recommended Applications
The DH-520HD hydraulic scissor hoist is commonly used for:
-
Dump trailers carrying heavier payloads
-
Contractor and commercial dump bodies
-
Utility and landscape dump trailers
-
Equipment rebuilds and structural upgrades
-
Custom hydraulic system installations
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist (HD Reinforced) |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

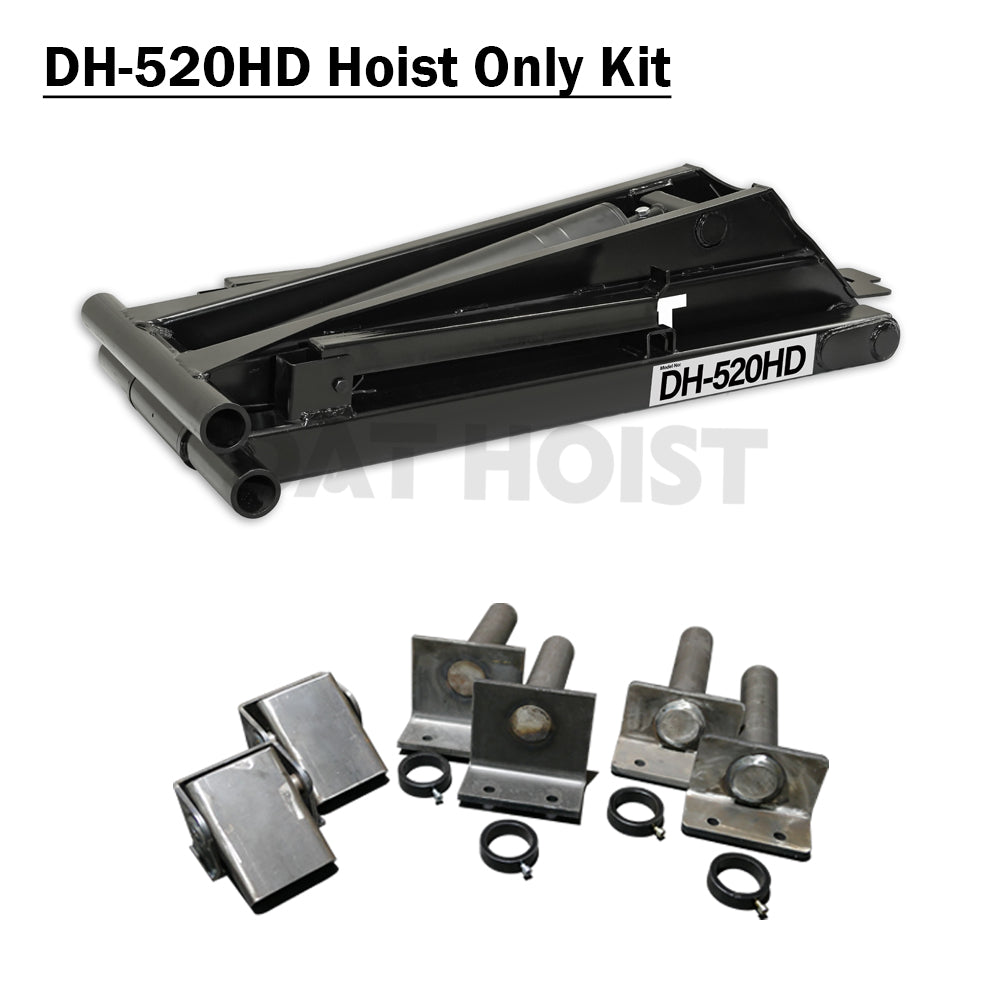

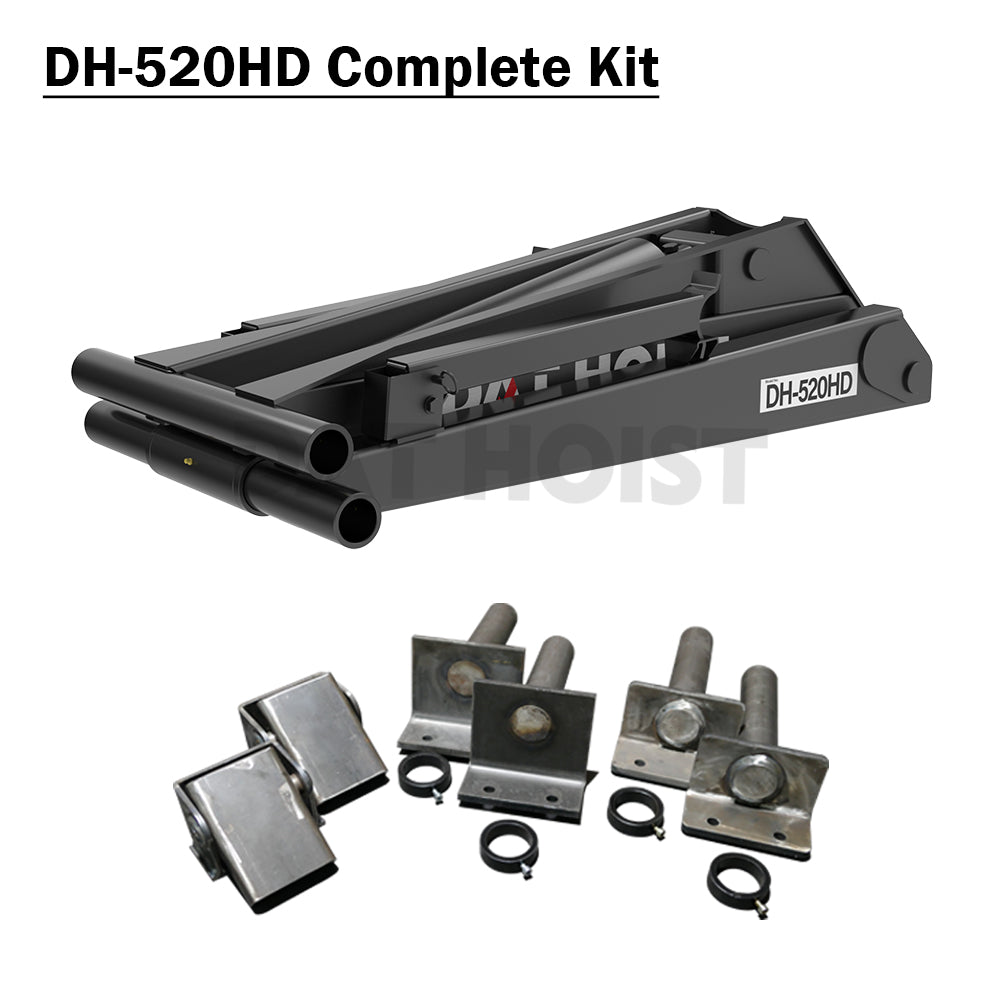

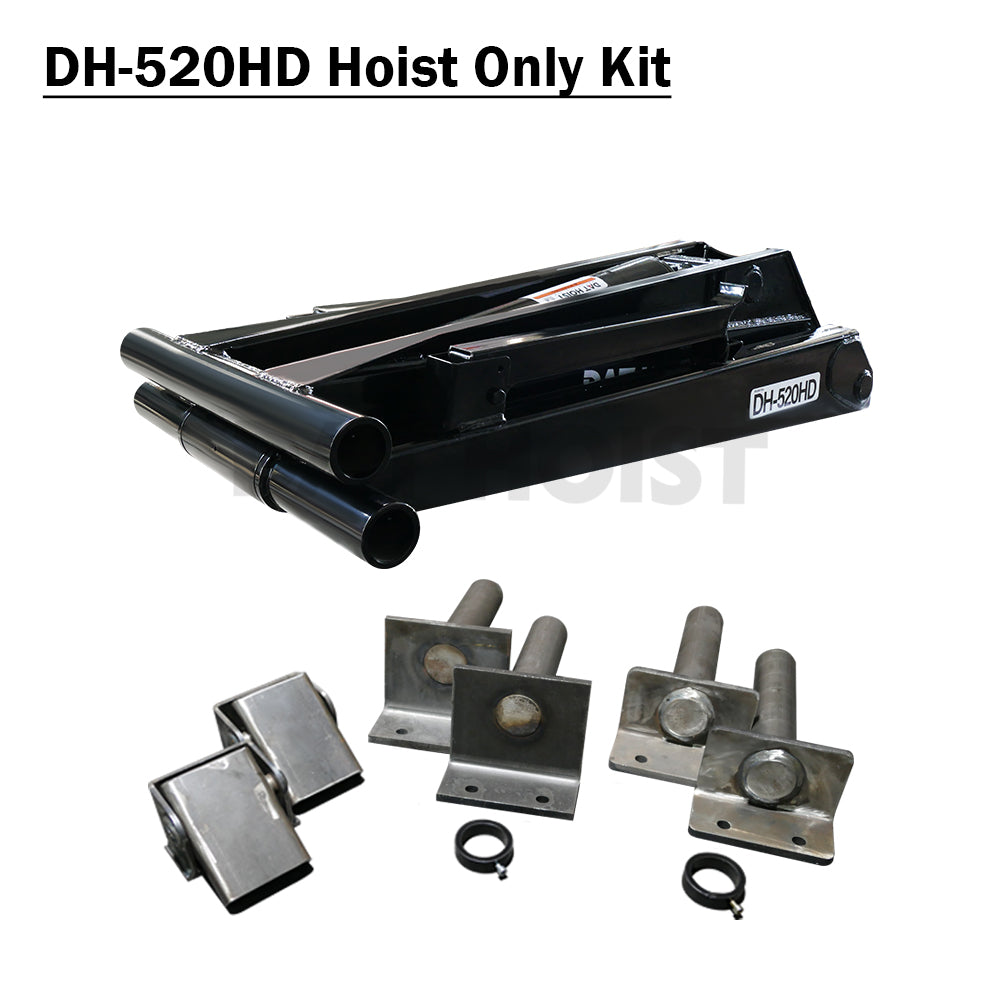

What’s Included in the DH-520HD Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-520HD | Frame | 1 |

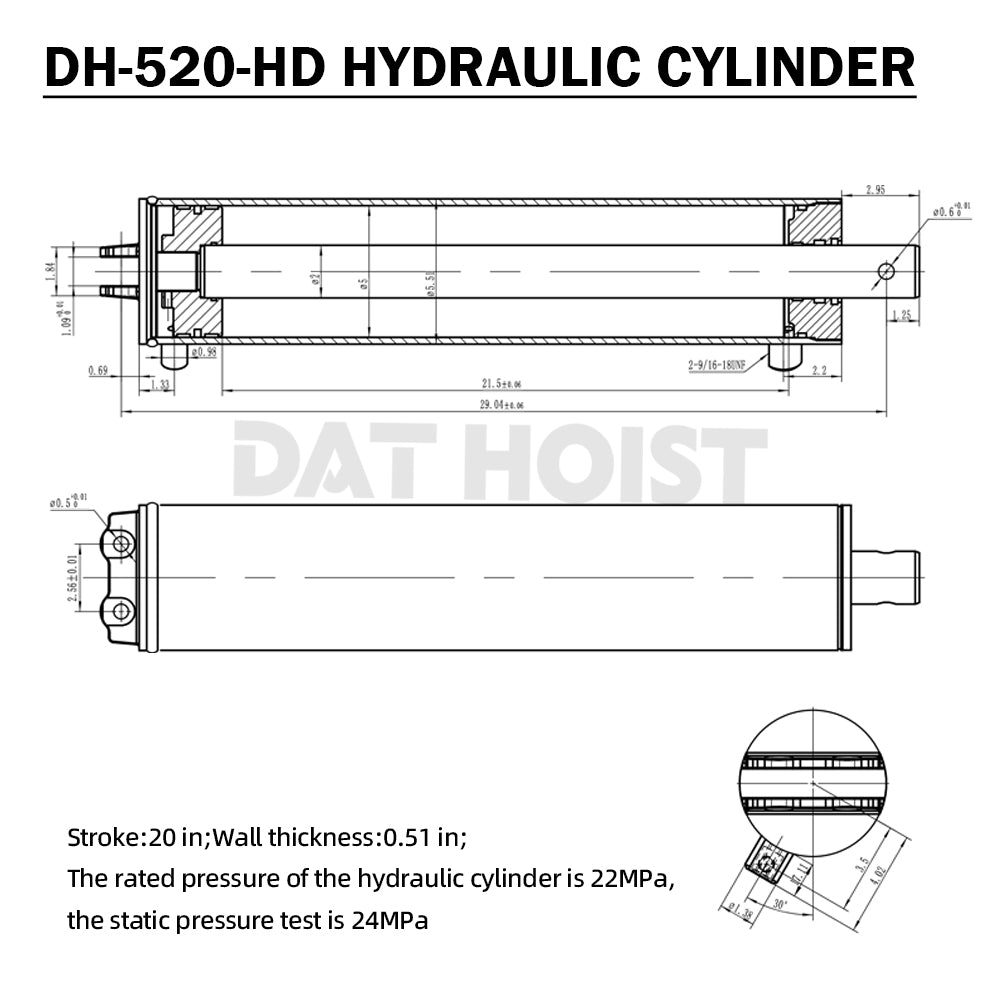

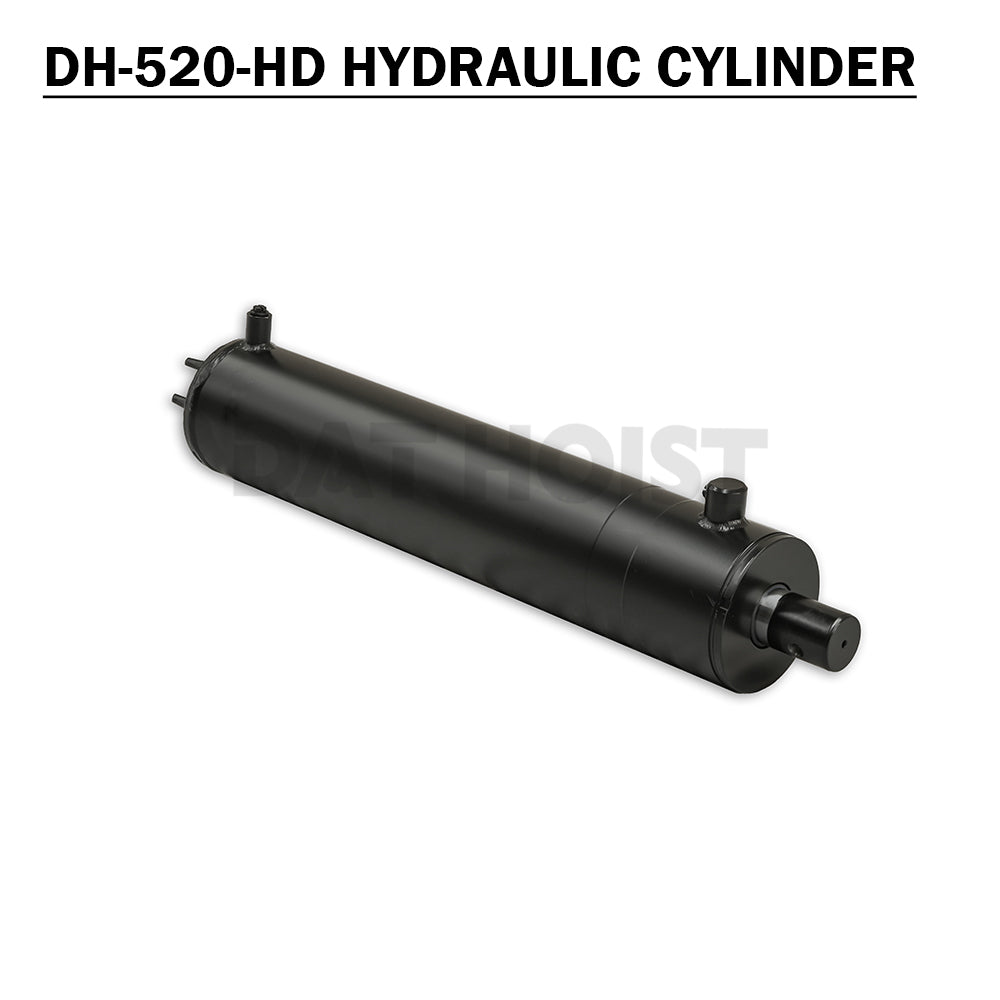

| CY-520 | Cylinder | 1 |
| DH-G1-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |

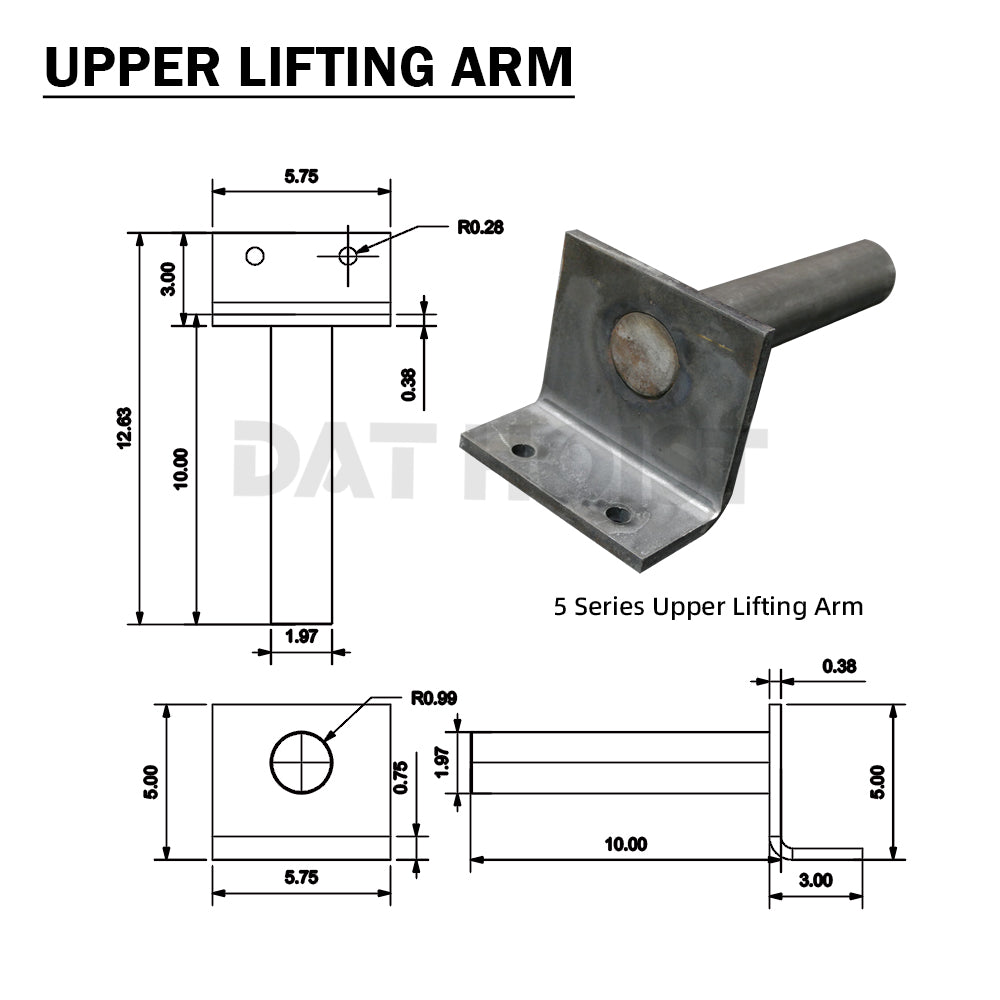

| DH-G1-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |

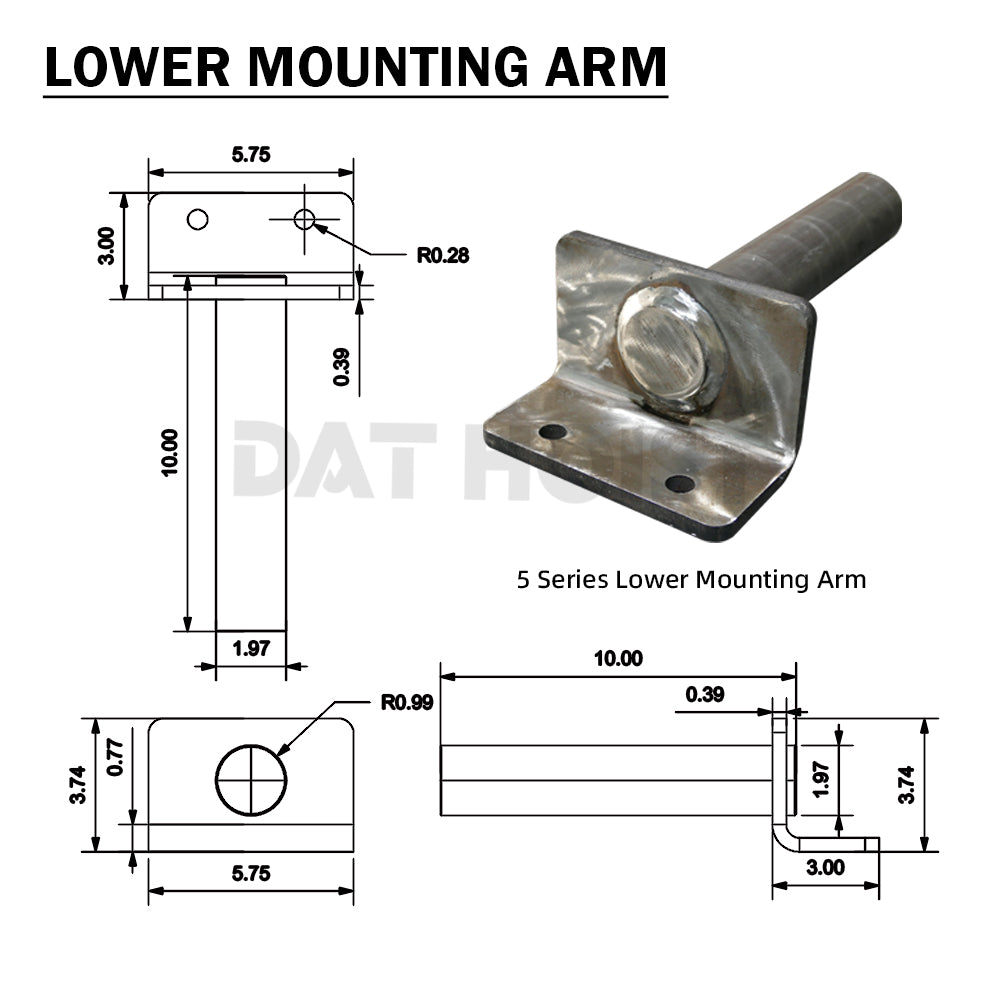

| DH-G1-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |

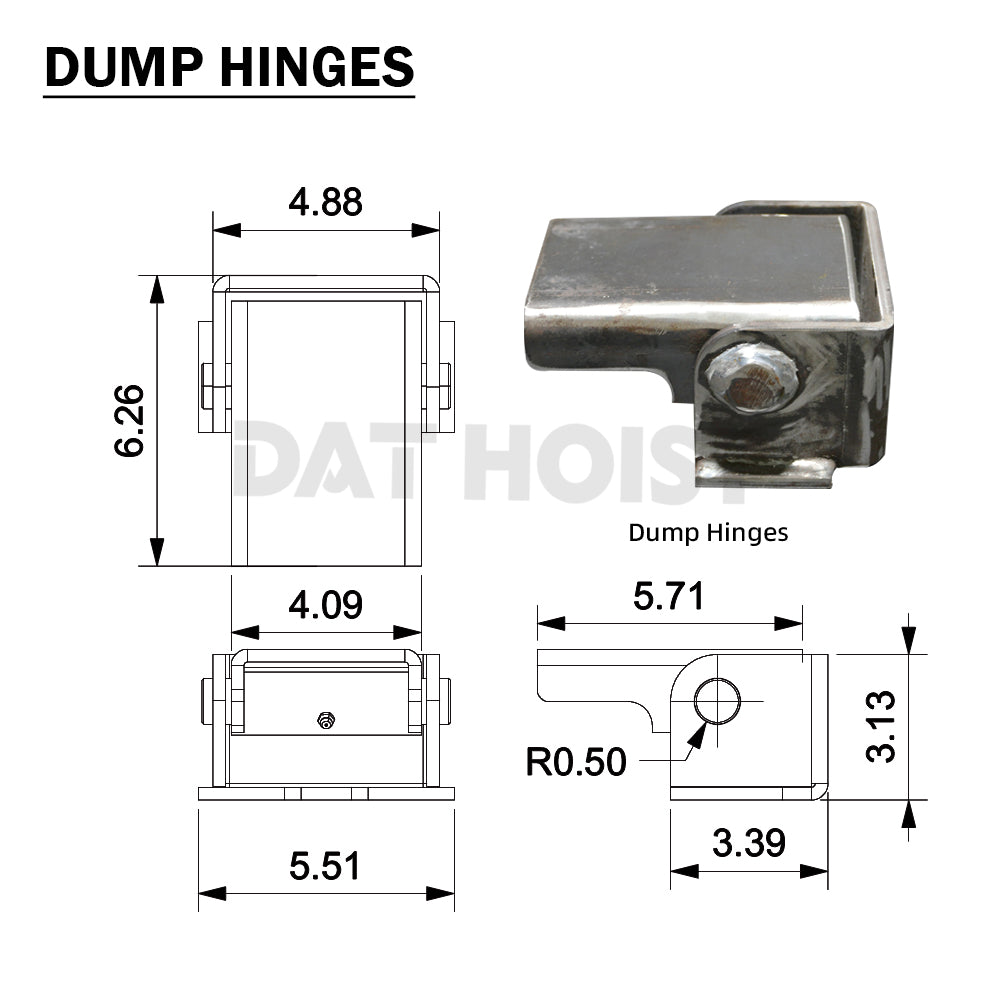

| H-500 | Five Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-520HD hydraulic scissor hoist is designed for installation on 12–16 ft dump beds and must be paired with a compatible external hydraulic power unit. It can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets required flow and pressure specifications. Professional installation is recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-520HD include a hydraulic power unit?
A: No. The DH-520HD Scissor Hoist includes the hoist assembly and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between DH-520 and DH-520HD?
A: The DH-520HD features additional structural reinforcement, providing greater durability and strength compared to the standard DH-520.
Q: What size dump bed is this hoist designed for?
A: The DH-520HD is designed for 12–16 ft dump beds.
Q: Is this hoist suitable for dump trailers?
A: Yes. It is ideal for dump trailers and dump bodies that require added strength and durability.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-520HD Scissor Hoist is built for operators who need extra strength without a bundled power unit, backed by proven engineering and a 24-month warranty.
