10 Ton Hydraulic Scissor Hoist for 12–16' Dump Body | DH-520
Product Overview
The DH-520 Scissor Hoist is a 10 ton hydraulic scissor hoist assembly designed for 12–16 ft dump beds, delivering reliable lifting performance, smooth operation, and long-term durability. Engineered by DAT HOIST, this heavy-duty hoist is ideal for dump trailers and dump bodies that require dependable lifting power without a bundled hydraulic power unit.
Constructed from heavy-duty structural steel and reinforced at critical stress points, the DH-520 is designed for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month warranty.
Key Features
-
10 Ton Lifting Capacity – Handles heavy loads with confidence for commercial applications
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Strengthened at critical load areas to reduce flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for existing or customer-supplied hydraulic systems
Recommended Applications
This hydraulic scissor hoist is commonly used for:
-
Dump trailers
-
Contractor and commercial dump bodies
-
Utility and landscape dump trailers
-
Equipment replacements and rebuilds
-
Custom hydraulic system installations

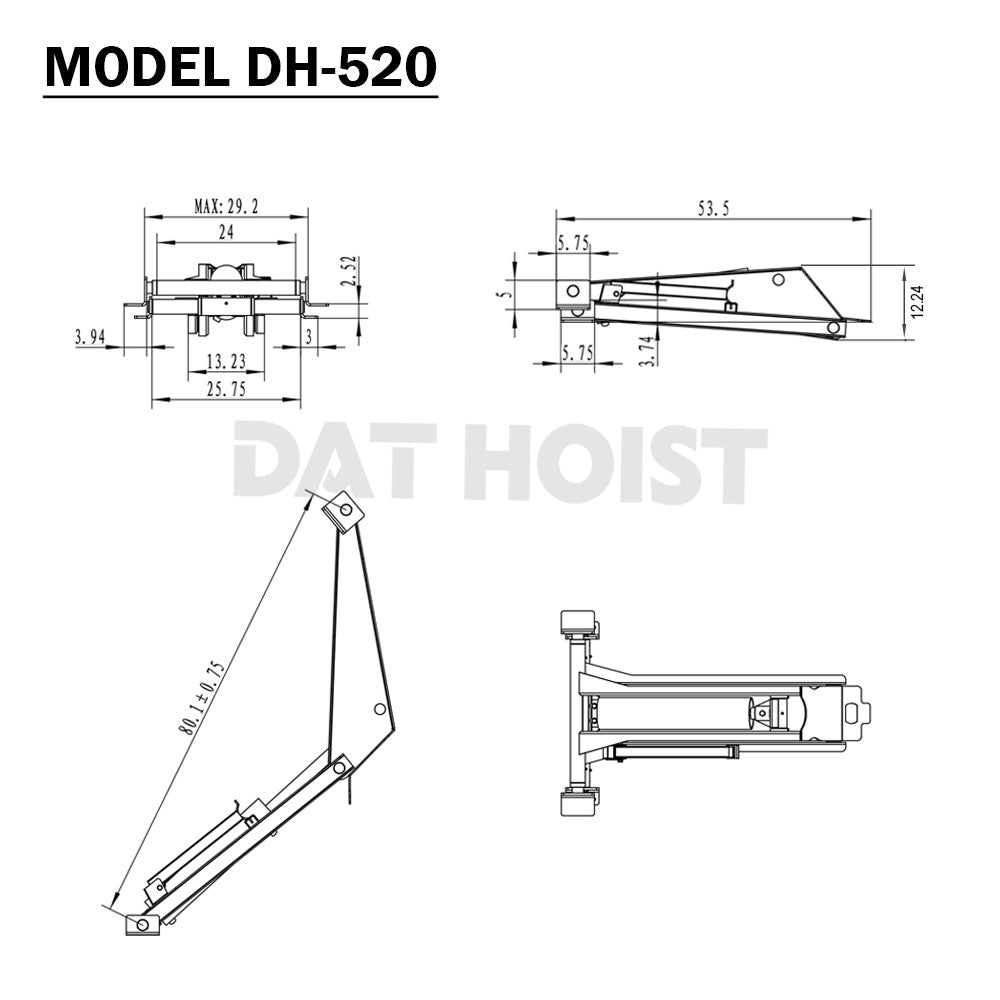

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

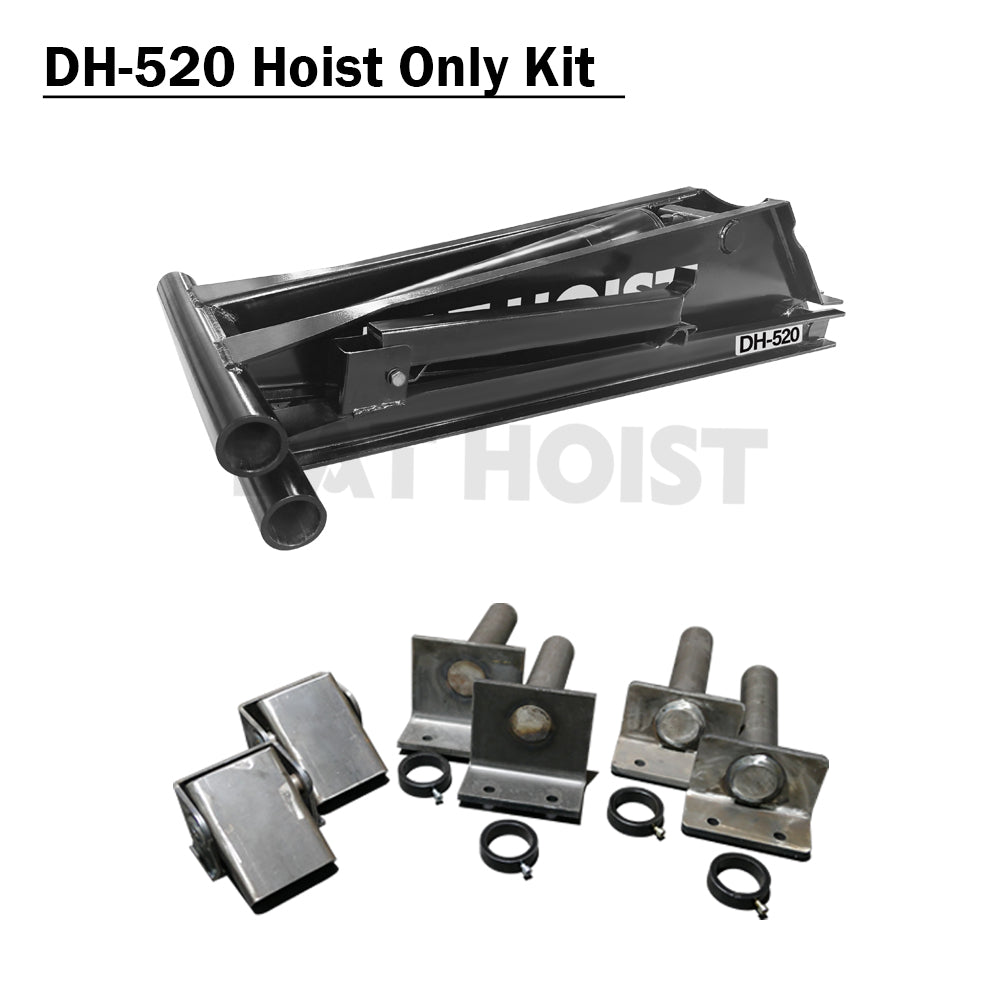

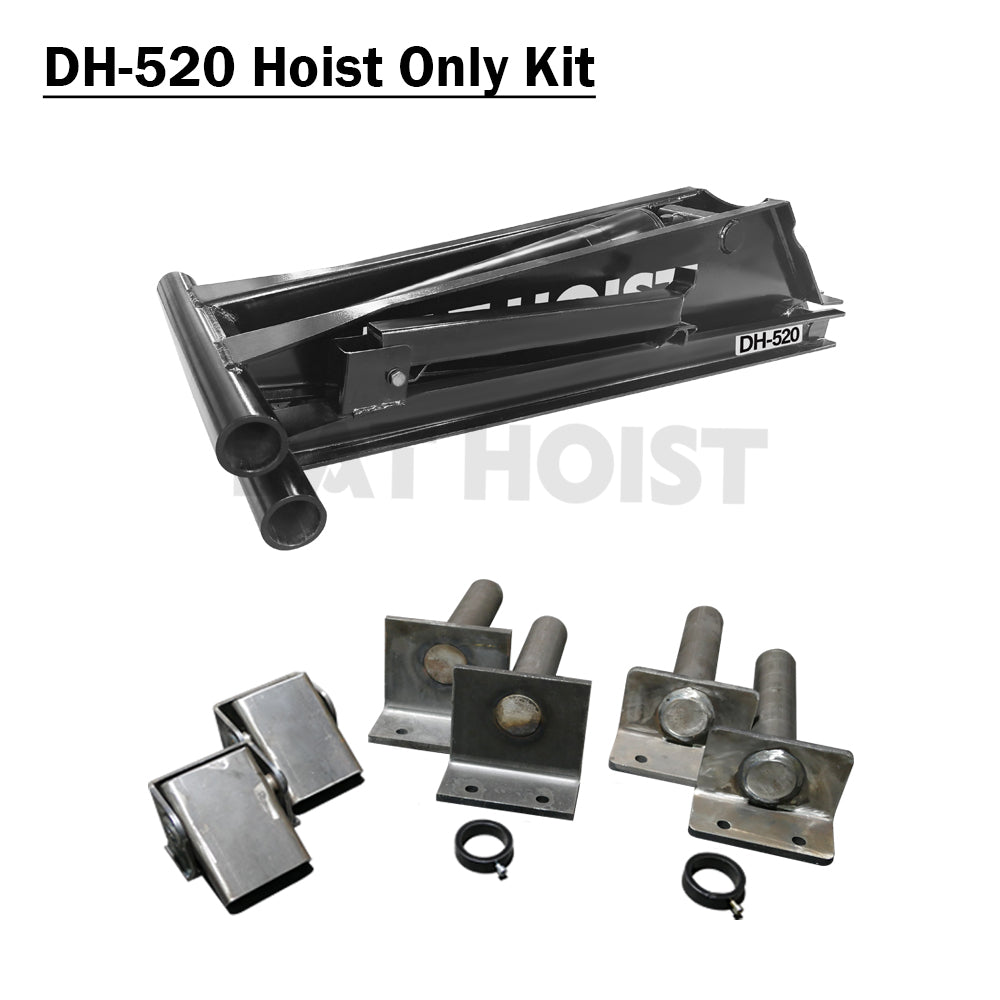

What’s Included in the DH-520 Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-520LA | Frame | 1 |
| CY-520 | Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |
| DH-G2-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |
| DH-G2-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-520 hydraulic scissor hoist is designed for installation on 12–16 ft dump beds and must be paired with a compatible external hydraulic power unit. It can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets the required flow and pressure specifications. Professional installation is recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-520 include a hydraulic power unit?
A: No. The DH-520 Scissor Hoist includes the hoist frame and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between the DH-520 Scissor Hoist and the DH-520 Scissor Hoist Kit?
A: The Scissor Hoist includes only the hoist assembly, while the Scissor Hoist Kit includes the hydraulic power unit, hoses, fittings, and electrical components.
Q: What size dump bed is this hoist designed for?
A: The DH-520 is designed for 12–16 ft dump beds.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and hydraulic power units engineered for durability, reliability, and real-world performance. The DH-520 Scissor Hoist is the ideal solution for customers who need a robust hoist assembly without a bundled power unit, backed by proven engineering and a 24-month warranty.
