10 Ton Hydraulic Scissor Hoist for 12–16' Dump Body | DH-520 for Trailer
Product Overview
The DH-520 Scissor Hoist – Short Lower Arm is a 10 ton hydraulic scissor hoist assembly designed for 12–16 ft dump beds, featuring a shorter lower arm for easier installation on narrow frame dump bodies. Engineered by DAT HOIST for superior strength and reliability, this heavy-duty hoist delivers smooth, controlled lifting performance even under demanding loads.
Built from heavy-duty structural steel and reinforced at critical stress points, the DH-520 is ideal for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month warranty.
Key Features
-
10 Ton Lifting Capacity – Handles heavy loads with confidence for commercial applications
-
Short Lower Arm Design – Allows easier installation on narrow frame dump beds
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Reduces flexing and extends service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for existing or customer-supplied hydraulic systems
Recommended Applications
This hydraulic scissor hoist is commonly used for:
-
Dump trailers with narrow frame layouts
-
Contractor and commercial dump bodies
-
Utility and landscape dump trailers
-
Equipment replacements and rebuilds
-
Custom hydraulic system installations
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Special Feature | Short Lower Arm |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

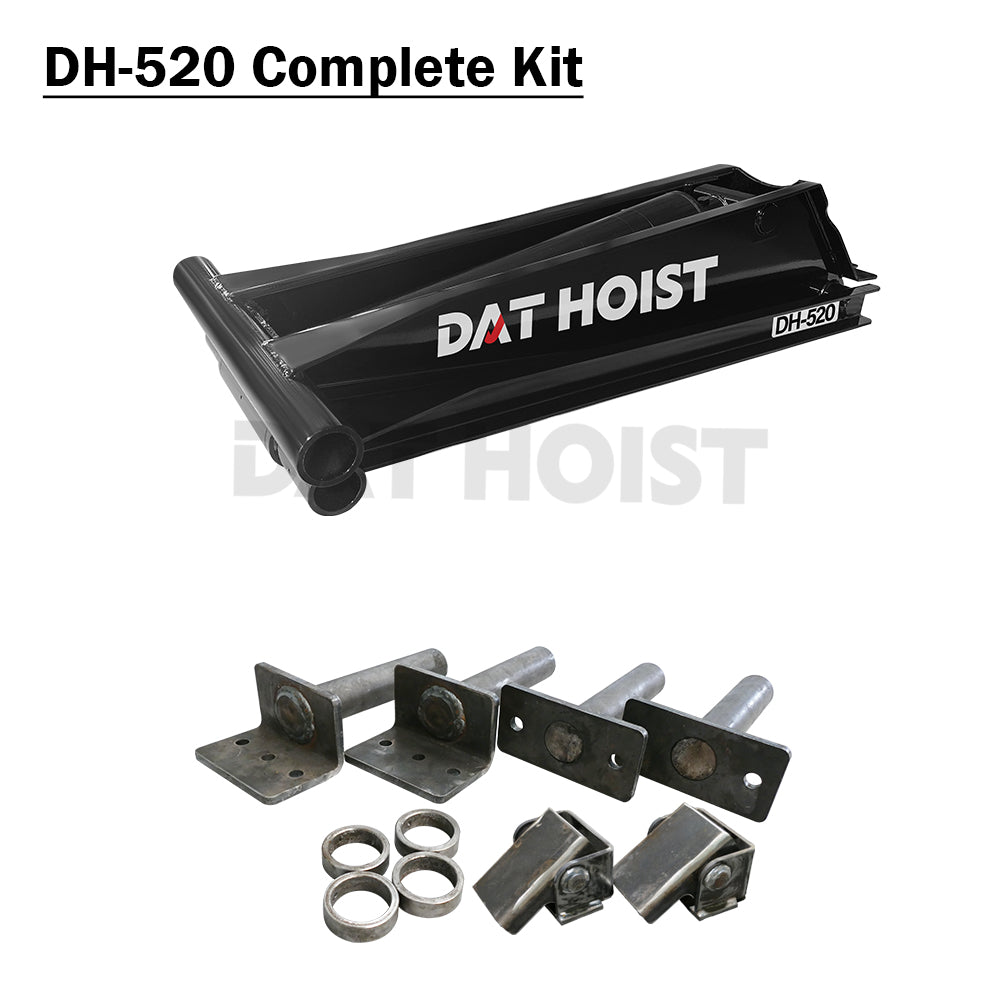

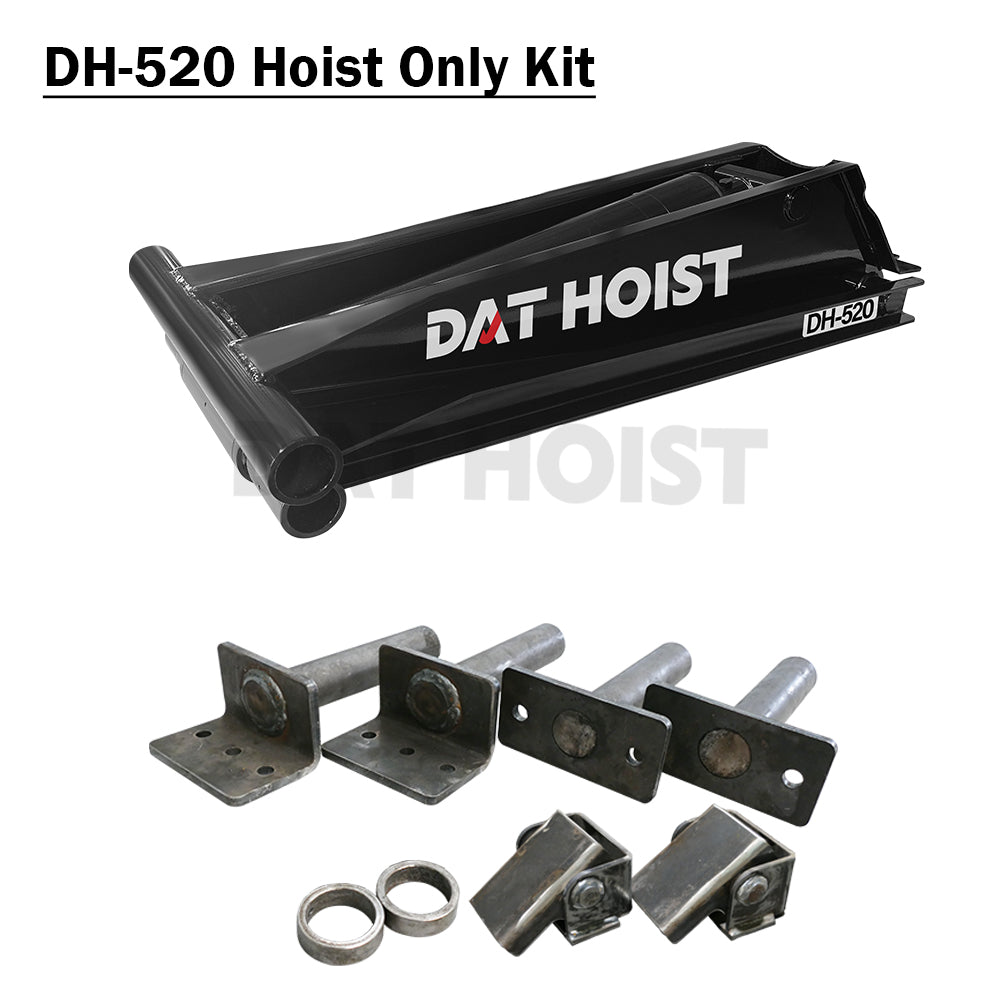

What’s Included in the DH-520 Scissor Hoist (Short Lower Arm)
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-520SA | Frame | 1 |
| CY-520 | Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |
| DH-G2-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |
| DH-G2-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-520 Short Lower Arm hydraulic scissor hoist is designed for installation on 12–16 ft dump beds, with a shorter lower arm that simplifies mounting on narrow frame dump bodies. It must be paired with a compatible external hydraulic power unit and can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets the required flow and pressure specifications. Professional installation is recommended to ensure proper fitment and safe operation.
FAQ
Q: Does this DH-520 include a hydraulic power unit?
A: No. This product includes the scissor hoist assembly and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between this version and the DH-520 Scissor Hoist Kit?
A: The Scissor Hoist includes only the hoist assembly, while the Scissor Hoist Kit includes the hydraulic power unit, hoses, fittings, and electrical components.
Q: What makes the Short Lower Arm version different?
A: The shorter lower arm allows easier installation on narrow frame dump beds while maintaining the full 10 ton lifting capacity.
Q: Is this suitable for dump trailers?
A: Yes. It is ideal for dump trailers and dump bodies with limited frame width.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-520 Scissor Hoist – Short Lower Arm is designed for operators who need full lifting capacity with easier installation on narrow frames, backed by proven engineering and a 24-month warranty.
