10 Ton Hydraulic Scissor Hoist for 12–16' Dump Body | DH-520 Pro for Trailer
Product Overview
The DH-520 Pro for Trailer is a reinforced 10 ton hydraulic scissor hoist engineered for 12–16 ft dump beds, specifically designed for dump trailers requiring increased strength, durability, and long-term load stability.
Building on the proven DH-520 Short Lower Arm design, the DH-520 Pro features additional structural reinforcements at high-stress load points, heavier-duty components, and enhanced rigidity—making it the ideal solution for operators who routinely handle heavier materials or operate in demanding commercial environments.
Designed by DAT HOIST, this Pro-grade hoist delivers smoother lifting, improved load control, and greater resistance to flexing while maintaining compatibility with narrow frame dump bodies.
This product includes the reinforced scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month warranty.
Key Features
-
10 Ton Pro-Rated Lifting Capacity – Enhanced structural strength for improved load stability under heavy use
-
Reinforced Pro Design – Additional gussets and strengthened stress zones increase rigidity and service life
-
Short Lower Arm Configuration – Simplifies installation on narrow frame dump trailers
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of trailer and truck-mounted dump bodies
-
Heavy-Duty Structural Steel Construction – Built for commercial-duty and high-cycle applications
-
Reduced Frame Flex Under Load – Improved geometry and reinforcement for smoother lifting performance
-
Powder-Coated Finish – Durable coating resists corrosion, chipping, and harsh jobsite conditions
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied or existing 12V hydraulic systems
Recommended Applications
The DH-520 Pro for Trailer is ideal for:
-
Dump trailers carrying heavier aggregate, soil, gravel, or debris
-
Commercial and contractor-grade dump trailer builds
-
High-cycle or daily-use dump applications
-
Equipment upgrades from standard-duty hoists
-
Custom hydraulic system integrations requiring increased structural strength
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton (Pro Reinforced Design) |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Special Feature | Pro Reinforced Structure + Short Lower Arm |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Heavy-Duty Structural Steel |
| Finish | Powder-Coated |

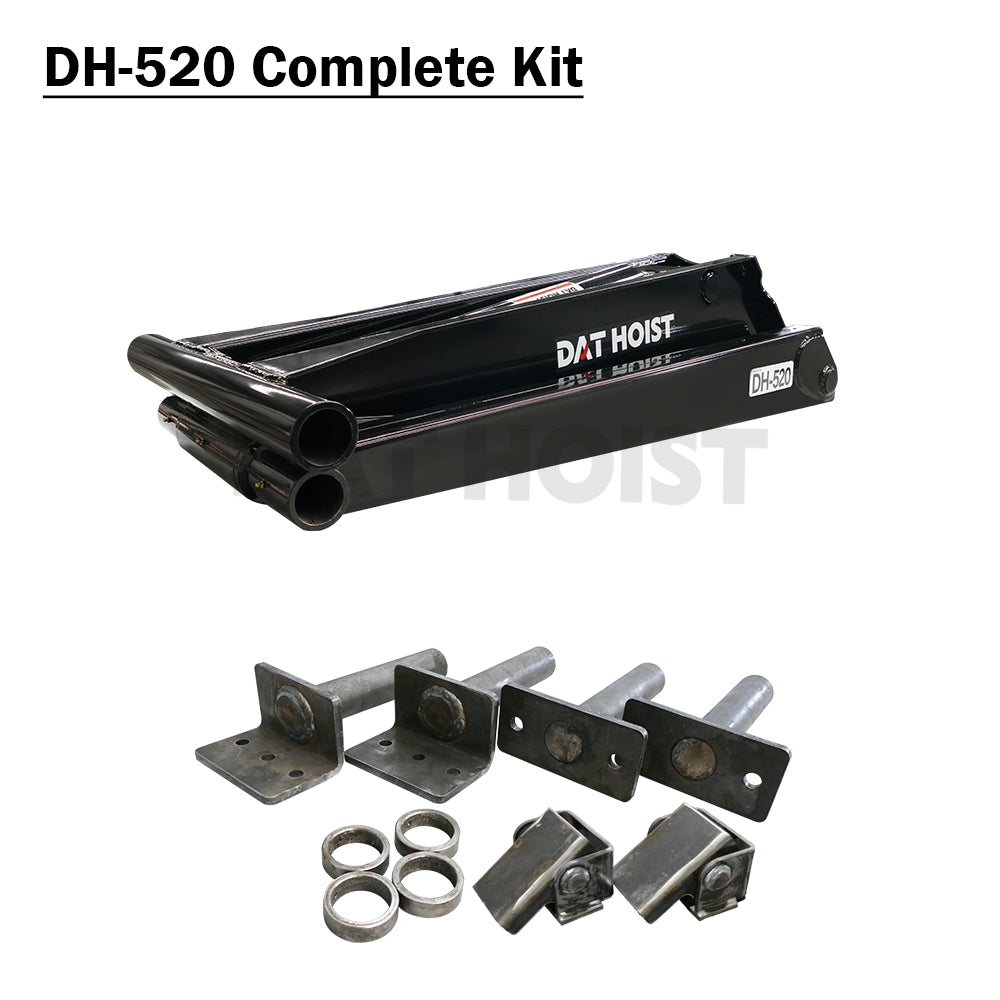

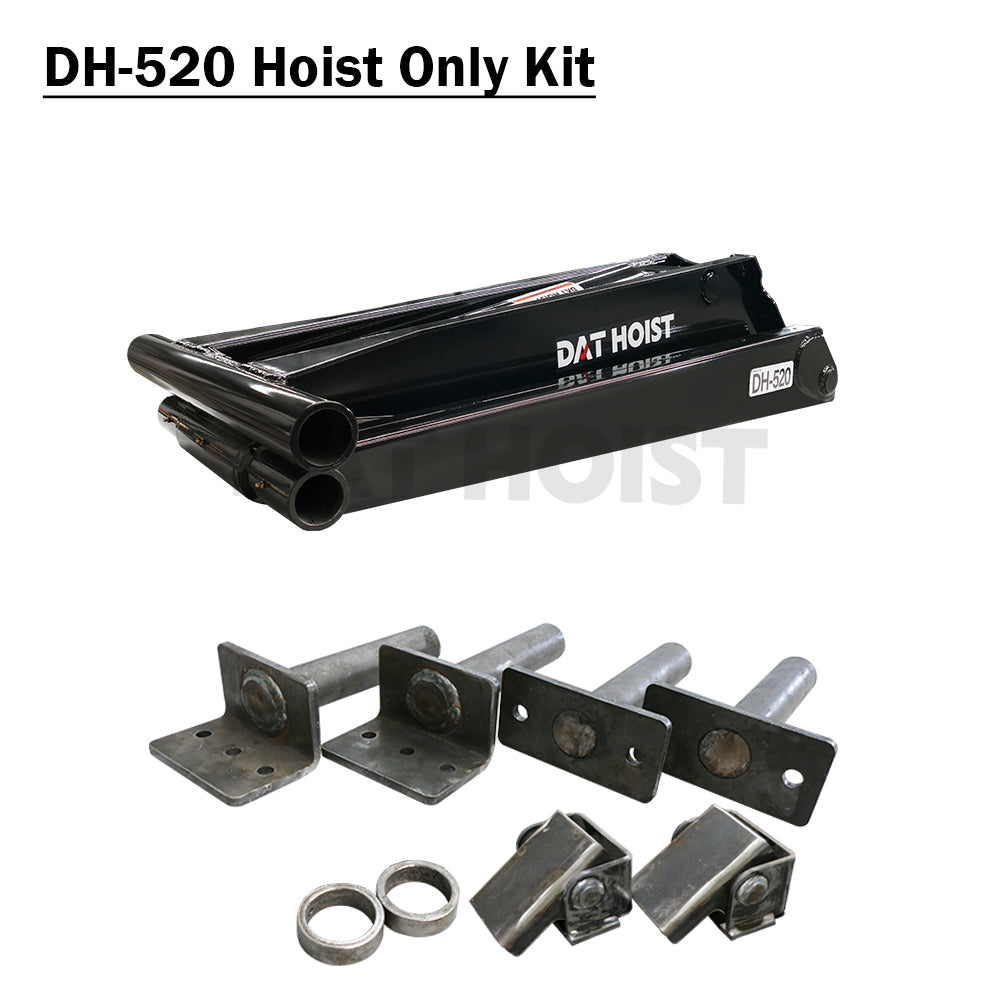

What’s Included – DH-520 Pro Scissor Hoist (Trailer Version)
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-520PL | Frame | 1 |
| CY-520 | Hydraulic Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Pro Heavy-Duty Ring Collar | 4 |
| DH-G2-ACC-003 | 516/520 Pro Heavy-Duty Upper Lifting Arm | 2 |
| DH-G2-ACC-004 | 516/520 Pro Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
Not Included
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-520 Pro Scissor Hoist for Trailer is designed for 12–16 ft dump beds, featuring a short lower arm that simplifies mounting on narrow trailer frames.
This Pro version must be paired with a compatible external hydraulic power unit and can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets required flow and pressure specifications.
Professional installation is strongly recommended to ensure proper alignment, optimal performance, and safe long-term operation.
FAQ
Q: Does the DH-520 Pro include a hydraulic power unit?
A: No. This product includes the reinforced scissor hoist assembly and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between DH-520 Pro and the standard DH-520 for Trailer?
A: The DH-520 Pro features additional structural reinforcement, increased rigidity, and improved load stability for heavier-duty and high-cycle applications.
Q: Is the lifting capacity higher than the standard DH-520?
A: Both are rated at 10 tons, but the Pro version is engineered to handle demanding loads with greater structural strength and reduced flex over time.
Q: Is the Pro version suitable for narrow frame dump trailers?
A: Yes. The short lower arm design maintains easy installation on narrow frame dump trailers while providing enhanced durability.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic systems engineered for durability, reliability, and real-world performance.
The DH-520 Pro Scissor Hoist for Trailer is designed for operators who demand extra strength, improved longevity, and confidence when lifting heavier loads, backed by proven engineering and a 24-month warranty.
