10 Ton Hydraulic Scissor Hoist Kit for 12–16' Dump Body – DH-520HD
Product Overview

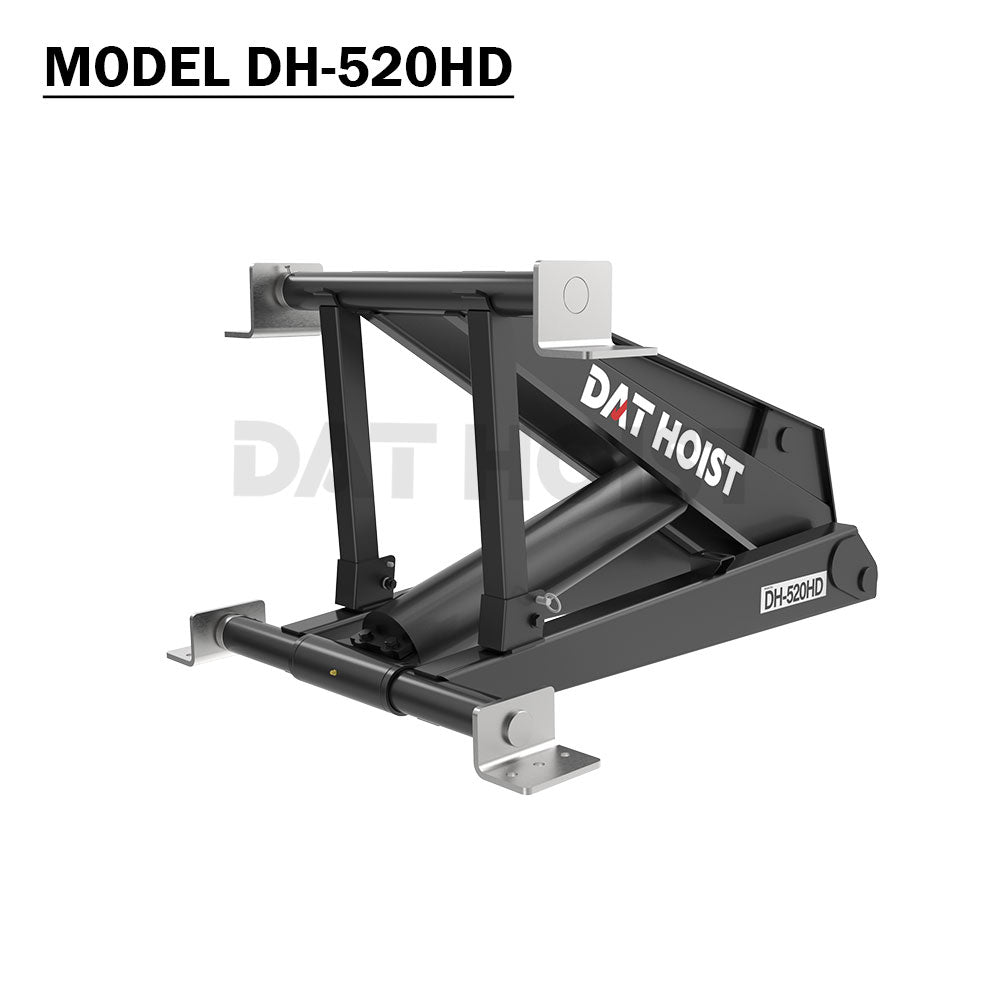

The DH-520HD is a 10-ton hydraulic scissor hoist kit built with additional structural reinforcements to provide extra strength and peace of mind when handling heavy loads. Designed for 12–16 ft dump beds, this heavy-duty hoist delivers powerful, stable lifting performance and smooth operation for dump trailers, contractor trailers, and medium- to heavy-duty dump trucks. Engineered by DAT HOIST for long-term durability, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
10 Ton Lifting Capacity – Handles heavy loads with confidence for demanding commercial applications
-

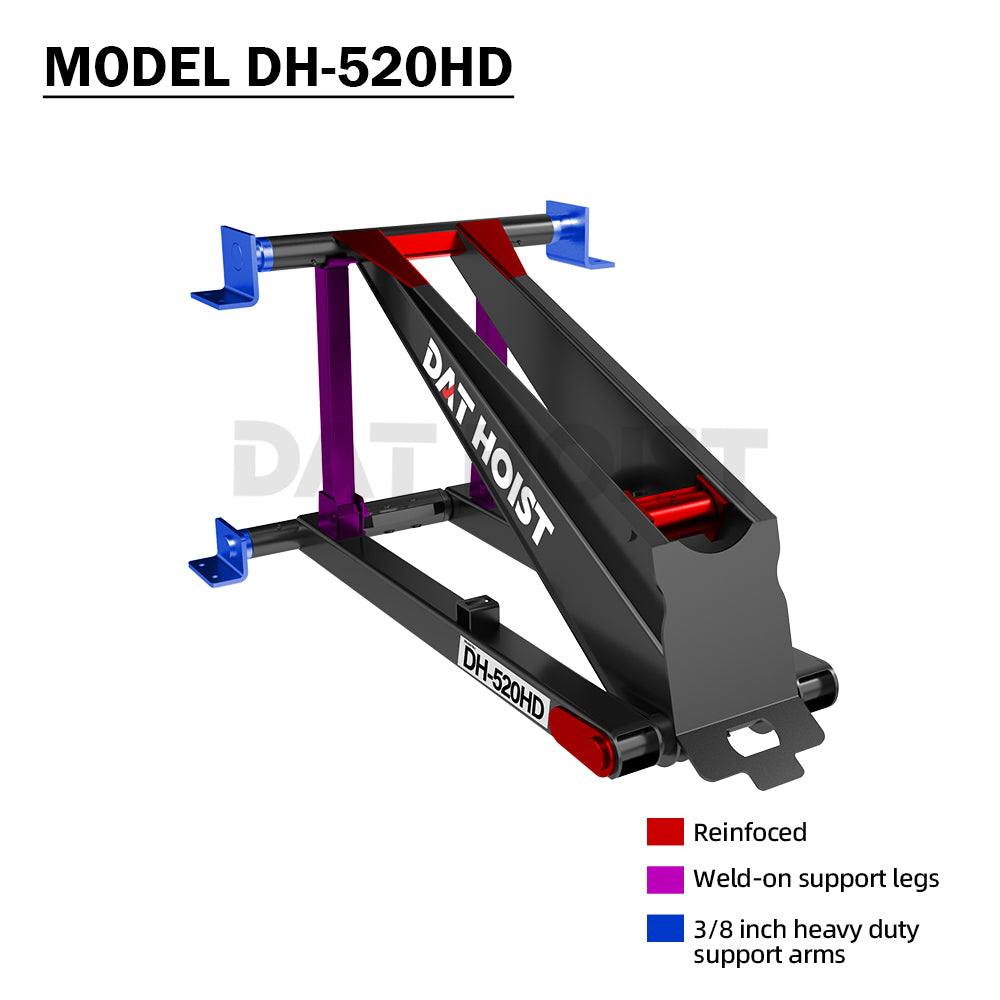

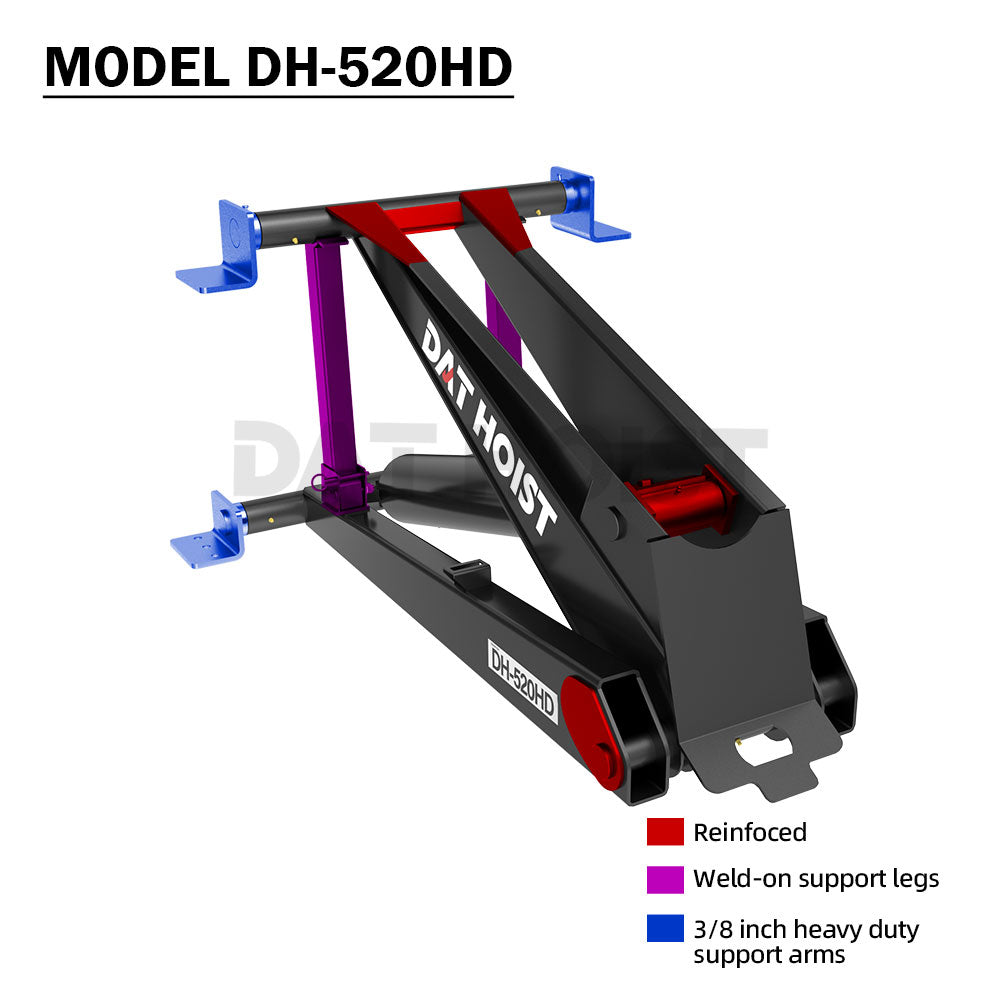

HD Reinforced Design – Added reinforcements improve strength, stability, and service life
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Prevents flexing and increases long-term durability
-
Powder-Coated Finish – Resists rust, chipping, and corrosion over time
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This HD hydraulic scissor hoist kit is commonly used for:
-
Dump trailers
-
Contractor and landscape trailers
-
Utility and commercial dump bodies
-
Medium- and heavy-duty dump trucks
-
Applications requiring added structural reinforcement

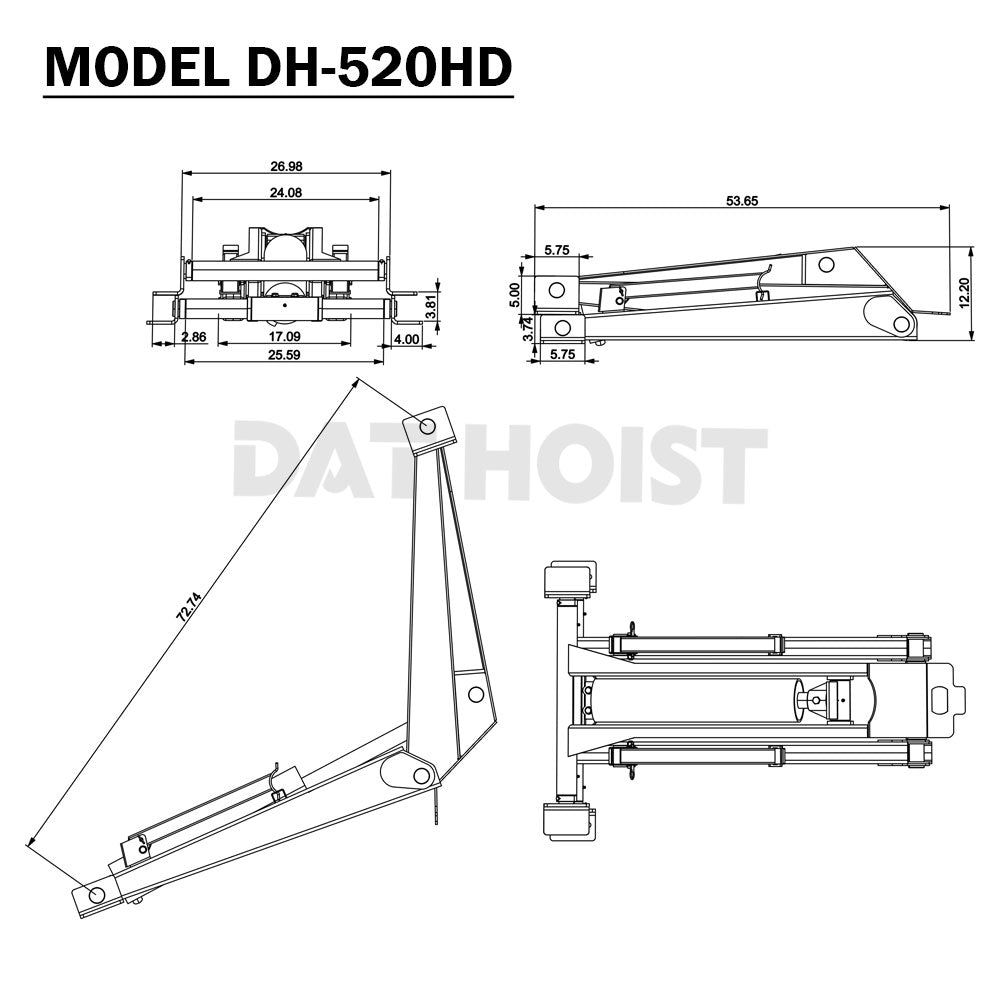

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |

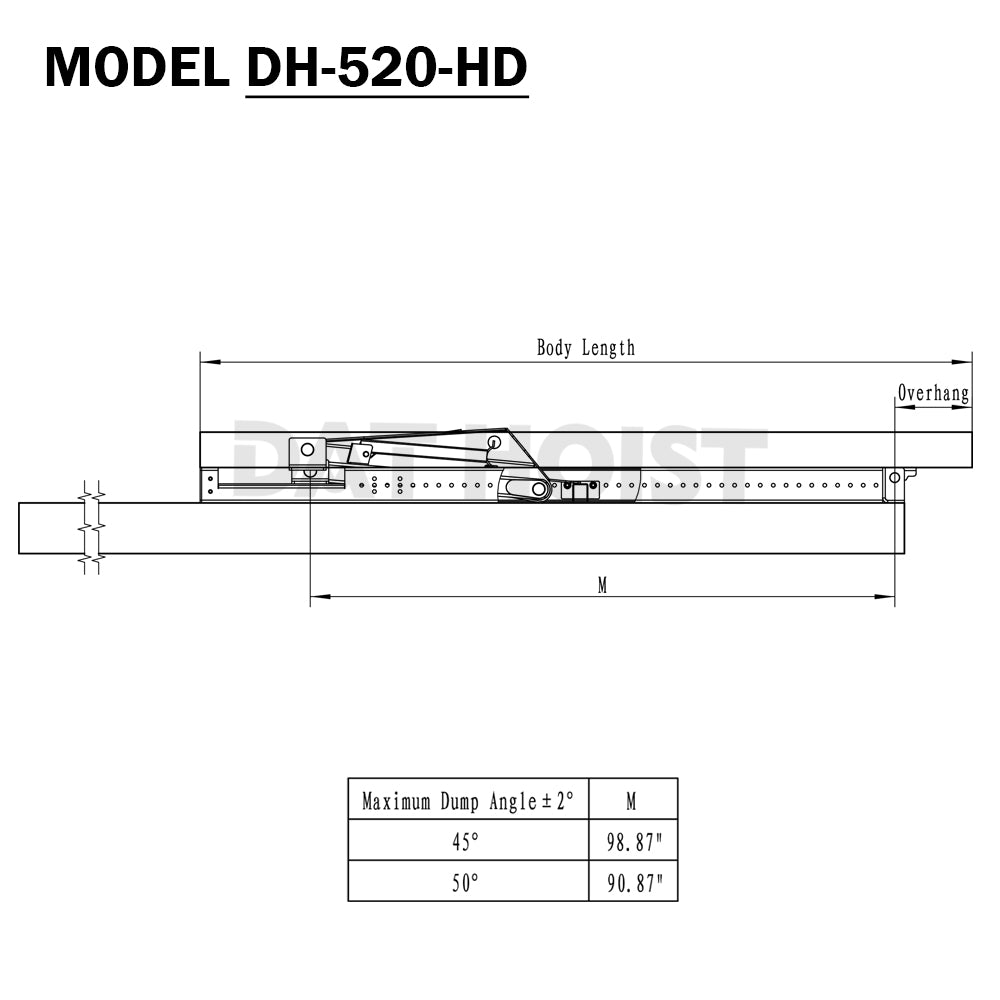

| Dump Bed Length | 12–16 ft |

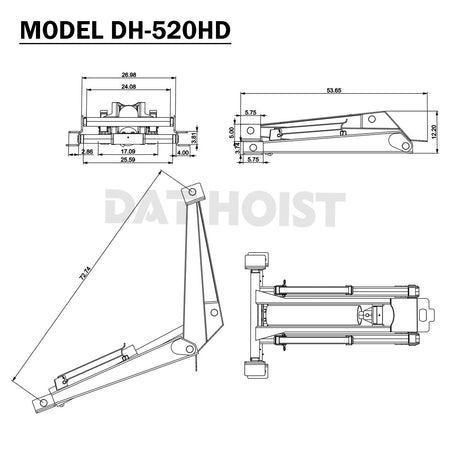

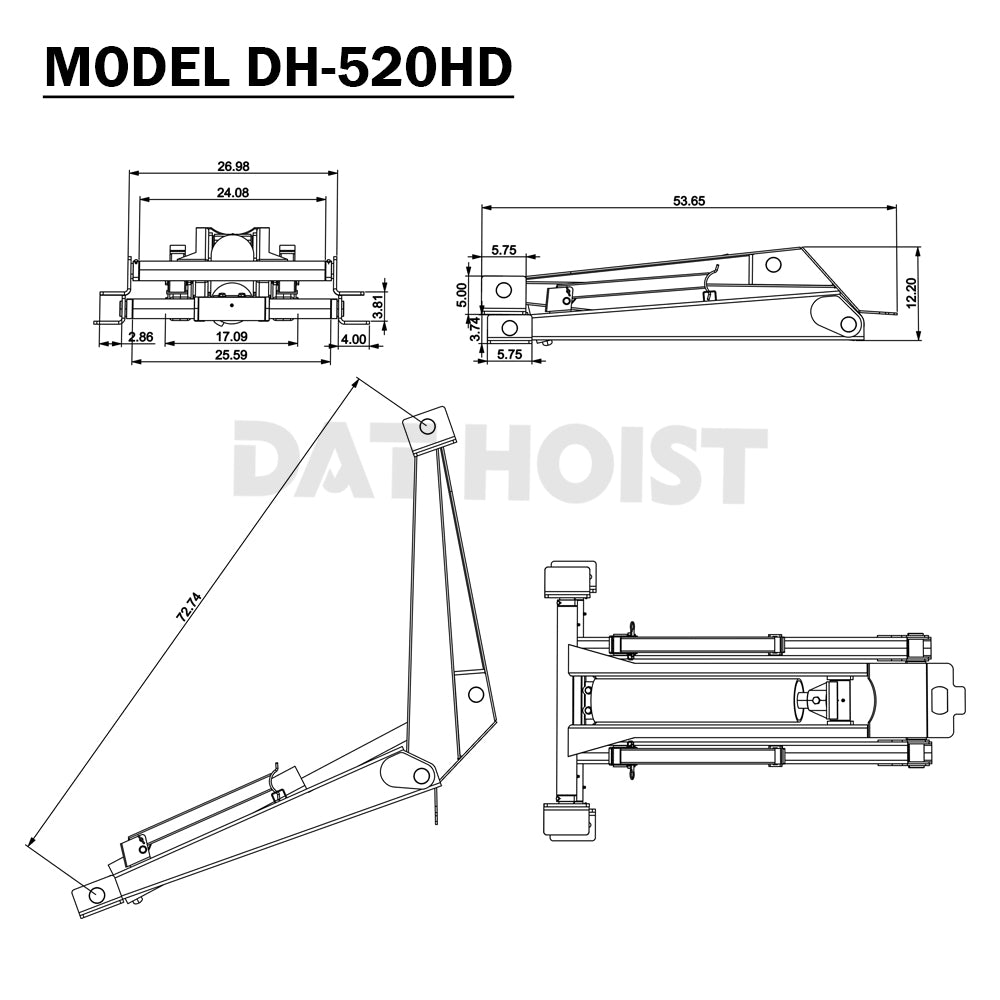

| Hoist Type | Hydraulic Scissor Hoist (HD Reinforced) |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

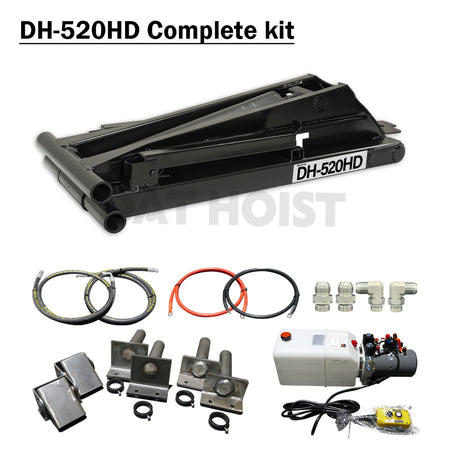

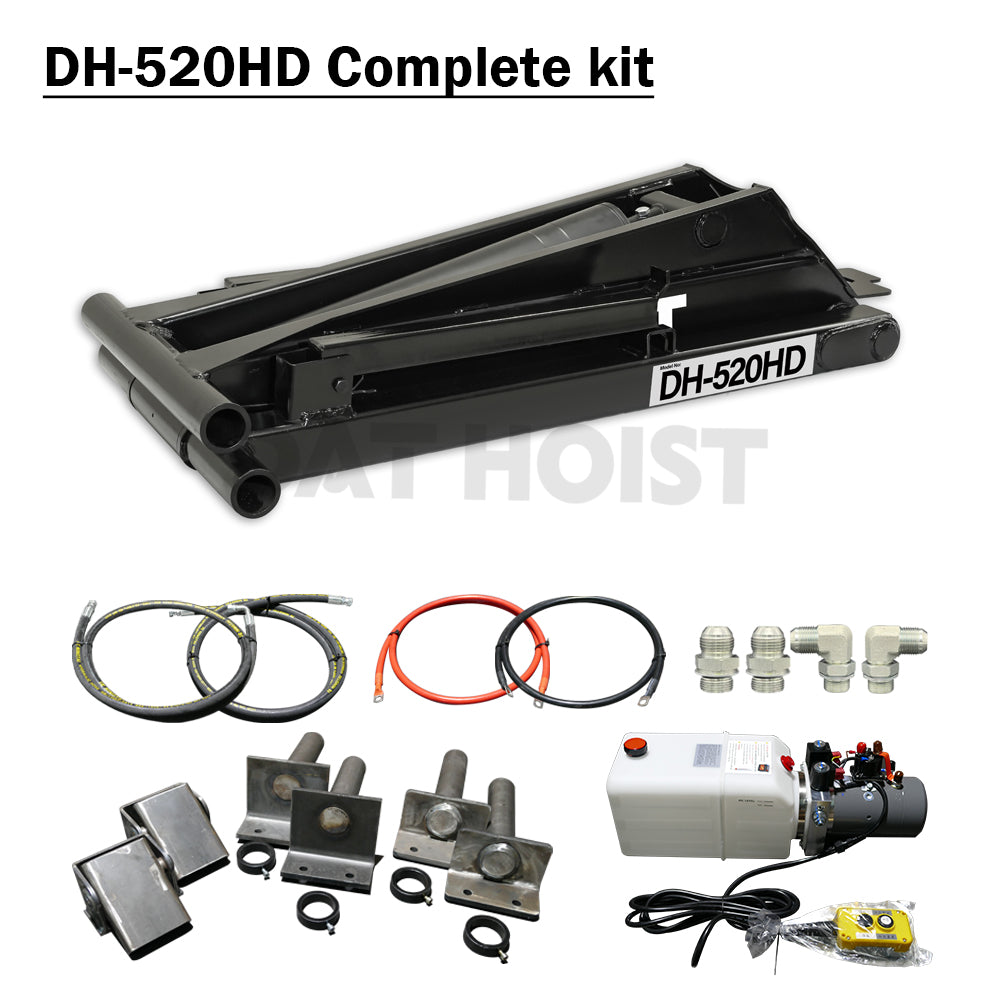

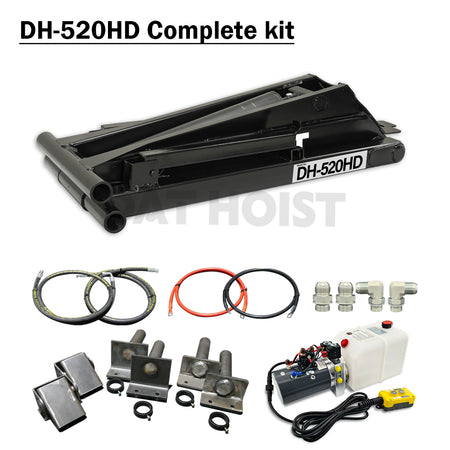

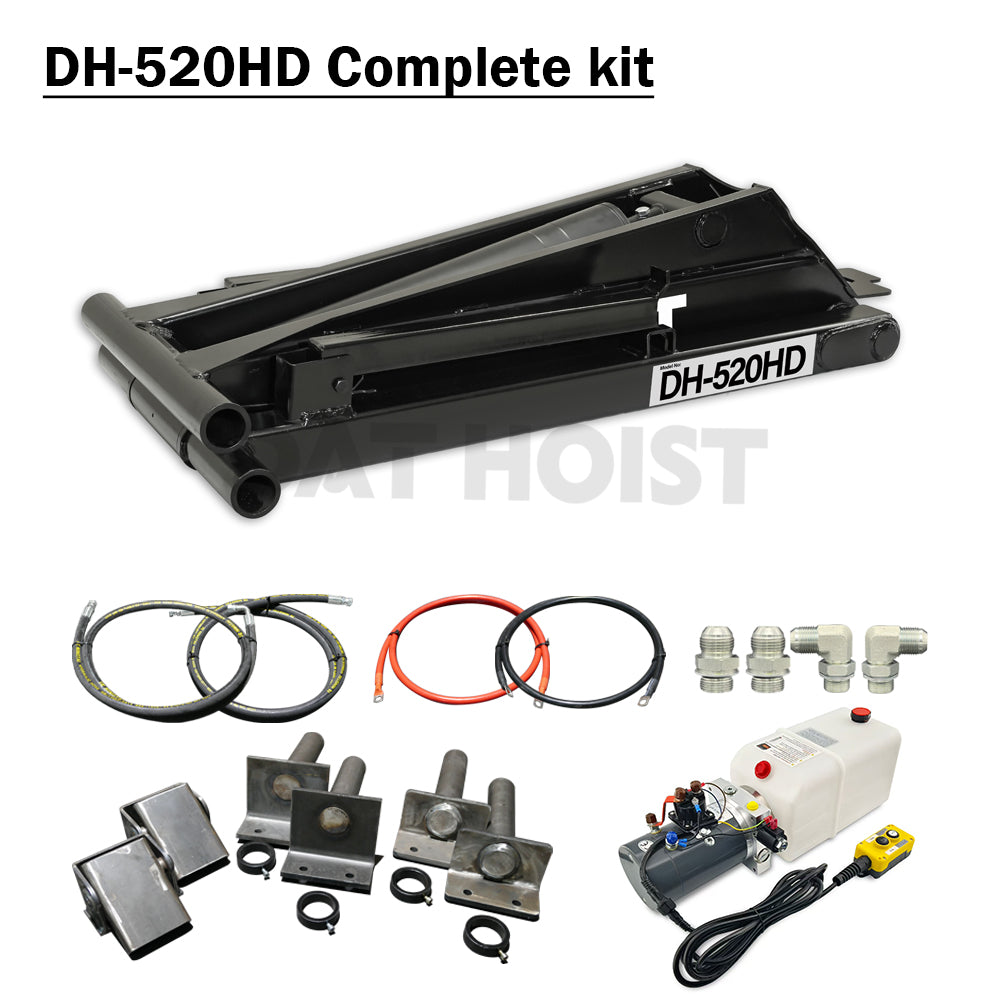

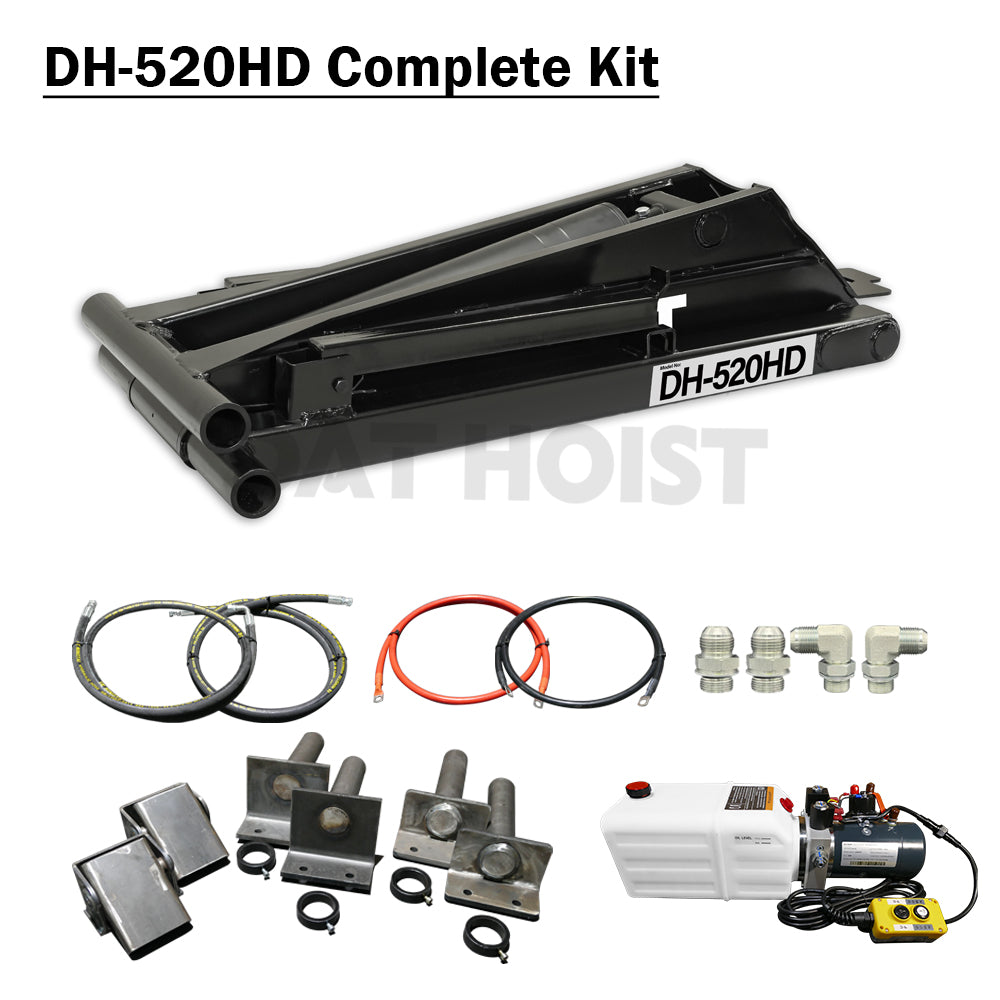

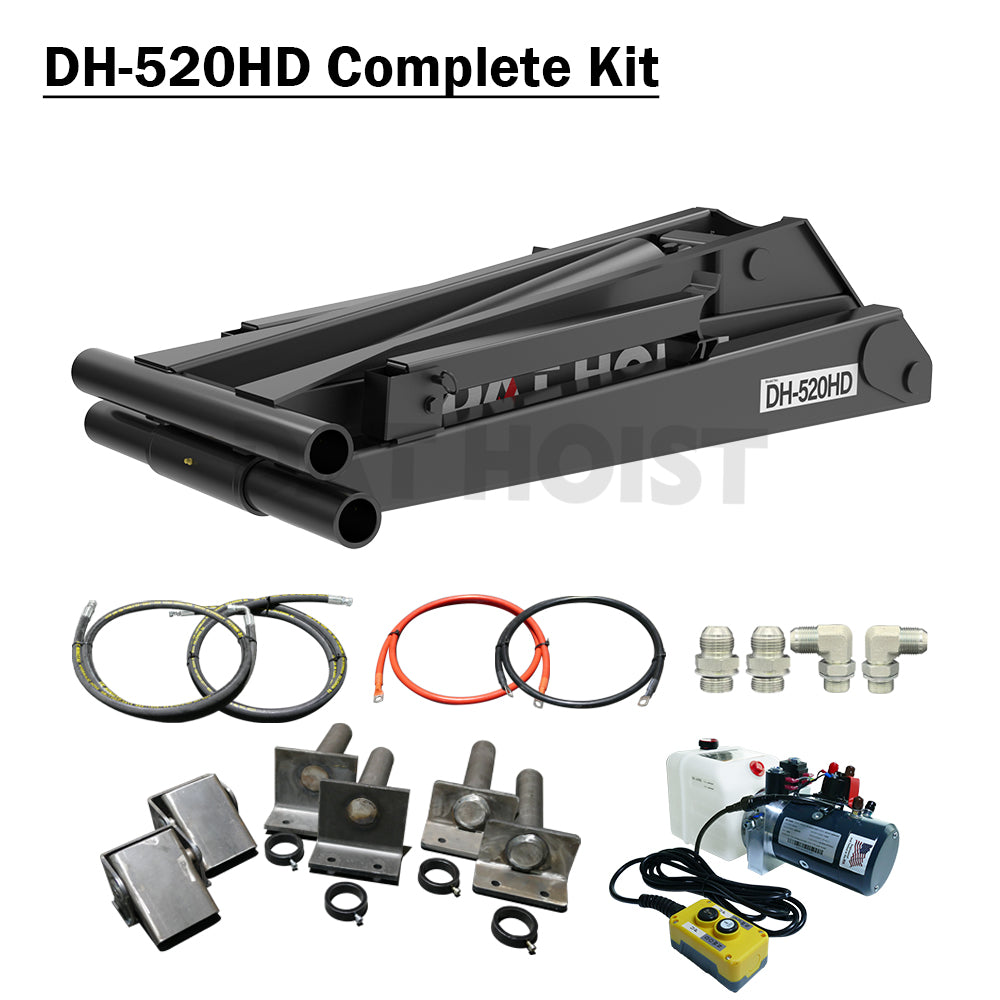

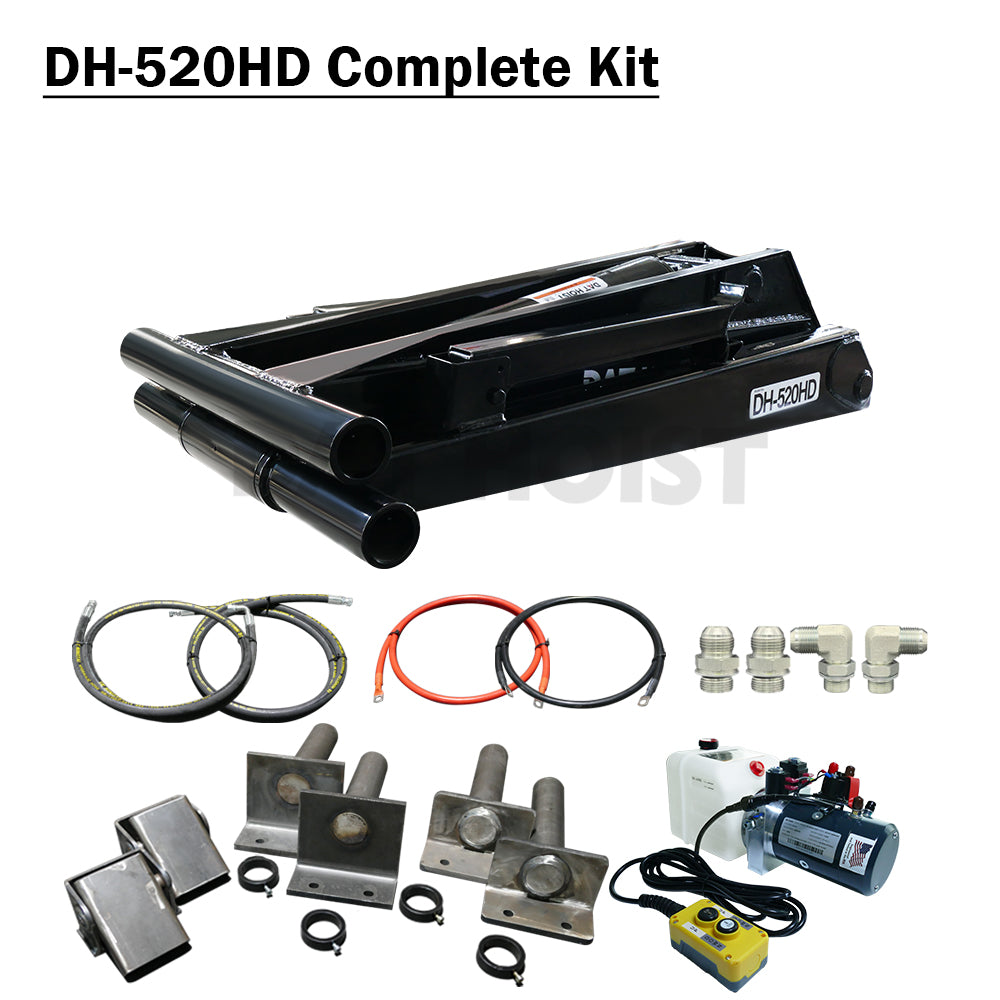

What’s Included in the DH-520HD Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|

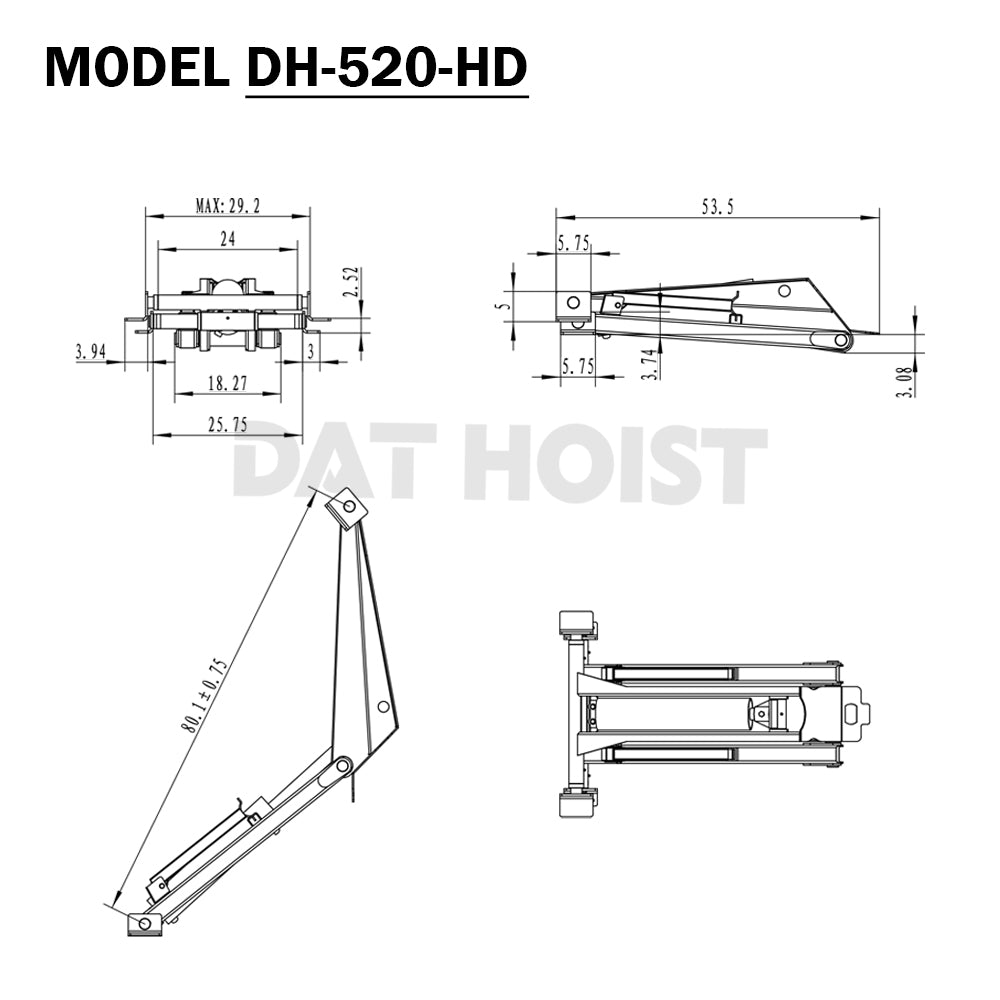

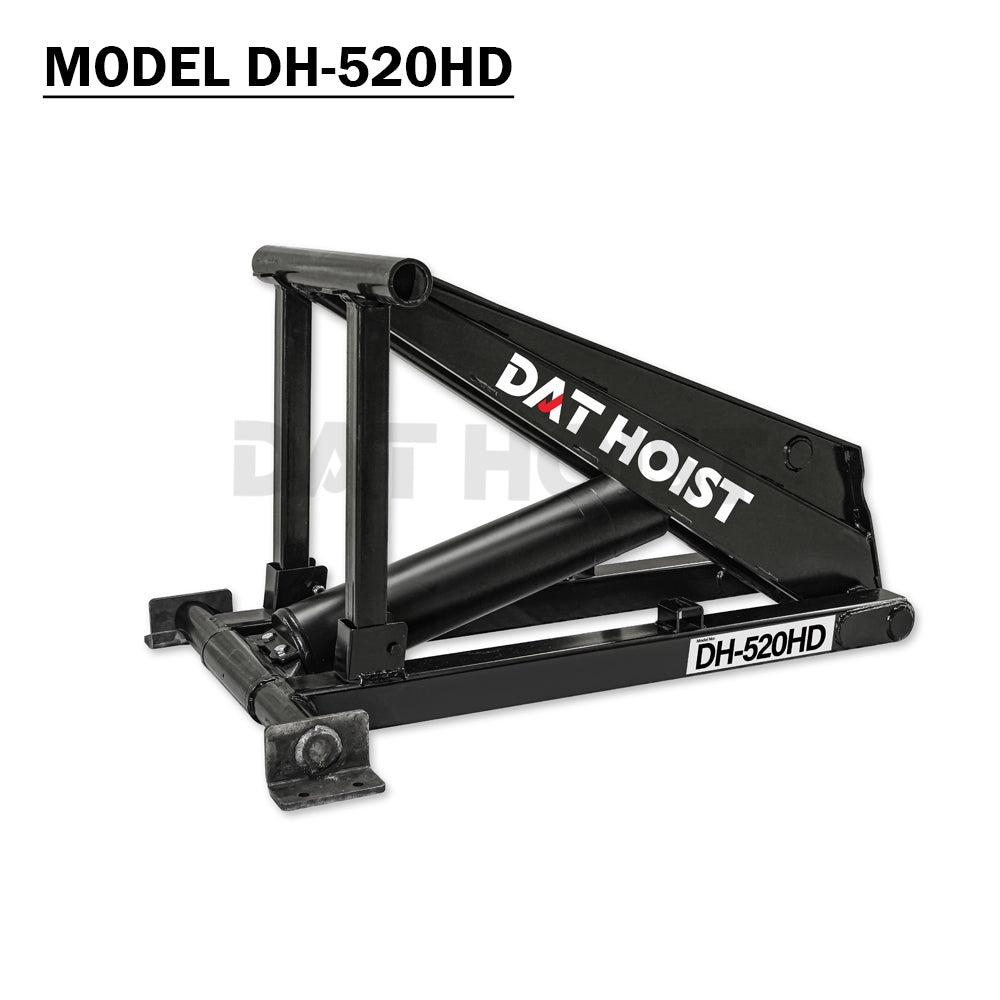

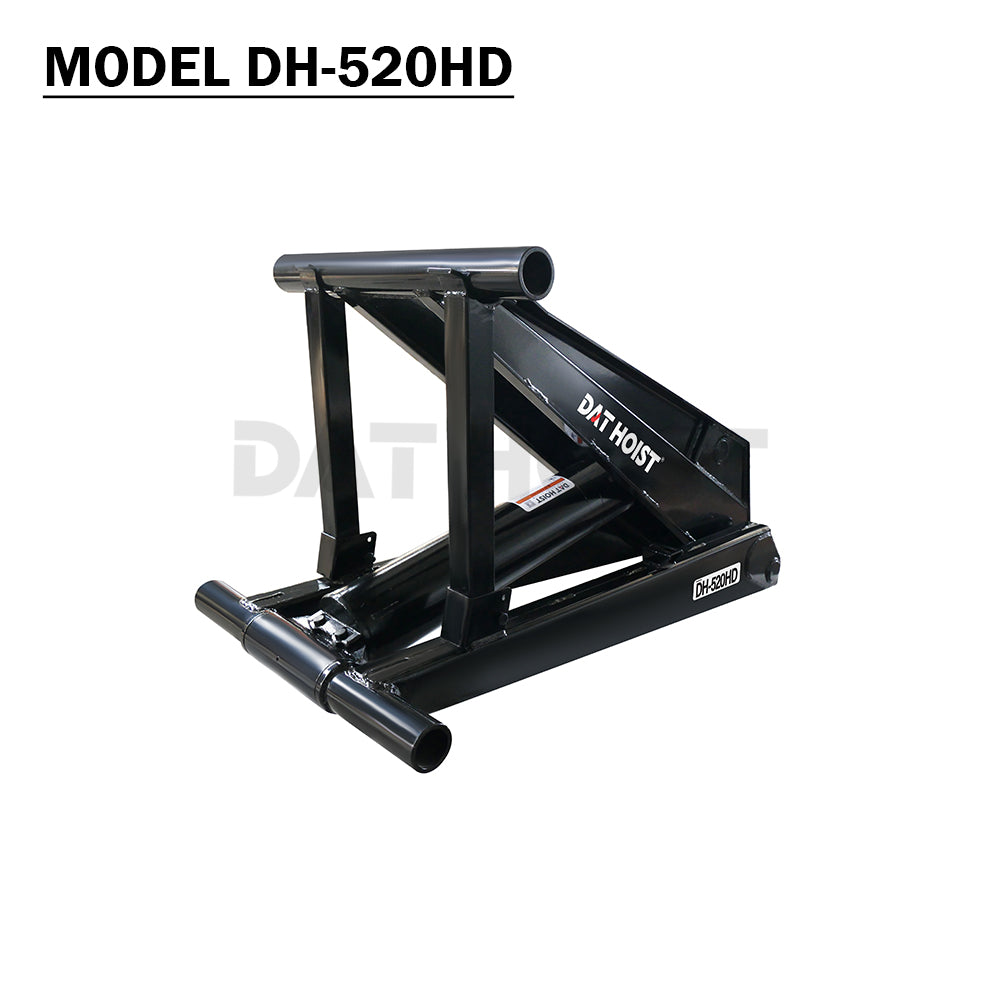

| HF-520HD | Frame | 1 |

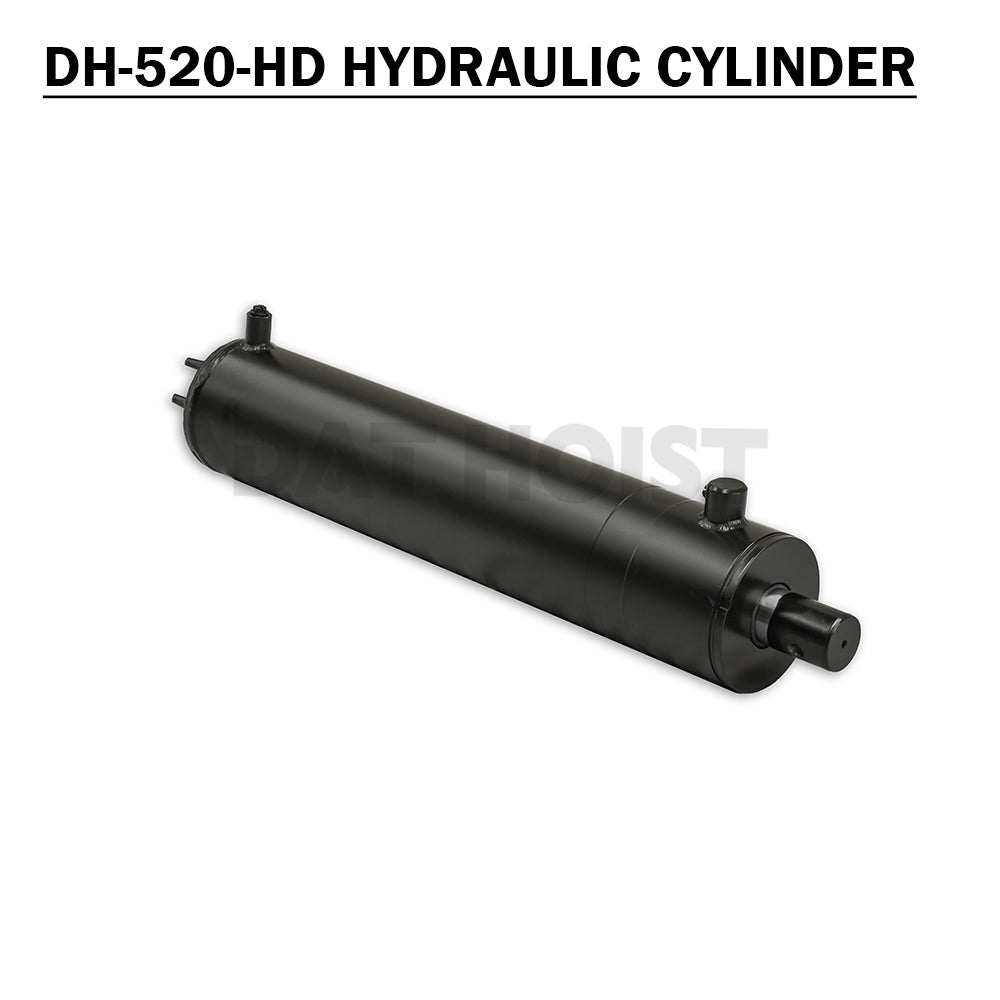

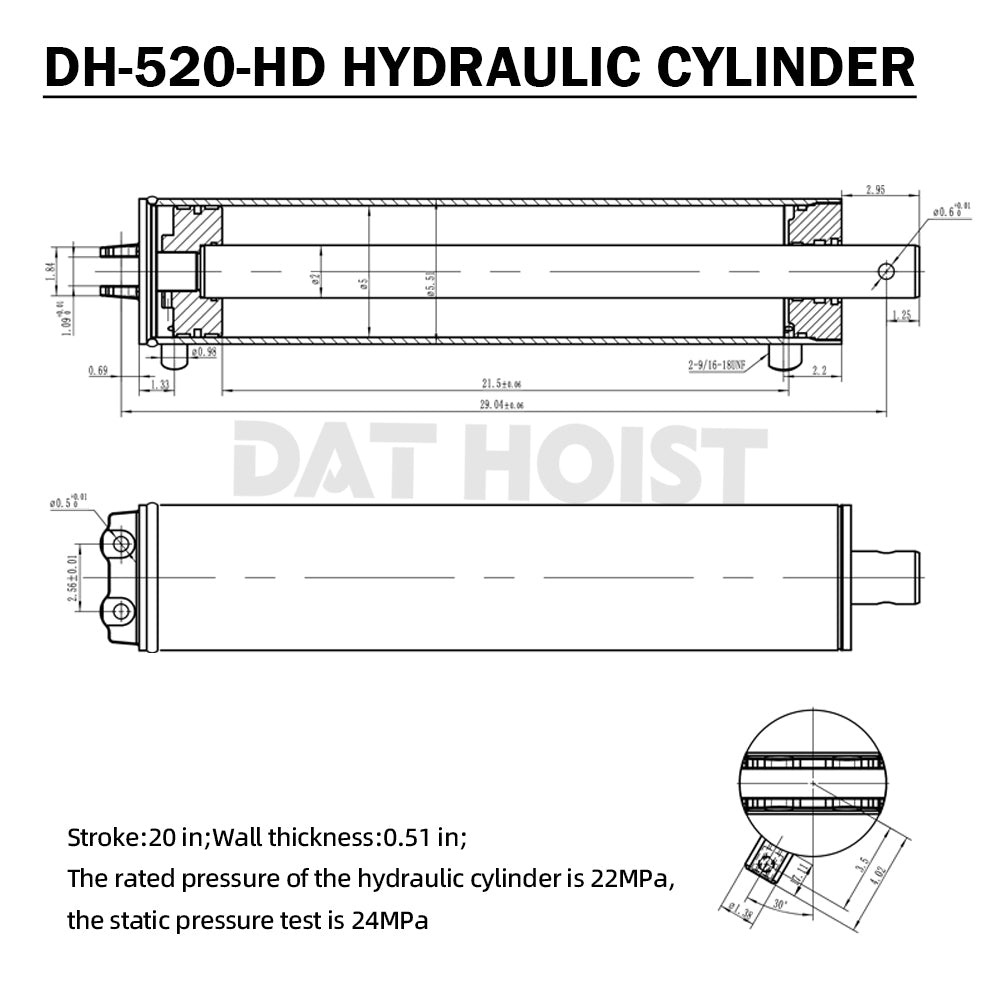

| CY-520 | Cylinder | 1 |
| DH-TR/TK-ACC-R | Five Series Ring Collar | 4 |

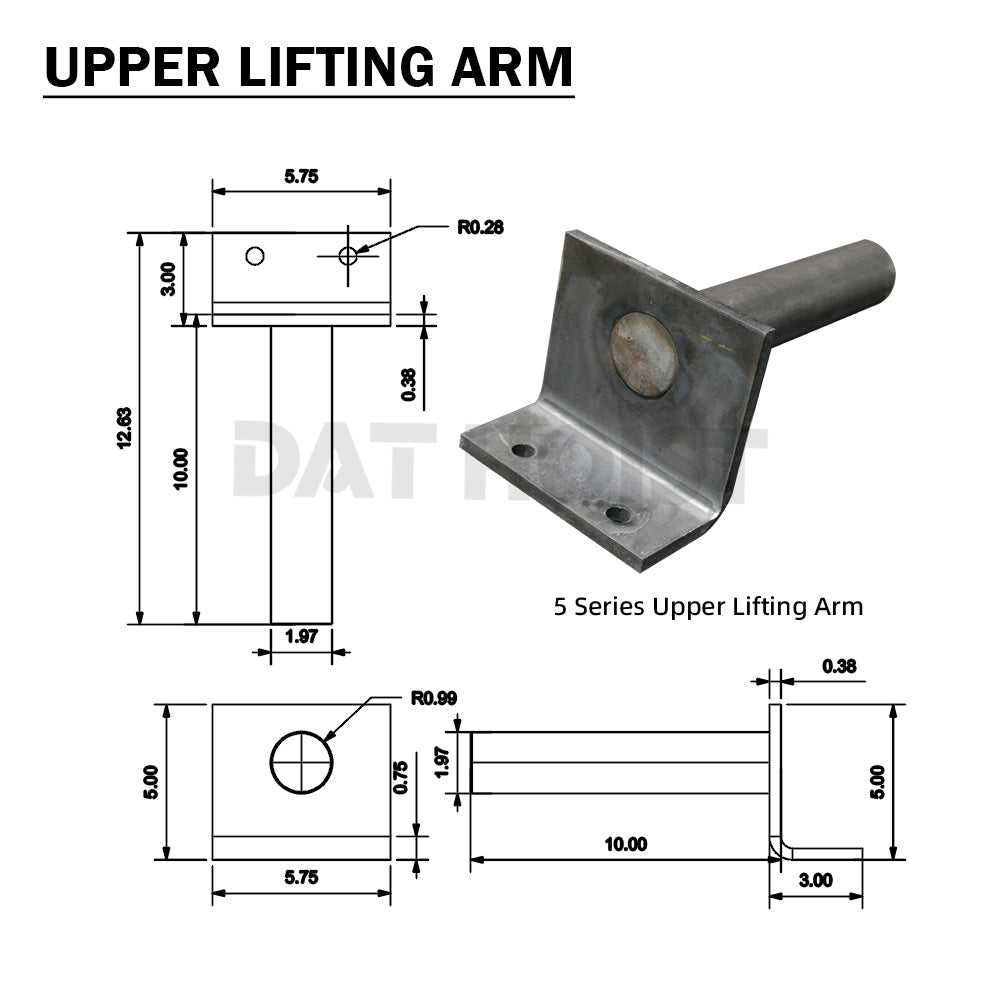

| DH-5-TK-ACC-UA | Five Series Truck Upper Lifting Arm | 2 |

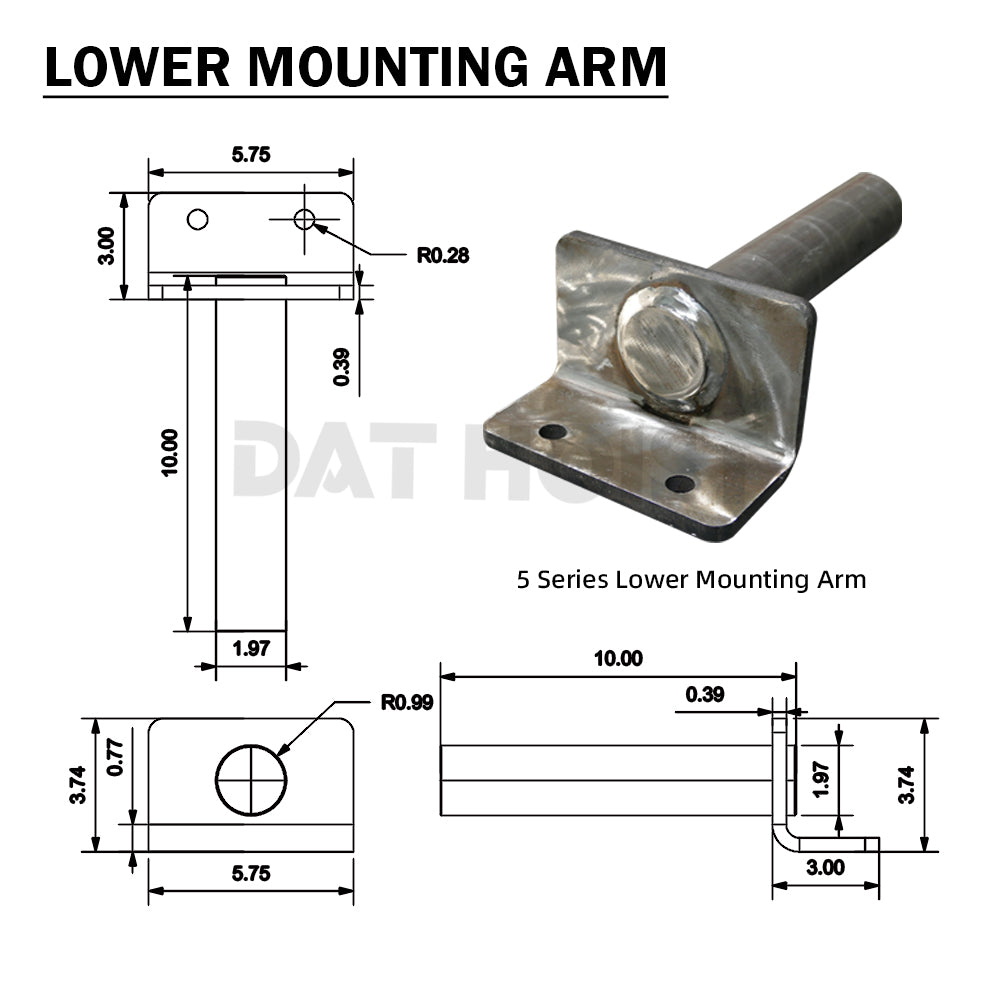

| DH-5-TK-ACC-LA | Five Series Truck Lower Mounting Arm | 2 |

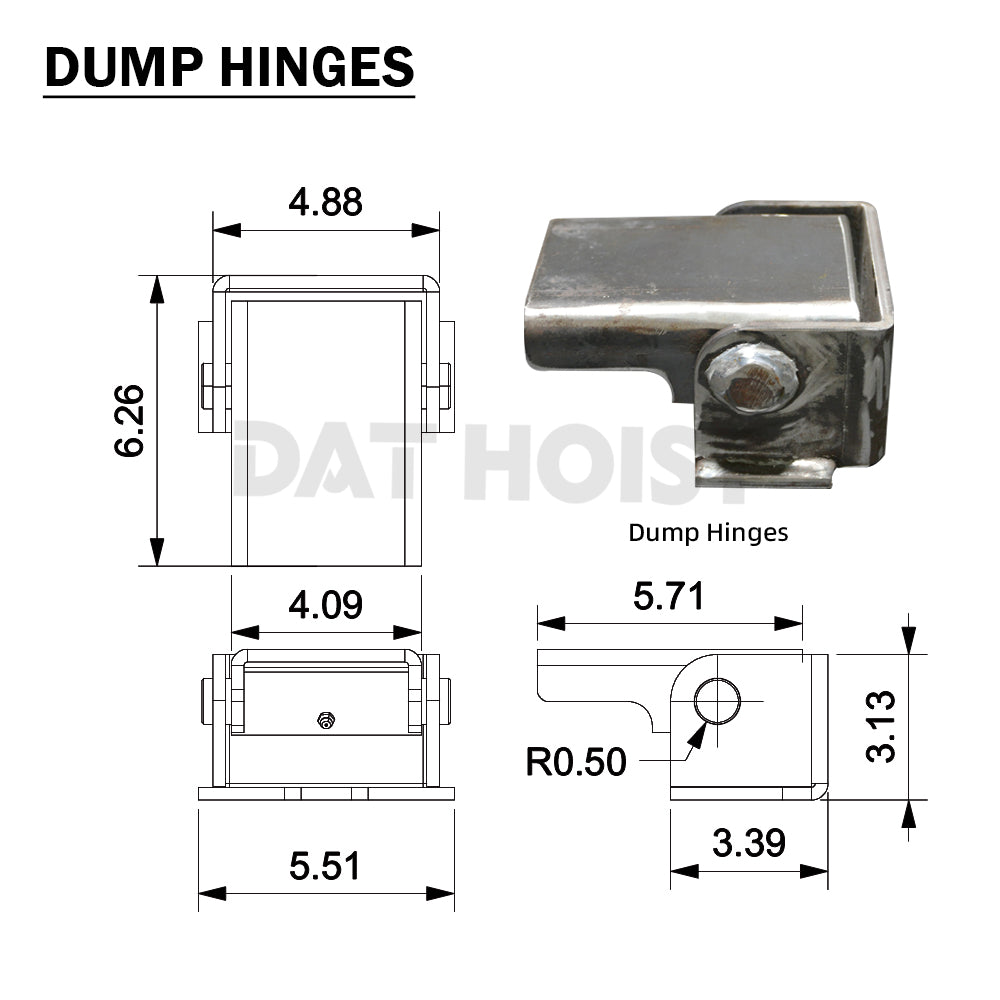

| H-500 | Five Series Dump Hinges | 2 |

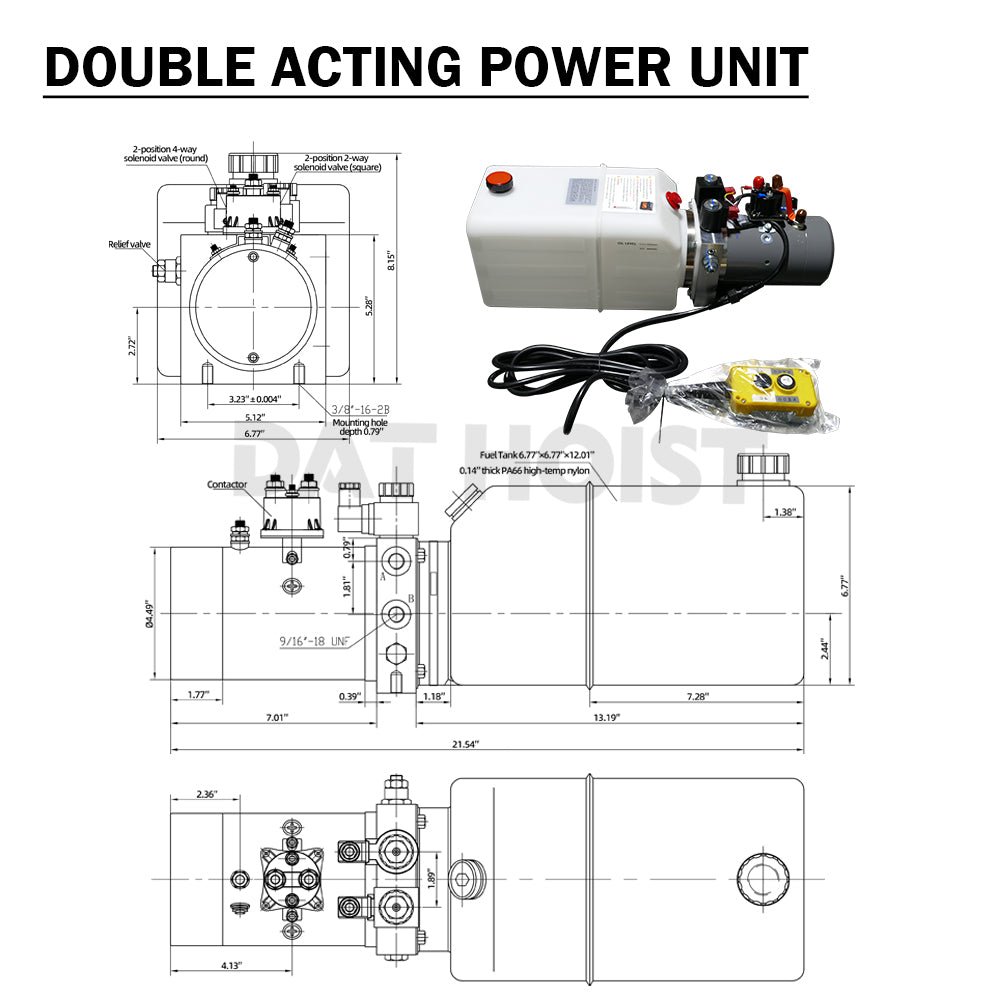

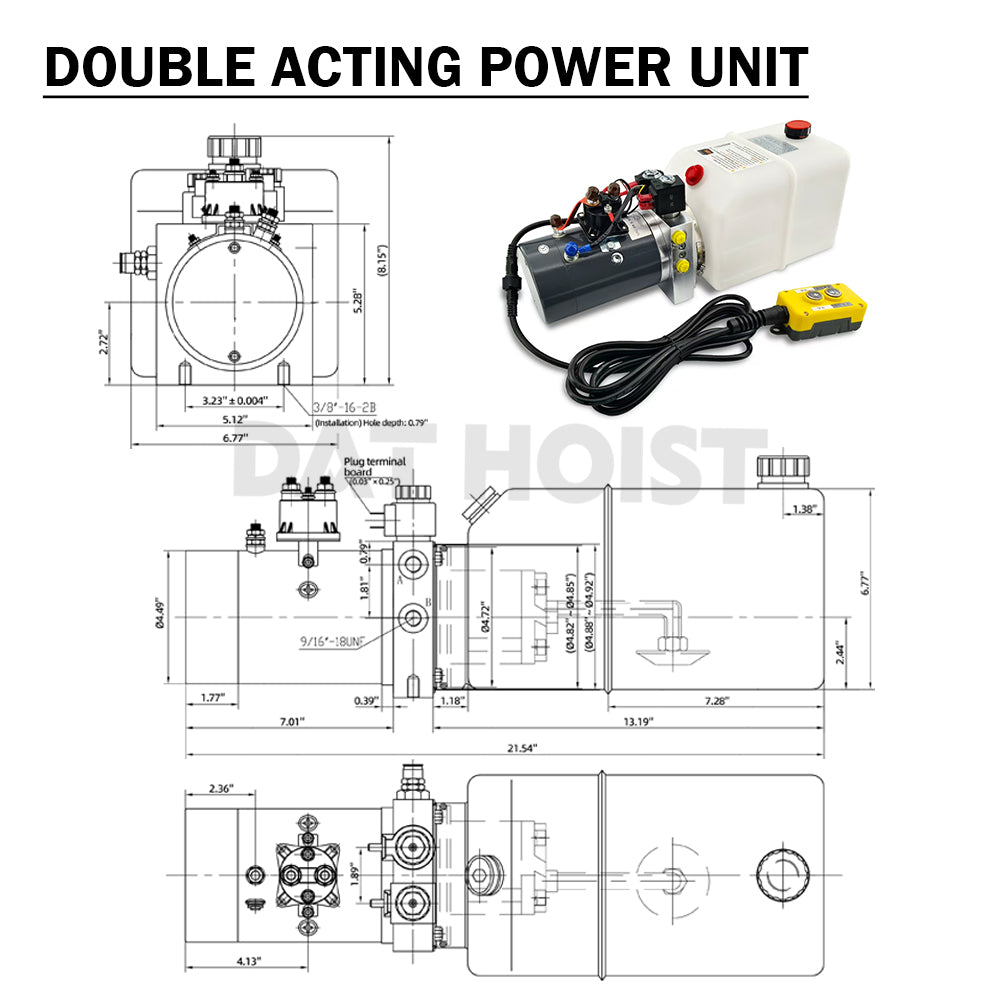

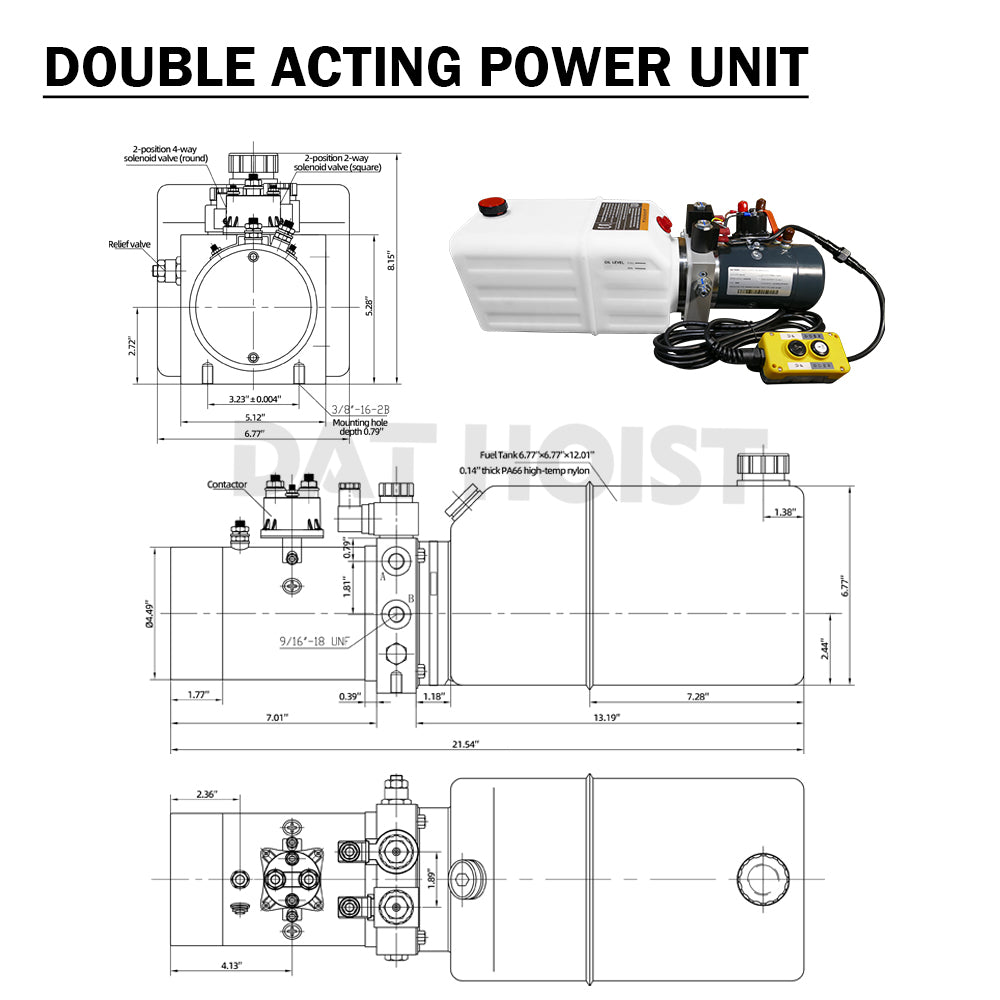

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |

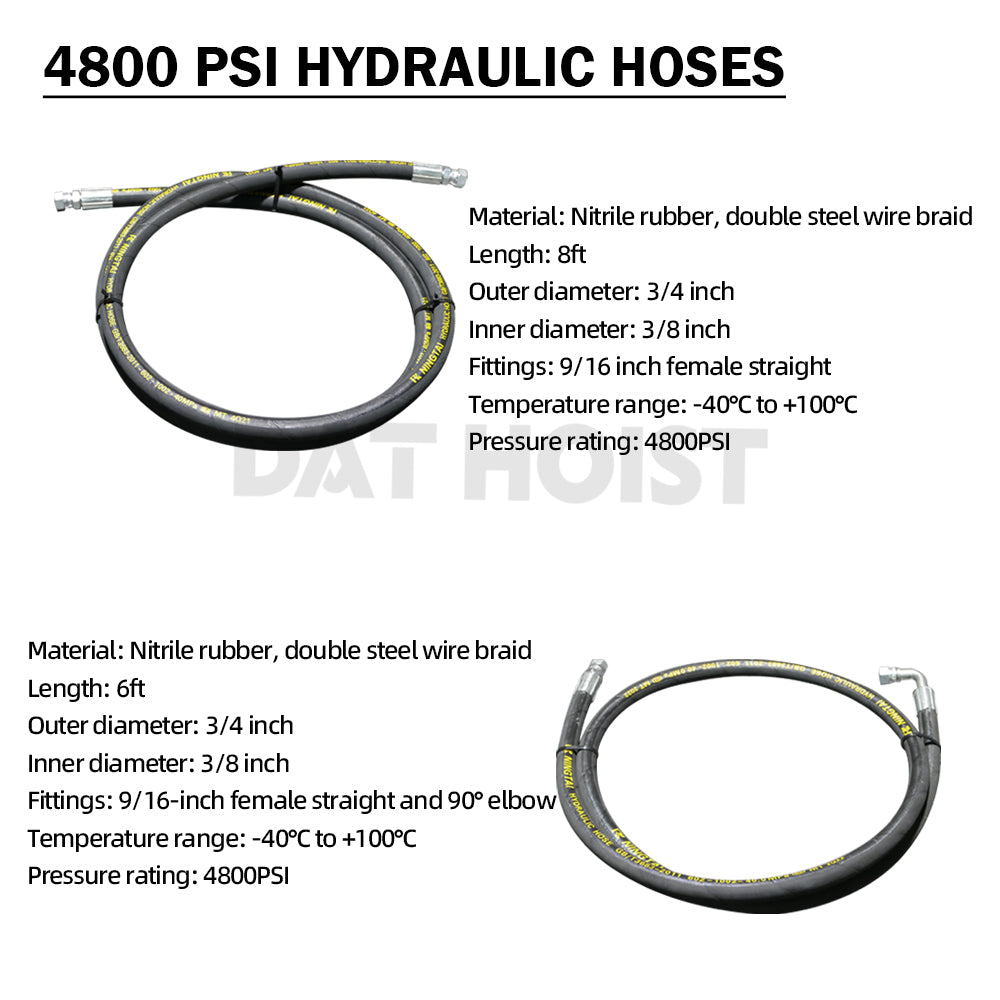

| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |

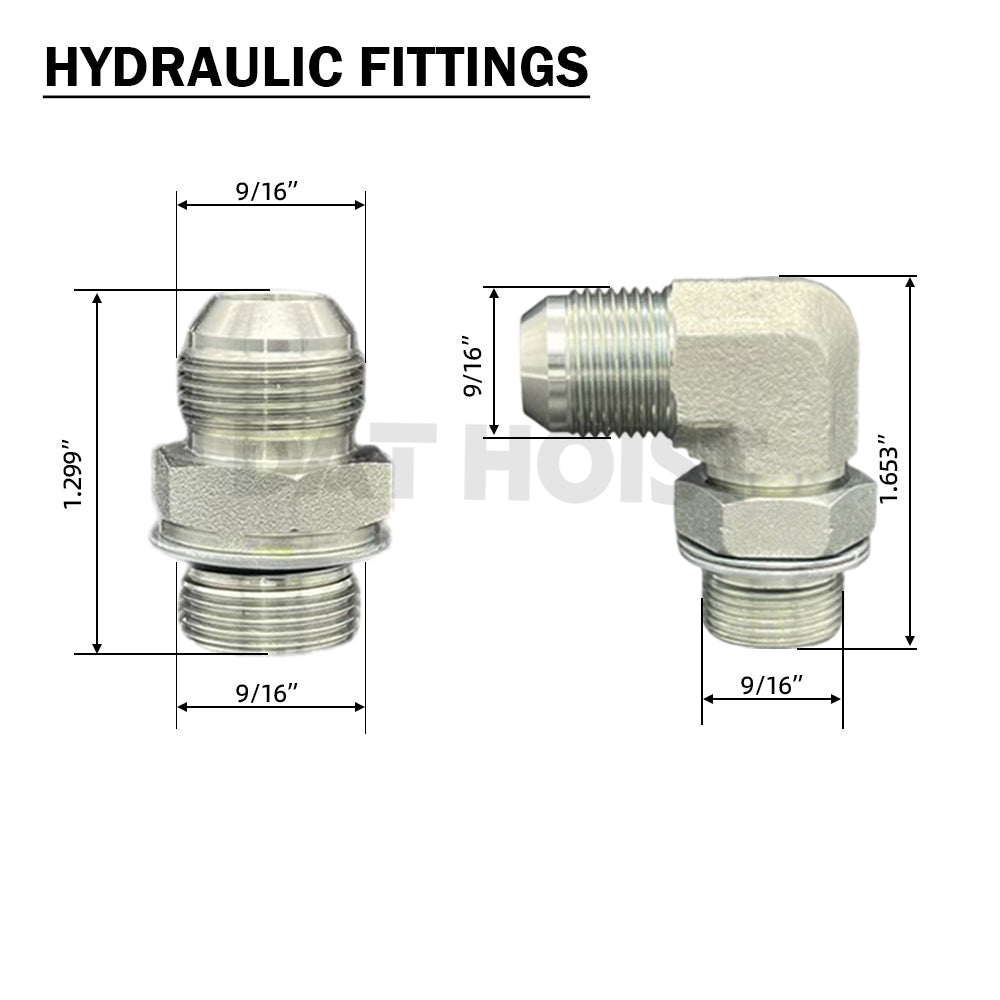

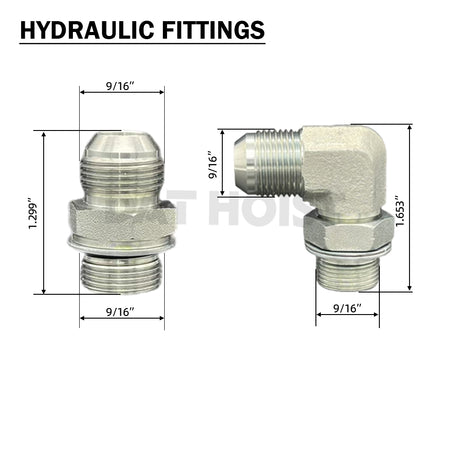

| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |

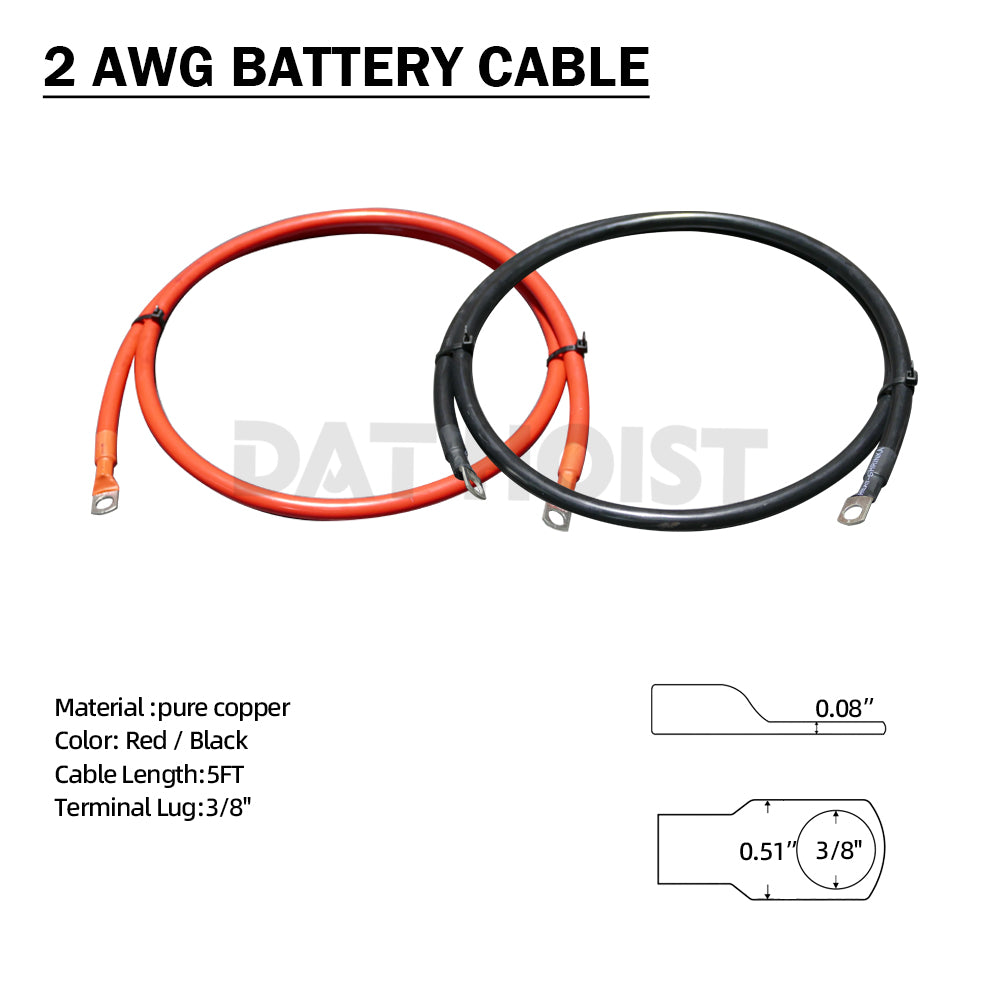

| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-520HD hydraulic scissor hoist kit is designed for installation on 12–16 ft dump beds and is compatible with standard 12V DC hydraulic systems used on dump trailers and truck bodies. Due to the HD reinforced design and higher lifting capacity, professional installation is strongly recommended to ensure safe operation and optimal performance.
FAQ
Q: What is the difference between the DH-520 and DH-520HD?
A: The DH-520HD features additional structural reinforcements, making it better suited for heavier loads and more demanding applications compared to the standard DH-520.
Q: What size dump bed is this hoist kit designed for?
A: The DH-520HD is designed for 12–16 ft dump beds.
Q: Is a hydraulic power unit included with this kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for dump trailers?
A: Yes. It is ideal for dump trailers, contractor trailers, and commercial dump bodies that require added strength.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-520HD is built for customers who demand extra strength, long service life, and dependable lifting power, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
