10 Ton Hydraulic Scissor Hoist Kit for 12–16' Dump Body – DH-520 for Trailer
Product Overview
The DH-520 is a 10-ton hydraulic scissor hoist kit engineered for 12–16 ft dump beds, now equipped with a shorter lower arm for easier installation on narrow frame dump bodies. Designed by DAT HOIST, this heavy-duty hoist delivers powerful lifting performance and smooth operation for dump trailers, contractor trailers, and medium- to heavy-duty dump trucks. Built for long-term durability, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
10 Ton Lifting Capacity – Handles heavy loads with confidence for demanding commercial applications
-
Short Lower Arm Design – Simplifies installation on narrow frame dump beds
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Prevents flexing and extends service life
-
Powder-Coated Finish – Resists rust, chipping, and corrosion over time
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
Recommended Applications
This hydraulic scissor hoist kit is commonly used for:
-
Dump trailers
-
Contractor and landscape trailers
-
Utility and commercial dump bodies
-
Narrow frame dump bed installations
-
Medium- and heavy-duty dump trucks
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Special Feature | Short Lower Arm for Narrow Frames |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

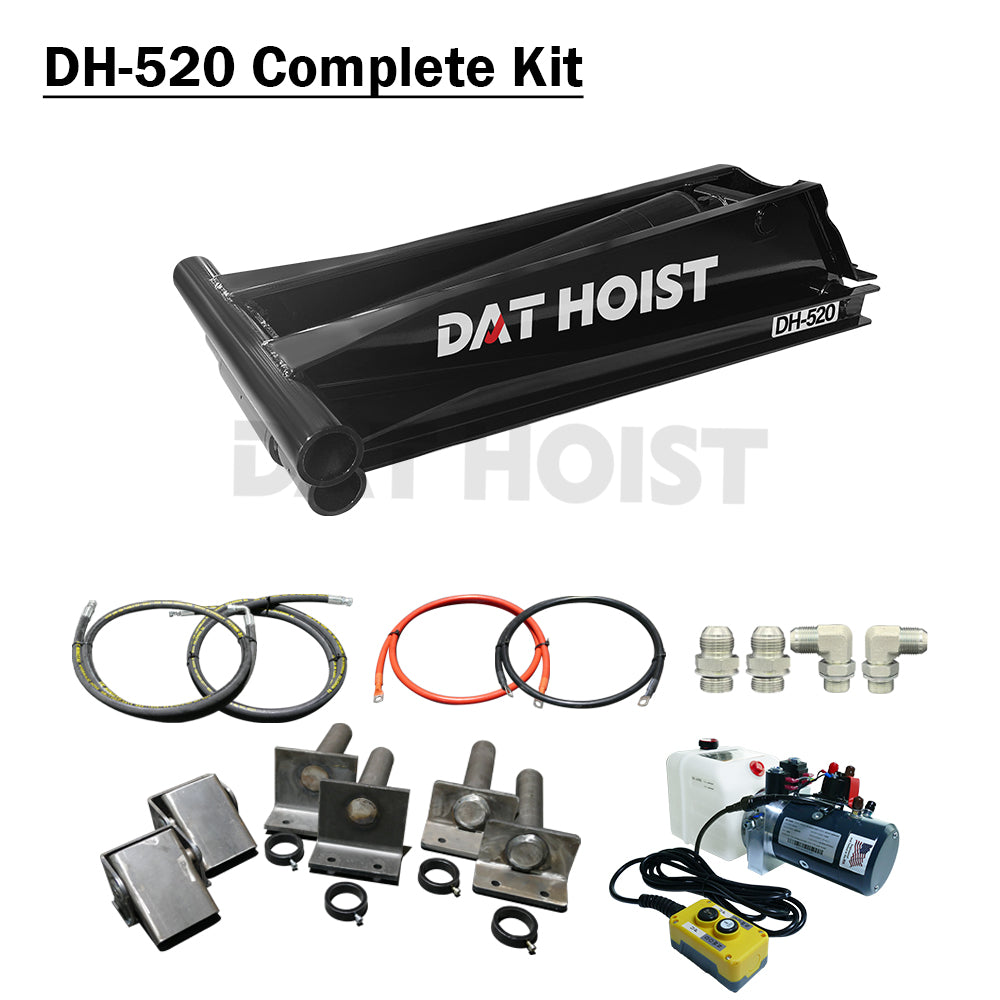

What’s Included in the DH-520 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-520SA | Frame | 1 |
| CY-520 | Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |
| DH-G2-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |
| DH-G2-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |

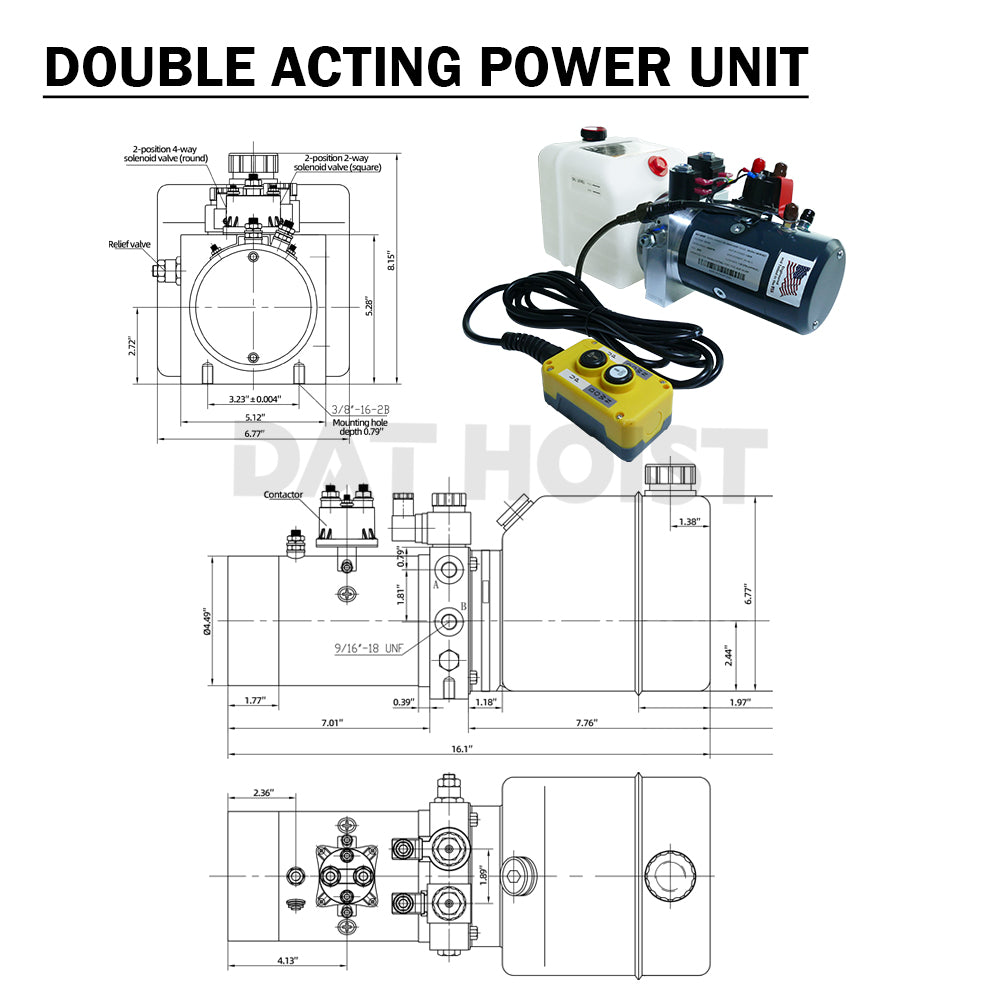

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |
| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |
| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |
| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-520 hydraulic scissor hoist kit is designed for installation on 12–16 ft dump beds, with a short lower arm that makes it especially suitable for narrow frame dump bodies. It is compatible with standard 12V DC hydraulic systems and common trailer hydraulic setups. Professional installation is recommended for safe operation and optimal lifting performance.
FAQ
Q: What makes the DH-520 different from other 10 ton hoist kits?
A: The DH-520 features a shorter lower arm, allowing easier installation on narrow frame dump beds while maintaining full 10 ton lifting capacity.
Q: What size dump bed is this hoist kit designed for?
A: The DH-520 is designed for 12–16 ft dump beds.
Q: Is a hydraulic power unit included?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for dump trailers?
A: Yes. It is ideal for dump trailers, contractor trailers, and commercial dump bodies.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-520 is designed for customers who need high lifting capacity with easier installation on narrow frames, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
