10 Ton Hydraulic Scissor Hoist Kit for 10–16' Dump Body | DH-520HD MAX
Product Overview
The DH-520HD MAX is a 10-ton hydraulic scissor hoist kit engineered with maximum structural reinforcement for customers who demand the highest level of strength, stability, and durability. Designed for 10–16 ft dump beds, this heavy-duty hoist delivers powerful, controlled lifting performance even under extreme loads. Built by DAT HOIST for demanding commercial applications, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
10 Ton Lifting Capacity – Handles heavy loads with confidence for demanding commercial and industrial applications
-

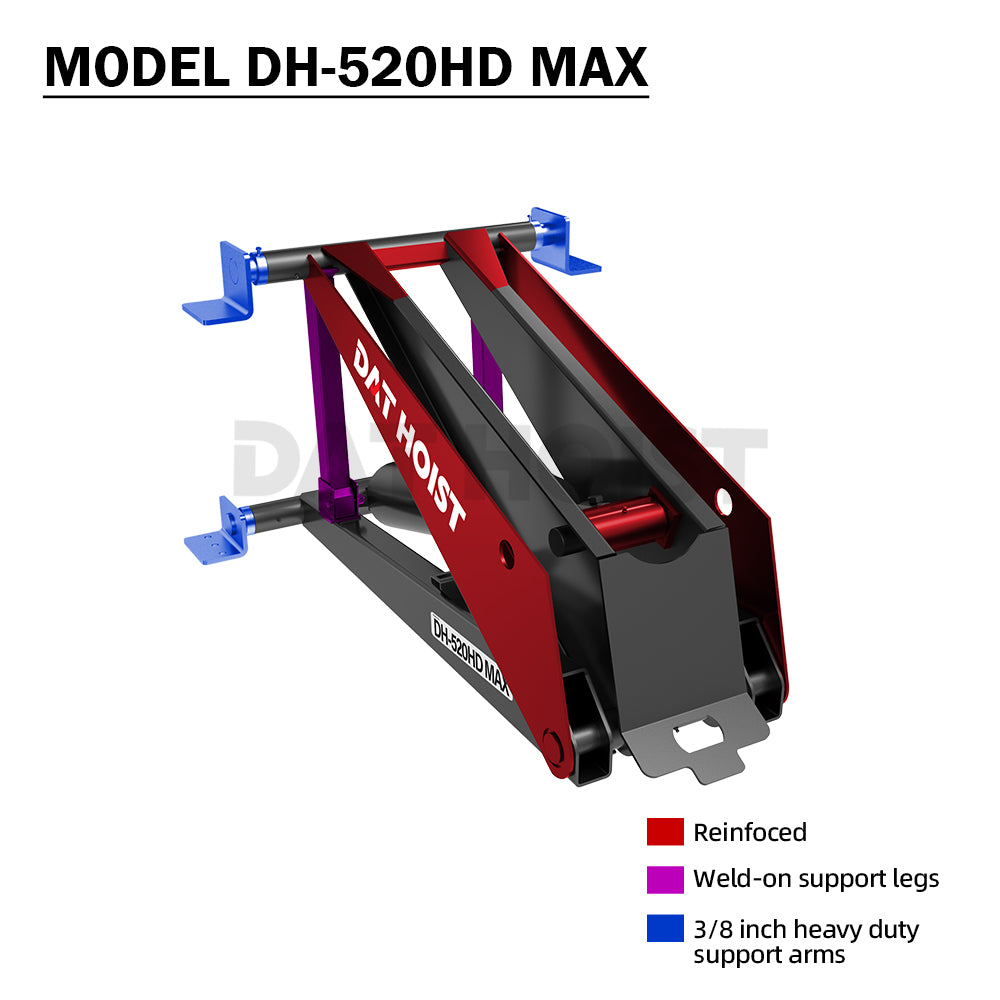

HD MAX Reinforced Design – Maximum reinforcement for increased rigidity, strength, and service life
-
Fits 10–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand extreme workloads and daily operation
-
Reinforced Stress Points – Engineered to minimize flexing under heavy loads
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This HD MAX hydraulic scissor hoist kit is commonly used for:
-
Dump trailers handling heavy payloads
-
Contractor and commercial dump bodies
-
Utility and construction dump trucks
-
Applications requiring maximum strength and stability
-
High-cycle, heavy-load commercial use
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |
| Dump Bed Length | 10–16 ft |
| Hoist Type | Hydraulic Scissor Hoist (HD MAX Reinforced) |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

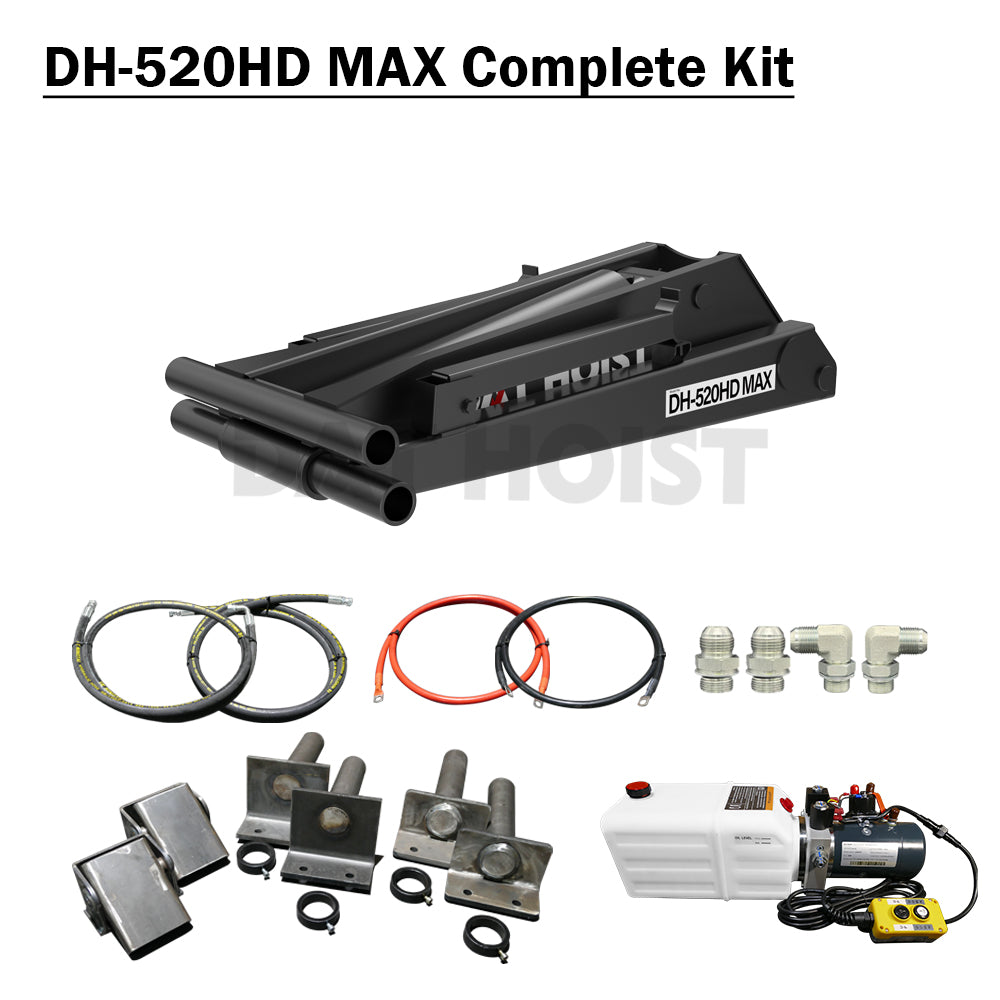

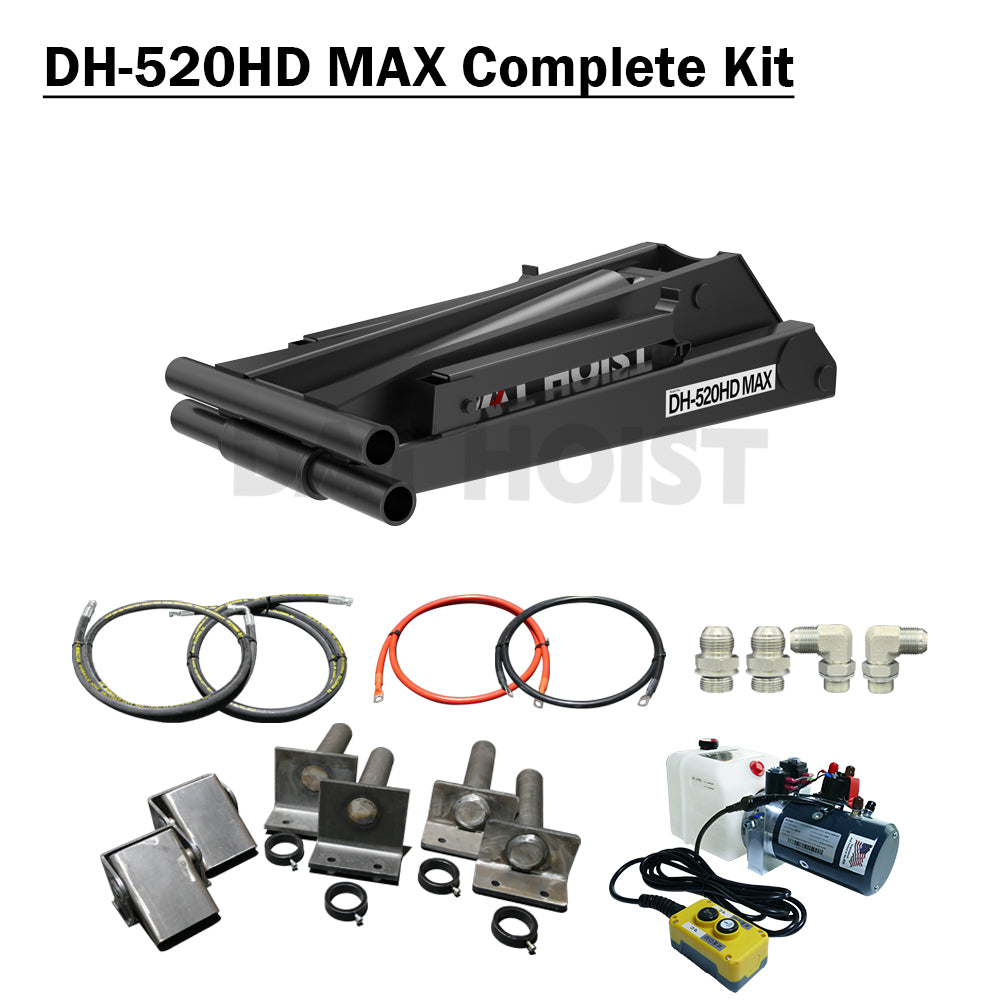

What’s Included in the DH-520HD MAX Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|

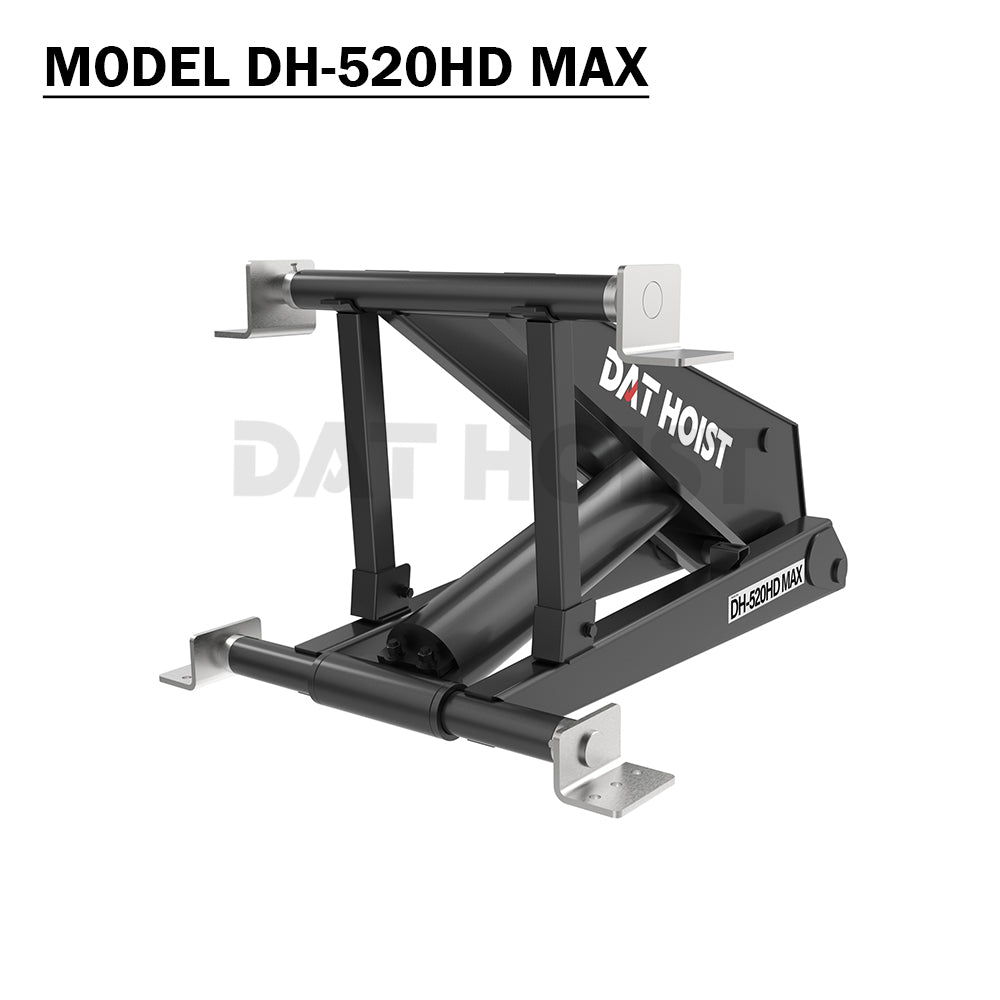

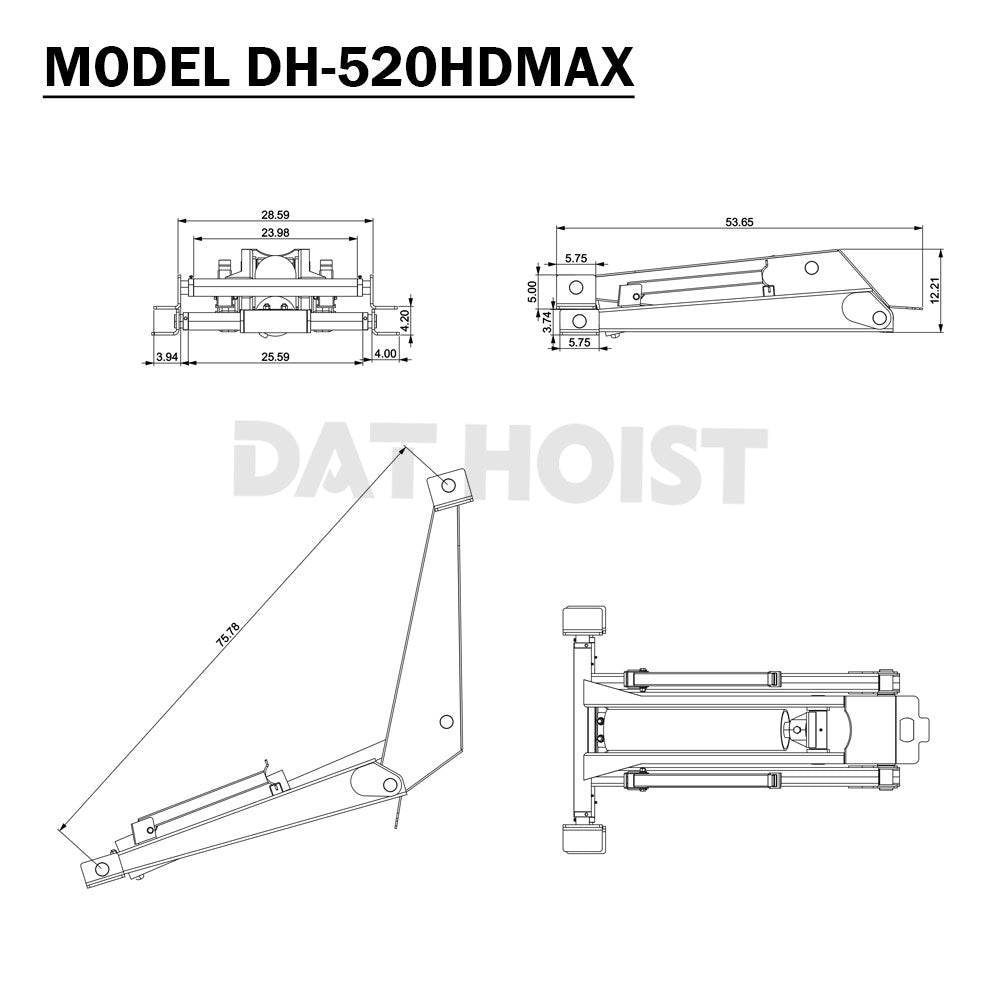

| HF-520HD MAX | 520HD MAX Hoist Frame | 1 |

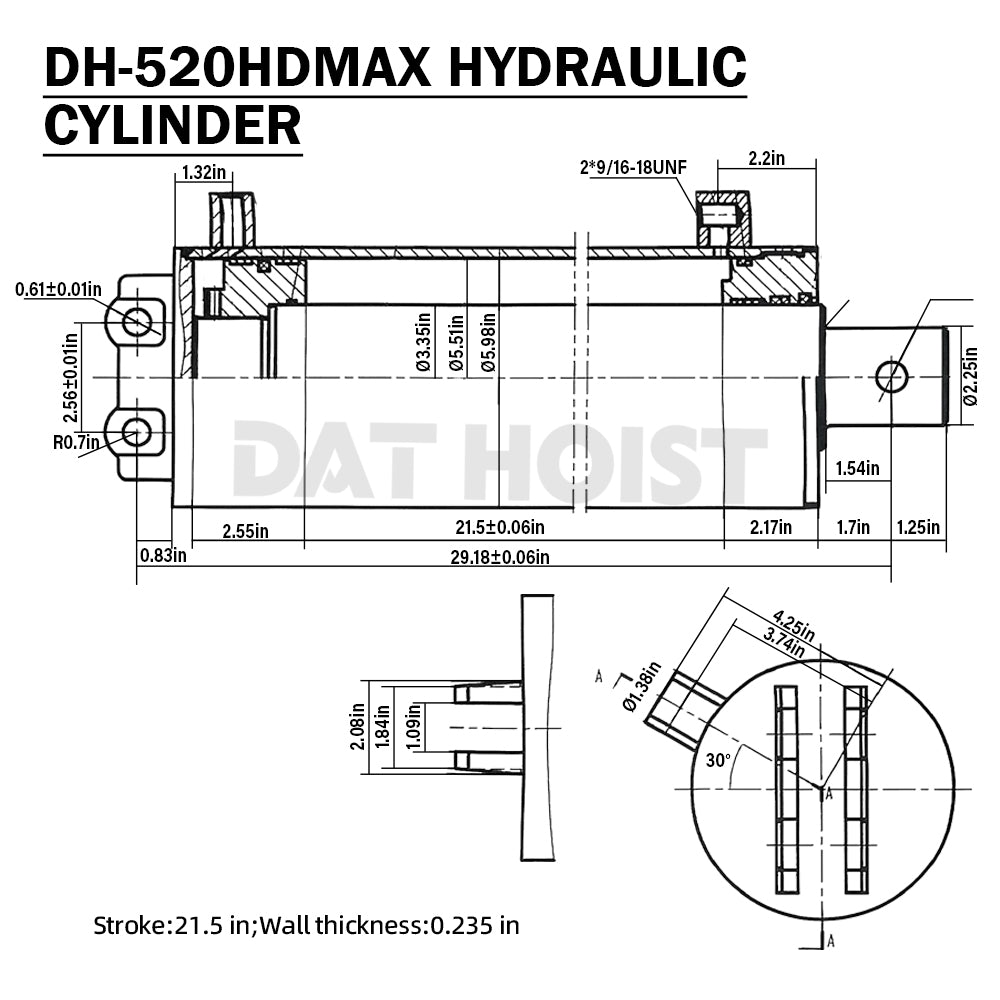

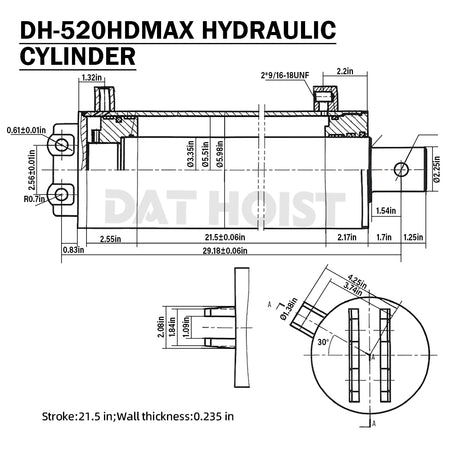

| CY-520MAX | 520MAX Hydraulic Cylinder | 1 |
| DH-G1-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |

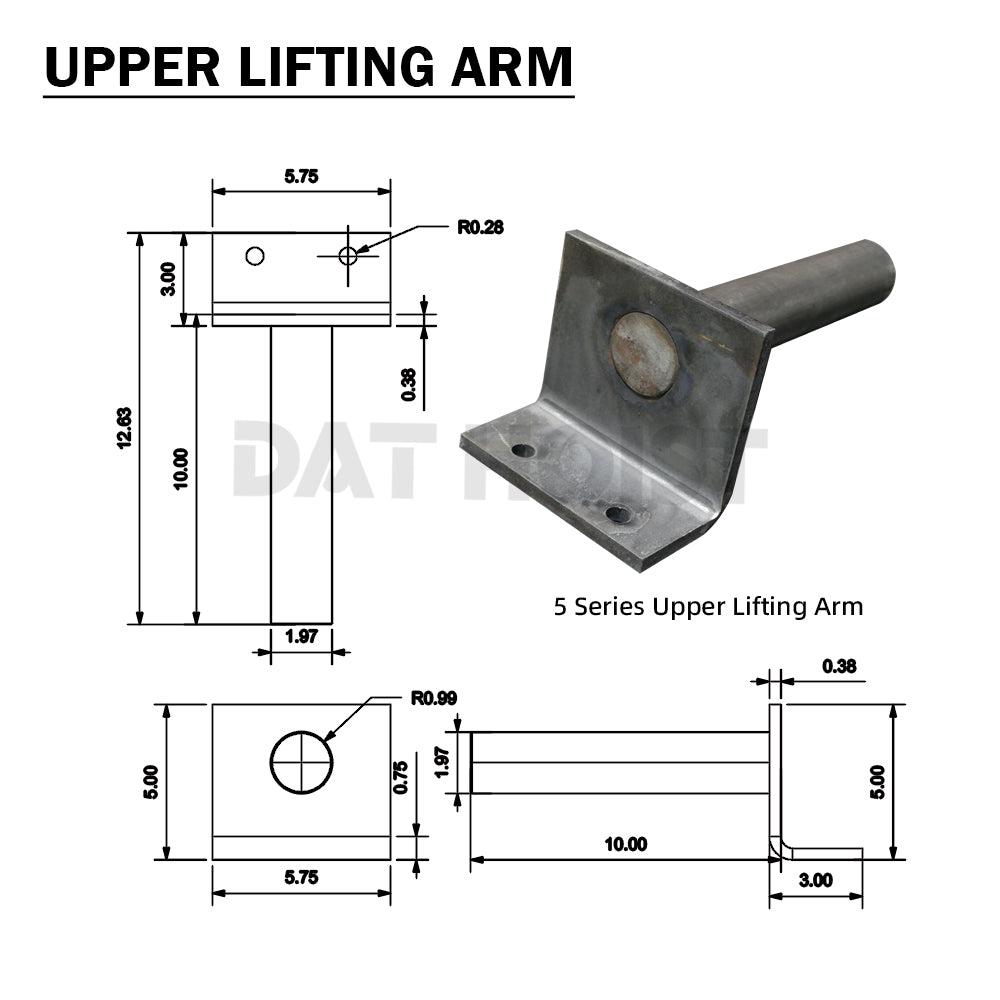

| DH-G1-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |

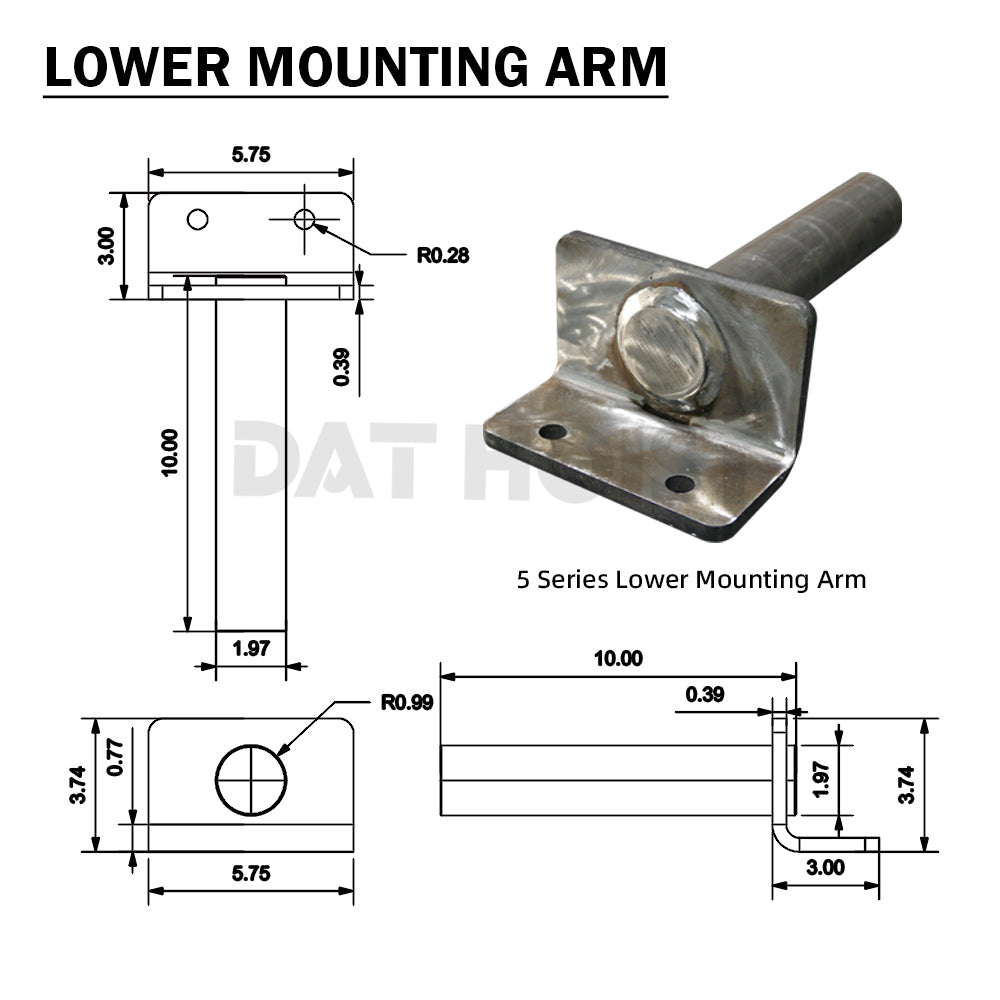

| DH-G1-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |

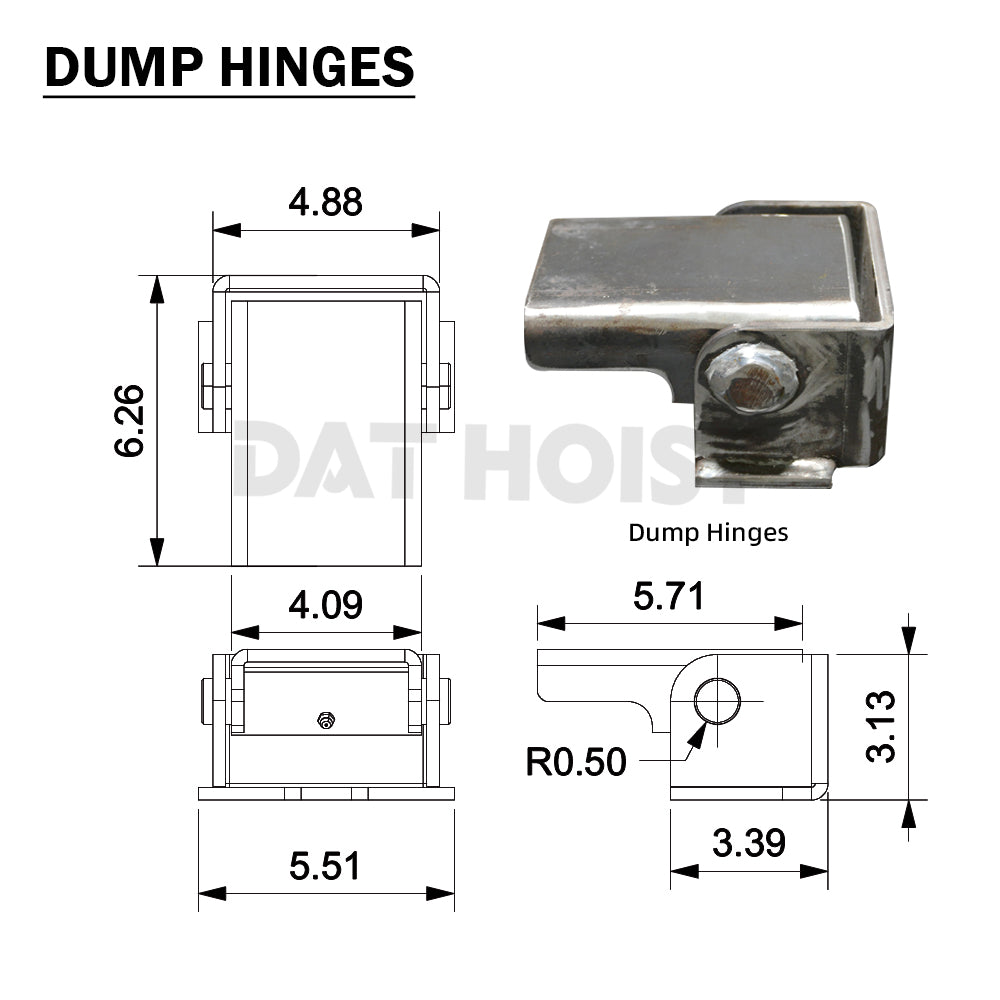

| H-500 | Five Series Dump Hinges | 2 |

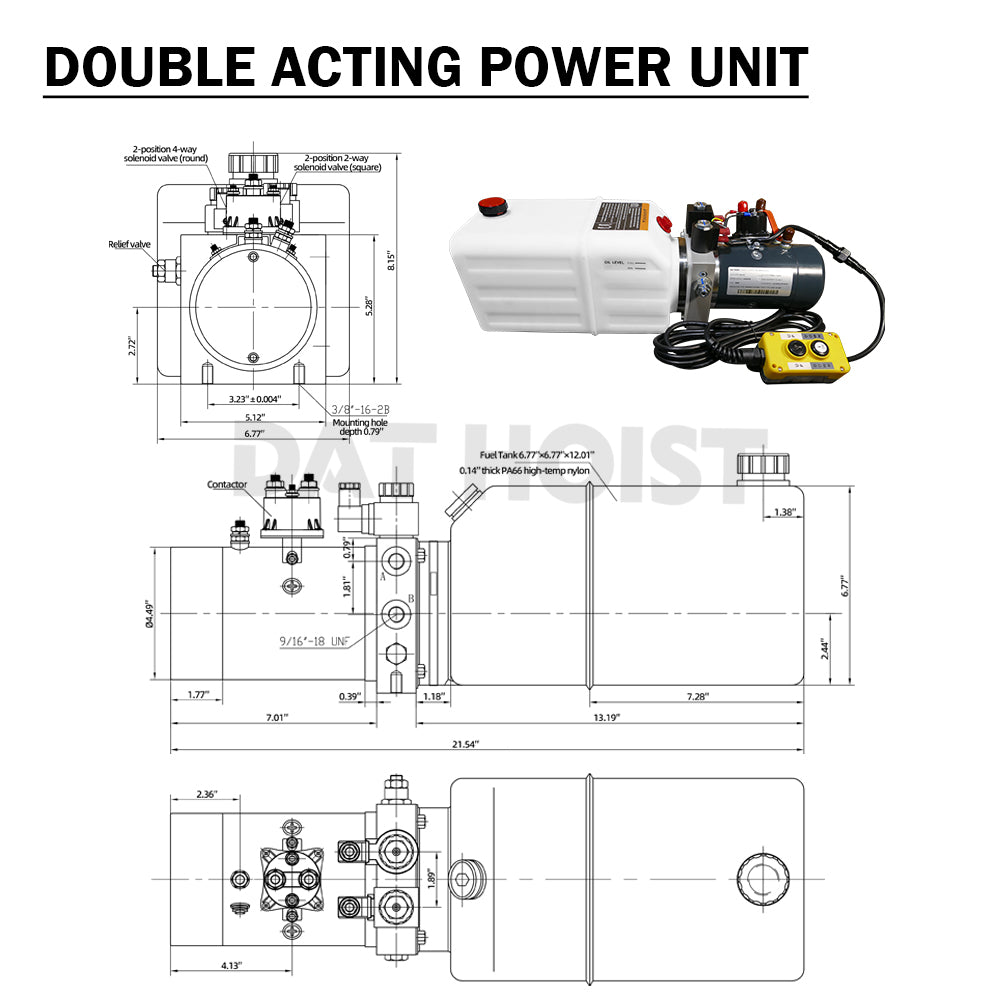

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |

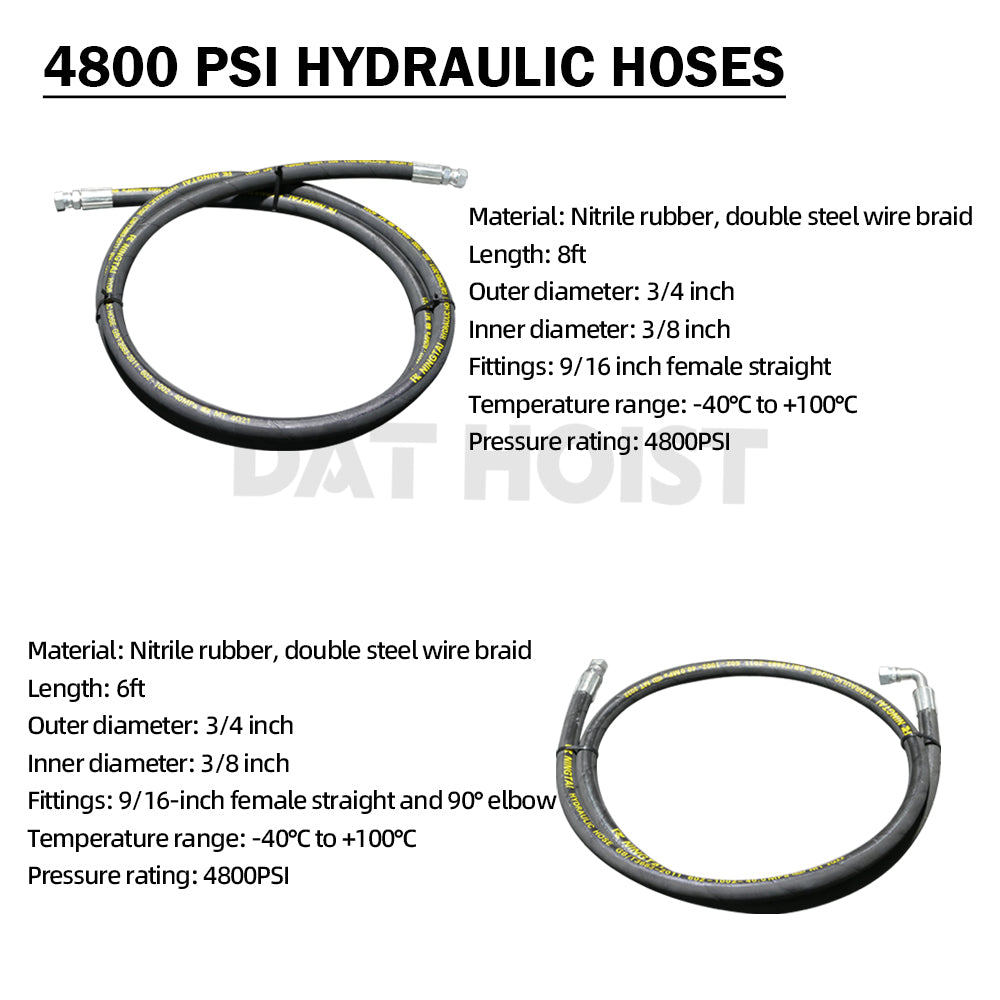

| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |

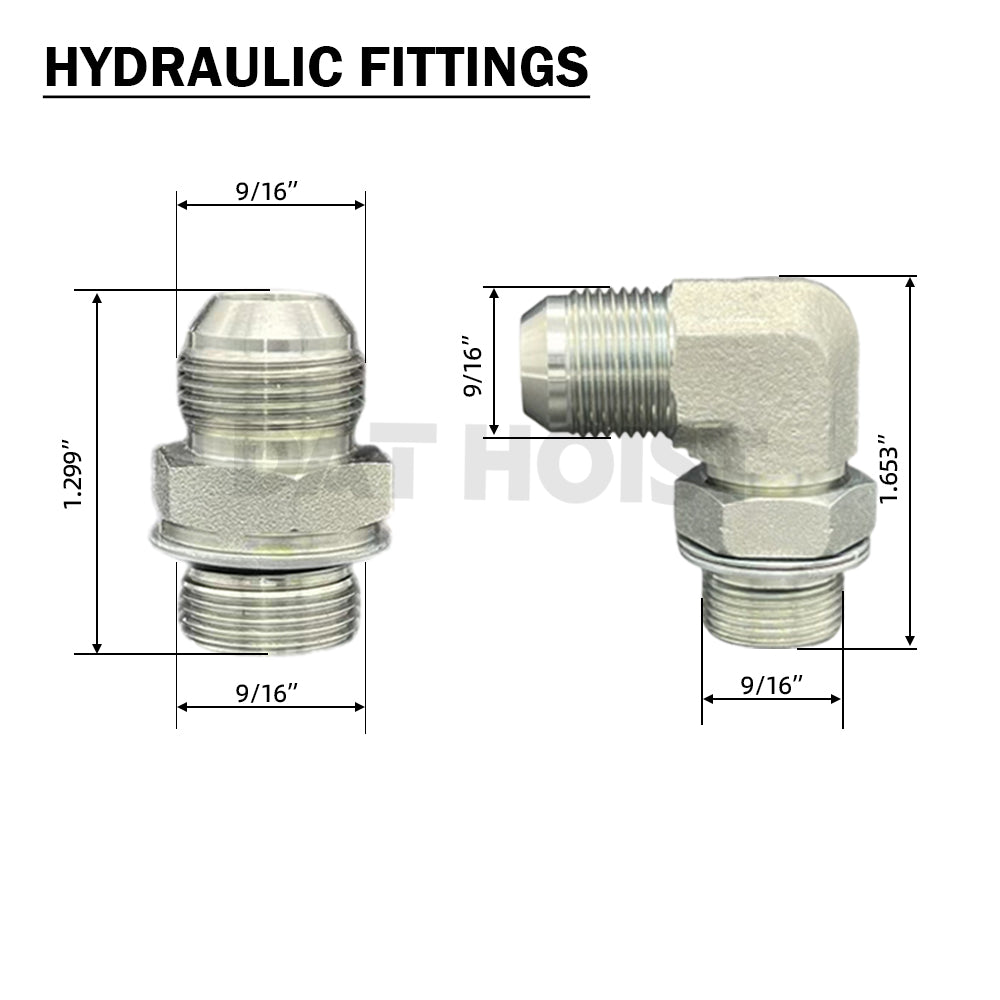

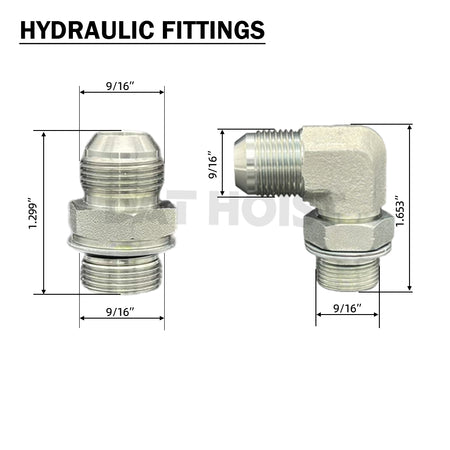

| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |

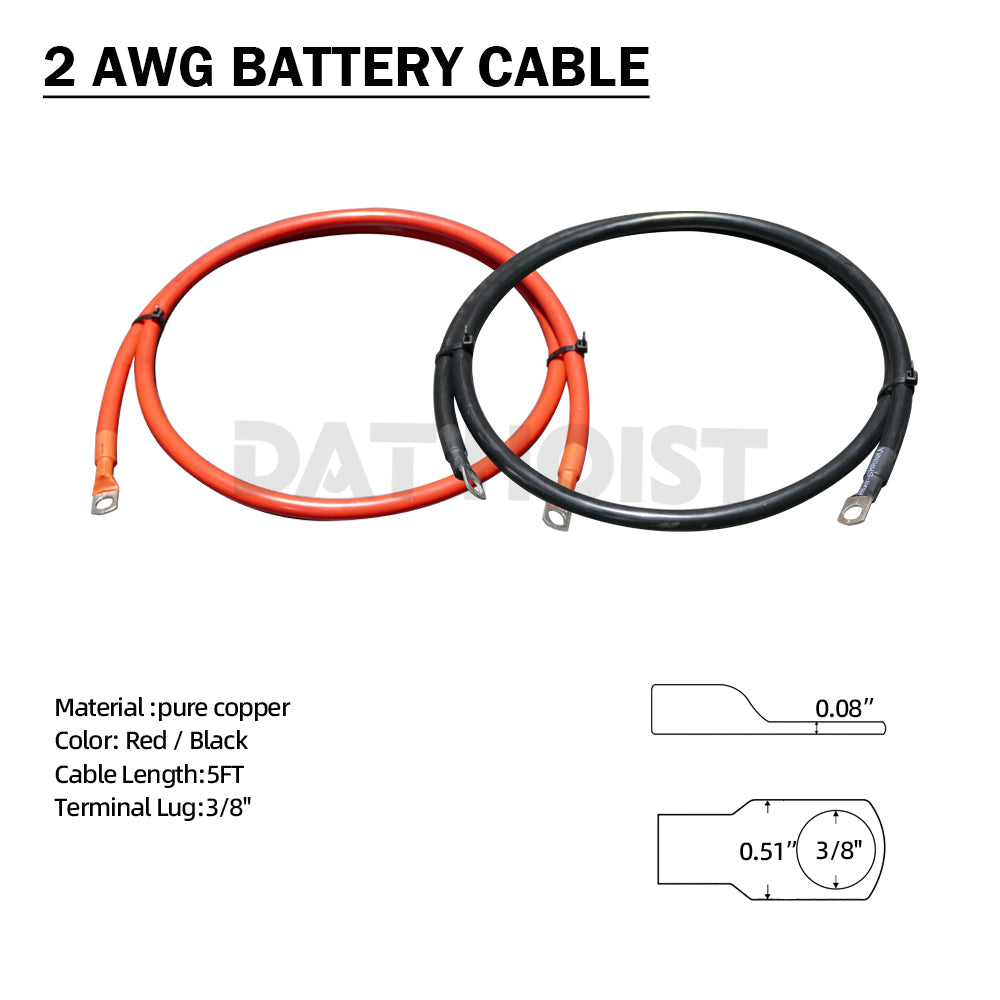

| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-520HD MAX hydraulic scissor hoist kit is designed for installation on 10–16 ft dump beds and is compatible with standard 12V DC hydraulic systems used on dump trailers and truck bodies. Due to the HD MAX reinforced design and heavy-duty application, professional installation is strongly recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: What is the difference between DH-520, DH-520HD, and DH-520HD MAX?
A: The DH-520HD MAX features maximum structural reinforcement, offering greater rigidity and durability than both the standard DH-520 and the DH-520HD for extreme-duty applications.
Q: What size dump bed is this hoist kit designed for?
A: The DH-520HD MAX is designed for 10–16 ft dump beds.
Q: Is a hydraulic power unit included with the kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for high-cycle commercial use?
A: Yes. The HD MAX configuration is ideal for frequent use and heavy payload applications.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-520HD MAX is built for operators who demand maximum strength, stability, and long service life, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
