10 Ton Hydraulic Scissor Hoist Kit for 12–16' Dump Body | DH-520 Pro for Trailer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
10 Ton Hydraulic Scissor Hoist Kit for 12–16' Dump Body | DH-520 Pro for Trailer
Product Overview
The DH-520 Pro is a reinforced 10-ton hydraulic scissor hoist kit engineered for 12–16 ft dump beds, featuring a short lower arm design for easier installation on narrow frame dump bodies and a Pro-grade reinforced structure for increased strength and load stability.
Built on the proven DH-520 platform, the DH-520 Pro incorporates additional structural reinforcement at critical stress and pivot points, resulting in a more rigid hoist assembly with reduced flex, improved load control, and longer service life under heavy or repeated use.
Designed by DAT HOIST for demanding commercial and contractor applications, this Pro hoist kit delivers smoother lifting performance and higher durability while maintaining compatibility with compact trailer frames.
The hydraulic cylinder and hoist frame are covered by a limited 2-year manufacturer warranty, while the included hydraulic power unit is protected by a limited 1-year manufacturer warranty.
Key Features
-
10 Ton Pro-Rated Lifting Capacity – Reinforced design improves stability for heavy-duty trailer applications
-
Pro Reinforced Structure – Strengthened steel sections and stress zones increase rigidity and service life
-
Short Lower Arm Design – Simplifies installation on narrow frame dump beds
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily commercial use
-
Reduced Flex Under Load – Improved geometry ensures smoother, more controlled lifting
-
Powder-Coated Finish – Resists rust, chipping, and corrosion over time
-
Industrial-Grade Hydraulic Power Unit – Supports reliable power-up and power-down operation
Recommended Applications
This DH-520 Pro hydraulic scissor hoist kit is commonly used for:
-
Dump trailers carrying heavier or denser materials
-
Contractor and landscape trailers with high-duty cycles
-
Utility and commercial dump bodies
-
Narrow frame dump bed installations
-
Medium- and heavy-duty dump trucks

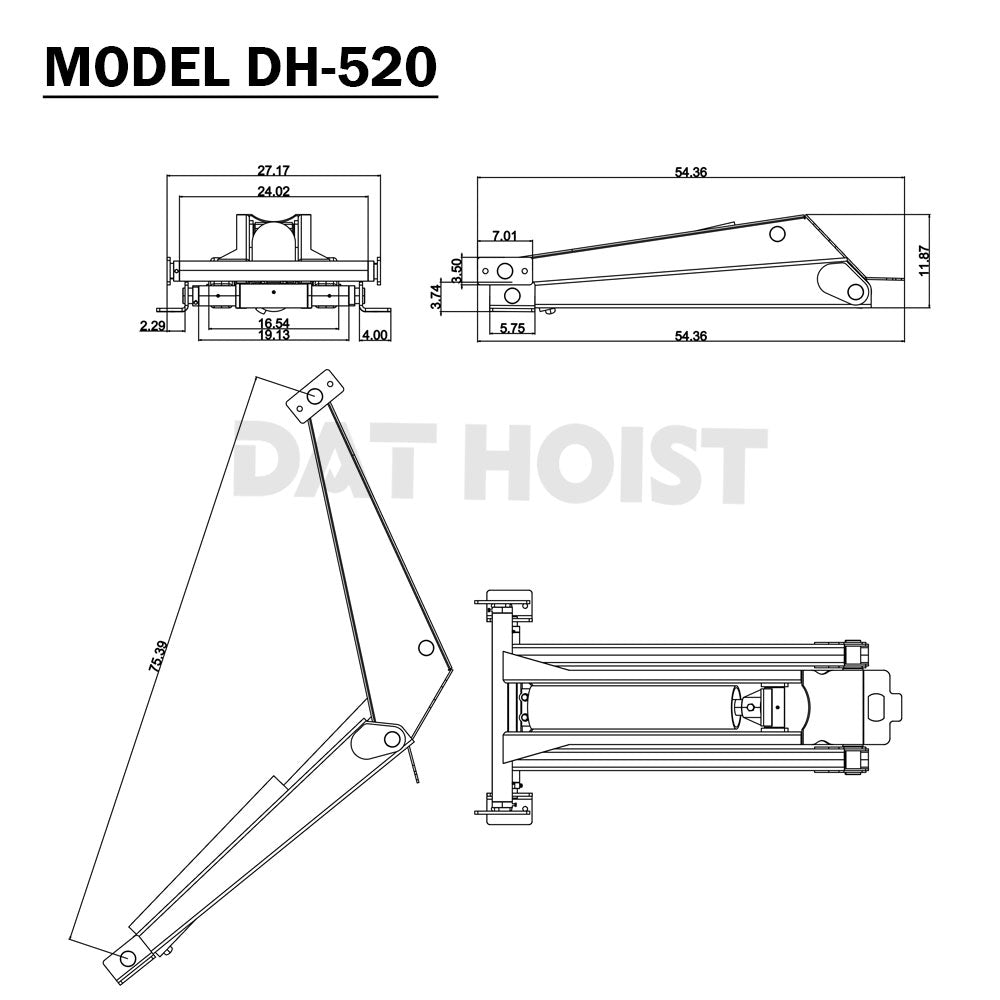

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton (Pro Reinforced Design) |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Special Feature | Pro Reinforced Structure + Short Lower Arm |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Heavy-Duty Structural Steel |
| Finish | Powder-Coated |

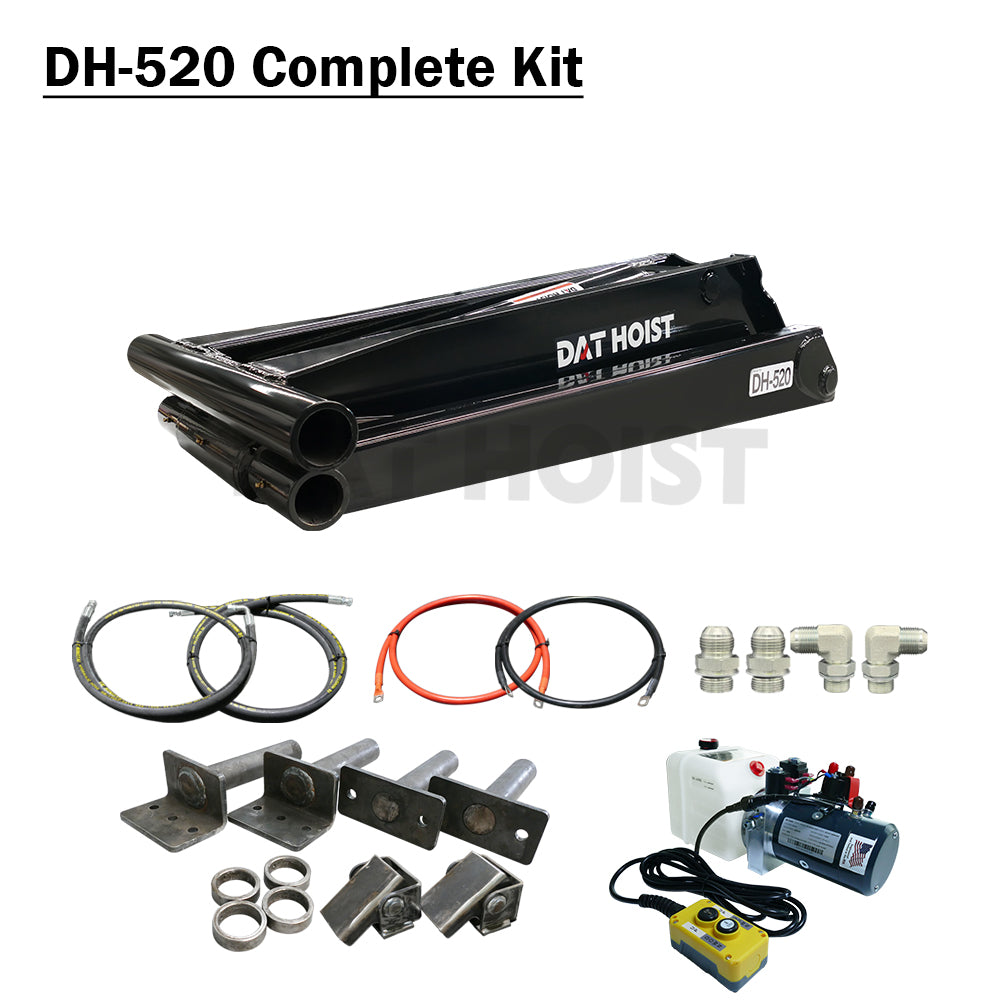

What’s Included – DH-520 Pro Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|

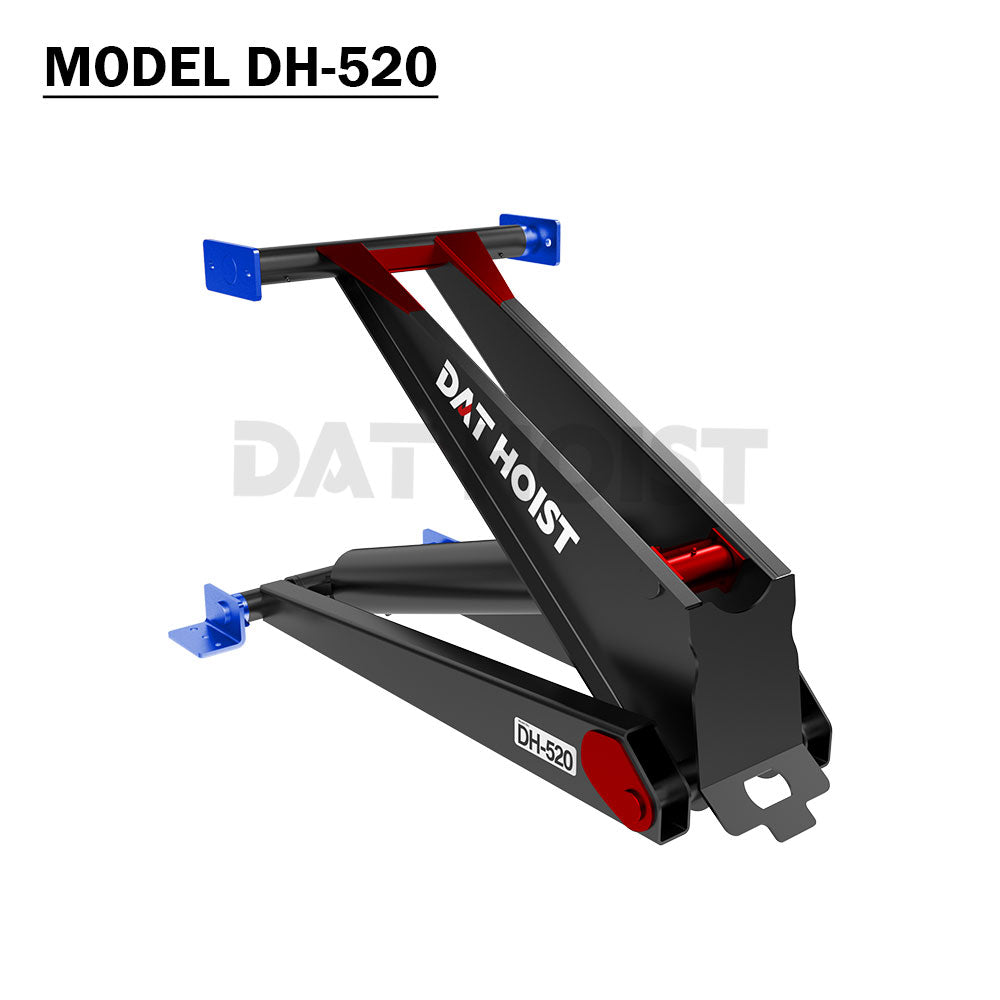

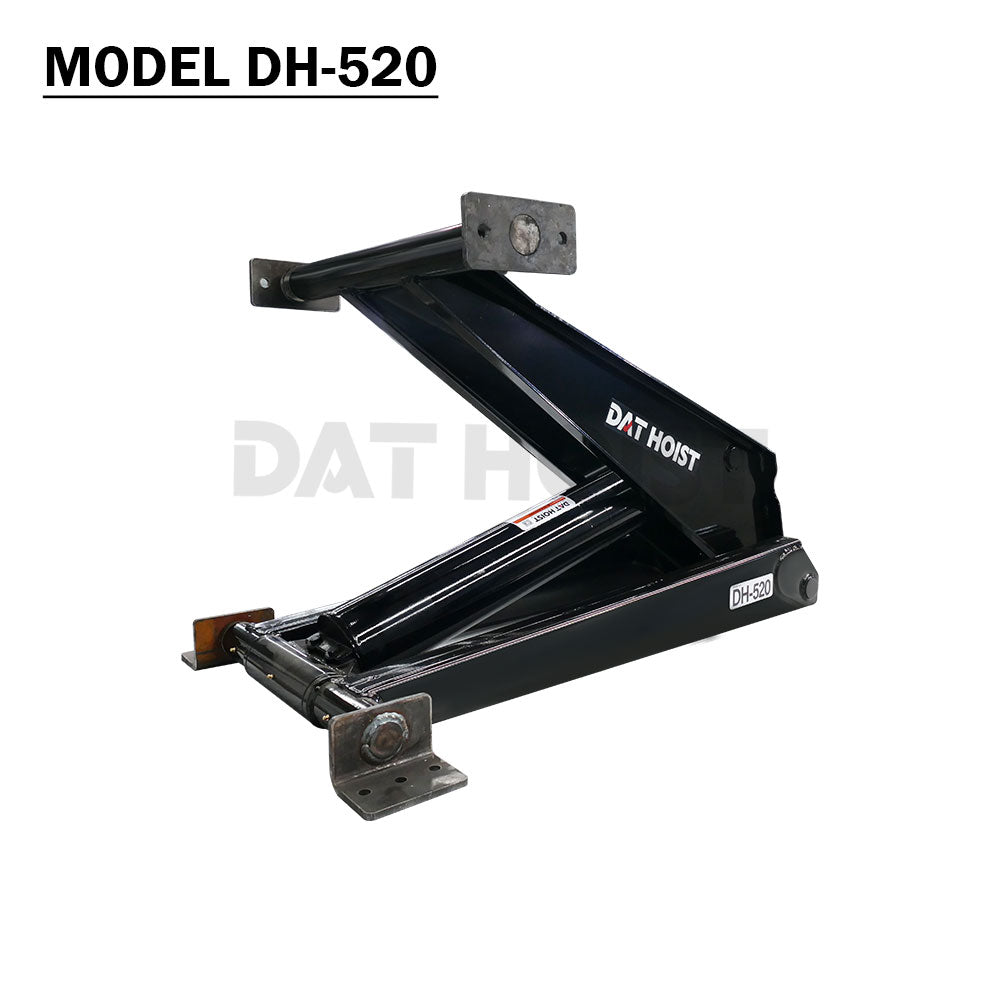

| HF-520PL | Reinforced Pro Hoist Frame (Short Lower Arm) | 1 |

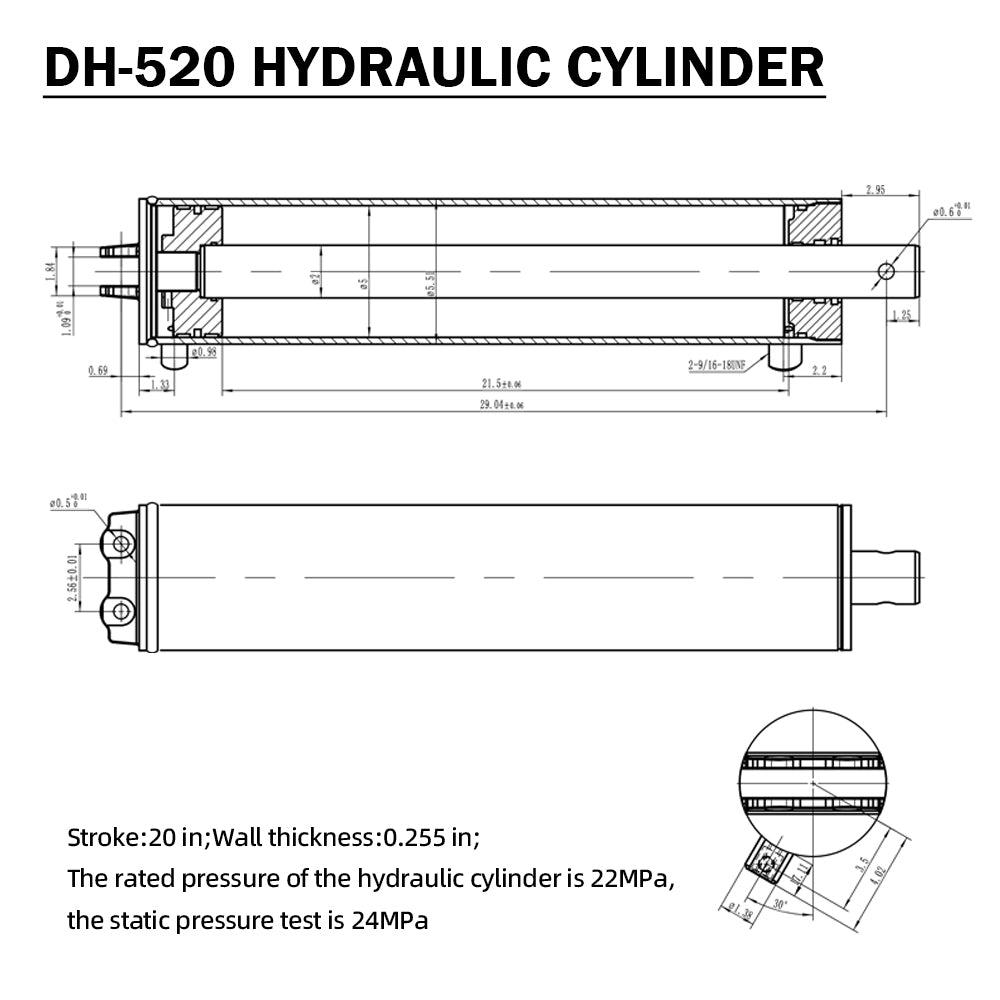

| CY-520 | Hydraulic Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Pro Heavy-Duty Ring Collar | 4 |

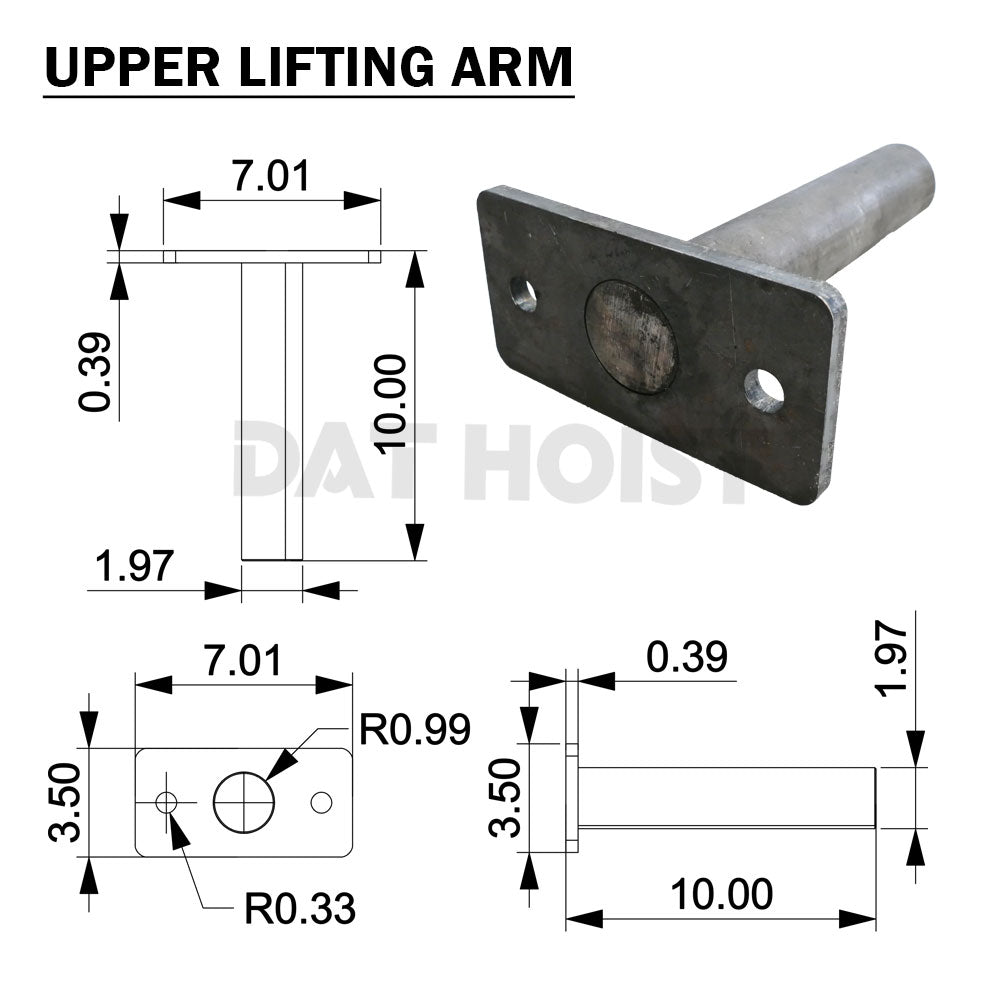

| DH-G2-ACC-003 | 516/520 Pro Heavy-Duty Upper Lifting Arm | 2 |

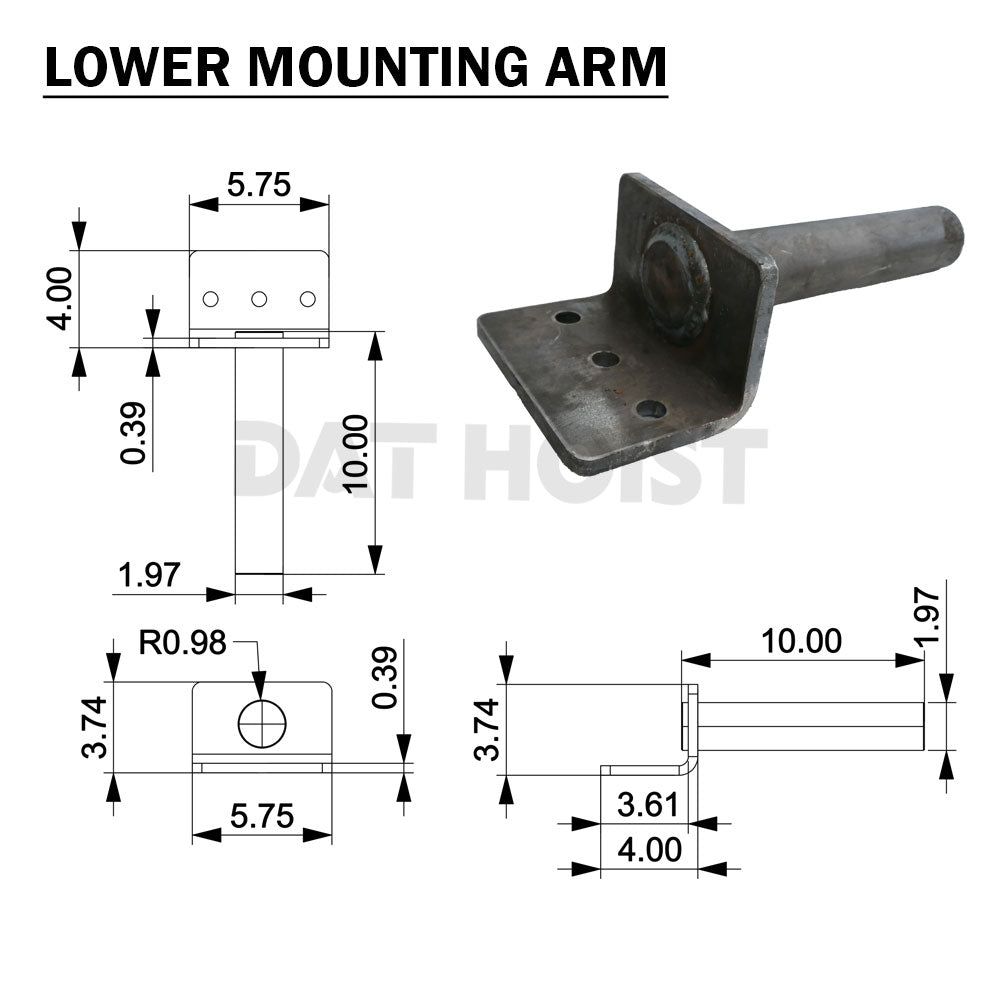

| DH-G2-ACC-004 | 516/520 Pro Heavy-Duty Lower Mounting Arm | 2 |

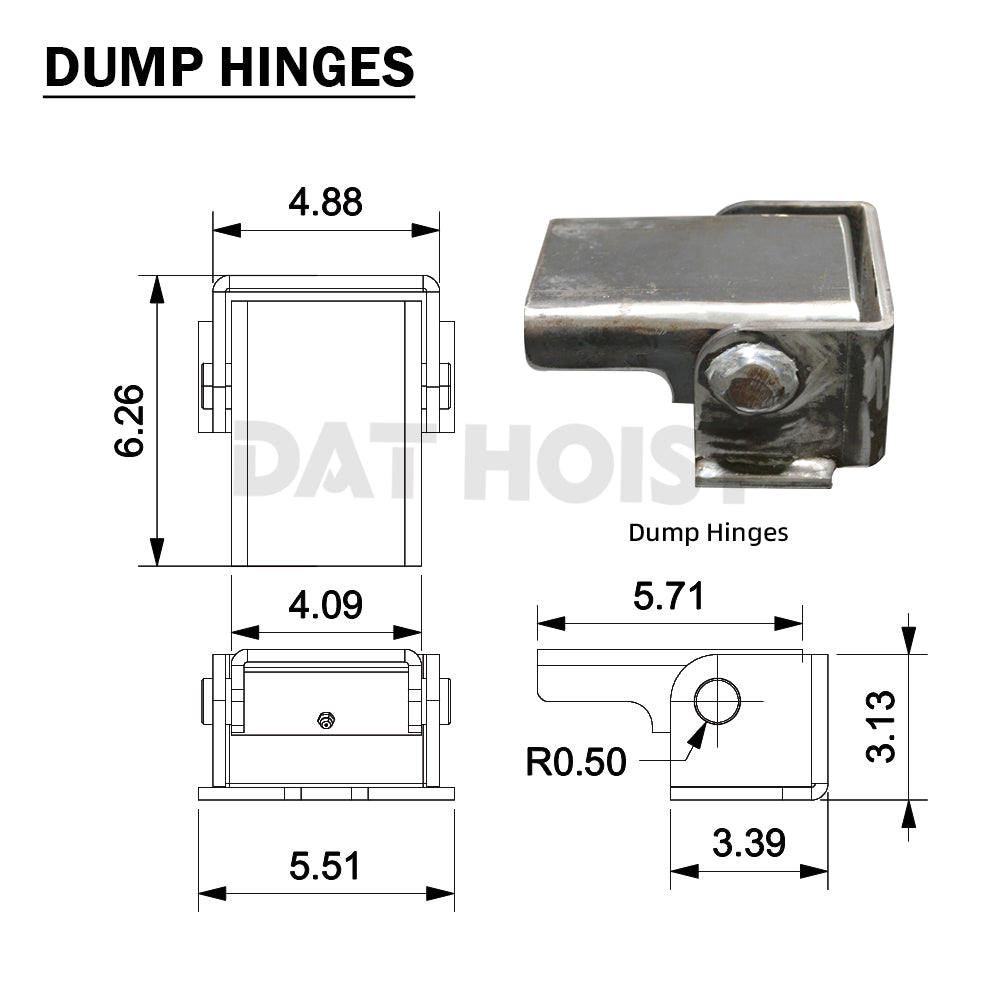

| H-500 | Five Series Dump Hinges | 2 |

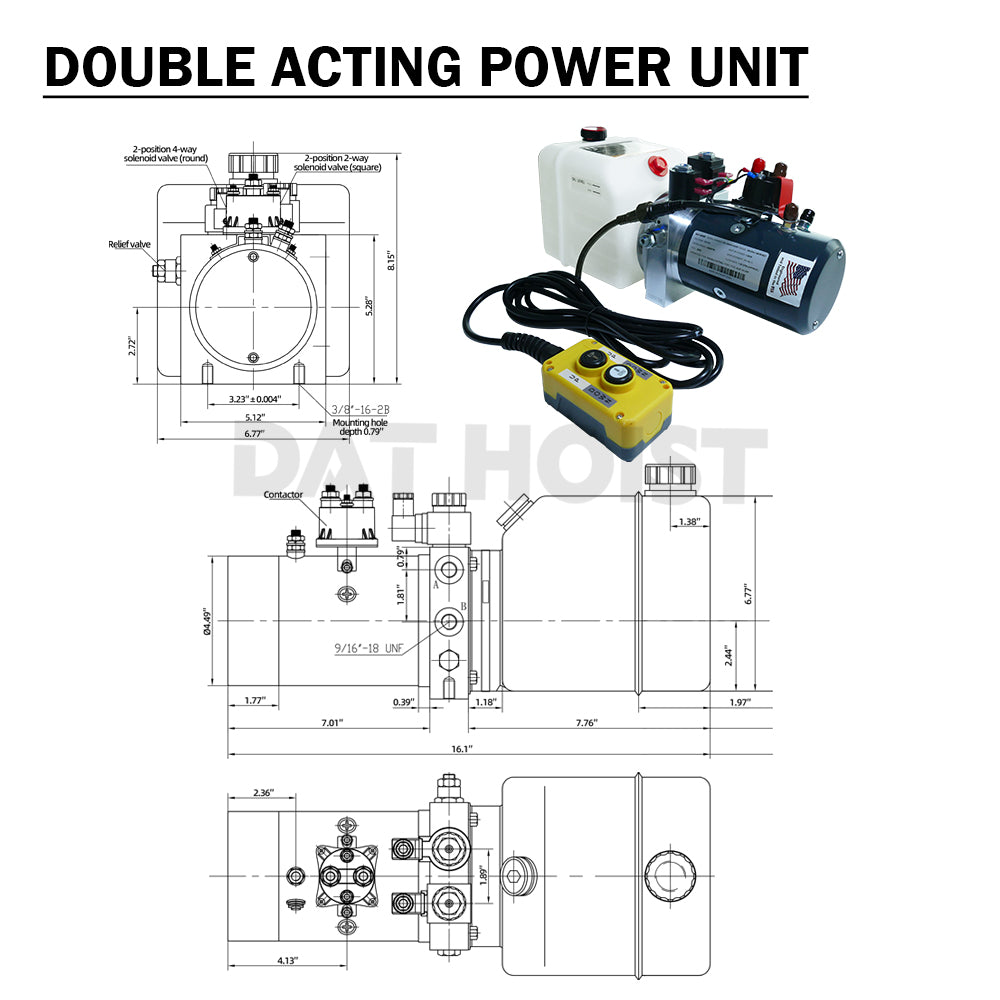

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |

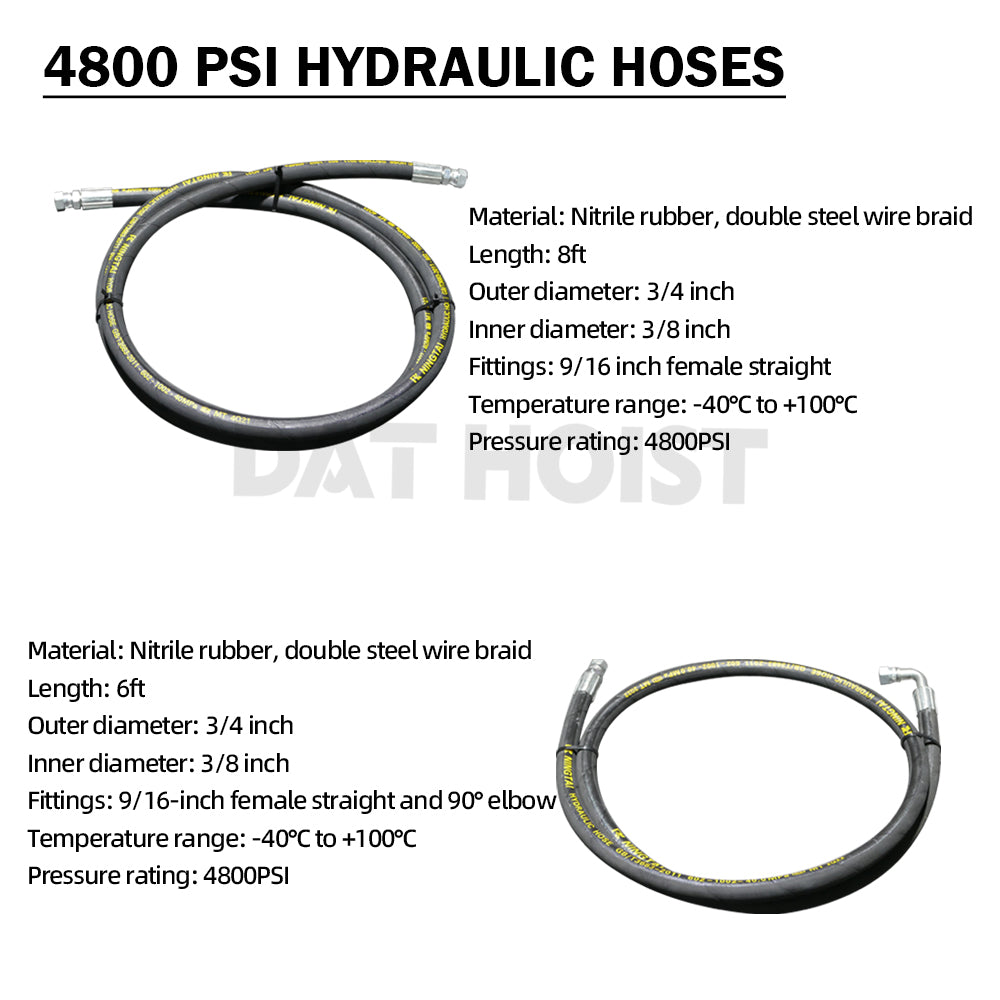

| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |

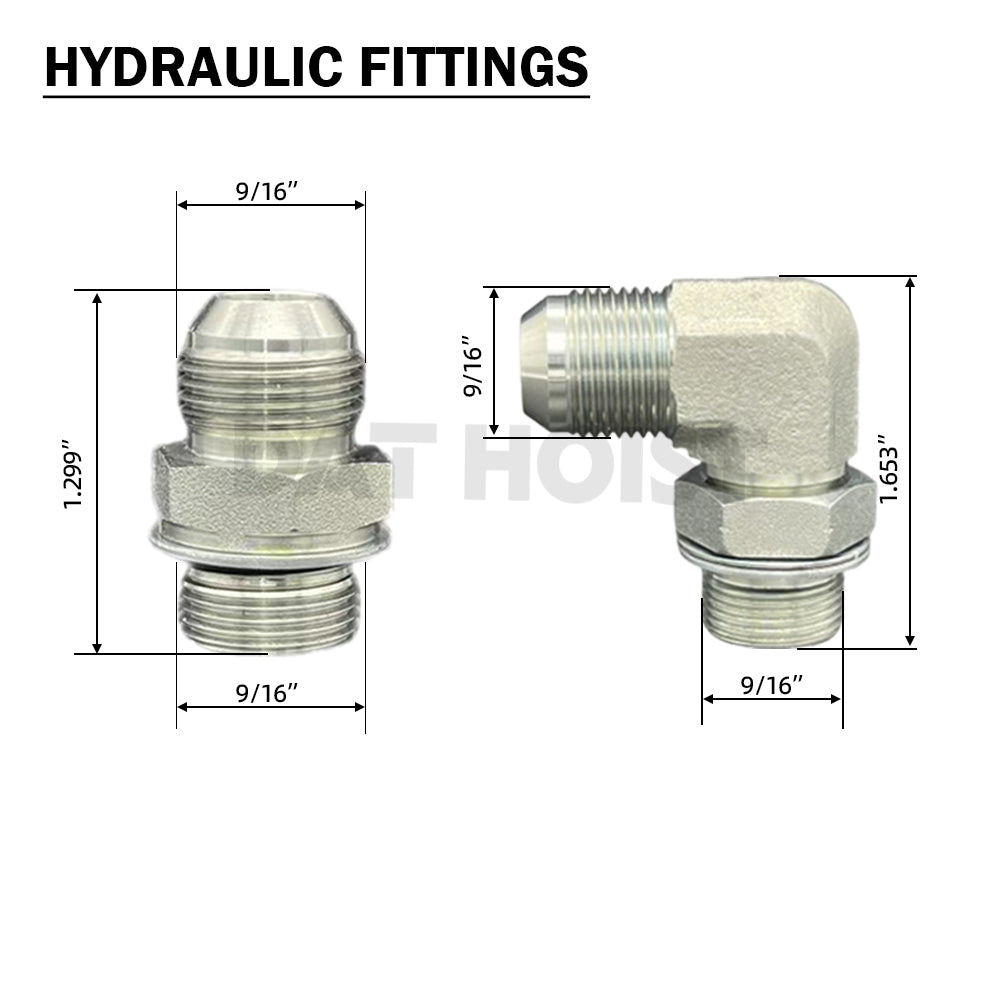

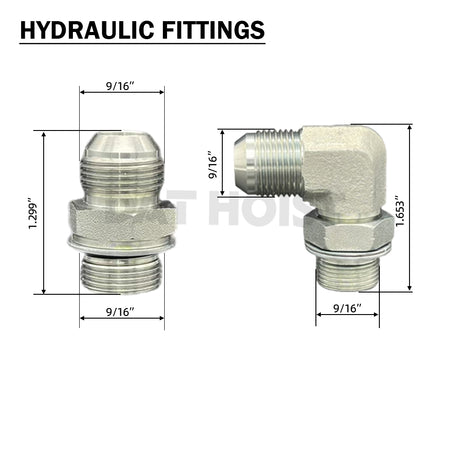

| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" Male JIC 37° Elbow | 2 |

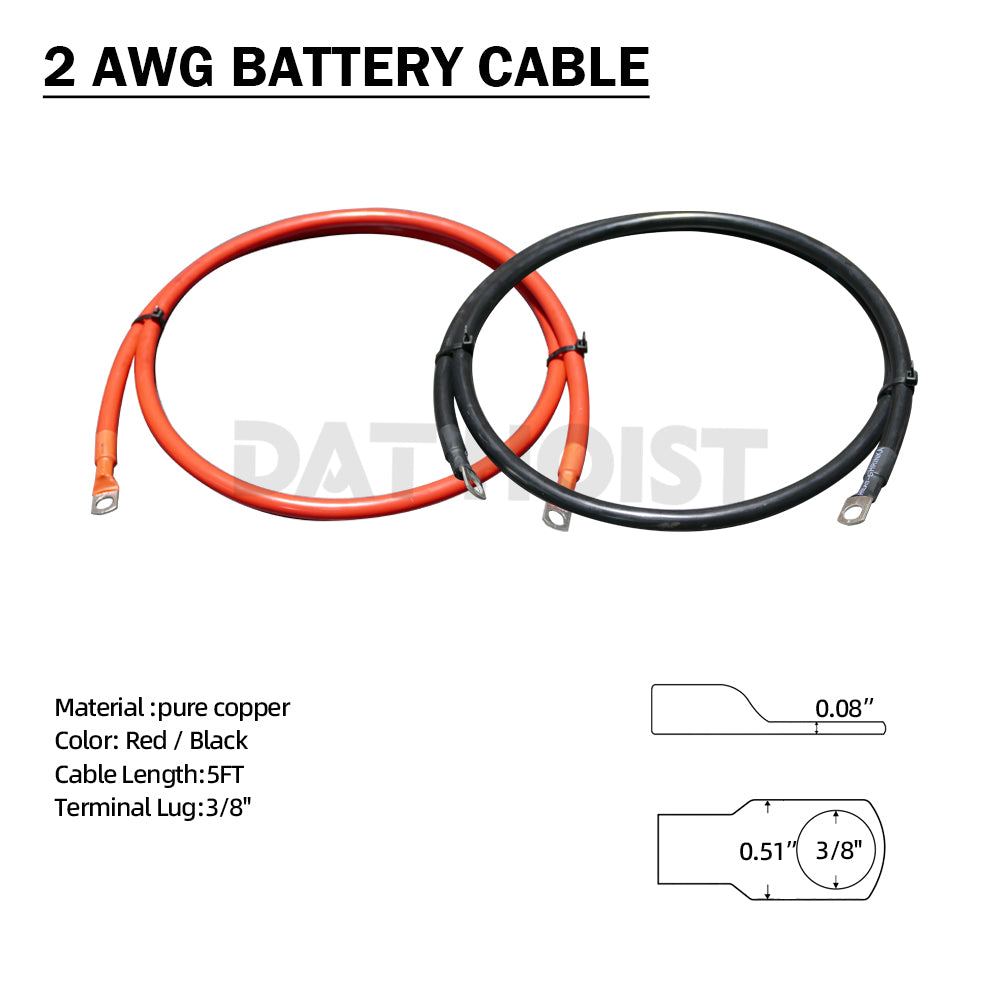

| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-520 Pro hydraulic scissor hoist kit is designed for installation on 12–16 ft dump beds, with a short lower arm that simplifies mounting on narrow frame dump bodies.
It is compatible with standard 12V DC hydraulic systems and common trailer hydraulic setups.
Professional installation is recommended to ensure safe operation, proper alignment, and optimal lifting performance.
FAQ
Q: What makes the DH-520 Pro different from the standard DH-520 hoist kit?
A: The Pro version features additional structural reinforcement, offering improved rigidity, reduced flex, and longer service life under heavy-duty or high-cycle use.
Q: What size dump bed is this hoist kit designed for?
A: The DH-520 Pro is designed for 12–16 ft dump beds.
Q: Is a hydraulic power unit included?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for dump trailers?
A: Yes. It is ideal for dump trailers, contractor trailers, and commercial dump bodies, especially where increased strength is required.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance.
The DH-520 Pro Hydraulic Scissor Hoist Kit is designed for customers who need maximum strength, improved load stability, and long-term reliability, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
