10 Ton Hydraulic Scissor Hoist Kit for 12–16' Dump Body | DH-520
Product Overview
The DH-520 is a 10-ton hydraulic scissor hoist kit engineered for 12–16 ft dump beds, delivering superior strength, reliable lifting performance, and smooth operation for demanding commercial applications. Designed by DAT HOIST, this heavy-duty hoist is ideal for dump trailers, contractor trailers, and medium-duty dump trucks. Built for long-term durability and daily use, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
The DH-520 standard configuration is designed to fit most 12–16 ft dump beds. Frame configurations may vary slightly depending on chassis width and installation requirements.
Key Features
-
10 Ton Lifting Capacity – Handles heavy loads with confidence for commercial and industrial applications
-
Fits 12–16 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Strengthened where it matters most to reduce flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient control from a distance
Recommended Applications
This hydraulic scissor hoist kit is commonly used for:
-
Dump trailers
-
Contractor and landscape trailers
-
Utility and commercial dump bodies
-
Medium-duty dump trucks

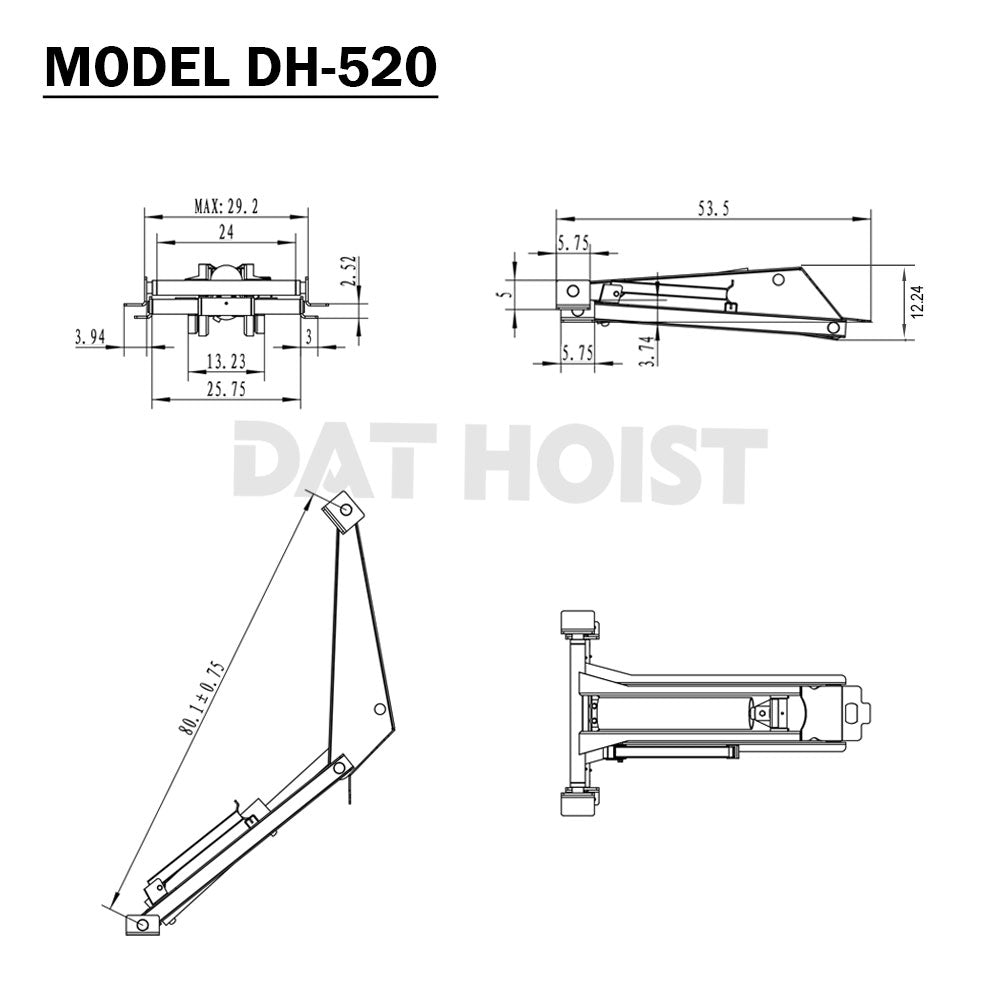

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 10 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |
What’s Included in the DH-520 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-520LA | Frame | 1 |
| CY-520 | Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |

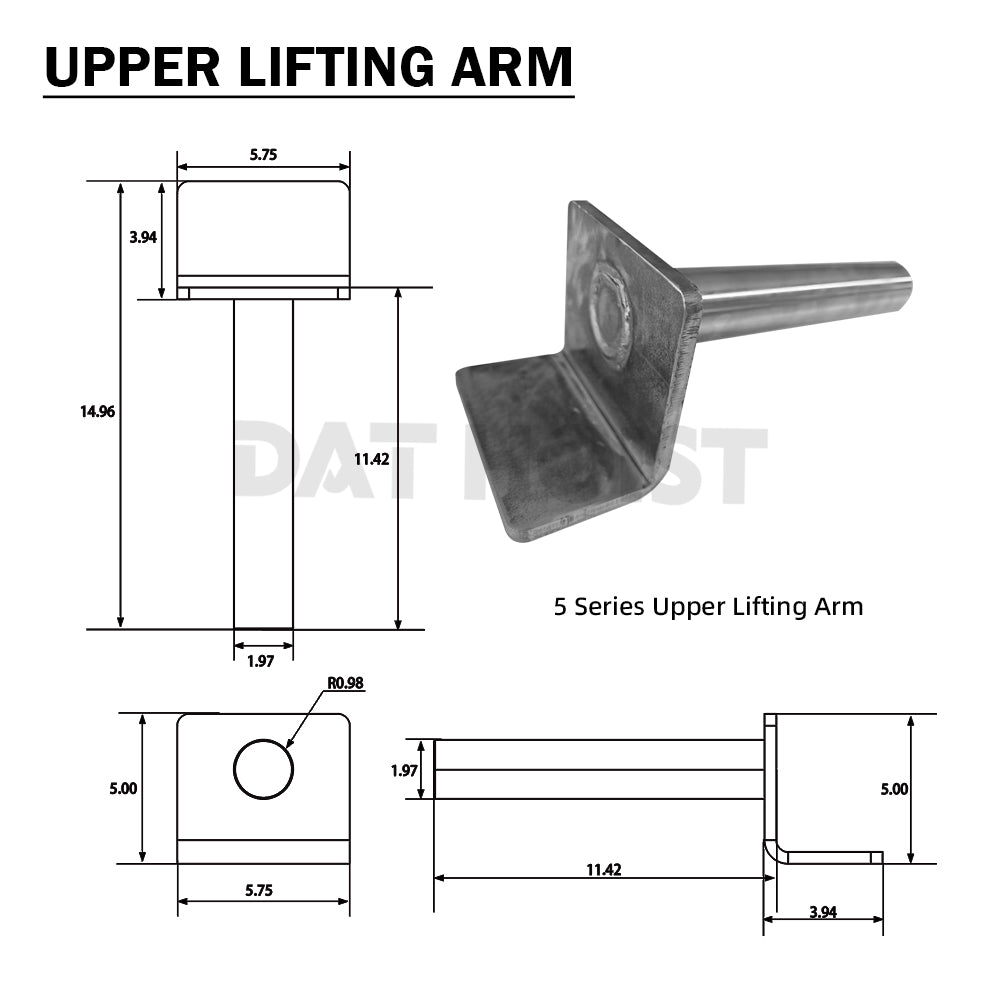

| DH-G2-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |

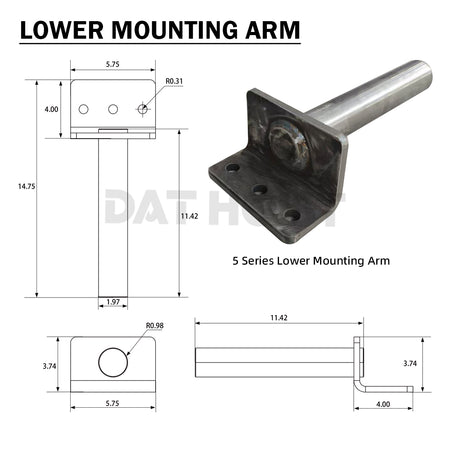

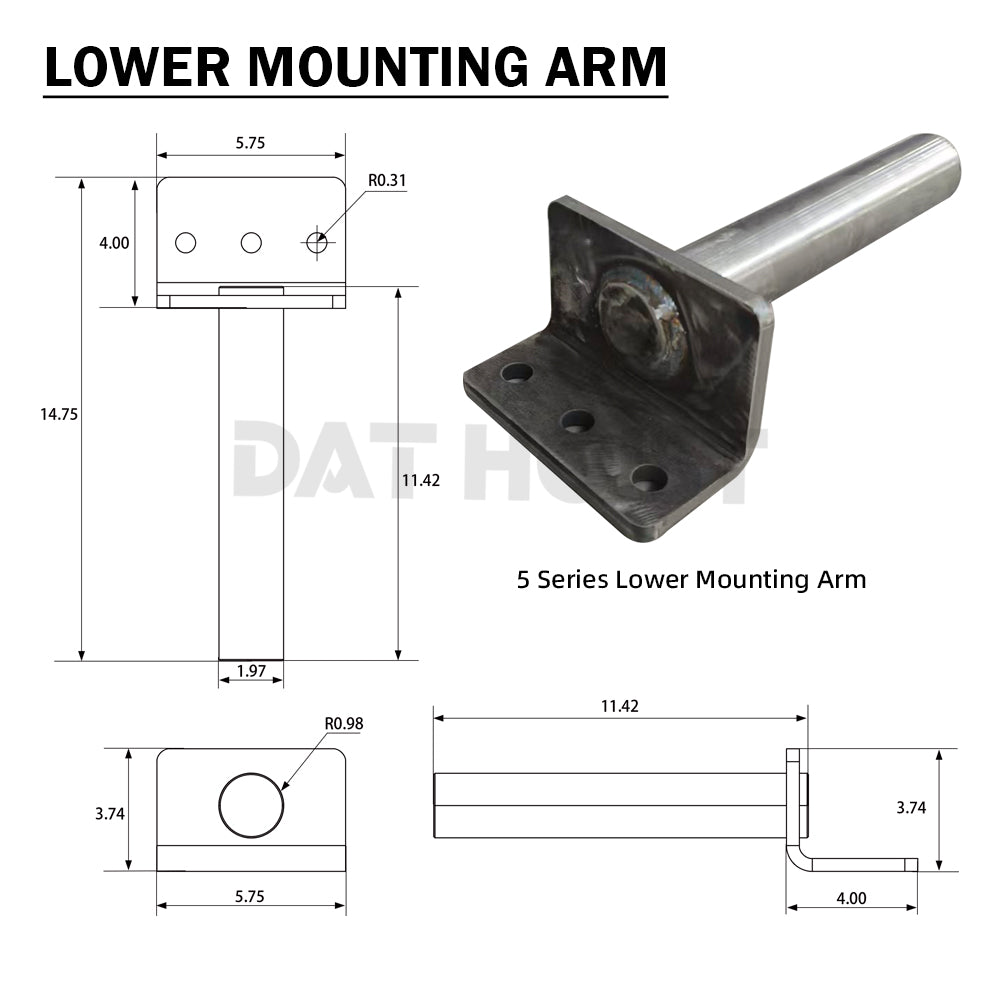

| DH-G2-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |
| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |
| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |
| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-520 hydraulic scissor hoist kit is designed for installation on most 12–16 ft dump beds and is compatible with standard 12V DC hydraulic systems used on dump trailers and truck bodies. Frame configurations may vary depending on chassis width and installation requirements. Please verify frame clearance prior to installation. Professional installation is recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: What size dump bed is the DH-520 designed for?
A: The DH-520 is designed for 12–16 ft dump beds.
Q: Does the DH-520 come in different frame configurations?
A: The DH-520 may be supplied with different frame configurations depending on installation requirements. Please contact us to confirm compatibility with your dump bed or chassis.
Q: Is a hydraulic power unit included with this kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for dump trailers?
A: Yes. It is ideal for dump trailers, contractor trailers, and utility dump bodies.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoist kits and hydraulic power units engineered for durability, reliability, and real-world performance. The DH-520 is designed for operators who need high lifting capacity, flexible installation, and dependable daily operation, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
