12 Ton Hydraulic Scissor Hoist for 16–18' Dump Body | DH-620
Product Overview
The DH-620 Scissor Hoist is a 12 ton hydraulic scissor hoist assembly designed for 16–18 ft dump beds, delivering powerful lifting performance, smooth operation, and long-term durability for heavy-duty commercial applications. Engineered by DAT HOIST, this hoist is ideal for dump trailers and dump bodies that require reliable lifting strength without a bundled hydraulic power unit.
Constructed from heavy-duty structural steel and reinforced at critical stress points, the DH-620 is designed for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month warranty.
Key Features
-
12 Ton Lifting Capacity – Handles heavy commercial loads with confidence
-
Fits 16–18 ft Dump Beds – Designed for larger dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Strengthened at critical load areas to minimize flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied hydraulic systems
Recommended Applications
This hydraulic scissor hoist is commonly used for:
-
Heavy-duty dump trailers
-
Contractor and commercial dump bodies
-
Municipal and utility dump applications
-
Equipment rebuilds and replacements
-
Custom hydraulic system installations

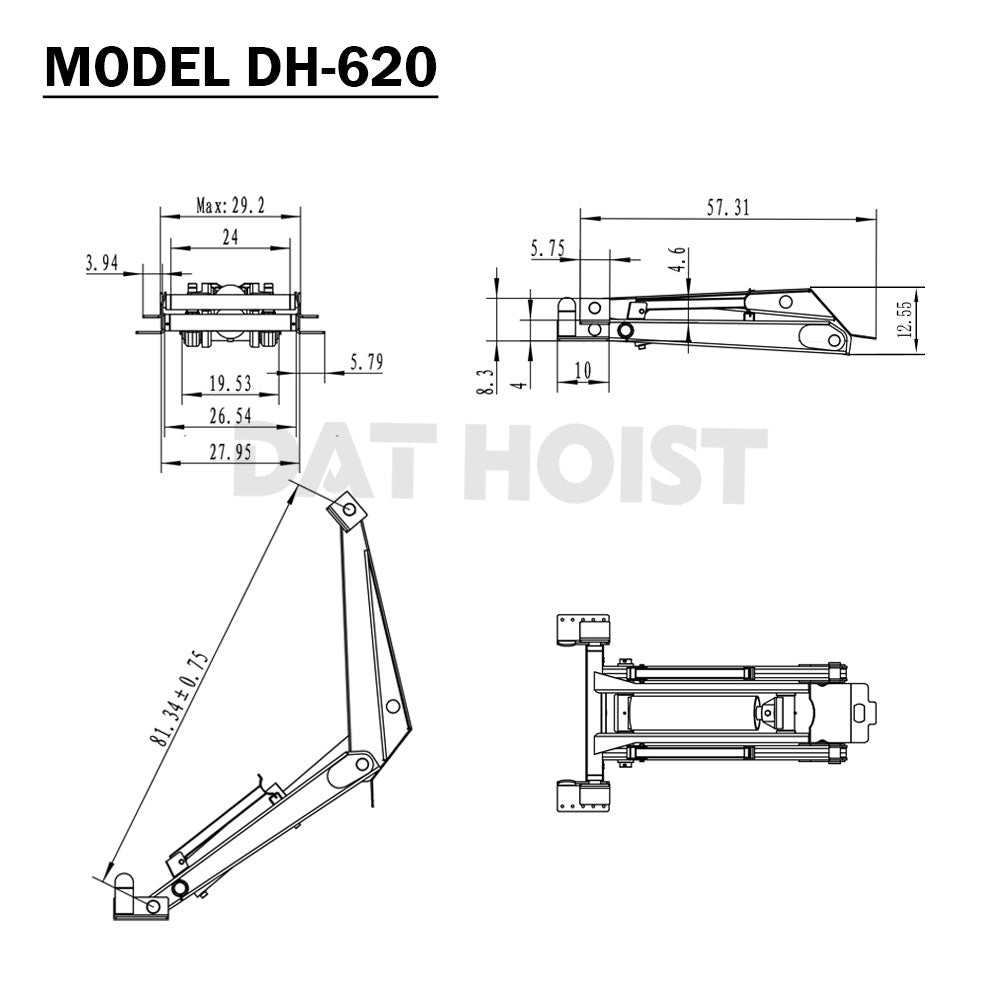

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12 Ton |
| Dump Bed Length | 16–18 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

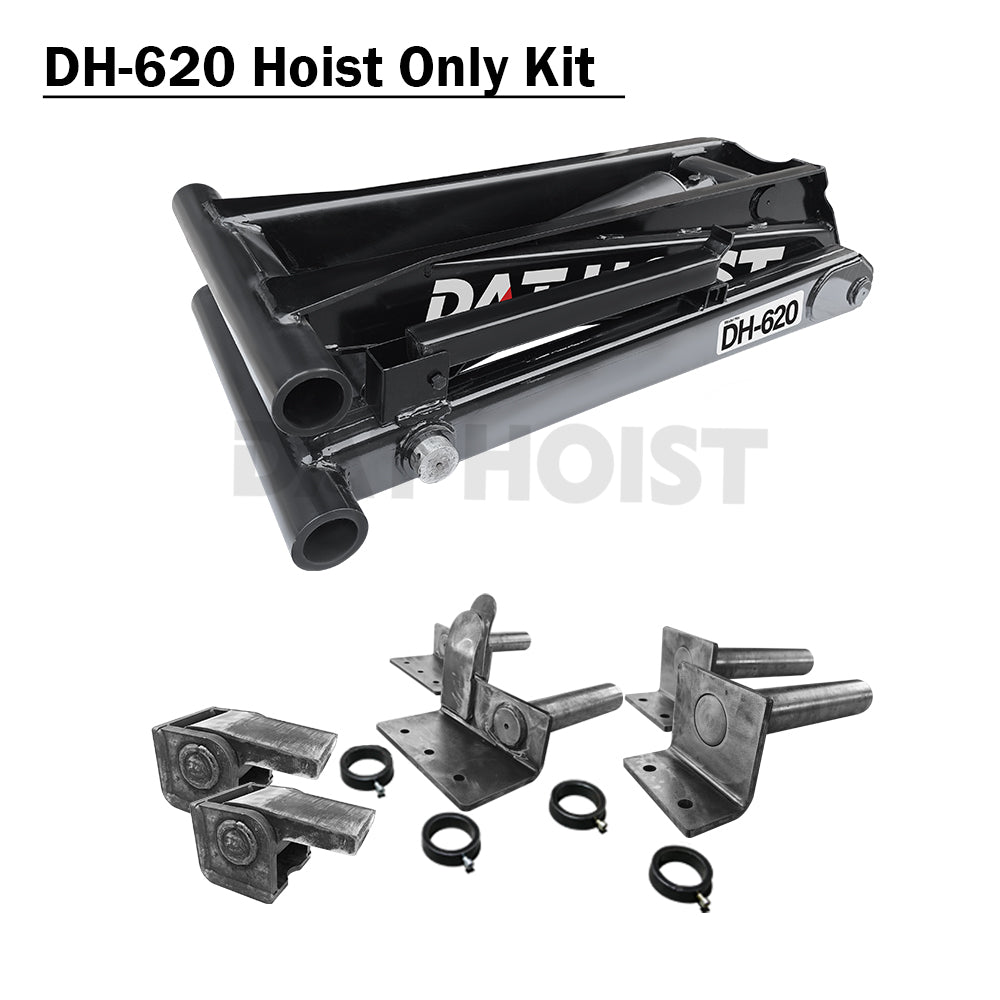

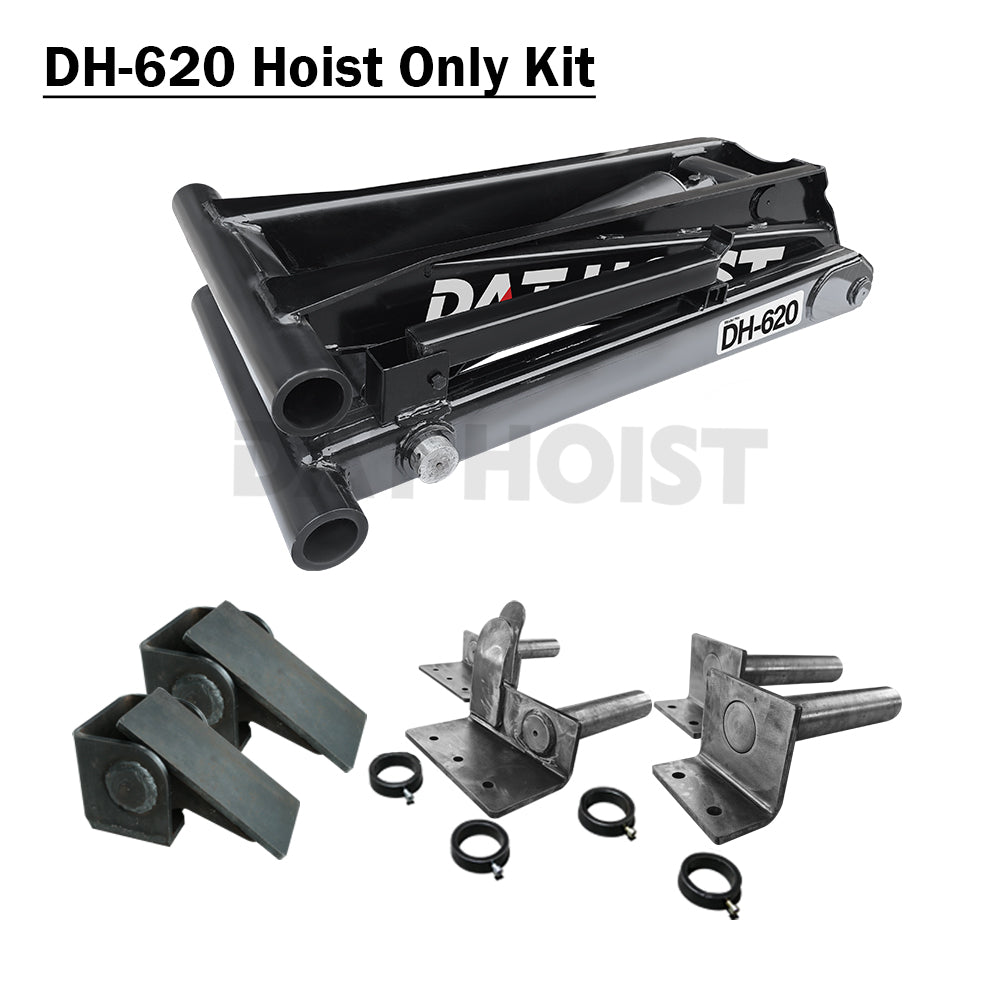

What’s Included in the DH-620 Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-620 | Frame | 1 |
| CY-620 | Cylinder | 1 |
| DH-G6-ACC-002-a | Six Series Ring Collar – Passenger Side | 2 |
| DH-G6-ACC-002-b | Six Series Ring Collar – Lower | 2 |
| DH-G6-ACC-003 | Six Series Upper Lifting Arm | 2 |
| DH-G6-ACC-004-a | Six Series Lower Mounting Arm – LH | 1 |
| DH-G6-ACC-004-b | Six Series Lower Mounting Arm – RH | 1 |
| DH-G6-ACC-004 | Six Series Shaft | 2 |
| H-600 | Six Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-620 hydraulic scissor hoist is designed for installation on 16–18 ft dump beds and must be paired with a compatible external hydraulic power unit. It can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets required flow and pressure specifications. Professional installation is recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-620 include a hydraulic power unit?
A: No. The DH-620 Scissor Hoist includes the hoist assembly and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What size dump bed is this hoist designed for?
A: The DH-620 is designed for 16–18 ft dump beds.
Q: What is the difference between DH-620 and DH-625?
A: Both are 12-ton hoists, but they differ in geometry and bed length compatibility, allowing better fitment for different dump body configurations.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-620 Scissor Hoist is the ideal solution for operators who need heavy-duty lifting capacity without a bundled power unit, backed by proven engineering and a 24-month warranty.
