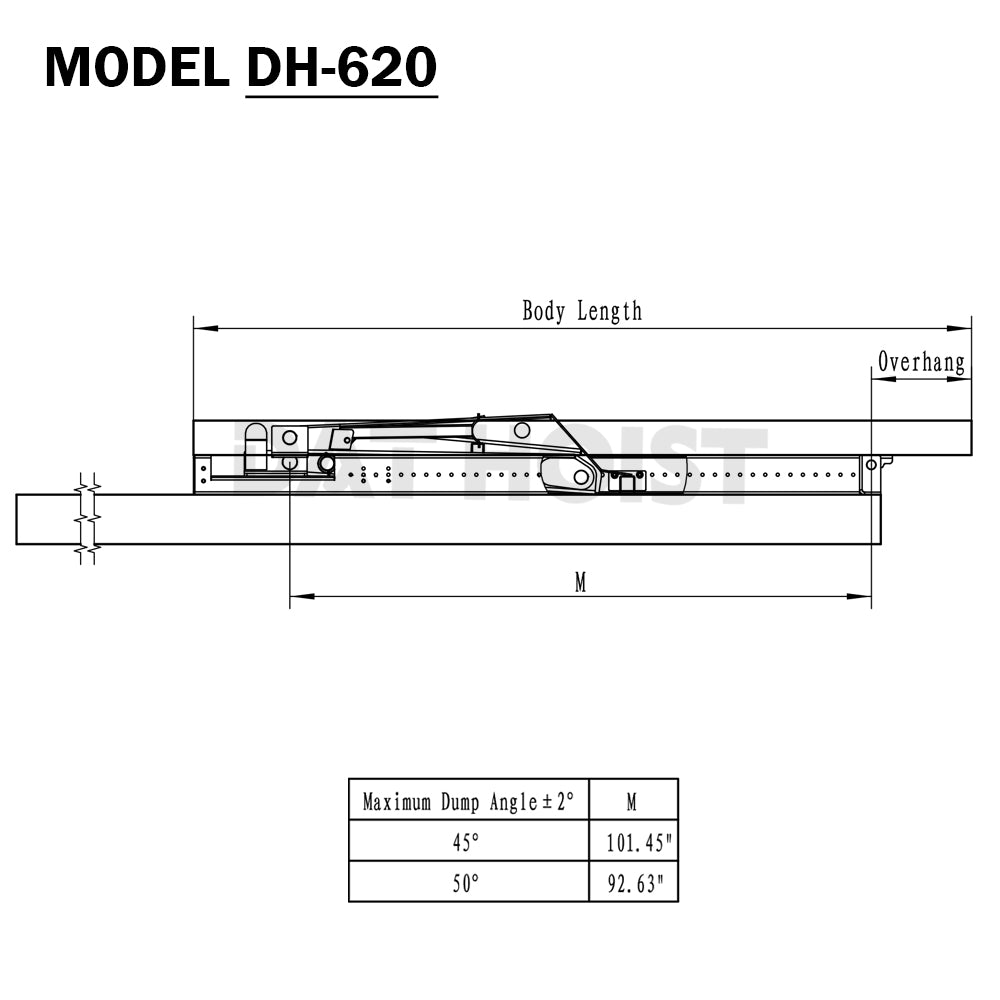

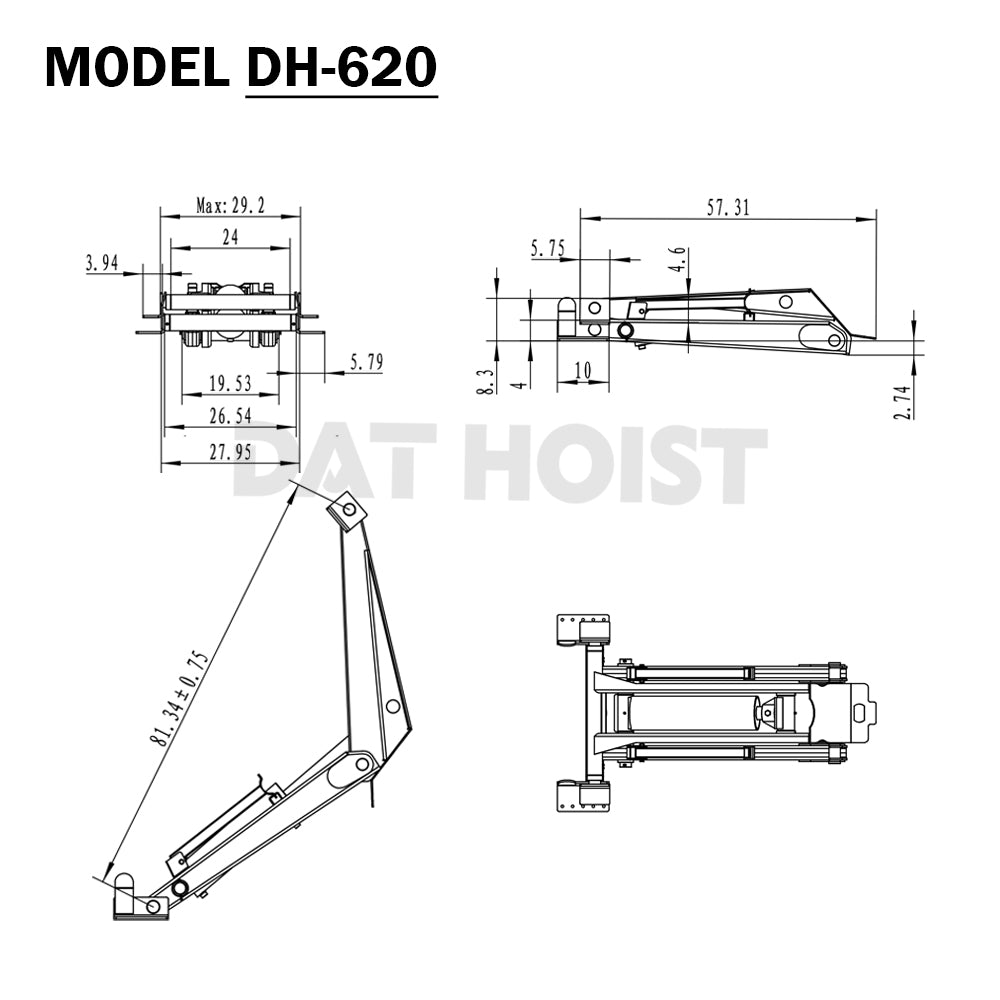

12 Ton Hydraulic Scissor Hoist Kit for 16–18' Dump Body – DH-620
Product Overview

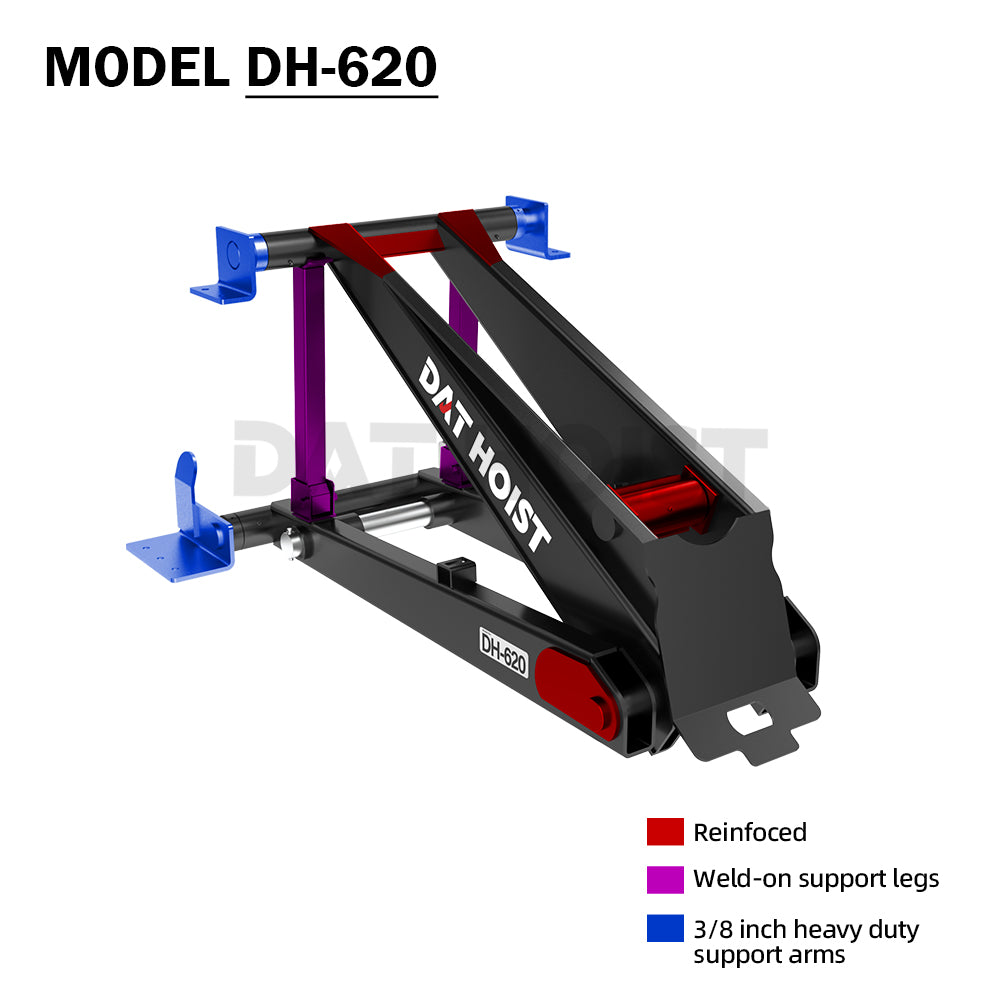

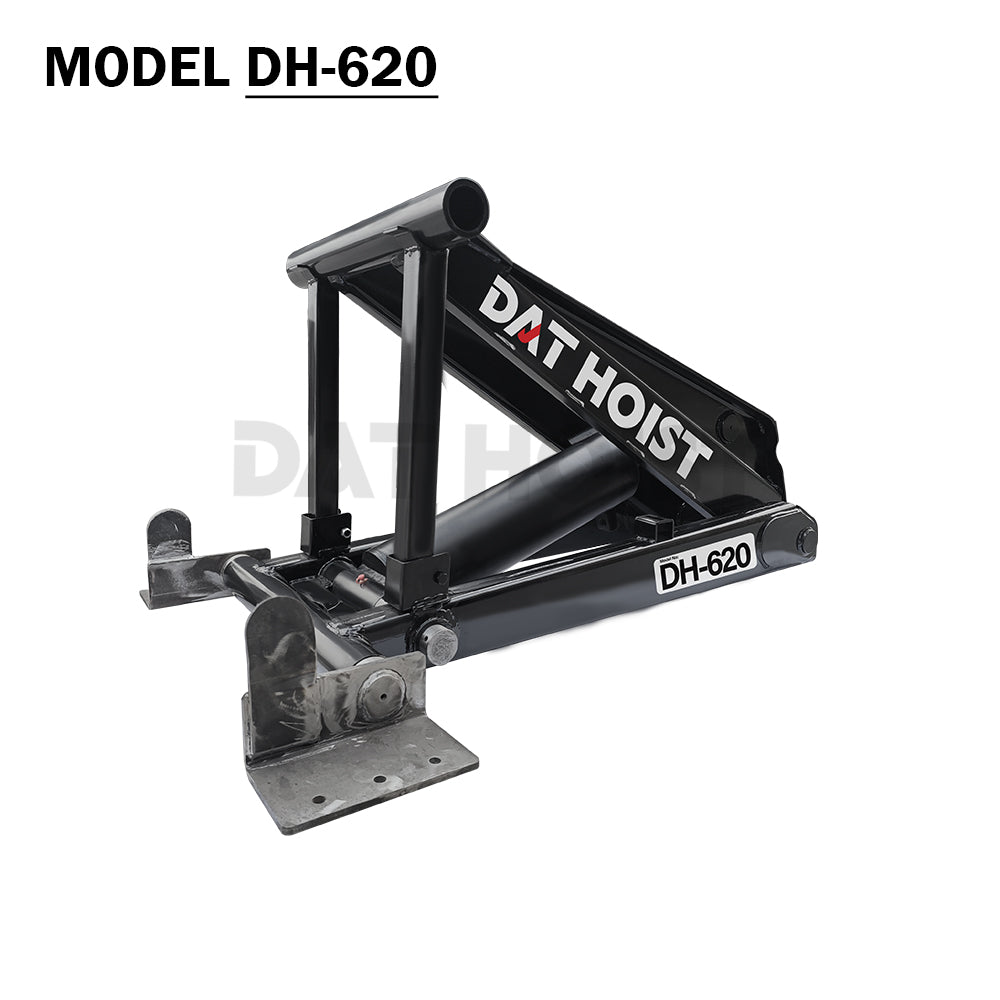

The DH-620 is a 12-ton hydraulic scissor hoist kit engineered for 16–18 ft dump beds. Designed by DAT HOIST for superior strength and reliability, this heavy-duty hoist delivers powerful, stable lifting performance and smooth operation, even under demanding loads. Built for long-term durability and daily commercial use, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
12 Ton Lifting Capacity – Handles heavy loads with confidence for demanding commercial and industrial applications
-
Fits 16–18 ft Dump Beds – Designed for larger dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily operation
-
Reinforced Stress Points – Strengthened where it matters most to reduce flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion over time
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This hydraulic scissor hoist kit is commonly used for:
-
Large dump trailers
-
Contractor and commercial dump bodies
-
Utility and construction dump trucks
-
Applications requiring high lifting capacity and long dump beds
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12 Ton |
| Dump Bed Length | 16–18 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

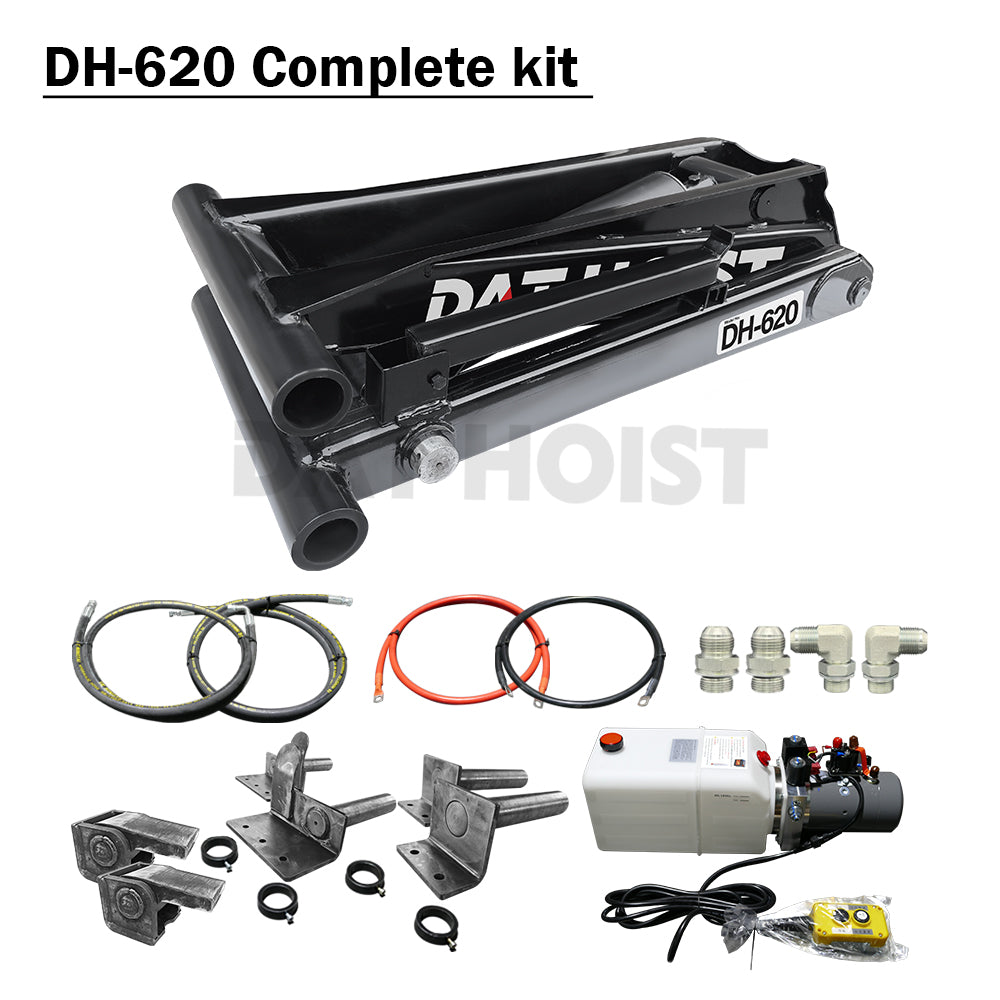

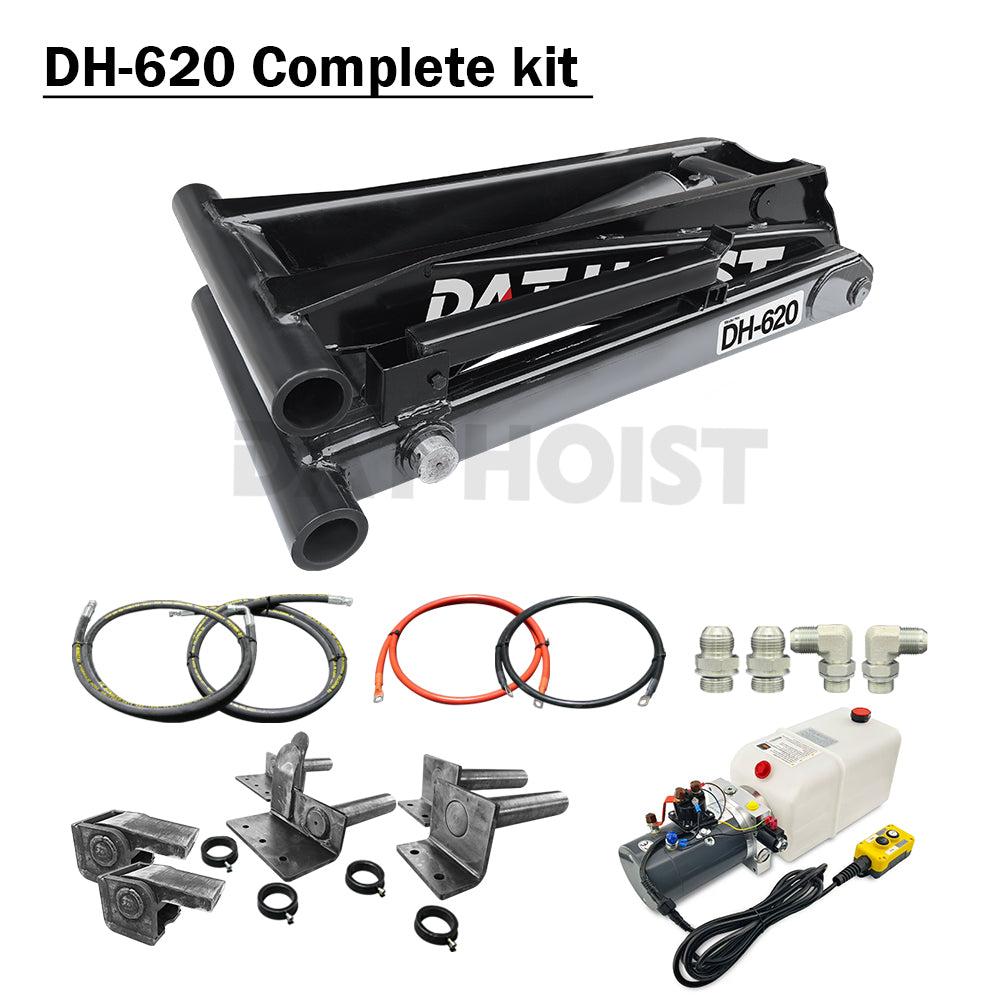

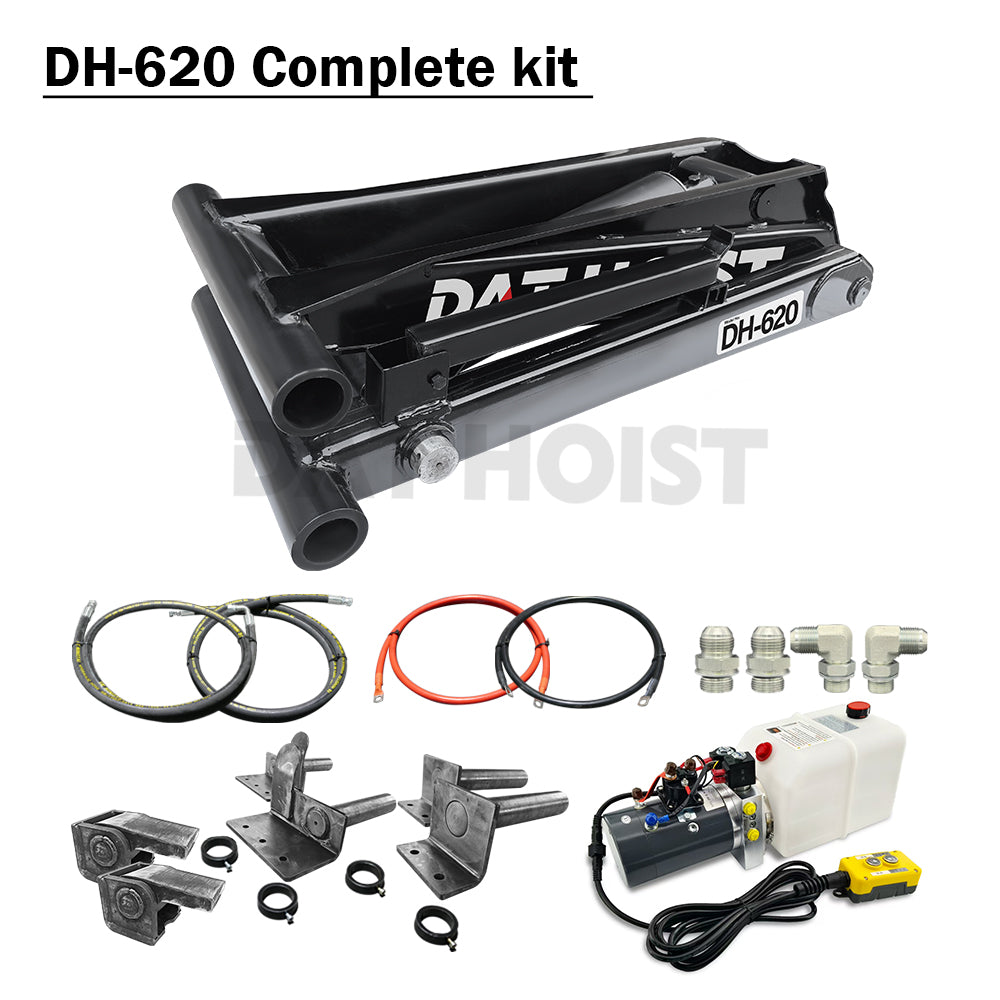

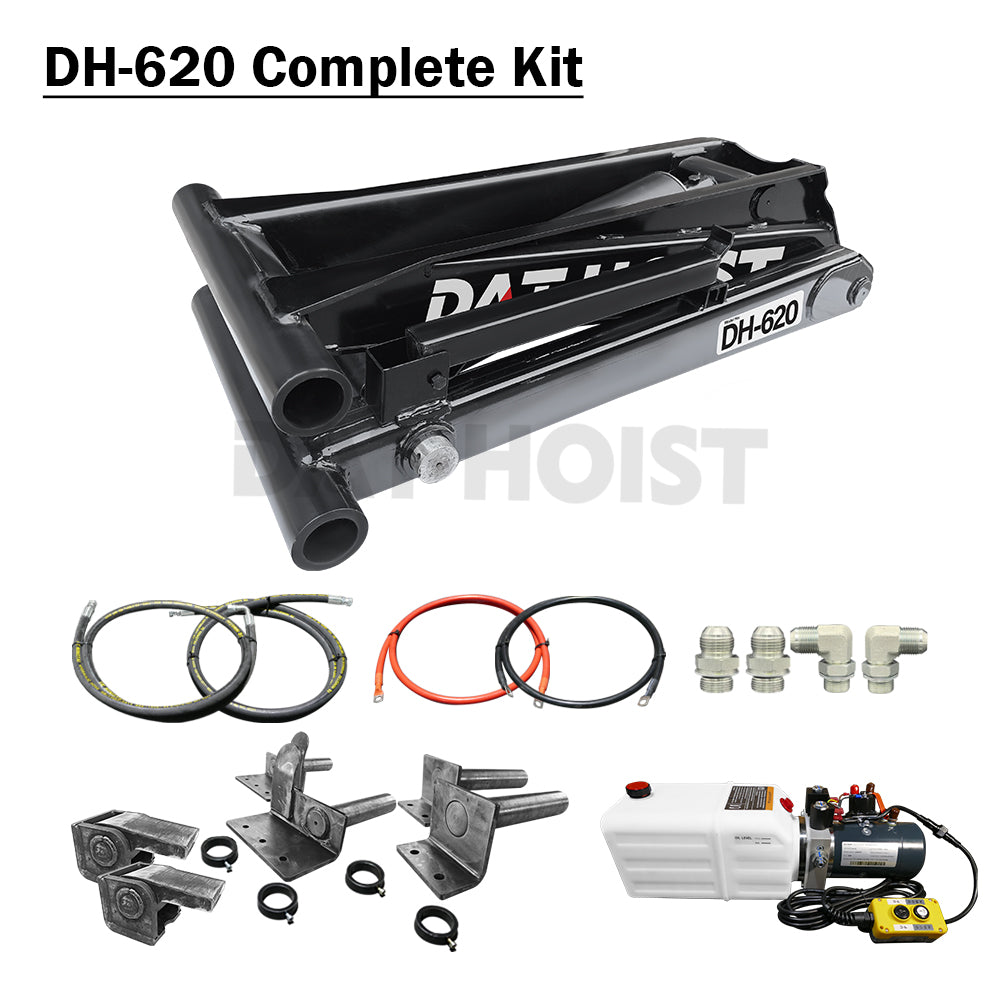

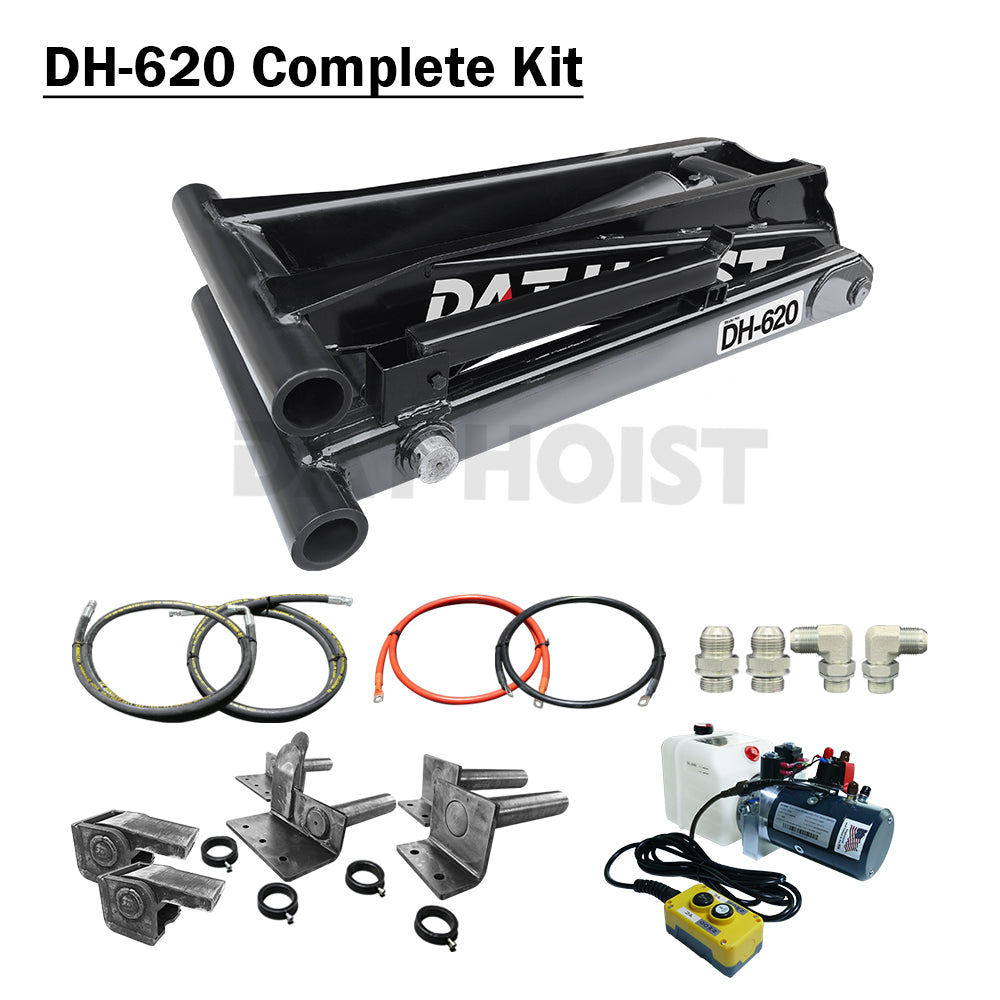

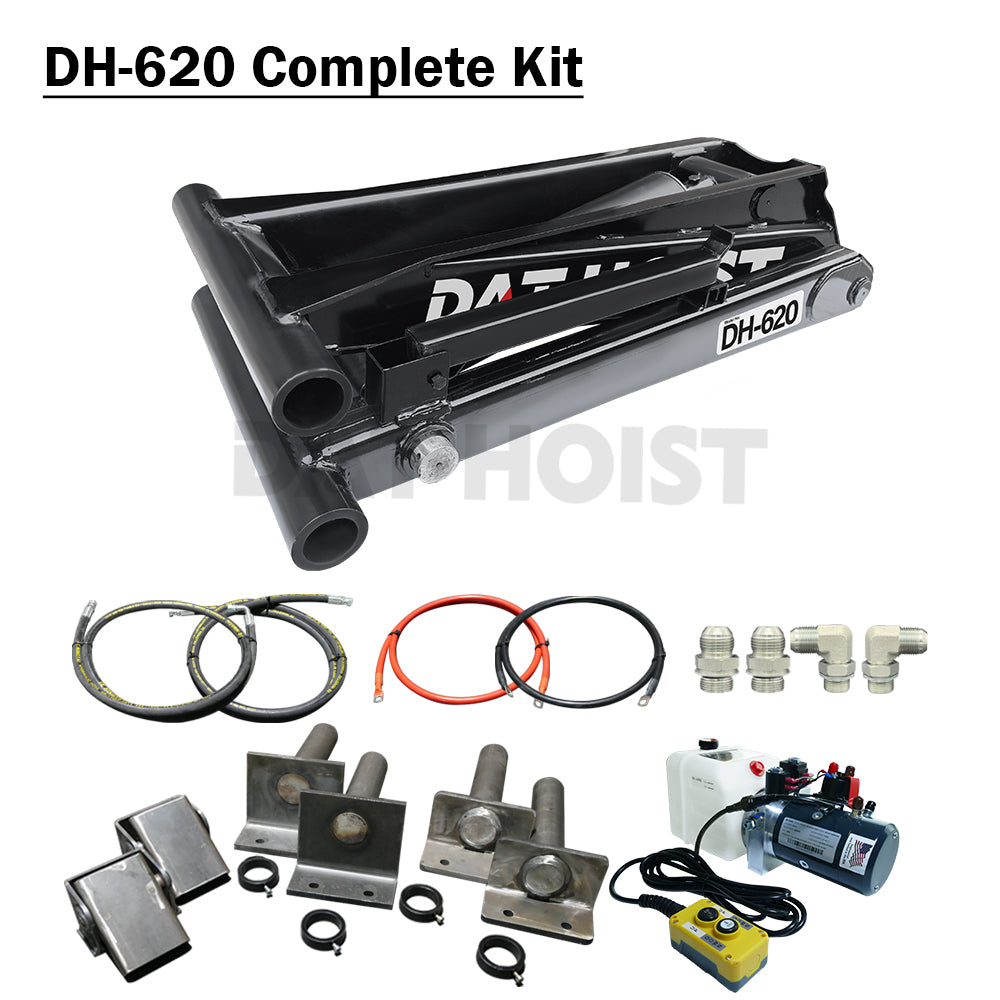

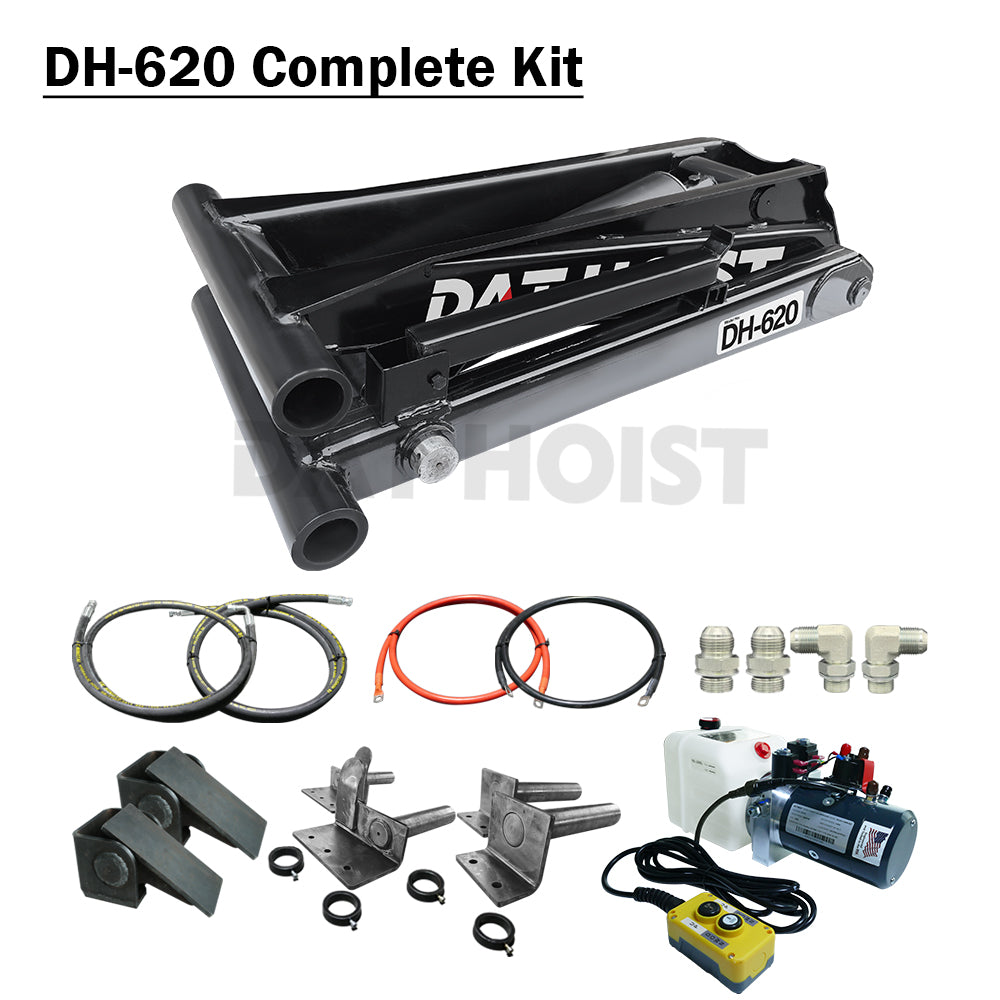

What’s Included in the DH-620 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|

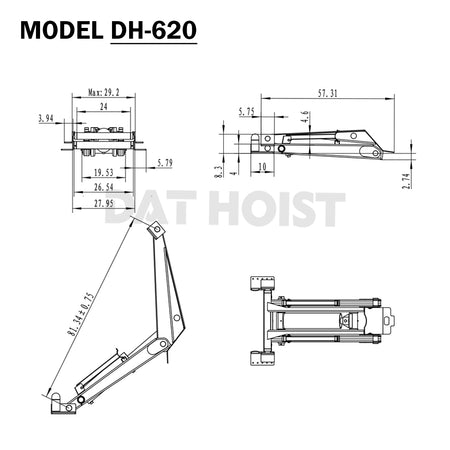

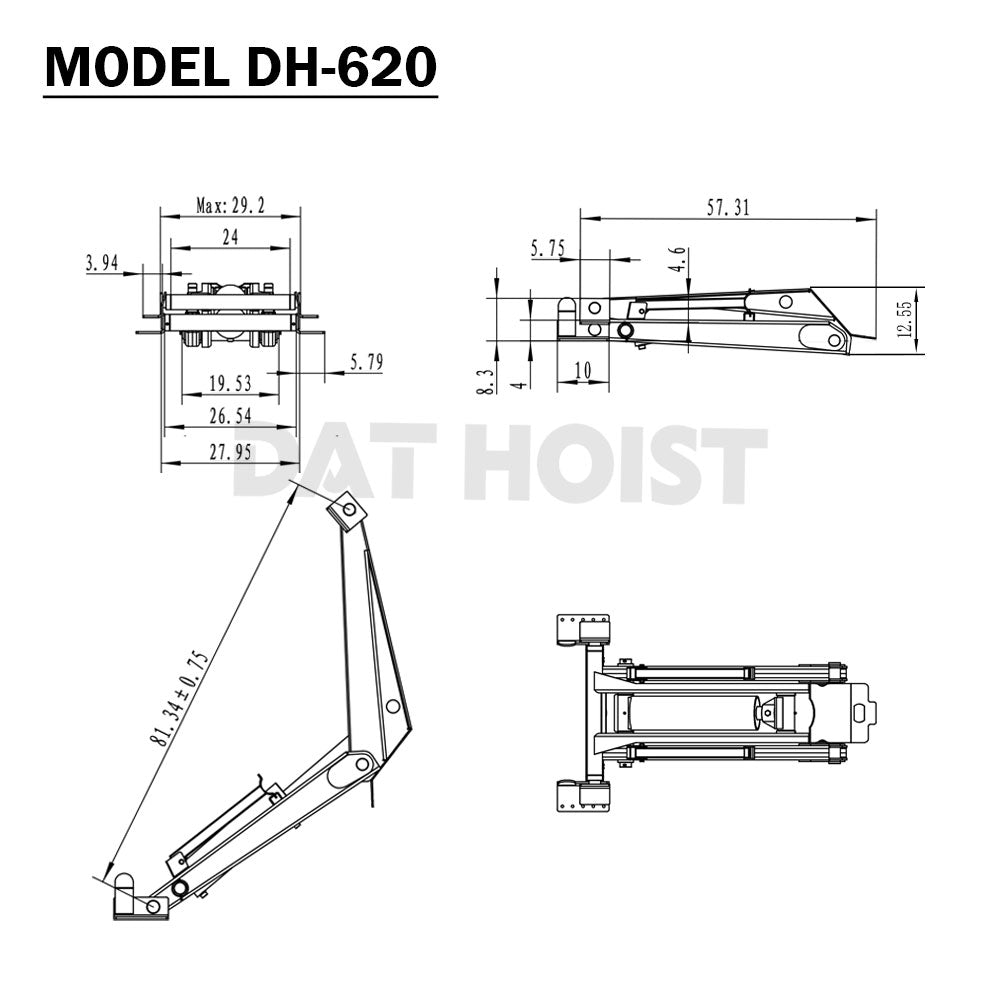

| HF-620 | Frame | 1 |

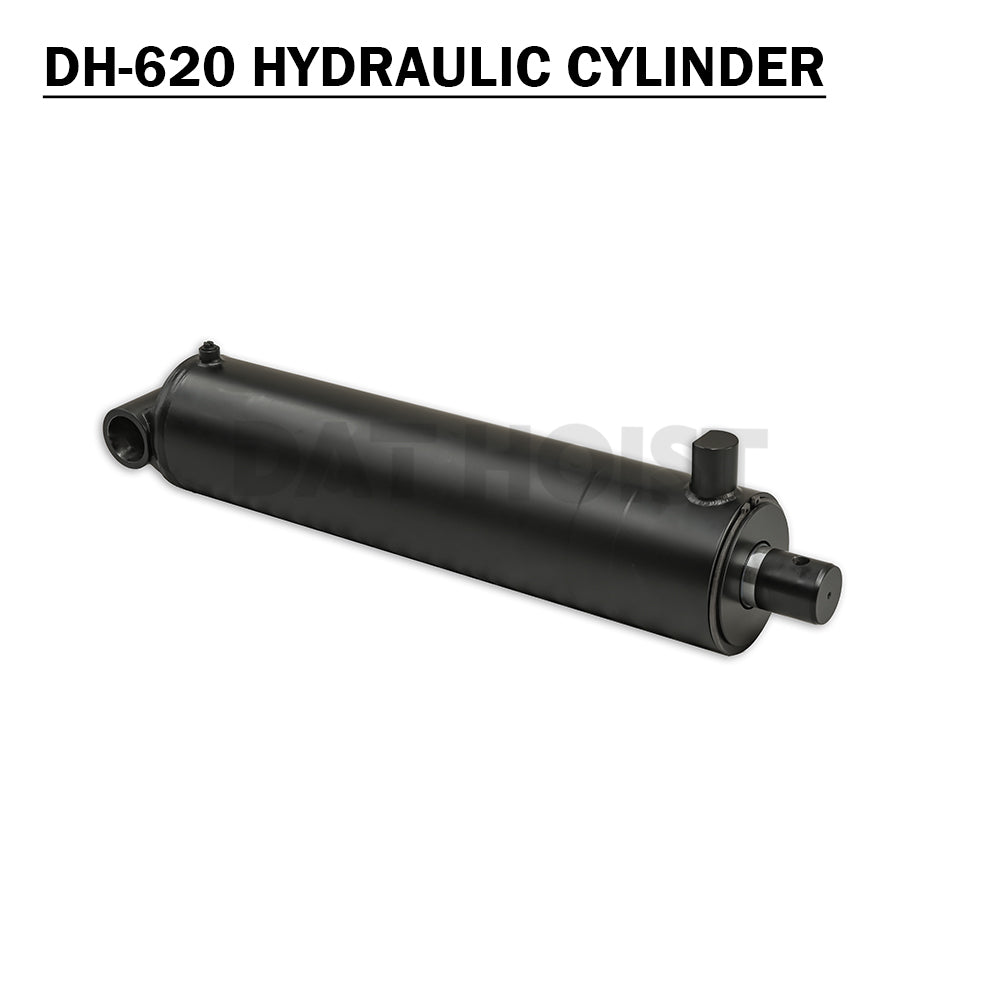

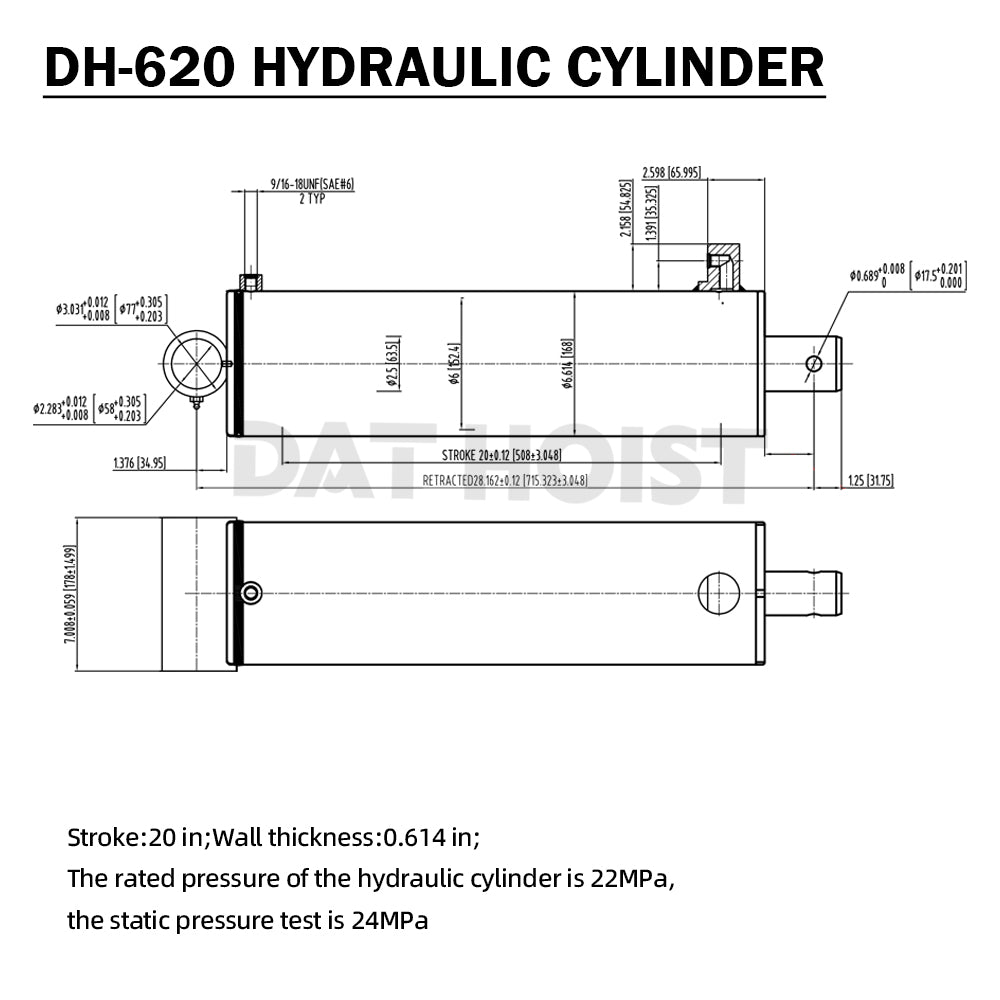

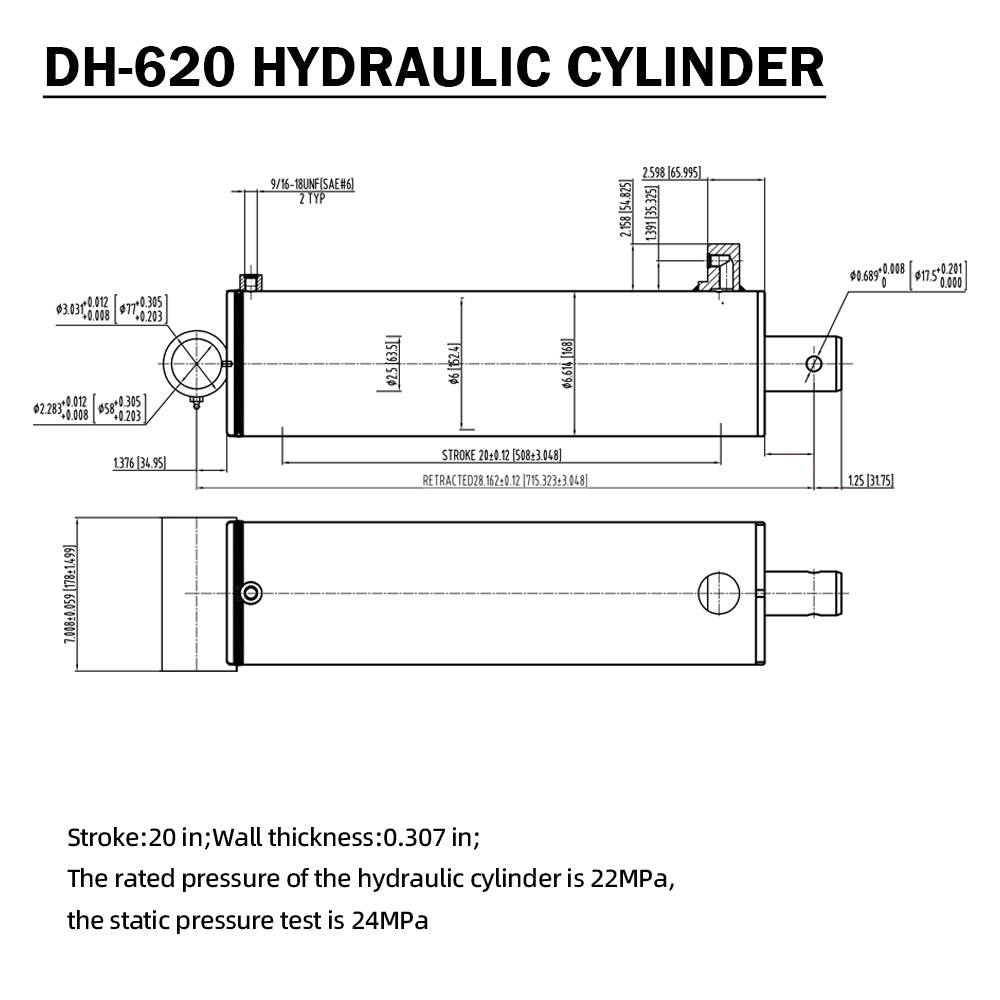

| CY-620 | Cylinder | 1 |
| DH-G6-ACC-002-a | Six Series Ring Collar – Passenger Side | 2 |
| DH-G6-ACC-002-b | Six Series Ring Collar – Lower | 2 |

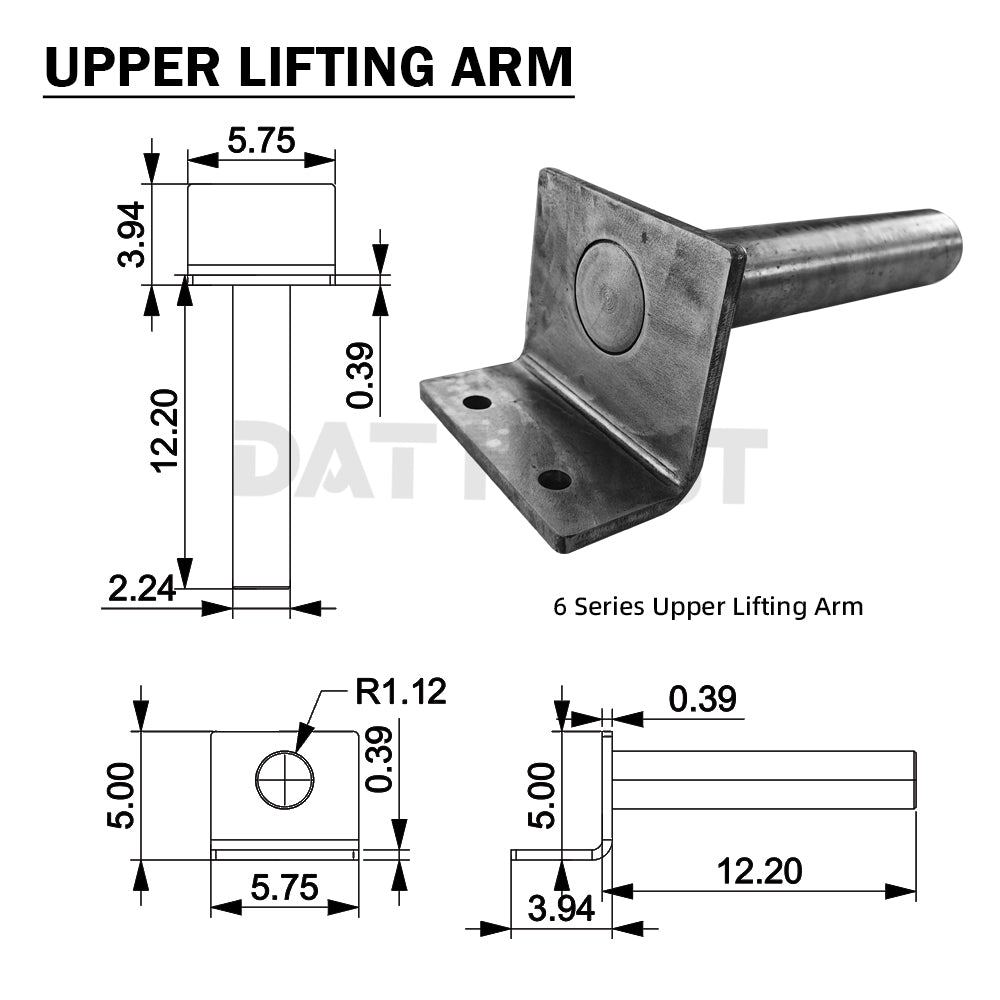

| DH-G6-ACC-003 | Six Series Upper Lifting Arm | 2 |

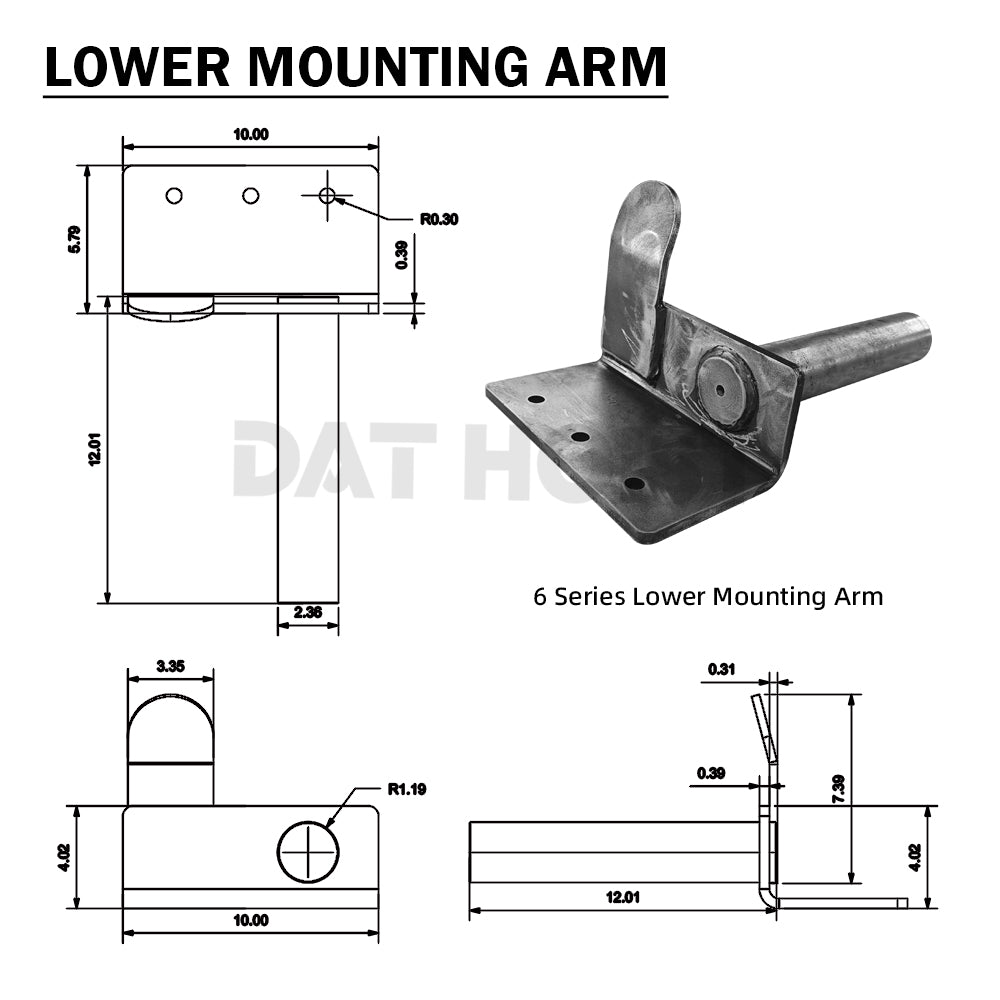

| DH-G6-ACC-004-a | Six Series Lower Mounting Arm – LH | 1 |
| DH-G6-ACC-004-b | Six Series Lower Mounting Arm – RH | 1 |
| DH-G6-ACC-004 | Six Series Shaft | 2 |

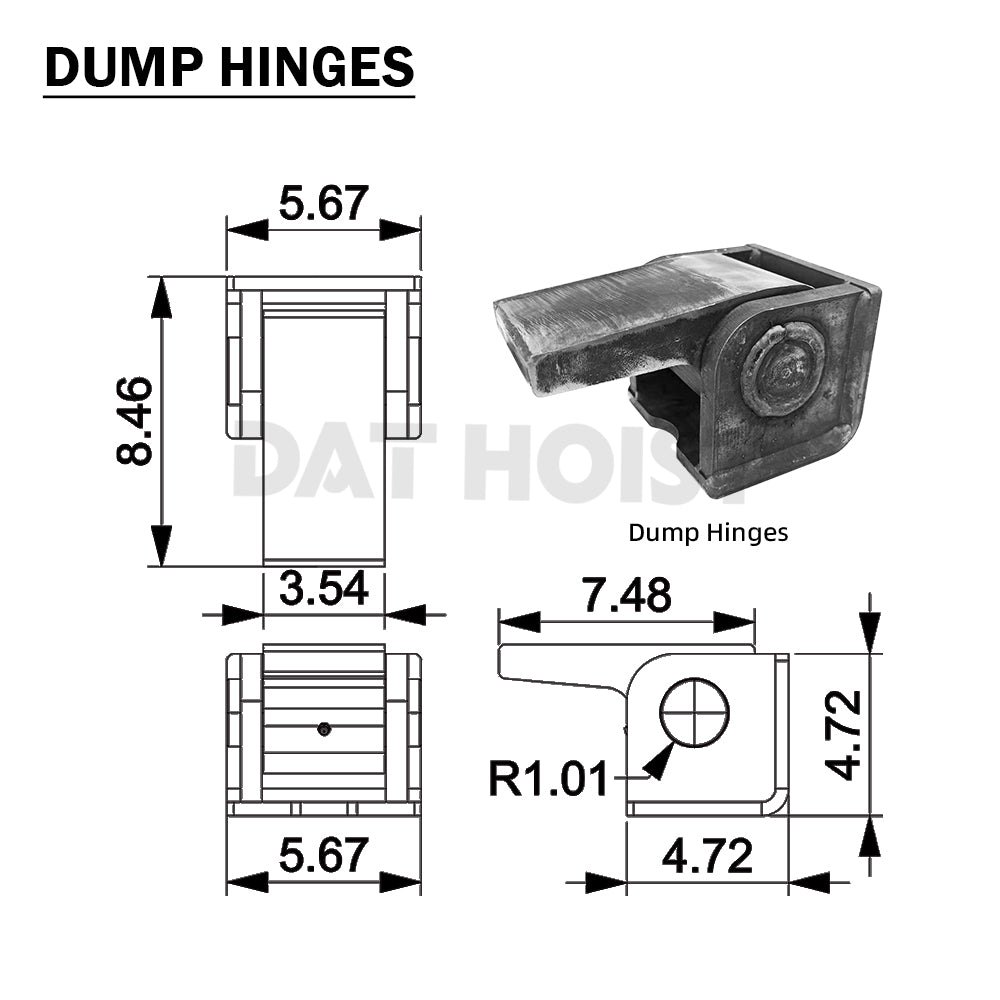

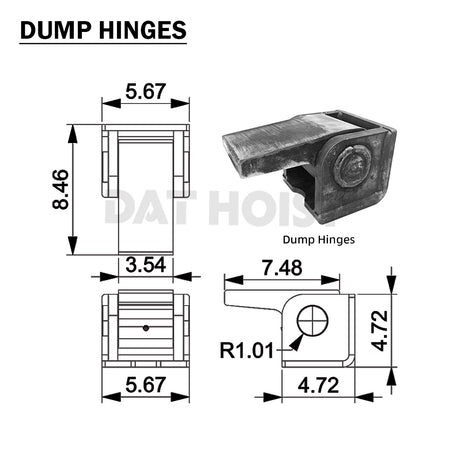

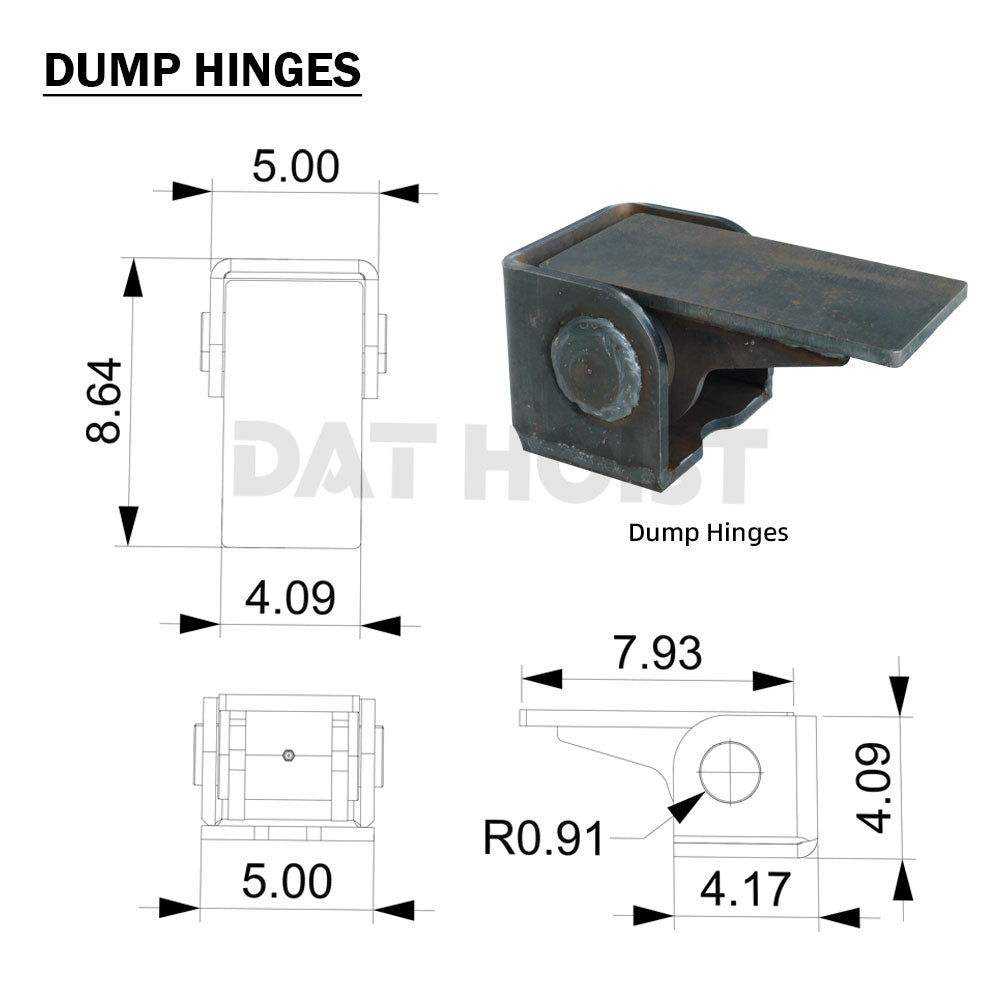

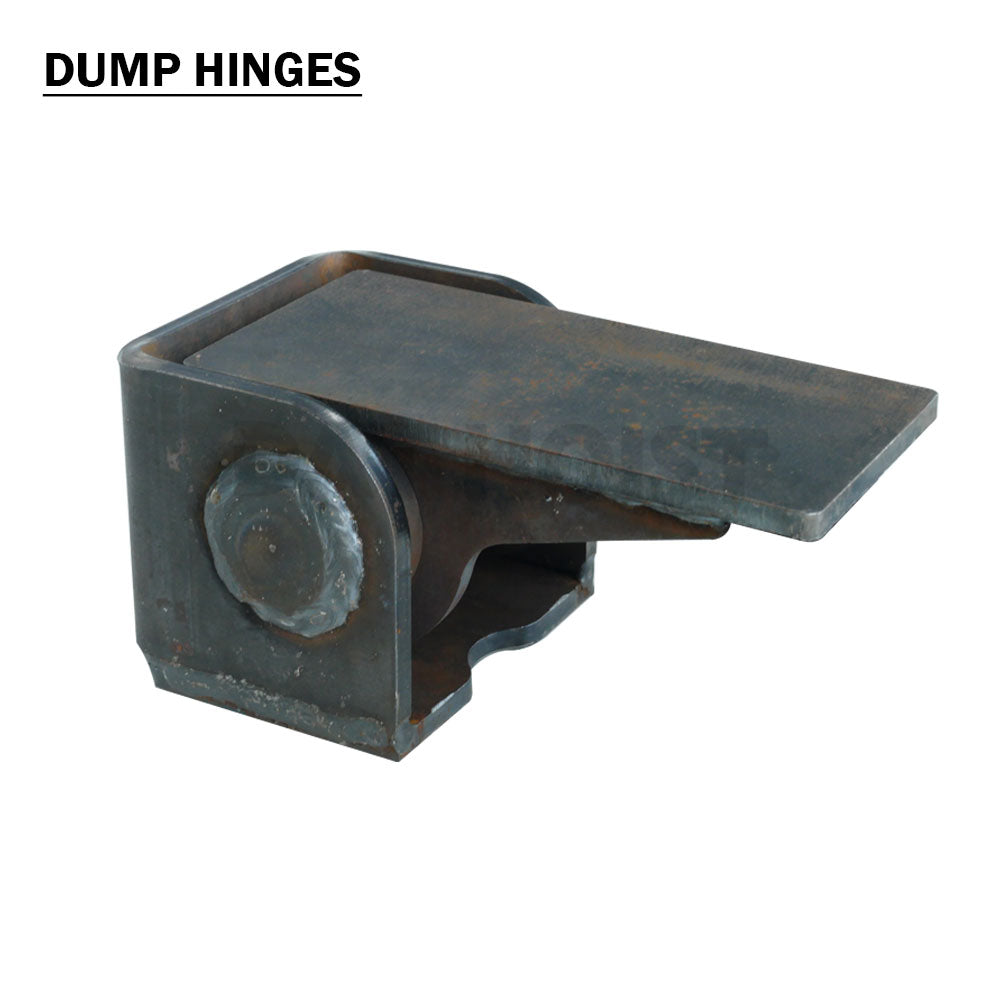

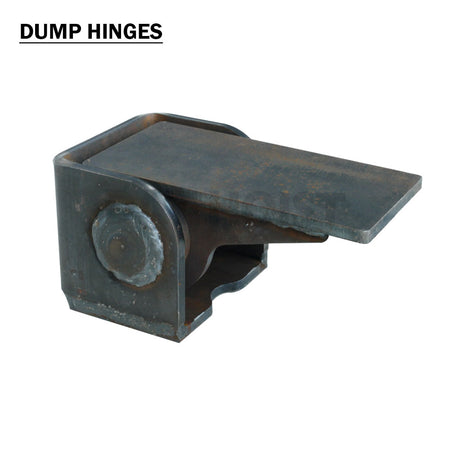

| H-600 | Six Series Dump Hinges | 2 |

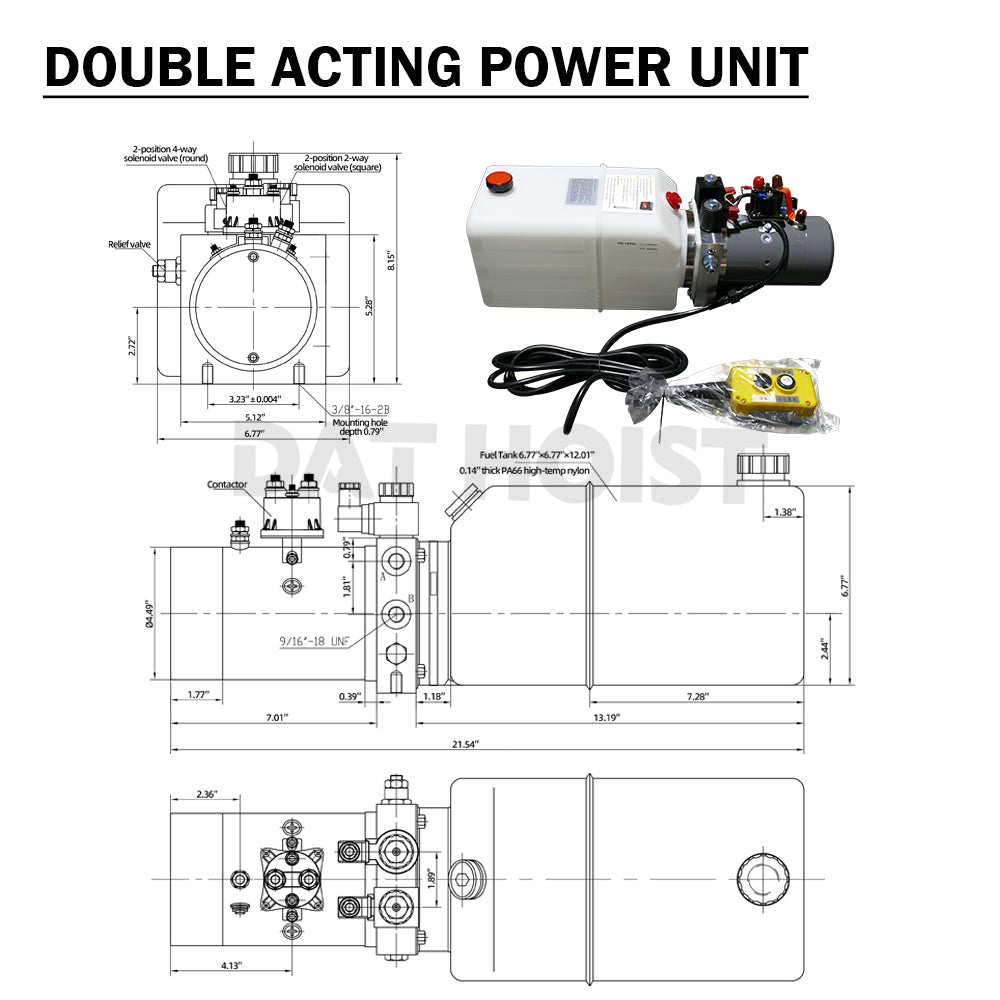

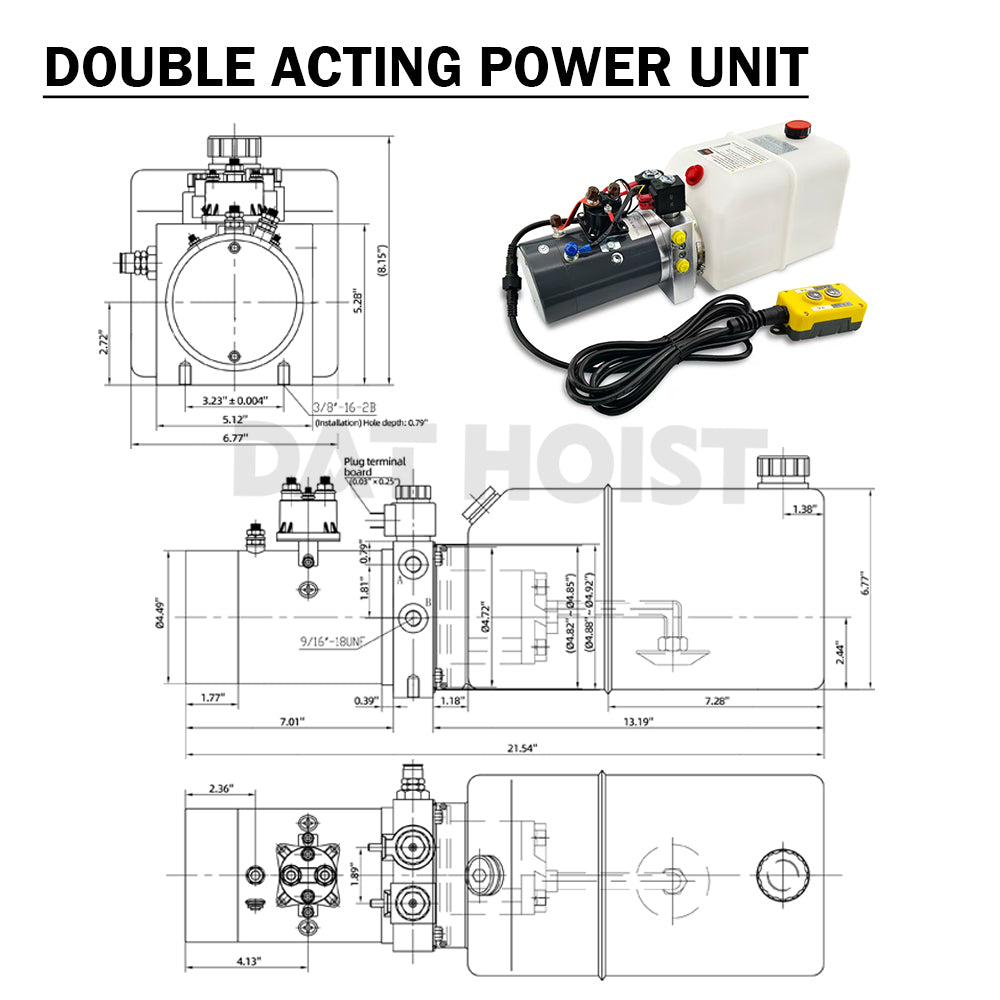

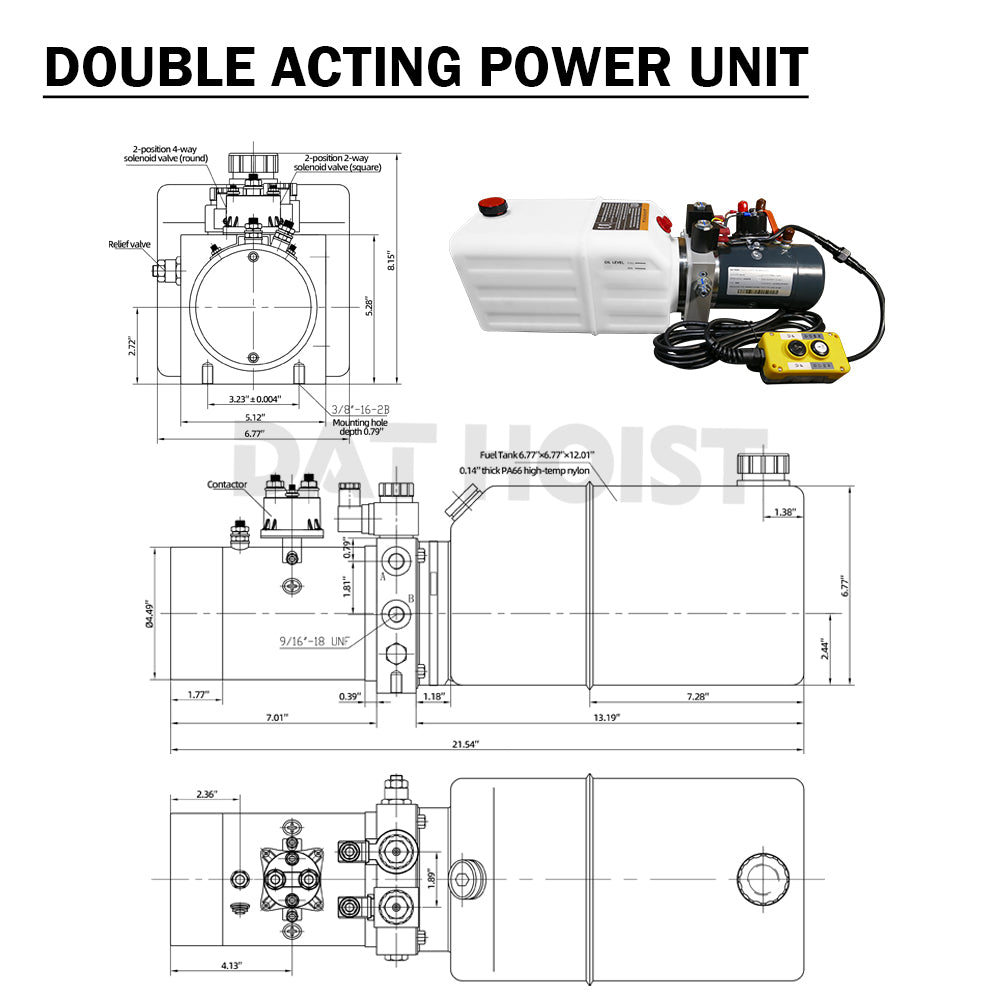

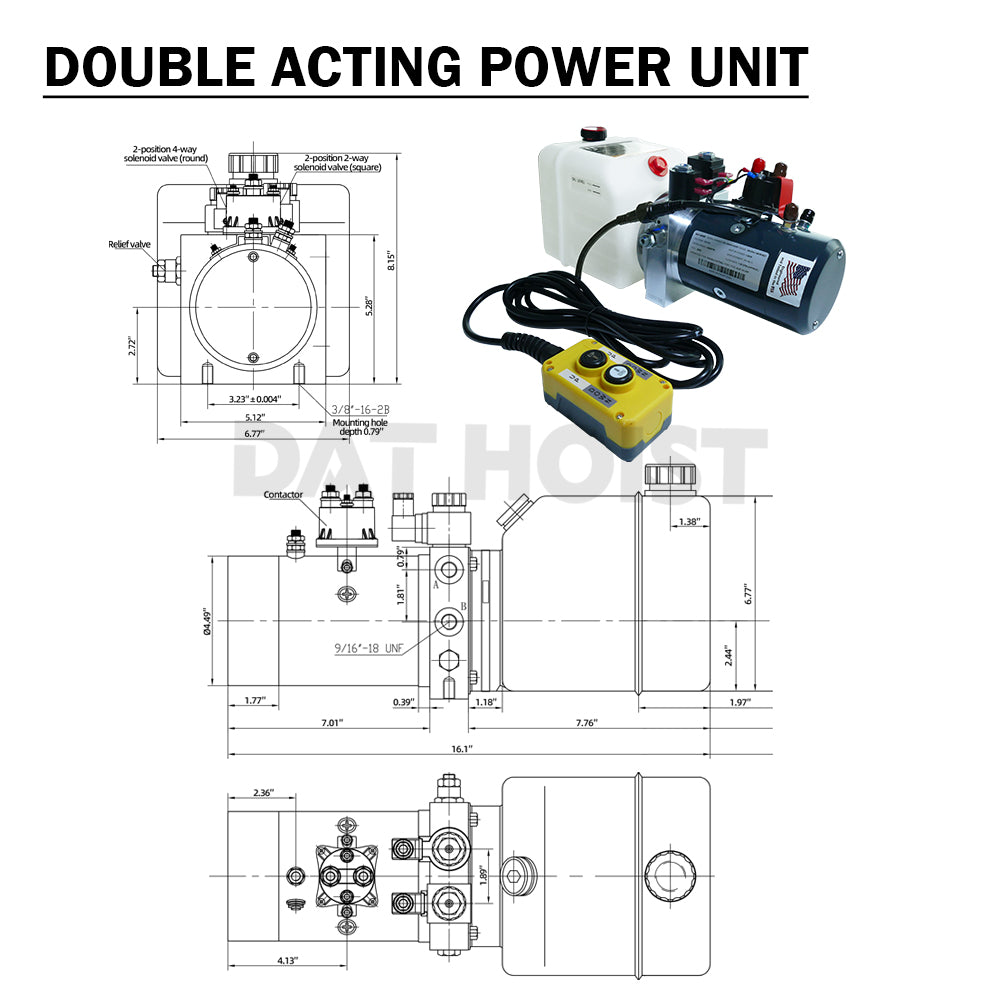

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |

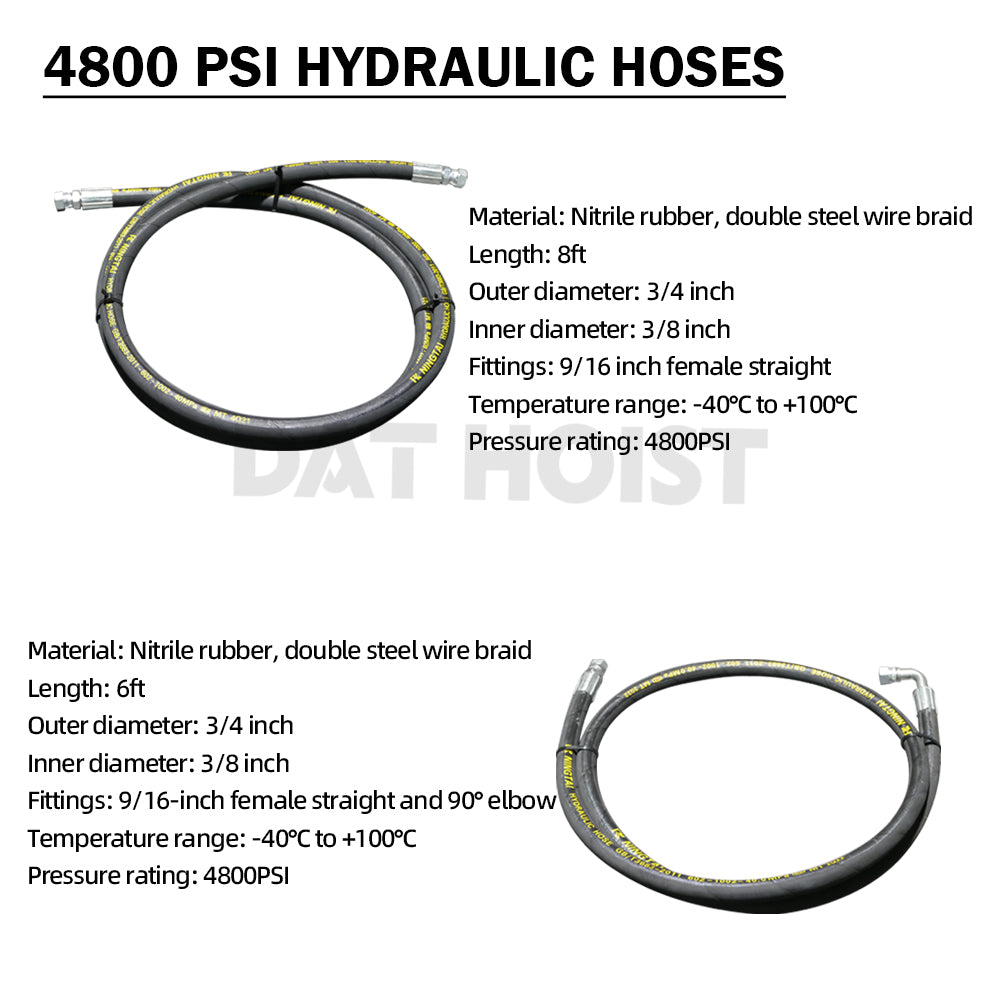

| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |

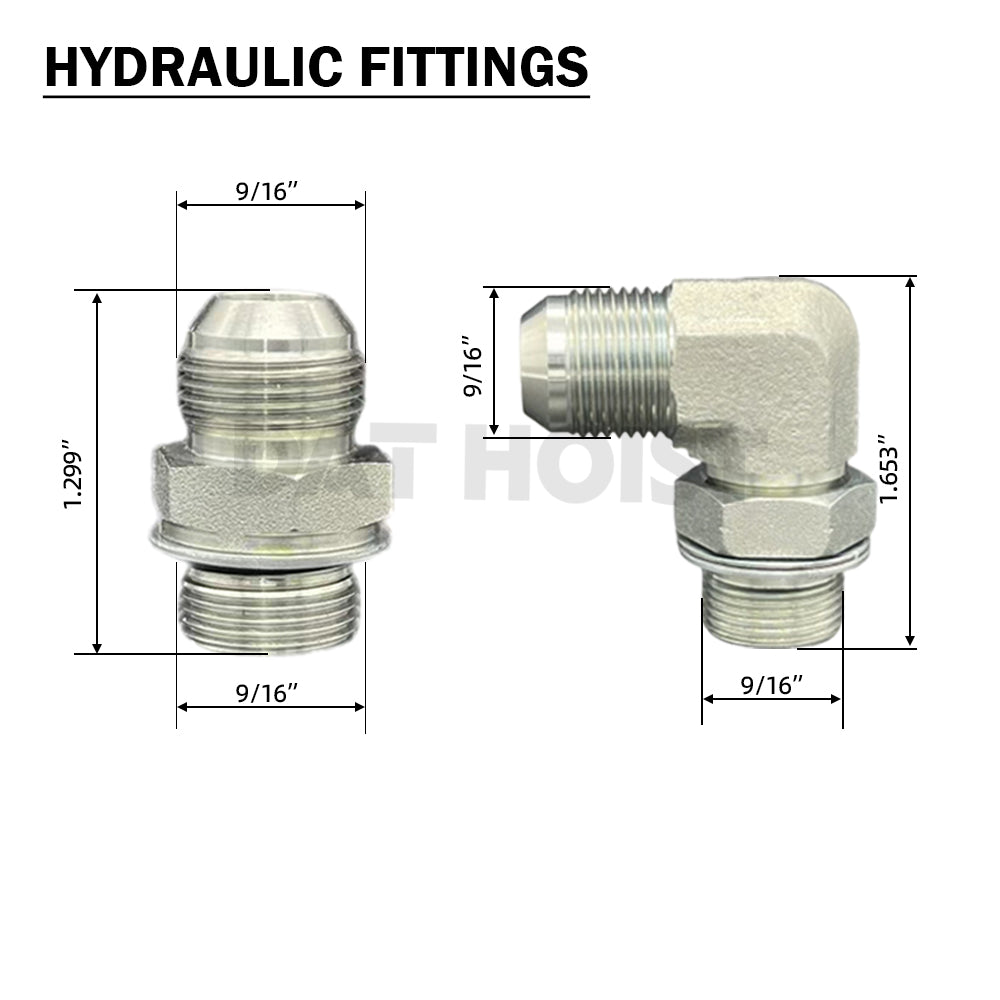

| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |

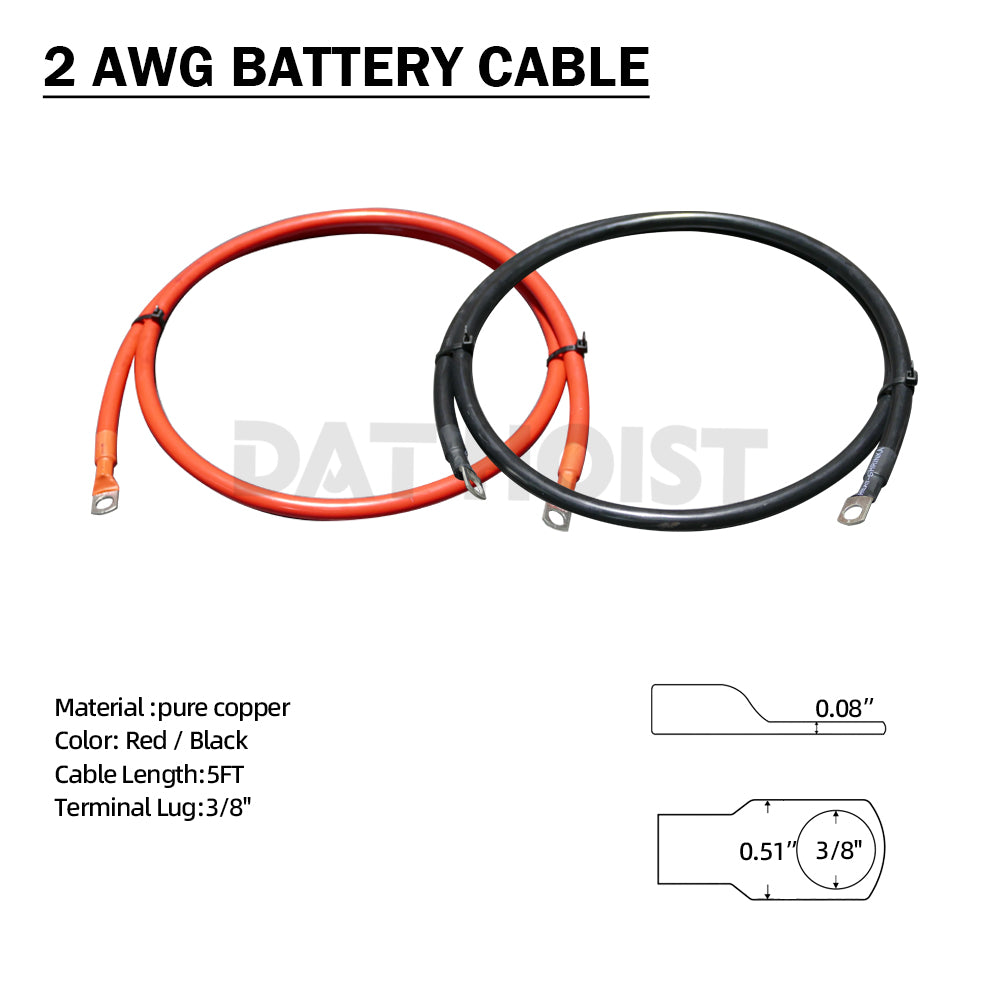

| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-620 hydraulic scissor hoist kit is designed for installation on 16–18 ft dump beds and is compatible with standard 12V DC hydraulic systems used on dump trailers and truck bodies. Due to the high lifting capacity and heavy-duty design, professional installation is strongly recommended to ensure safe operation and optimal performance.
FAQ
Q: What size dump bed is the DH-620 designed for?
A: The DH-620 is designed for 16–18 ft dump beds.
Q: What lifting capacity does this hoist kit provide?
A: This kit offers a 12 ton lifting capacity, making it suitable for heavy-duty commercial applications.
Q: Is a hydraulic power unit included with the kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for large dump trailers?
A: Yes. The DH-620 is ideal for large dump trailers, contractor dump bodies, and commercial dump trucks.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-620 is built for customers who require high lifting capacity for long dump beds, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
