12ft Subframe Hoist Kit – Compatible with DH-520HD

In stock
$2,500.00
Standard
Free Shipping

Use this text to encourage communication or promote sharing on social networks.

You can also add links

DAT HOIST 12ft Subframe Hoist Kit – Compatible with DH-520HD

Product Overview

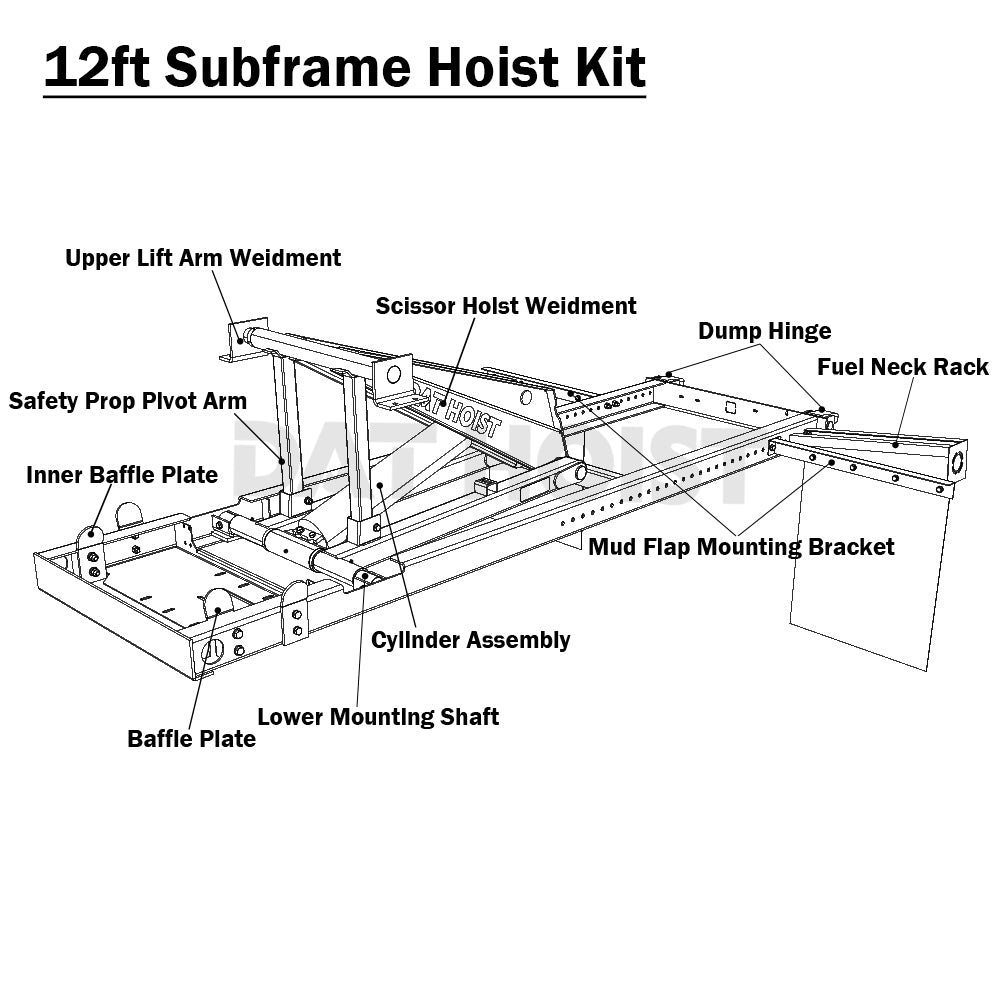

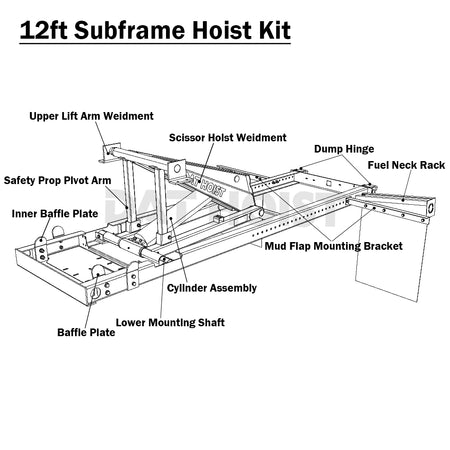

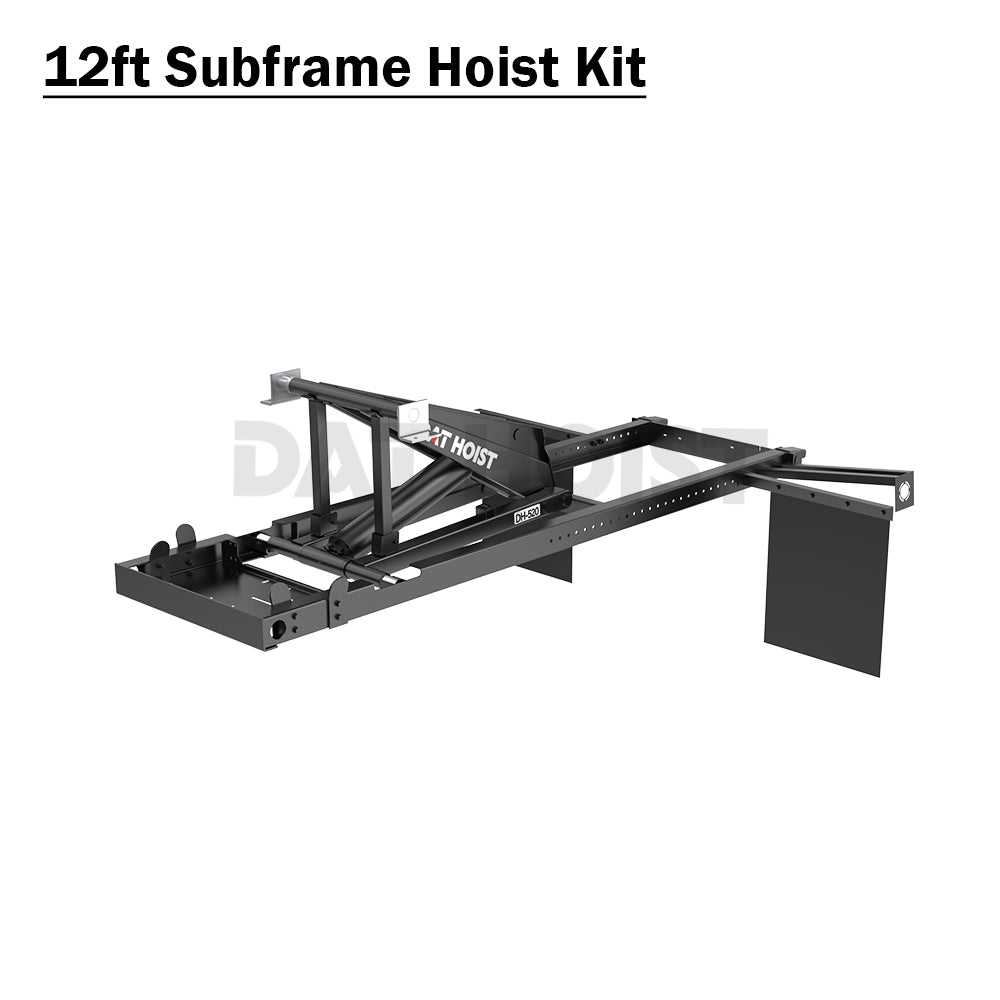

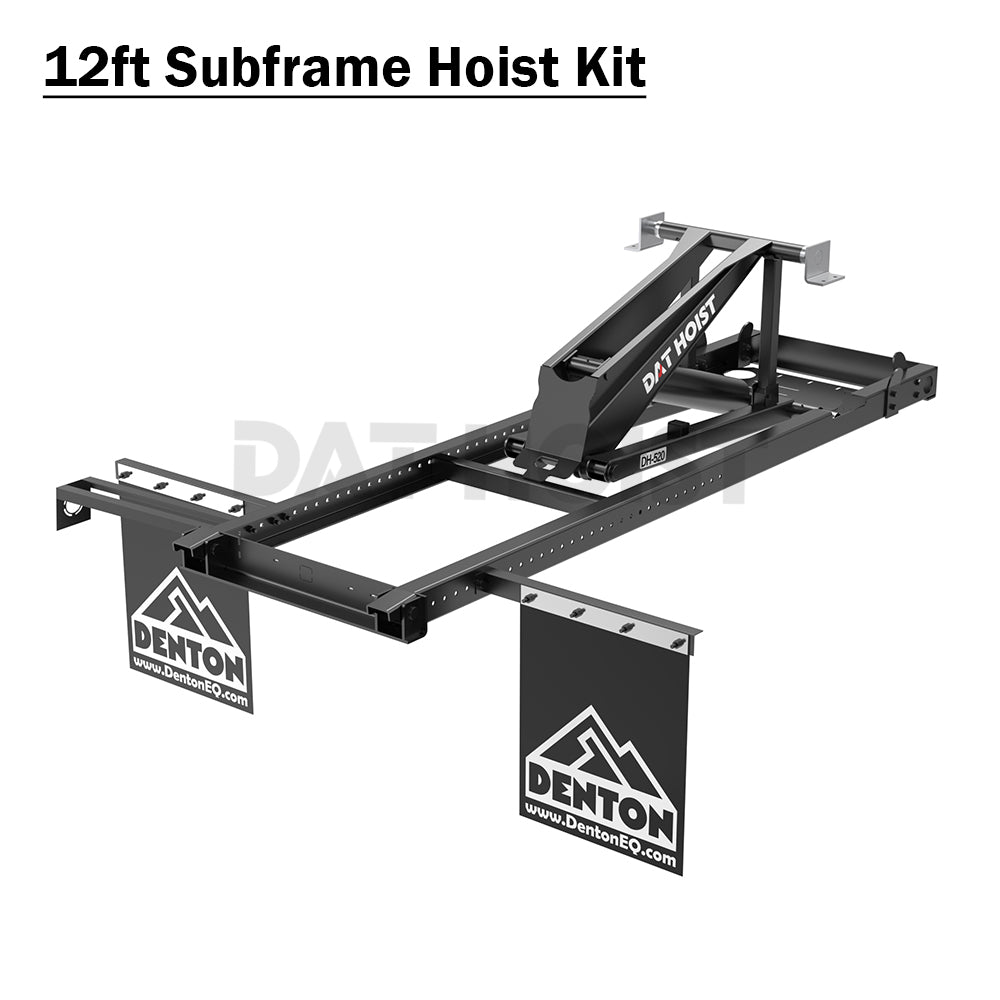

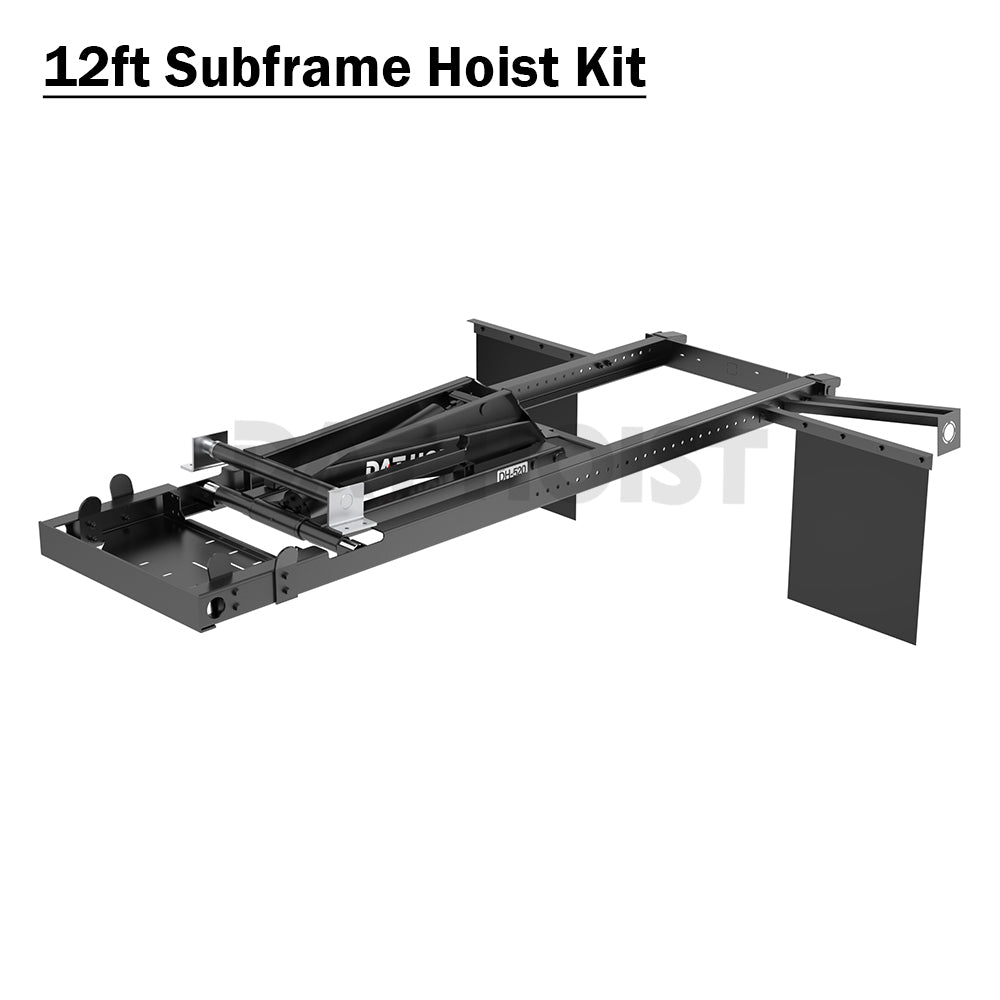

The DAT HOIST 12ft Subframe Hoist Kit is engineered to provide a strong, stable foundation for dump body installations using DH-520HD hydraulic scissor hoists. Designed specifically for 12 ft dump beds, this heavy-duty subframe system ensures proper alignment, reliable load support, and consistent dumping performance with a maximum dump angle of up to 45°.

Manufactured from high-strength steel and reinforced at critical load-bearing points, this subframe kit integrates seamlessly with DAT HOIST hydraulic scissor hoists to create a complete, dependable dump body lifting system. It is ideal for medium-duty dump trucks and trailers requiring long-term durability and precise dumping geometry.

Key Features

  • Optimized for 12 ft Dump Beds
    Designed specifically for 12-foot dump bodies, providing correct geometry and structural support for stable lifting and dumping.

  • Compatible with DH-520HD Scissor Hoists
    Pre-engineered mounting points allow direct integration with DAT HOIST DH-520HD hydraulic scissor hoists for fast, secure installation.

  • Heavy-Duty Steel Construction
    Fabricated from 1/4-inch high-strength steel, delivering superior resistance to flex, fatigue, and deformation under heavy loads.

  • Precision Dump Angle – Up to 45°
    Engineered to achieve consistent dumping performance and efficient material unloading across a wide range of applications.

  • Welded & Reinforced Design
    Reinforced stress zones and clean welds improve overall strength, safety, and long-term service life.

  • Installation-Ready Design
    Ships with pre-drilled mounting holes, brackets, and support components for accurate alignment with the dump body and hoist system.

Recommended Applications

This 12ft subframe hoist kit is commonly used for:

  • Medium-duty dump trucks

  • Dump trailers with 12 ft beds

  • Hydraulic scissor hoist installations

  • New dump body builds and retrofits

  • Fleet and commercial work trucks

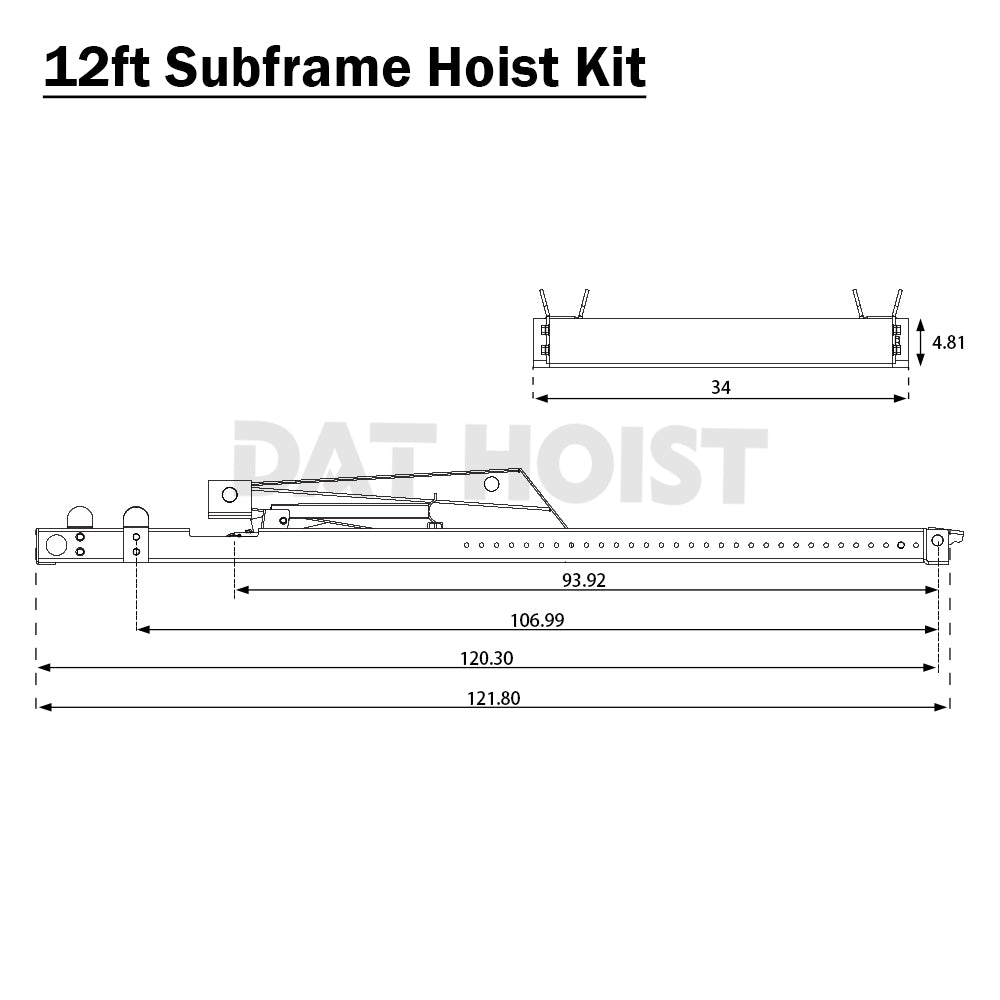

Technical Specifications
Specification Details
Dump Bed Length 12 ft
Max Dump Angle Up to 45°
Material 1/4" High-Strength Steel
Construction Welded & Reinforced
Hoist Compatibility DH-520HD Hydraulic Scissor Hoist
Application Dump Trucks & Dump Trailers

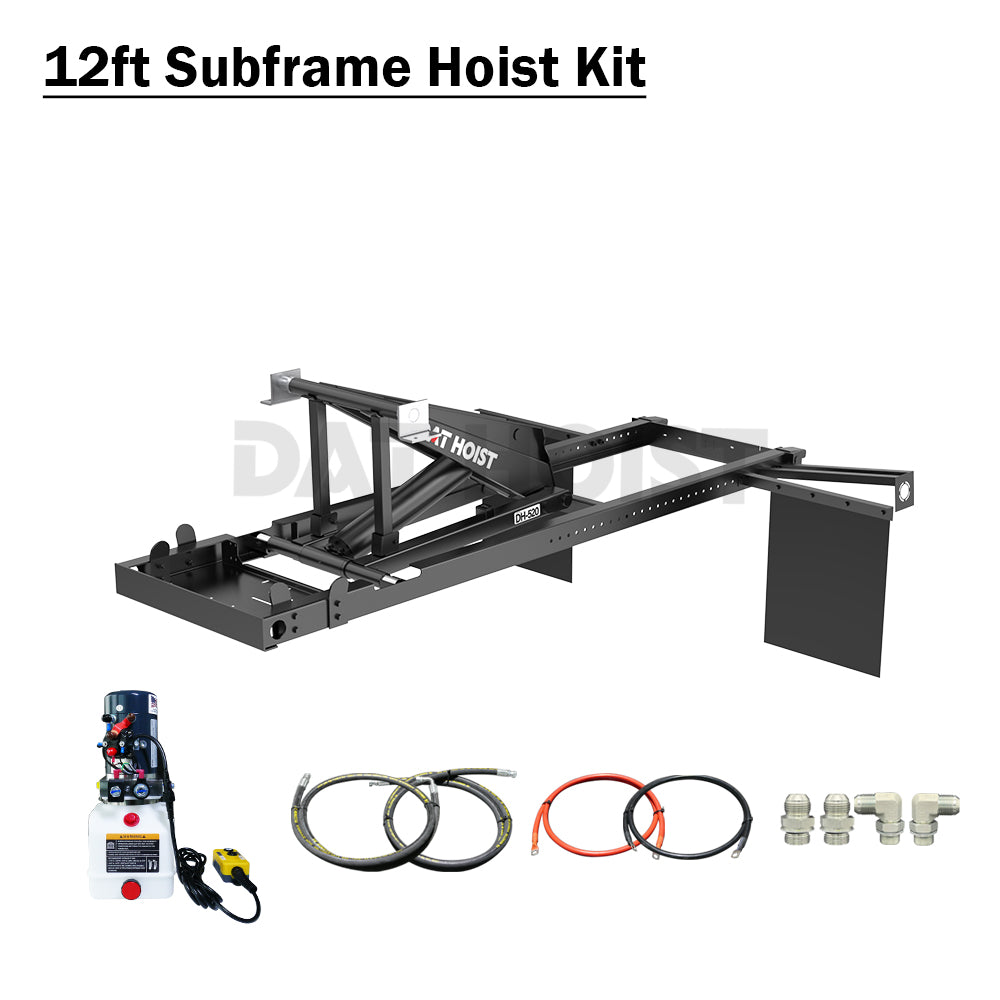

What’s Included in the 12ft Subframe Hoist Kit
Part Number Component Description Quantity
DH-520HD Hydraulic Scissor Hoist HD 520 1
DH-G1-ACC-002 516/520 HD Ring Collar 2
DH-G1-ACC-003 516/520 HD Upper Lifting Arm 2
SF-ISU-12 Subframe – Isuzu 12 ft 1
SF-ISU-ACC-001 Subframe Pin Shaft 1
SF-ISU-ACC-002 Subframe Baffle Plate 2
SF-ISU-ACC-003 Subframe Inner Baffle Plate 2
SF-ISU-ACC-004-1 Subframe L Bracket (Three Holes) 2
SF-ISU-ACC-005 Subframe L Bracket (Two Holes, Gas) 2
SF-ISU-ACC-007-LH Subframe Bracket – Left Mud Flap 1
SF-ISU-ACC-007-RH Subframe Bracket – Right Mud Flap 1
SF-ISU-ACC-008 Subframe Fuel Neck Rack 1
DH-DA-1.6KW-4QT-15FT Double-Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control 1
HH-C-038-8FT-S Hydraulic Hose, 3/8", 8 ft (2.44 m), Straight Ends 1
HH-C-038-6FT-SE Hydraulic Hose, 3/8", 6 ft (1.83 m), One Straight & One 90° Elbow 1
HF-LIC3M-FL-916 Hydraulic Fitting, 3/8" Male 37° LIC Flare, 9/16"-18 2
HF-JIC3M-EL-06 Hydraulic Fitting, 3/8" Male JIC 37° Elbow 2
BC-001 2AWG 1.5 m Battery Cable (Red & Black) 1
Installation & Compatibility

This subframe hoist kit is designed for 12 ft dump beds and is optimized for use with DAT HOIST DH-520HD hydraulic scissor hoists. Professional installation is recommended to ensure correct alignment, secure mounting, and optimal dumping performance.

Frequently Asked Questions (FAQ)

Does this subframe kit include a hydraulic scissor hoist?

Yes. This 12ft Subframe Hoist Kit is designed to work with the DH-520HD hydraulic scissor hoist, which is included as part of the complete kit.

Is the hydraulic power unit included?

Yes. The kit includes a double-acting 1.6KW hydraulic power unit with a 4L reservoir and 15 ft wired control, along with hoses, fittings, and battery cables.

What dump bed length is this subframe designed for?

This subframe is specifically engineered for 12 ft dump beds to ensure proper alignment, load distribution, and optimal dumping geometry.

Why Choose DAT HOIST

DAT HOIST specializes in hydraulic scissor hoists, subframe systems, and complete dump body lifting solutions engineered for durability, reliability, and real-world performance. The 12ft Subframe Hoist Kit provides a proven foundation trusted by operators who demand strength, precision, and dependable dumping action.

Engineered for strength. Built to perform.
