12ft Subframe Kit Compatible with DH-520HD | Subframe Only

In stock
$1,500.00
Free Shipping

Use this text to encourage communication or promote sharing on social networks.

You can also add links

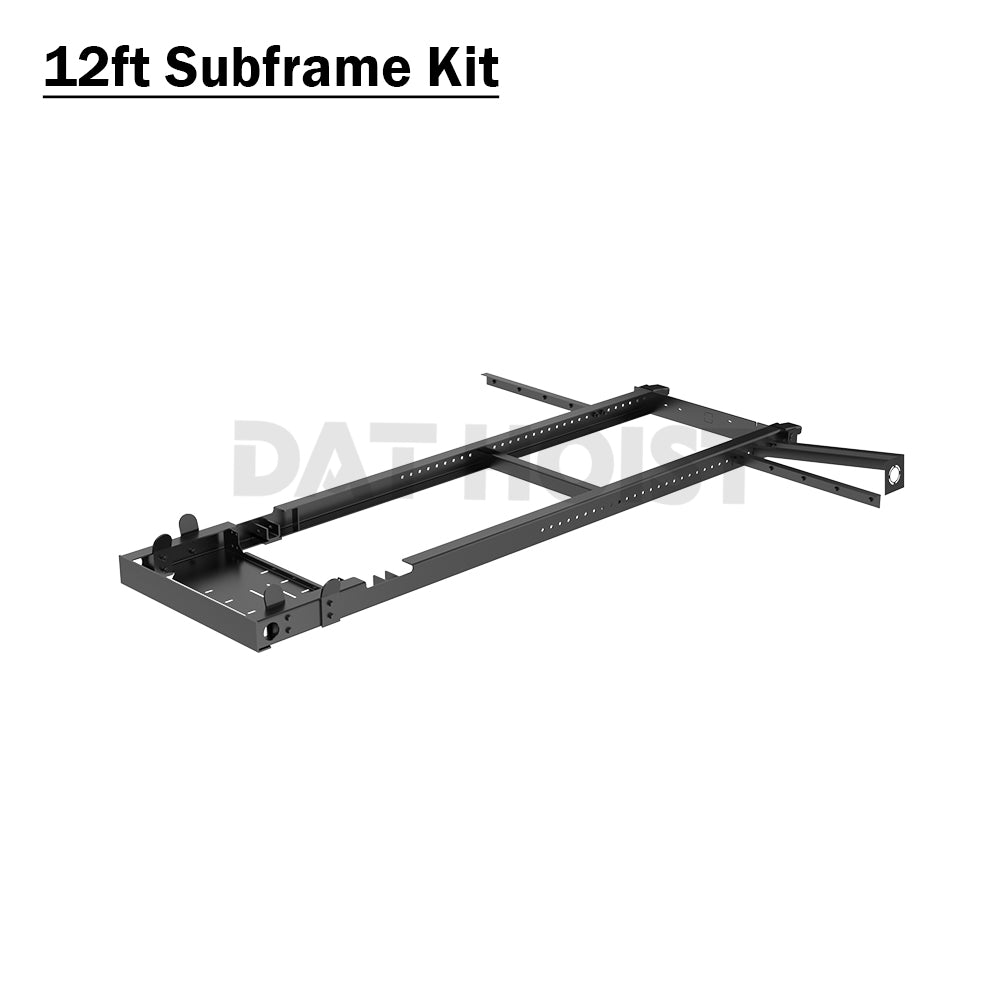

DAT HOIST 12ft Subframe Kit Compatible with DH-520HD | Subframe Only

Product Overview

The DAT HOIST 12ft Subframe Kit is engineered to provide a strong, stable foundation for dump bed installations using DH-520 and DH-520HD hydraulic scissor hoists. Designed specifically for 12 ft dump beds, this heavy-duty subframe system ensures proper alignment, reliable load support, and precise dumping geometry with a maximum dump angle of up to 45°.

Manufactured from high-strength steel and reinforced at critical load-bearing points, this product includes the subframe structure and mounting components only. It is intended for customers who already have a compatible DH-520 or DH-520HD scissor hoist or plan to source the hoist separately.

Key Features

  • Optimized for 12 ft Dump Beds
    Precisely designed for 12-foot dump bodies to ensure correct geometry and stable lifting performance.

  • Compatible with DH-520 / DH-520HD Scissor Hoists
    Pre-engineered mounting points allow seamless integration with DAT HOIST DH-520 and DH-520HD scissor hoists.

  • Heavy-Duty Steel Construction
    Fabricated from 1/4-inch high-strength steel, offering excellent resistance to flexing, fatigue, and deformation under load.

  • Precision Dump Angle – Up to 45°
    Designed to achieve consistent and efficient unloading across a wide range of materials.

  • Welded & Reinforced Design
    Reinforced stress points and clean welds improve overall strength, safety, and long-term durability.

  • Installation-Ready Configuration
    Ships with pre-drilled mounting holes and brackets for accurate alignment with the hoist and dump bed.

Recommended Applications

This 12ft subframe kit is commonly used for:

  • Medium-duty dump trucks

  • Dump trailers with 12 ft beds

  • Installations using existing DH-520 or DH-520HD scissor hoists

  • Dump body retrofits and structural upgrades

  • Fleet and commercial work trucks

Technical Specifications
Specification Details
Dump Bed Length 12 ft
Max Dump Angle Up to 45°
Material 1/4" High-Strength Steel
Construction Welded & Reinforced
Hoist Compatibility DH-520 / DH-520HD Scissor Hoists
Product Type Subframe Only (Hoist Not Included)
What’s Included in the 12ft Subframe Kit
Part Number Component Description Quantity
SF-ISU-14 Subframe – Isuzu 14 ft 1
SF-ISU-ACC-001 Subframe Pin Shaft 1
SF-ISU-ACC-002 Subframe Baffle Plate 2
SF-ISU-ACC-003 Subframe Inner Baffle Plate 2
SF-ISU-ACC-004-1 Subframe L Bracket (Three Holes) 2
SF-ISU-ACC-005 Subframe L Bracket (Two Holes, Gas) 2
SF-ISU-ACC-007-LH Subframe Bracket – Left Mud Flap 1
SF-ISU-ACC-007-RH Subframe Bracket – Right Mud Flap 1
SF-ISU-ACC-008 Subframe Fuel Neck Rack 1

Not Included

  • Hydraulic Scissor Hoist (DH-520 / DH-520HD)

  • Hydraulic Power Unit

  • Hydraulic Hoses & Fittings

  • Electrical Components

Installation & Compatibility

This subframe kit is designed for 12 ft dump beds and is compatible with DAT HOIST DH-520 and DH-520HD hydraulic scissor hoists. Professional installation is recommended to ensure correct alignment, secure mounting, and safe dumping performance.

Frequently Asked Questions (FAQ)

Does this kit include a hydraulic scissor hoist?

No. This product includes the subframe structure and mounting components only. The hydraulic scissor hoist is not included.

Which hoist models is this subframe compatible with?

This subframe is designed for use with DAT HOIST DH-520 and DH-520HD scissor hoists.

Is the hydraulic power unit included?

No. The hydraulic power unit, hoses, fittings, and electrical components are not included.

What dump bed length is this subframe designed for?

This kit is specifically engineered for 12 ft dump beds.

What is the maximum dump angle?

When properly installed, this subframe supports a dump angle of up to 45°.

Why Choose DAT HOIST

DAT HOIST specializes in hydraulic scissor hoists, subframe systems, and complete dump body solutions engineered for durability, reliability, and real-world performance. The 12ft Subframe Kit is built for operators who require a solid, precision-engineered foundation for their existing hoist system.

Engineered for strength. Built to perform.
