12V Hydraulic Pump Double Acting Twin Motor 4KW 23L Steel Hydraulic Tank – 12 Volt Electric Hydraulic Pump

High-Output 12V Hydraulic Pump – Double Acting | Twin Motor 4KW

The DAT HOIST High-Output 12V Hydraulic Pump (Twin Motor 4KW) is a 12 volt electric hydraulic pump system engineered for demanding dump trailer and dump truck applications requiring high lifting power, fast cycle times, and reliable double-acting control.

This heavy-duty 12V hydraulic pump delivers true power-up and power-down operation, providing smooth, precise hydraulic control for commercial and industrial use. Powered by dual 12V electric motors, the system is designed for continuous-duty performance where higher flow and increased pressure are essential.

Common Applications

This 12 volt electric hydraulic pump is commonly used for:

• Dump Trailers

• Dump Trucks

• Hydraulic Scissor Hoists

• Flatbed & Utility Bodies

• Custom Hydraulic Systems

• Any application requiring high-output, double-acting hydraulic control

Twin Motor High-Output System

This 12V hydraulic pump features two 12V DC motors, each rated at 2KW, delivering a combined output of 4KW (approximately 5.8 horsepower). The twin-motor configuration provides increased torque, faster lift speeds, and stable performance under heavy loads.

True Double-Acting Hydraulic Control

Designed as a double-acting hydraulic pump, this system supports both power-up and power-down operation, allowing controlled lifting and lowering—ideal for dump beds and scissor hoist systems that require smooth, safe, two-way hydraulic movement.

High Flow Output

With a maximum flow rate of 3.30 gallons per minute (GPM), this 12 volt electric hydraulic pump delivers efficient hydraulic movement and reduced cycle times for commercial applications.

High-Pressure Capability

• Lifting Pressure: 3000 PSI

• Lowering Pressure: 1500 PSI

Built to handle demanding lifting tasks while maintaining consistent hydraulic control.

Heavy-Duty Steel Reservoir

23L (6 Gallon) Steel Hydraulic Tank

This hydraulic pump system is equipped with a 23-liter (approximately 6-gallon) heavy-duty steel reservoir. The steel tank provides excellent heat dissipation, increased hydraulic oil capacity, and superior durability for demanding commercial applications.

Compared with smaller plastic reservoirs, the 23L steel oil tank offers greater strength, improved cooling performance, and longer service life, making it ideal for dump trailers, dump trucks, and other heavy-duty hydraulic systems.

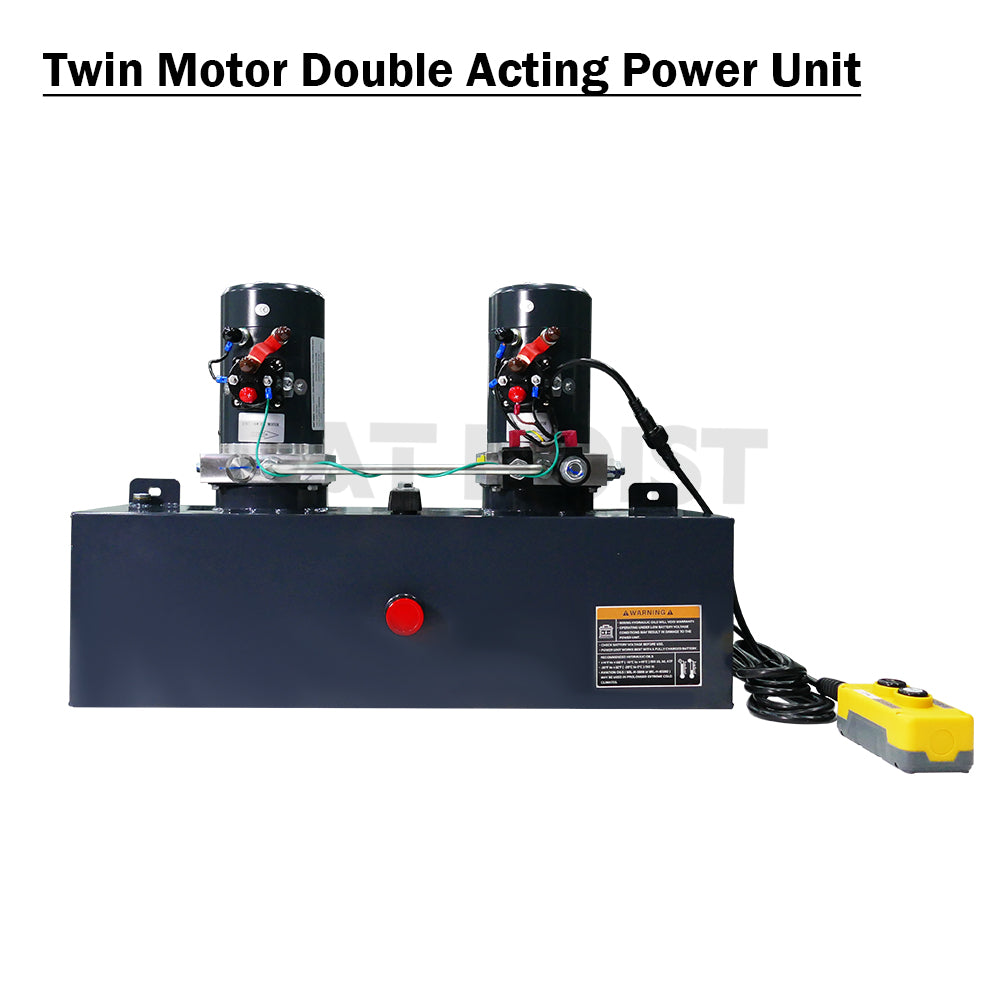

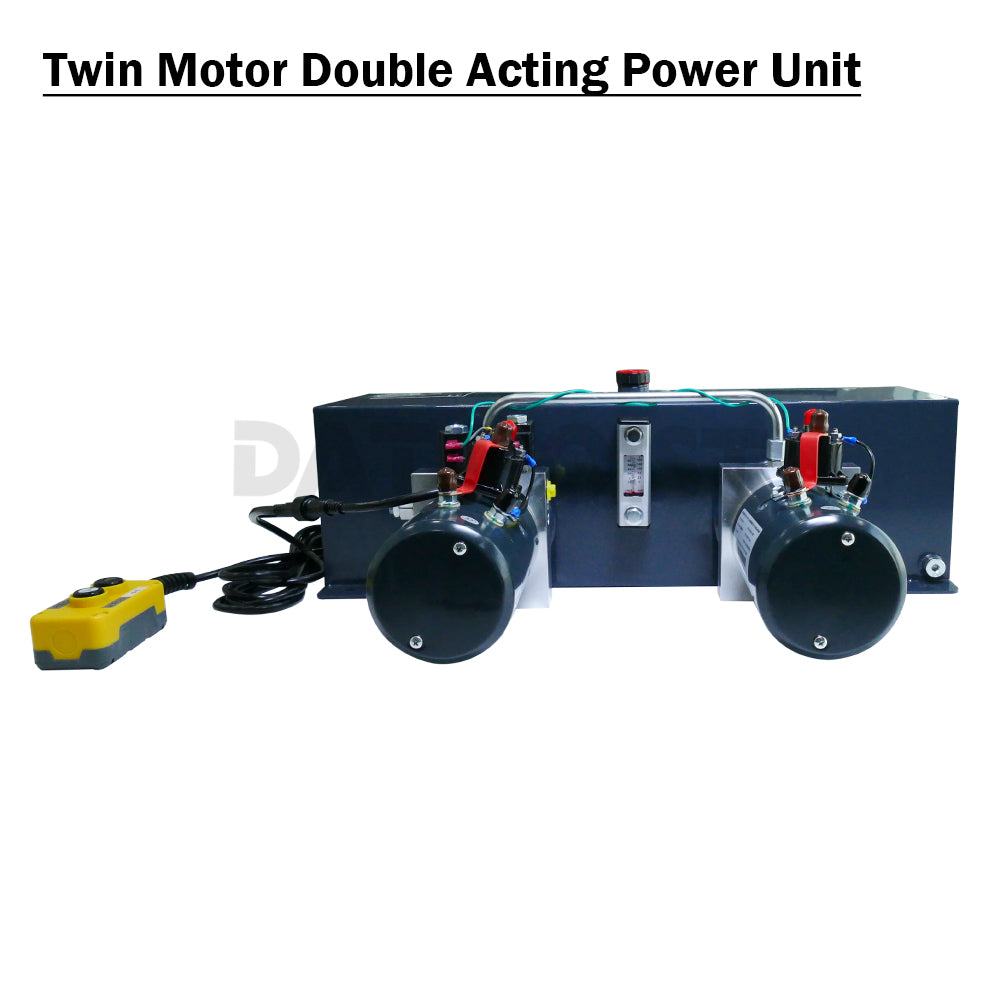

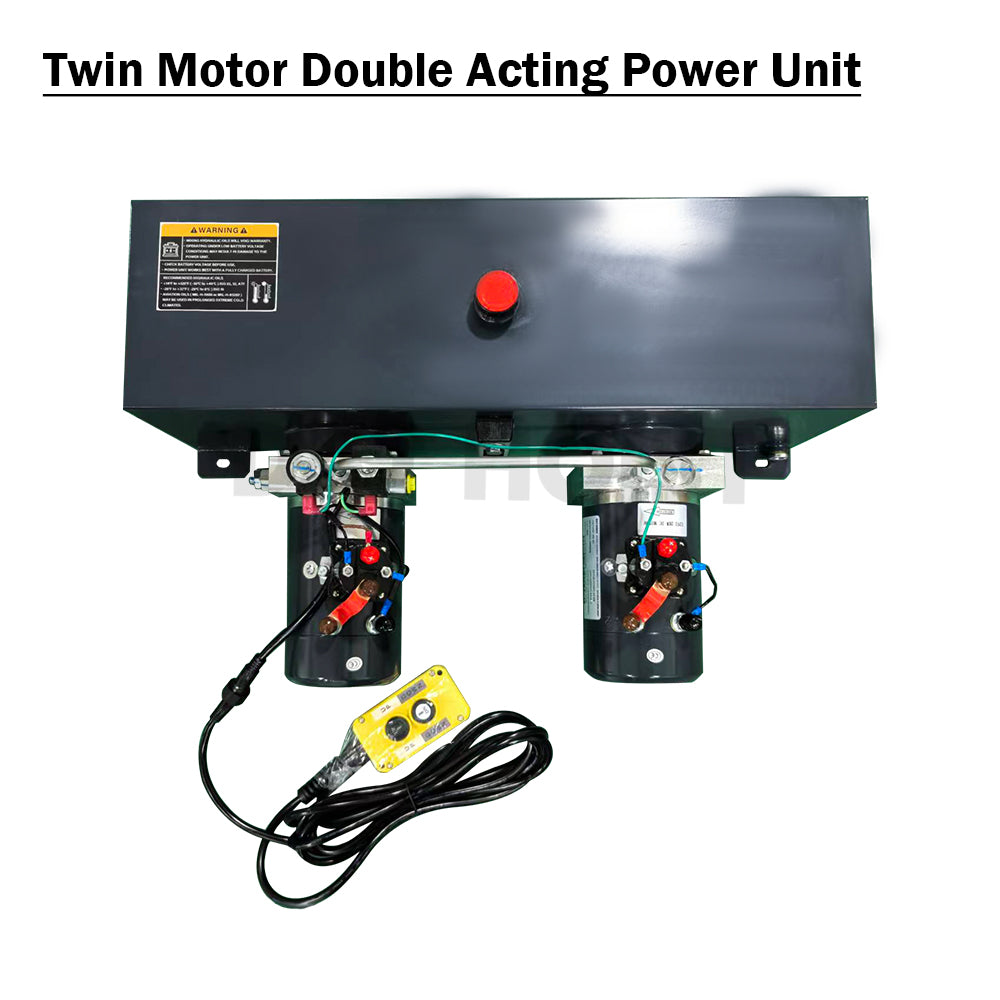

All-In-One Industrial Hydraulic Pump System

The pump, twin motors, 23L steel reservoir, valve block, and controls are integrated into one compact, industrial-grade unit. This design simplifies installation, reduces wiring complexity, and ensures dependable performance in real-world jobsite conditions.

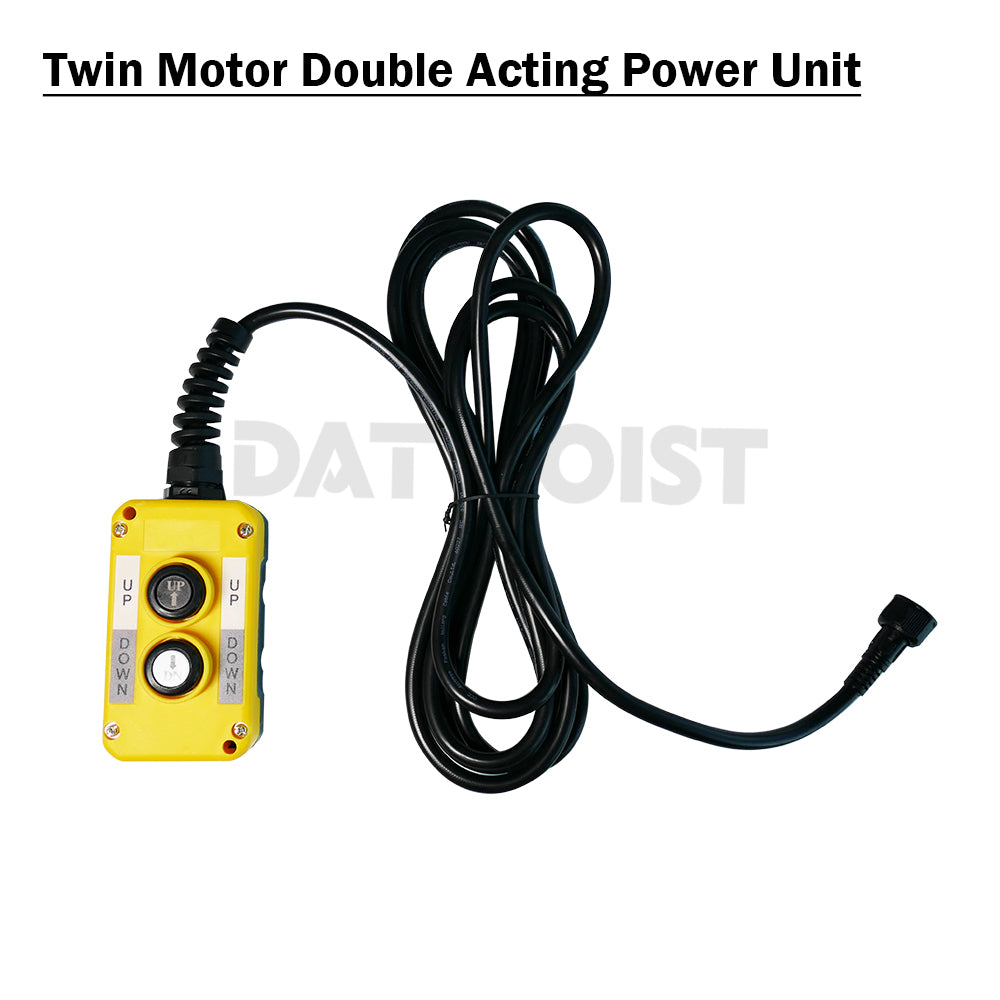

15ft Wired Remote Control

Includes a 15-foot wired remote, allowing safe and convenient operation from a distance—ideal for dump trailers and truck-mounted hydraulic systems.

Engineered for Strength. Built to Perform.

The DAT HOIST Twin Motor 4KW 12V Hydraulic Pump is built for operators who demand maximum power, fast response, and long-term reliability. Whether used in dump trailers, trucks, or custom hydraulic builds, this 12 volt electric hydraulic pump with a 23L steel reservoir delivers professional-grade performance you can trust.
