14 Ton Dual Cylinder Hydraulic Scissor Hoist for 10–14' Dump Body | DH-5516
Product Overview
The DH-5516 Scissor Hoist is a 14 ton dual-cylinder hydraulic scissor hoist assembly engineered for 10–14 ft dump beds, delivering exceptional lifting power, enhanced stability, and smooth, controlled operation under heavy loads. Designed by DAT HOIST, the dual-cylinder configuration distributes lifting force evenly, reducing stress on the frame and improving overall durability.
Constructed from heavy-duty structural steel and reinforced at critical load-bearing points, the DH-5516 is ideal for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and two hydraulic cylinders only and is backed by a standard 24-month warranty.
Key Features
-
14 Ton Lifting Capacity – Handles very heavy commercial loads with confidence
-
Dual Hydraulic Cylinder Design – Provides balanced lifting force and improved stability
-
Fits 10–14 ft Dump Beds – Ideal for compact heavy-duty dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand demanding jobsite conditions
-
Reinforced Stress Points – Strengthened at critical load areas to minimize flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied hydraulic systems
Recommended Applications
This dual-cylinder hydraulic scissor hoist is commonly used for:
-
Heavy-duty dump trailers
-
Contractor and commercial dump bodies
-
Applications requiring higher lifting stability in shorter dump beds
-
Equipment rebuilds and structural upgrades
-
Custom hydraulic system installations

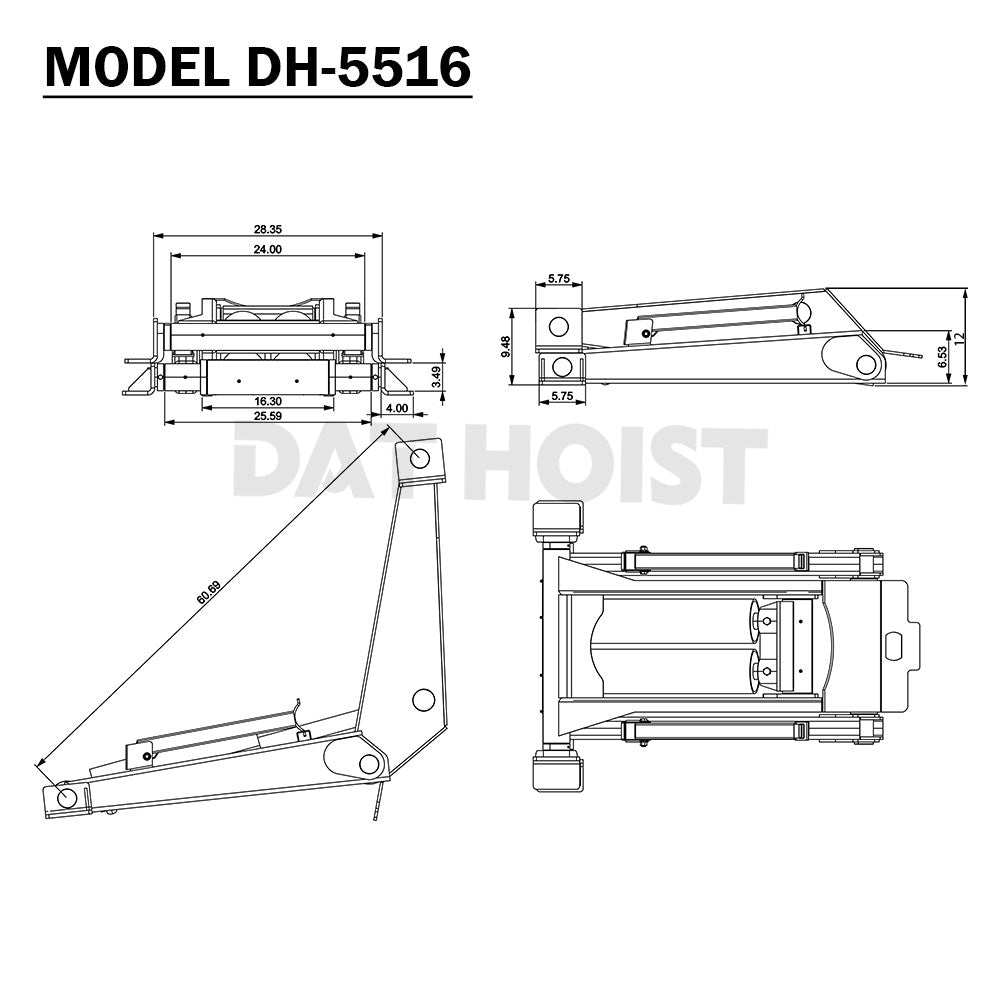

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 14 Ton |
| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Cylinder Configuration | Dual Cylinder |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

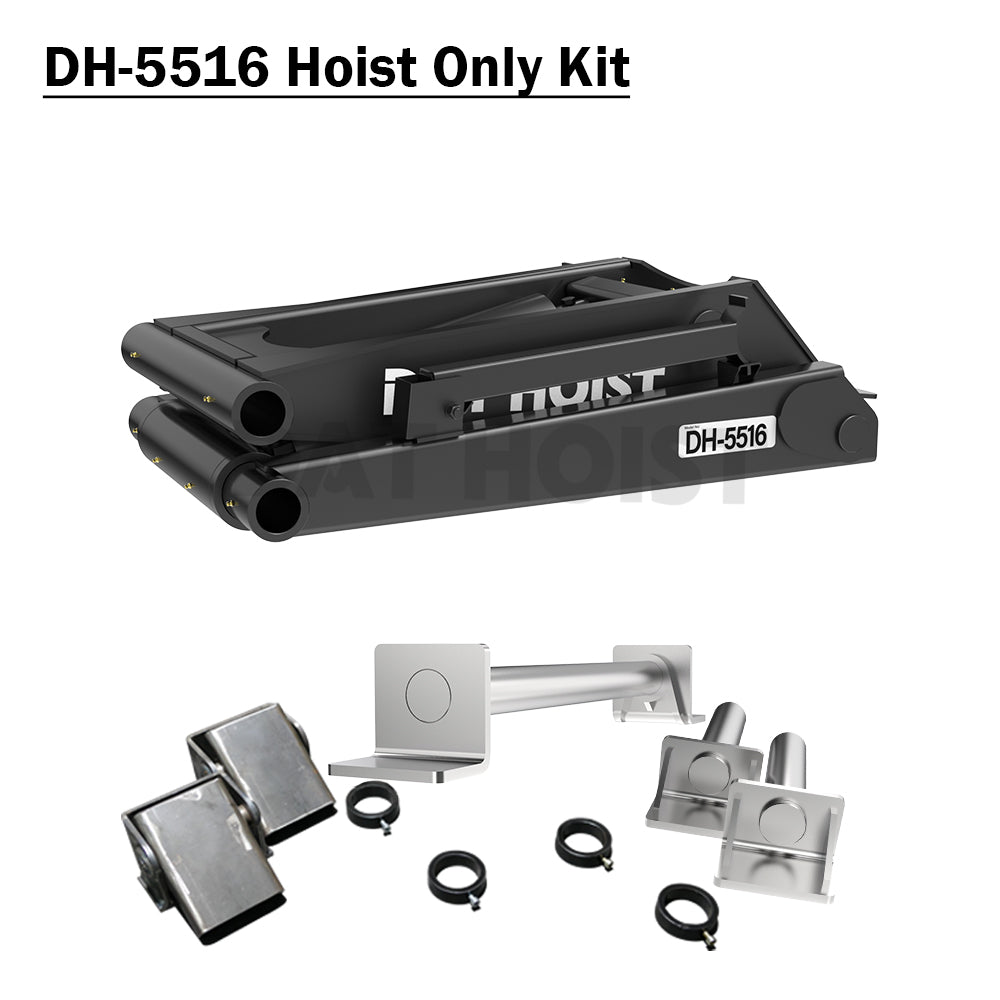

What’s Included in the DH-5516 Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-5516 | Frame | 1 |
| CY-516 | Cylinder | 2 |
| DH-G3-ACC-001 | 5516/5520 Ring Collar | 4 |
| DH-G3-ACC-002 | 5516/5520 Upper Lifting Arm | 1 |
| DH-G3-ACC-003 | 5516/5520 Lower Mounting Arm | 2 |
| H-600 | Six Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-5516 hydraulic scissor hoist is designed for installation on 10–14 ft dump beds and must be paired with a compatible external hydraulic power unit. The dual-cylinder design improves lifting balance and reduces torsional stress on the dump body. Professional installation is recommended to ensure proper alignment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-5516 include a hydraulic power unit?
A: No. The DH-5516 Scissor Hoist includes the hoist assembly and two hydraulic cylinders only. A hydraulic power unit is not included.
Q: What is the advantage of the dual-cylinder design?
A: Dual cylinders provide more balanced lifting force, improved stability, and reduced stress on the hoist structure—especially beneficial for heavy loads on shorter dump beds.
Q: What size dump bed is this hoist designed for?
A: The DH-5516 is designed for 10–14 ft dump beds.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-5516 Scissor Hoist is built for operators who need maximum lifting capacity and stability on shorter dump beds without a bundled power unit, backed by proven engineering and a 24-month warranty.
