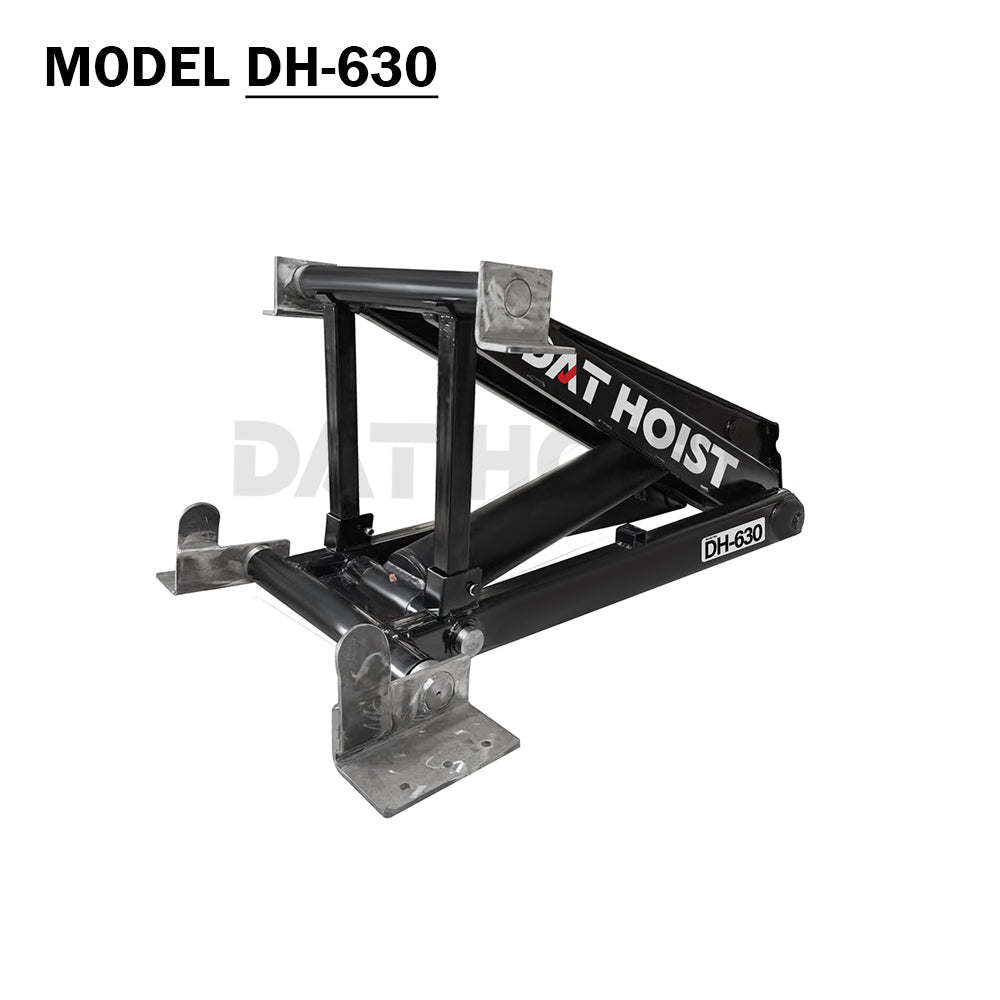

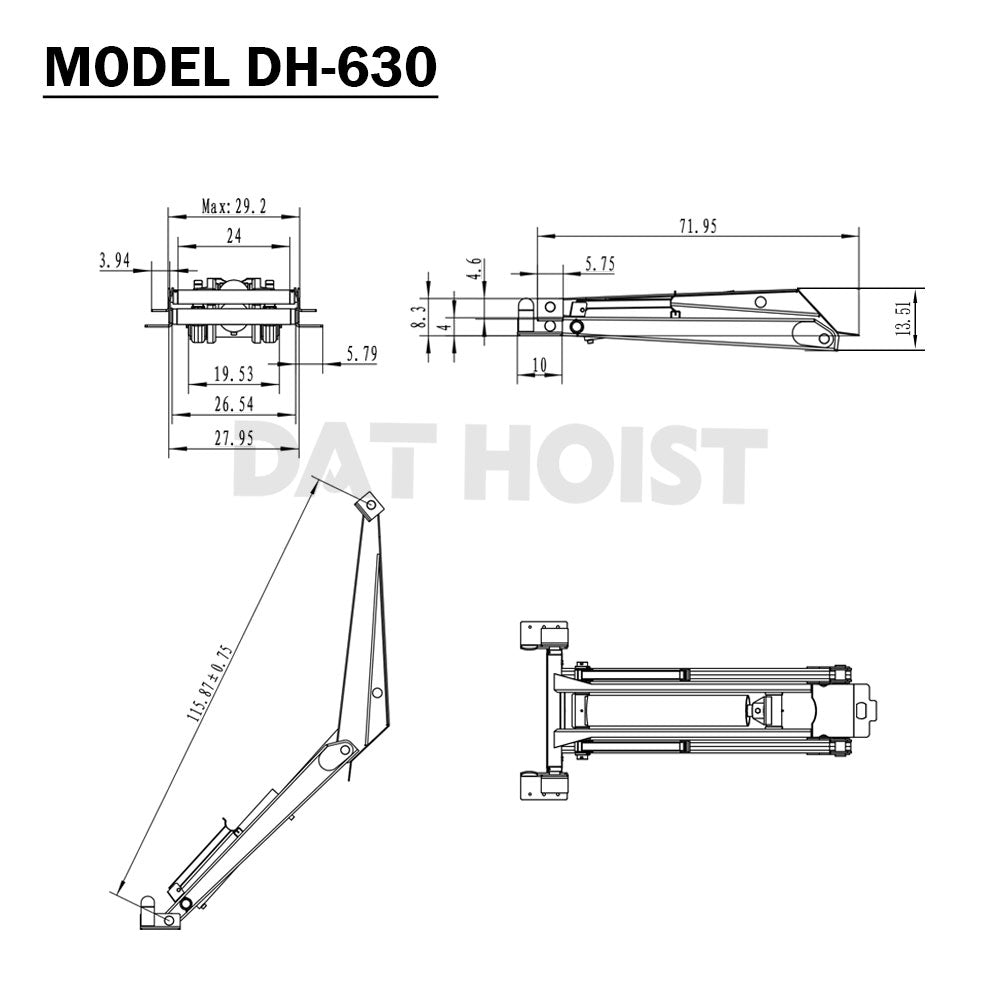

14 Ton Hydraulic Scissor Hoist Kit for 18–24' Dump Body – DH-630
Product Overview
The DH-630 is a 14-ton hydraulic scissor hoist kit engineered for 18–24 ft dump beds, delivering exceptional strength, stability, and lifting power for the most demanding applications. Designed by DAT HOIST, this heavy-duty hoist provides smooth, controlled lifting performance even under extreme loads. Built for long-term durability and daily commercial use, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
14 Ton Lifting Capacity – Handles extremely heavy loads with confidence for demanding commercial and industrial applications
-
Fits 18–24 ft Dump Beds – Designed for long dump trailers and large truck bodies
-

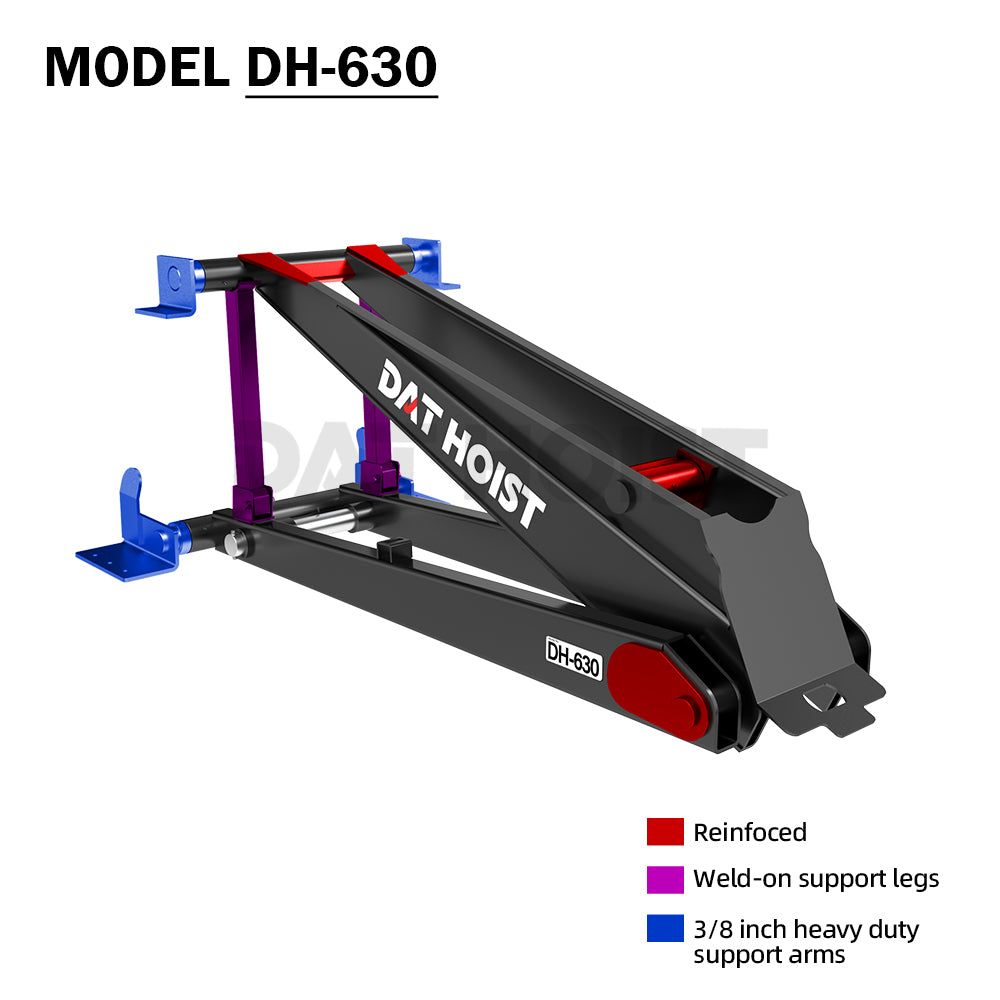

Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and continuous operation
-
Reinforced Stress Points – Strengthened at critical load areas to reduce flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion over time
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This hydraulic scissor hoist kit is commonly used for:
-
Large and extra-long dump trailers
-
Heavy-duty contractor and commercial dump bodies
-
Construction and utility dump trucks
-
Applications requiring maximum lifting capacity and long dump beds
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 14 Ton |

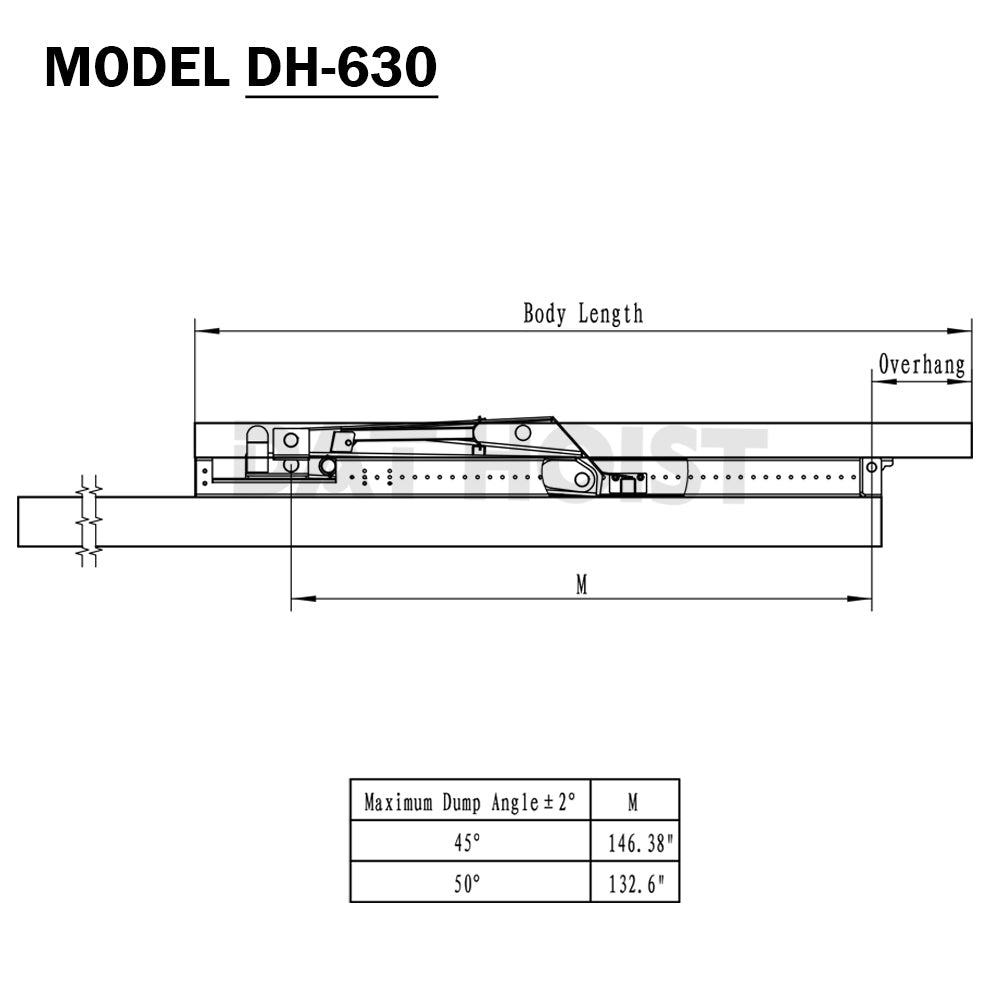

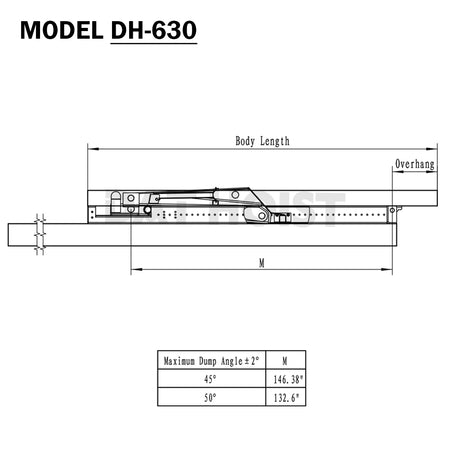

| Dump Bed Length | 18–24 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

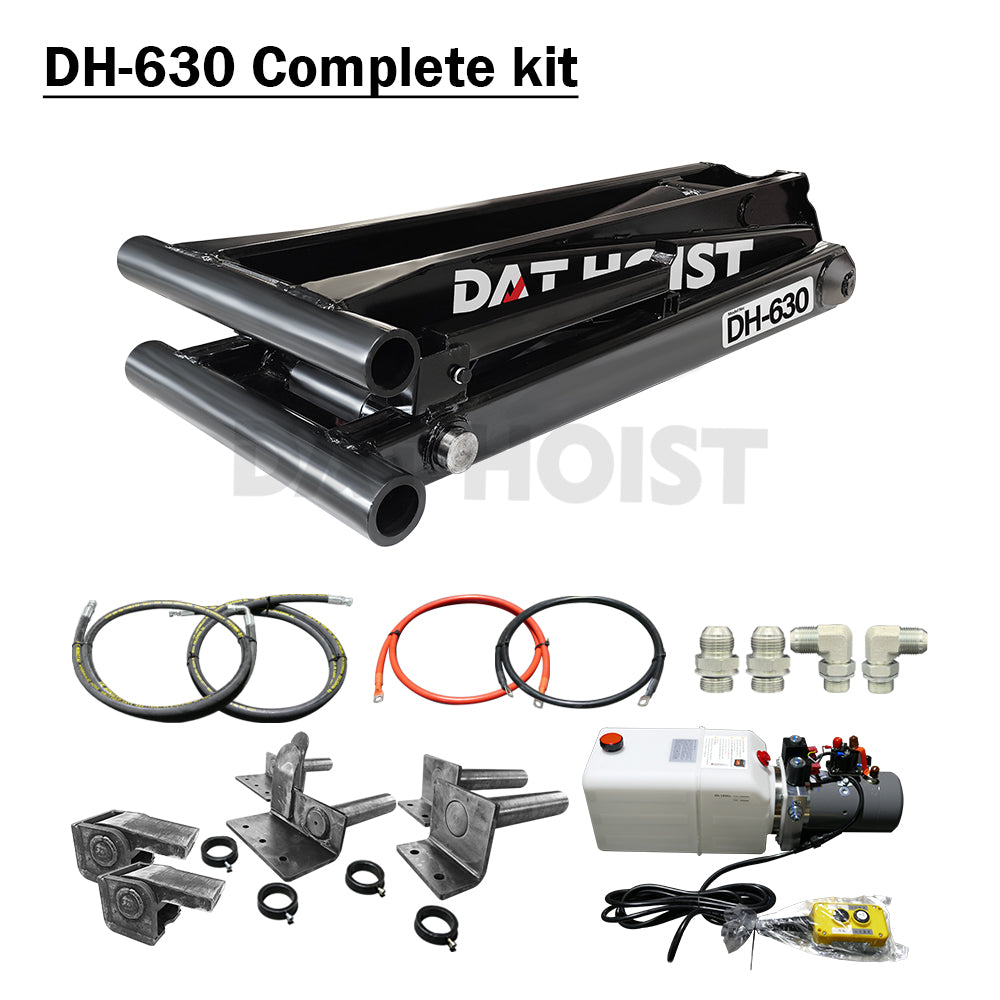

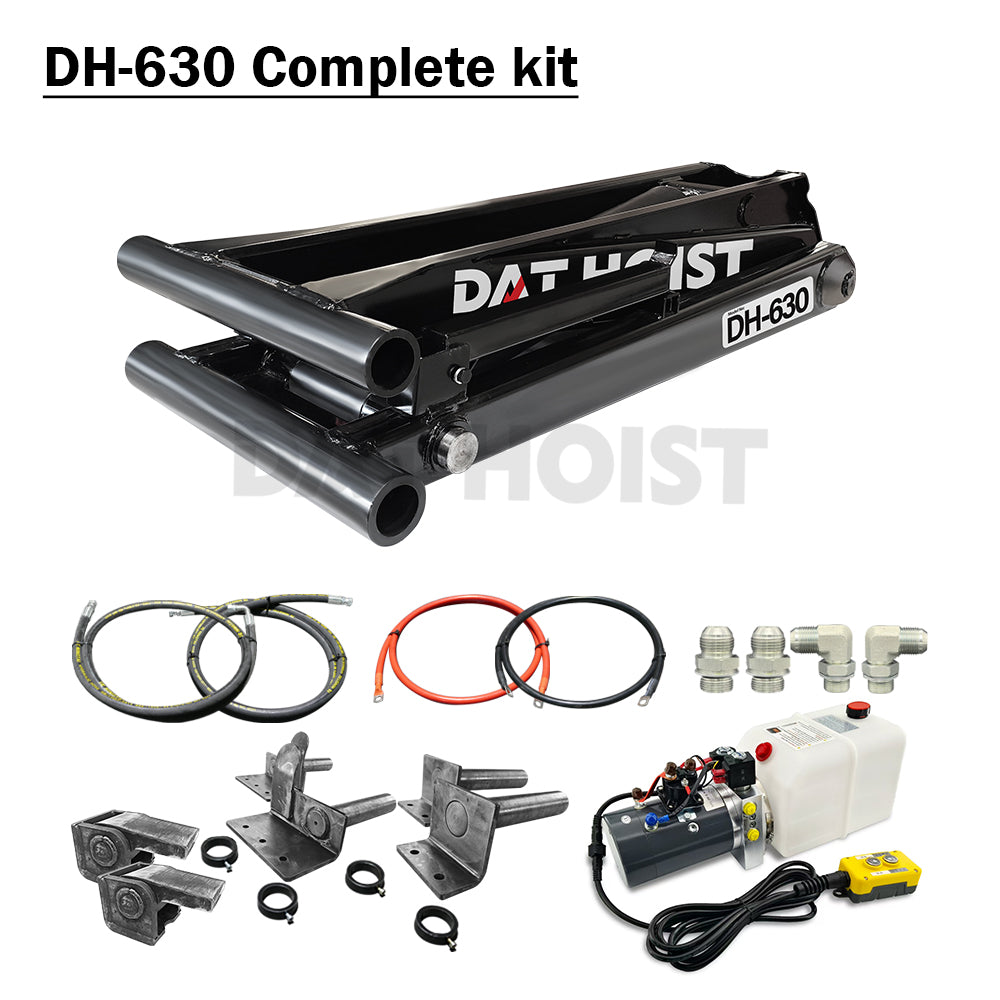

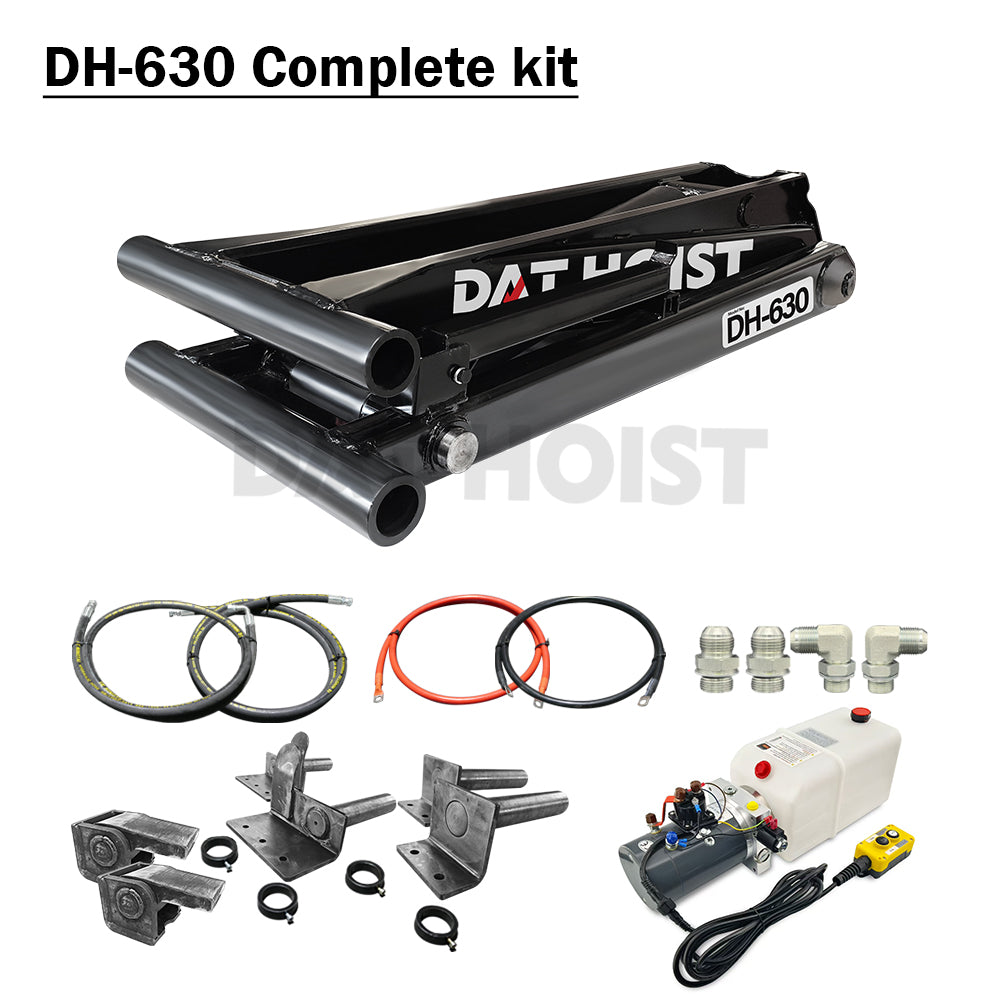

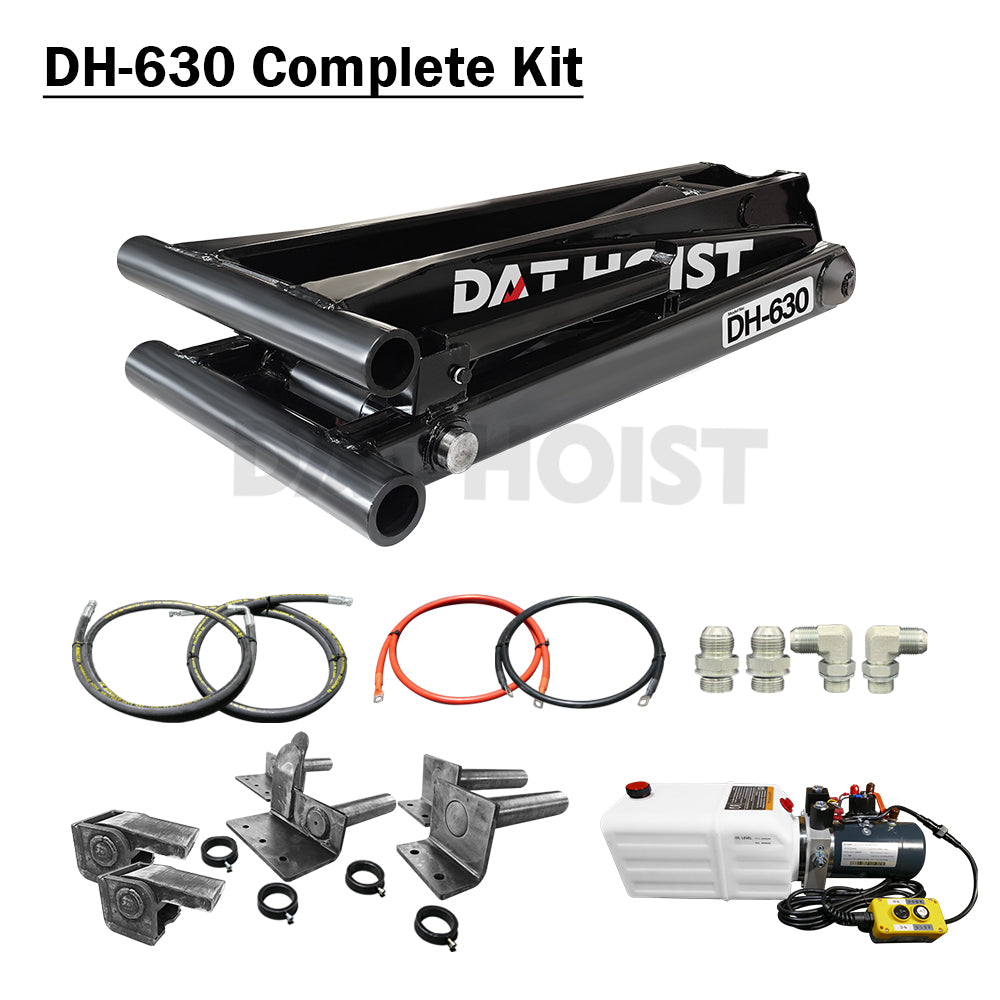

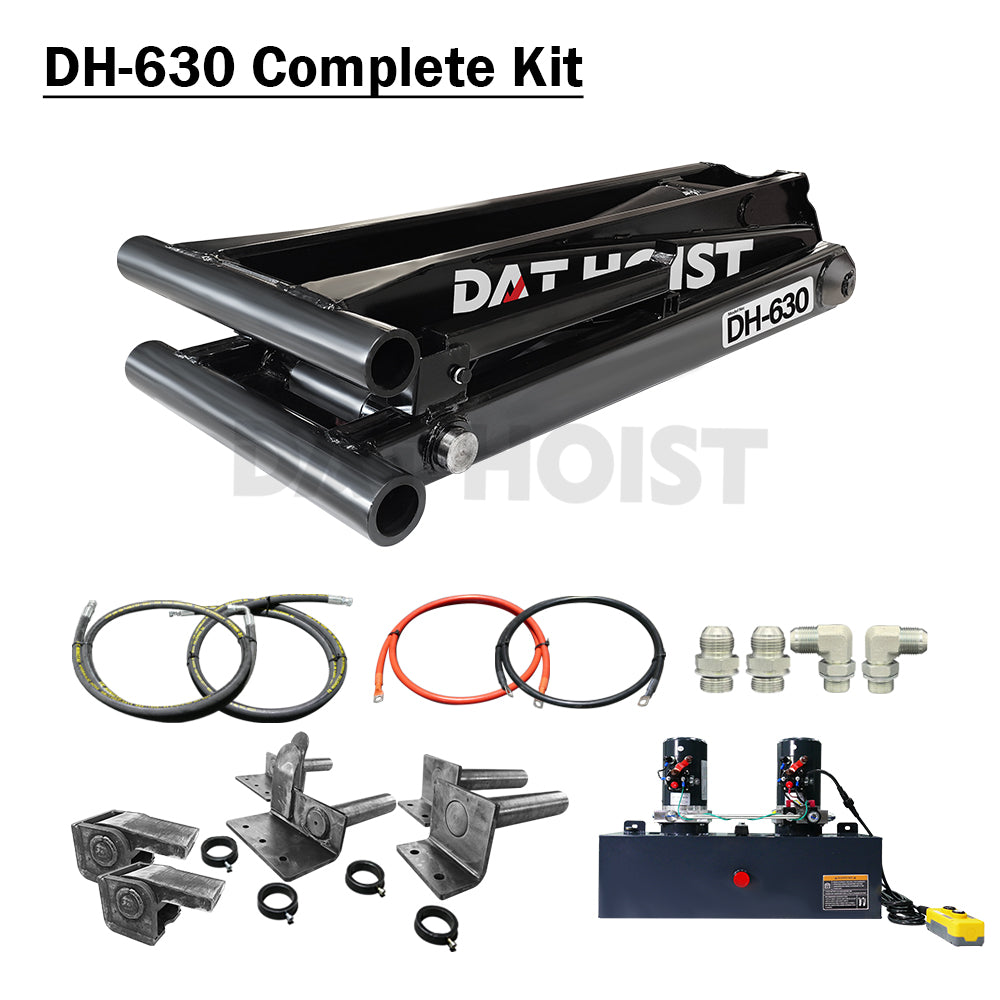

What’s Included in the DH-630 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|

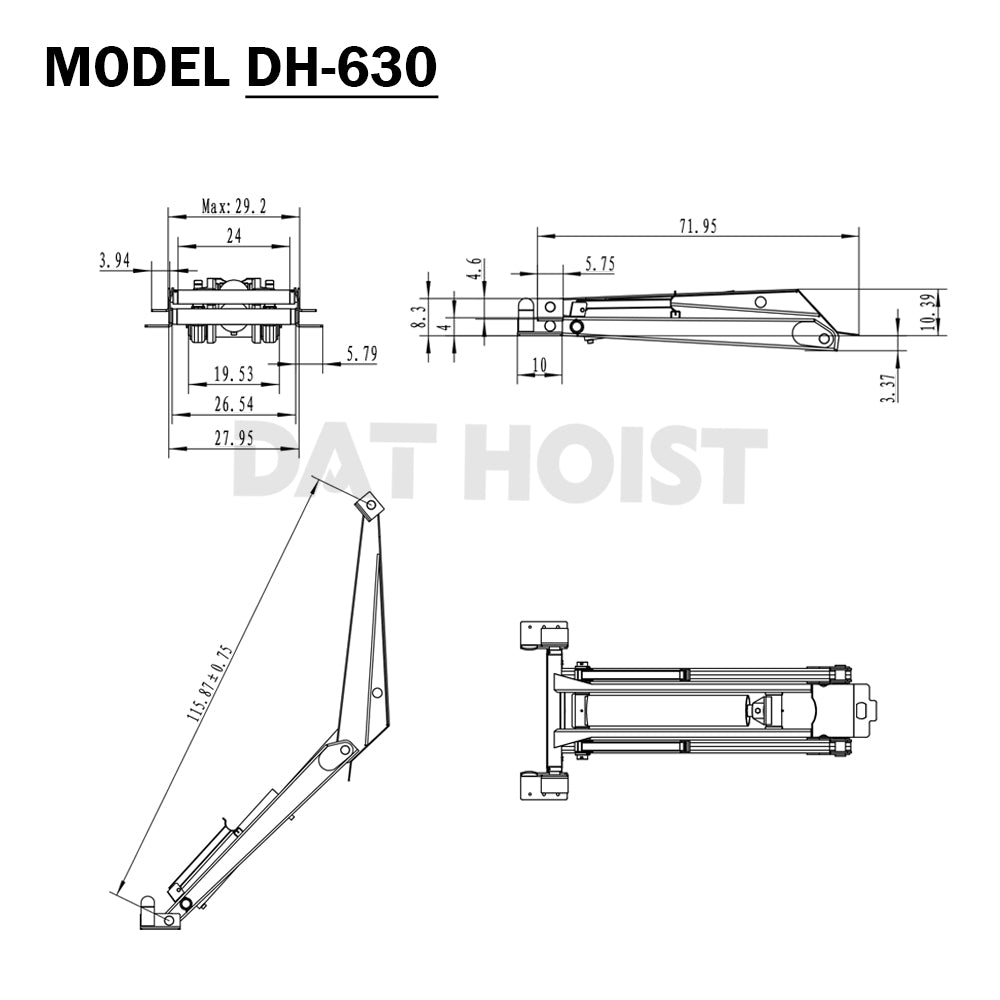

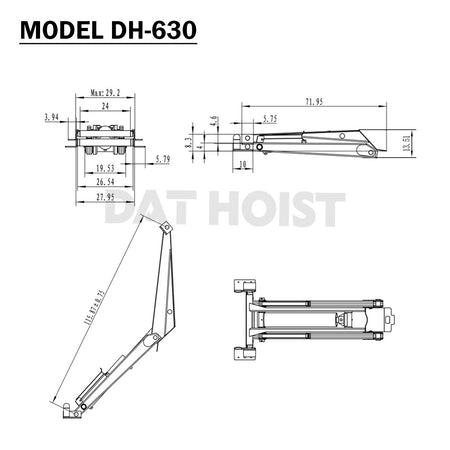

| HF-630 | 630 Hoist Frame | 1 |

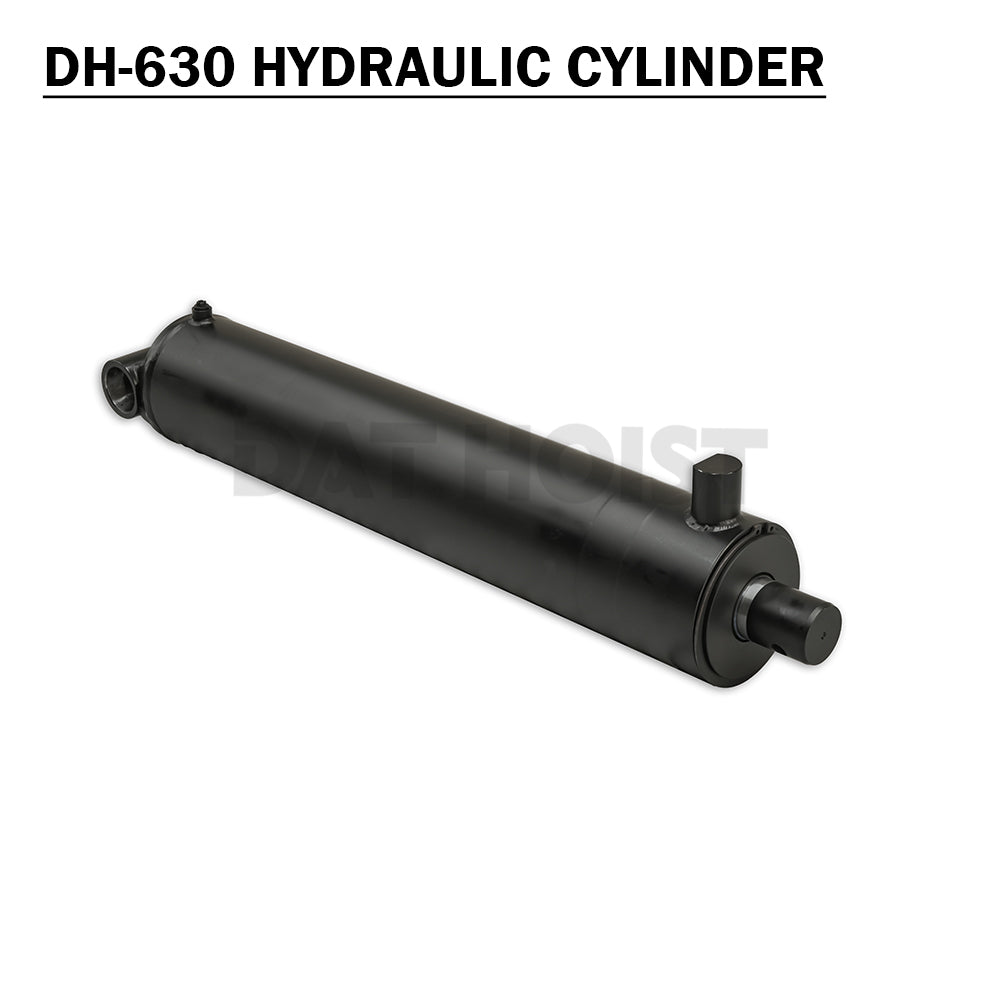

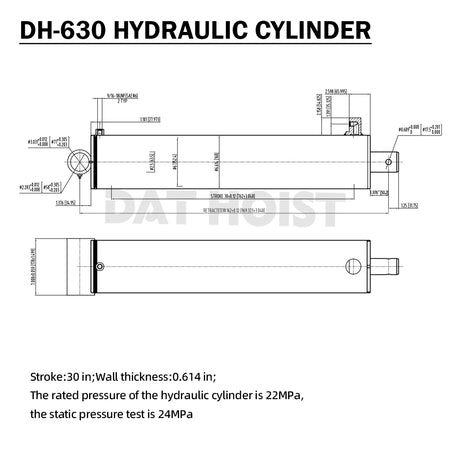

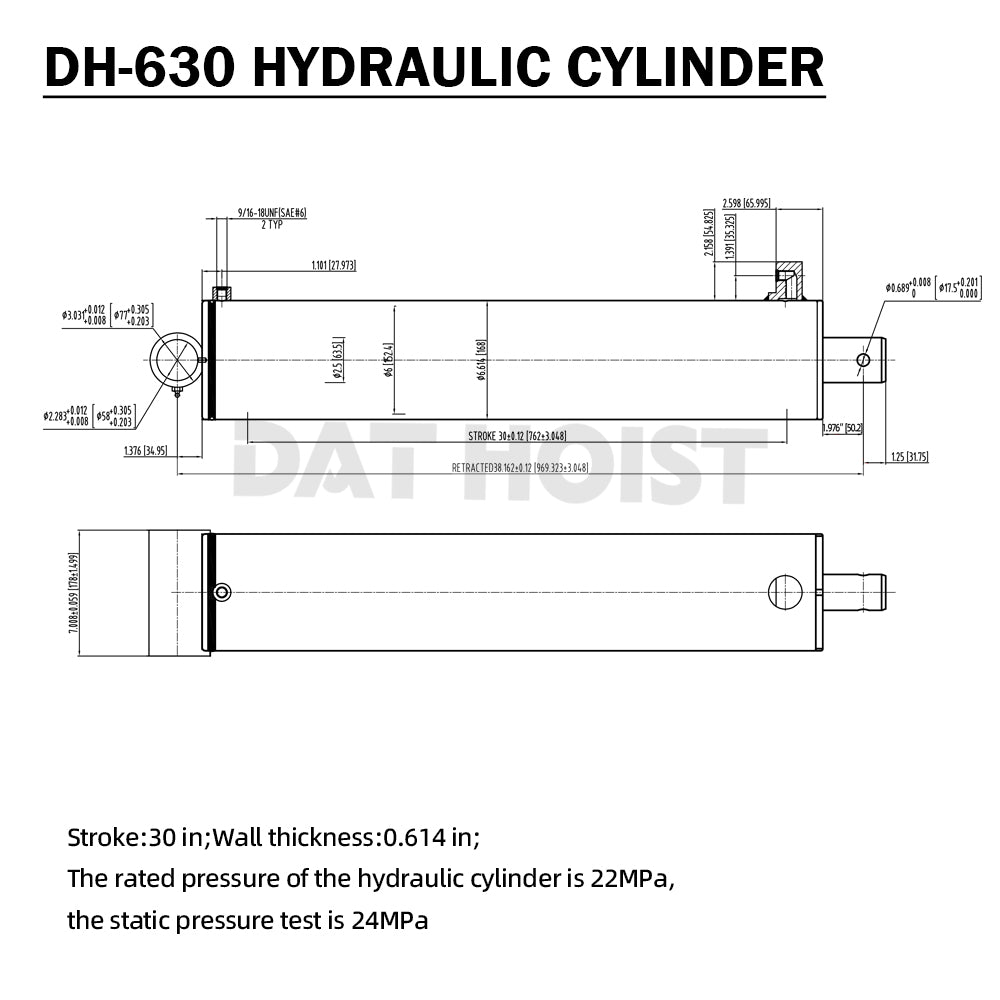

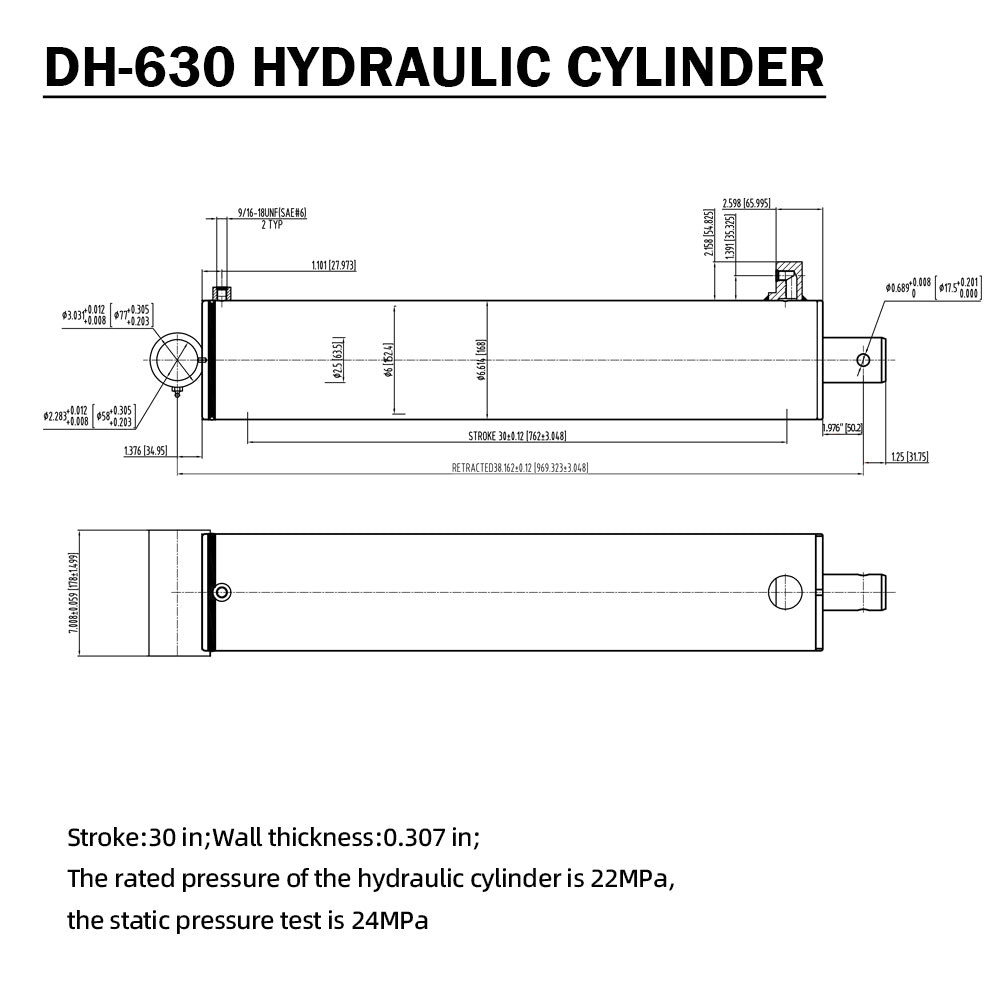

| CY-630 | 630 Hydraulic Cylinder | 1 |
| DH-G6-ACC-002-a | Six Series Ring Collar – Passenger Side | 2 |
| DH-G6-ACC-002-b | Six Series Ring Collar – Lower | 2 |

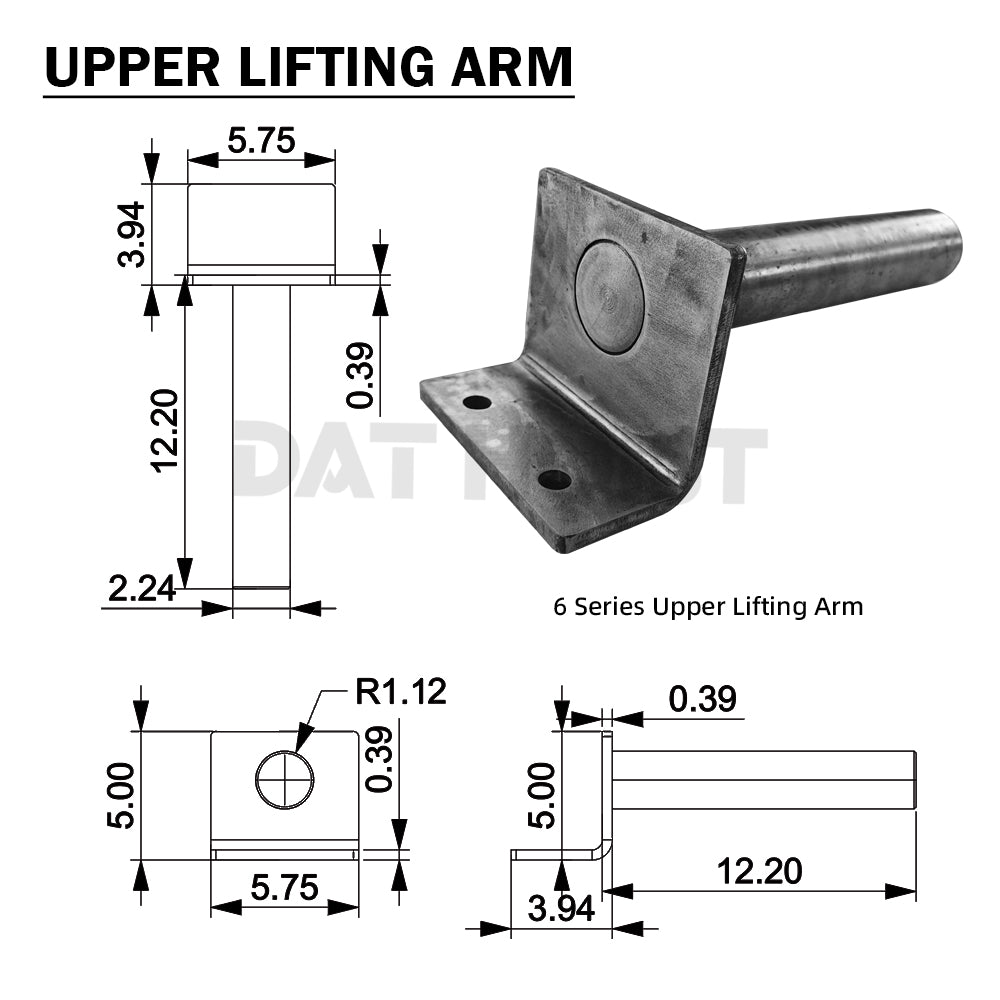

| DH-G6-ACC-003 | Six Series Upper Lifting Arm | 2 |

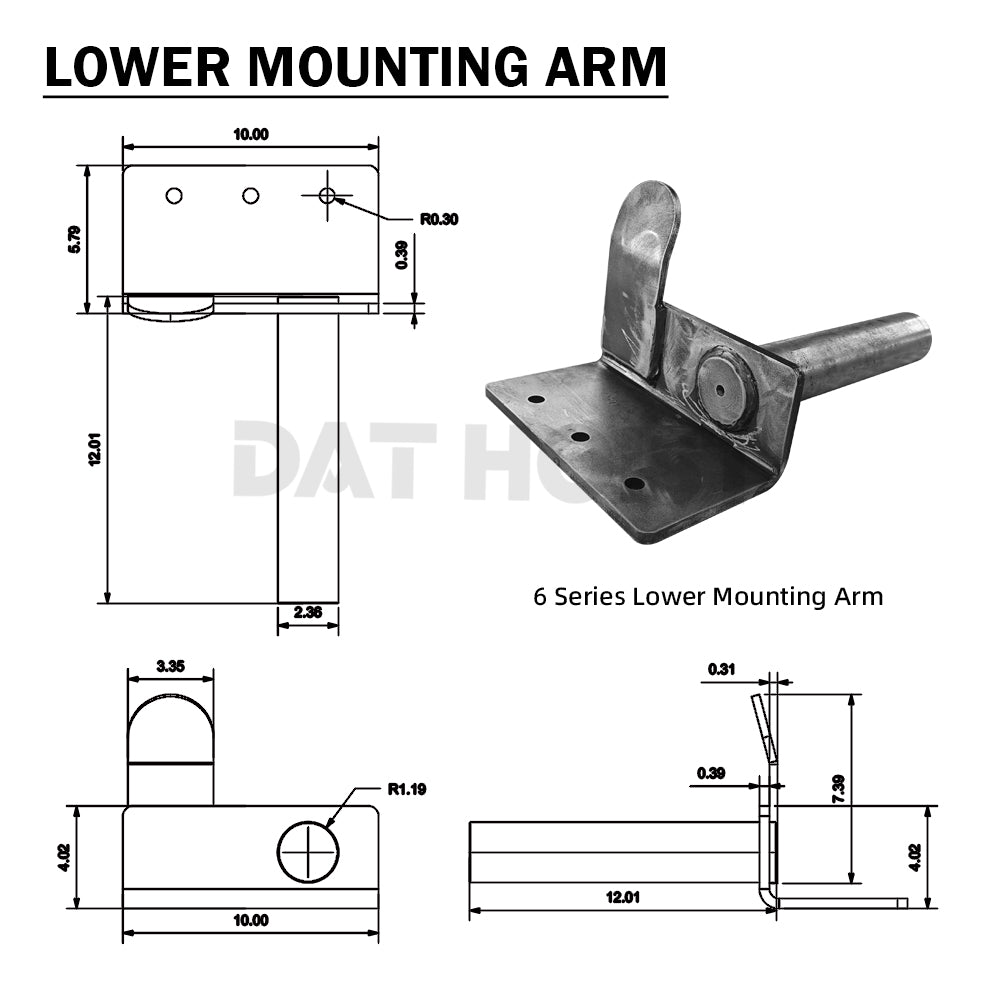

| DH-G6-ACC-004-a | Six Series Lower Mounting Arm – LH | 1 |
| DH-G6-ACC-004-b | Six Series Lower Mounting Arm – RH | 1 |
| DH-G6-ACC-004 | Six Series Shaft | 2 |

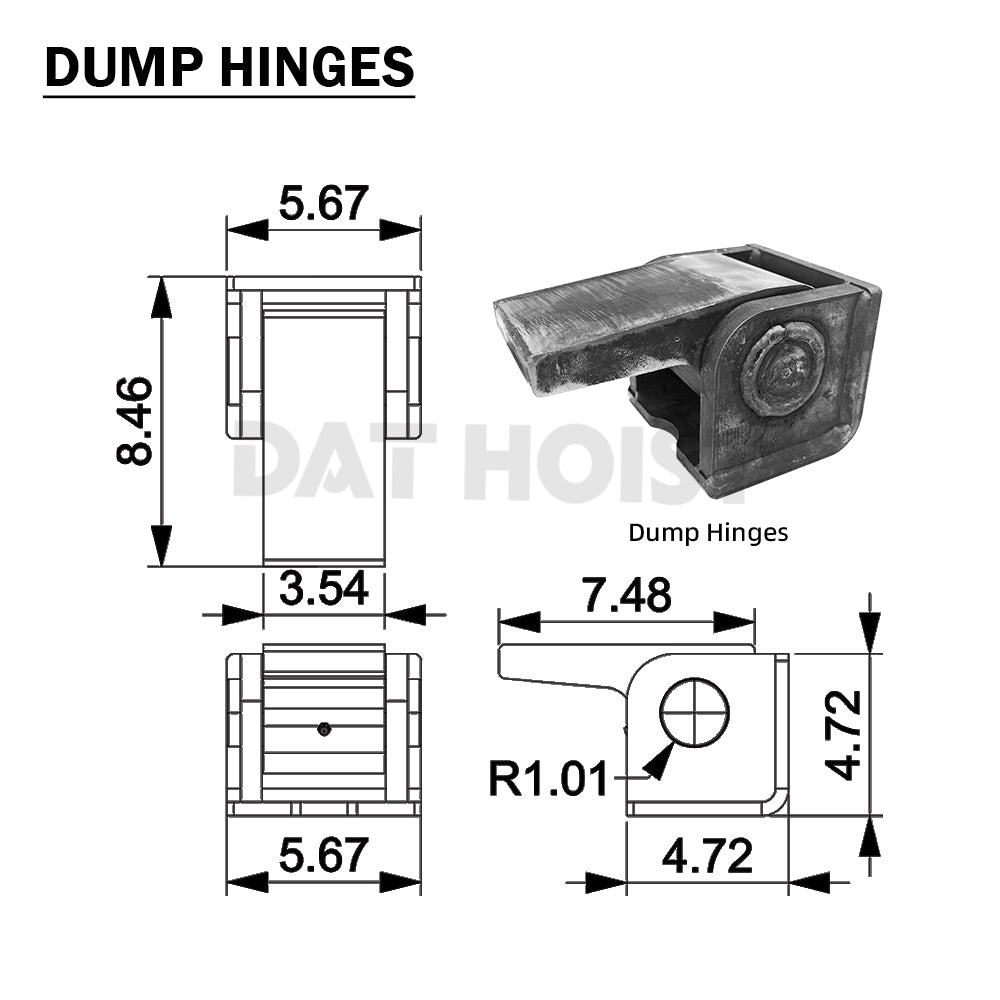

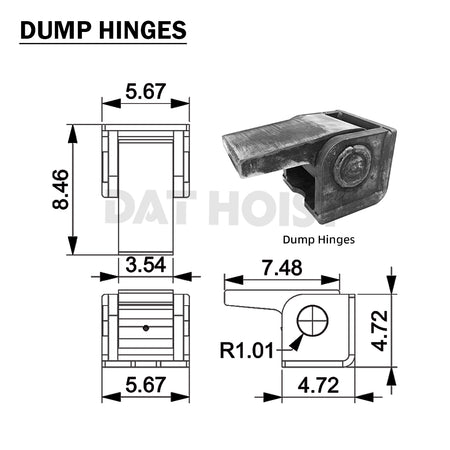

| H-600 | Six Series Dump Hinges | 2 |

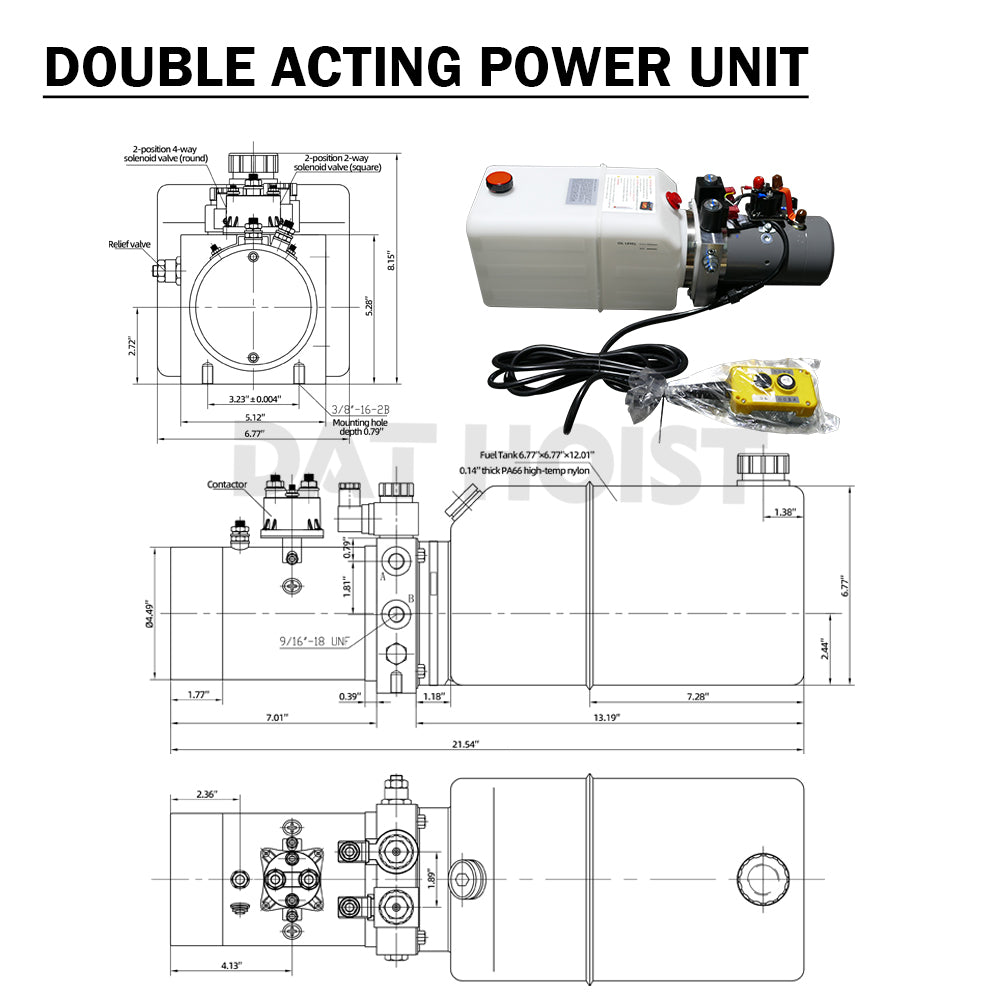

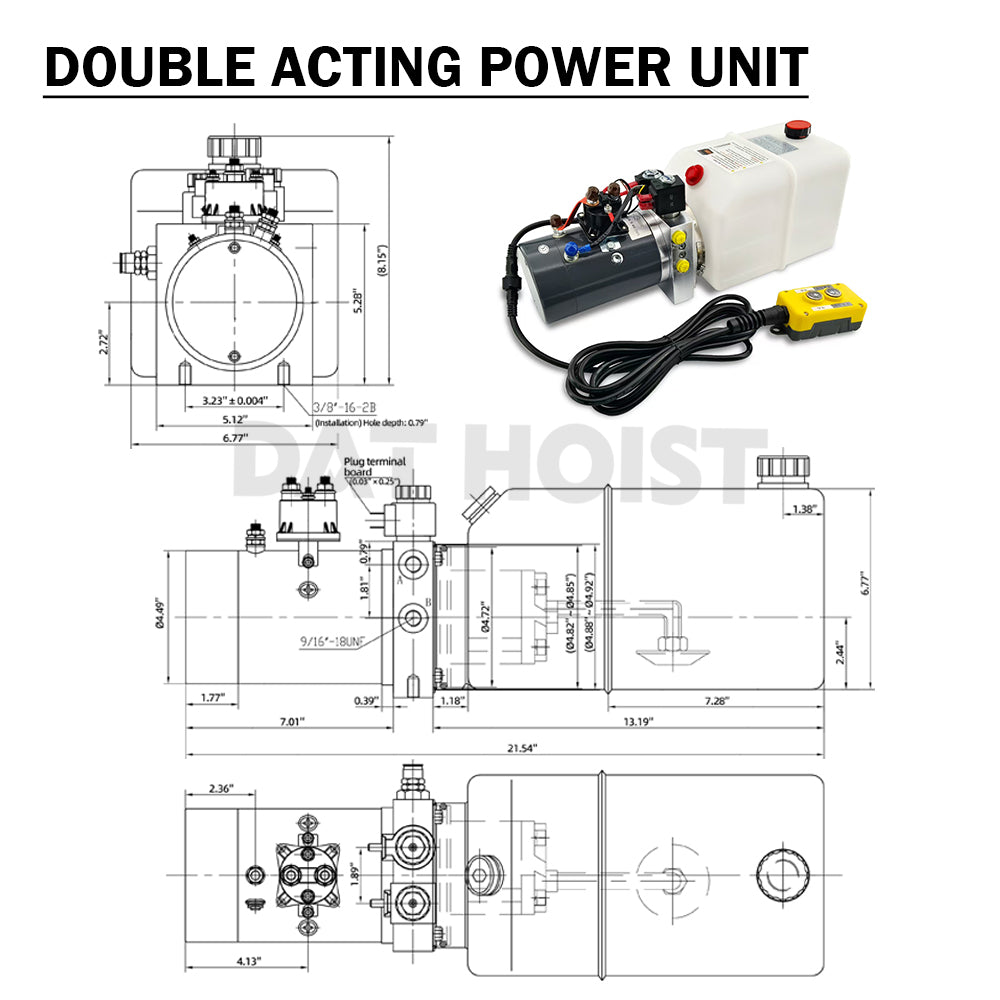

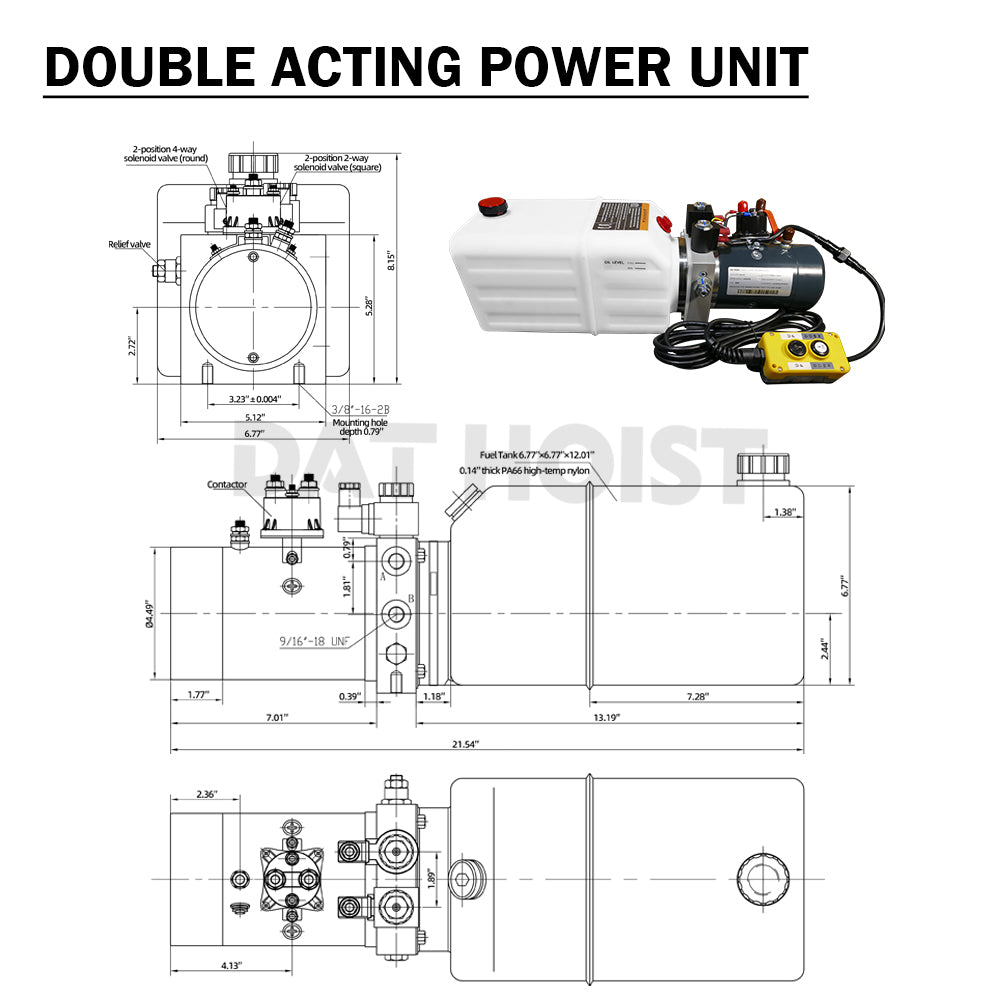

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |

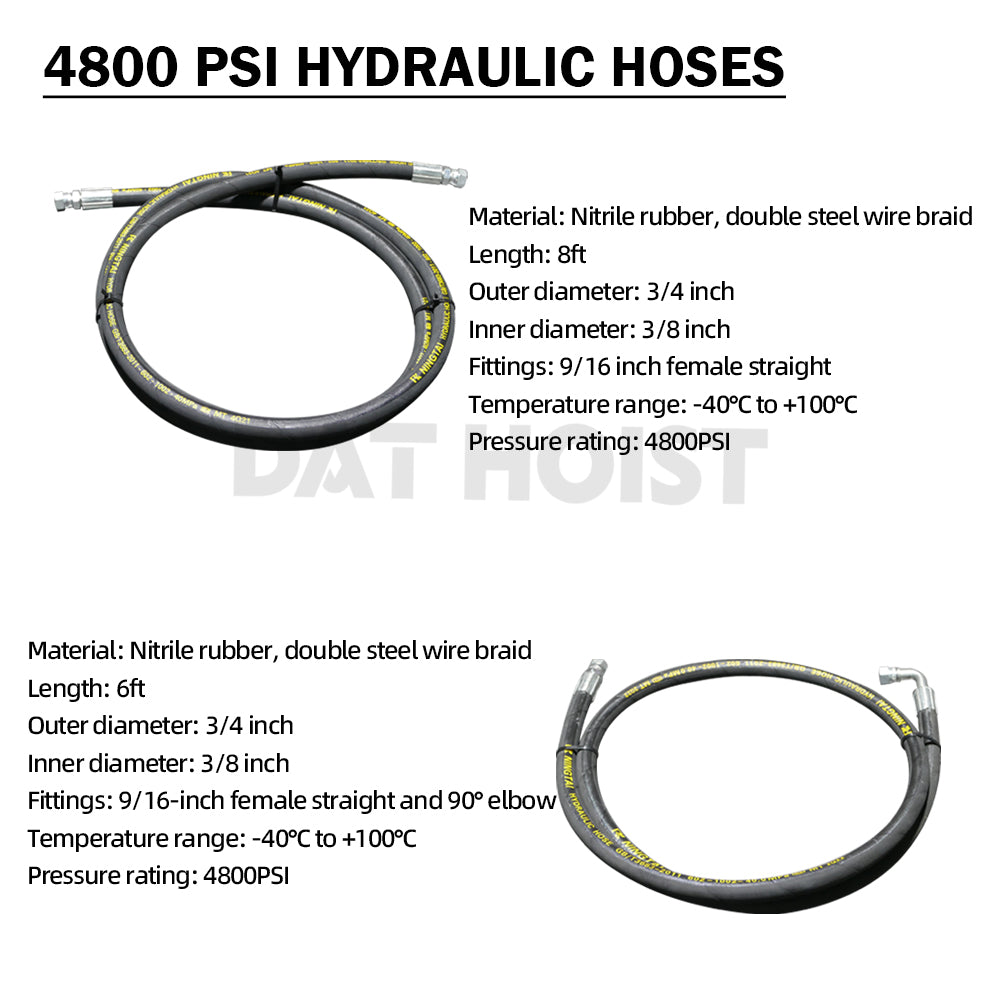

| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |

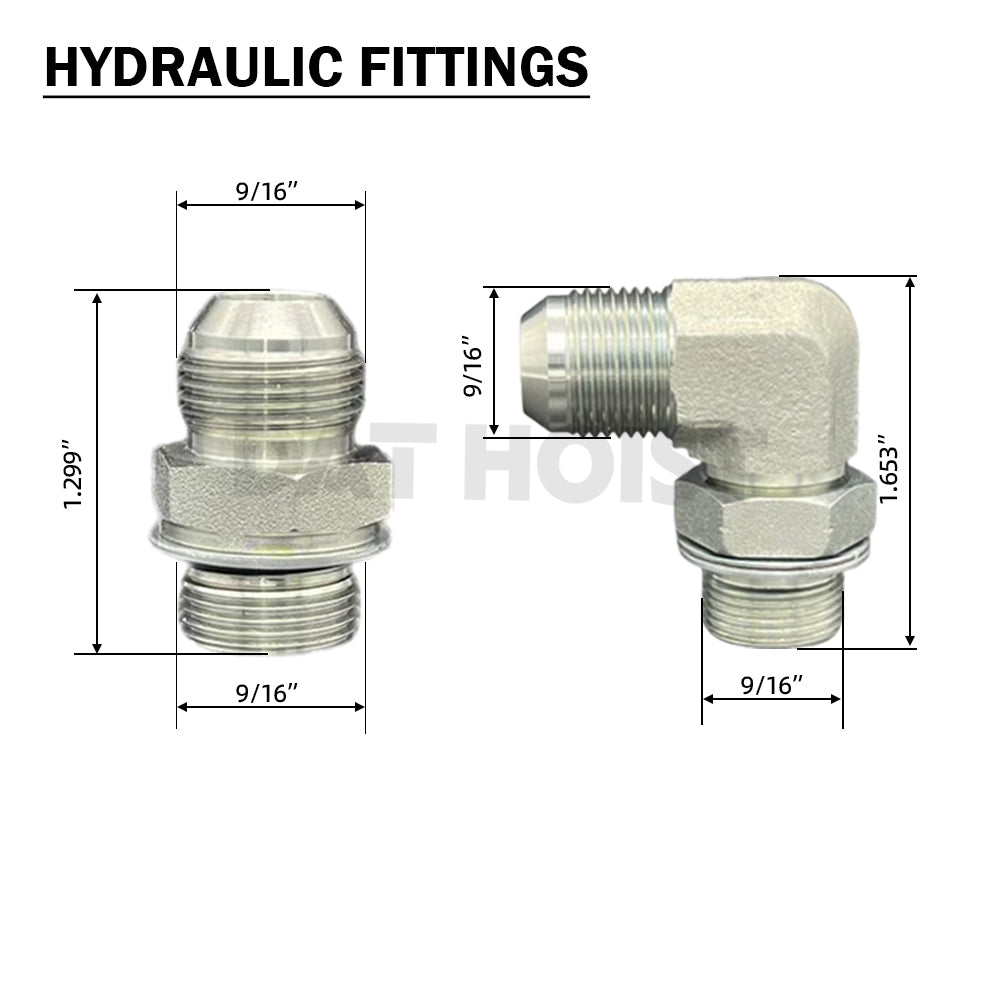

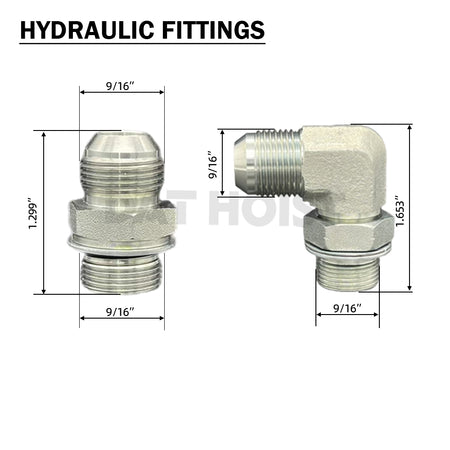

| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |

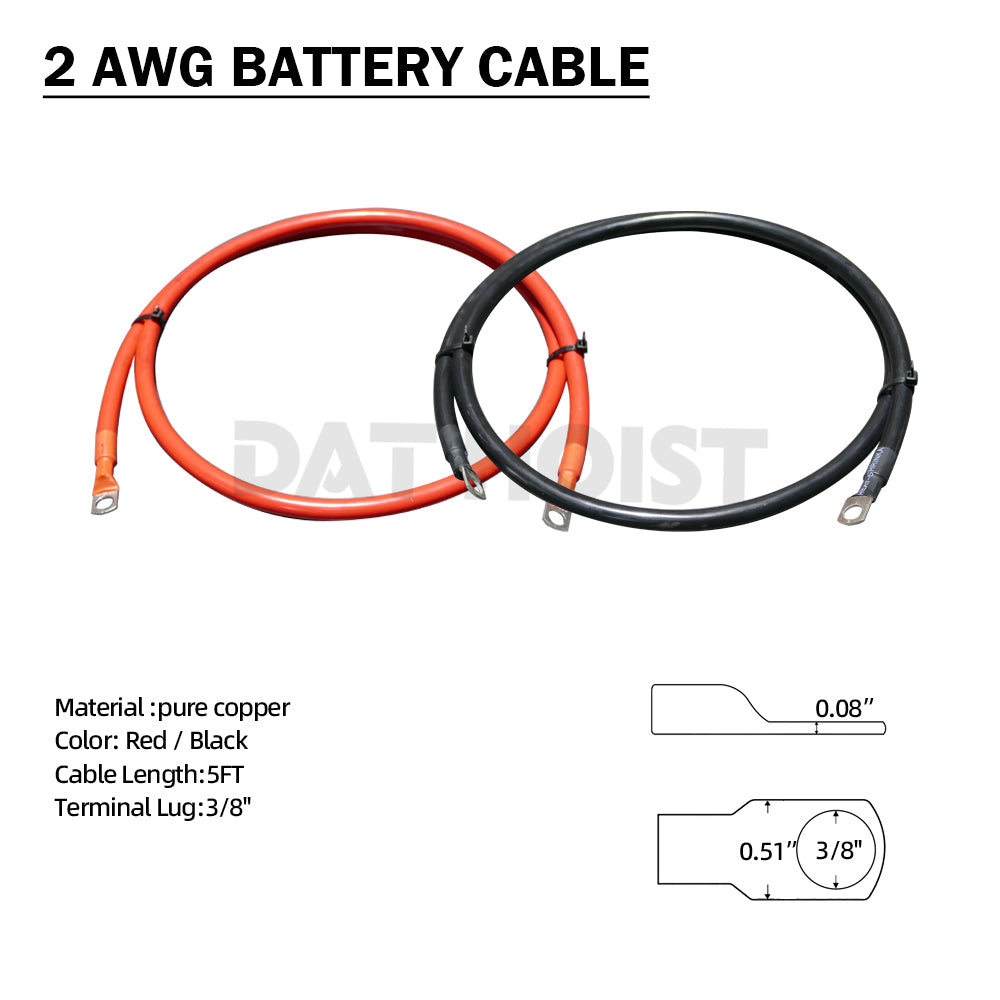

| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-630 hydraulic scissor hoist kit is designed for installation on 18–24 ft dump beds and is compatible with standard 12V DC hydraulic systems commonly used on dump trailers and heavy-duty truck bodies. Due to the high lifting capacity and long-bed applications, professional installation is strongly recommended to ensure safe operation and optimal performance.
FAQ
Q: What size dump bed is the DH-630 designed for?
A: The DH-630 is designed for 18–24 ft dump beds.
Q: What lifting capacity does this hoist kit provide?
A: This kit offers a 14 ton lifting capacity, making it suitable for heavy-duty and extreme-load applications.
Q: Is a hydraulic power unit included with the kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for large dump trailers?
A: Yes. The DH-630 is ideal for large dump trailers, contractor dump bodies, and commercial dump trucks requiring maximum lifting power.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-630 is built for operators who demand maximum lifting capacity for extra-long dump beds, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
