14 Ton Hydraulic Scissor Hoist for 18–24' Dump Body | DH-630
Product Overview
The DH-630 Scissor Hoist is a 14 ton hydraulic scissor hoist assembly engineered for 18–24 ft dump beds, delivering exceptional lifting strength, smooth operation, and long-term durability for heavy-duty commercial applications. Designed by DAT HOIST, this hoist is ideal for large dump trailers and truck bodies that require high lifting capacity without a bundled hydraulic power unit.
Constructed from heavy-duty structural steel and reinforced at critical stress points, the DH-630 is designed for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and hydraulic cylinder only and is backed by a standard 36-month warranty.
Key Features
-
14 Ton Lifting Capacity – Handles very heavy commercial loads with confidence
-
Fits 18–24 ft Dump Beds – Designed for long dump trailers and large truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand extreme jobsite demands
-
Reinforced Stress Points – Strengthened at critical load areas to minimize flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied hydraulic systems
Recommended Applications
This hydraulic scissor hoist is commonly used for:
-
Large dump trailers
-
Heavy-duty contractor and commercial dump bodies
-
Municipal and construction dump applications
-
Equipment rebuilds and high-capacity upgrades
-
Custom hydraulic system installations
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 14 Ton |
| Dump Bed Length | 18–24 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

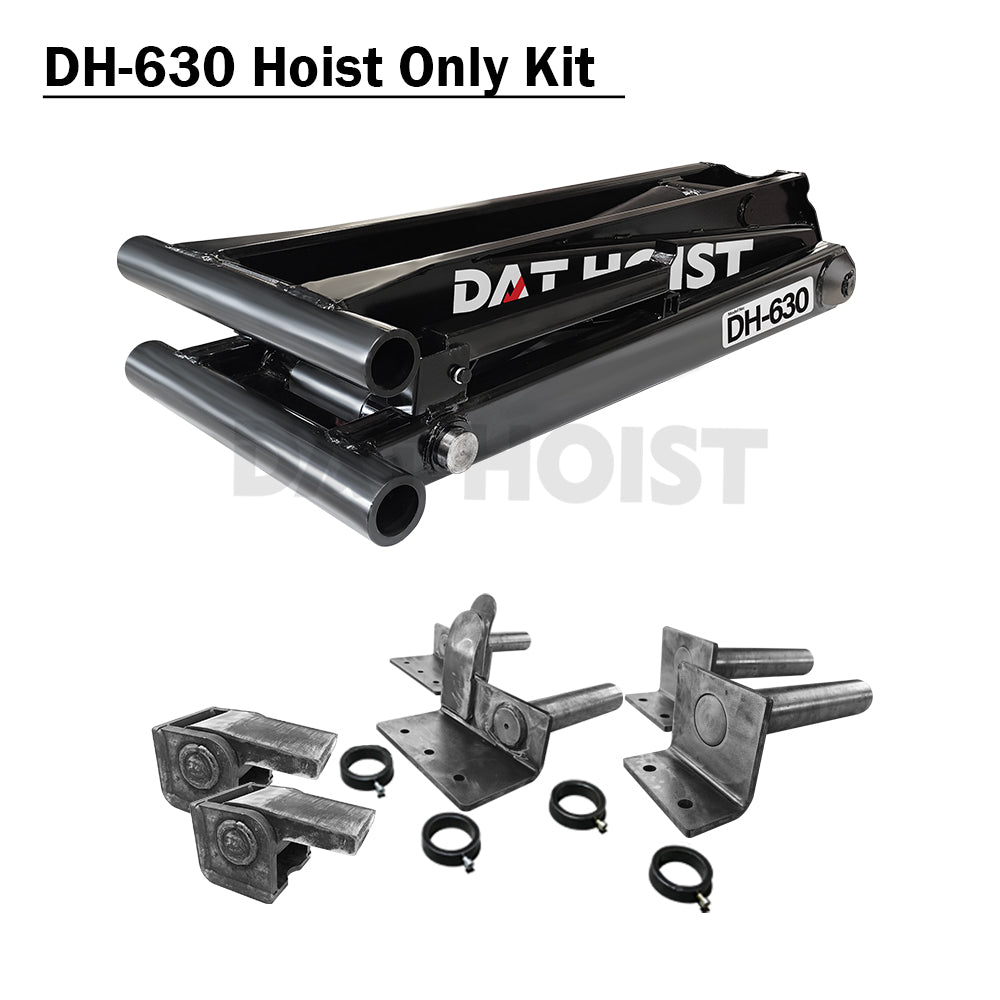

What’s Included in the DH-630 Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-630 | 630 Hoist Frame | 1 |
| CY-630 | 630 Hydraulic Cylinder | 1 |
| DH-G6-ACC-002-a | Six Series Ring Collar – Passenger Side | 2 |
| DH-G6-ACC-002-b | Six Series Ring Collar – Lower | 2 |
| DH-G6-ACC-003 | Six Series Upper Lifting Arm | 2 |
| DH-G6-ACC-004-a | Six Series Lower Mounting Arm – LH | 1 |
| DH-G6-ACC-004-b | Six Series Lower Mounting Arm – RH | 1 |
| DH-G6-ACC-004 | Six Series Shaft | 2 |
| H-600 | Six Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-630 hydraulic scissor hoist is designed for installation on 18–24 ft dump beds and must be paired with a compatible external hydraulic power unit. It can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets required flow and pressure specifications. Professional installation is strongly recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-630 include a hydraulic power unit?
A: No. The DH-630 Scissor Hoist includes the hoist assembly and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between DH-625 and DH-630?
A: The DH-630 offers higher lifting capacity (14 ton) and supports longer dump beds (up to 24 ft), making it suitable for heavier and larger applications.
Q: Is this hoist suitable for dump trailers?
A: Yes. It is ideal for large dump trailers and truck bodies requiring high lifting capacity.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-630 Scissor Hoist is built for operators who need maximum lifting strength on long dump beds without a bundled power unit, backed by proven engineering and a 36-month warranty.
