14 Ton Hydraulic Scissor Hoist Kit (Dual Cylinder) for 10–14' Dump Body | DH-5516
Product Overview
The DH-5516 is a 14-ton hydraulic scissor hoist engineered specifically for 10–14 ft dump beds, delivering exceptional lifting power in a compact, heavy-duty configuration. Designed by DAT HOIST for applications requiring maximum lifting capacity on shorter dump beds, the DH-5516 provides smooth, controlled operation even under extreme loads. Built for long-term durability and daily commercial use, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty,
Key Features
-
14 Ton Lifting Capacity – High-capacity lifting for demanding commercial and industrial applications
-
Designed for 10–14 ft Dump Beds – Ideal for short-bed dump trailers and truck bodies requiring maximum power
-
Heavy-Duty Structural Steel Construction – Built to withstand extreme loads and daily operation
-
Reinforced Stress Points – Engineered to minimize flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Dual-Cylinder Configuration – Provides balanced lifting force and increased stability
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This hydraulic scissor hoist is commonly used for:
-
Short-bed dump trailers requiring high lifting capacity
-
Contractor and commercial dump bodies
-
Utility and specialty dump trucks
-
Applications with high payloads and limited bed length
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 14 Ton |
| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Cylinder Configuration | Dual Cylinder |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

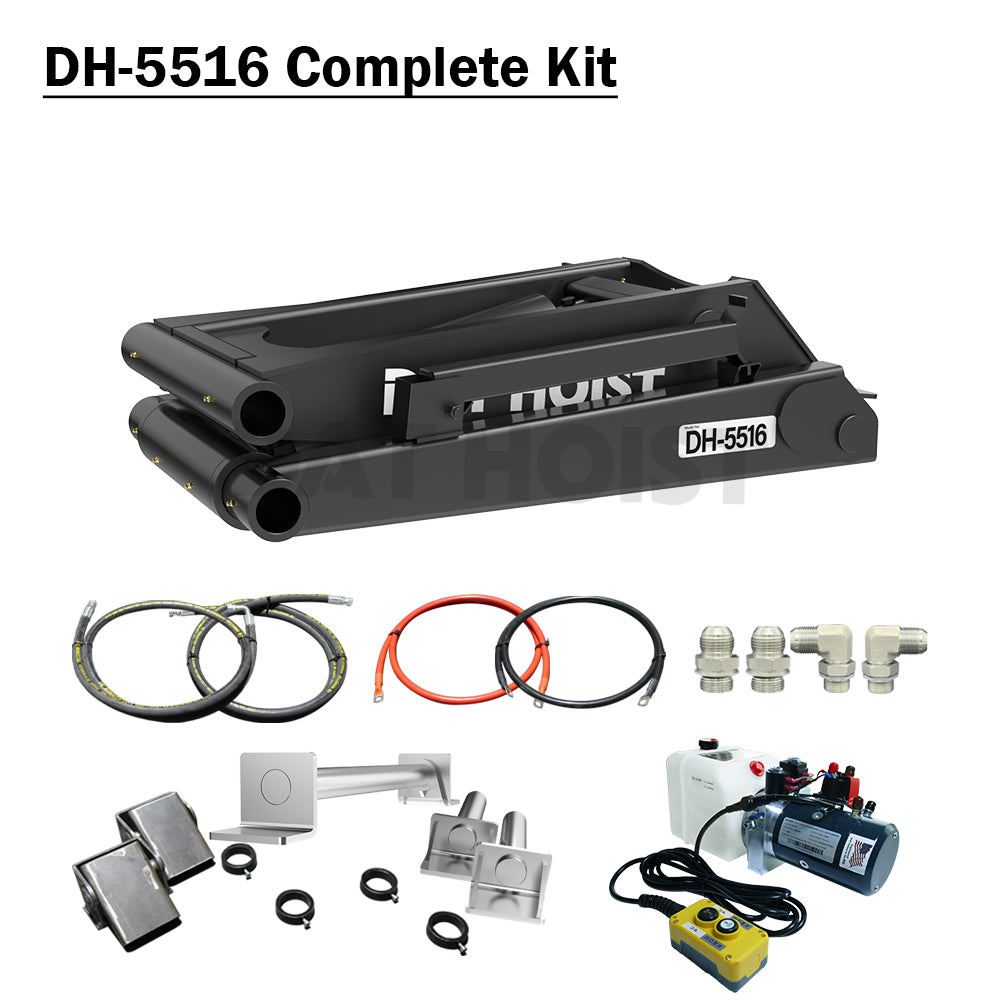

What’s Included in the DH-5516 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-5516 | 5516 Hoist Frame | 1 |
| CY-516 | 516 Hydraulic Cylinder | 2 |
| DH-G3-ACC-001 | 5516/5520 Ring Collar | 4 |
| DH-G3-ACC-002 | 5516/5520 Upper Lifting Arm | 1 |
| DH-G3-ACC-003 | 5516/5520 Lower Mounting Arm | 2 |
| H-600 | Six Series Dump Hinges | 2 |
| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |
| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |
| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |
| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-5516 hydraulic scissor hoist is designed for installation on 10–14 ft dump beds and is compatible with standard 12V DC hydraulic systems used on dump trailers and truck bodies. Due to the high lifting capacity and dual-cylinder design, professional installation is strongly recommended to ensure proper fitment, safe operation, and optimal performance.
FAQ
Q: What makes the DH-5516 different from other 14 ton hoists?
A: The DH-5516 is specifically engineered for shorter 10–14 ft dump beds, providing maximum lifting capacity where bed length is limited.
Q: Why does this hoist use two cylinders?
A: The dual-cylinder configuration provides balanced lifting force, improved stability, and better load control under heavy payloads.
Q: Is a hydraulic power unit included?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist suitable for dump trailers?
A: Yes. It is ideal for dump trailers and truck bodies requiring high lifting power in a compact configuration.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-5516 is built for operators who need maximum lifting power on short dump beds, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
