16 Ton Dual Cylinder Hydraulic Scissor Hoist for 12–16' Dump Body | DH-5520
Product Overview
The DH-5520 Scissor Hoist is a 16 ton dual-cylinder hydraulic scissor hoist assembly designed for 12–16 ft dump beds, delivering exceptional lifting power, improved load balance, and smooth, controlled operation for demanding commercial applications. Designed by DAT HOIST, the dual-cylinder configuration distributes lifting force evenly, reducing torsional stress on the dump body and enhancing overall stability.
Manufactured from heavy-duty structural steel and reinforced at critical load-bearing points, the DH-5520 is ideal for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and two hydraulic cylinders only and is backed by a standard 24-month warranty.
Key Features
-
16 Ton Lifting Capacity – Handles very heavy commercial loads with confidence
-
Dual Hydraulic Cylinder Design – Provides balanced lifting force and improved stability
-
Fits 12–16 ft Dump Beds – Designed for heavy-duty dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand extreme jobsite demands
-
Reinforced Stress Points – Strengthened at critical load areas to minimize flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied hydraulic systems
Recommended Applications
This dual-cylinder hydraulic scissor hoist is commonly used for:
-
Heavy-duty dump trailers
-
Contractor and commercial dump bodies
-
Applications requiring maximum lifting capacity on shorter dump beds
-
Equipment rebuilds and high-capacity upgrades
-
Custom hydraulic system installations

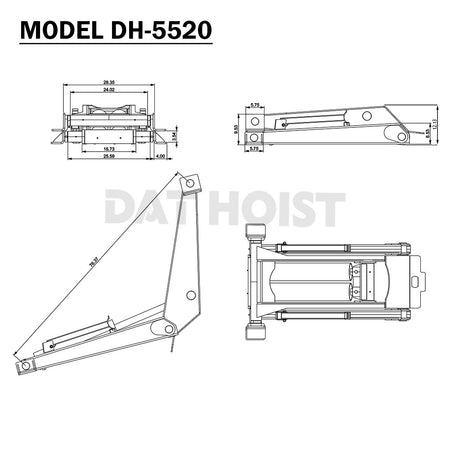

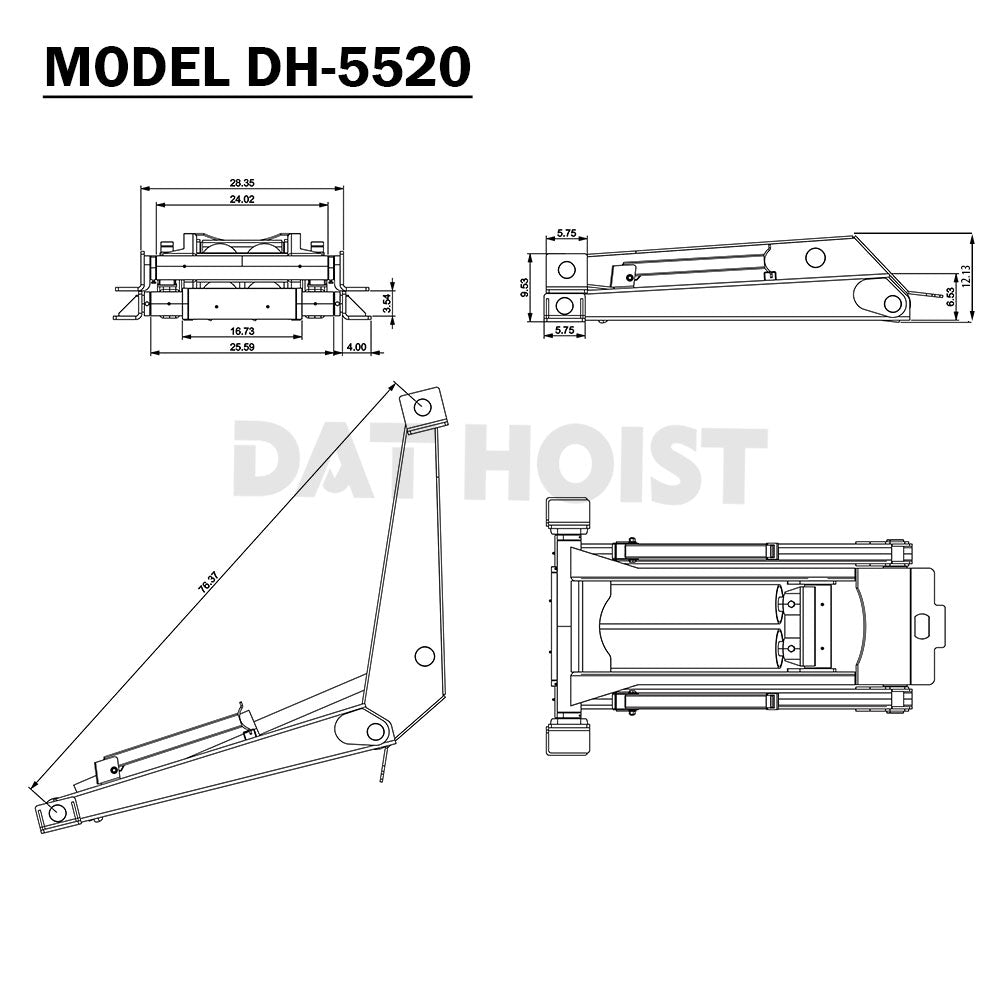

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 16 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Cylinder Configuration | Dual Cylinder |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

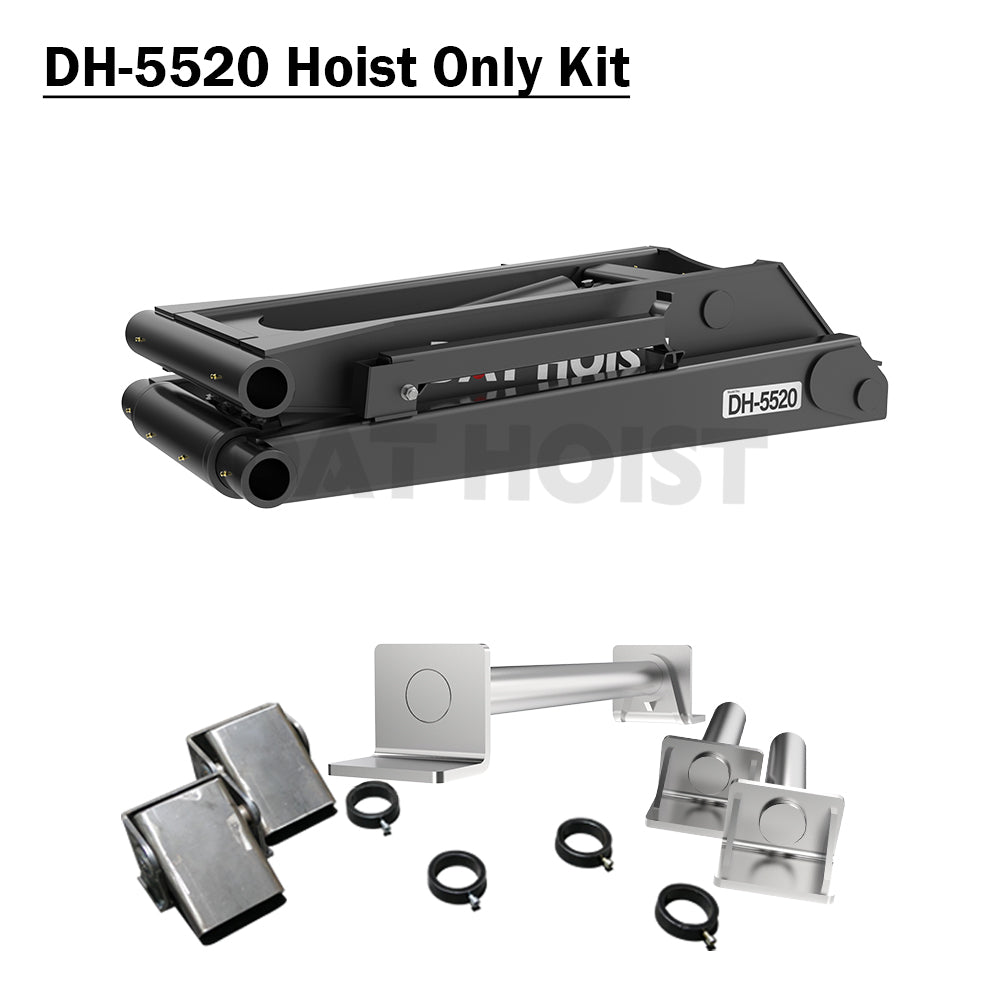

What’s Included in the DH-5520 Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-5520 | 5520 Hoist Frame | 1 |
| CY-520 | 520 Hydraulic Cylinder | 2 |
| DH-G3-ACC-001 | 5516/5520 Ring Collar | 4 |
| DH-G3-ACC-002 | 5516/5520 Upper Lifting Arm | 1 |
| DH-G3-ACC-003 | 5516/5520 Lower Mounting Arm | 2 |
| H-600 | Six Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-5520 hydraulic scissor hoist is designed for installation on 12–16 ft dump beds and must be paired with a compatible external hydraulic power unit. The dual-cylinder design improves lifting balance and reduces frame twist under heavy loads. Professional installation is strongly recommended to ensure proper alignment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-5520 include a hydraulic power unit?
A: No. The DH-5520 Scissor Hoist includes the hoist assembly and two hydraulic cylinders only. A hydraulic power unit is not included.
Q: What is the difference between DH-5516 and DH-5520?
A: Both feature dual cylinders, but the DH-5520 offers higher lifting capacity (16 ton) and is designed for heavier loads within a similar dump bed length range.
Q: Is this hoist suitable for dump trailers?
A: Yes. It is ideal for dump trailers and dump bodies requiring maximum lifting capacity and stability.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-5520 Scissor Hoist is built for operators who need maximum lifting strength and stability on 12–16 ft dump beds without a bundled power unit, backed by proven engineering and a 24-month warranty.
