16 Ton Hydraulic Scissor Hoist Kit (Dual Cylinder) for 12–16' Dump Body | DH-5520
Product Overview
The DH-5520 is a 16-ton hydraulic scissor hoist engineered for 12–16 ft dump beds, delivering exceptional lifting power, stability, and durability for demanding commercial applications. Designed by DAT HOIST for operators who require higher lifting capacity without moving to extra-long beds, the DH-5520 provides smooth, controlled operation even under extreme loads. Built for long-term reliability and daily use, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
16 Ton Lifting Capacity – High-capacity lifting for heavy commercial and industrial applications
-
Designed for 12–16 ft Dump Beds – Ideal for medium-length dump trailers and truck bodies
-
Dual-Cylinder Configuration – Provides balanced lifting force, improved stability, and load control
-
Heavy-Duty Structural Steel Construction – Built to withstand extreme loads and continuous operation
-
Reinforced Stress Points – Engineered to minimize flexing and extend service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This hydraulic scissor hoist is commonly used for:
-
Dump trailers with heavy payload requirements
-
Contractor and commercial dump bodies
-
Utility and construction dump trucks
-
Applications requiring high lifting capacity with mid-length dump beds

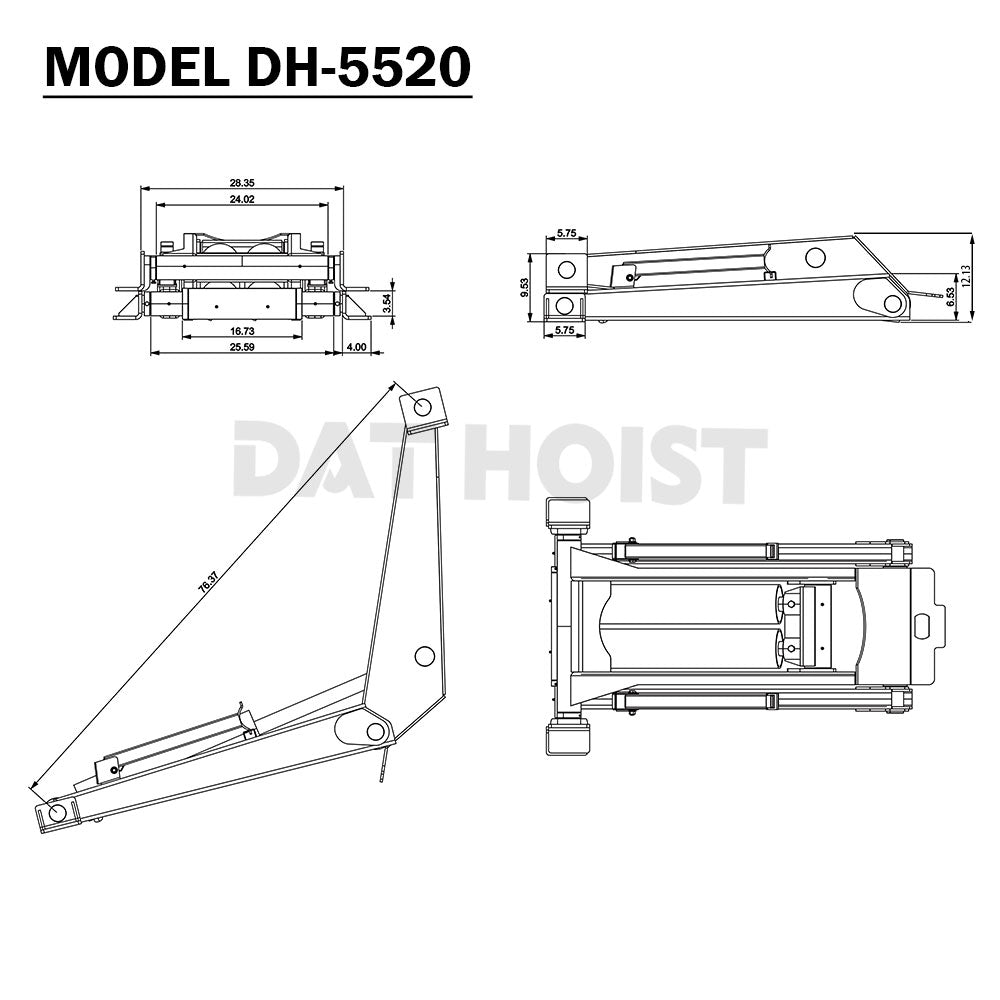

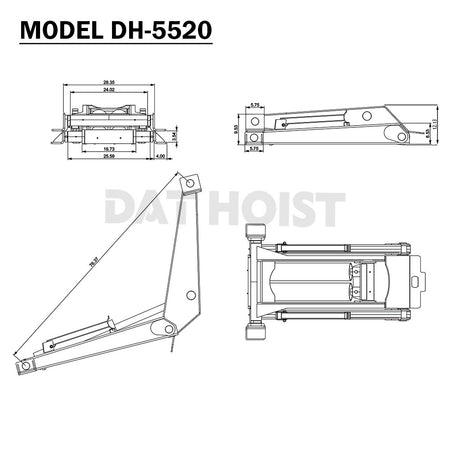

Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 16 Ton |
| Dump Bed Length | 12–16 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Cylinder Configuration | Dual Cylinder |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

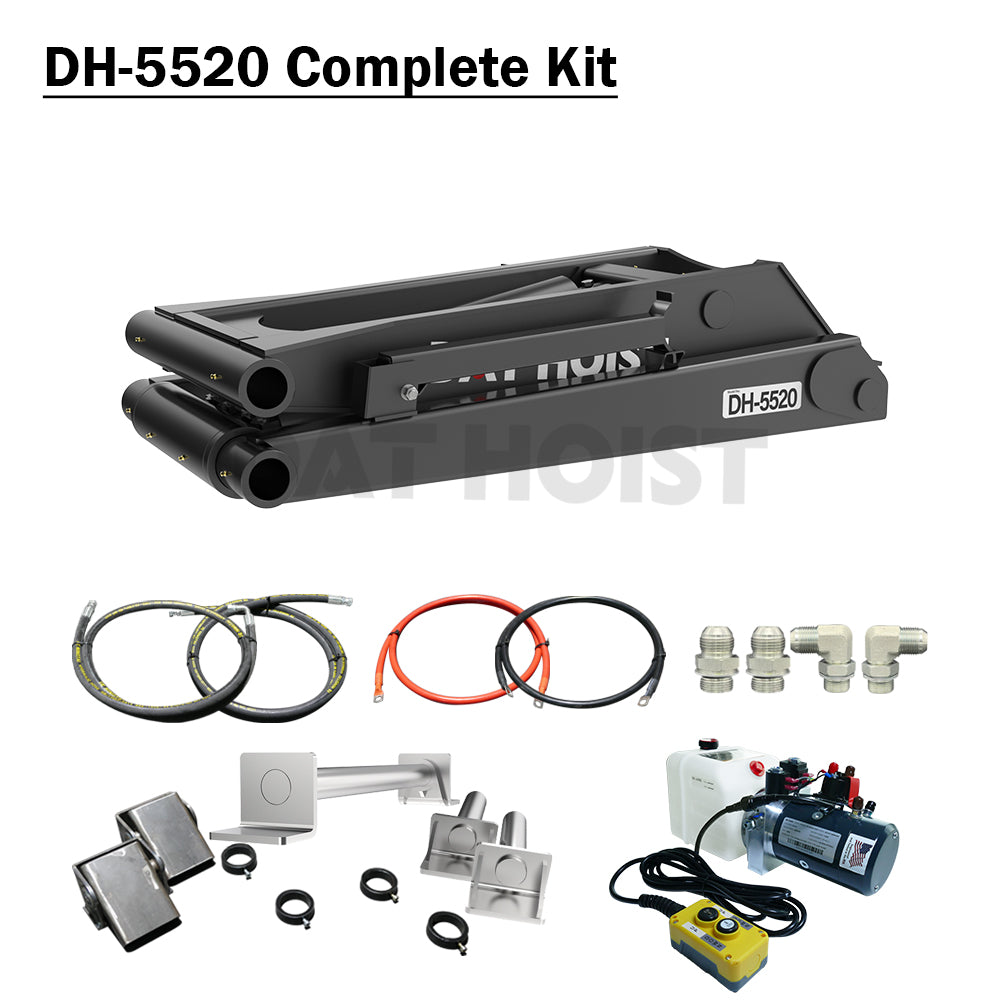

What’s Included in the DH-5520 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-5520 | 5520 Hoist Frame | 1 |
| CY-520 | 520 Hydraulic Cylinder | 2 |
| DH-G3-ACC-001 | 5516/5520 Ring Collar | 4 |
| DH-G3-ACC-002 | 5516/5520 Upper Lifting Arm | 1 |
| DH-G3-ACC-003 | 5516/5520 Lower Mounting Arm | 2 |
| H-600 | Six Series Dump Hinges | 2 |

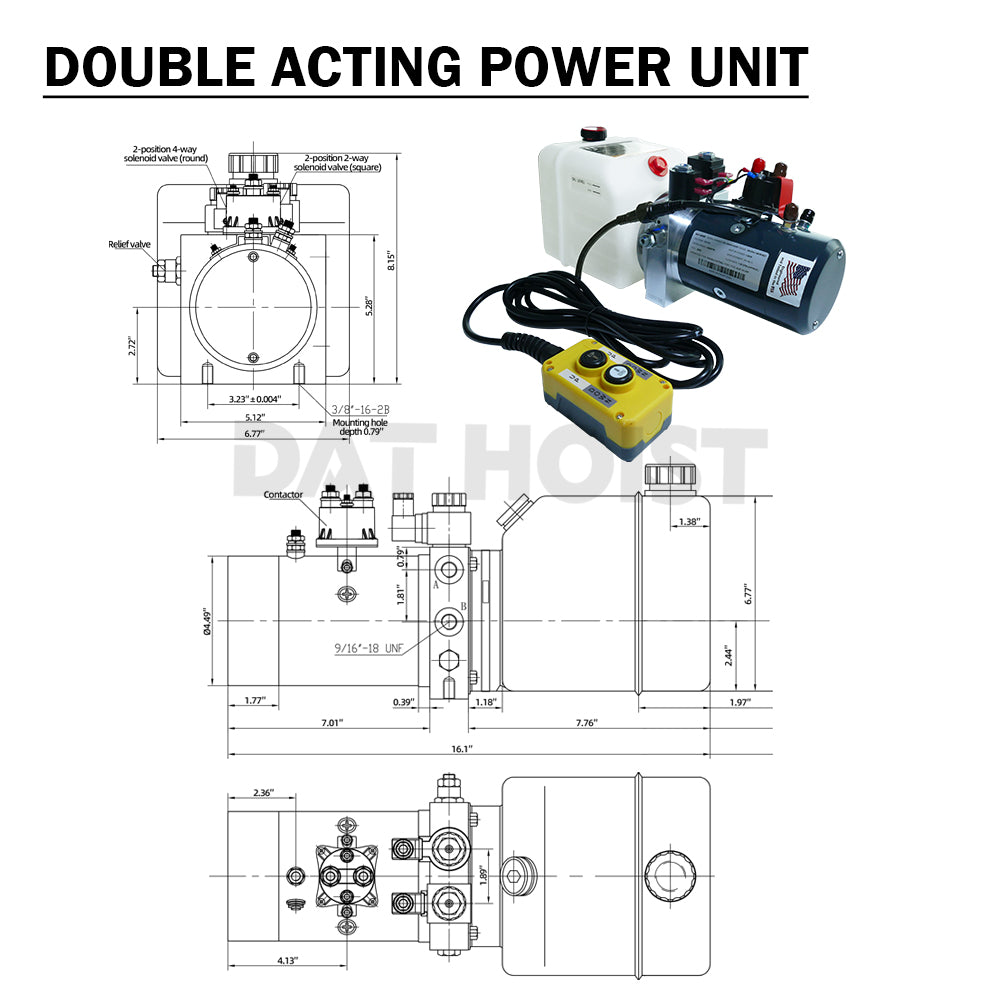

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |
| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |
| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |
| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-5520 hydraulic scissor hoist is designed for installation on 12–16 ft dump beds and is compatible with standard 12V DC hydraulic systems used on dump trailers and truck bodies. Due to the high lifting capacity and dual-cylinder configuration, professional installation is strongly recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: What makes the DH-5520 different from the DH-5516?
A: The DH-5520 provides higher lifting capacity (16 ton) and is designed for slightly longer dump beds (12–16 ft), while the DH-5516 focuses on maximum power for shorter beds (10–14 ft).
Q: Why does this hoist use two cylinders?
A: The dual-cylinder design ensures balanced lifting force, improved stability, and smoother operation under heavy loads.
Q: Is a hydraulic power unit included?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist suitable for dump trailers?
A: Yes. It is ideal for dump trailers and commercial dump bodies requiring higher lifting capacity.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-5520 is built for operators who need serious lifting power in a mid-length dump bed configuration, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
