3 Ton Hydraulic Scissor Hoist Kit for 8–10' Dump Body
Product Overview
The DH-310 is a 3-ton hydraulic scissor hoist kit designed for 8–10 ft dump bodies. It delivers reliable lifting performance for dump trailers, landscape trailers, and small dump trucks. Built for durability and smooth operation, the DH-310 is an ideal solution for light-duty commercial and utility applications. The hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
3 Ton Lifting Capacity – Designed to handle heavy loads with confidence for small dump trailers and dump bodies
-
Fits 8–10 ft Dump Bodies – Compatible with a wide range of dump trailer and truck body setups
-
Heavy-Duty Steel Construction – Built from structural steel for daily commercial use
-
Reinforced Stress Points – Reduces flexing and extends service life
-
Powder-Coated Finish – Corrosion-resistant coating for long-term durability
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This hydraulic scissor hoist kit is commonly used for:
-
Small dump trailers
-
Landscape trailers
-
Utility dump bodies
-
Light-duty dump trucks
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 3 Ton |
| Dump Body Length | 8–10 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Double Acting |
| Recommended Power Unit | 12V Hydraulic Power Unit |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

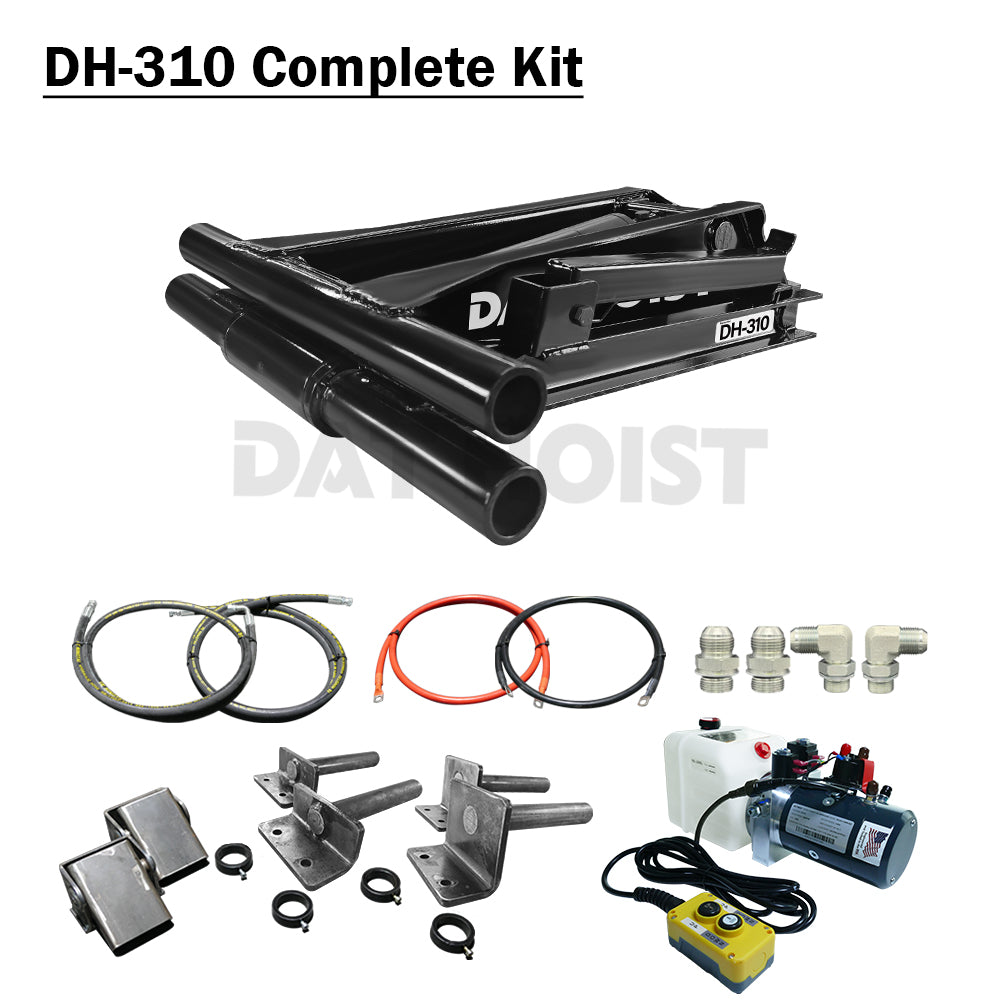

What’s Included in the DH-310 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
| HF-310 | Frame | 1 |
| CY-310 | Cylinder | 1 |
| DH-310-ACC-001 | DH 310 Upper Arm | 2 |
| DH-310-ACC-002 | DH 310 Ring | 4 |
| DH-310-ACC-003 | DH 310 Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
| DH-DA-1.6KW-4QT-15FT | Hydrauic Power Unit Double Acting 1.6KW 4L Reservoir 15ft Control | 1 |
| HH-C-038-S-8FT | Hydraulic Hose, USA TYPE C, 3/8" (US), Straight Ends, 8ft (2.44m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, USA TYPE C, 3/8" (US), One Straight & One 90° Elbow, 6ft (1.83m) | 1 |
| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |
| BC-001 | 2AWG 1.5m battery cable R & B | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-310 hydraulic scissor hoist kit is designed for straightforward installation on most 8–10 ft dump bodies. It is compatible with standard 12V DC hydraulic power units and common trailer hydraulic systems. Professional installation is recommended to ensure optimal performance and safety.
FAQ
Q: What size dump body is this hoist kit designed for?
A: The DH-310 is designed for dump bodies measuring 8–10 ft in length.
Q: What power unit is included with this kit?
A: The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for dump trailers?
A: Yes, it is ideal for small dump trailers, landscape trailers, and utility dump bodies.
Q: Can this hoist be used for commercial applications?
A: Yes. The heavy-duty steel construction and reinforced design make it suitable for light-duty commercial use.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for reliability, durability, and ease of installation. Every kit is designed to deliver dependable lifting performance backed by industry experience, proven engineering, and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
