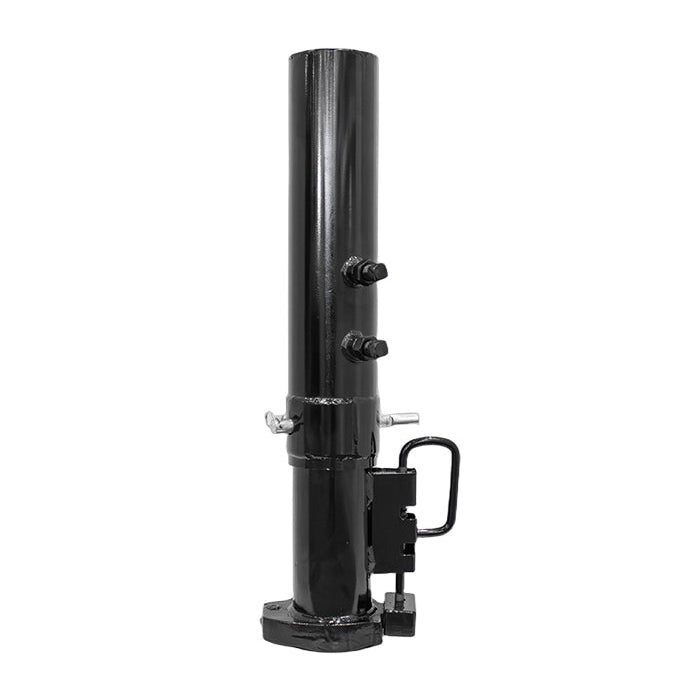

30,000 lb Round Gooseneck Coupler (2 5/16″)

Adjustable Round Gooseneck Coupler – 30,000 lb Capacity | 2 5/16″ Ball Compatible

Description:

This adjustable round gooseneck coupler is built for secure, high-performance towing applications. Featuring a cast head design, a spring-loaded latch mechanism, and precise height adjustment, it delivers a strong, stable, and user-friendly connection for gooseneck trailers. Whether for heavy-duty hauling or hydraulic applications, this coupler ensures quick, reliable engagement with minimal effort.

✅ Specifications:

• Ball Compatibility: 2 5/16″ hitch ball

• Load Capacity: 30,000 lbs

• Retracted Length: 29 1/2″

• Extended Length: 37 1/2″

• Outer Tube Diameter: 4 1/2″

• Inner Tube Diameter: 4″

🛠️ Key Features:

Cast Head Design
One-piece head with curved internal clamp bar for enhanced strength and precision

Easy Coupling and Uncoupling
No bottom plate—allows faster hitch engagement and simplified operation

Protected Spring Latch
Integrated spring latch system provides smooth locking and protects moving parts

⚙️ Installation & Versatility:

• Includes inner and outer tubes, 2 set screws, and locking pins

• Inner tube is height-adjustable to fit various trailer setups

• Outer tube welds to the trailer frame, while the inner tube slides for precise vertical alignment

🚚 Ideal For:

• Gooseneck trailers

• Flatbed and agricultural trailers

• Hydraulic tilt decks

• Heavy-duty commercial towing applications

This gooseneck coupler delivers the strength, safety, and flexibility needed for today’s demanding towing environments.
