3536 10 Ton Cylinder Complete Kit w/ Double Acting 1.6KW 4L
Product Description
The 3536 10 Ton Cylinder Complete Kit combines a heavy-duty 3536 hydraulic cylinder with a 12V 1.6KW double-acting hydraulic power unit and 4L reservoir for compatible dump trailer and hydraulic hoist applications.
The cylinder features a 3.5" bore, 36" stroke, and 1.75" chrome-plated rod, with a maximum working pressure of 3,000 PSI and maximum listed force of 28,863 lbs.
Key Features
-
3.5" Bore × 36" Stroke
-
1.75" Rod Diameter
-
3,000 PSI Maximum Working Pressure
-
28,863 lb Maximum Cylinder Force
-
12V Double-Acting Hydraulic Power Unit
-
1.6KW Motor / 4L Reservoir
-
15FT Wired Controller
-
Heavy-duty welded cylinder construction
-
Power-up / power-down operation

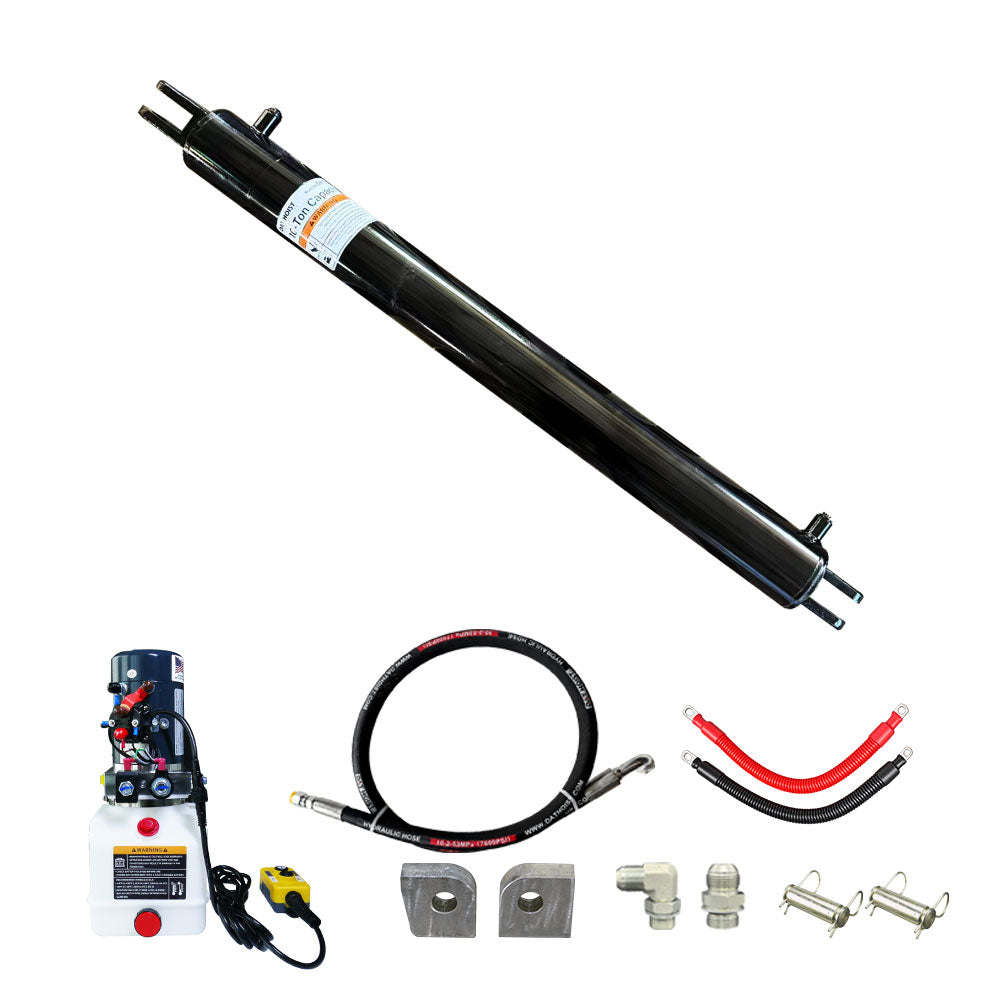

What's Included
-
1 × 3536 Hydraulic Cylinder
-
1 × 12V Double-Acting Hydraulic Power Unit – 1.6KW, 4L
-
1 × 15FT Wired Controller
-

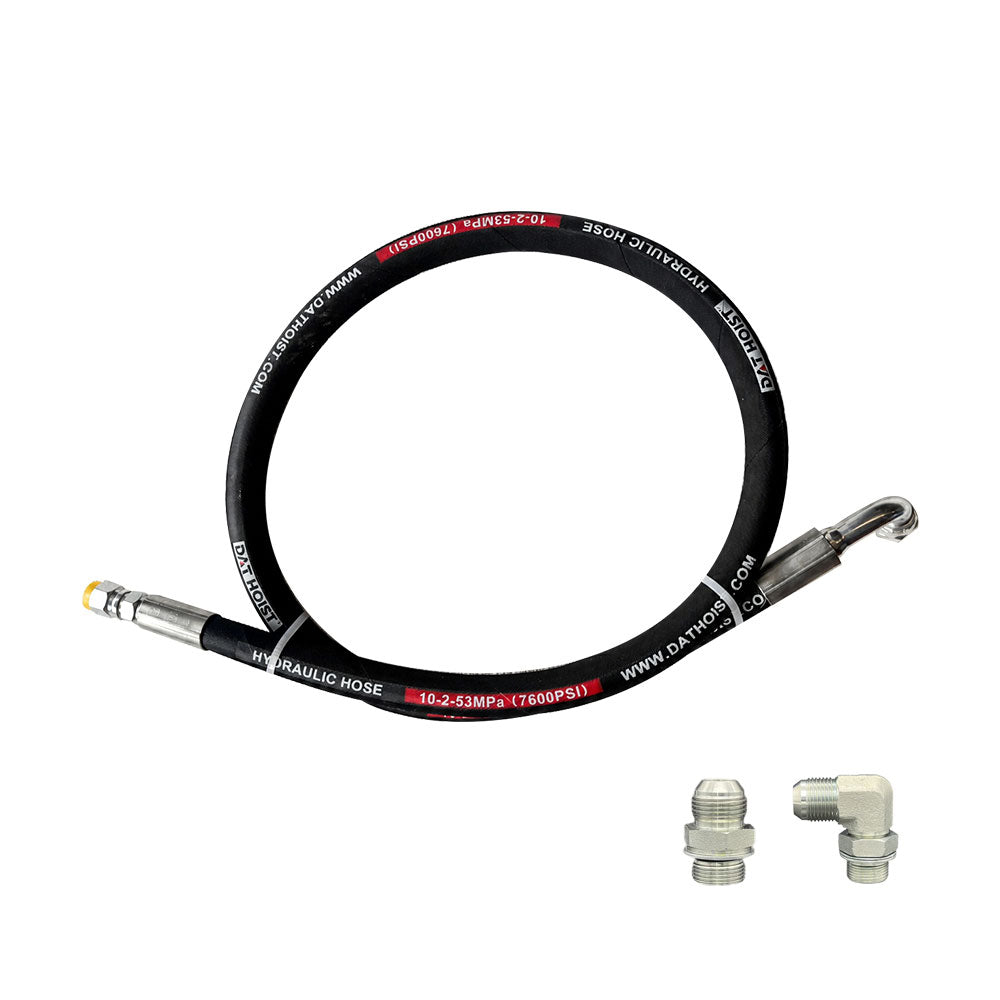

1 × 2FT Hydraulic Hose – One Straight End & One 90° End
-
1 × Straight Hydraulic Fitting
-
1 × 90° Hydraulic Fitting
-

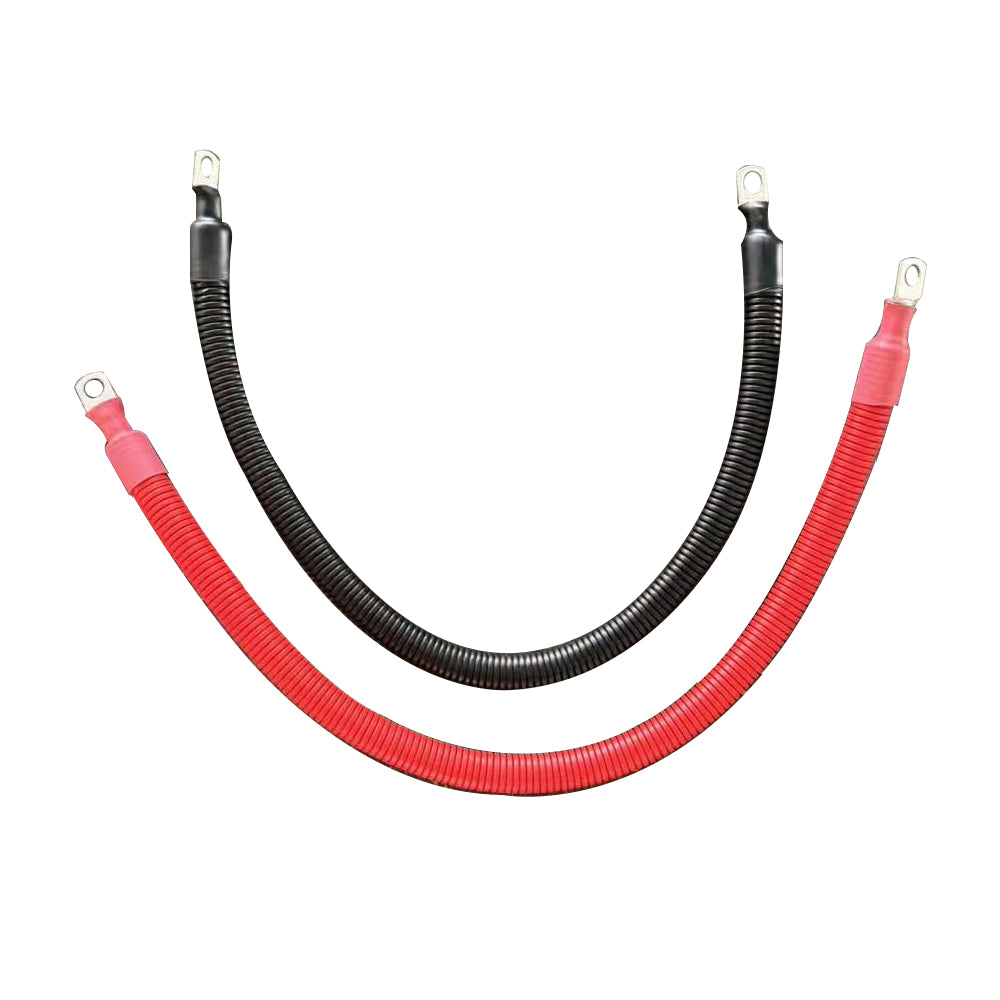

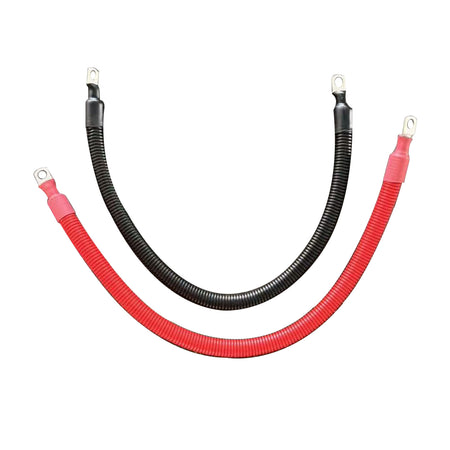

1 × 2FT 2AWG Power Cable Set
-

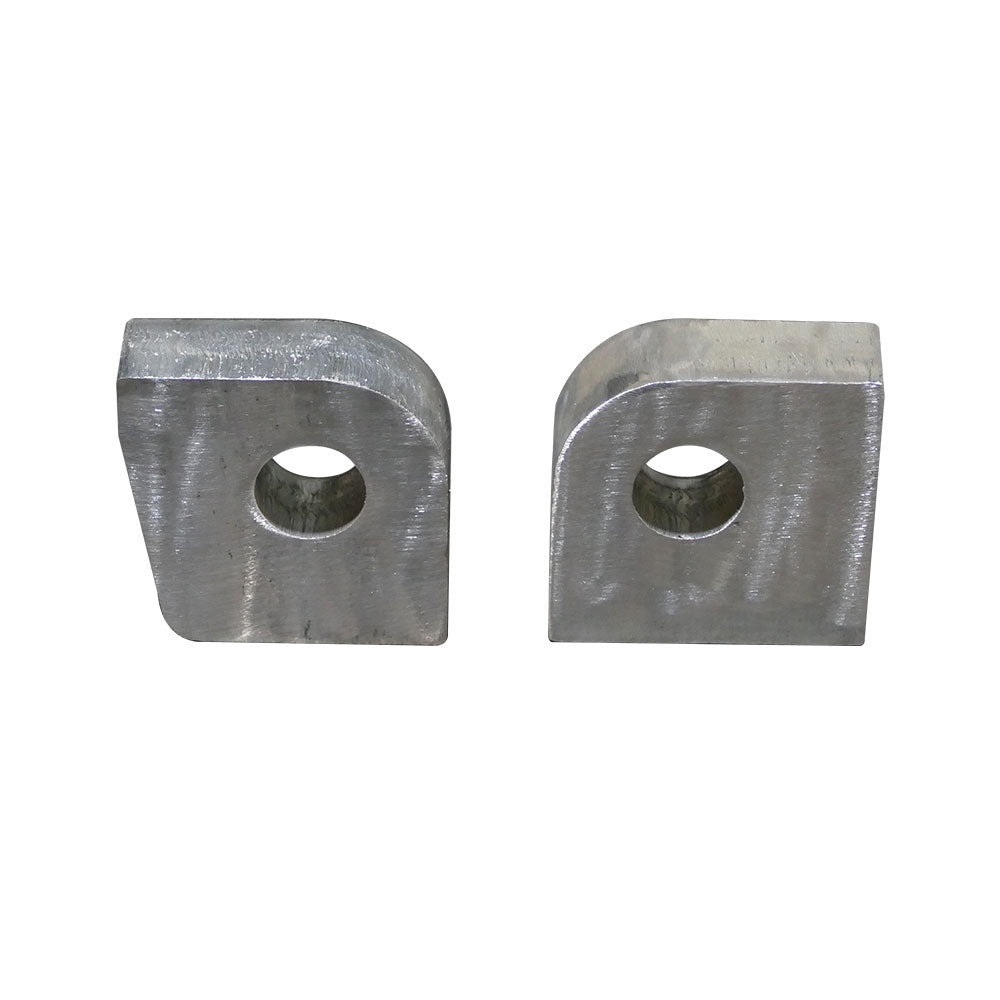

1 × Upper Mounting Bracket
-
1 × Lower Mounting Bracket
-

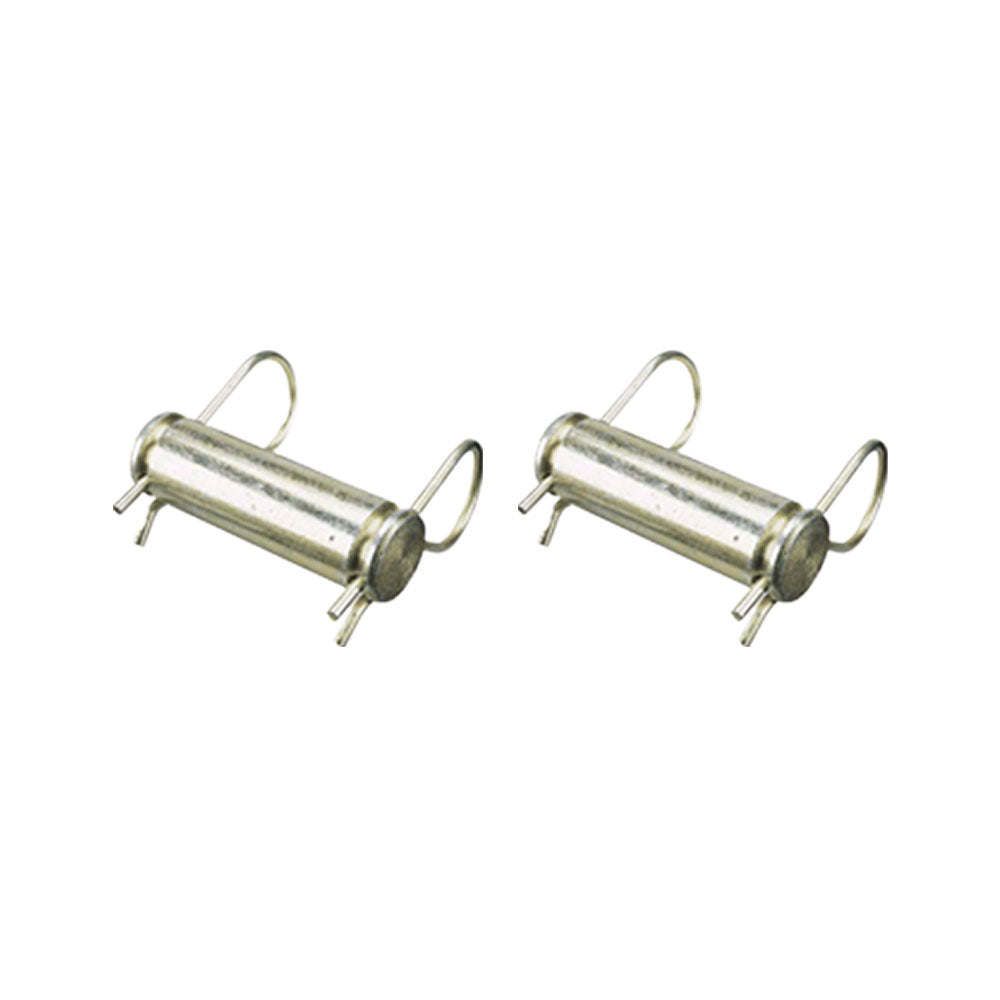

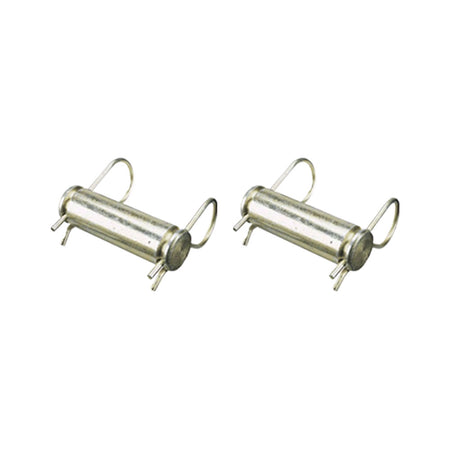

2 × Cylinder Mounting Pins
-
4 × Cotter Pins

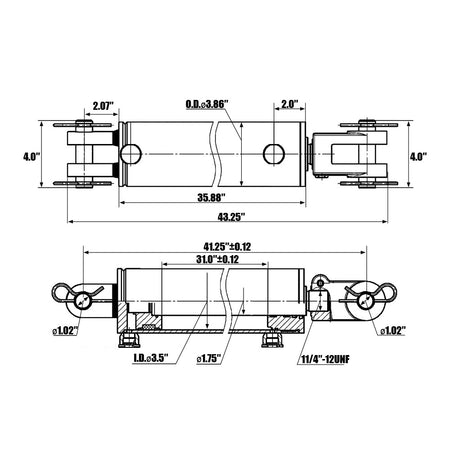

Technical Specifications

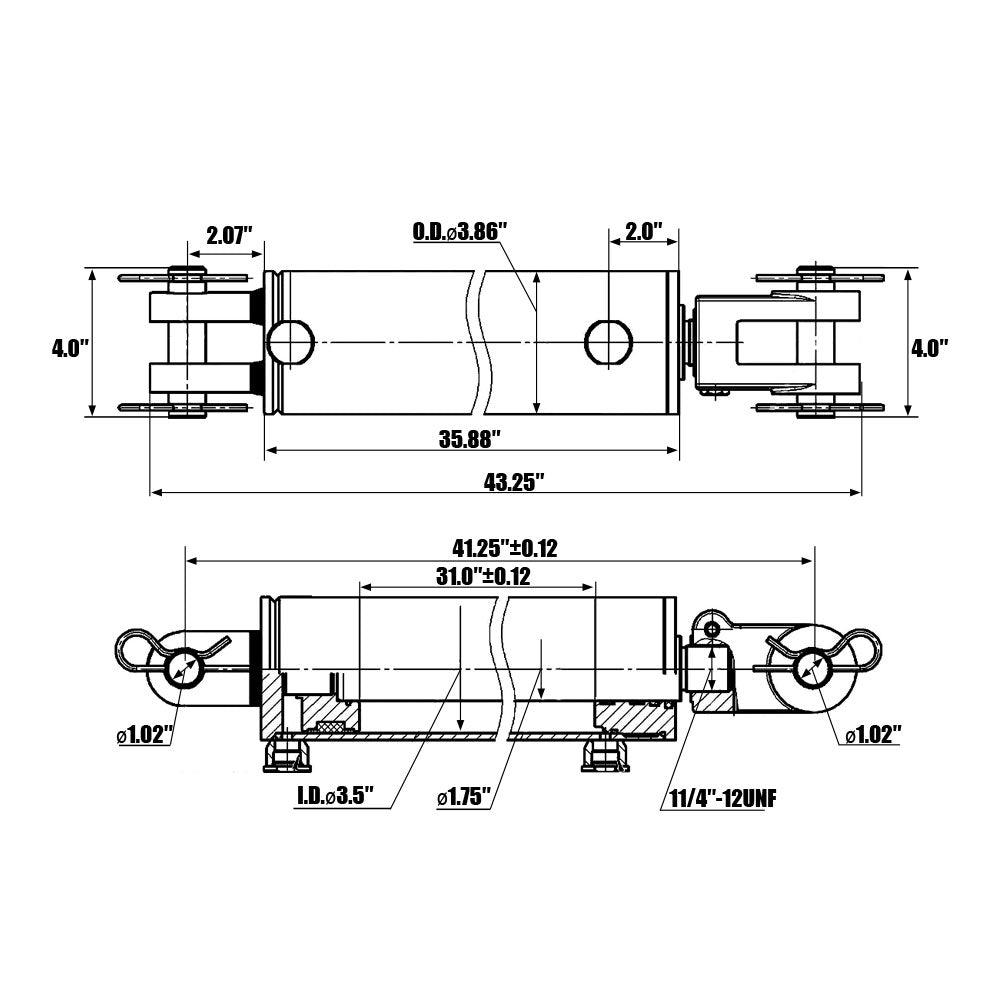

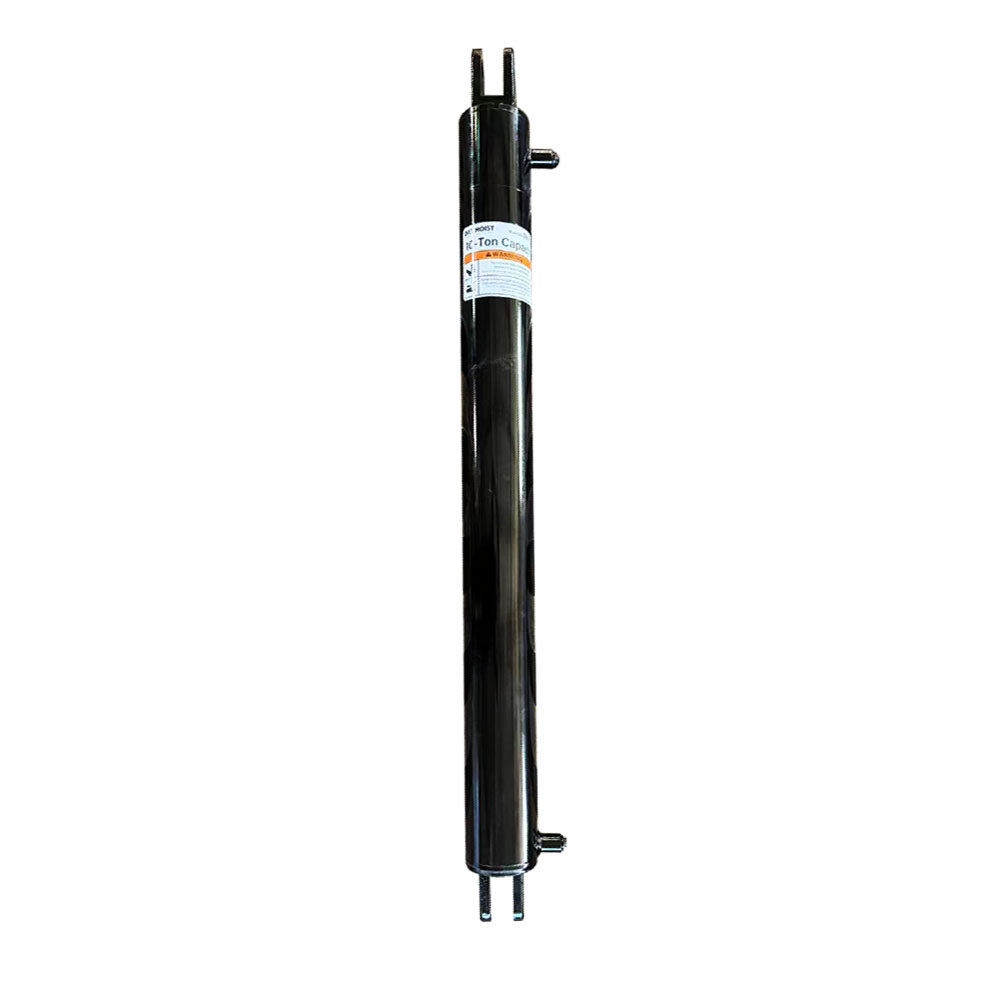

3536 Hydraulic Cylinder
| Specification | Details |
|---|---|
| Bore | 3.5" |
| Stroke | 36" |
| Rod Diameter | 1.75" |
| Working Pressure | 3,000 PSI |
| Maximum Force | 28,863 lbs |
| Retracted Length | 46.25" |
| Extended Length | 82.25" |
| C Dimension | 40.92" |
| Port | SAE #8 |
| Cylinder Weight | 77 lbs |
| Color | Black |

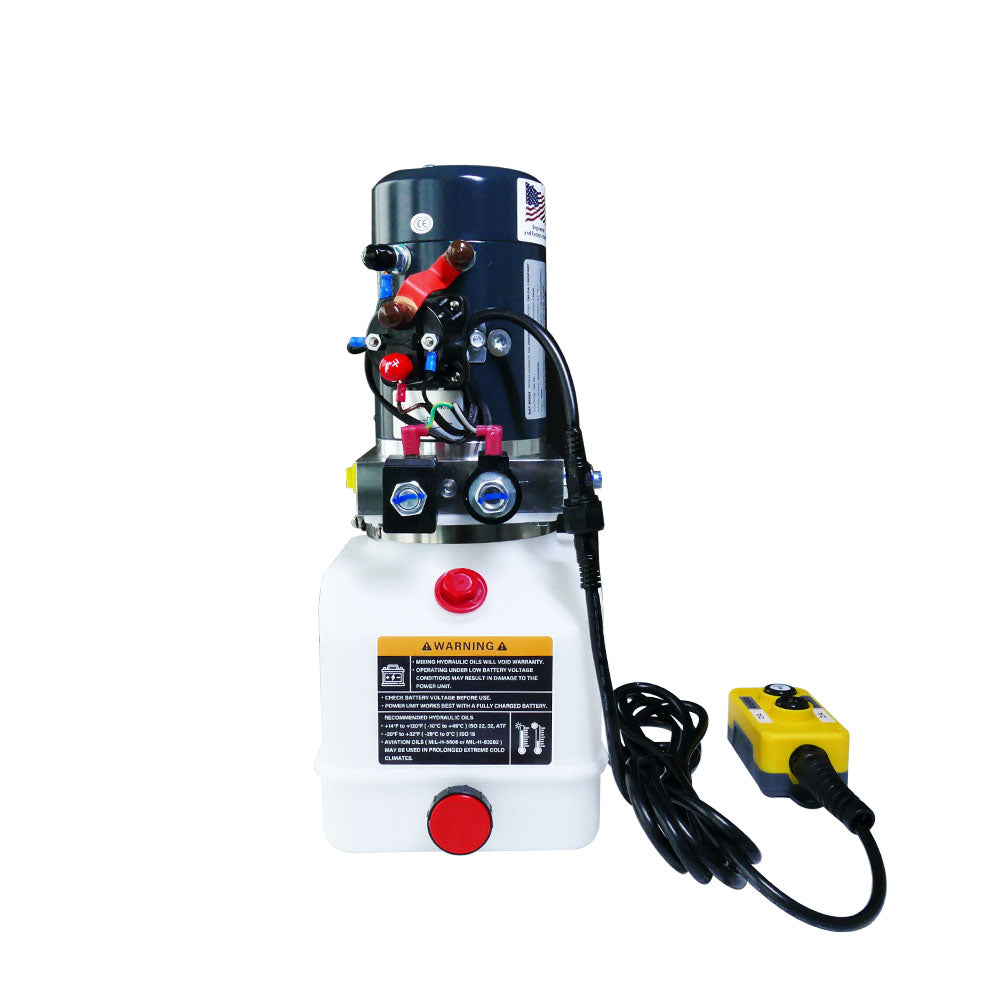

Hydraulic Power Unit
| Specification | Details |
|---|---|
| Type | Double Acting |
| Voltage | 12V DC |
| Motor Power | 1.6KW |
| Reservoir | 4L |
| Controller | 15FT Wired Controller |
| Power Cable | 2FT, 2AWG |
Applications
Suitable for compatible:
-
Dump Trailers
-
Scissor Hoist Trailers
-
Gooseneck Trailers
-
Tilt & Load Trailers
-
Hydraulic Lifting Equipment
Frequently Asked Questions
Q1: What is included in this kit?
The kit includes the 3536 hydraulic cylinder, 1.6KW 4L double-acting power unit, 15FT controller, hose, fittings, 2AWG power cable, upper and lower mounting brackets, 2 mounting pins, and 4 cotter pins.
Q2: Is the hydraulic power unit double acting?
Yes. The included 12V hydraulic power unit is double acting, providing powered extension and retraction.
Q3: Are the mounting brackets included?
Yes. One upper mounting bracket and one lower mounting bracket are included.
Q4: Can this kit be used on a dump trailer?
Yes. It is suitable for compatible dump trailer and hydraulic hoist applications. Verify cylinder dimensions and mounting requirements before ordering.
Important Note
Please verify cylinder dimensions, mounting geometry, hydraulic connections, hose routing, and 12V electrical requirements before installation.
Hydraulic fluid and trailer-specific installation hardware are not included.
