3536 10 Ton Cylinder Complete Kit w/ Single Acting Pump 1.6KW 8L
Product Description
The 3536 10 Ton Cylinder Complete Kit combines a heavy-duty 3536 hydraulic cylinder with a 12V 1.6KW single-acting hydraulic power unit and 8L reservoir, providing a practical hydraulic lifting solution for compatible dump trailers and hoist systems.
The cylinder features a 3.5" bore, 36" stroke, 1.75" rod, and a maximum working pressure of 3,000 PSI. A 15FT wired controller, hydraulic hose, fittings, power cable, cylinder pins, and cotter pins are included for installation.
Key Features
-
3.5" Bore × 36" Stroke
-
1.75" Rod Diameter
-
3,000 PSI Maximum Working Pressure
-
28,863 lb Maximum Cylinder Force
-
12V Single-Acting Hydraulic Power Unit
-
1.6KW Motor / 8L Reservoir
-
15FT Wired Controller
-
Heavy-duty welded cylinder construction
-
Suitable for dump trailer and hydraulic hoist applications
What's Included
-
1 × 3536 Hydraulic Cylinder
-
1 × 12V Single-Acting Hydraulic Power Unit – 1.6KW, 8L
-
1 × 15FT Wired Controller
-

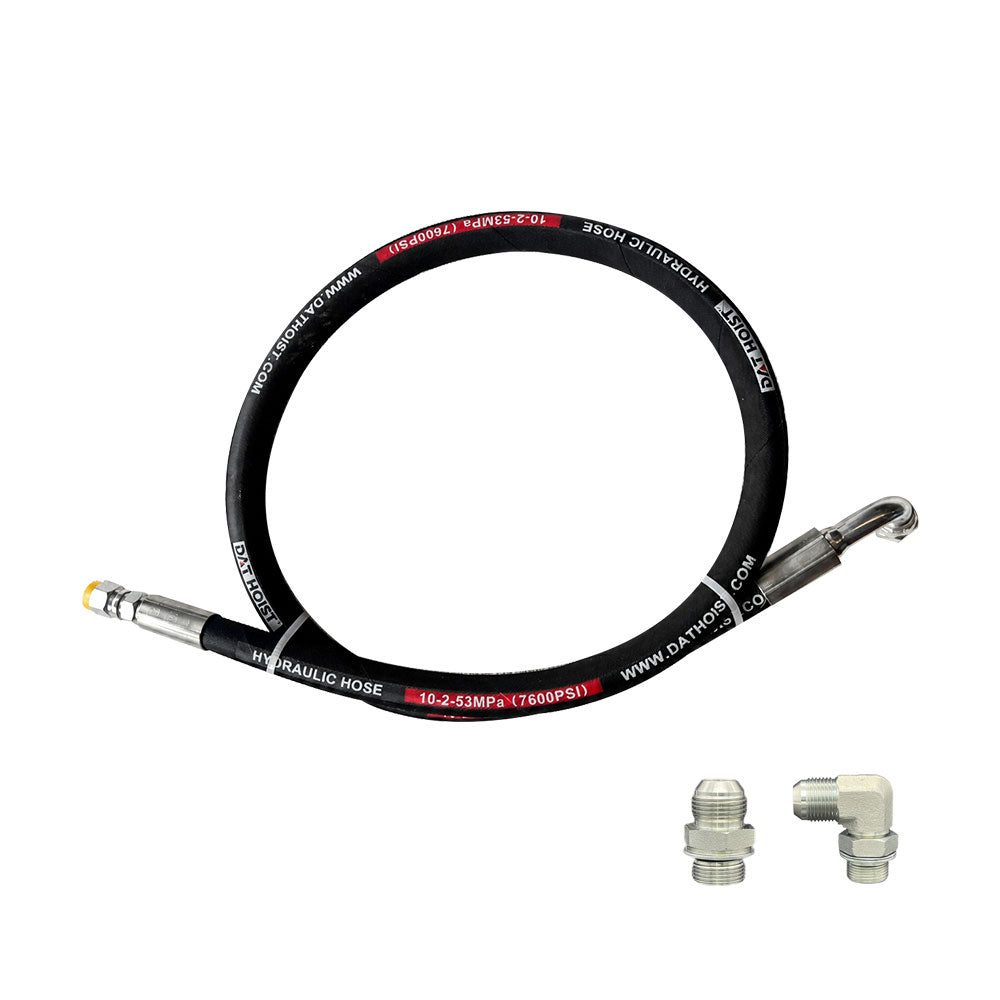

1 × 2FT Hydraulic Hose – One Straight End & One 90° End
-
1 × Straight Hydraulic Fitting
-
1 × 90° Hydraulic Fitting
-
1 × 2FT 2AWG Power Cable Set
-
2 × Cylinder Mounting Pins
-
4 × Cotter Pins
Important Note
Upper and lower mounting brackets are NOT included.
Please verify cylinder dimensions, mounting requirements, hydraulic connections, and electrical requirements before purchasing.
Technical Specifications
3536 Hydraulic Cylinder
| Specification | Details |
|---|---|
| Bore | 3.5" |
| Stroke | 36" |
| Rod Diameter | 1.75" |
| Working Pressure | 3,000 PSI |
| Maximum Force | 28,863 lbs |
| Retracted Length | 46.25" |
| Extended Length | 82.25" |
| C Dimension | 40.92" |
| Port | SAE #8 |
| Cylinder Weight | 77 lbs |
| Color | Black |
Hydraulic Power Unit
| Specification | Details |
|---|---|
| Type | Single Acting |
| Voltage | 12V DC |
| Motor Power | 1.6KW |
| Reservoir | 8L |
| Controller | 15FT Wired Controller |
| Power Cable | 2FT, 2AWG |
Applications
Suitable for compatible:
-
Dump Trailers
-
Scissor Hoist Trailers
-
Gooseneck Trailers
-
Tilt & Load Trailers
-
Hydraulic Lifting Equipment
Frequently Asked Questions
Q1: What is included in this kit?
The kit includes the 3536 hydraulic cylinder, 1.6KW 8L single-acting power unit, 15FT controller, hydraulic hose, fittings, 2AWG power cable, 2 cylinder pins, and 4 cotter pins.
Q2: Are mounting brackets included?
No. Upper and lower mounting brackets are not included.
Q3: How does the single-acting system work?
Hydraulic pressure extends the cylinder, while retraction is typically accomplished by gravity or the weight of the load.
Q4: Can this kit be used on a dump trailer?
Yes. It is suitable for compatible dump trailer and hydraulic hoist applications. Please verify dimensions and installation requirements before ordering.
