6K DAT HOIST Light Duty Electric Brake Single Axle Kit – Complete

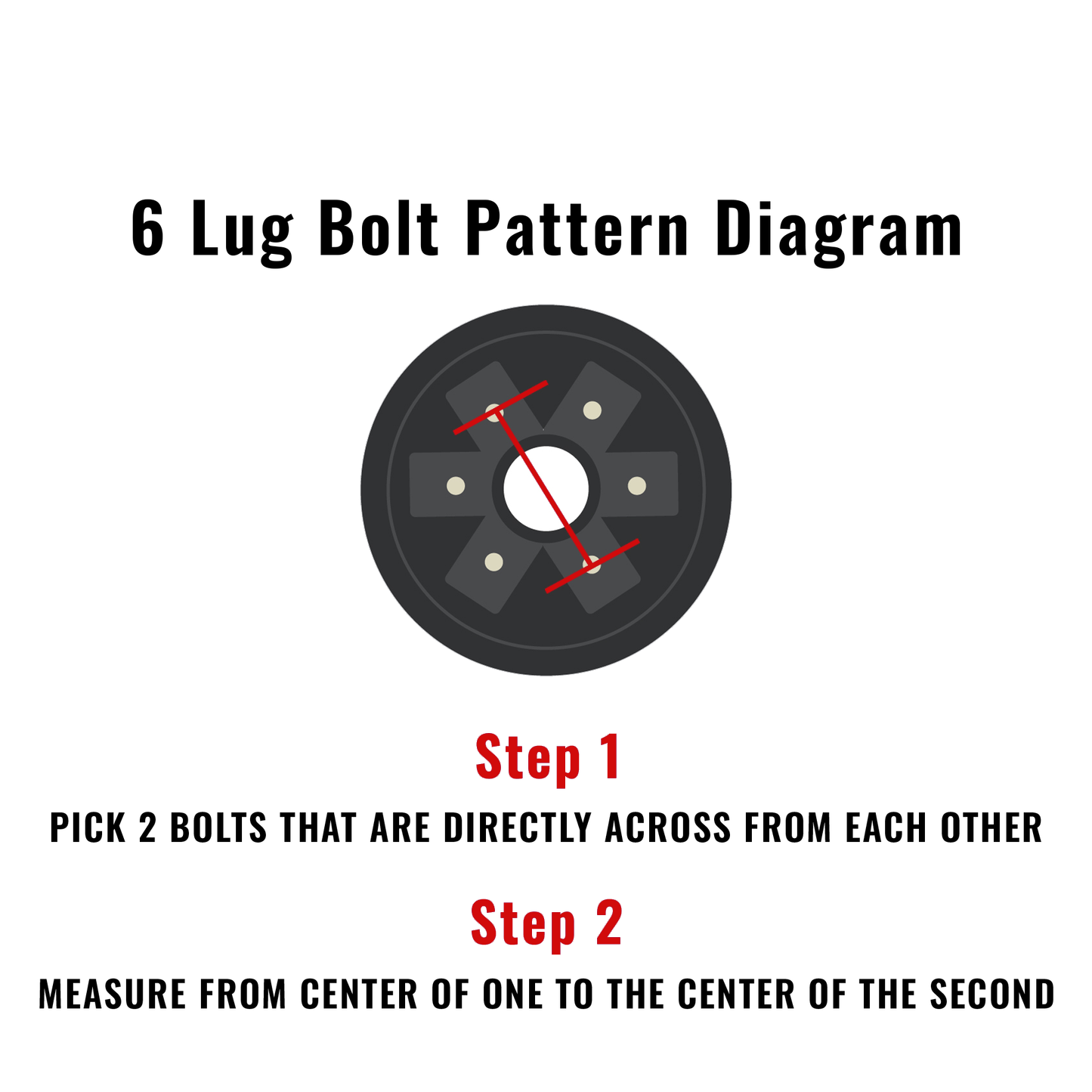

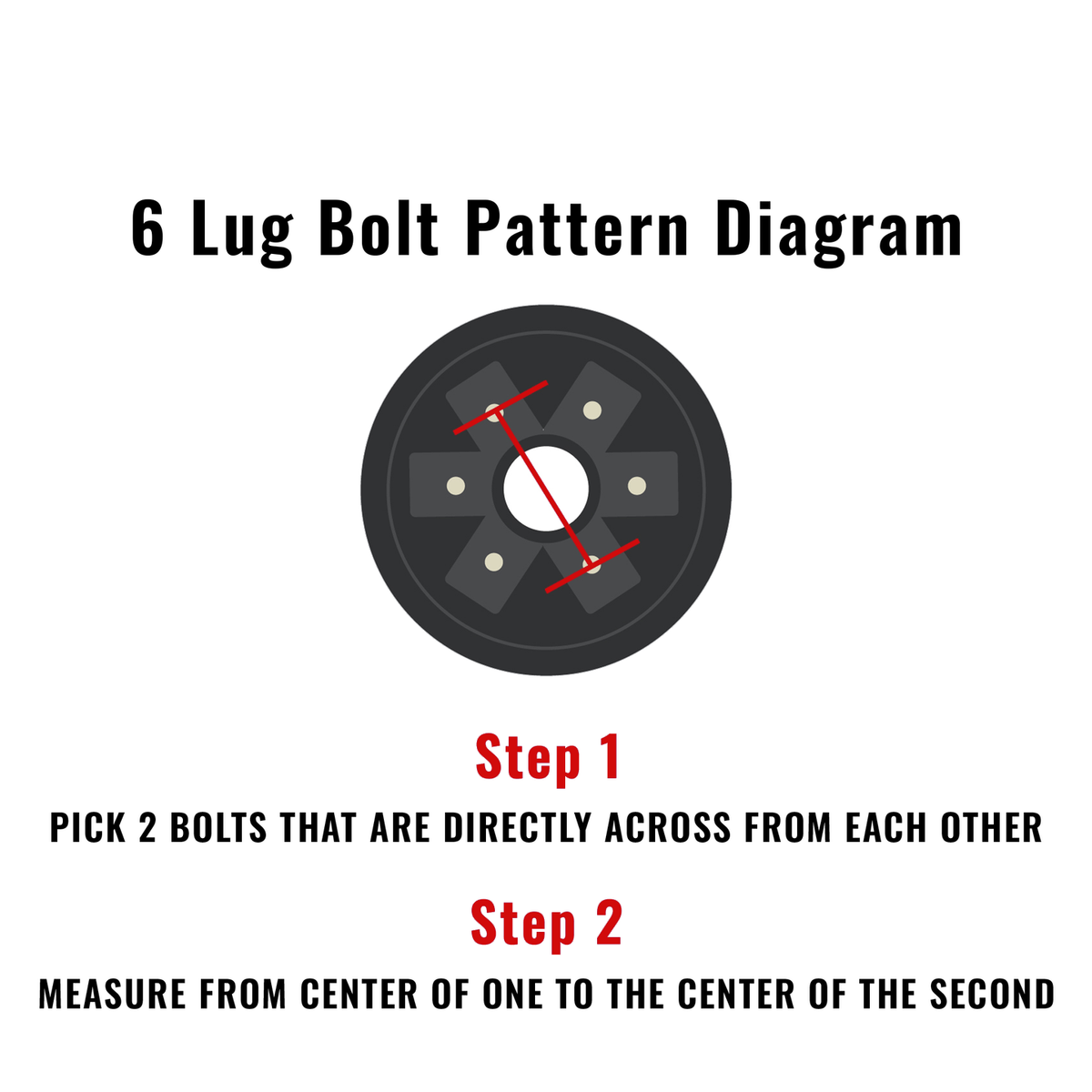

6K Idler Axle Trailer Kit – 6,000 lb Capacity | 6x5.5 Bolt Pattern | Fully Assembled

Axle Capacity: 6,000 lbs | Configuration: Idler | Brand: DAT HOIST | Includes Suspension & Mounting Kit

🔧 Product Overview

Build your next light-duty trailer faster and more reliably with the DAT HOIST 6K Idler Axle Kit. This complete pre-packaged solution includes a fully assembled axle, double-eye leaf springs, and all necessary suspension hardware. Designed for strength, long life, and smooth towing, this 6K axle kit is ideal for landscape, utility, cargo, and ATV trailers. Perfect for DIY builds or professional repairs—get on the road with confidence.

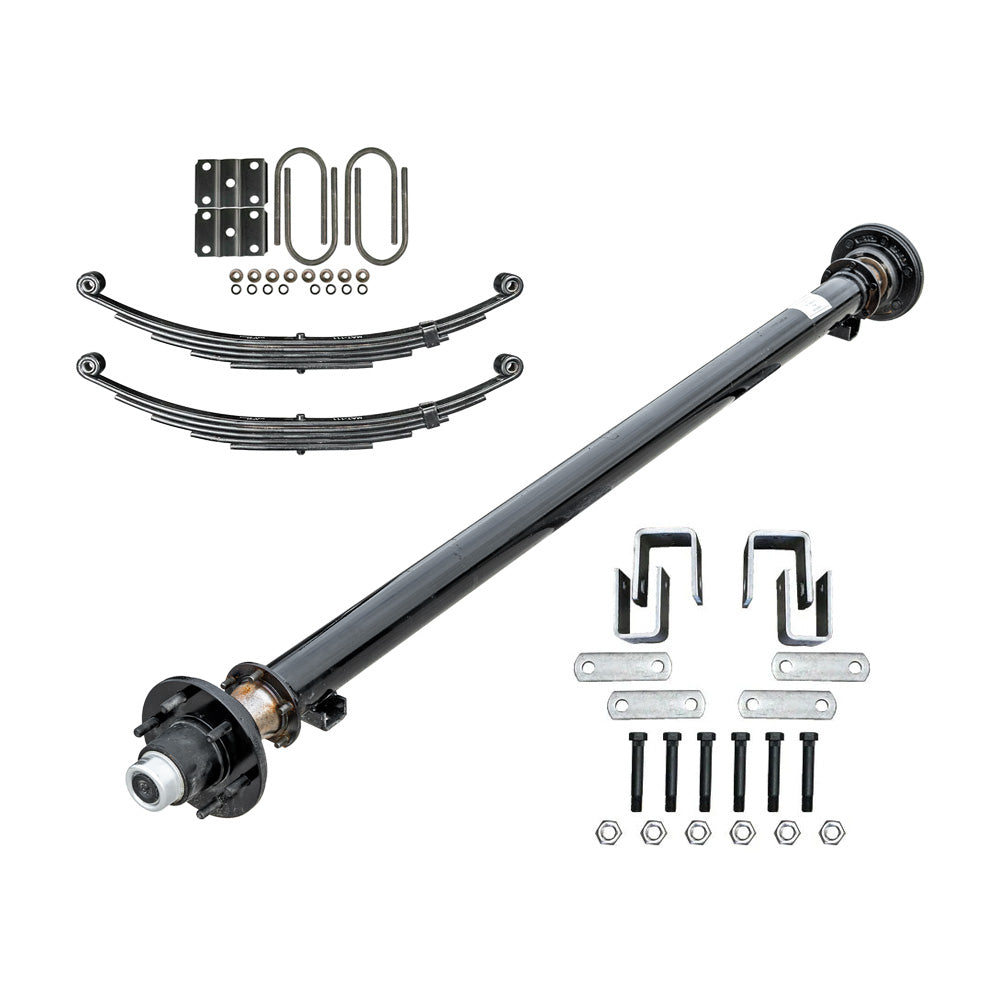

📦 What’s Included

• 1 × 6K Idler Axle (fully assembled with hub face and bearing kit)

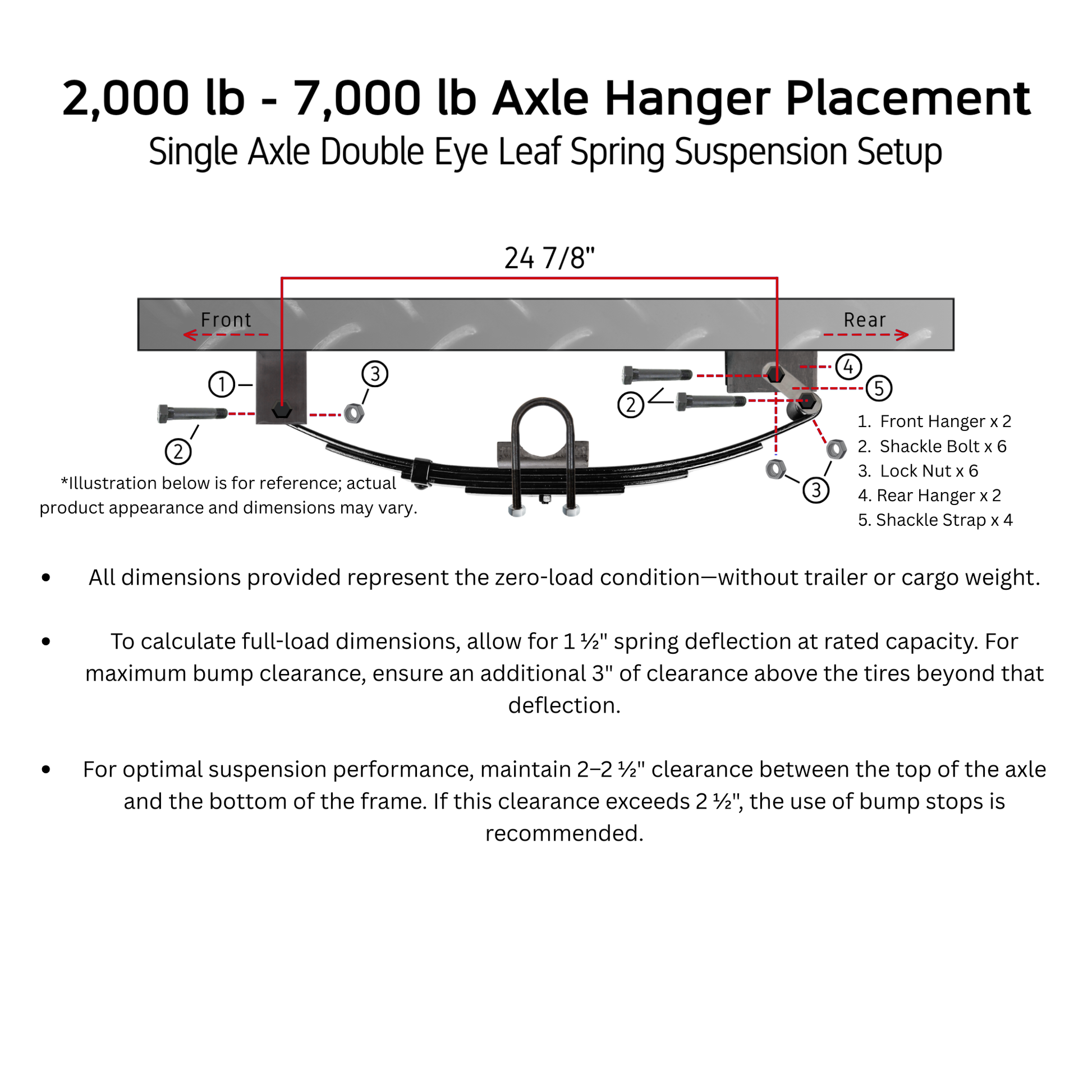

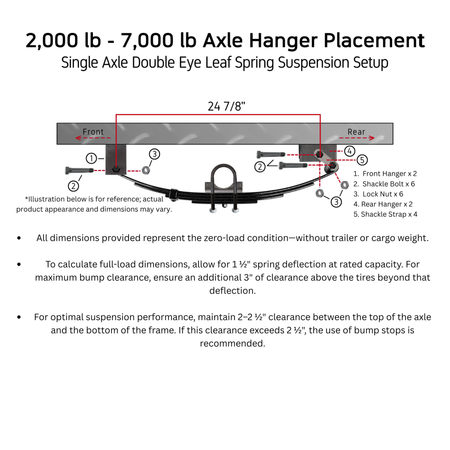

• 2 × 25.25" 3K 5-Leaf Double Eye Springs

• 1 × 6K U-Bolt Kit

• 1 × Double Eye Hanger Kit

Pre-Installed Bearing Kit Includes:

• Double Lip Grease Seal – 3.376" O.D / 2.250" I.D

• Outer Race – 2.441" O.D (Part #15245)

• Outer Bearing – 1.250" I.D (Part #15123)

• Inner Race – 3.265" O.D (Part #25520)

• Inner Bearing – 1.750" I.D (Part #25580)

• Cotter Pin & Spindle Retainer

• Hub/Dust/Grease Cap

Note: This axle is not compatible with ABS systems

✅ Key Features

• Complete Axle + Suspension Kit – All components matched for proper fitment

• OEM Grade Construction – Trusted quality for long-lasting performance

• Fully Assembled Axle – Pre-installed hubs and bearing systems

• EZ Lube Spindles – Grease access without removing the hub

• Underslung Spring Mounts – Lower trailer deck height

• High-Temp Grease Packed – Ready to install and tow

• Heavy-Duty Steel Tube – Reduces flex and improves towing performance

🚙 Ideal For

• Utility & landscape trailers

• ATV & UTV trailers

• Cargo trailers

• Boat trailers

• Car hauler trailers

• Enclosed and RV trailers

• BBQ pit trailers

💡 Why Choose DAT HOIST?

• Fast shipping – usually ships within 24 hours

• Bulk and wholesale options available

• Financing options available

• Expert customer and technical support
