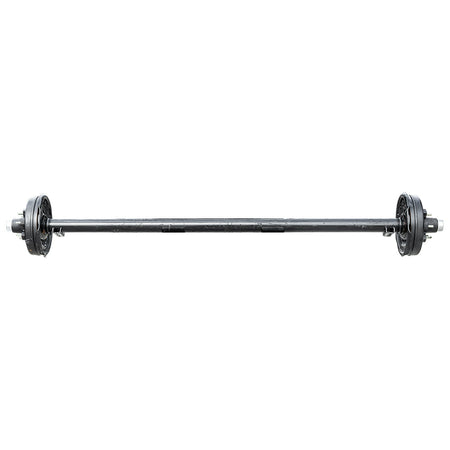

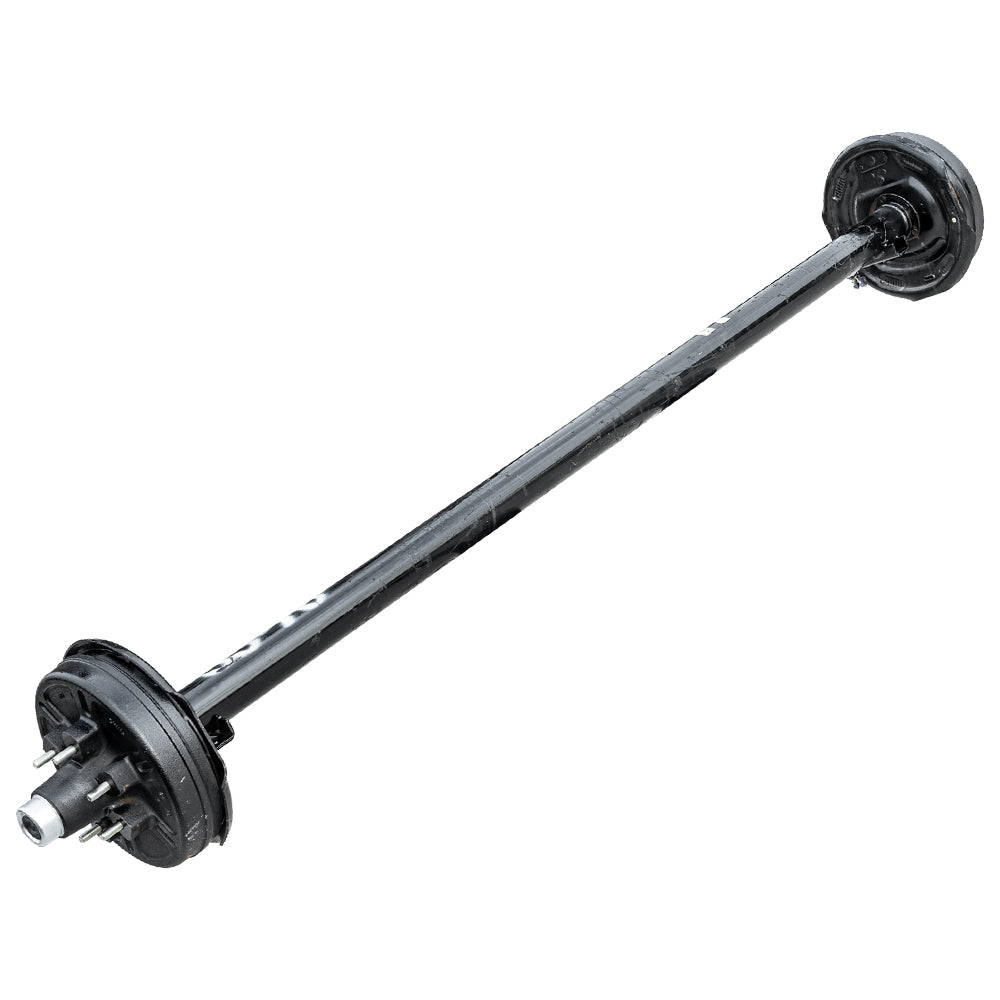

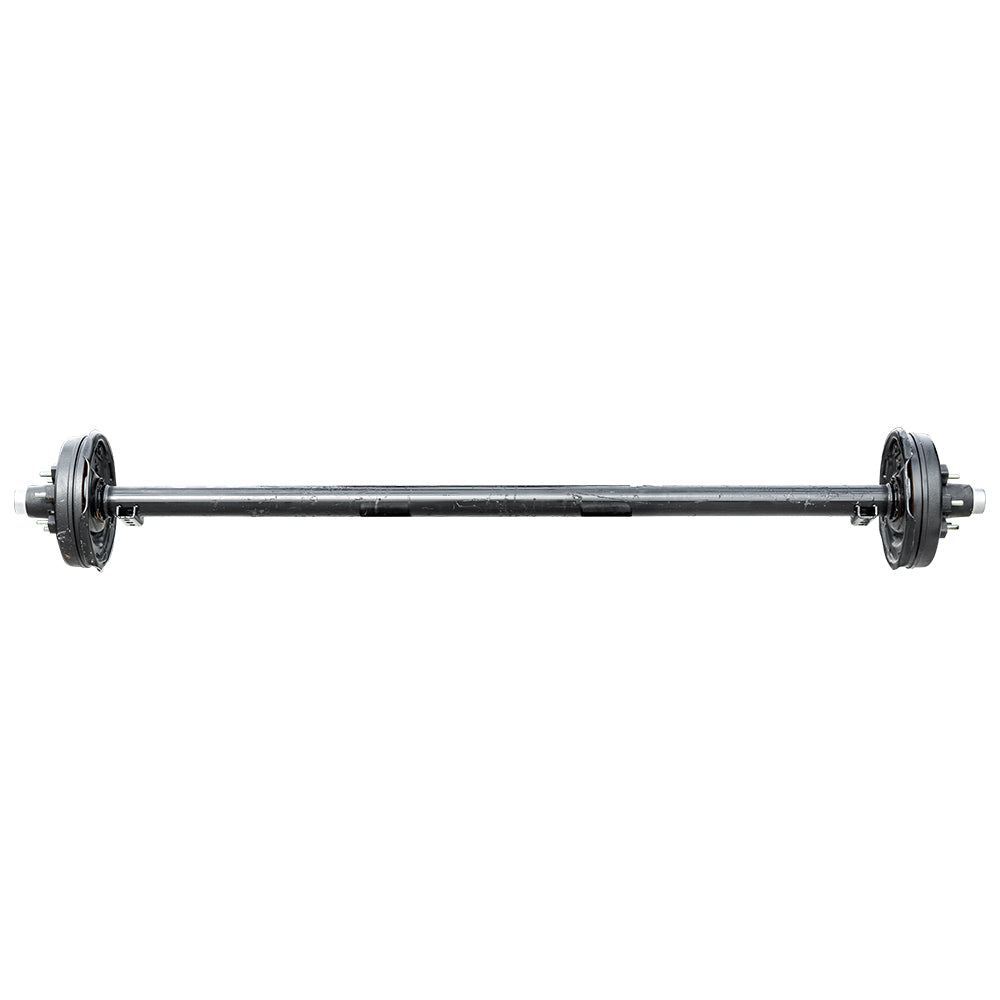

6K Straight Electric Brake Trailer Axle – 6,000 lb Capacity

6K Straight Electric Brake Trailer Axle – 6,000 lb Capacity

Bolt Pattern: 6x5.5 | Brake Type: Electric | Brand: DAT HOIST | Fully Assembled & Ready to Install

🔧 Product Overview

Upgrade your trailer’s braking system with the DAT HOIST 6K electric brake axle, designed for strength, safety, and easy installation. With a 6,000 lb capacity and 12" x 2" electric brakes, this axle is fully assembled and pre-greased for fast, hassle-free mounting. Perfect for motorcycle trailers, ATV trailers, utility trailers, and light-duty hauling needs. Whether you're replacing a worn-out axle or building a new trailer, this axle is a direct-fit, Dexter-compatible solution.

📐 Specifications

Load Capacity: 6,000 lbs (6K)
Axle Type: Electric Brake
Tube Diameter: 3" round steel axle tube

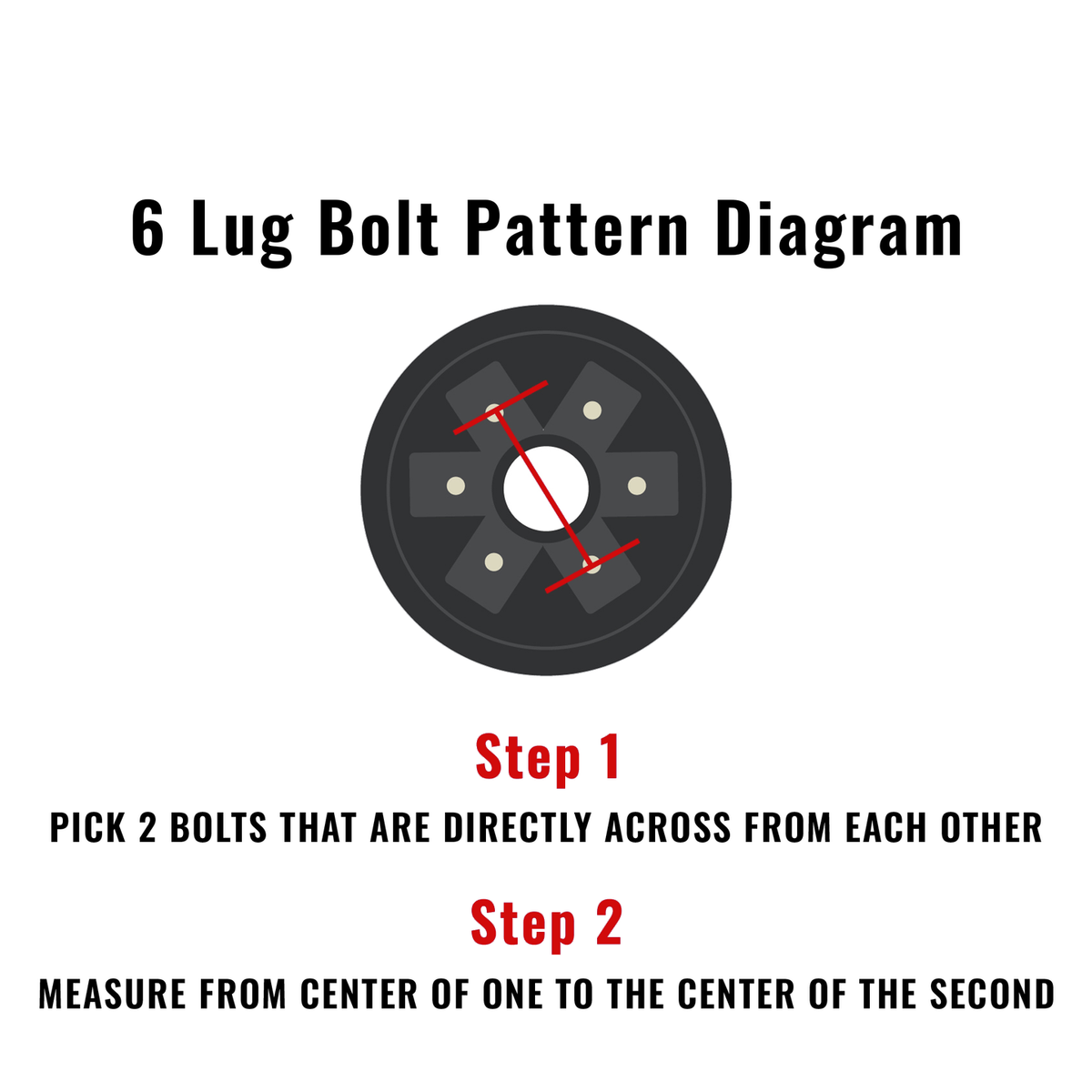

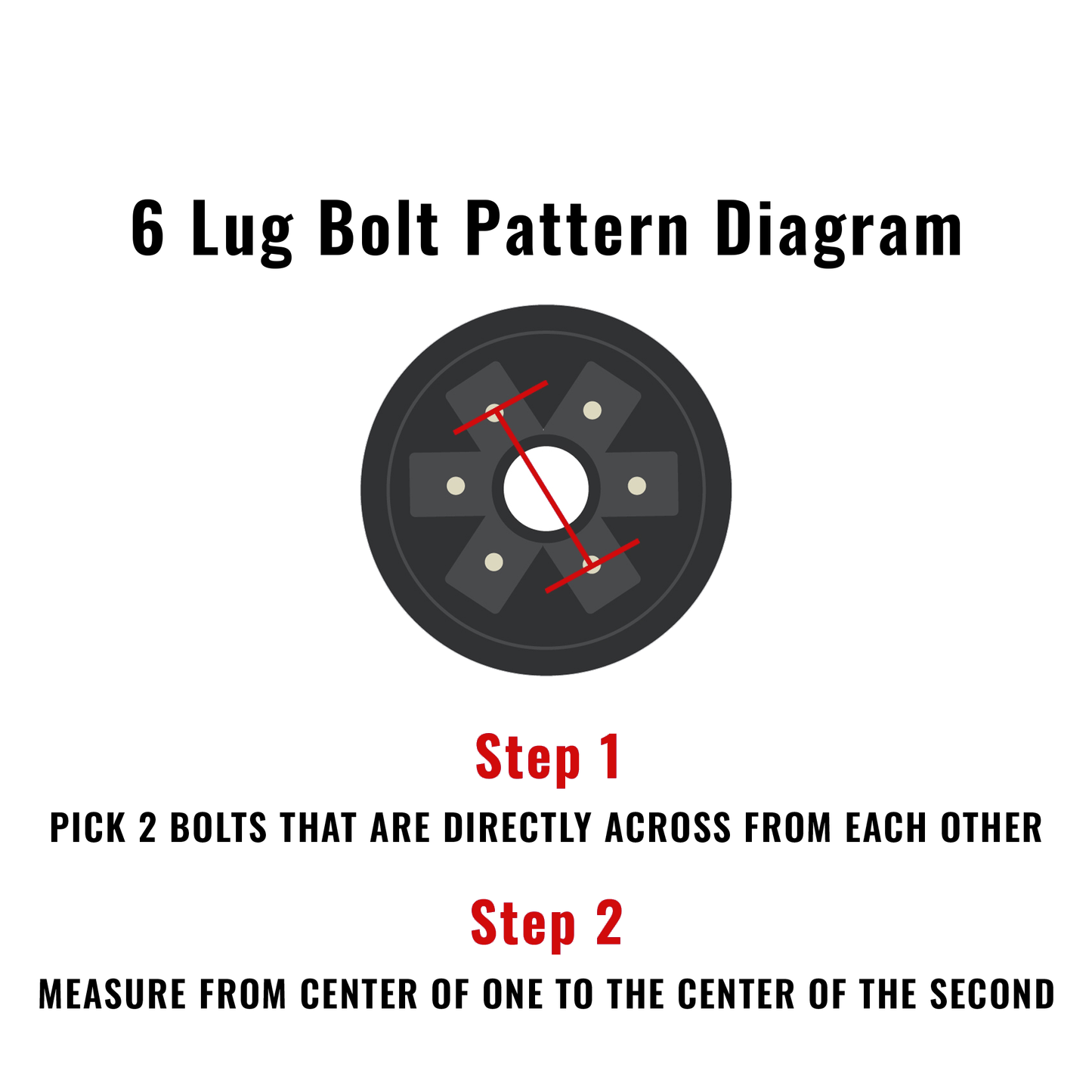

Bolt Pattern: 6x5.5"
Stud Size: 1/2"-20
Brake Assembly Size: 12" x 2"
Tire Compatibility: Fits most 15"–16" tire & wheel assemblies
Mount Type: Underslung (leaf springs mount under the axle)
Spindle Type: EZ Lube with zerk fitting
ABS Compatibility: Not compatible
Grease: Pre-packed with high-temp axle grease

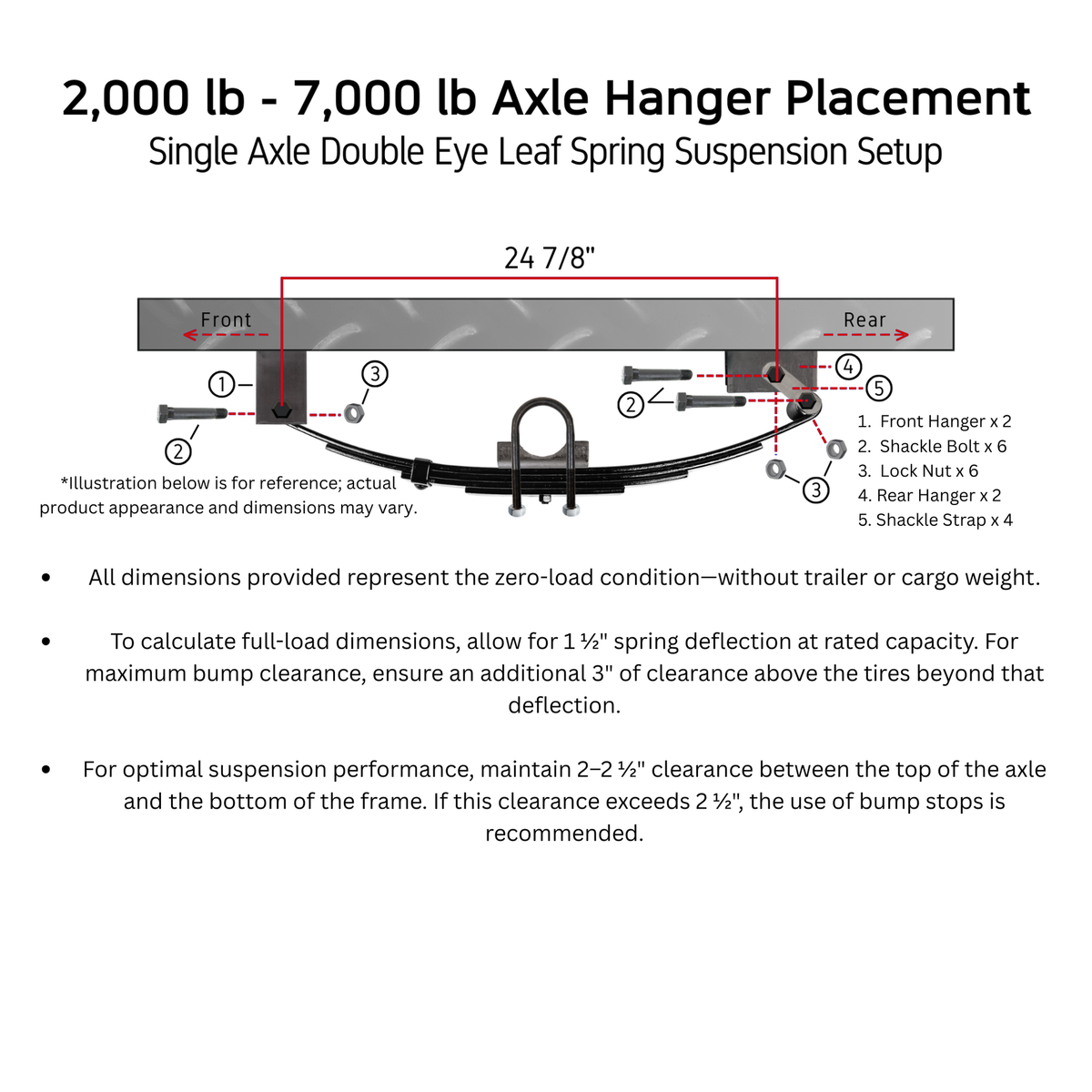

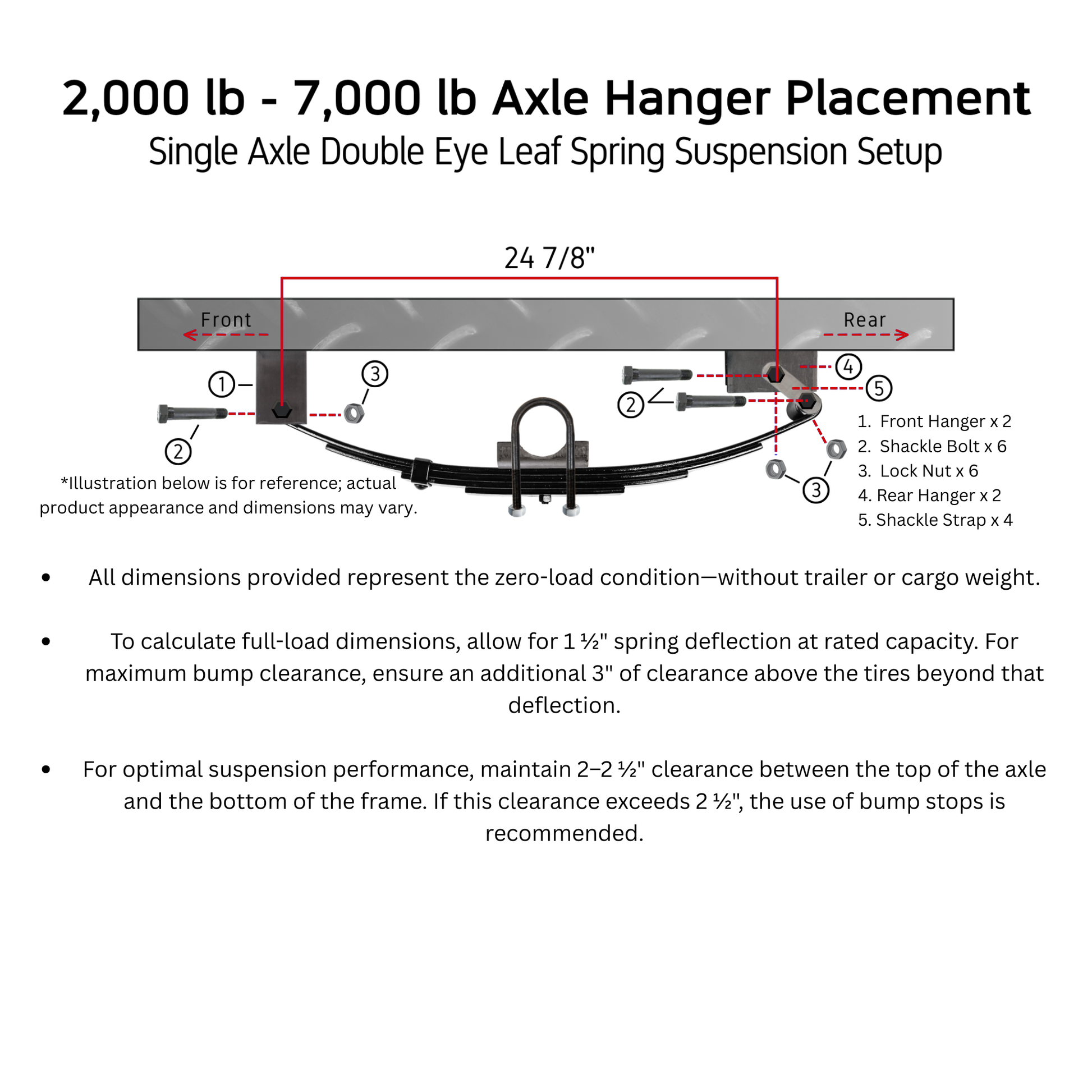

Suspension Recommendation: Double eye springs

📦 What’s Included (Pre-Assembled Components)

• DAT HOIST 6K Axle Beam – 3" tube

• Pre-installed 12" x 2" Electric Brake Assemblies – Left & Right

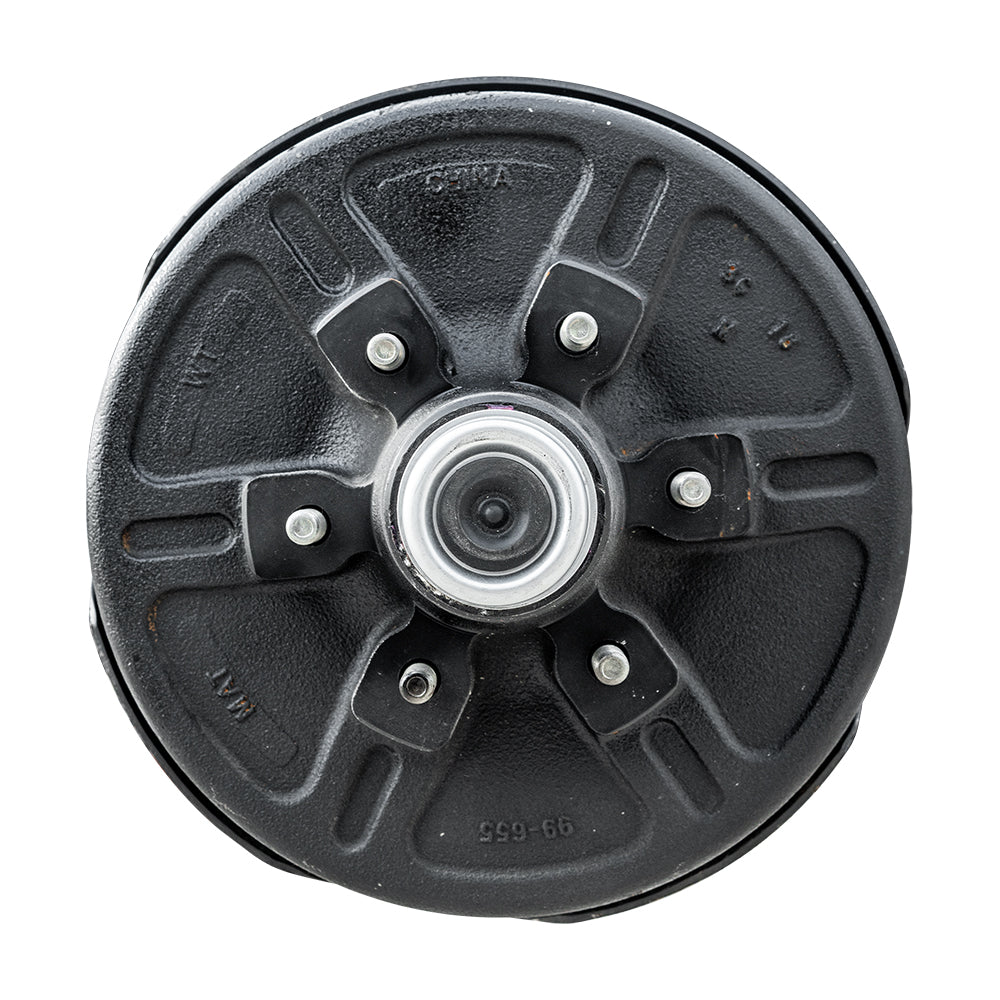

• Pre-greased 6-lug Brake Drums – 6x5.5 bolt pattern

• Inner & Outer Bearings

• Bearing Races (pre-installed)

• Tang Washers (for EZ-Lube spindles)

• Cotter Pins (for standard spindles)

• Double Lip Grease Seals

• Hub/Dust/Grease Caps

• Internal Wiring – protects brake wires from wear

✅ Key Features

• Fully Assembled: Brakes and hubs come pre-installed

• High-Strength Steel: Built for long-term highway and load durability

• EZ-Lube Spindles: Add grease without removing the hub

• Underslung Setup: Lower trailer height for better load handling

• Internal Wiring: Seamless design to protect brake wiring from damage

• Dexter-Compatible: Direct-fit replacement for Dexter and other common brands

🚙 Ideal For

• Motorcycle Trailers

• ATV & Utility Trailers

• Lawn & Landscape Trailers

• Boat Trailers

• Car Hauler Trailers

• BBQ Pit Trailers

• Cargo & Enclosed Trailers

• RV Trailers

💡 Why Choose DAT HOIST?

• Compatible with Dexter, AL-KO, Lippert, and Hayes axles

• Ships fast – order today, ships by tomorrow

• Bulk & wholesale pricing available

• Financing options offered

• Backed by expert technical support
