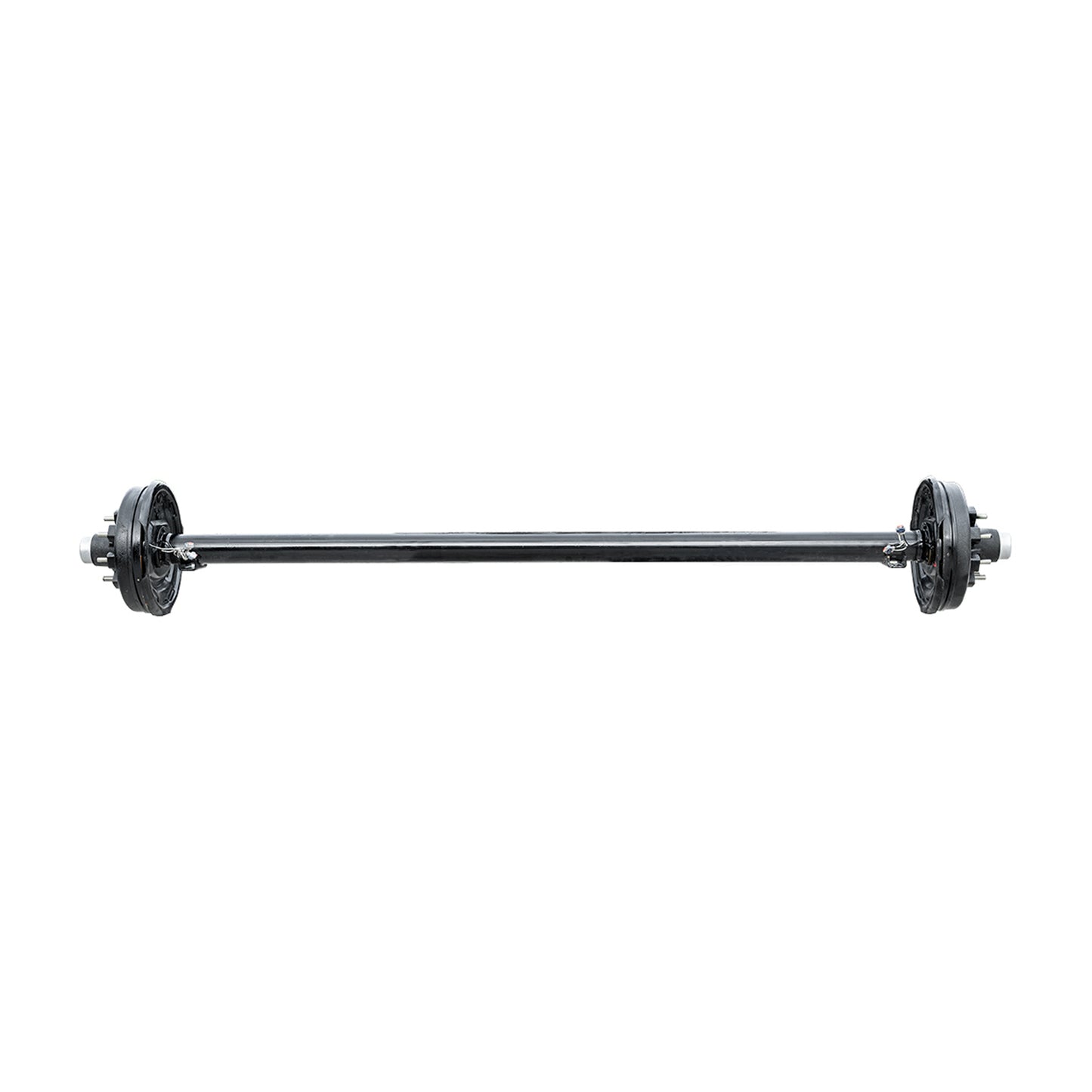

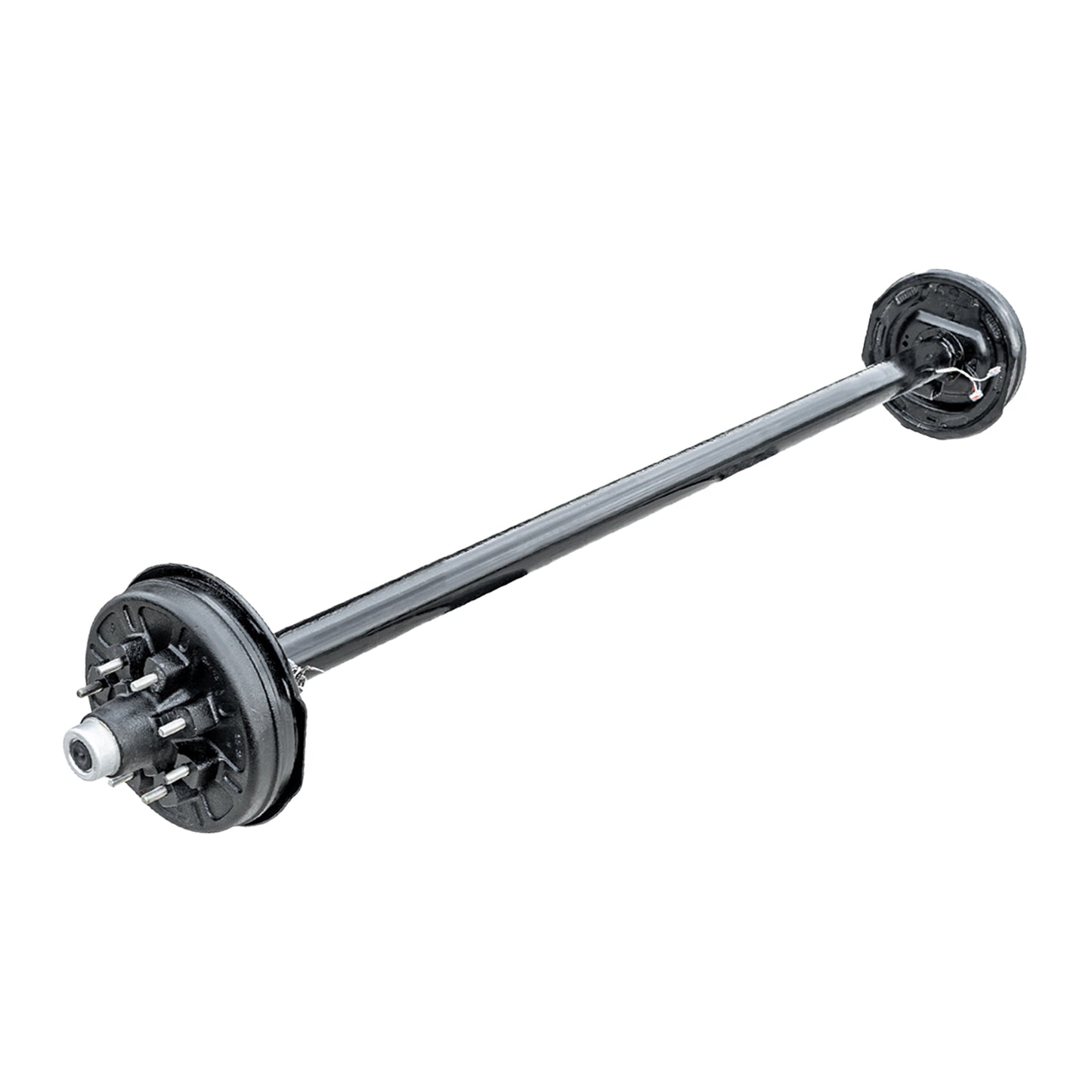

7K Straight Electric Brake Trailer Axle – 7,000 lb Capacity
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
7K Straight Electric Brake Trailer Axle – 7,000 lb Capacity
Bolt Pattern: 8x6.5 | Brake Type: Electric | Brand: DAT HOIST | Fully Assembled & Ready to Install
🔧 Product Overview

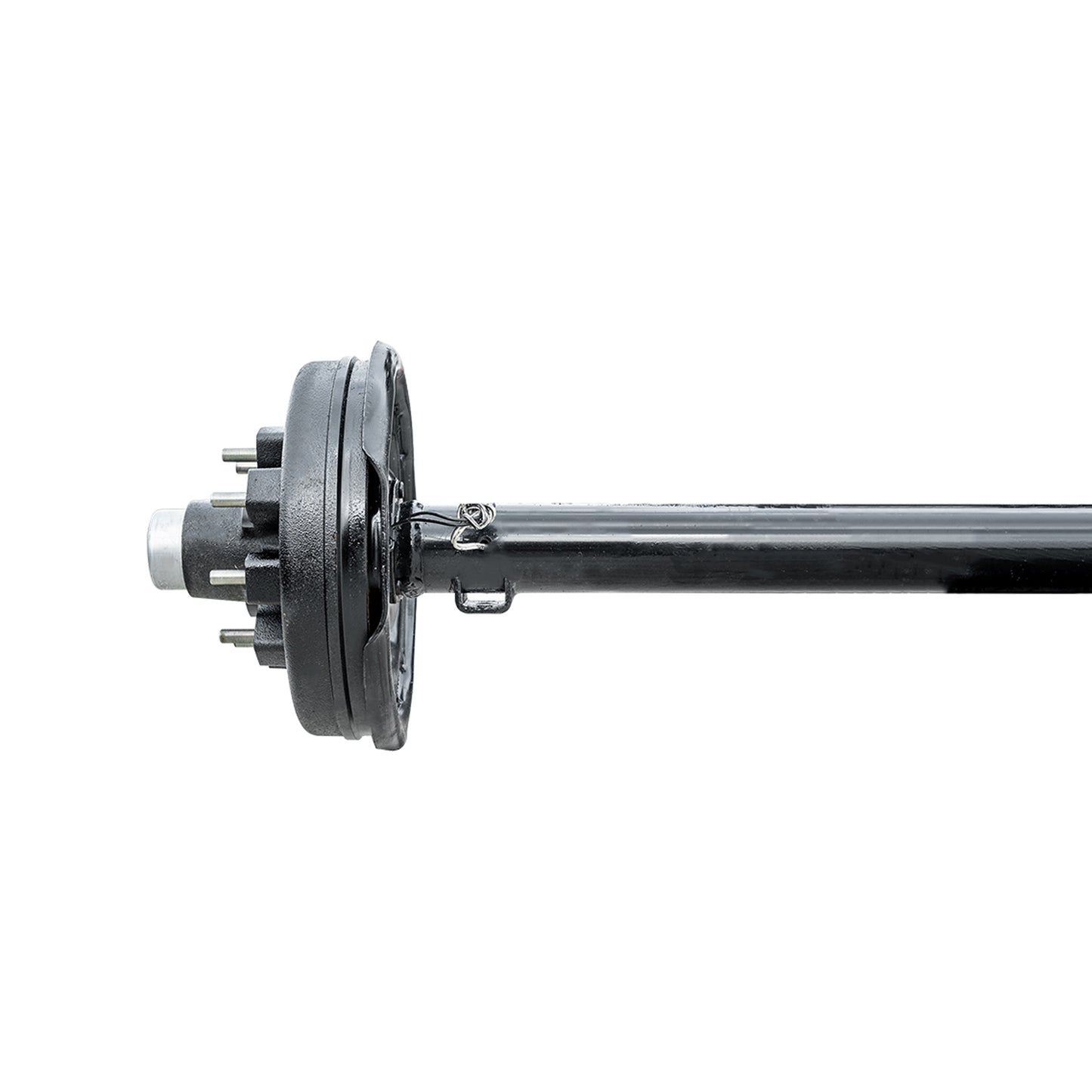

Upgrade your medium-duty trailer with the DAT HOIST 7K electric brake axle, built for durability, performance, and hassle-free installation. With a 7,000 lb weight capacity and 12" x 2" electric brakes, this axle comes fully assembled and pre-greased, making it ideal for livestock trailers, cargo trailers, dump trailers, and other heavy-duty builds. Whether you're replacing a worn-out axle or building a new trailer, this unit delivers dependable, road-tested strength.
📐 Specifications
Load Capacity: 7,000 lbs (7K)
Axle Type: Electric Brake
Tube Diameter: 3" straight steel axle tube

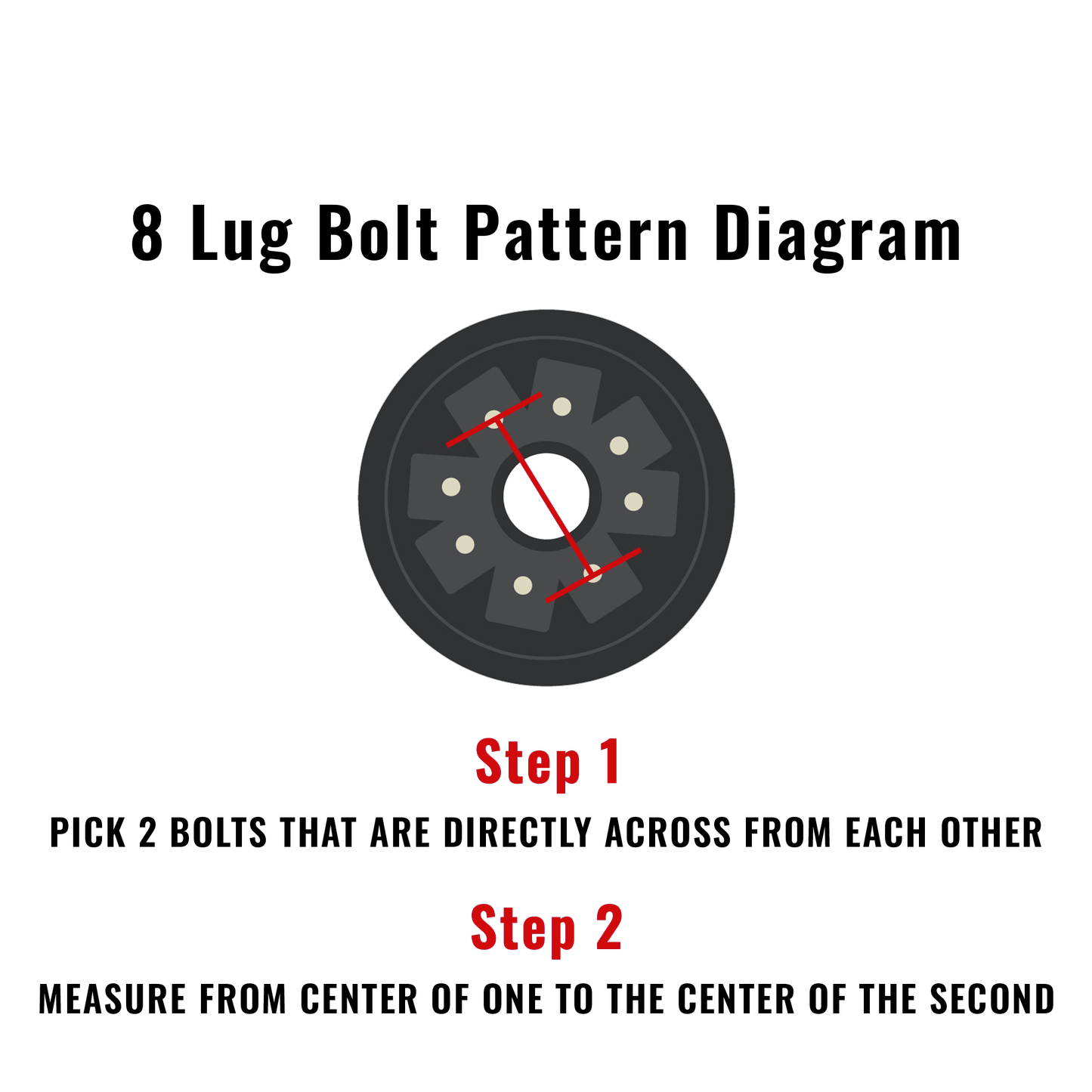

Bolt Pattern: 8x6.5"
Stud Size: 1/2"-20 x 2.5" (press-in)
Brake Assembly Size: 12" x 2" Manual Adjust
Tire Compatibility: Fits 16" tire & wheel assemblies

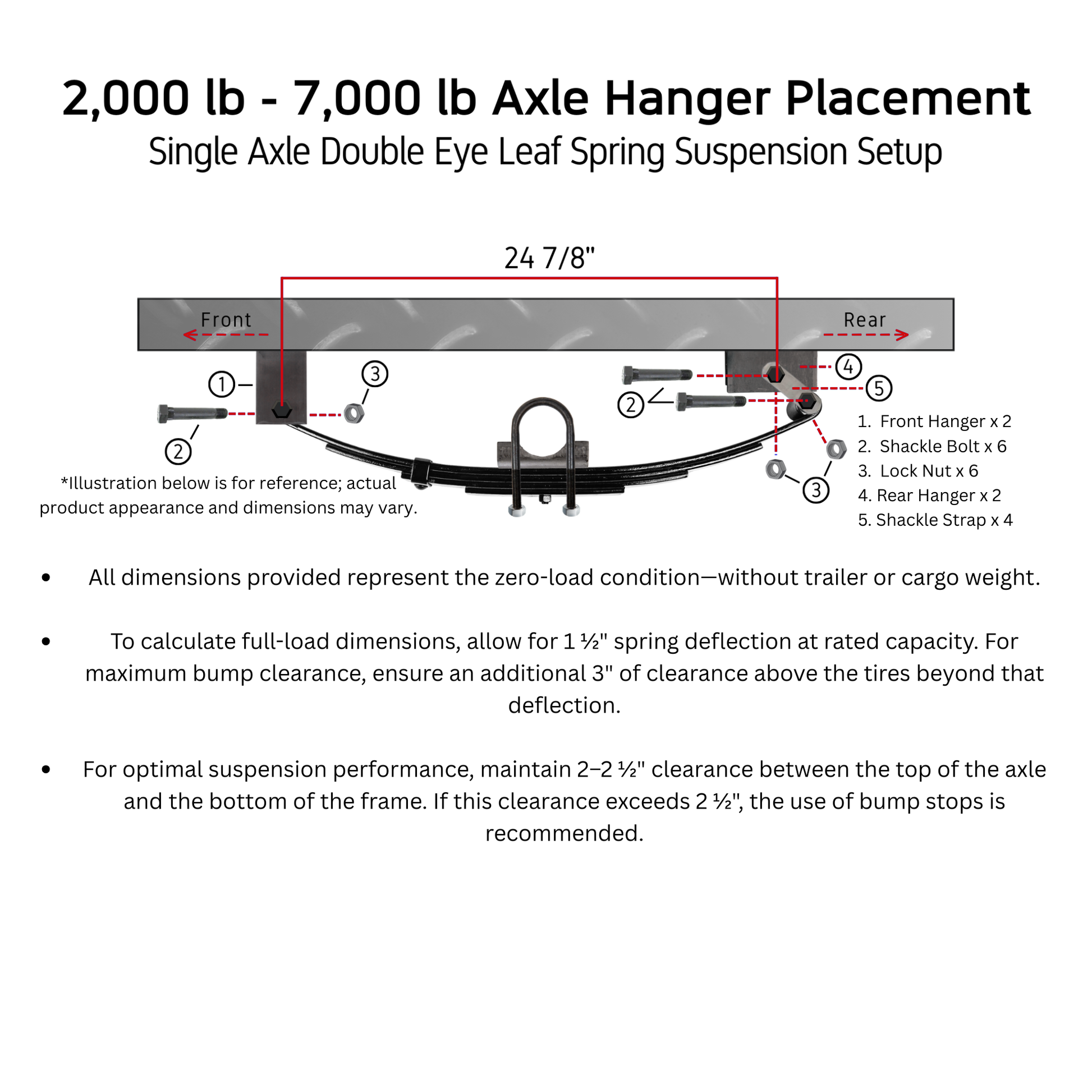

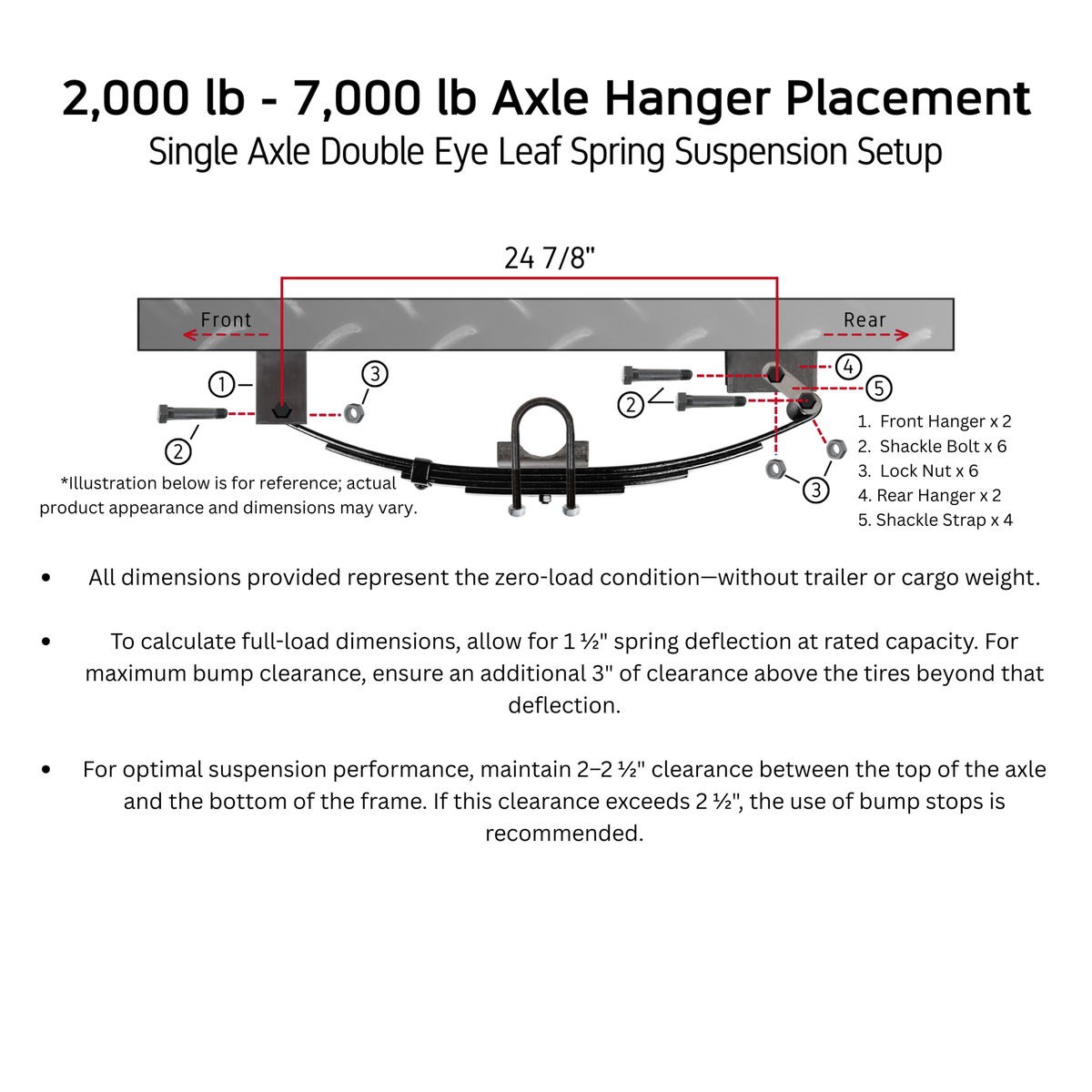

Mount Type: Underslung (leaf springs mount under the axle)
Product Weight: 165 lbs
Wiring: Internal brake wire routing for added protection and cleaner installation
Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
ABS Compatibility: Not compatible
📦 What’s Included (Pre-Assembled Components)
DAT HOIST 7K Axle Beam – 3" tube
Pre-installed 12" x 2" Electric Brake Assemblies – Left & Right

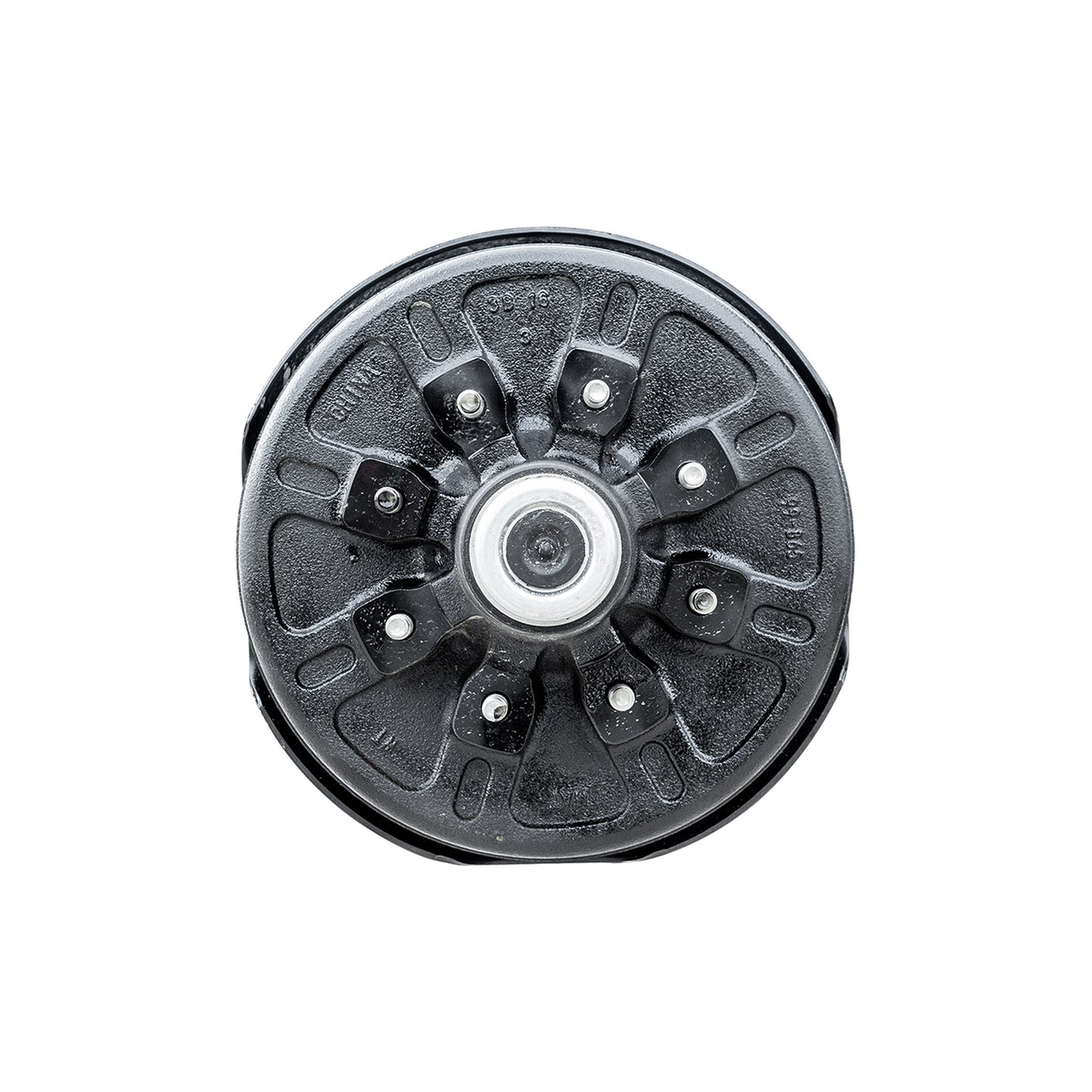

Pre-greased Brake Hubs & Drums – 8x6.5 bolt pattern
Inner & Outer Bearings
Bearing Races (pre-installed)
Tang Washers (for EZ-Lube spindles)
Cotter Pins (for standard spindles)
Double Lip Grease Seals
Hub/Dust/Grease Caps
Internal Brake Wiring – protects brake wires from wear
✅ Key Features
Fully Assembled: Brakes and hubs come pre-installed
High-Strength Steel Construction: Ensures durability and a smoother highway towing experience
EZ Lube Design: Add grease without removing the hub
Internal Wiring System: Clean, protected routing for long-term brake wire protection
Underslung Mounting: Supports a lower trailer ride height
Dexter-Compatible: Direct-fit replacement for Dexter and similar axle brands
🚙 Ideal For
Livestock Trailer Builds or Replacements
Utility Trailer Conversions
Car Hauler Trailer Upgrades
Cargo & Equipment Trailers
