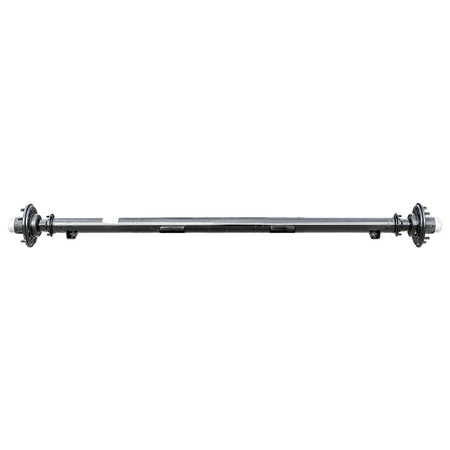

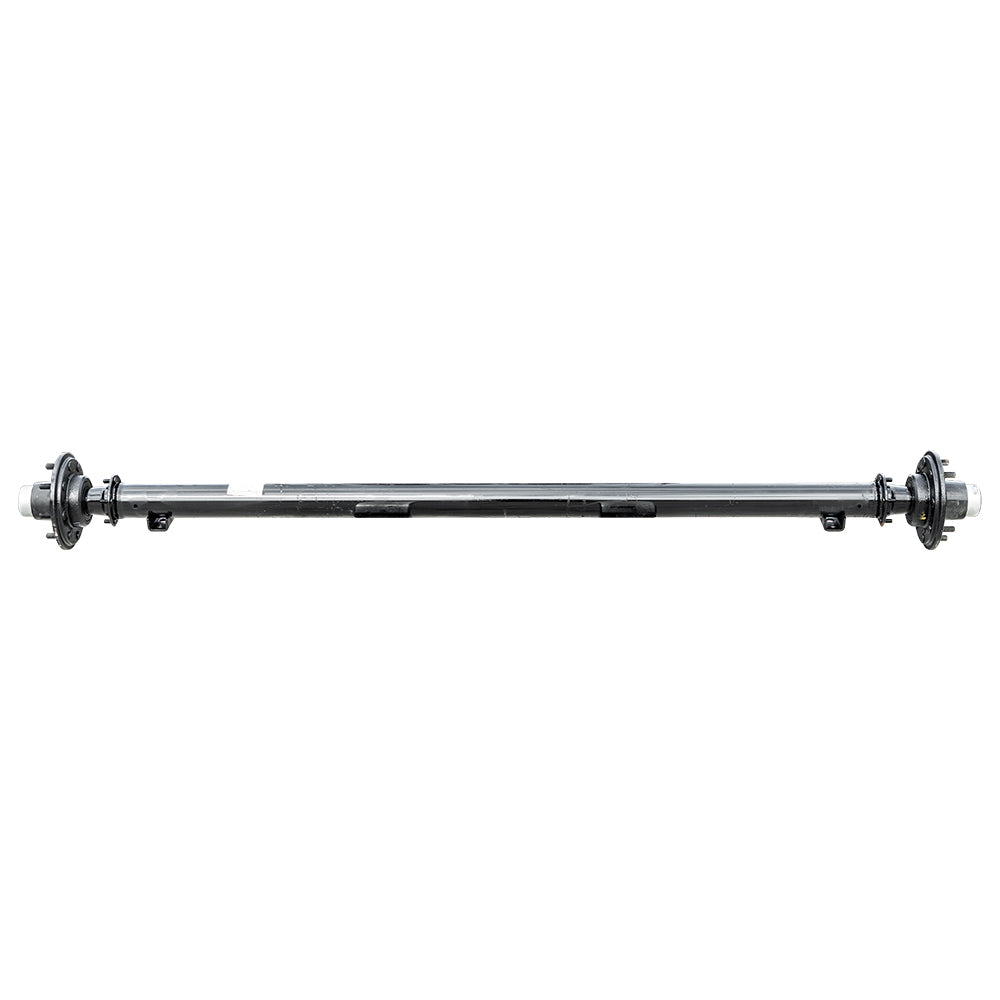

7K Straight Idler Trailer Axle – 7,000 lb Capacity
Bolt Pattern: 8x6.5 | Brake Type: None (Idler) | Brand: DAT HOIST | Fully Assembled & Ready to Install
🔧 Product Overview

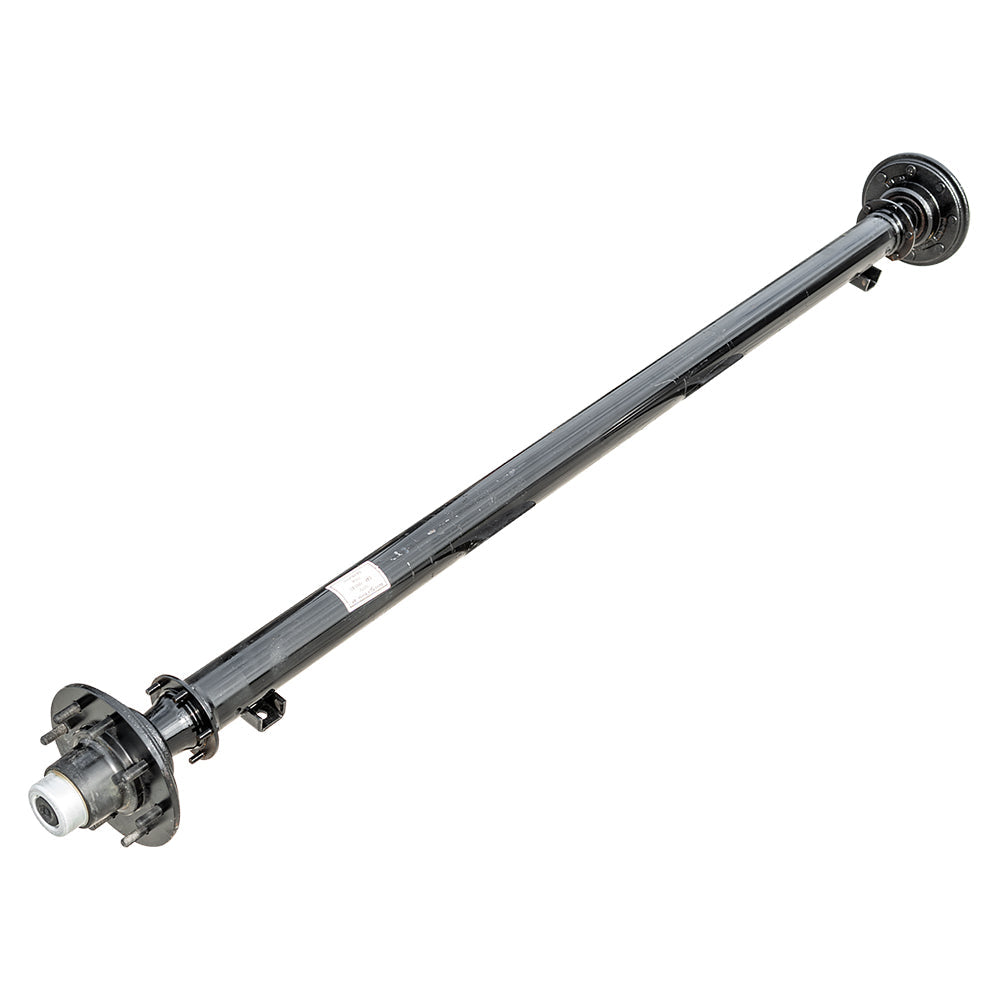

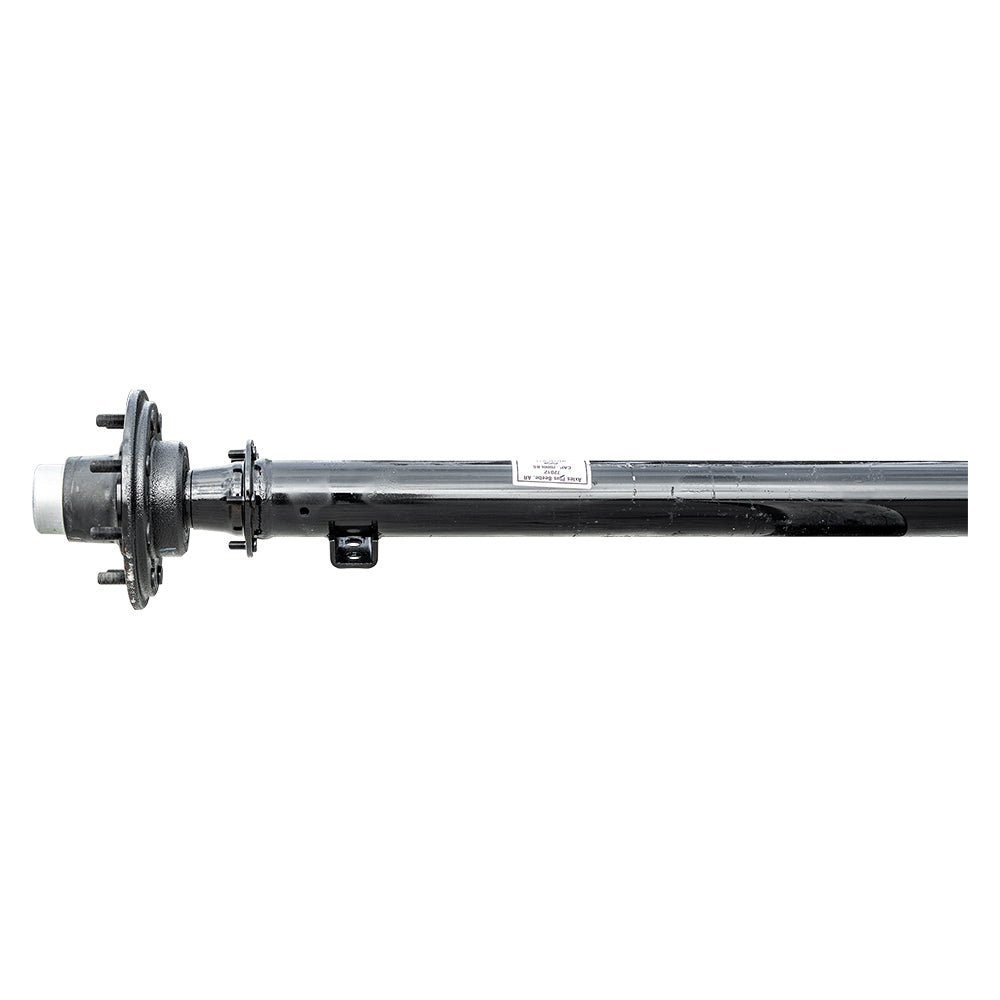

The DAT HOIST 7K idler trailer axle is designed for medium-duty applications that demand durability, easy installation, and dependable performance. Featuring an 8-lug bolt pattern and 3" axle tube, this axle comes fully assembled and pre-greased, ready to be mounted on your trailer with minimal setup. Just install the suspension and wheels—no need to attach the hub face.
Perfect for landscape trailers, flatbeds, small cargo haulers, and more. Not sure if this axle is the right fit? Contact our support team for help choosing the best option for your fleet.
📐 Specifications
Load Capacity: 7,000 lbs (7K)
Axle Type: Idler (no brakes)
Tube Diameter: 3" round steel axle tube

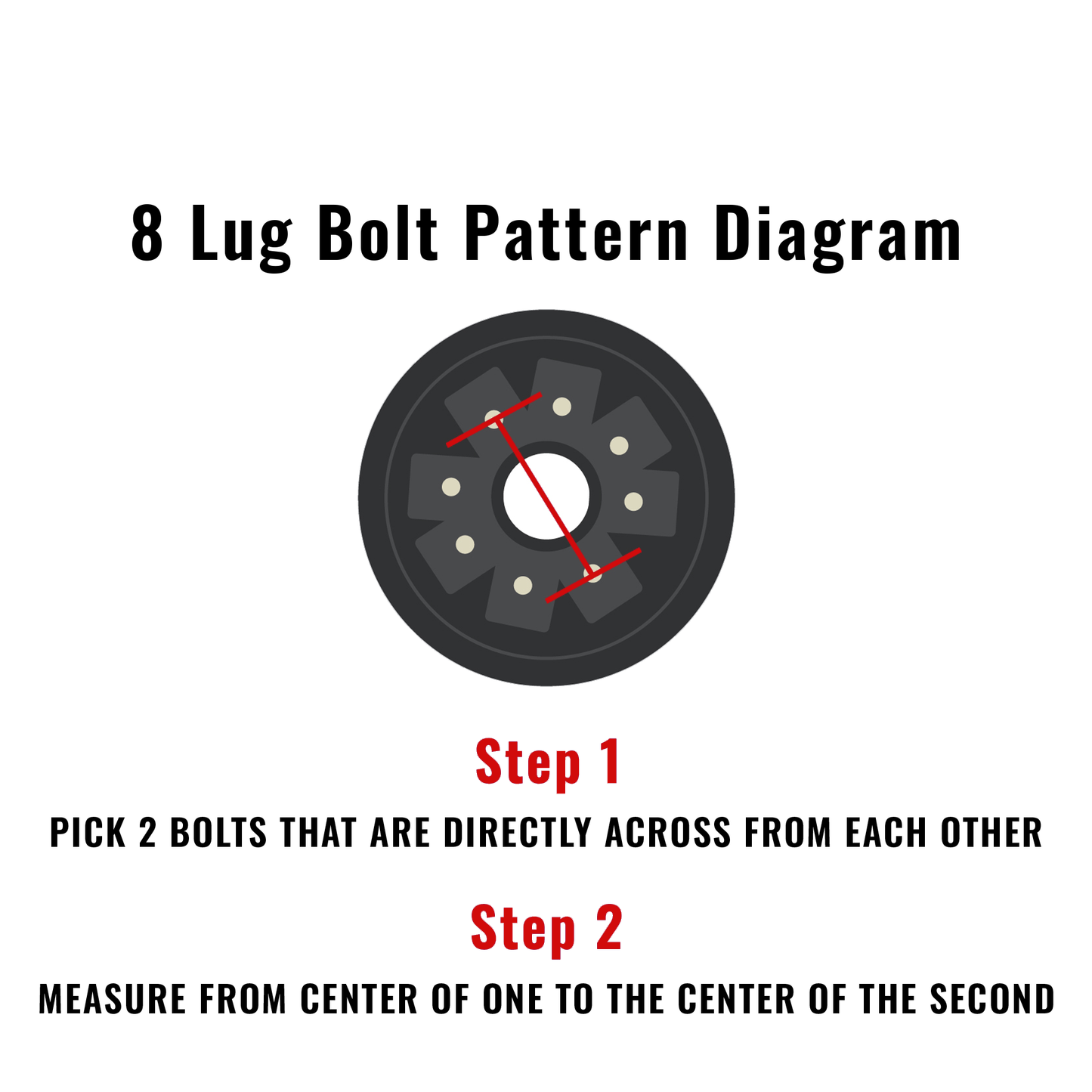

Bolt Pattern: 8x6.5"
Stud Size: 1/2"-20
Product Weight: Approx. 70–80 lbs
Mount Type: Underslung (spring seats welded to bottom)
Spindle Type: EZ Lube with zerk fitting
Grease: Pre-packed with high-temp axle grease

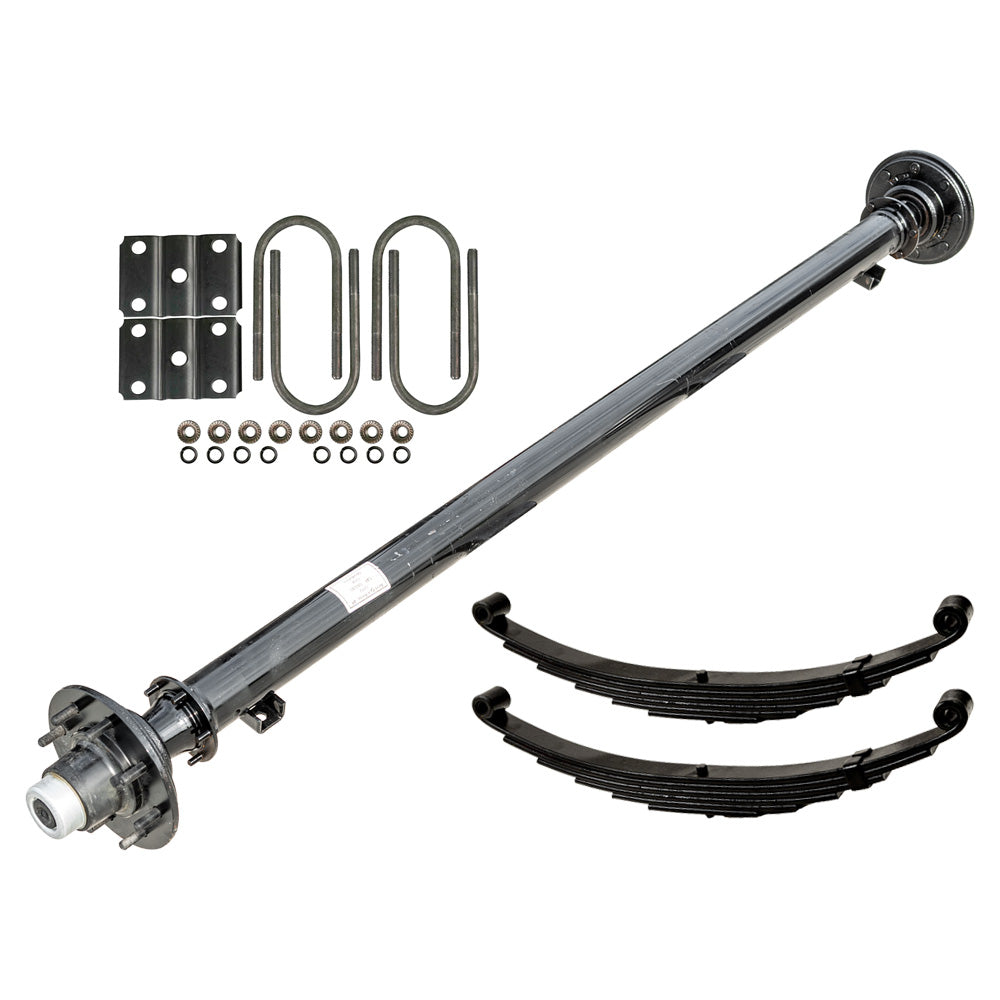

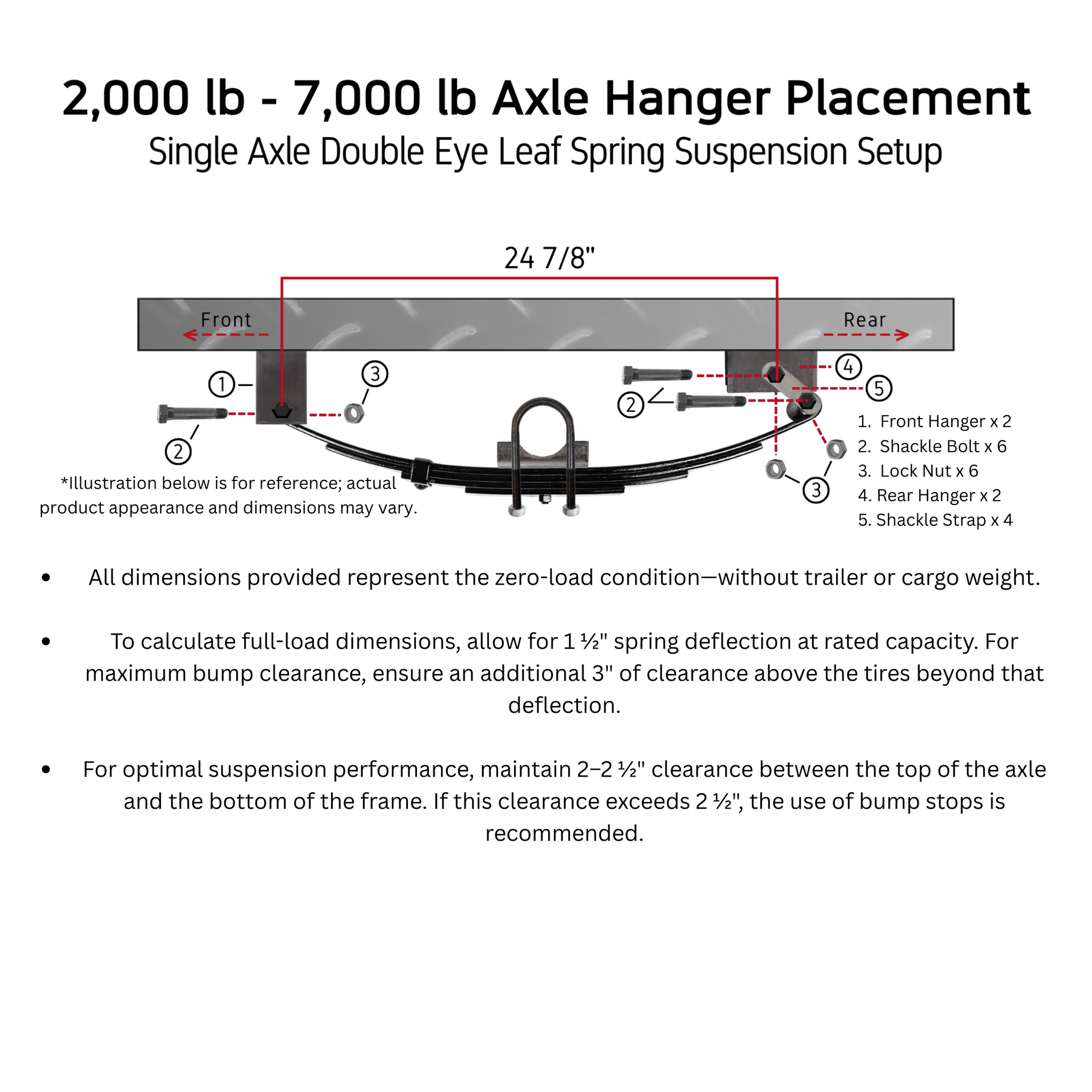

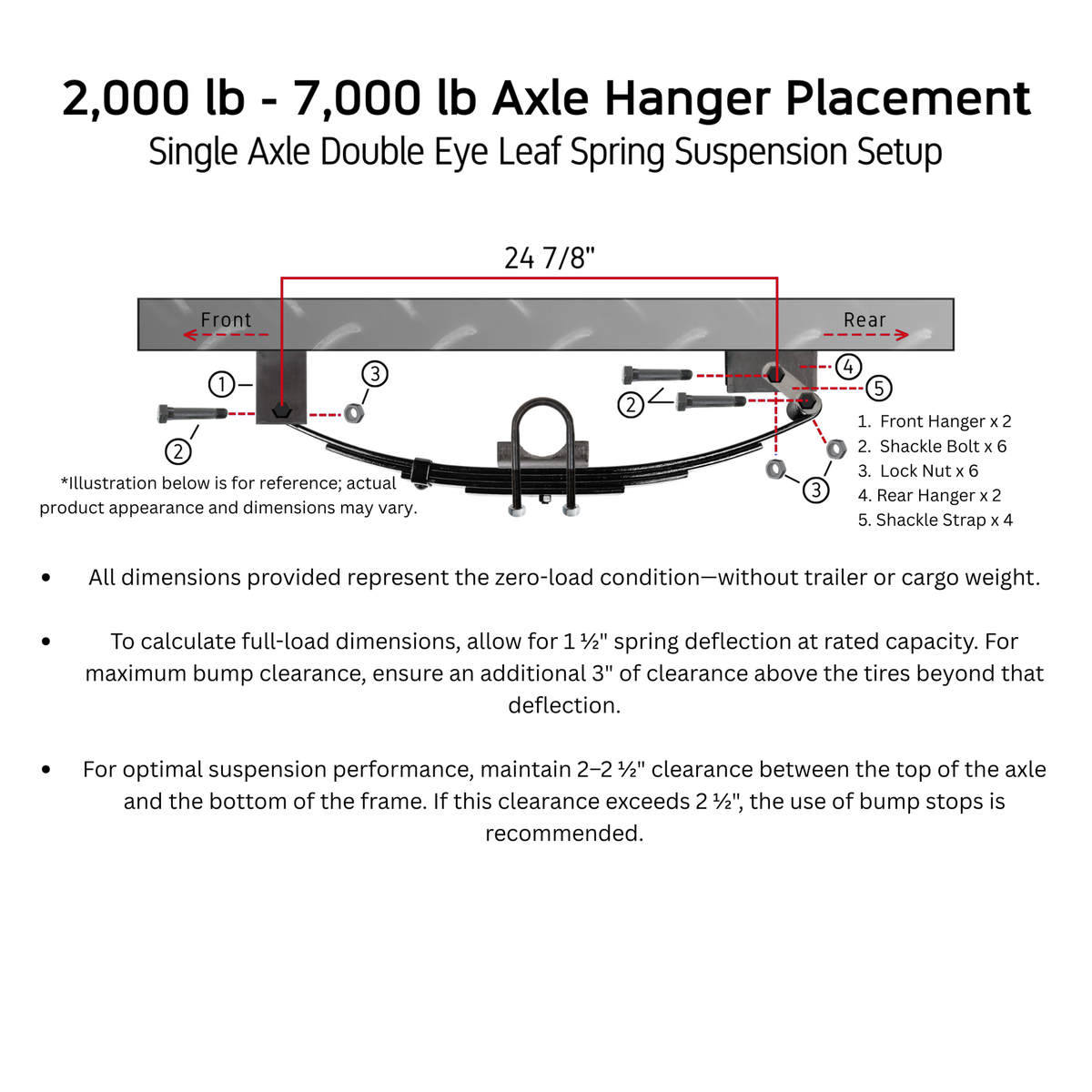

Suspension Recommendation: Double eye springs
Compatibility: Replaces Rockwell American, Lippert, Hayes, and AL-KO axles
📦 What’s Included (Pre-Assembled Components)
DAT HOIST 7K Axle Beam – 3" tube

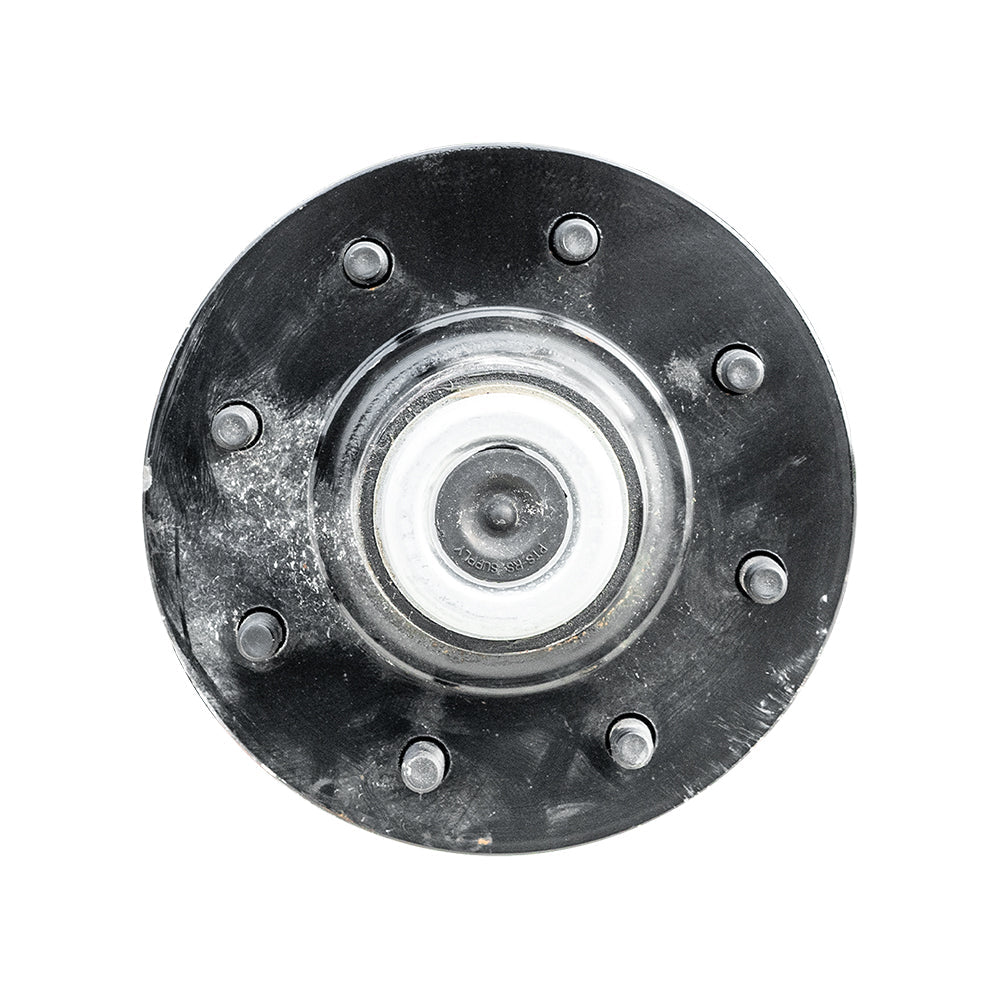

DAT HOIST 7K Idler Hubs – 8 Lug
DAT HOIST 7K Axle Studs – 1/2"
7K Bearing Kit (2 sets) including:
-
Inner Bearing & Race
-
Outer Bearing & Race
-
Double Lip Grease Seal
-
Cotter Pin
-
Tang Washer (for EZ-Lube spindles)
-
Hub/Dust/Grease Cap
✅ Key Features
Fully Assembled: No need to install hub faces—ready to mount
EZ Lube Design: Zerk fitting under rubber plug allows easy greasing
High-Strength Steel Tube: Ensures long life and even tire wear
Underslung Configuration: Supports lower ride height
Smooth Highway Handling: Built for stability and comfort under load
Direct Replacement: Interchangeable with major brands like Dexter, Rockwell, Lippert, and AL-KO
🚙 Ideal For
Utility Trailers
Car Hauler Trailers
Lawn & Landscape Trailers
Flatbed Trailers
Livestock Trailers
Cargo & Enclosed Trailers
RV & Camper Trailers
Dump Trailers
Lowboy Trailers
