8 Ton Heavy-Duty Hydraulic Scissor Hoist for 10–14' Dump Body | DH-516HD
Product Overview
The DH-516HD Scissor Hoist is an 8 ton heavy-duty hydraulic scissor hoist assembly engineered with added structural reinforcements for applications where durability and long service life are critical. Designed for 10–14 ft dump beds, this HD version delivers smooth, controlled lifting performance even under demanding loads.
Built by DAT HOIST from reinforced structural steel, the DH-516HD is ideal for customers who already have an existing hydraulic power unit or plan to integrate the hoist into a custom hydraulic system. This product includes the scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month warranty.
Key Features
-
8 Ton Lifting Capacity – Handles heavy loads with confidence for commercial applications
-
HD Reinforced Design – Added reinforcement at critical stress points for increased strength and longevity
-
Fits 10–14 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Minimizes flexing under load and extends service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Compatible With External Hydraulic Power Units – Designed for existing or customer-supplied hydraulic systems
Recommended Applications
This HD hydraulic scissor hoist is commonly used for:
-
Dump trailers carrying heavier payloads
-
Contractor and commercial dump bodies
-
Utility and landscape trailers requiring added strength
-
Equipment replacements and structural upgrades
-
Custom hydraulic system installations
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 8 Ton |
| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist (HD Reinforced) |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Structure Steel |
| Finish | Powder-Coated |

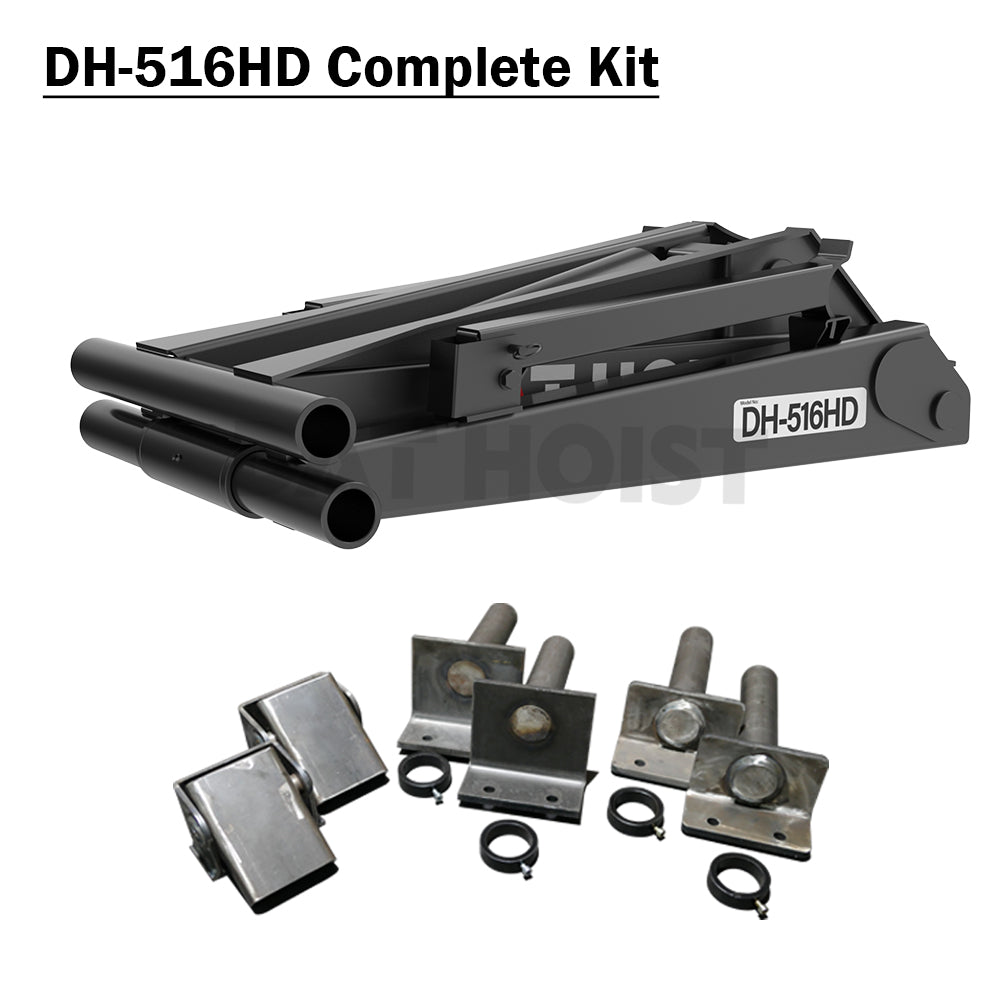

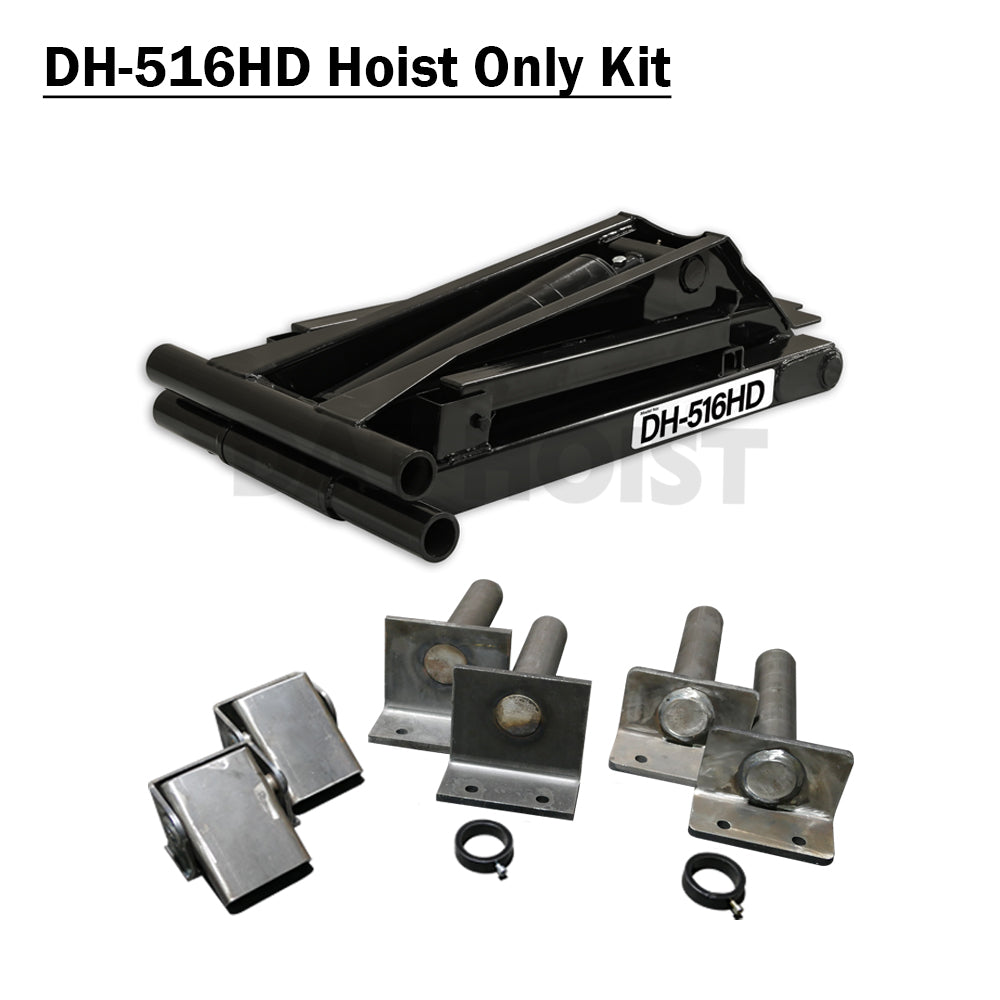

What’s Included in the DH-516HD Scissor Hoist
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-516HD | 516HD Hoist Frame | 1 |
| CY-516 | 516 Hydraulic Cylinder | 1 |
| DH-TR/TK-ACC-R | Five Series Ring Collar | 2 |
| DH-5-TK-ACC-UA | Five Series Truck Upper Lifting Arm | 2 |
| DH-5-TK-ACC-LA | Five Series Truck Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
Not Included:
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-516HD hydraulic scissor hoist is designed for installation on 10–14 ft dump beds and must be paired with a compatible external hydraulic power unit. It can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets the required flow and pressure specifications. Professional installation is recommended to ensure proper fitment, safe operation, and optimal lifting performance.
FAQ
Q: Does the DH-516HD include a hydraulic power unit?
A: No. The DH-516HD Scissor Hoist includes the hoist frame and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between DH-516 and DH-516HD?
A: The DH-516HD features additional structural reinforcement, providing greater durability and strength compared to the standard DH-516.
Q: What size dump bed is this hoist designed for?
A: The DH-516HD is designed for 10–14 ft dump beds.
Q: Is this hoist suitable for dump trailers?
A: Yes. It is ideal for dump trailers and dump bodies that require added strength and durability.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-516HD Scissor Hoist is built for operators who need added structural strength without a bundled power unit, backed by proven engineering and a 24-month warranty.
