8 Ton Hydraulic Scissor Hoist for 10–14' Dump Body | DH-516 Pro for Trailer
Product Overview
The DH-516 Pro Scissor Hoist for Trailer is a reinforced 8 ton hydraulic scissor hoist assembly designed for 10–14 ft dump beds, engineered specifically for dump trailers that require enhanced structural strength, improved load stability, and longer service life.
Building on the proven DH-516 Short Lower Arm design, the DH-516 Pro features additional reinforcement at critical load-bearing and pivot points, resulting in a more rigid structure and improved resistance to flexing under heavy or repeated loads.
Designed by DAT HOIST, this Pro-grade hoist delivers smoother lifting performance, better load control, and increased durability while retaining the short lower arm configuration for easier installation on narrow frame dump trailers.
This product includes the reinforced scissor hoist structure and hydraulic cylinder only and is backed by a standard 24-month warranty.
Key Features
-
8 Ton Pro-Rated Lifting Capacity – Enhanced structural design improves load stability in demanding trailer applications
-
Reinforced Pro Construction – Strengthened stress points and upgraded steel sections for added rigidity
-
Short Lower Arm Design – Simplifies installation on narrow frame dump trailers
-
Fits 10–14 ft Dump Beds – Compatible with a wide range of dump trailers and compact dump bodies
-
Heavy-Duty Structural Steel – Built for commercial use and repeated lifting cycles
-
Reduced Flex Under Load – Improved geometry extends service life and maintains consistent lifting performance
-
Powder-Coated Finish – Resists corrosion, chipping, and harsh outdoor conditions
-
Compatible With External Hydraulic Power Units – Designed for customer-supplied or existing hydraulic systems
Recommended Applications
The DH-516 Pro for Trailer is ideal for:
-
Dump trailers carrying heavier or denser materials
-
Landscape, utility, and contractor-grade dump trailers
-
Equipment upgrades from standard-duty hoists
-
Replacement hoists for high-cycle trailer use
-
Custom hydraulic system installations requiring increased durability
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 8 Ton (Pro Reinforced Design) |
| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Special Feature | Pro Reinforced Structure + Short Lower Arm |
| Operation | Hydraulic (Power Unit Not Included) |
| Material | Heavy-Duty Structural Steel |
| Finish | Powder-Coated |

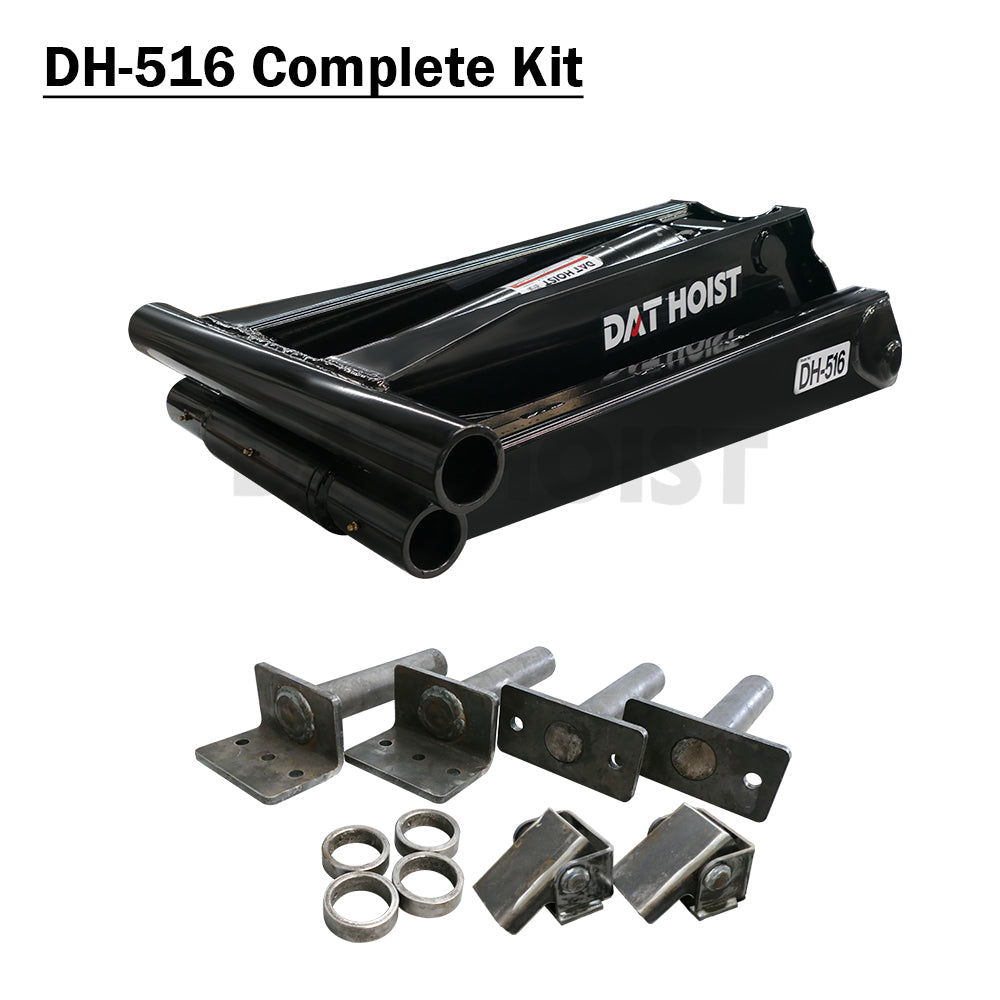

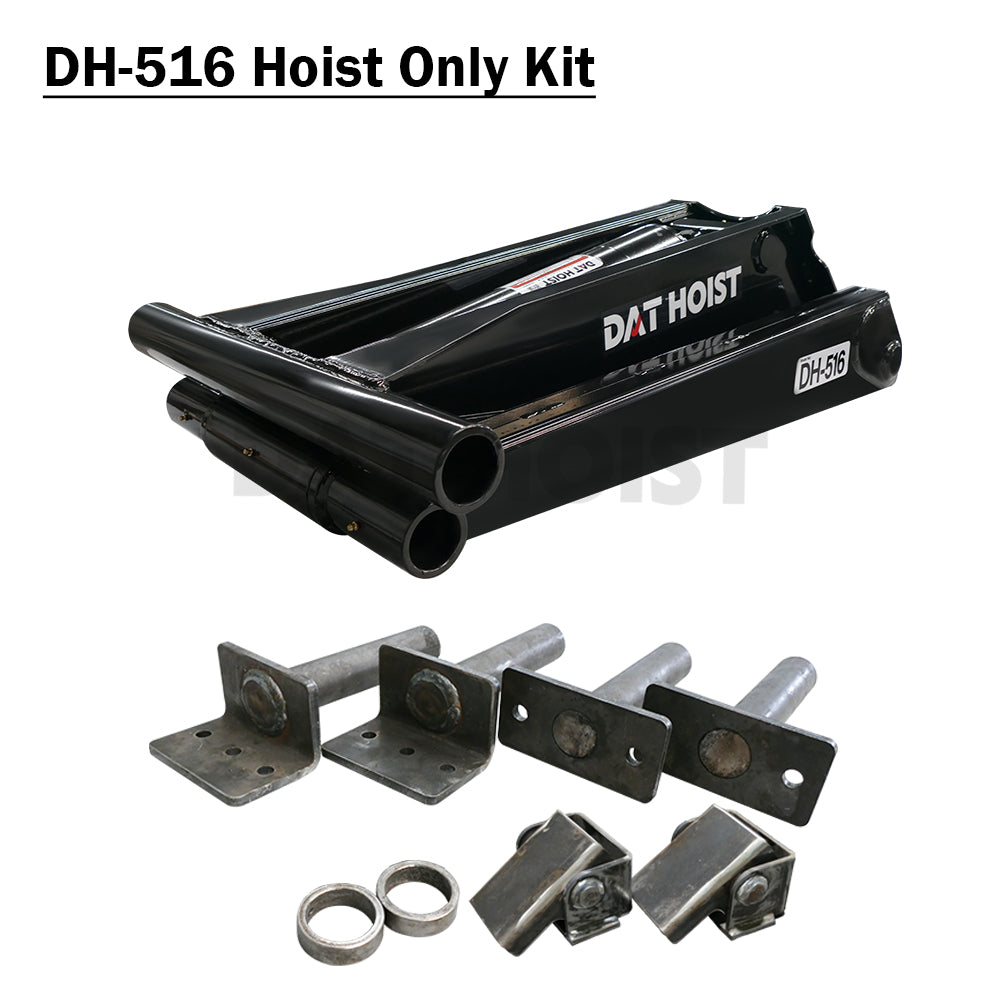

What’s Included – DH-516 Pro Scissor Hoist (Trailer Version)
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-516PL | Frame | 1 |
| CY-516 | 516 Hydraulic Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Pro Heavy-Duty Ring Collar | 4 |
| DH-G2-ACC-003 | 516/520 Pro Heavy-Duty Upper Lifting Arm | 2 |
| DH-G2-ACC-004 | 516/520 Pro Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
Not Included
-
Hydraulic Power Unit
-
Hydraulic Hoses & Fittings
-
Electrical Components
Installation & Compatibility
The DH-516 Pro hydraulic scissor hoist is designed for 10–14 ft dump beds, featuring a short lower arm that allows easier installation on narrow frame dump trailers.
This Pro version must be paired with a compatible external hydraulic power unit and can be integrated into most standard 12V DC hydraulic systems, provided the power unit meets the required flow and pressure specifications.
Professional installation is recommended to ensure correct alignment, safe operation, and optimal long-term performance.
FAQ
Q: Does the DH-516 Pro include a hydraulic power unit?
A: No. This product includes the reinforced scissor hoist assembly and hydraulic cylinder only. A hydraulic power unit is not included.
Q: What is the difference between DH-516 Pro and the standard DH-516 for Trailer?
A: The Pro version includes additional structural reinforcement, offering improved rigidity, better load stability, and longer service life under demanding conditions.
Q: Is the lifting capacity higher than the standard DH-516?
A: Both are rated at 8 tons, but the Pro version is engineered to handle repeated heavy loads with reduced flex and improved durability.
Q: Is this suitable for narrow frame dump trailers?
A: Yes. The short lower arm design maintains easy installation on narrow frame dump trailers while providing Pro-level strength.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic systems engineered for durability, reliability, and real-world performance.
The DH-516 Pro Scissor Hoist for Trailer is designed for operators who demand extra strength, improved longevity, and confidence when lifting heavier loads, backed by proven engineering and a 24-month warranty.
