8 Ton Hydraulic Scissor Hoist Kit for 10–14' Dump Body | DH-516 for Trailer
Product Overview

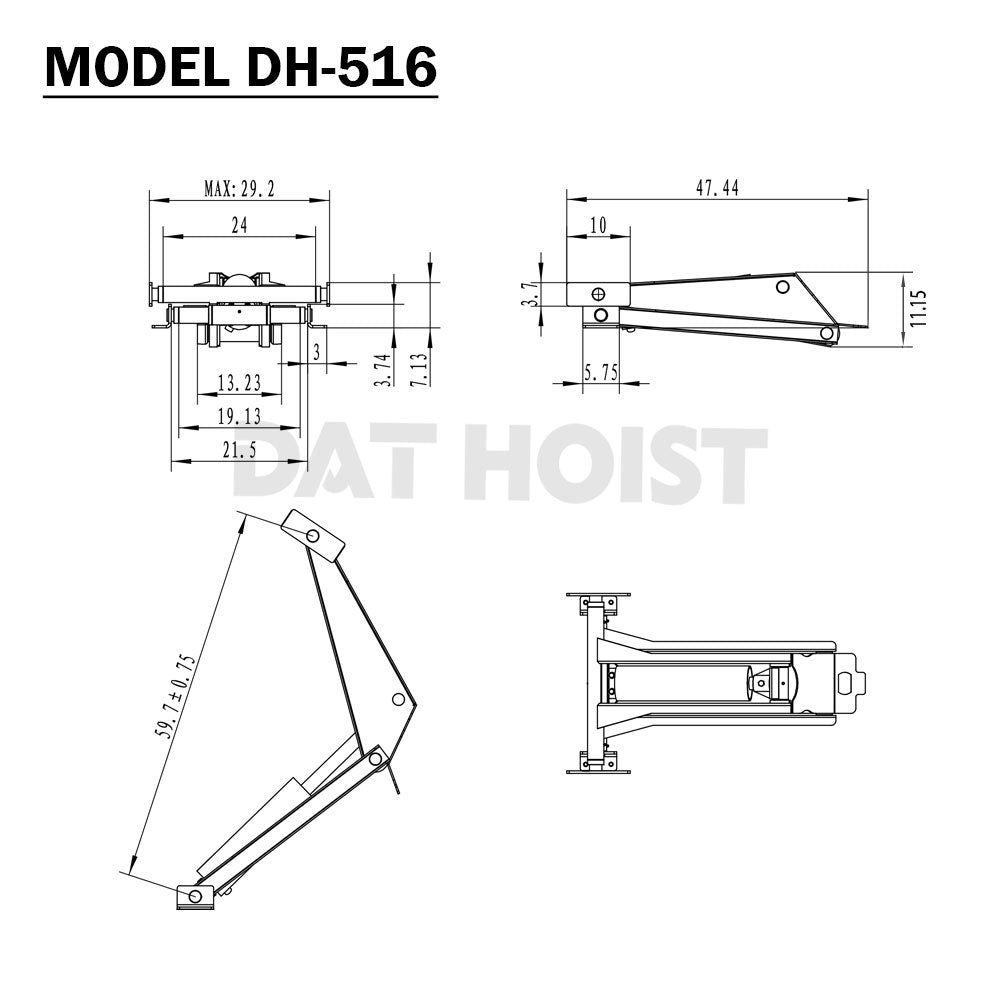

The DH-516 Short Lower Arm is an 8-ton hydraulic scissor hoist kit designed for 10–14 ft dump beds, featuring a shorter lower arm for easier installation on narrow frame dump bodies.
Engineered by DAT HOIST for superior strength and reliability, this heavy-duty hoist kit delivers powerful lifting performance and smooth, controlled operation, even under demanding loads. Built for long-term durability and daily commercial use, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the included hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
8 Ton Lifting Capacity – Handles heavy loads with confidence for commercial applications
-
Short Lower Arm Design – Simplifies installation on narrow frame dump beds
-
Fits 10–14 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel Construction – Built to withstand tough jobs and daily use
-
Reinforced Stress Points – Reduces flexing and increases service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This hydraulic scissor hoist kit is commonly used for:
-
Dump trailers with narrow frame layouts
-
Landscape trailers
-
Utility and contractor dump bodies
-
Light- to medium-duty dump trucks
-
Applications where installation space is limited
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 8 Ton |
| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Special Feature | Short Lower Arm |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structural Steel |
| Finish | Powder-Coated |

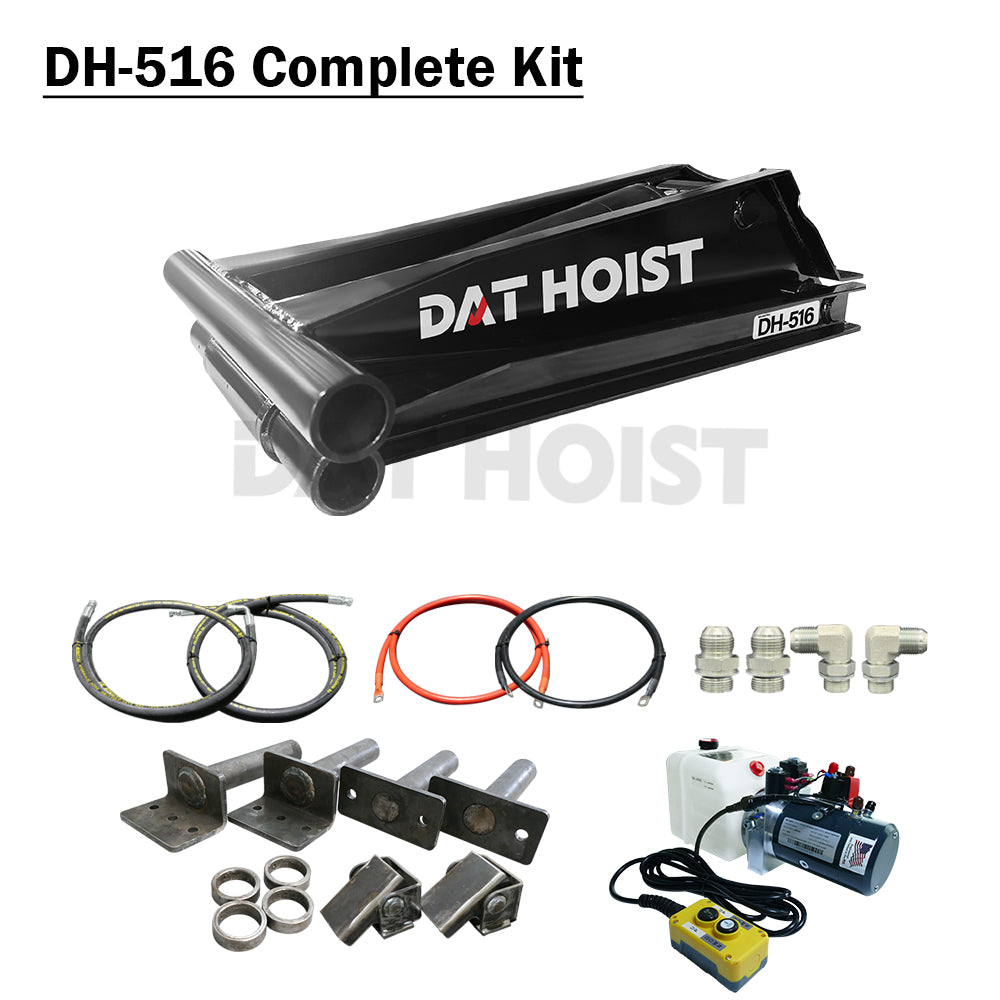

What’s Included – DH-516 Short Lower Arm Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-516SA | Hoist Frame (Short Lower Arm) | 1 |
| CY-516 | Hydraulic Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |

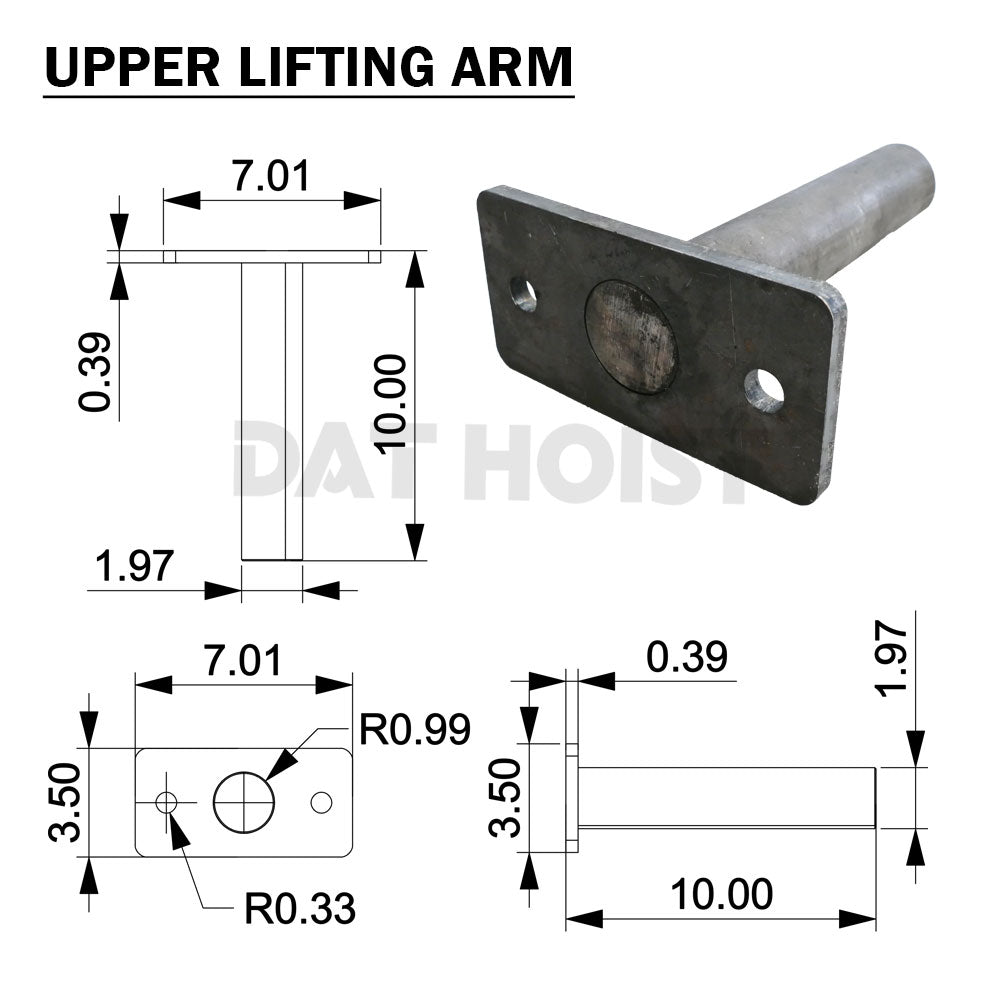

| DH-G2-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |

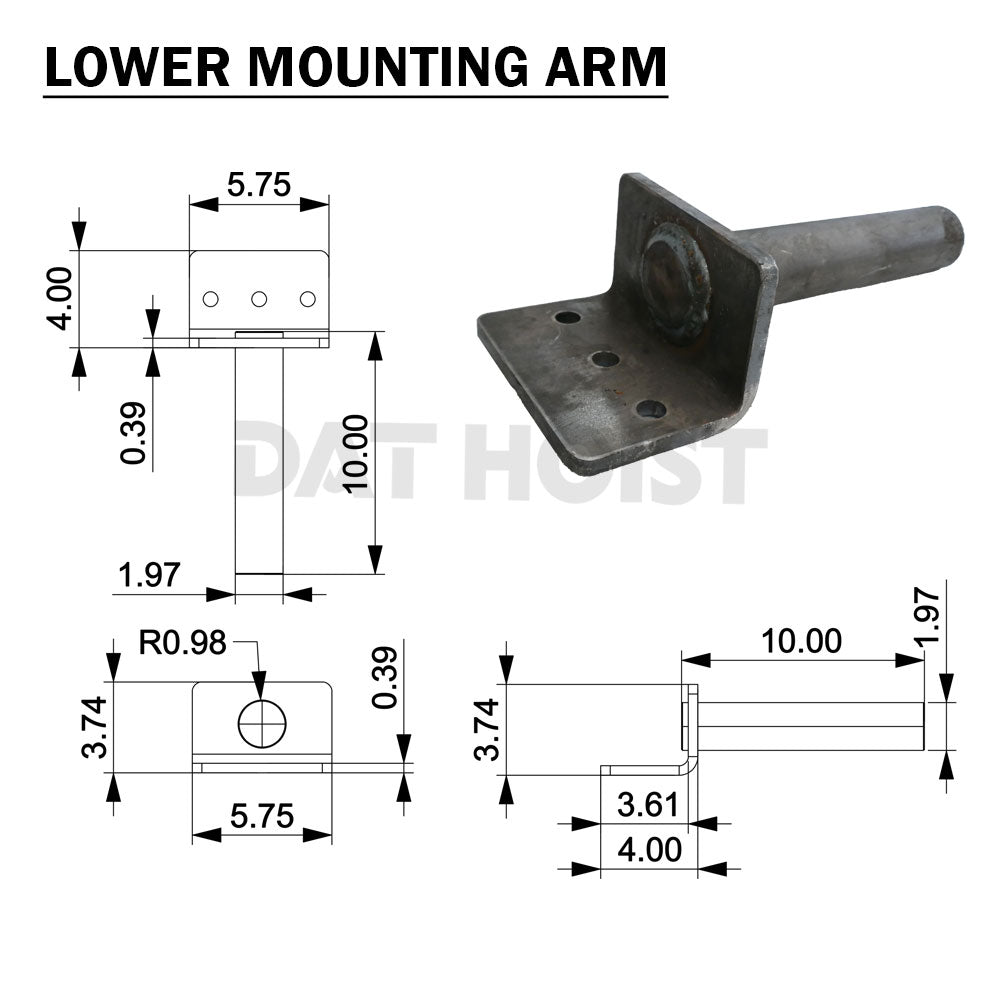

| DH-G2-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |
| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |
| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" Male JIC 37° Elbow | 2 |
| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-516 Short Lower Arm hydraulic scissor hoist kit is designed for installation on 10–14 ft dump beds, with a short lower arm that makes it especially suitable for narrow frame dump bodies.
It is compatible with standard 12V DC hydraulic systems used on dump trailers and truck bodies.
Professional installation is recommended to ensure safe operation and optimal performance.
FAQ
Q: What is the difference between this model and the standard DH-516?
A: This version features a shorter lower arm, allowing easier installation on narrow frame dump beds while maintaining the same 8-ton lifting capacity.
Q: What size dump bed is this hoist kit designed for?
A: The DH-516 Short Lower Arm is designed for 10–14 ft dump beds.
Q: Is a hydraulic power unit included with this kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for dump trailers?
A: Yes. It is ideal for dump trailers, landscape trailers, and utility dump bodies, especially where frame width is limited.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance.
The DH-516 Short Lower Arm Hydraulic Scissor Hoist Kit is designed for operators who need full 8-ton lifting capacity with easier installation on narrow frames, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
