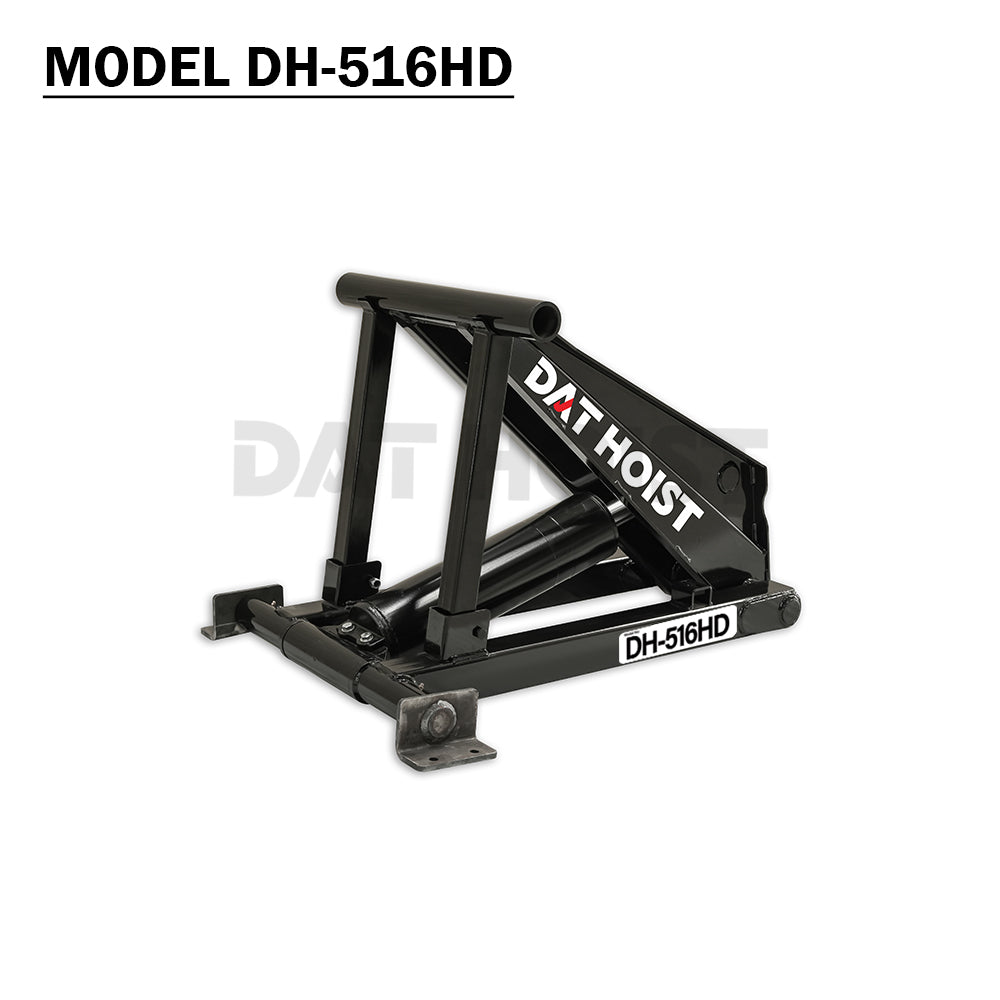

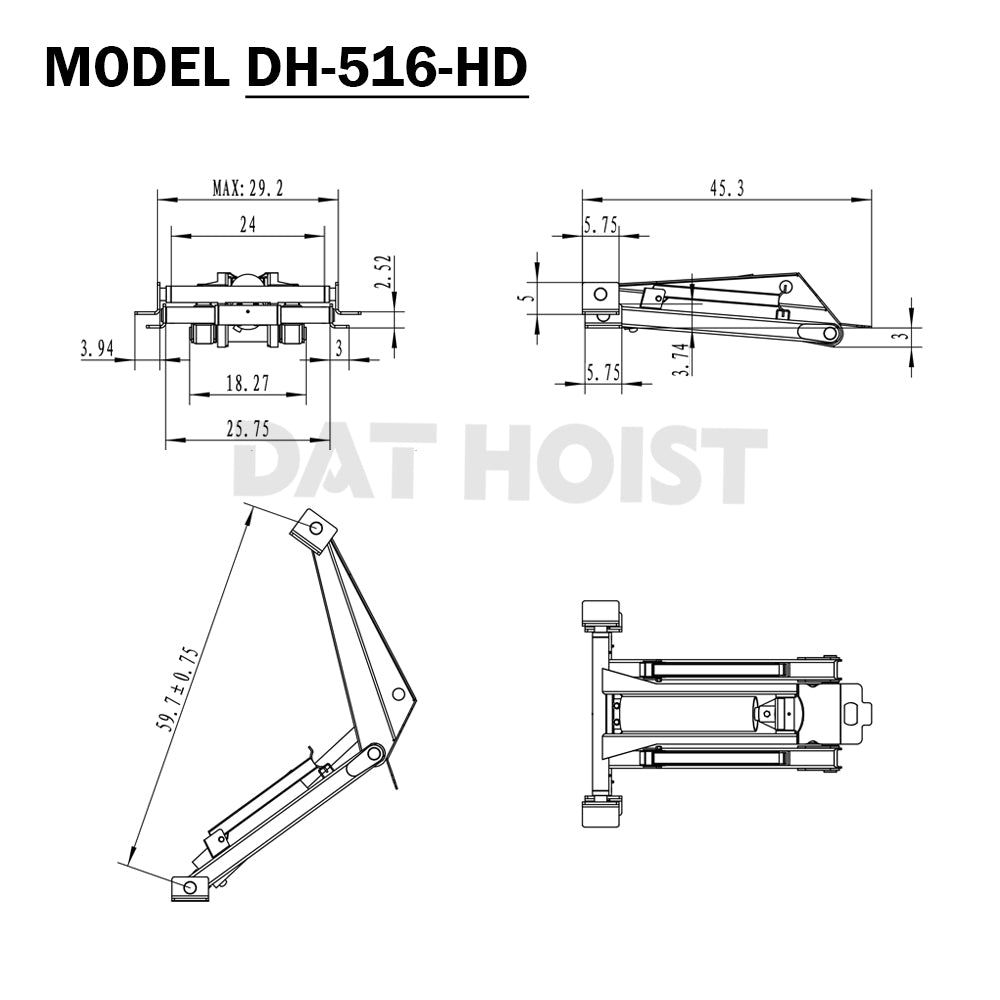

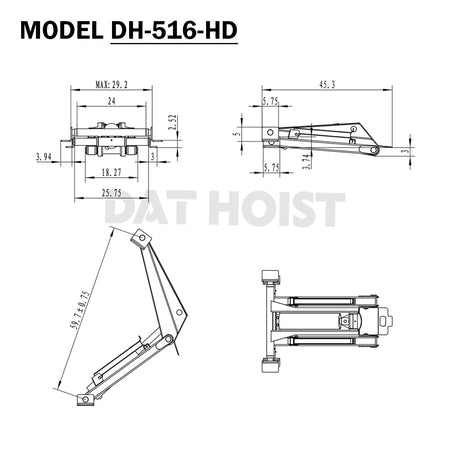

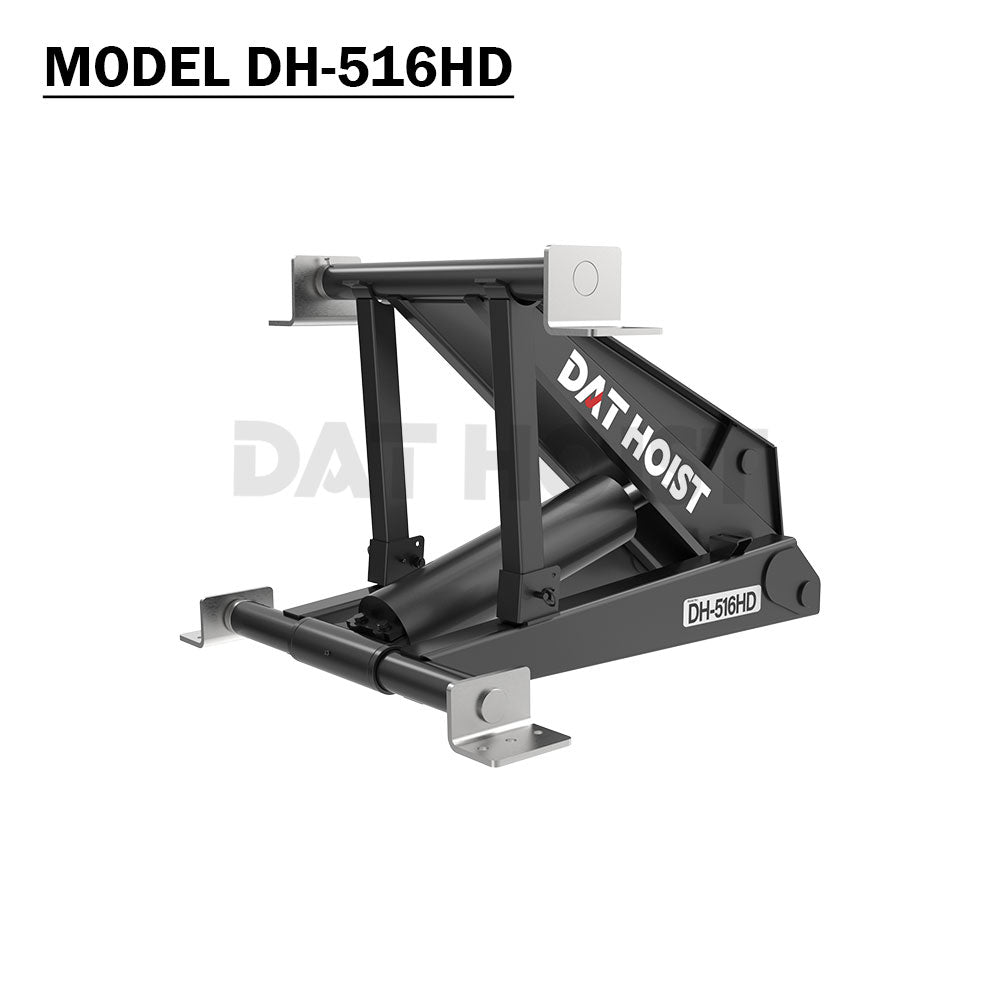

8 Ton Hydraulic Scissor Hoist Kit for 10–14' Dump Body – DH-516HD
Product Overview
The DH-516HD is an upgraded 8-ton hydraulic scissor hoist kit, engineered with enhanced structural reinforcements and refined design details for applications where loads are heavier and long-term durability is critical. Designed for 10–14 ft dump beds, this heavy-duty hoist delivers more stable, controlled lifting performance for dump trailers, landscape trailers, and medium-duty dump trucks—especially in demanding or high-cycle use.
Built by DAT HOIST for long-term reliability, multiple load-bearing areas have been strengthened to reduce flex and improve overall rigidity under load. The hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the included hydraulic power unit is covered by a limited 1-year manufacturer warranty,
Key Features
-
8 Ton Lifting Capacity – Confidently handles heavy loads in demanding commercial applications
-

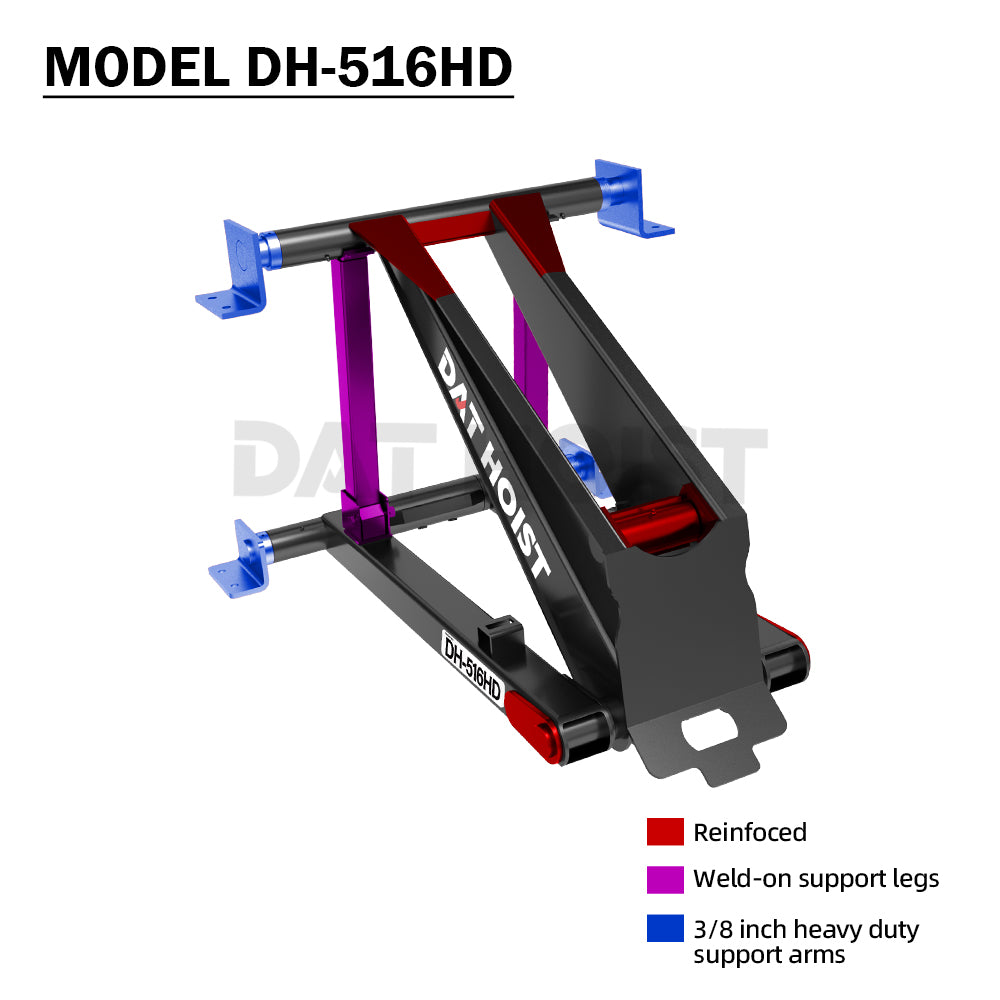

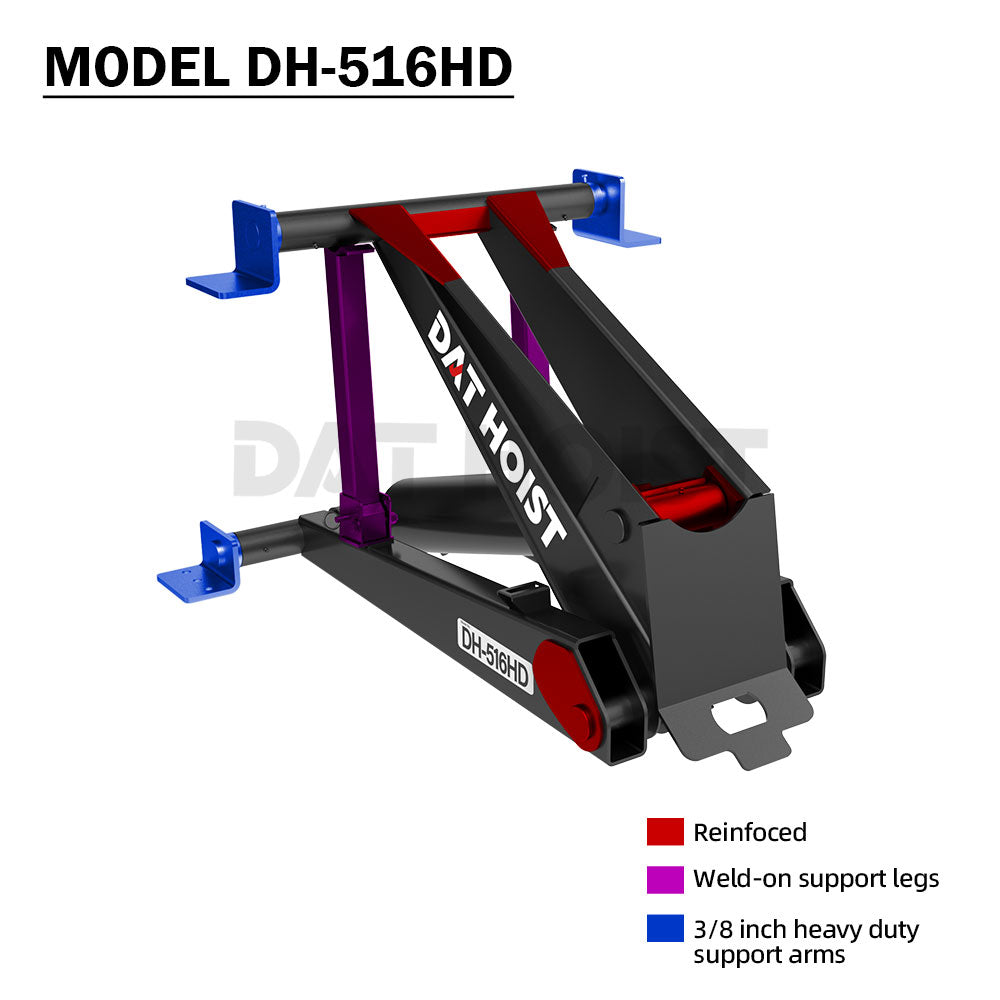

HD Reinforced Design – Built with added structural reinforcement for increased strength and longevity
-
Fits 10–14 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Structural Steel – Designed to withstand tough jobs and daily use
-
Reinforced Stress Points – Minimizes flexing and improves long-term performance
-
Powder-Coated Finish – Resists rust, chipping, and corrosion
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Enables safe and convenient operation from a distance
Recommended Applications
This HD hydraulic scissor hoist kit is commonly used for:
-
Dump trailers
-
Landscape trailers
-
Utility and contractor dump bodies
-
Medium-duty dump trucks
-
Applications requiring added structural reinforcement
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 8 Ton |

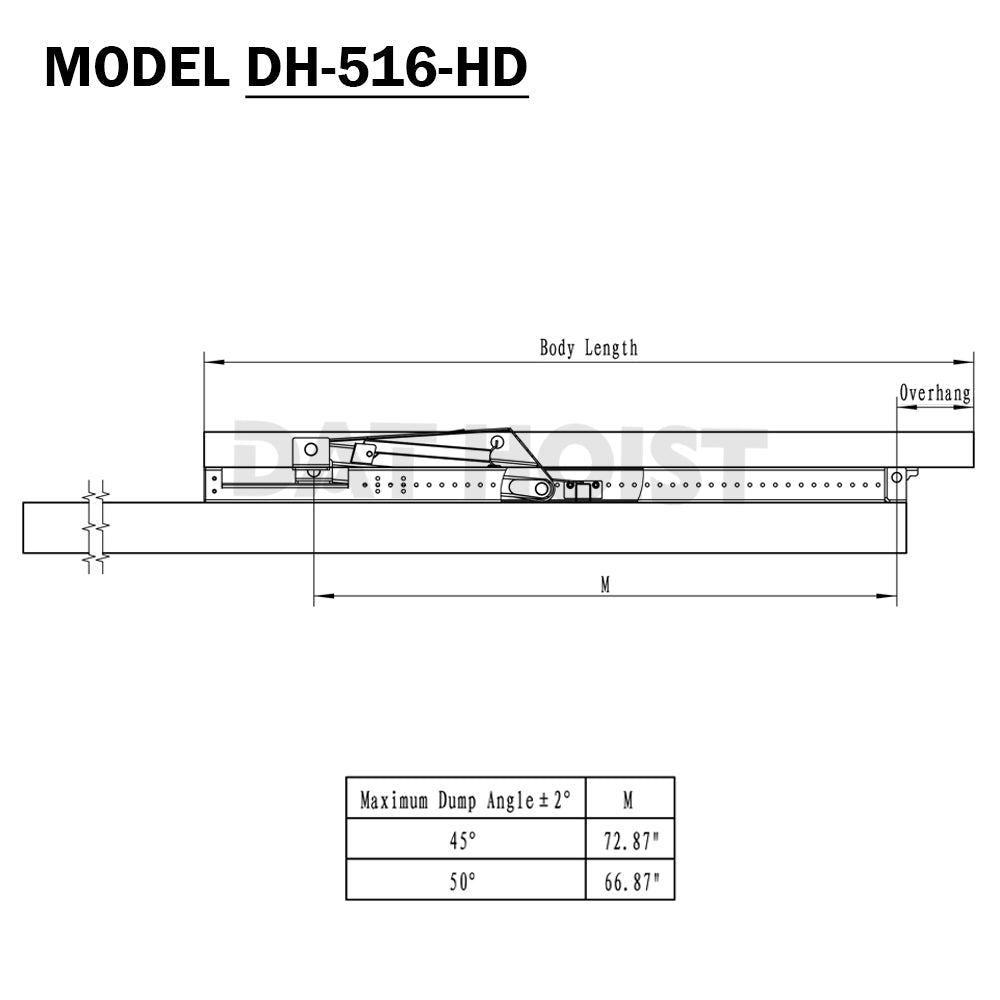

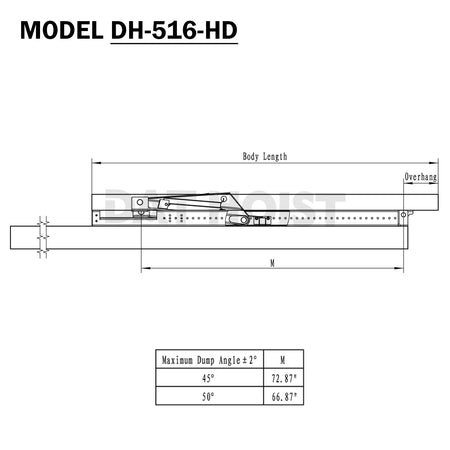

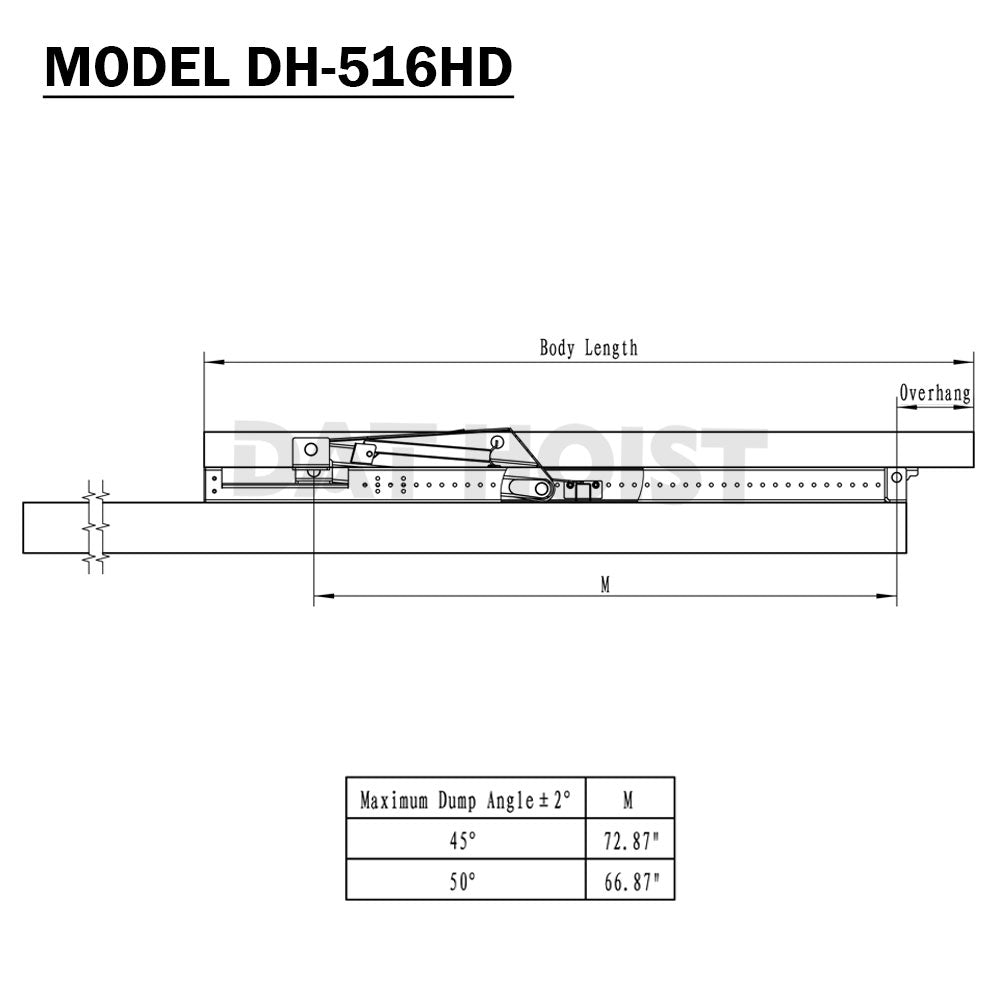

| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist (HD Reinforced) |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

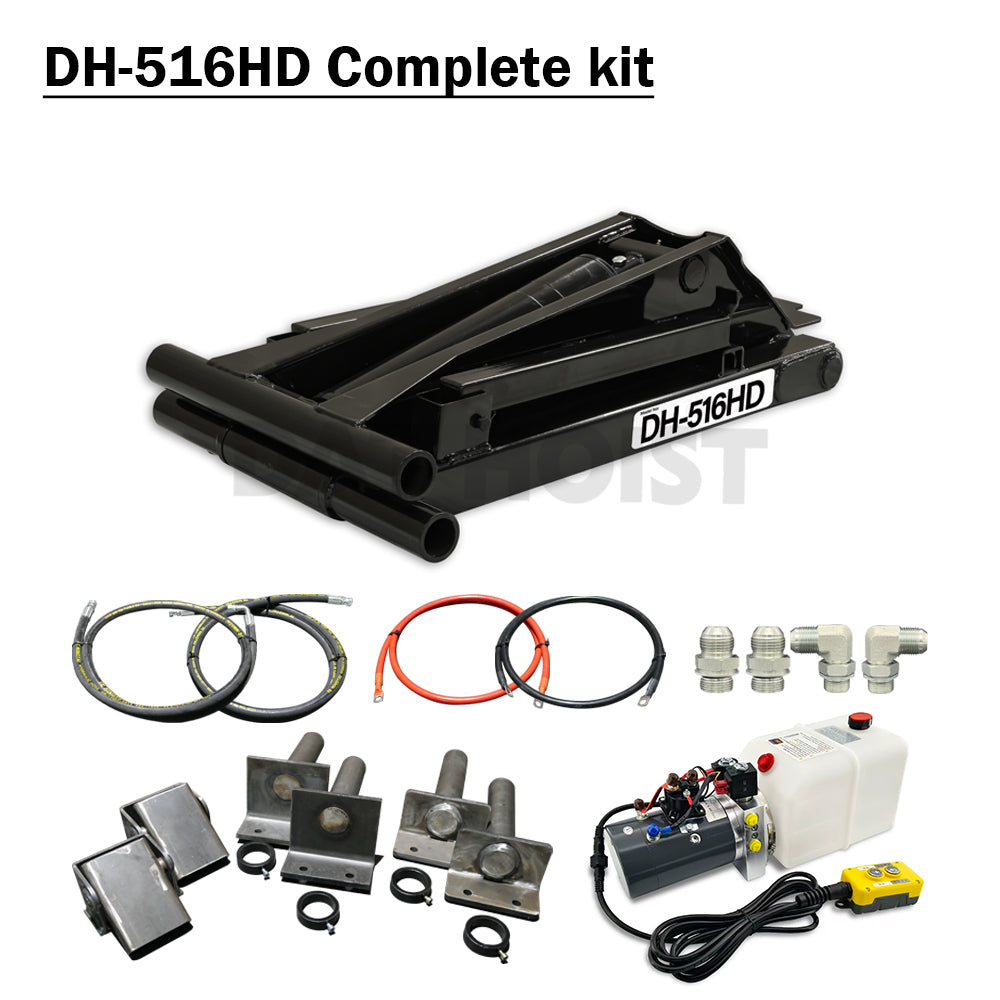

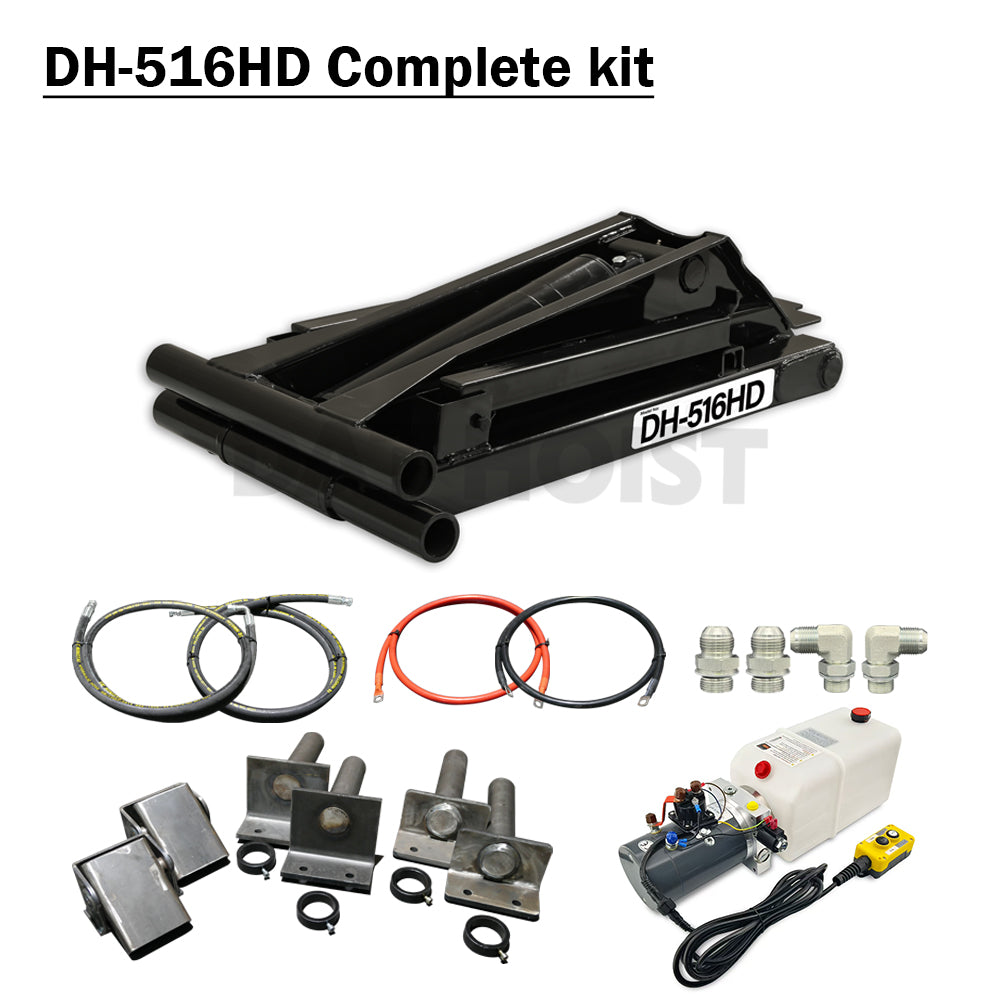

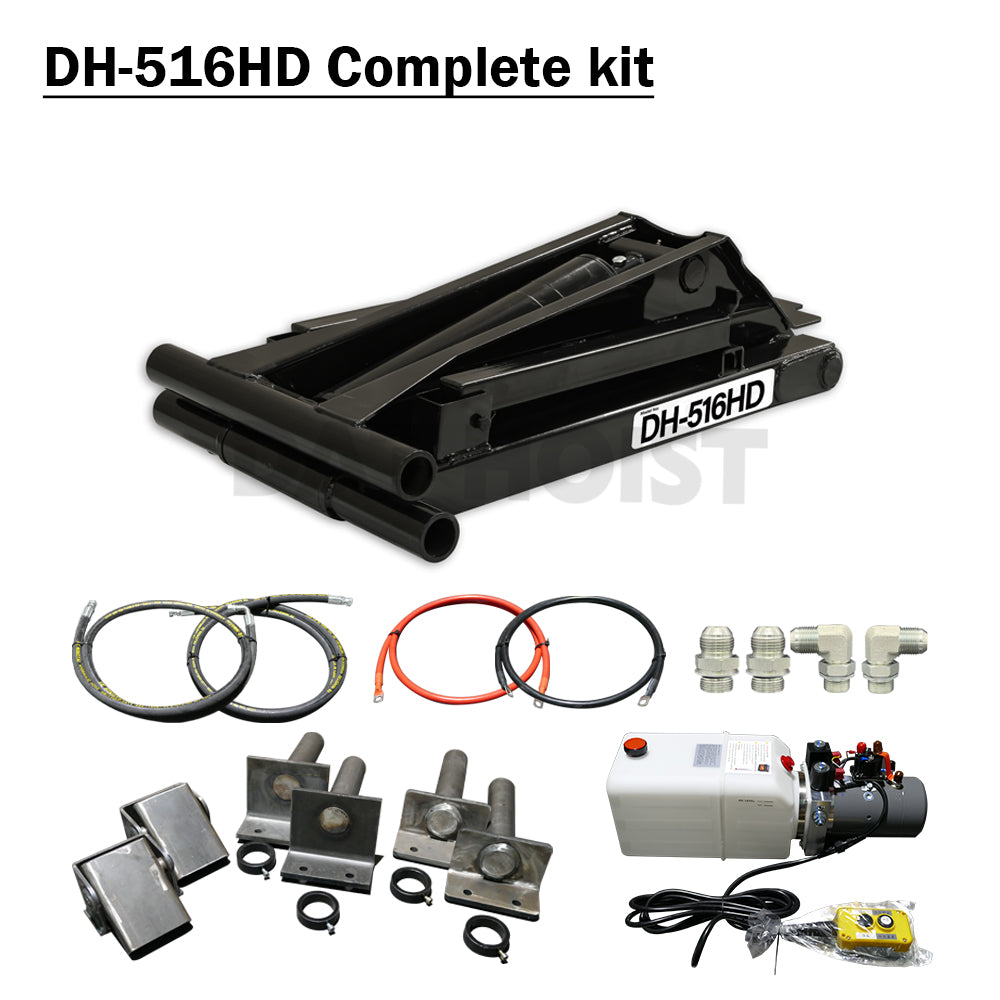

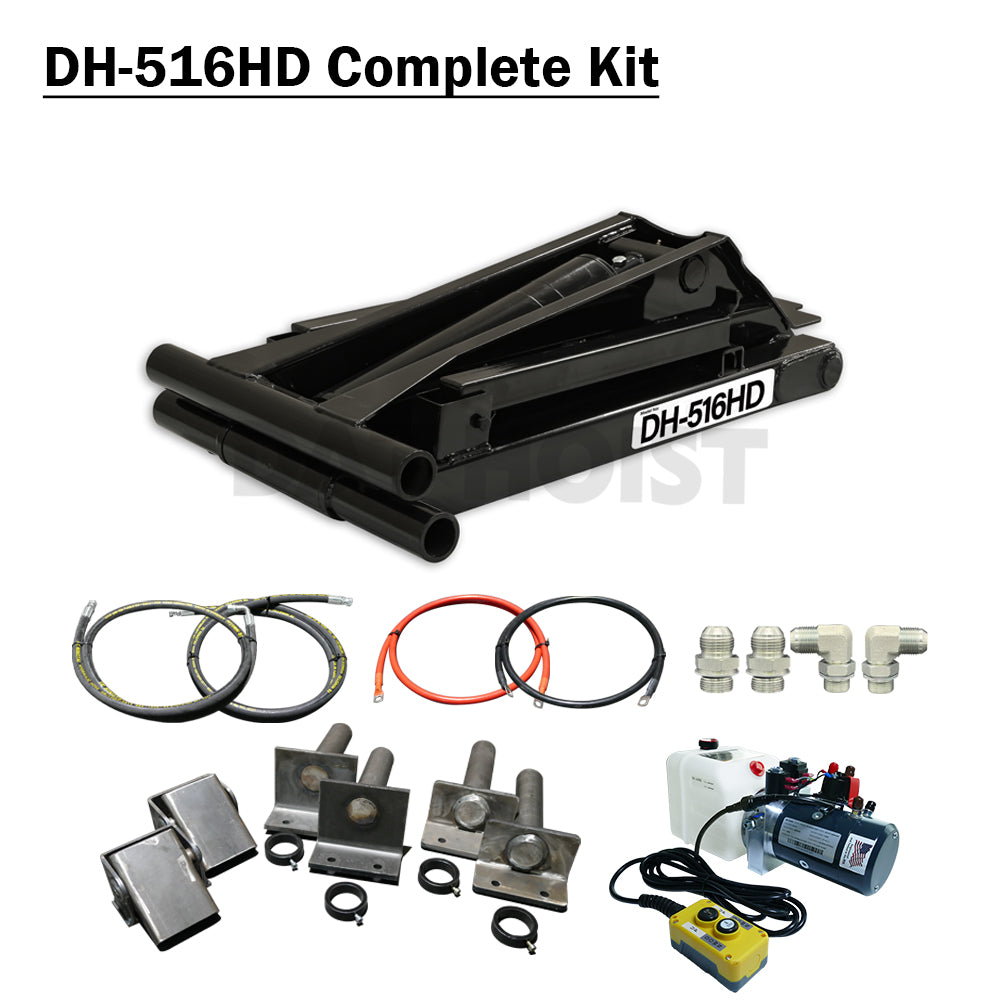

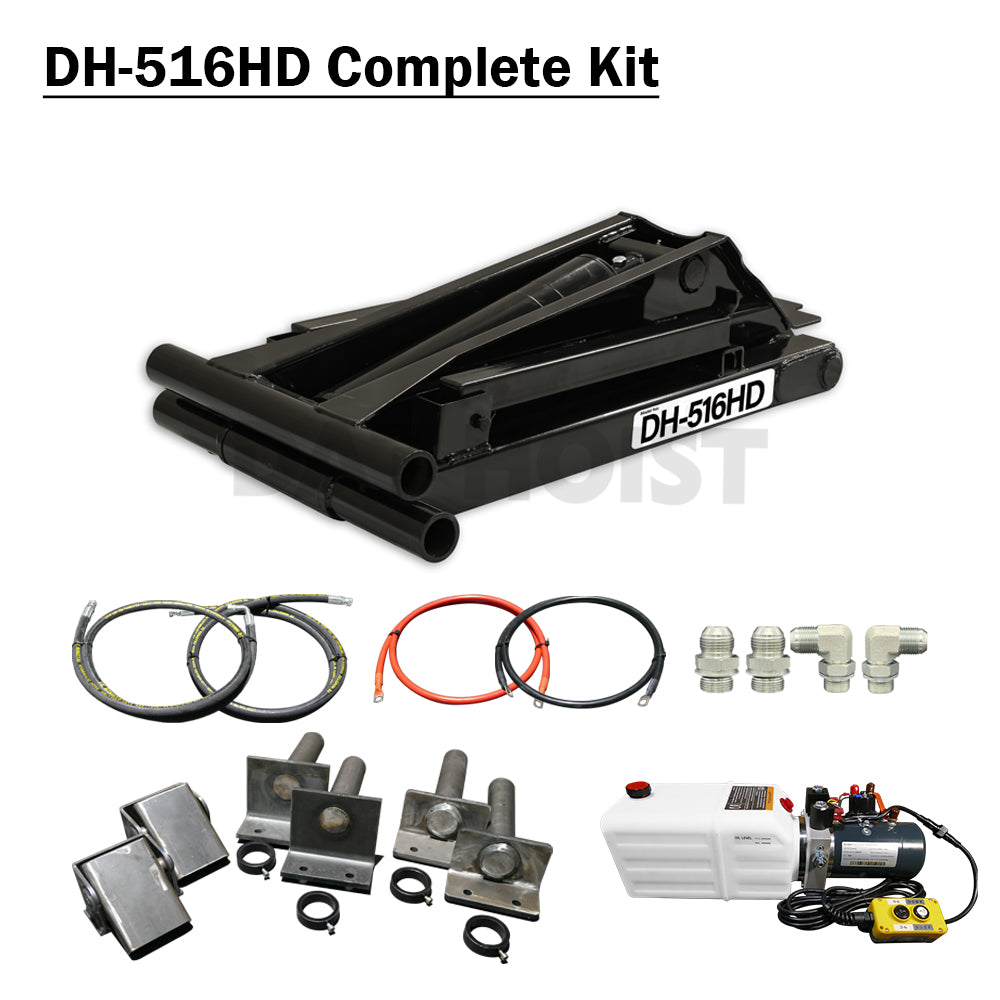

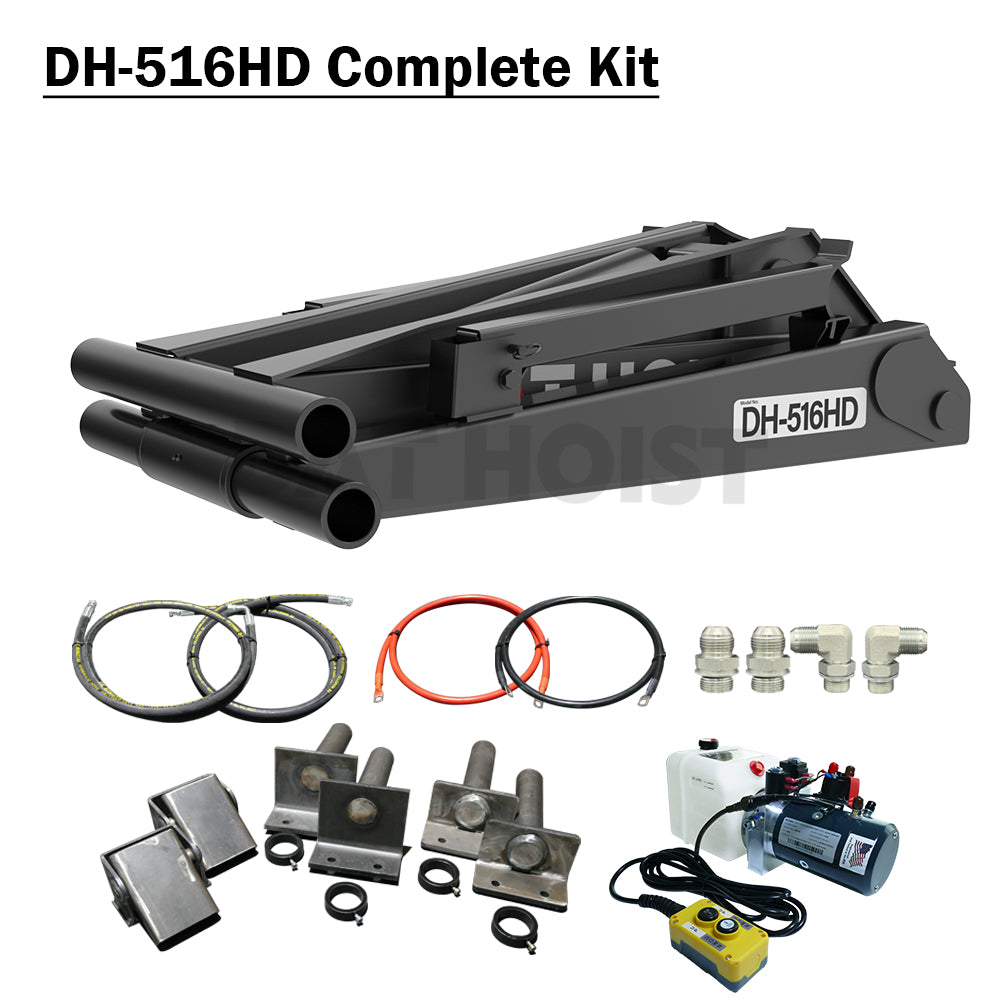

What’s Included in the DH-516HD Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|

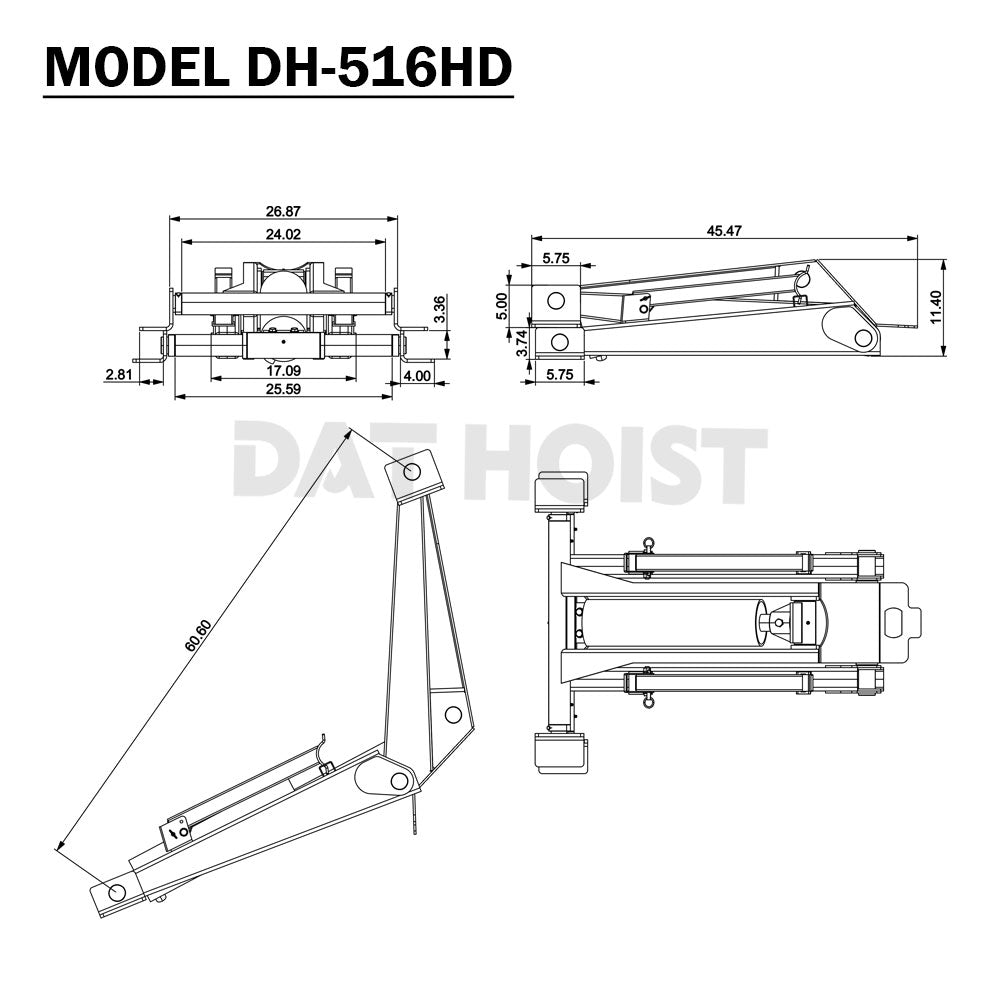

| HF-520HD | Frame | 1 |

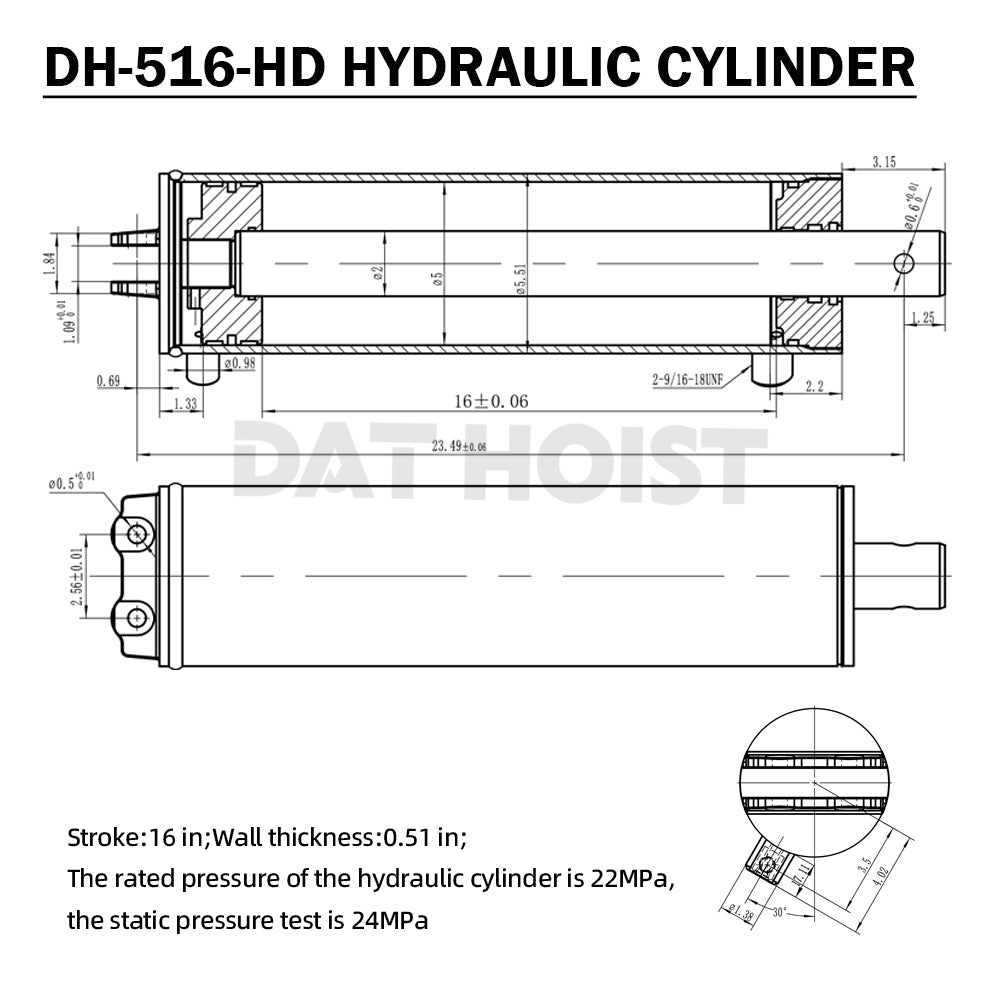

| CY-520 | Hydraulic Cylinder | 1 |
| DH-G1-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |

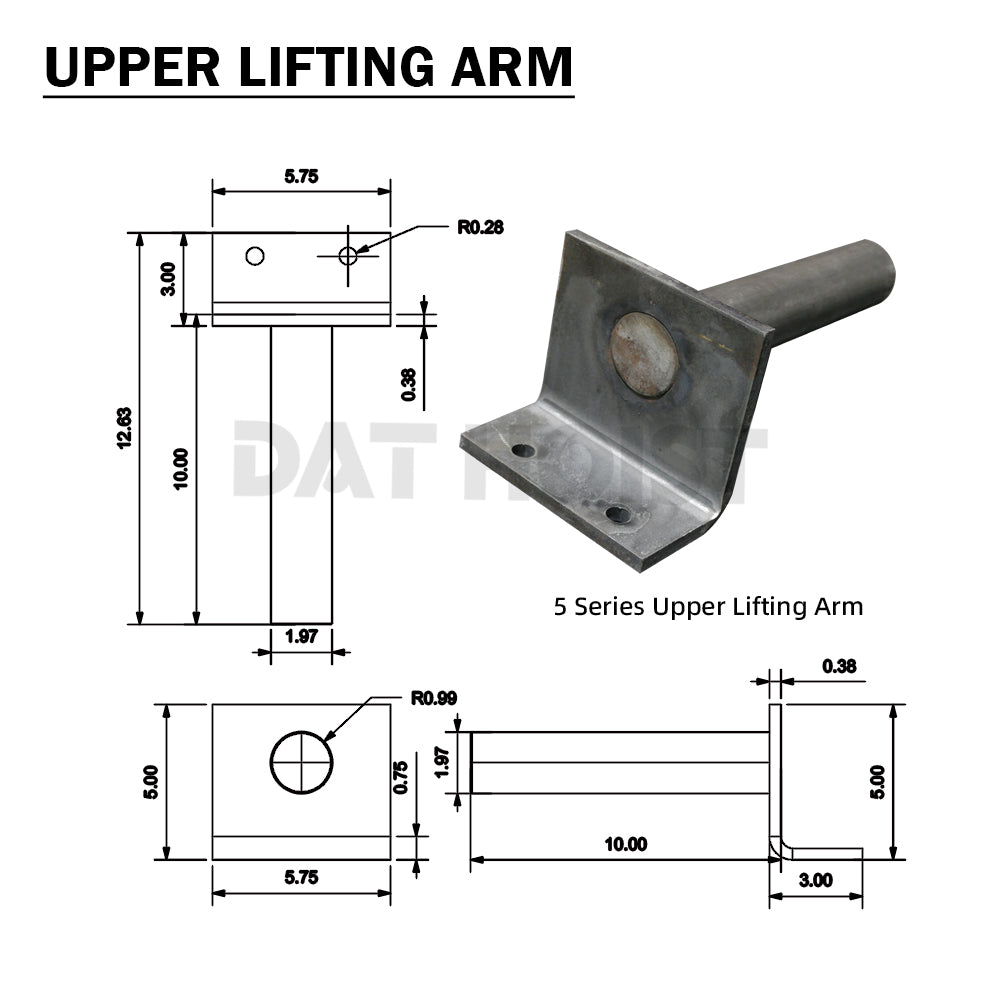

| DH-G1-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |

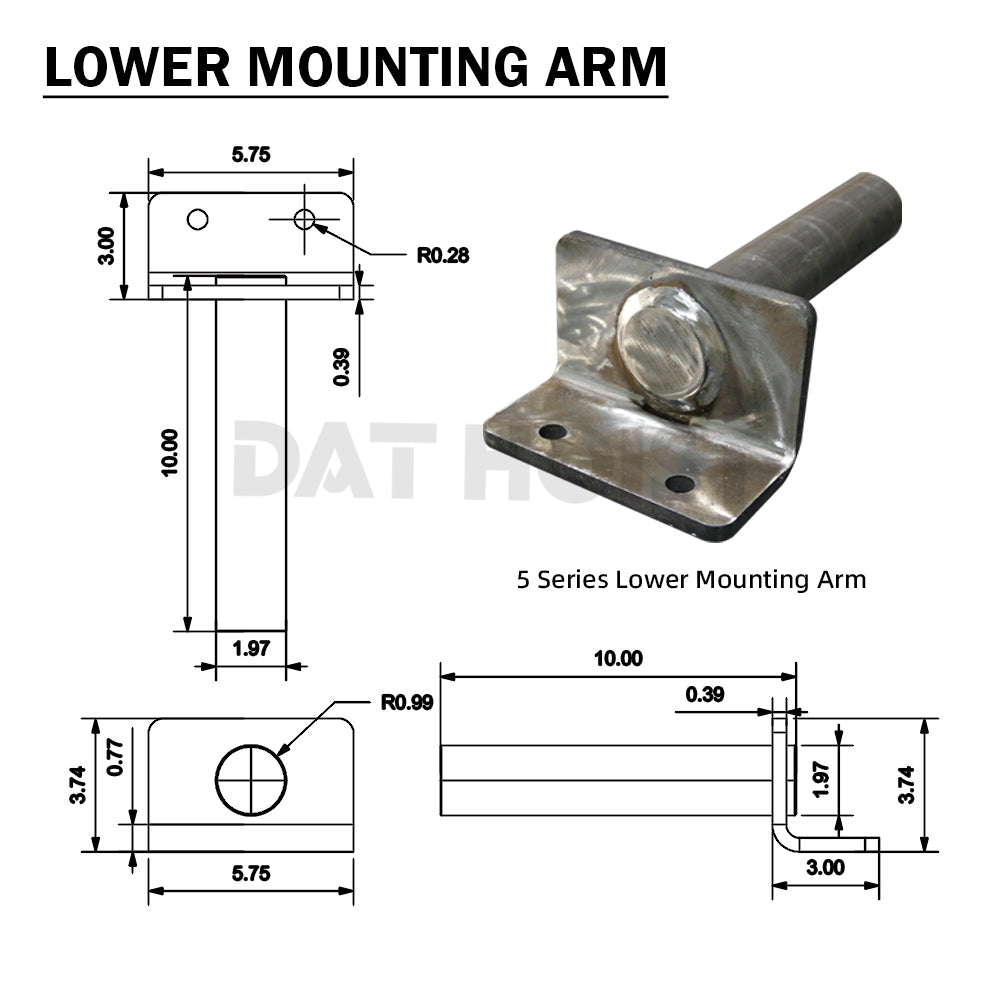

| DH-G1-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |

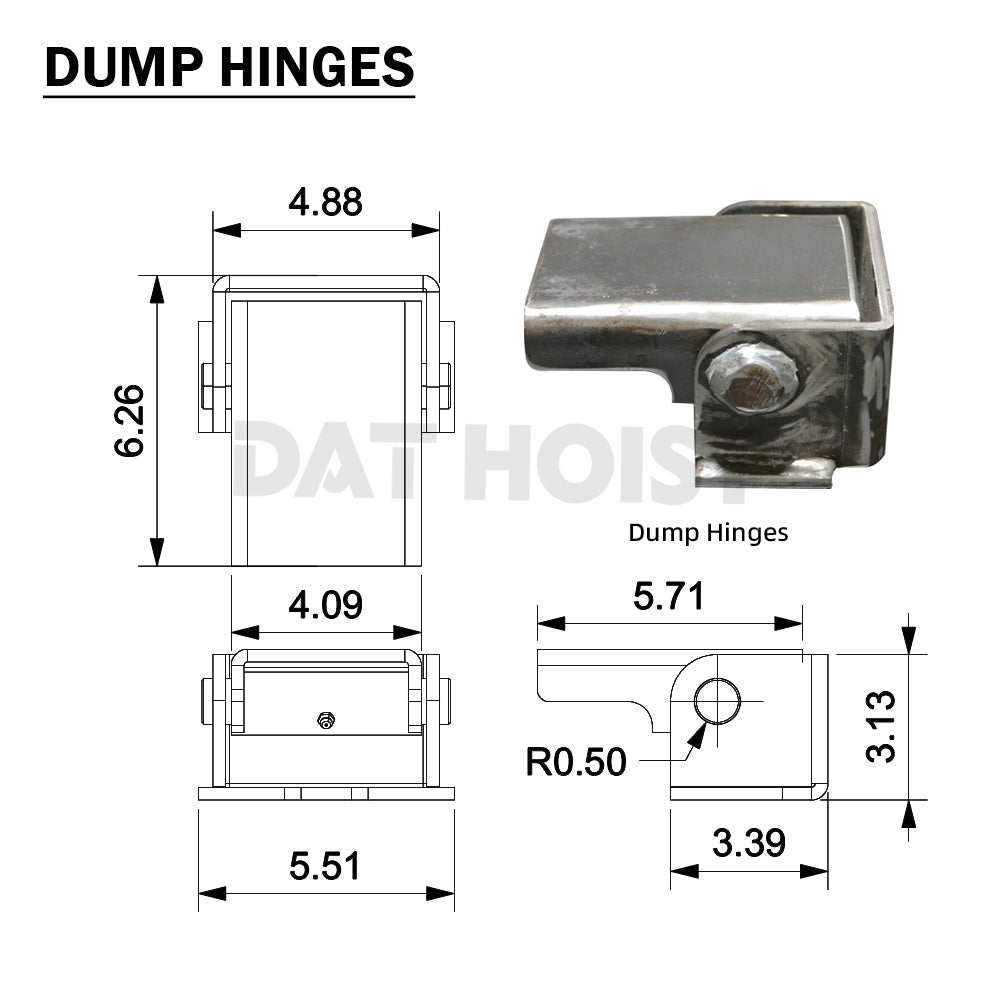

| H-500 | Five Series Dump Hinges | 2 |

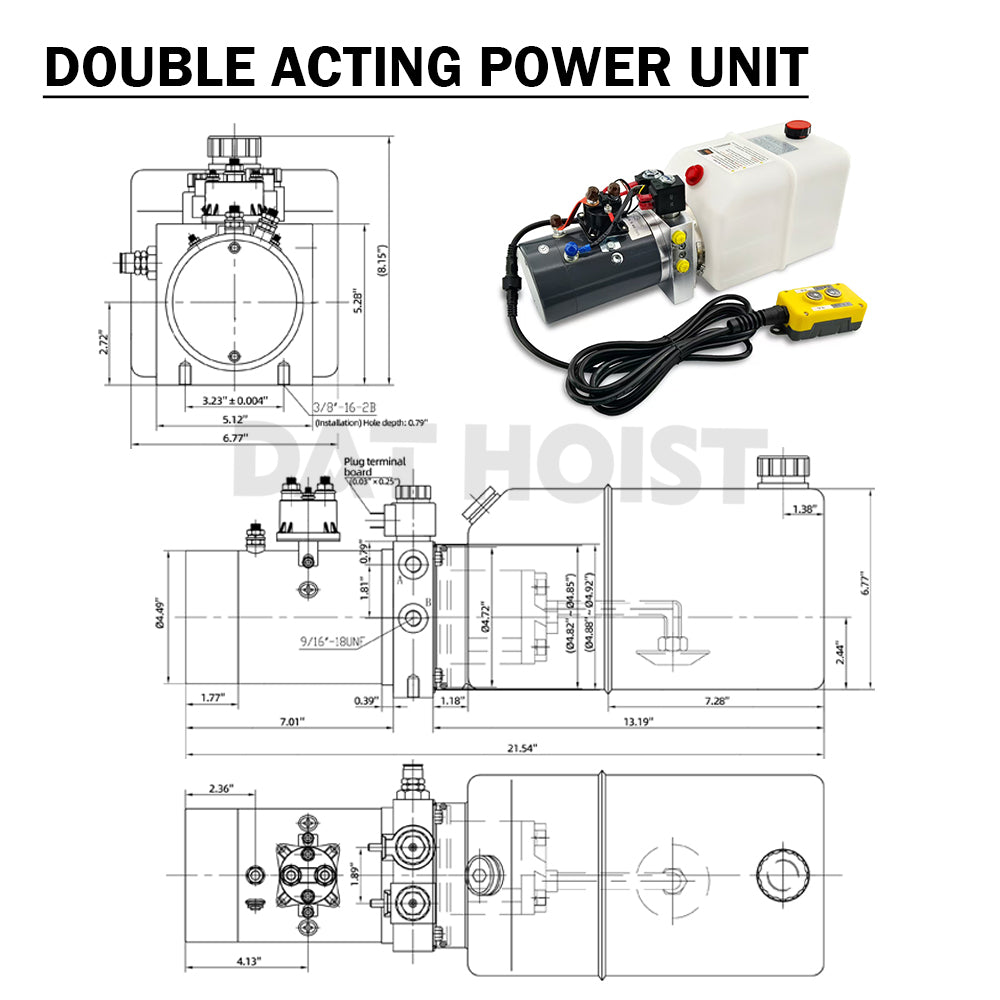

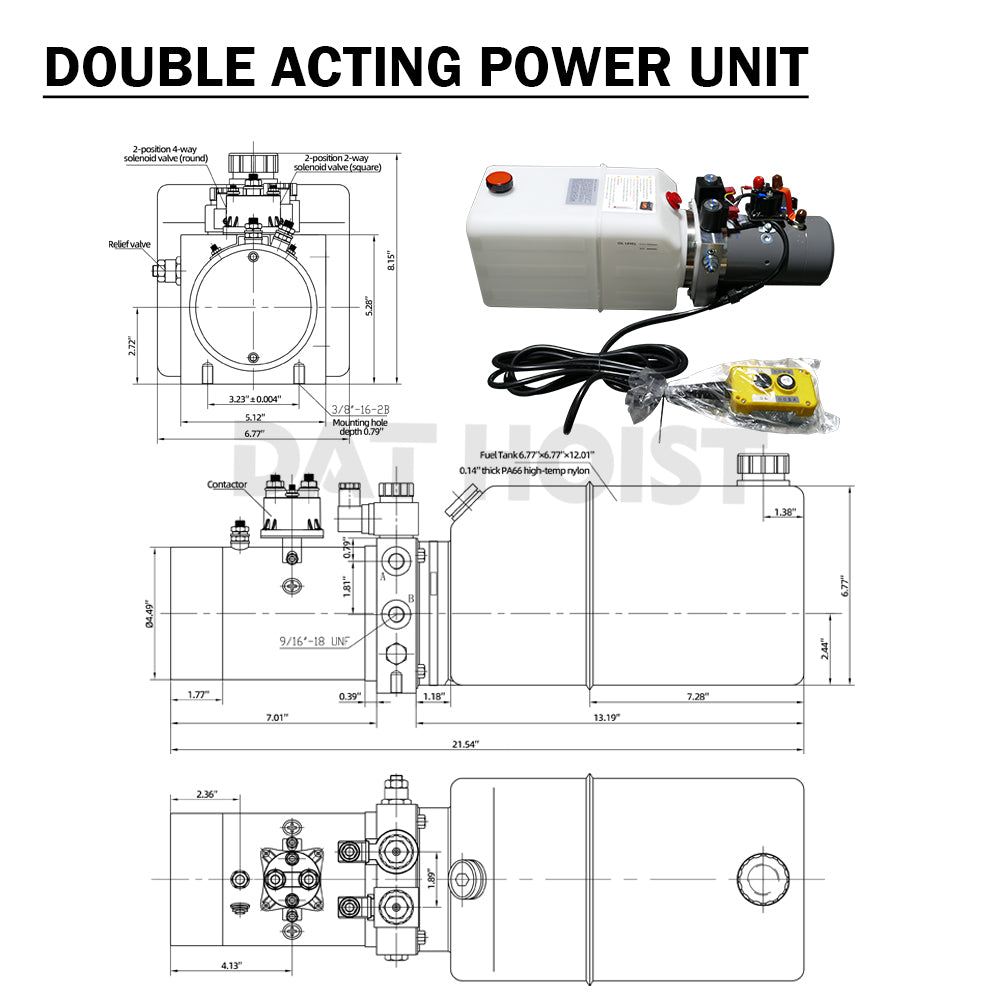

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |

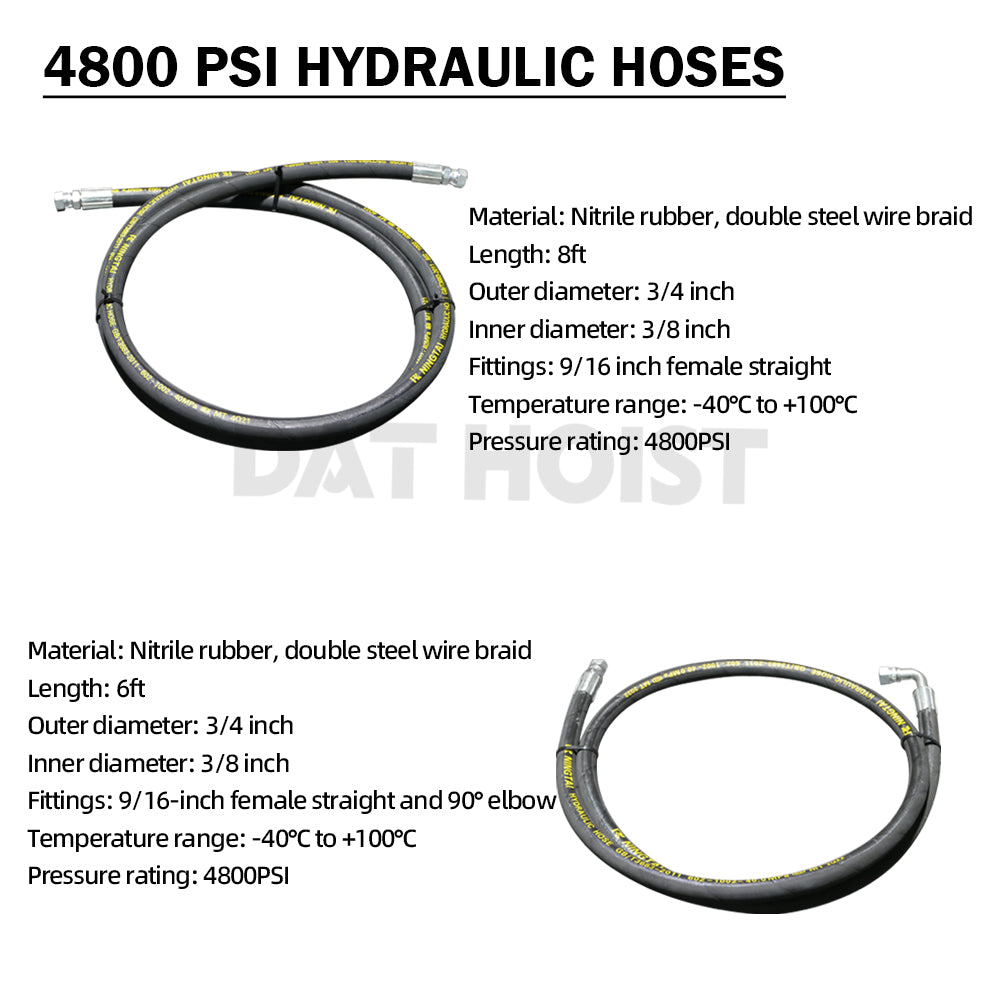

| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |

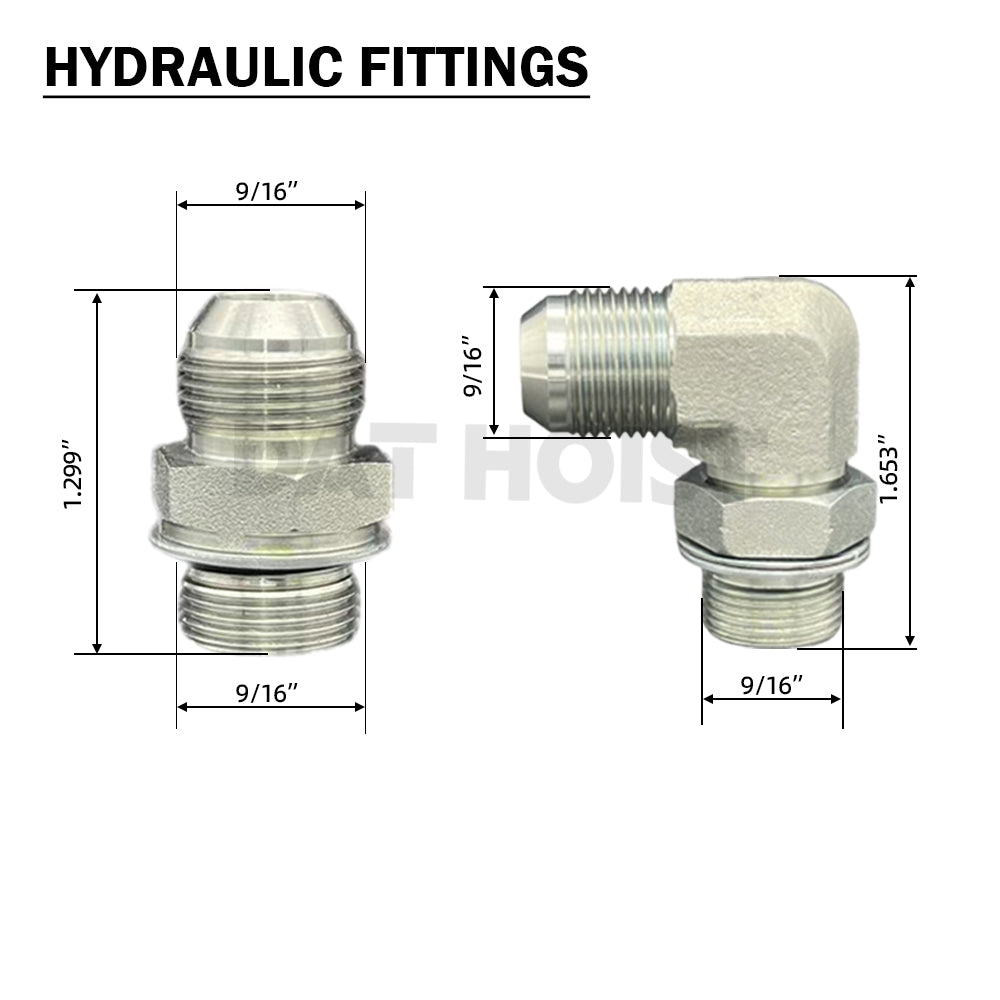

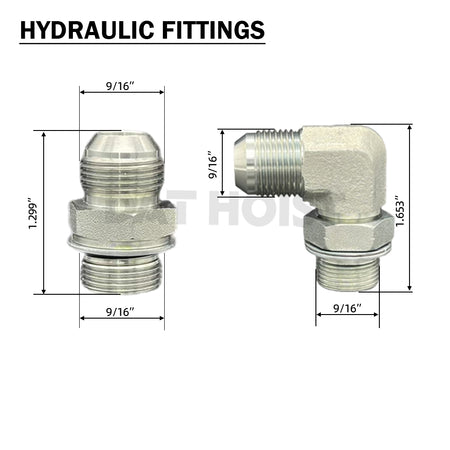

| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |

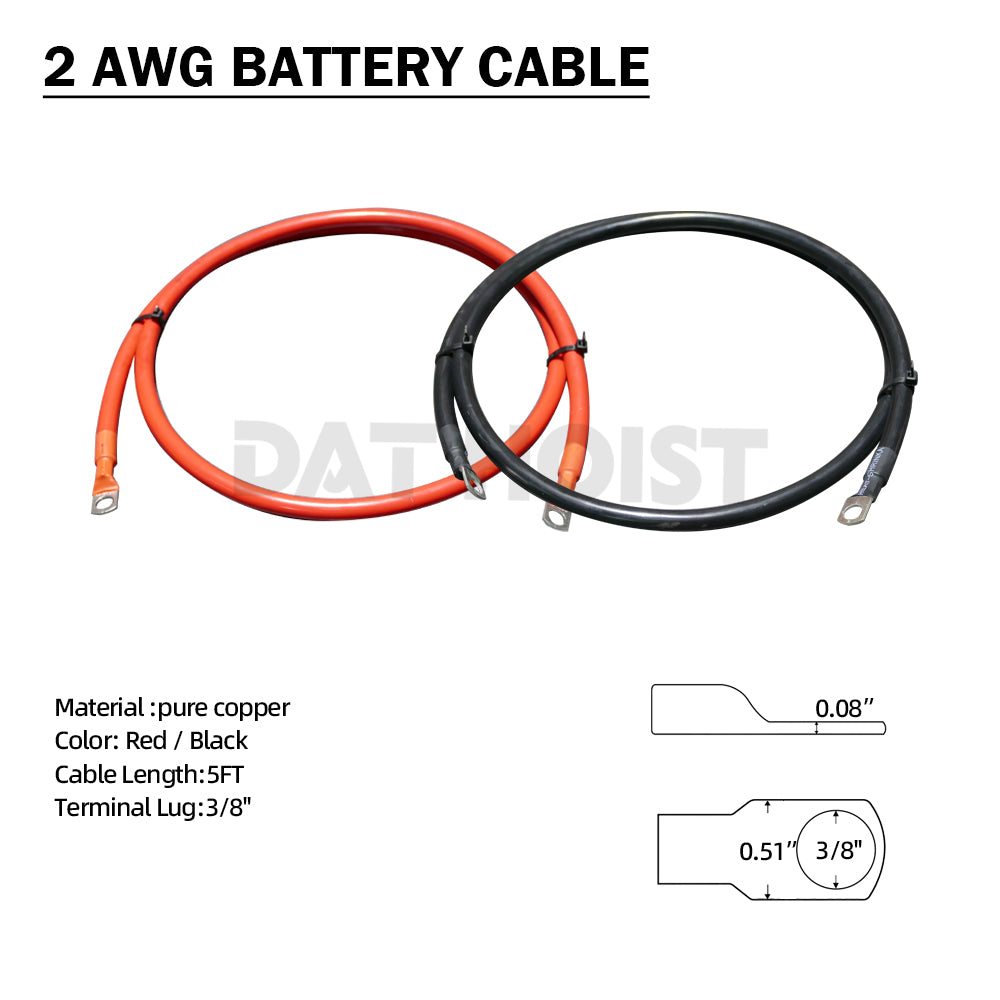

| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-516HD hydraulic scissor hoist kit is designed for installation on most 10–14 ft dump beds. It is compatible with standard 12V DC hydraulic systems and common trailer hydraulic setups. Due to the heavy-duty nature of this kit, professional installation is recommended.
FAQ
Q: What makes the DH-516HD different from the standard DH-516?
A: The DH-516HD features additional structural reinforcements, making it better suited for heavier loads and more demanding applications.
Q: What size dump bed is this hoist kit designed for?
A: The DH-516HD is designed for 10–14 ft dump beds.
Q: Is a hydraulic power unit included with this kit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist kit suitable for dump trailers?
A: Yes. It is ideal for dump trailers, landscape trailers, and contractor dump bodies requiring extra strength.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. The DH-516HD is built for customers who need added strength and peace of mind, backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
