8 Ton Hydraulic Scissor Hoist Kit for 10–14' Dump Body | DH-516 Pro for Trailer
Product Overview
The DH-516 Pro is an upgraded 8-ton hydraulic scissor hoist kit designed for 10–14 ft dump beds, featuring a short lower arm for easier installation on narrow frame dump bodies and a reinforced Pro-grade structure for improved strength and load stability.

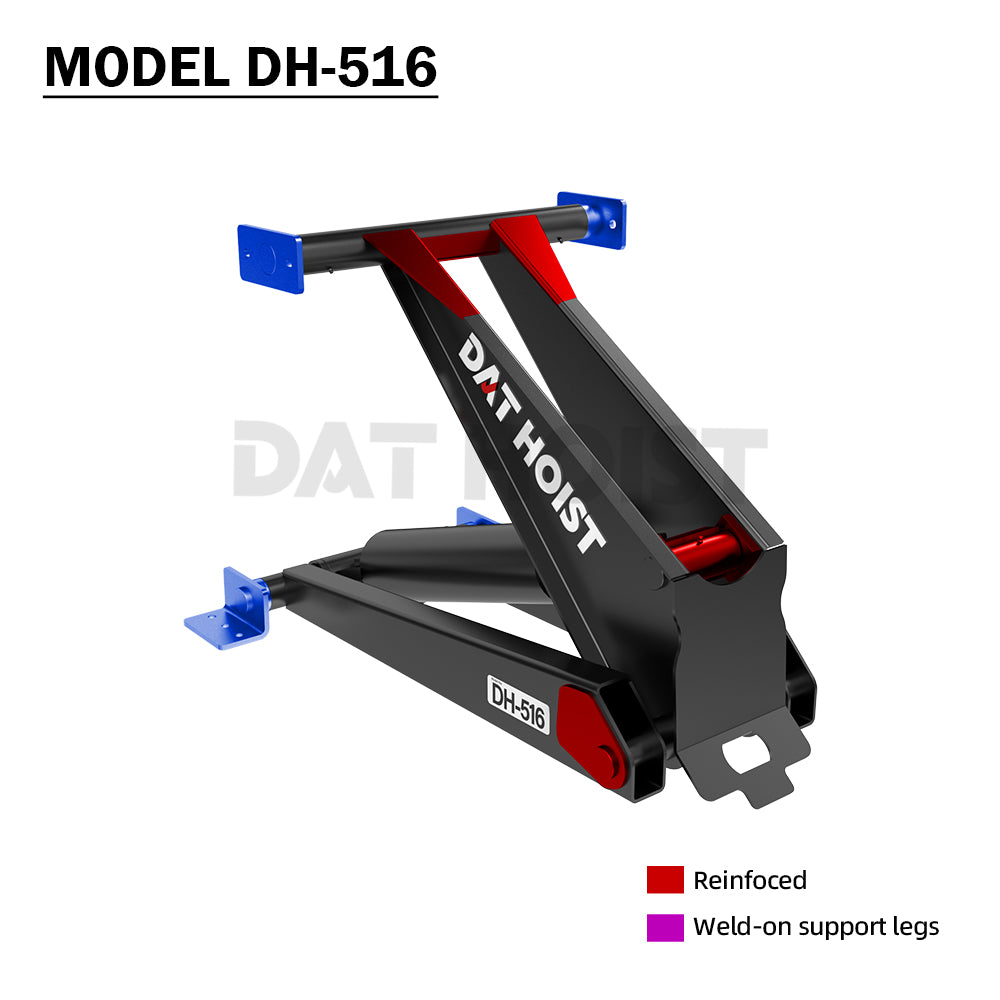

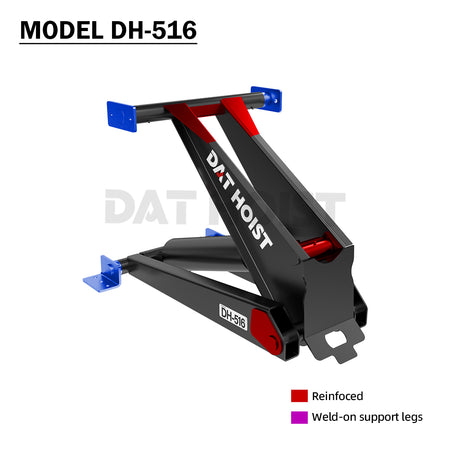

Based on the proven DH-516 Short Lower Arm platform, the DH-516 Pro Edition incorporates additional structural reinforcement at critical load-bearing and pivot points, resulting in a more rigid hoist assembly with reduced flex and improved durability under heavier or repeated loads.
Engineered by DAT HOIST for demanding commercial use, this Pro kit delivers smoother lifting performance, better load control, and longer service life while maintaining compatibility with compact trailer frames.
The hydraulic cylinder and hoist frame are covered by a limited 2-year manufacturer warranty, and the included hydraulic power unit is backed by a limited 1-year manufacturer warranty.
Key Features
-
8 Ton Pro-Rated Lifting Capacity – Reinforced design improves load stability for demanding trailer applications
-
Pro Reinforced Structure – Strengthened stress points and upgraded steel sections increase rigidity and service life
-
Short Lower Arm Design – Simplifies installation on narrow frame dump trailers
-
Fits 10–14 ft Dump Beds – Compatible with a wide range of dump trailers and compact dump bodies
-
Heavy-Duty Structural Steel Construction – Built for daily commercial use
-
Reduced Flex Under Load – Improved geometry ensures smoother, more controlled lifting
-
Powder-Coated Finish – Resists rust, chipping, and corrosion in harsh environments
-
Industrial-Grade Hydraulic Power Unit Included – Supports reliable power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This DH-516 Pro hydraulic scissor hoist kit is ideal for:
-
Dump trailers carrying heavier or denser materials
-
Landscape and utility trailers with high-duty cycles
-
Contractor-grade dump bodies
-
Upgrades from standard-duty hoist kits
-
Applications where increased strength and durability are required
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 8 Ton (Pro Reinforced Design) |
| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Special Feature | Pro Reinforced Structure + Short Lower Arm |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Heavy-Duty Structural Steel |
| Finish | Powder-Coated |

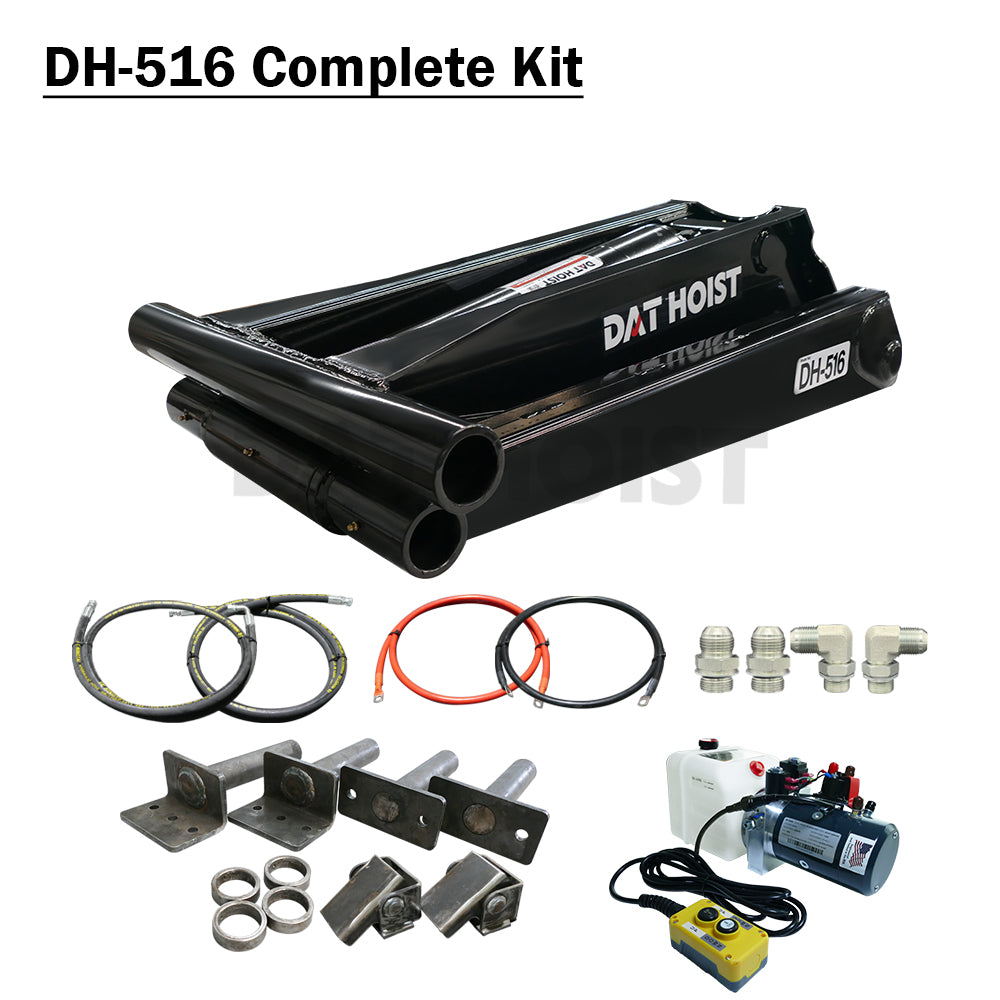

What’s Included – DH-516 Pro Short Lower Arm Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|

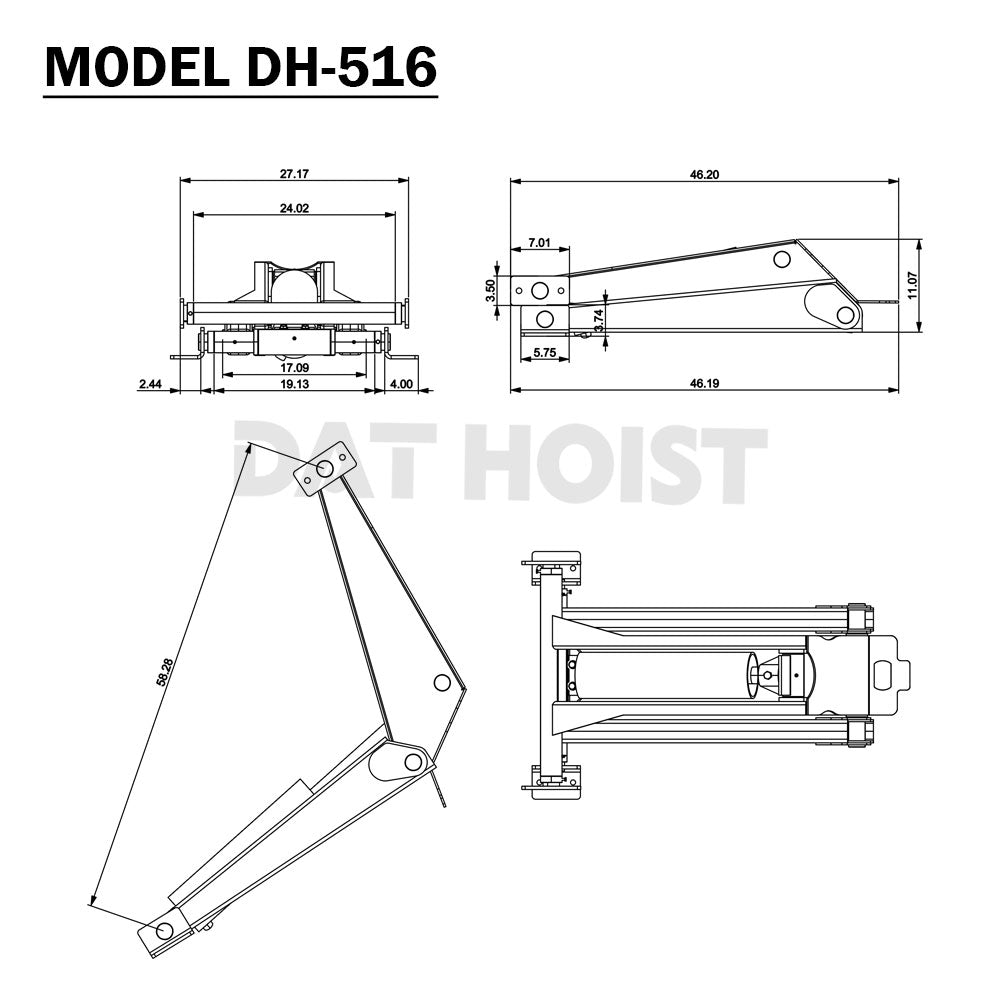

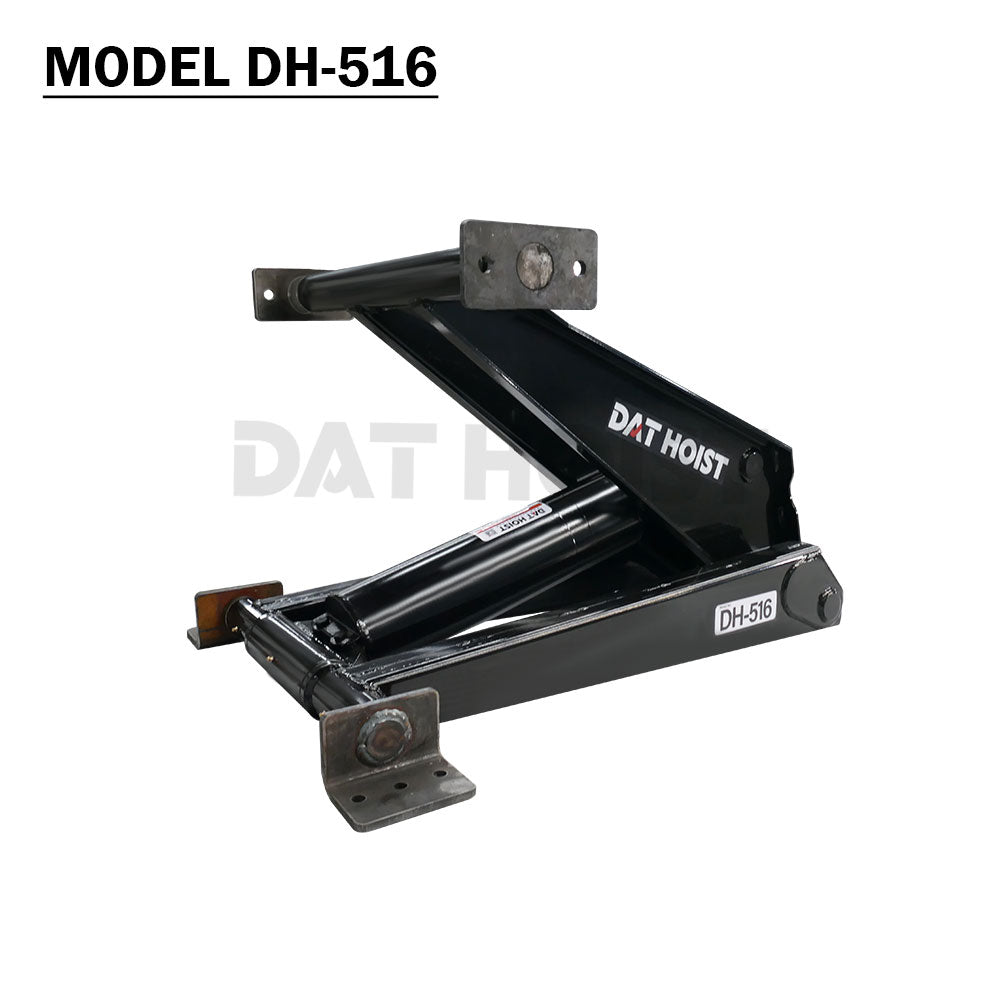

| HF-516P | Reinforced Pro Hoist Frame (Short Lower Arm) | 1 |
| CY-516 | Hydraulic Cylinder | 1 |
| DH-TR/TK-ACC-R | 516/520 Pro Heavy-Duty Ring Collar | 4 |

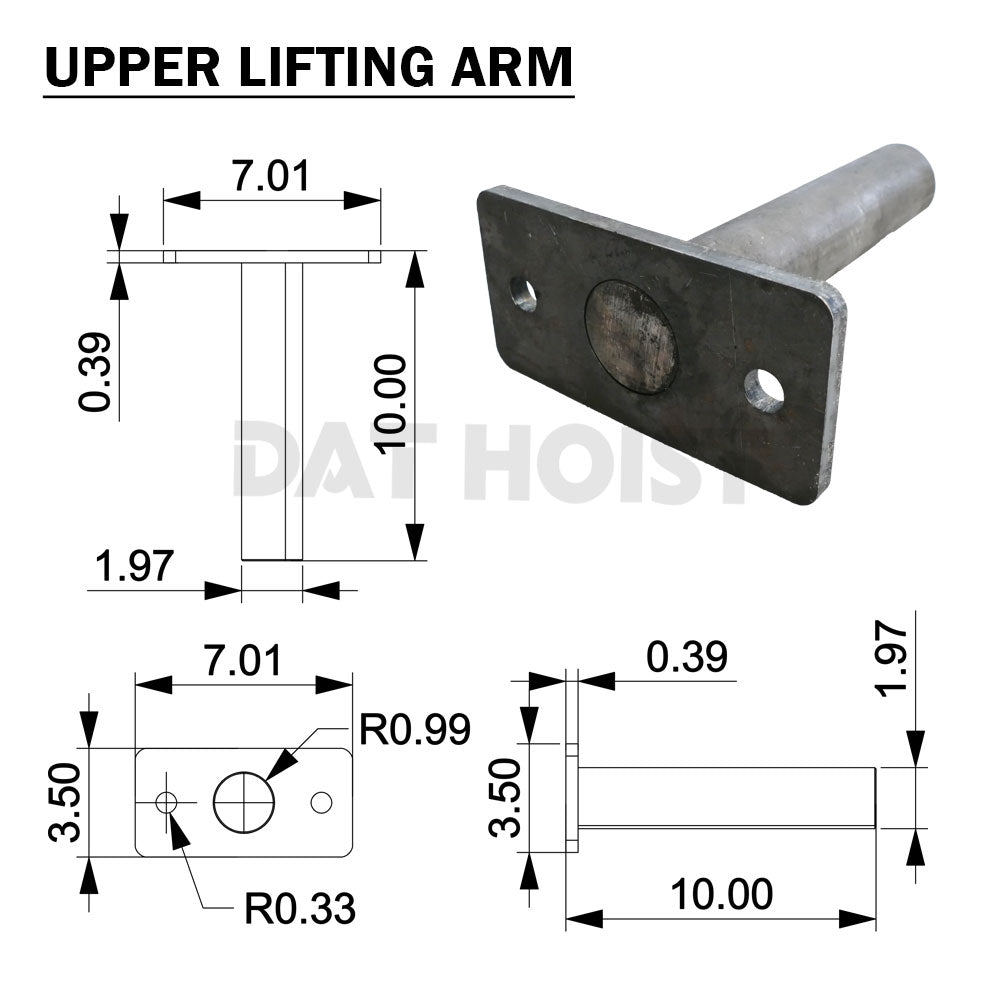

| DH-5-TR-ACC-UA-T | 516/520 Pro Heavy-Duty Upper Lifting Arm | 2 |

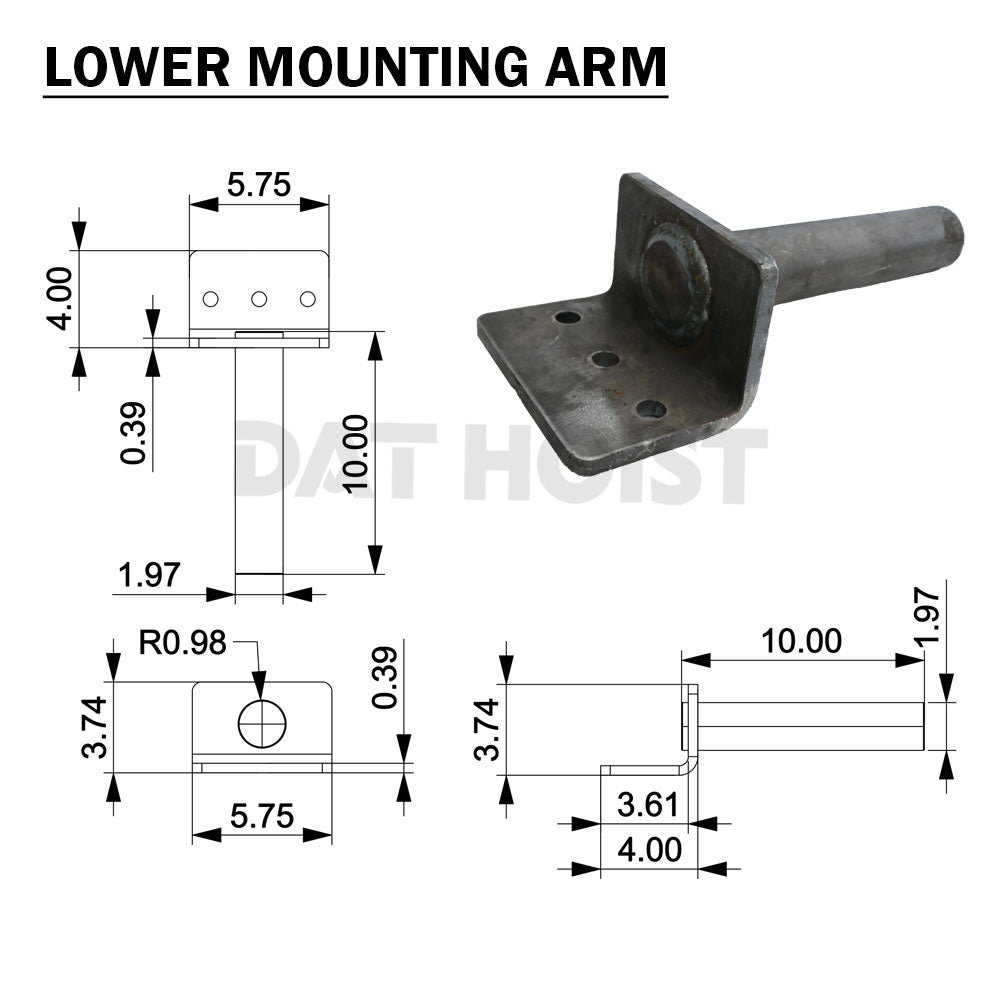

| DH-5-TR-ACC-SLA | 516/520 Pro Heavy-Duty Lower Mounting Arm | 2 |

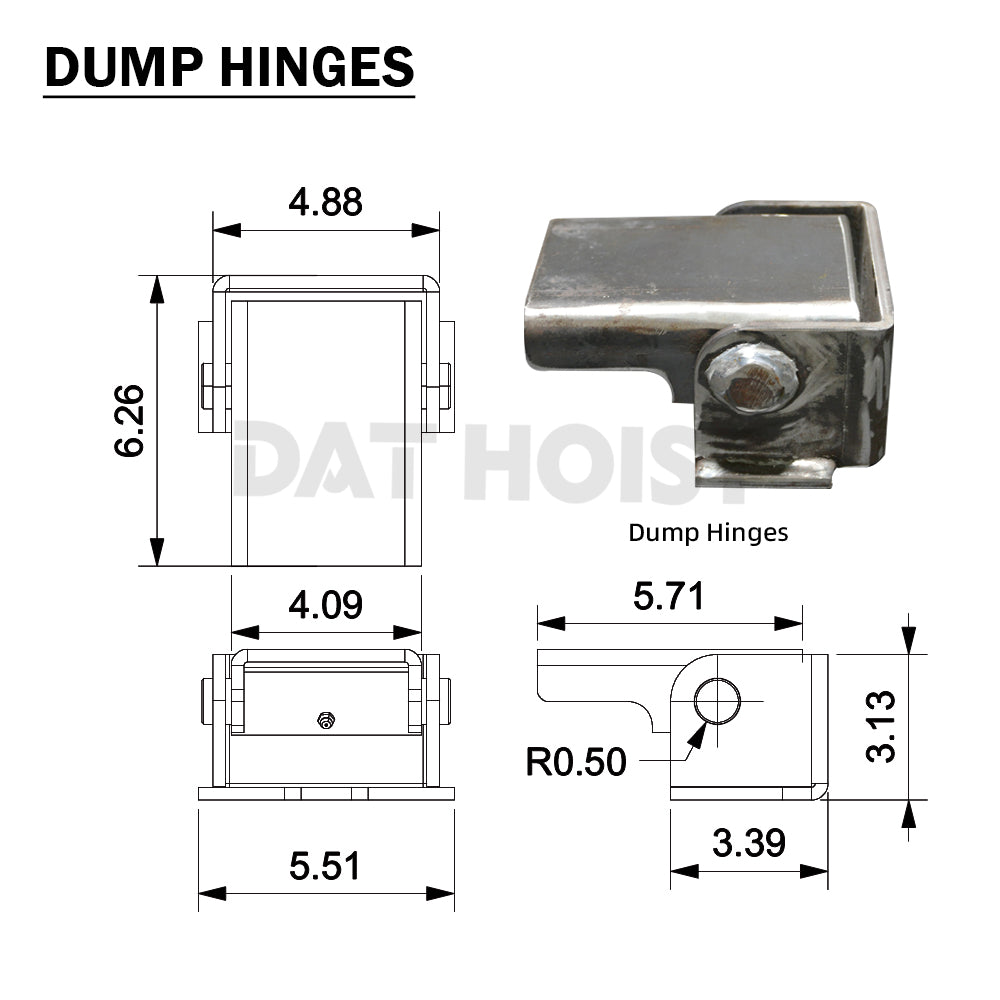

| H-500 | Five Series Dump Hinges | 2 |

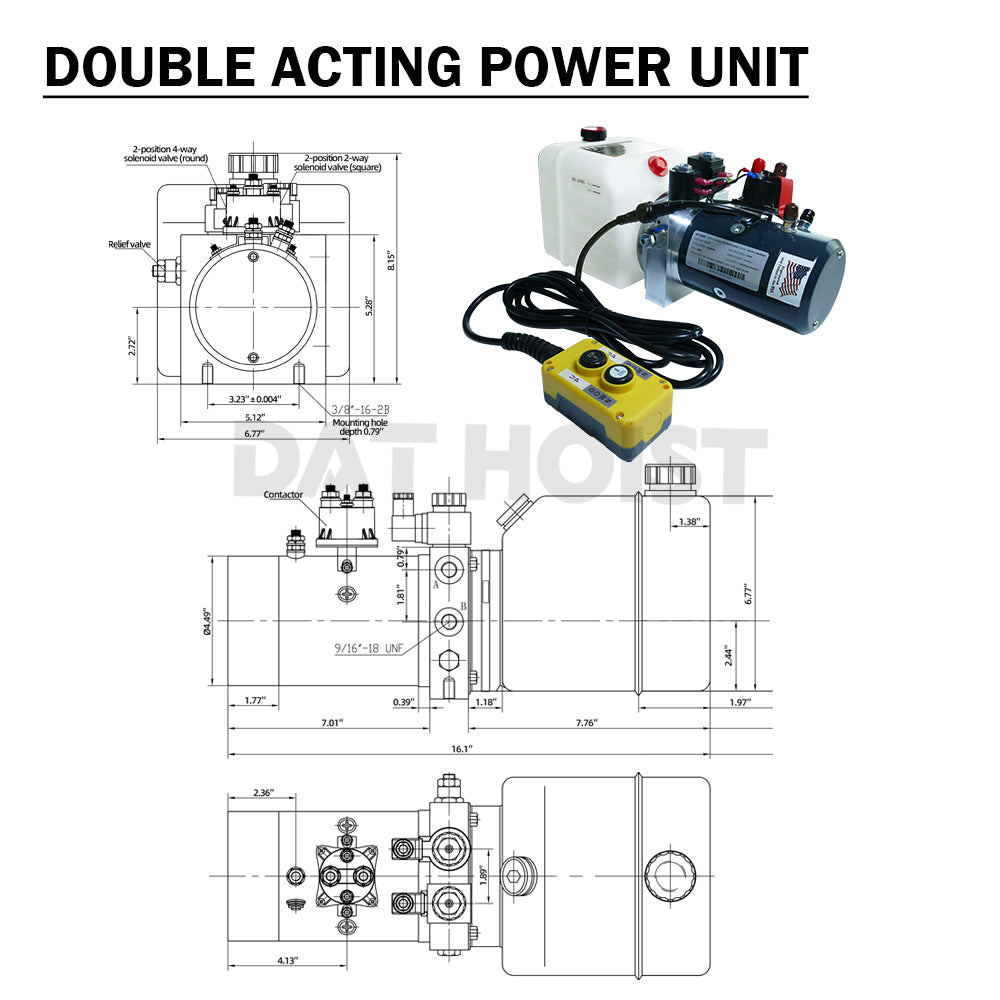

| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |

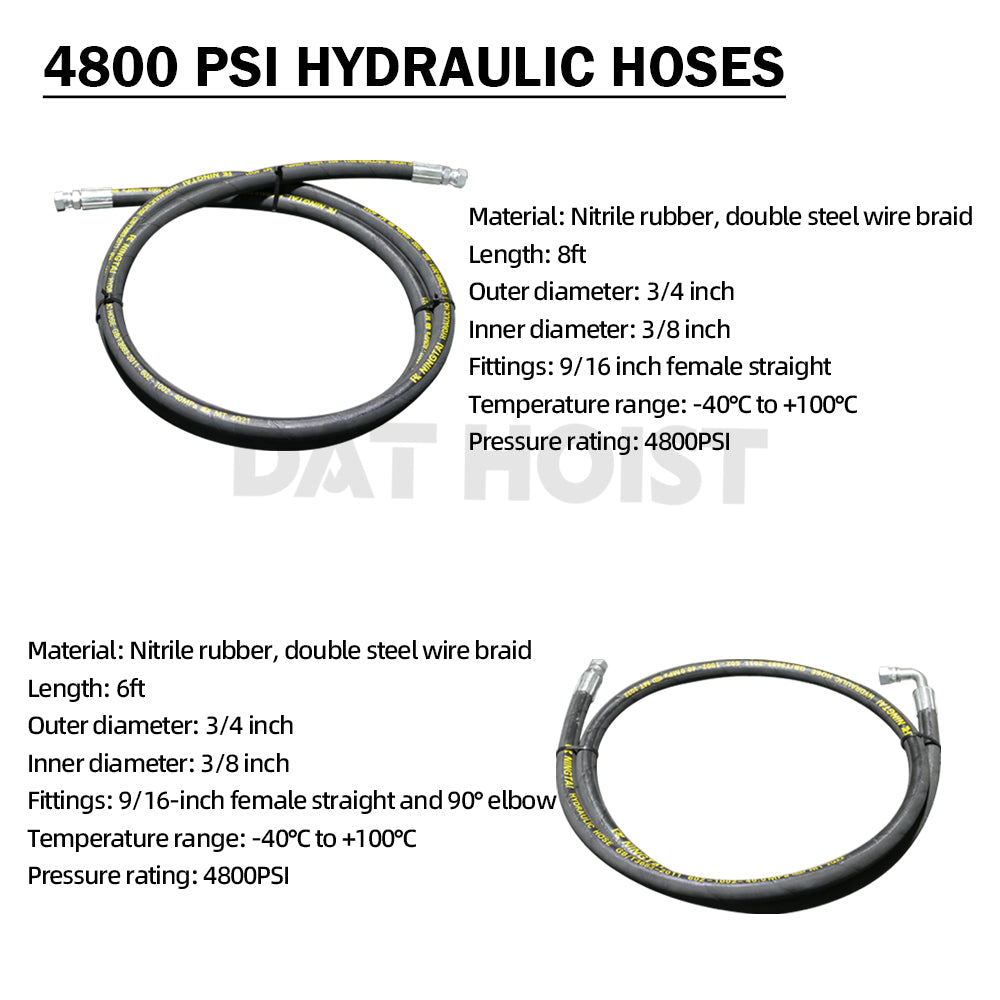

| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |

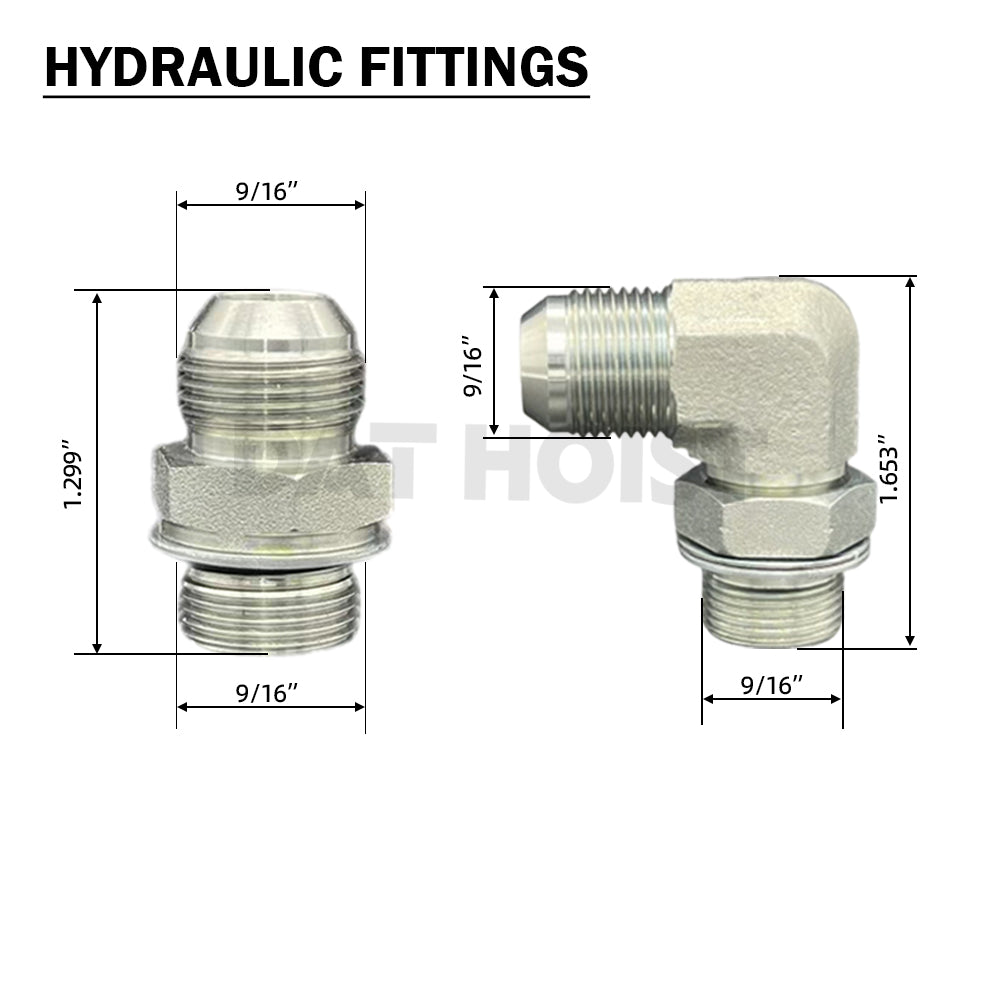

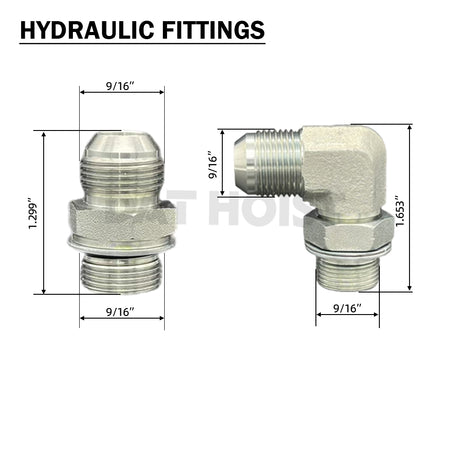

| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" Male JIC 37° Elbow | 2 |

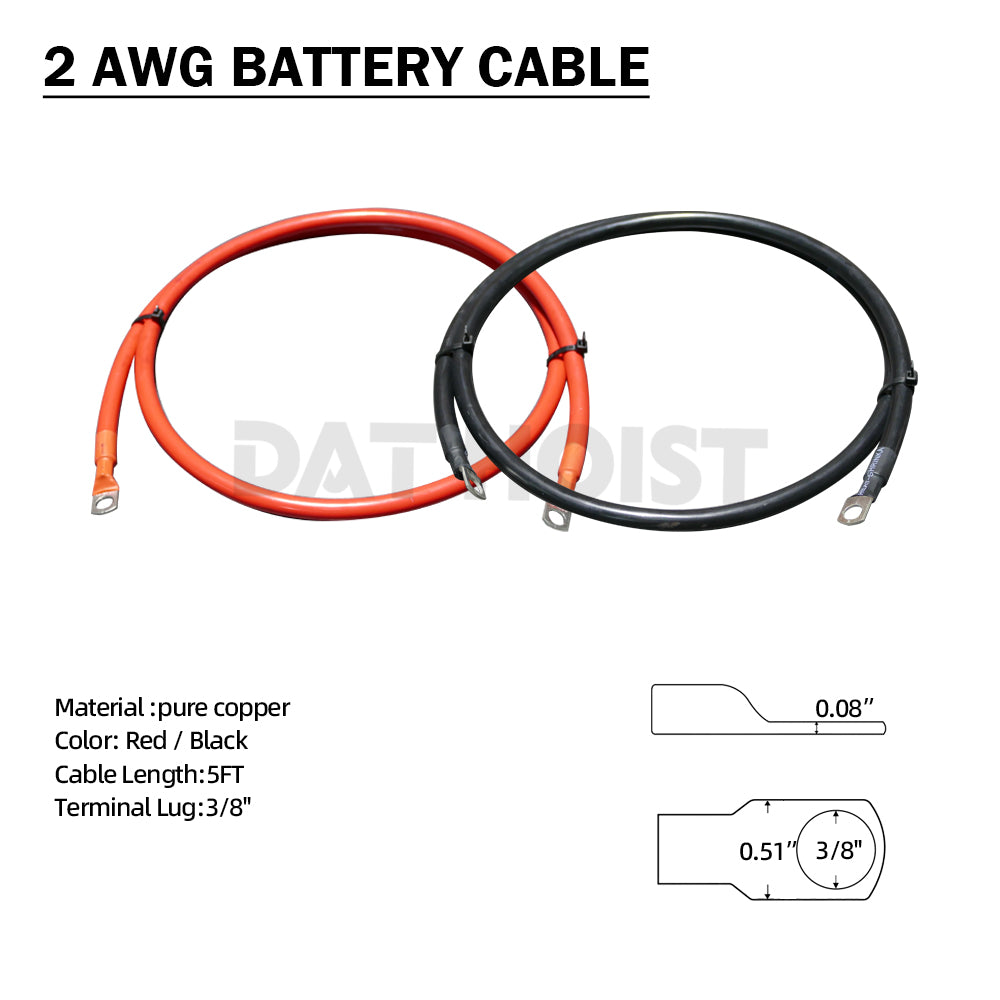

| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-516 Pro hydraulic scissor hoist kit is designed for 10–14 ft dump beds, with a short lower arm that simplifies installation on narrow frame dump trailers.
This Pro kit is compatible with standard 12V DC hydraulic systems commonly used on dump trailers and truck bodies.
Professional installation is recommended to ensure proper alignment, safe operation, and optimal long-term performance.
FAQ
Q: What is the difference between DH-516 Pro and the standard DH-516 Short Lower Arm kit?
A: The Pro version features additional structural reinforcement, offering improved rigidity, better load stability, and longer service life under heavy or repeated use.
Q: Does this kit include a hydraulic power unit?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is the lifting capacity higher than the standard DH-516?
A: Both are rated at 8 tons, but the Pro version is engineered to handle demanding loads with reduced flex and improved durability.
Q: Is this kit suitable for dump trailers with narrow frames?
A: Yes. The short lower arm design makes it ideal for narrow frame dump trailers while providing Pro-level strength.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic scissor hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance.
The DH-516 Pro Hydraulic Scissor Hoist Kit is designed for operators who demand extra strength, smoother operation, and confidence when handling heavier loads, backed by proven engineering, a limited 2-year warranty on the hoist and cylinder, and a limited 1-year warranty on the hydraulic power unit.
