8 Ton Hydraulic Scissor Hoist Kit for 10–14' Dump Body– DH-516
Product Overview
The DH-516 is an 8-ton hydraulic scissor hoist kit designed for 10–14 ft dump beds. Engineered for superior strength and reliability, it delivers powerful lifting performance and smooth operation for dump trailers, landscape trailers, and medium-duty dump trucks. Built for long-term durability and demanding commercial applications, the hydraulic cylinder and hoist frame are protected by a limited 2-year manufacturer warranty, while the hydraulic power unit is covered by a limited 1-year manufacturer warranty.
Key Features
-
8 Ton Lifting Capacity – Handles heavy loads with confidence for commercial and industrial use
-
Fits 10–14 ft Dump Beds – Compatible with a wide range of dump trailers and truck bodies
-
Heavy-Duty Steel Construction – Built from structural steel for tough jobs and daily operation
-
Reinforced Stress Points – Reduces flexing and increases overall service life
-
Powder-Coated Finish – Durable coating resists rust, chipping, and corrosion
-
Industrial-Grade Hydraulic Power Unit – Supports power-up and power-down operation
-
15 ft Wired Remote Control – Allows safe and convenient operation from a distance
Recommended Applications
This hydraulic scissor hoist kit is commonly used for:
-
Dump trailers
-
Landscape trailers
-
Utility and contractor dump bodies
-
Medium-duty dump trucks
Technical Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 8 Ton |
| Dump Bed Length | 10–14 ft |
| Hoist Type | Hydraulic Scissor Hoist |
| Operation | Double Acting |
| Power Unit | 12V Hydraulic Power Unit |
| Motor Power | 1.6KW |
| Control Type | 15 ft Wired Remote |
| Material | Structure Steel |
| Finish | Powder-Coated |

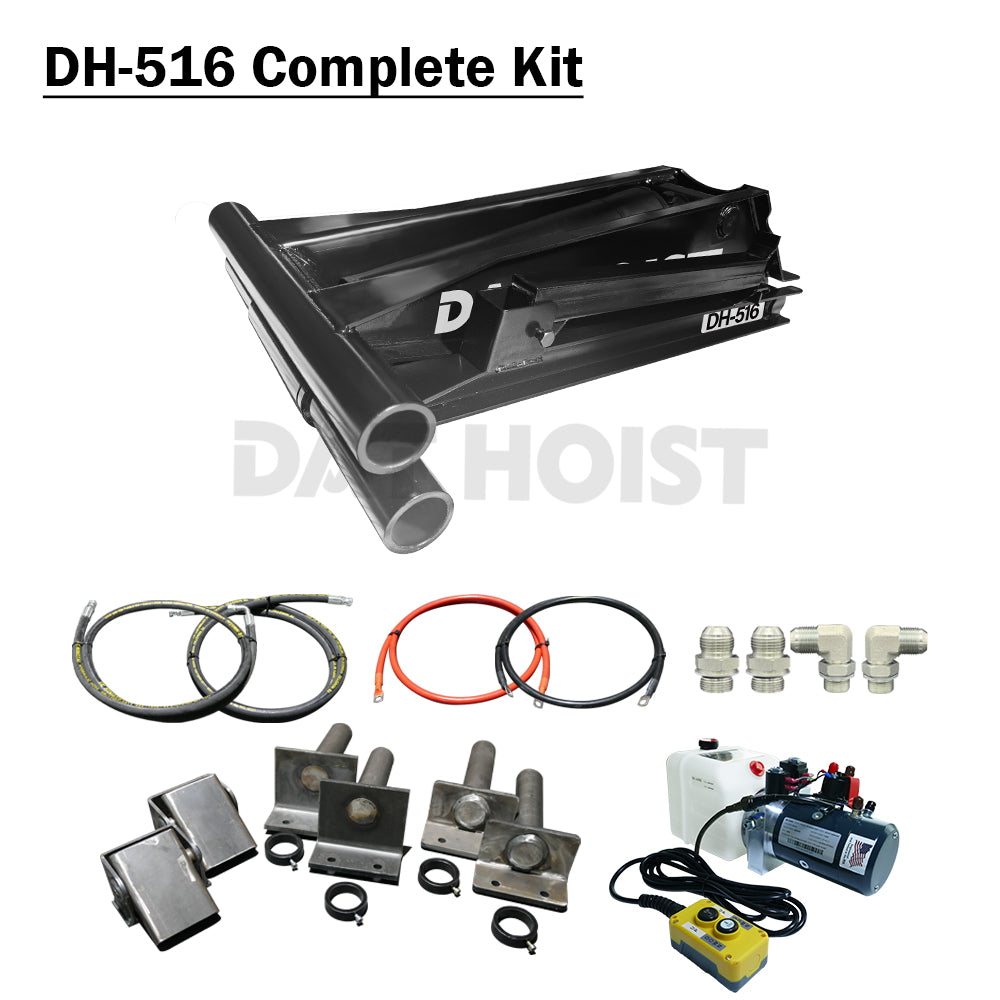

What’s Included in the DH-516 Hydraulic Scissor Hoist Kit
| Part Number | Component Description | Quantity |
|---|---|---|
| HF-516LA | Frame | 1 |
| CY-516 | Cylinder | 1 |
| DH-G2-ACC-002 | 516/520 Heavy-Duty Ring Collar | 4 |
| DH-G2-ACC-003 | 516/520 Heavy-Duty Upper Lifting Arm | 2 |
| DH-G2-ACC-004 | 516/520 Heavy-Duty Lower Mounting Arm | 2 |
| H-500 | Five Series Dump Hinges | 2 |
| DH-DA-1.6KW-4QT-15FT | Double Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control | 1 |
| HH-C-038-S-8FT | Hydraulic Hose, 3/8" (US), Straight Ends, 8 ft (2.44 m) | 1 |
| HH-C-038-SE-6FT | Hydraulic Hose, 3/8" (US), One Straight & One 90° Elbow, 6 ft (1.83 m) | 1 |
| HF-LIC3M-FL-916 | Hydraulic Fitting, 3/8" (US) Male 37° LIC Flare, 9/16"-18 | 2 |
| HF-JIC3M-EL-06 | Hydraulic Fitting, 3/8" (US) Male JIC 37° Elbow | 2 |
| BC-001 | 2 AWG Battery Cable, Red & Black, 1.5 m | 1 |
Note:
This kit includes all major components required for installation. Minor mounting hardware may vary depending on application.
Installation & Compatibility
The DH-516 hydraulic scissor hoist kit is designed for installation on most 10–14 ft dump beds. It is compatible with standard 12V DC hydraulic systems and trailer hydraulic setups. Professional installation is recommended to ensure safe operation and optimal lifting performance.
FAQ
Q: What size dump bed is the DH-516 designed for?
A: The DH-516 is designed for dump beds measuring 10–14 ft in length.
Q: What lifting capacity does this hoist kit provide?
A: This kit offers an 8 ton lifting capacity, suitable for heavy-duty commercial applications.
Q: Is a hydraulic power unit included?
A: Yes. The kit includes a double acting 12V hydraulic power unit with a 1.6KW motor and 4L reservoir.
Q: Is this hoist suitable for dump trailers?
A: Yes. The DH-516 is ideal for dump trailers, landscape trailers, and medium-duty dump bodies.
Why Choose DAT HOIST
DAT HOIST specializes in hydraulic hoists and DC electric hydraulic pumps engineered for durability, reliability, and real-world performance. Every kit is designed to deliver dependable lifting power backed by proven engineering and dependable warranty coverage—featuring a limited 2-year manufacturer warranty on the hydraulic cylinder and hoist frame, and a limited 1-year manufacturer warranty on the hydraulic power unit.
