900W 90:1 Dump Truck Tarp Motor
Regular price
$140.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
900W 90:1 Dump Truck Tarp Motor
Product Overview
This heavy-duty tarp motor is designed for dump trailers and trucks up to 28' in length. With a 900W (1.2 HP) output, forged 90-tooth drive, and a reversible motor design, it delivers reliable performance for tarp systems. Built for intermittent use, not continuous duty, this motor comes with a chrome cover and is IP65 rated for dust and water resistance, making it ideal for demanding environments.
Specifications
- Power: 900 Watts / 1.2 HP
- Voltage: 12V DC
- Current Draw: 43 Amps
- Gear Ratio: 90:1 (forged 90-tooth drive)
- RPM: 50 (±5)
- Torque Rating: 57 Nm
- Motor Type: Reversible
- Duty Cycle: Intermittent (not for continuous operation)
- Mounting Pattern: 5-hole (compatible with 3-hole / 4-hole)
- Protection: IP65 dust- and water-resistant rating
- Warranty: 1 year
Key Features
- Designed for tarp systems on vehicles up to 28'
- Reversible motor for convenient operation
- Forged 90-tooth drive for strength and durability

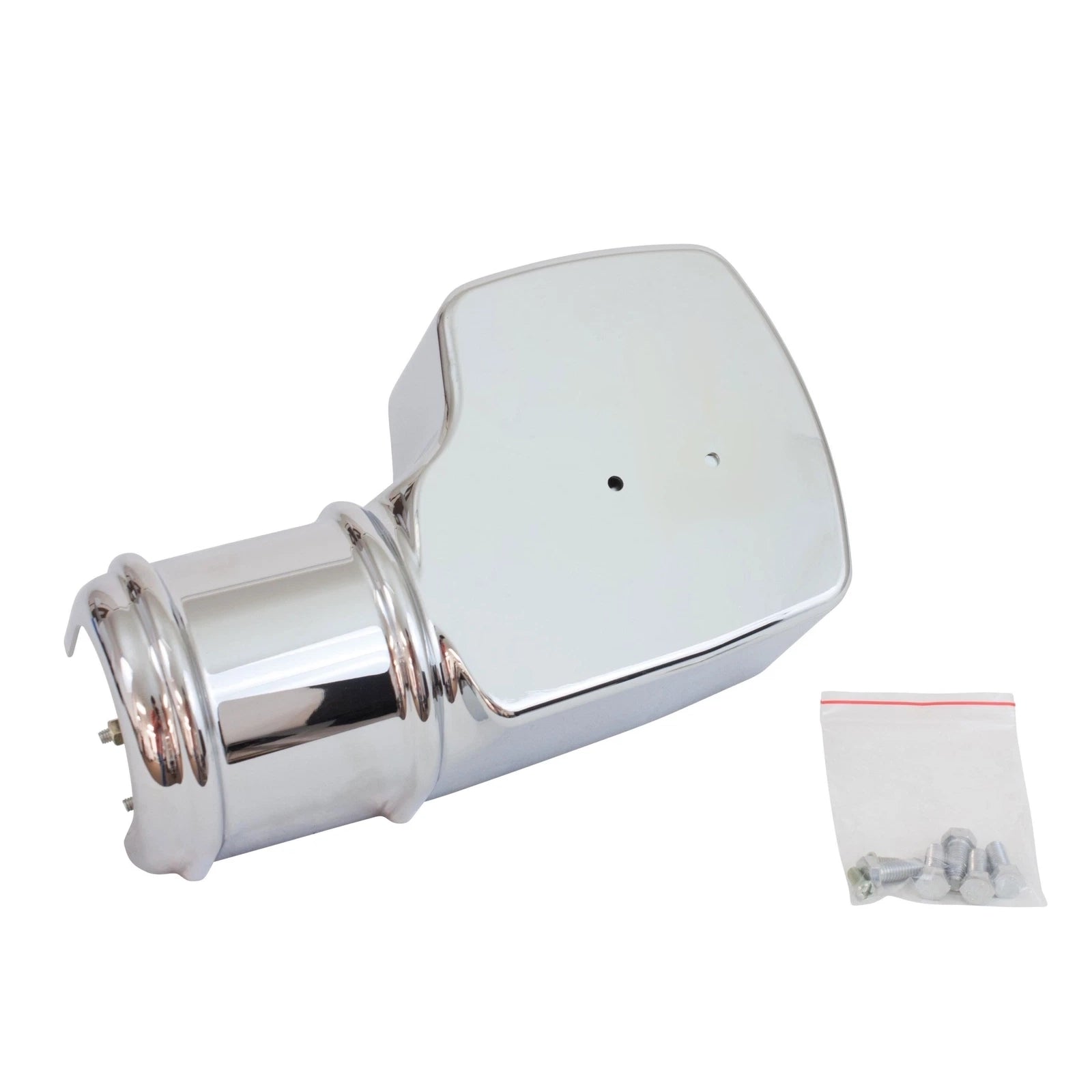

- Chrome motor cover included
- All gears factory-lubricated with oil
- IP65 rated – dust-tight and water-jet resistant
Fitment
- Compatible with dump trailers and trucks up to 28' in length
- Works with multiple mounting patterns (3-hole, 4-hole, and 5-hole)
