Dump Truck Tarp System 4 Spring Electric Aluminum Flip Tarp Kit

Dump Truck Tarp System 4 Spring Electric Aluminum Flip Tarp Kit

Description:

This premium polished aluminum front-to-back flip tarp system is a 100% complete kit, including a black mesh tarp, designed for dump trucks and trailers up to 24' long. With a powerful 12V motor and 4-spring external mount configuration, it allows you to cover your load without leaving the cab. Engineered for durability and convenience, this system is ideal for heavy-duty commercial hauling.

Custom-length tarps in various sizes and colors are also available (additional cost). Please provide your dump box length in the order notes.

✅ Specifications:

• System Type: Electric front-to-back flip tarp system

• Mounting Style: External 4-spring design

• Bed Coverage: Up to 24 ft long

• Tarp Material: Black mesh (Max 7'6" wide × 24' long)

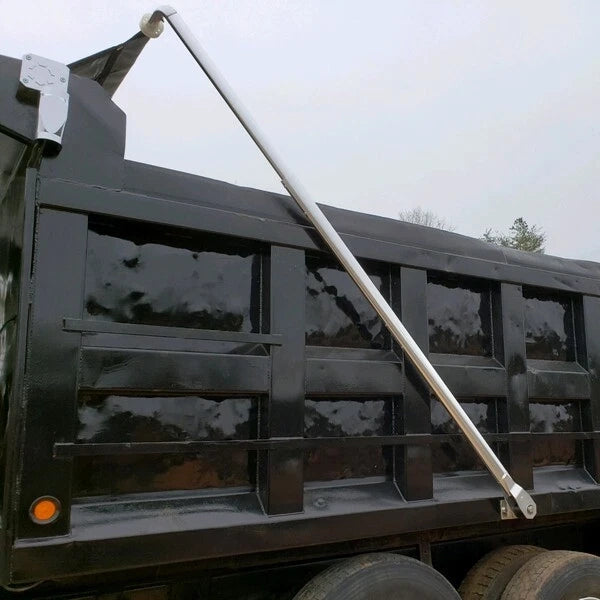

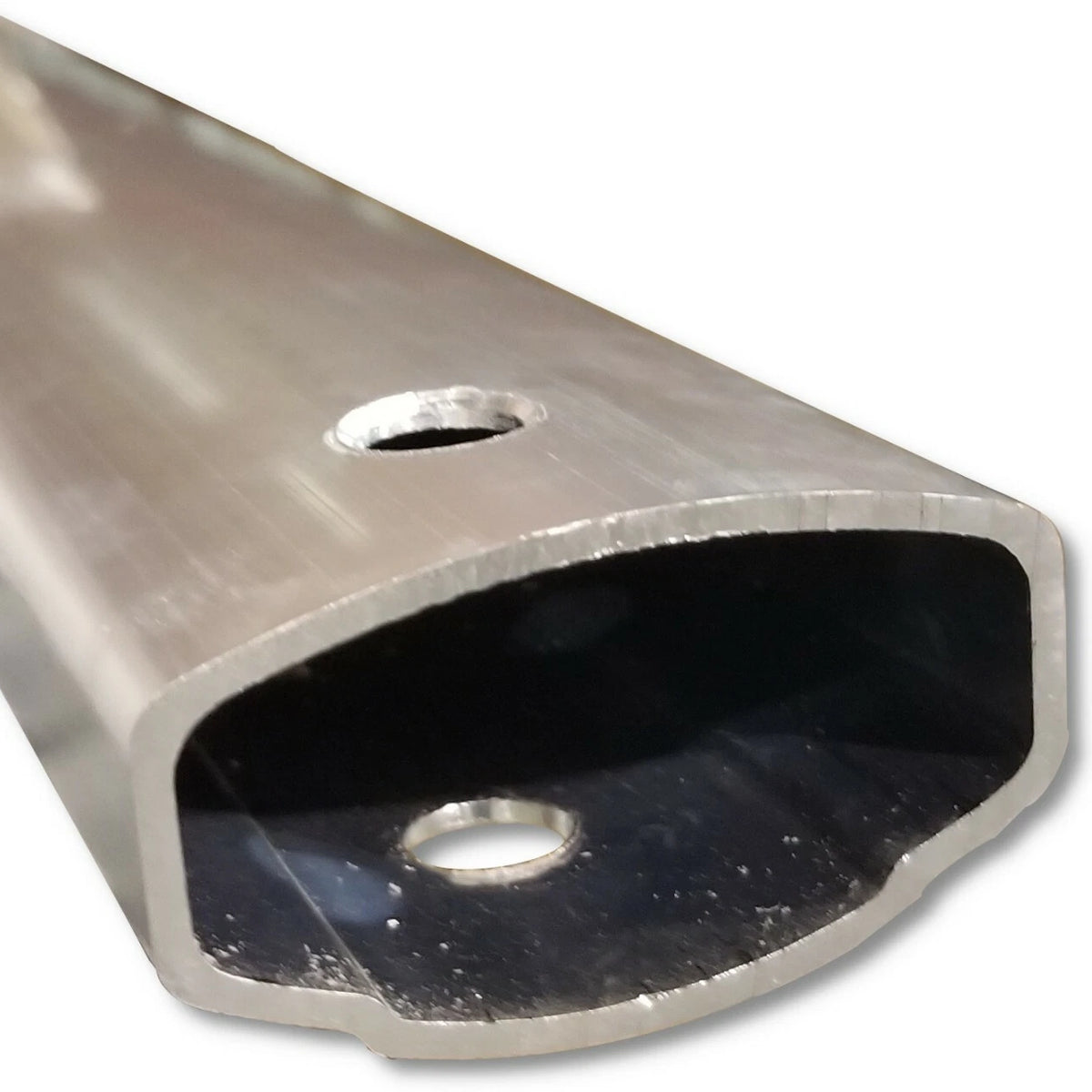

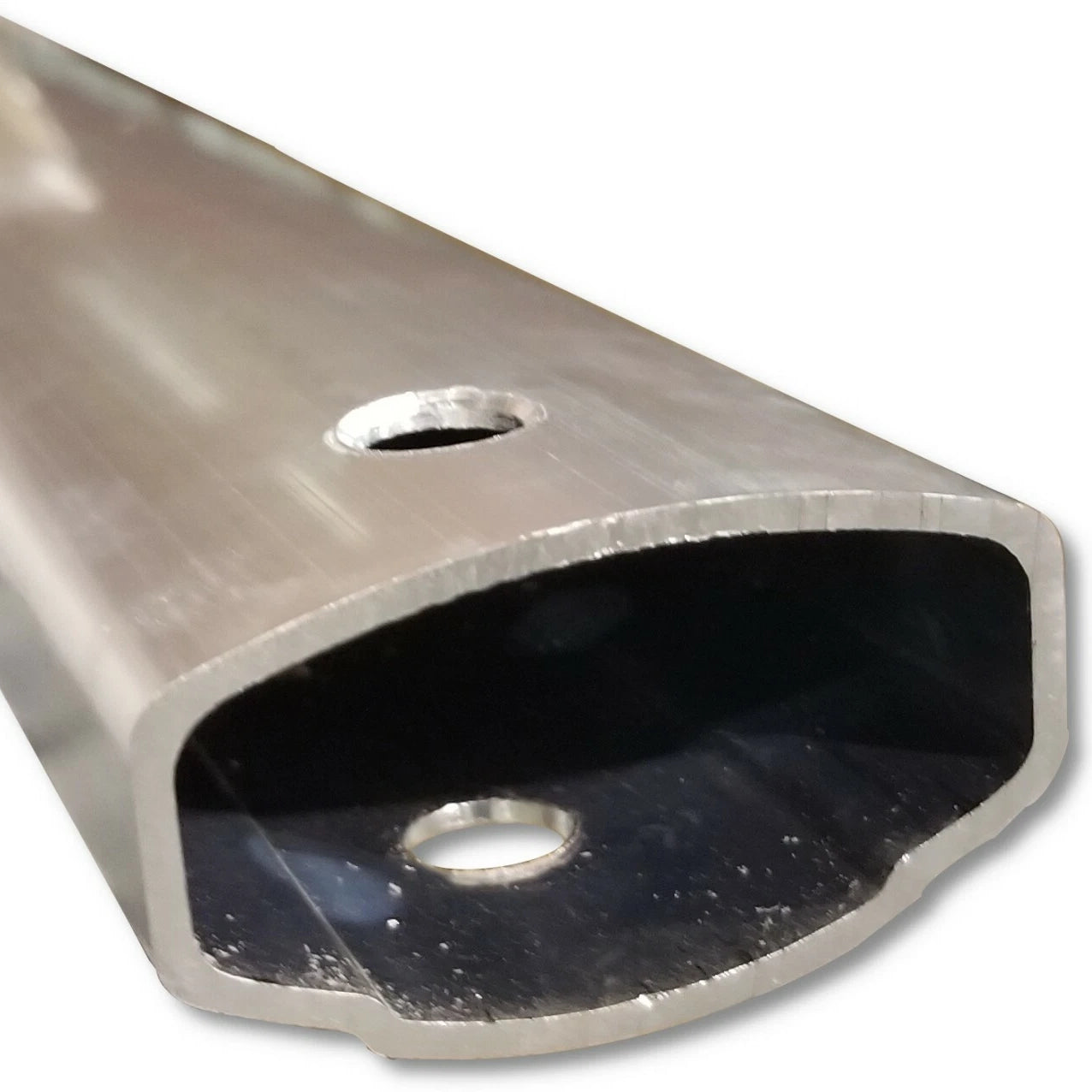

• Tarp Arms: Telescoping aluminum with welded corners

• Cross-Tube: Adjustable 93"/110" aluminum

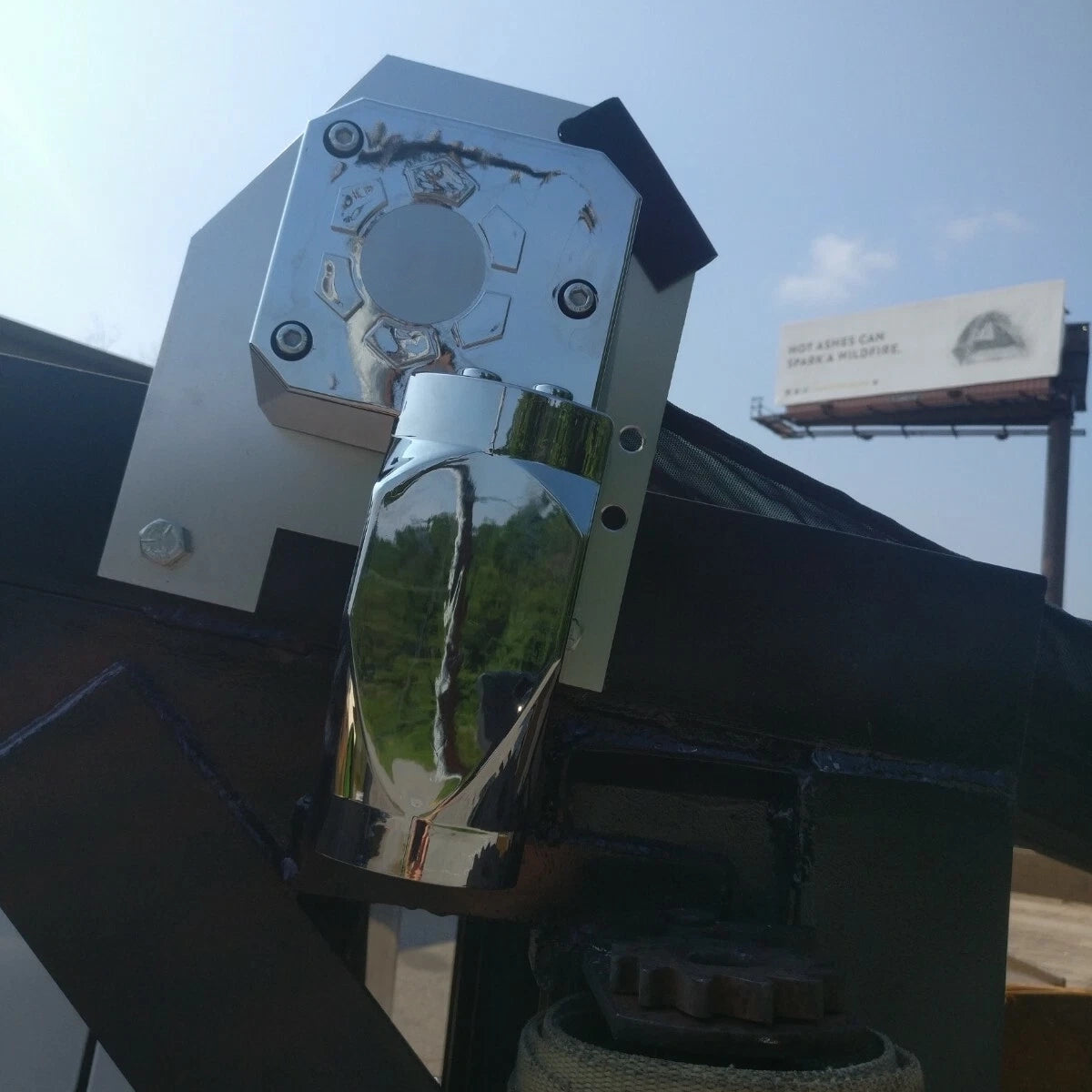

• Motor: 12V Direct Drive 50:1 gear motor (chrome cover, 3-year warranty)

🛠️ Kit Includes:

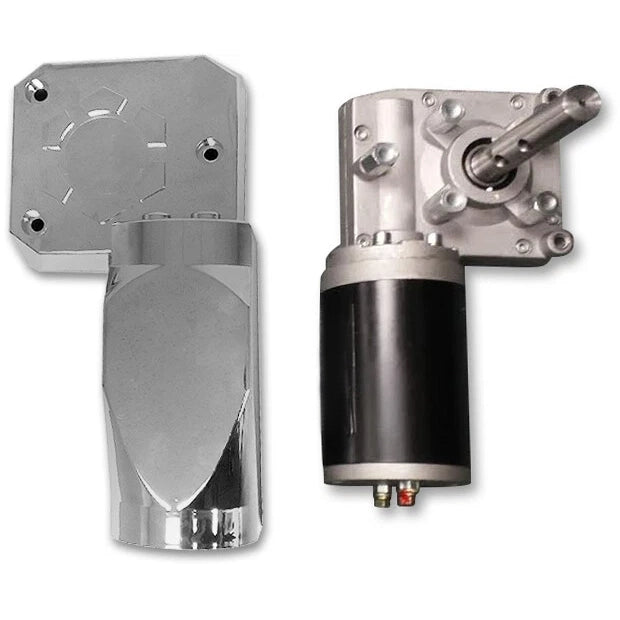

• 1 × 12V 50:1 Direct Drive Motor w/ Chrome Cover

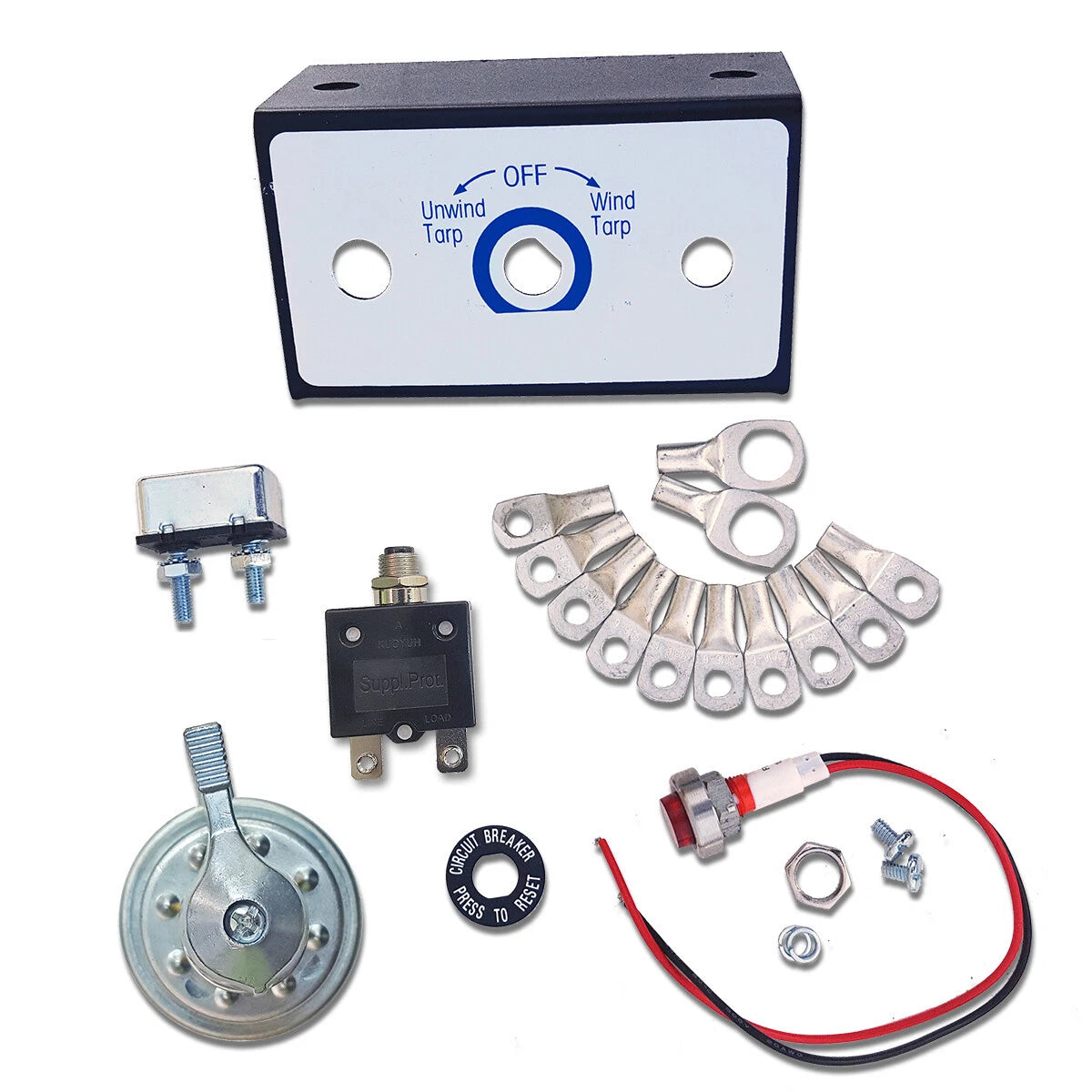

• 1 × Rotary Switch Kit (terminals & fuses included)

• 1 × 50' Dual Conductor 6GA Battery Cable

• 2 × Aluminum Mounting Plates

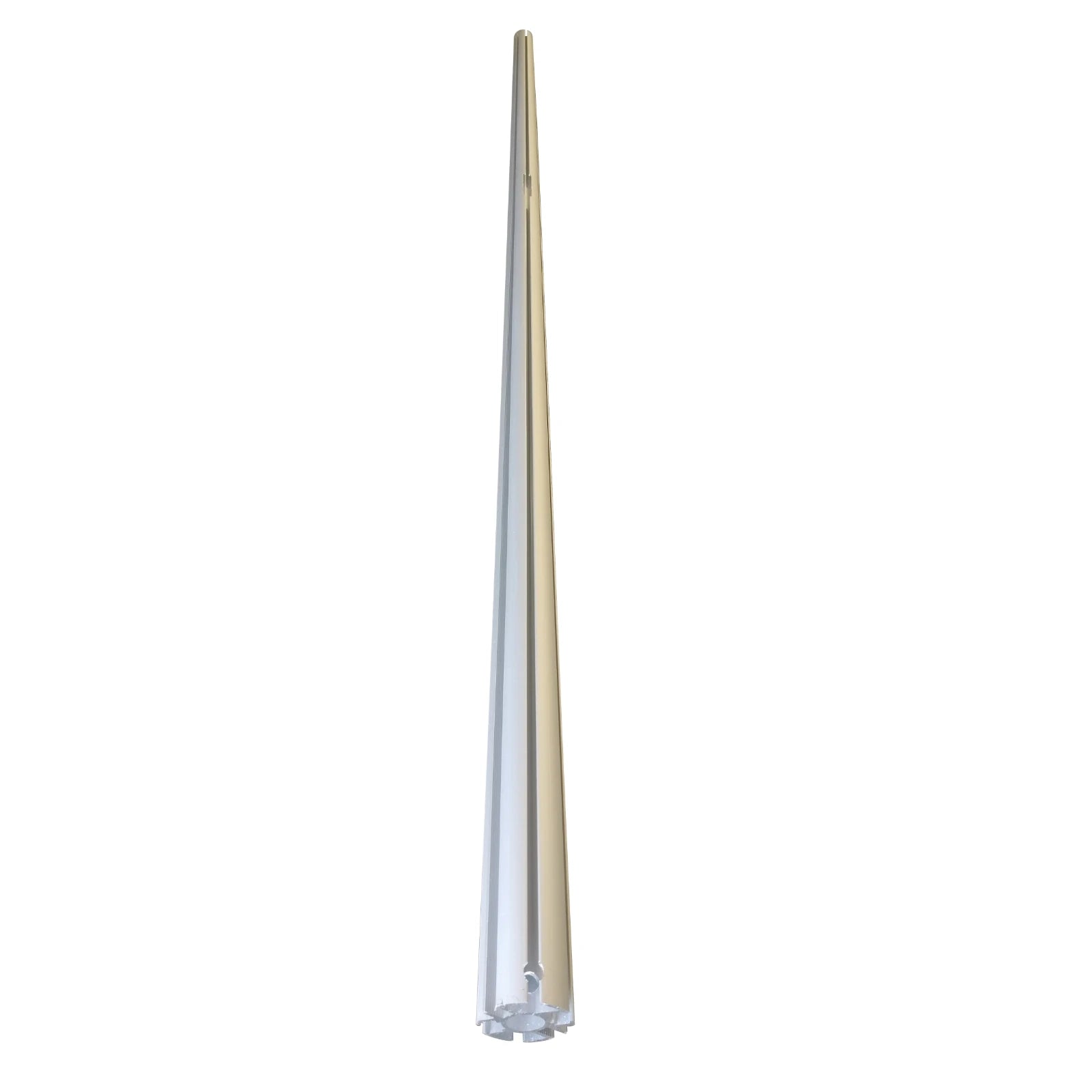

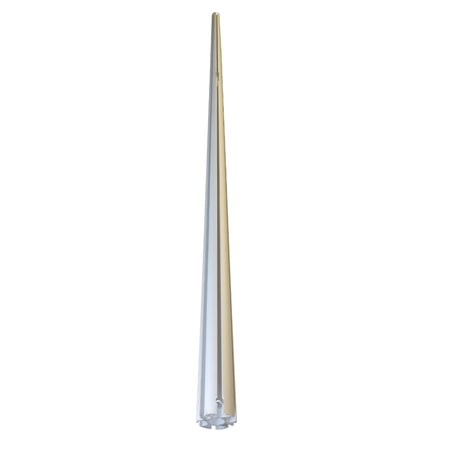

• 1 × Adjustable 93"/110" Tarp Axle w/ Bearing & Stud Shaft

• 2 × 4-Spring Pivot Pins

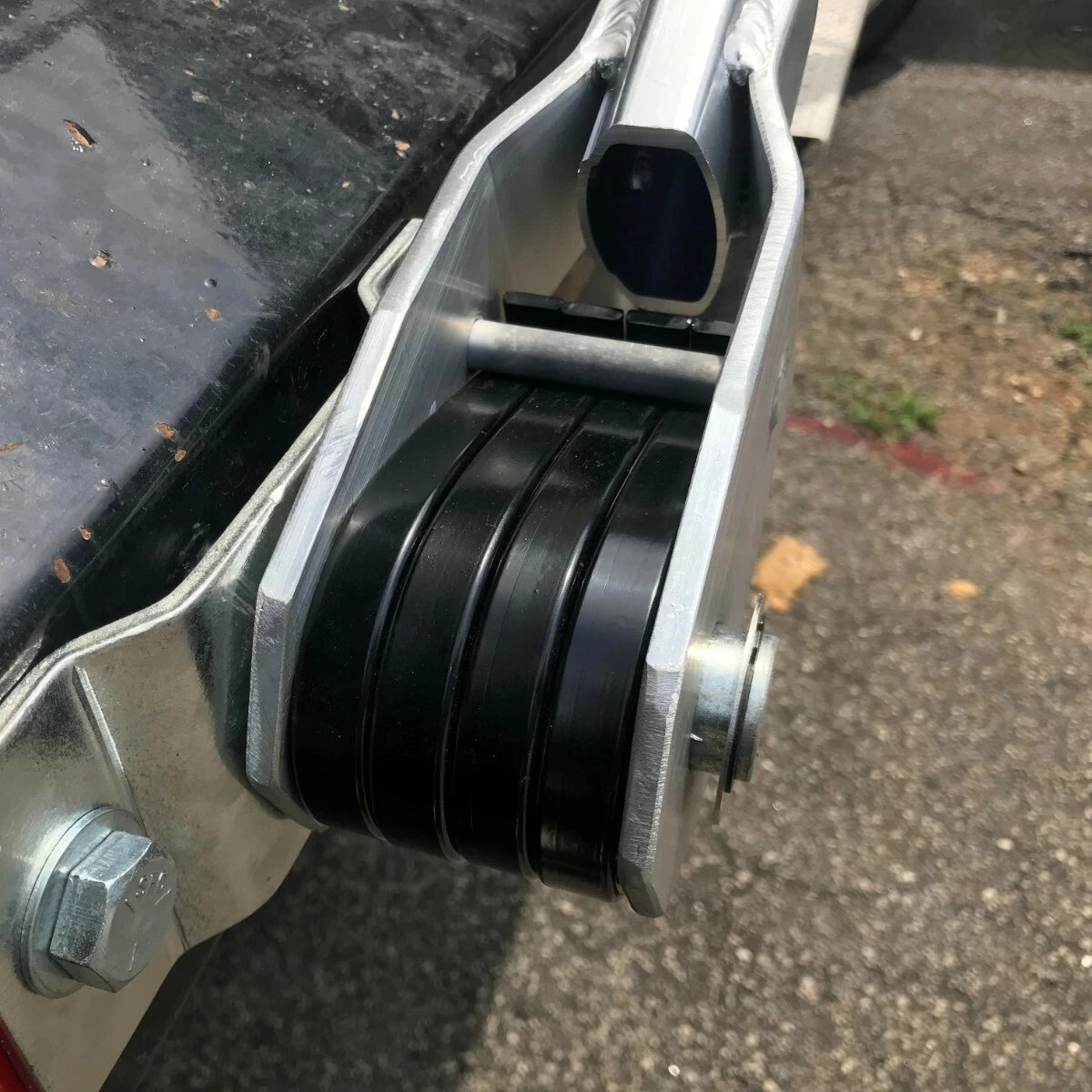

• 8 × Spiral Torsion Springs

• 4 × Stainless Steel Bushings w/ 2 Retaining Clips

• 2 × Aluminum 93" Lower Arms (4-Spring)

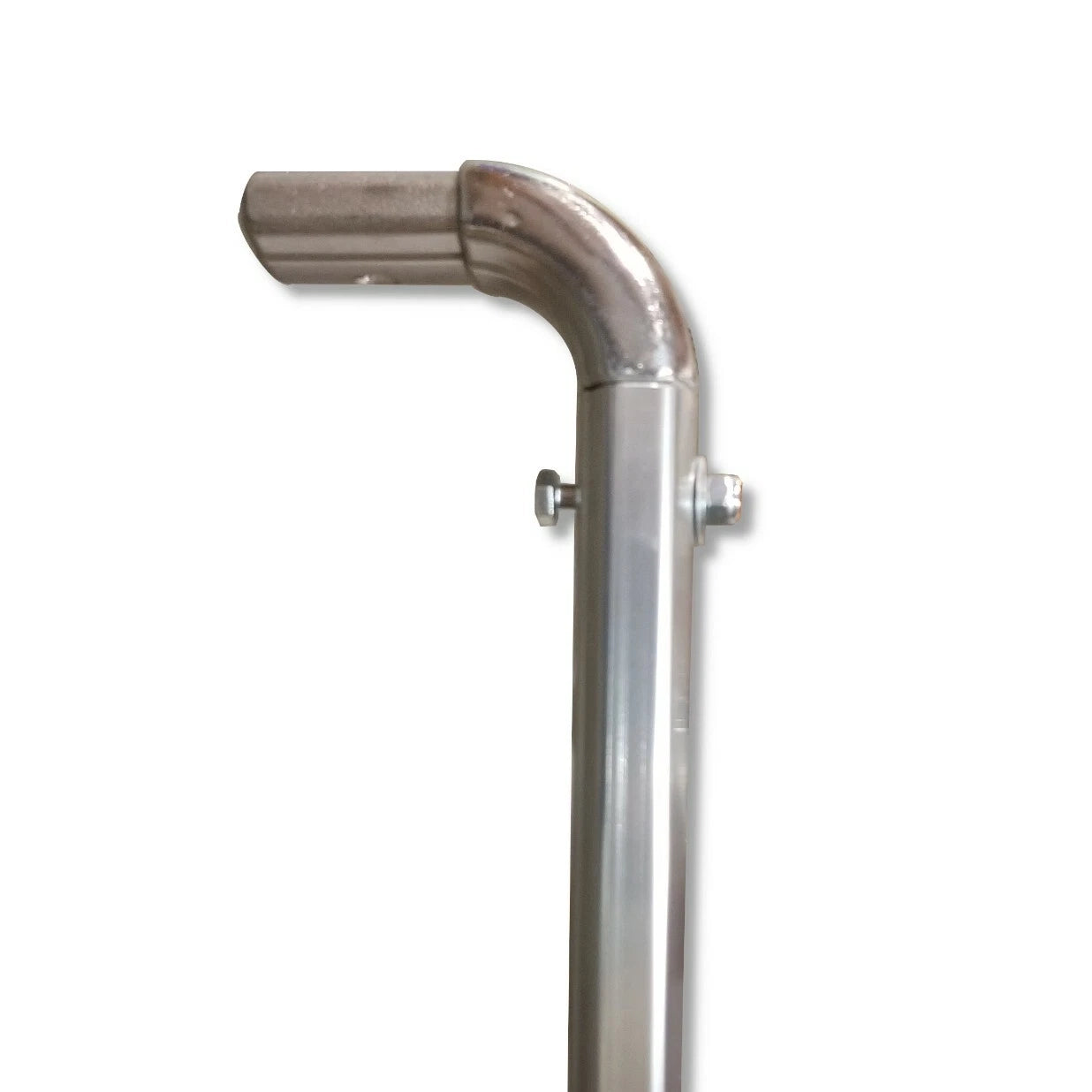

• 2 × 93" Aluminum Upper Arms (welded corners)

• 1 × Adjustable 93"/110" Cross-Tube

• 1 × Black Mesh Tarp

• 1 × Hardware Bag w/ Installation Instructions

🚚 Ideal For:

• Dump trucks

• Dump trailers

• Commercial hauling setups
