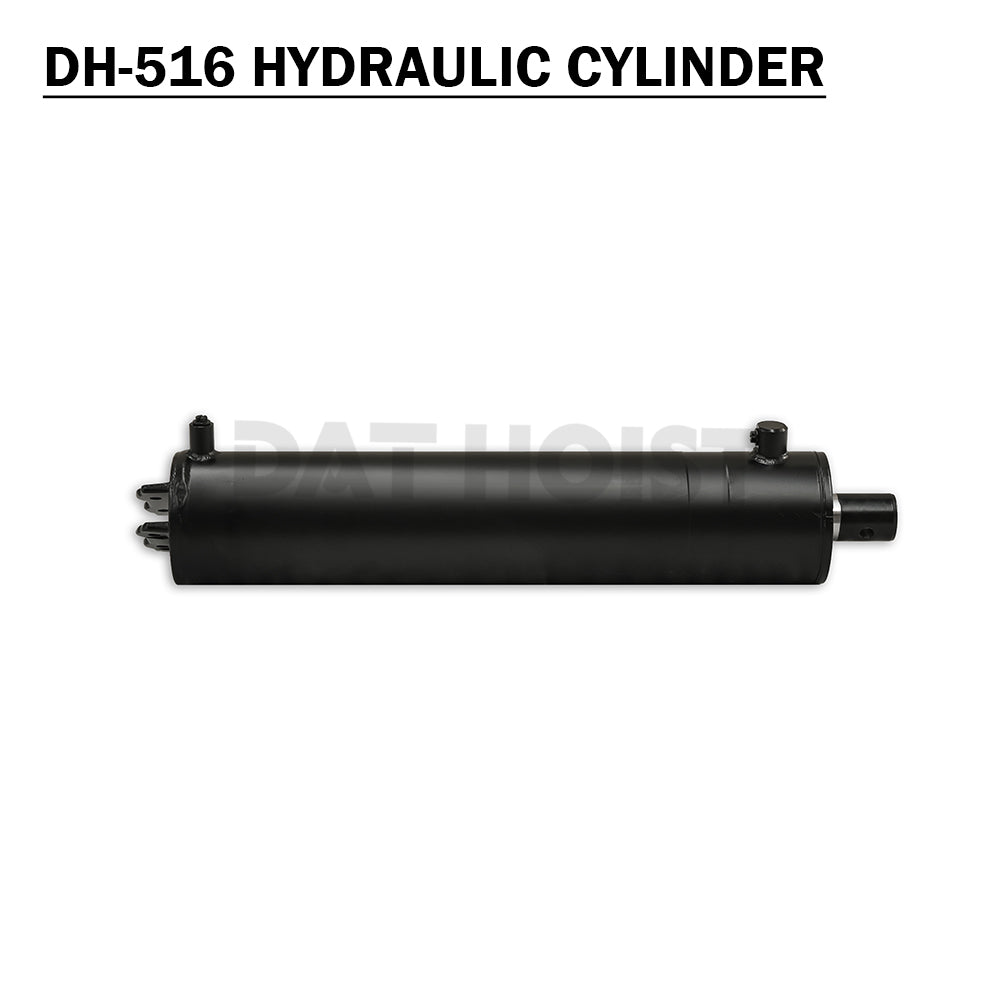

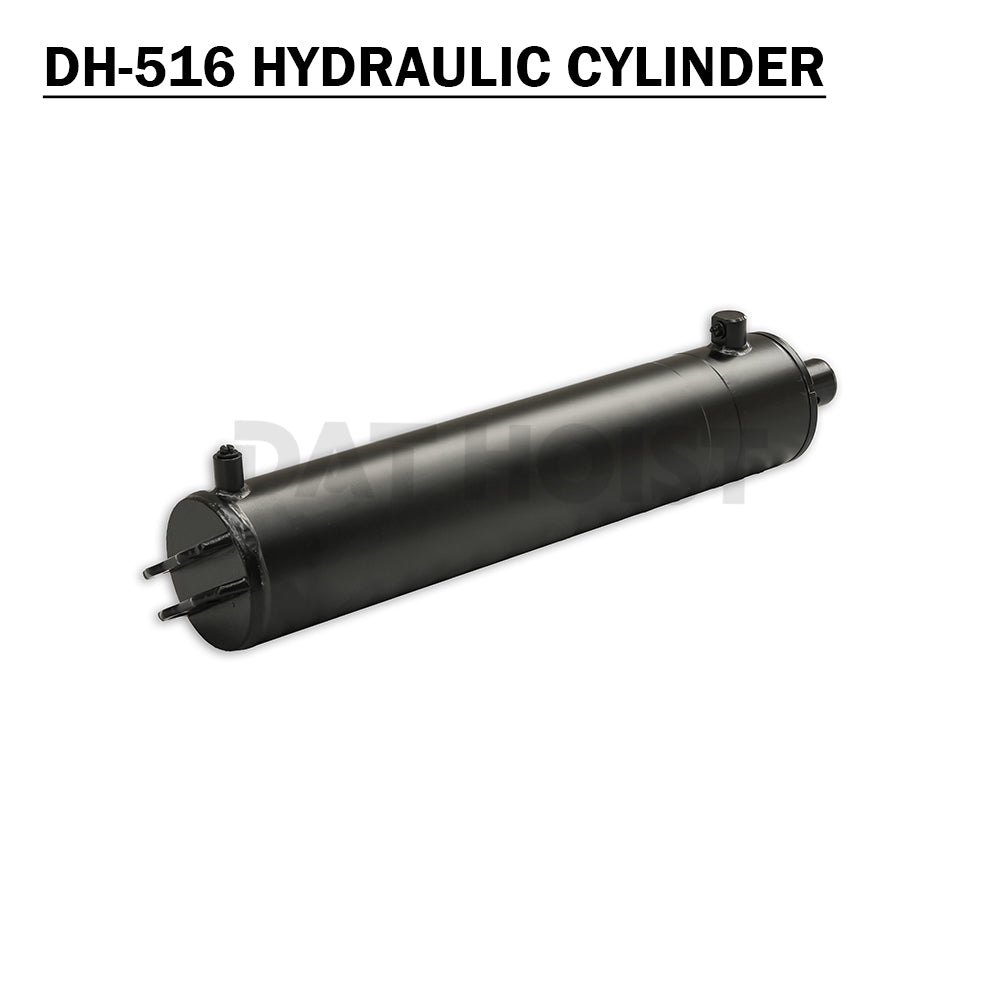

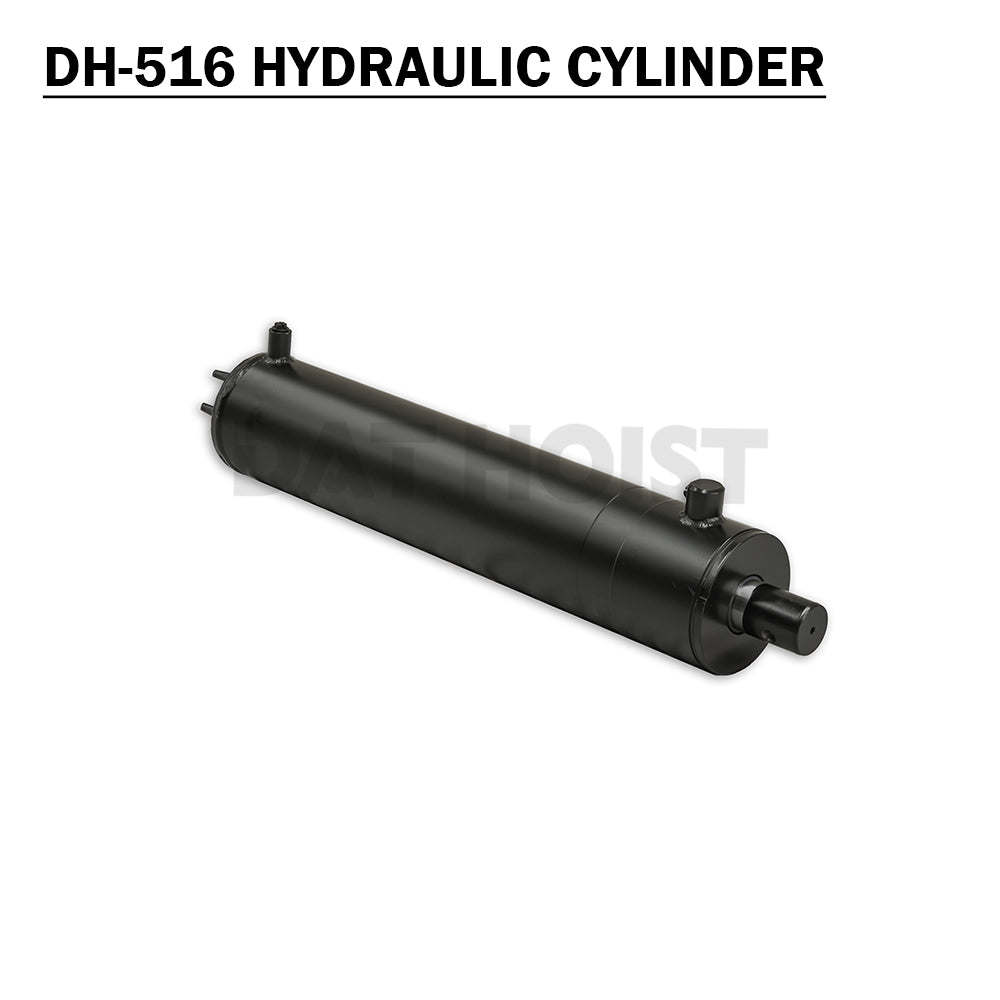

DH-516 Hydraulic Cylinder

DAT HOIST 516 Replacement Cylinder

Heavy Lifting Power. Industrial-Grade Strength.

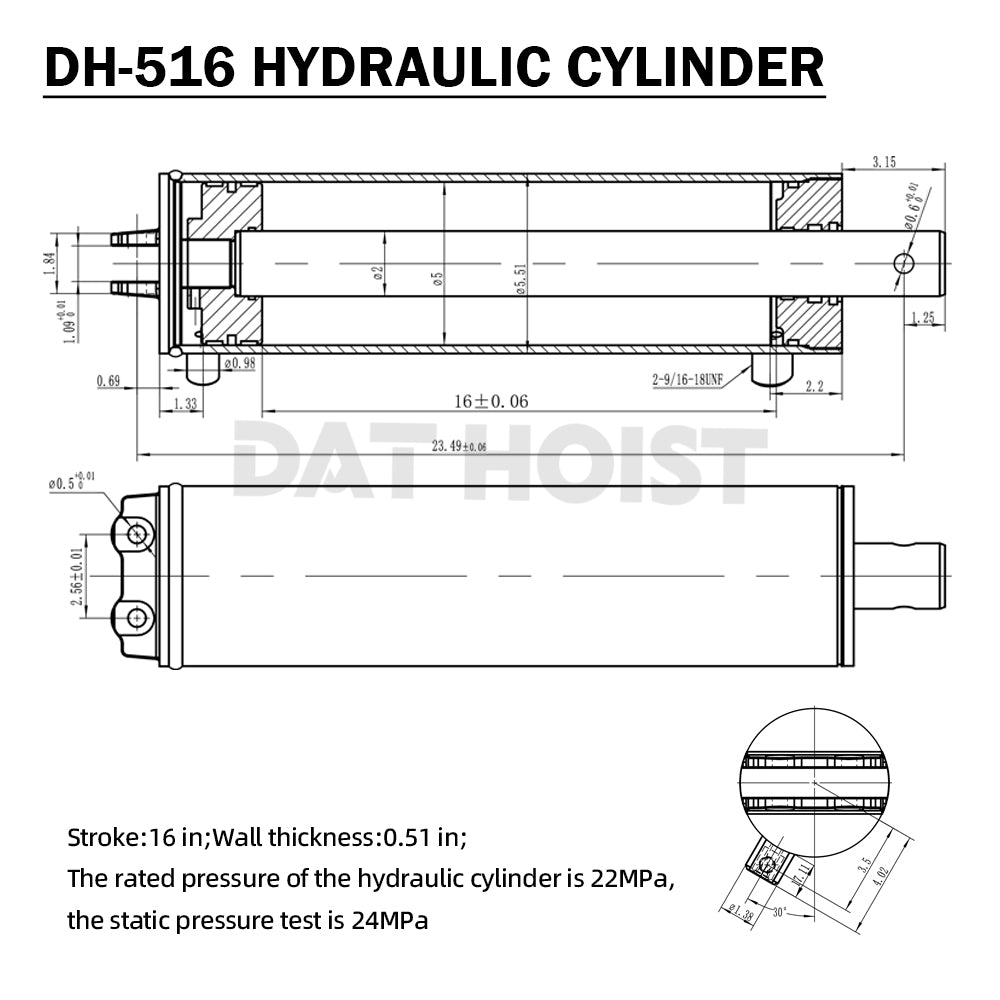

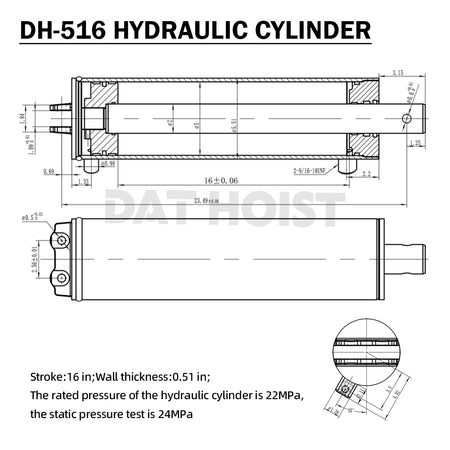

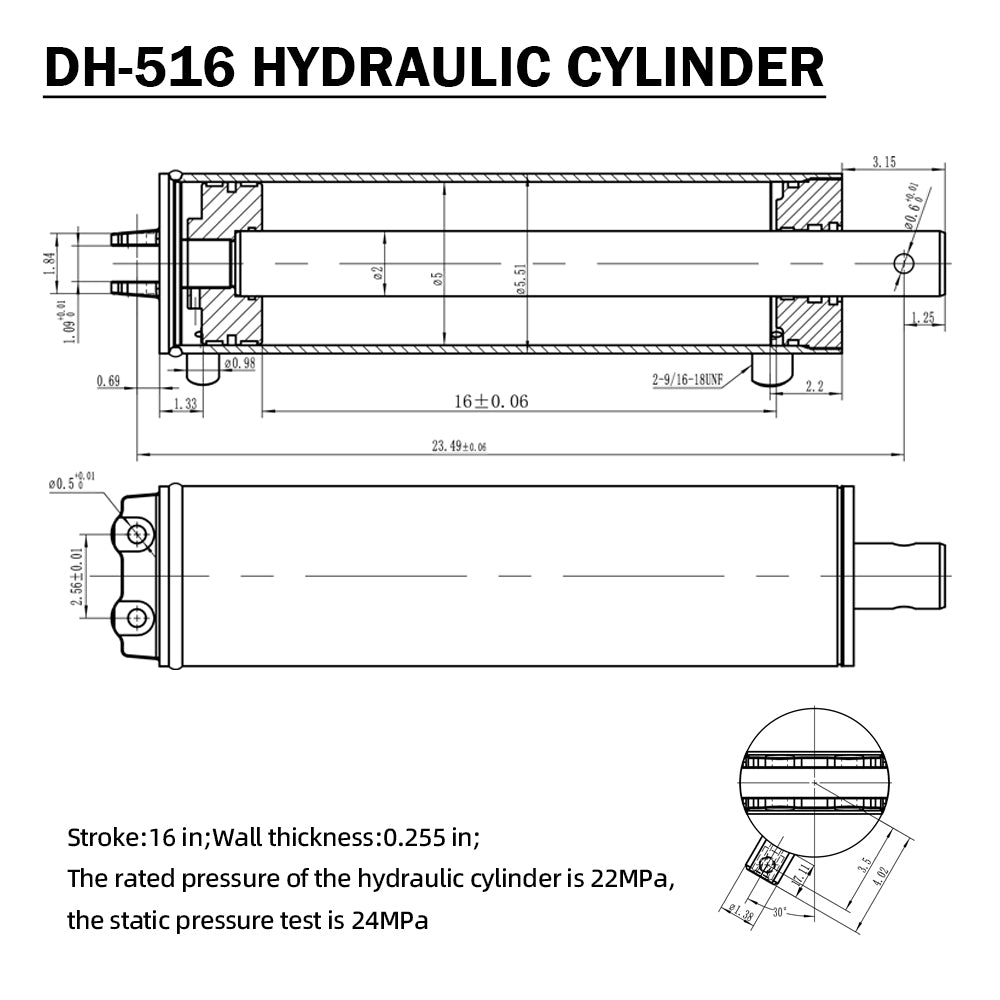

Enhance your dump bed system with the DAT HOIST 516 Replacement Cylinder, engineered for higher load capacities and exceptional durability. Featuring a 5.5" diameter and a 16-inch stroke, this powerful cylinder can lift between 6 to 12 tons, depending on your setup and dump angle.

Key Features

• High Lifting Capacity
  Handles loads from 6 to 12 tons, making it ideal for larger dump bodies and heavy-duty applications.

• Robust Construction
  Built with a 6.5mm (0.255") wall thickness, significantly stronger than competitors’ 6.23mm (0.245") cylinders. Rated to 3200 PSI without deformation.

• Long-Term Durability
  Designed to withstand tough lifting cycles and repeated use, ensuring consistent performance and extended service life.

Why Choose DAT HOIST?

• Superior Quality
  Precision-manufactured to meet the most demanding hydraulic standards.

• Exceptional Customer Support
  We’re dedicated to providing responsive and knowledgeable assistance to every customer.

• Industry Expertise
  With deep experience in hydraulic systems, DAT HOIST is a trusted name in heavy-duty lifting solutions.

Note:

• Lift capacity depends on dump angle and configuration. Refer to the lift chart for detailed performance data.

• This product is a replacement cylinder only. For a complete conversion, the full DH-516 scissor hoist kit is required.

Upgrade your dump bed with the DAT HOIST 516 Replacement Cylinder – engineered for power, built for endurance.
