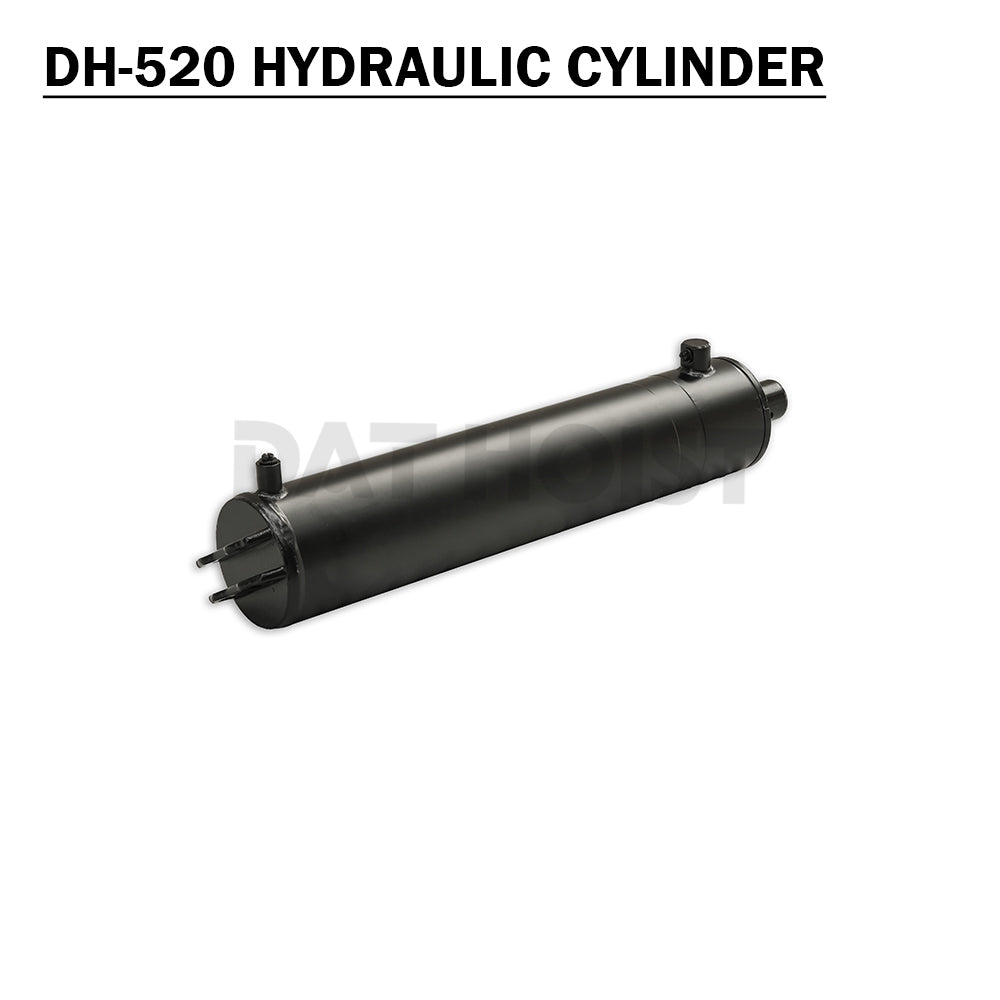

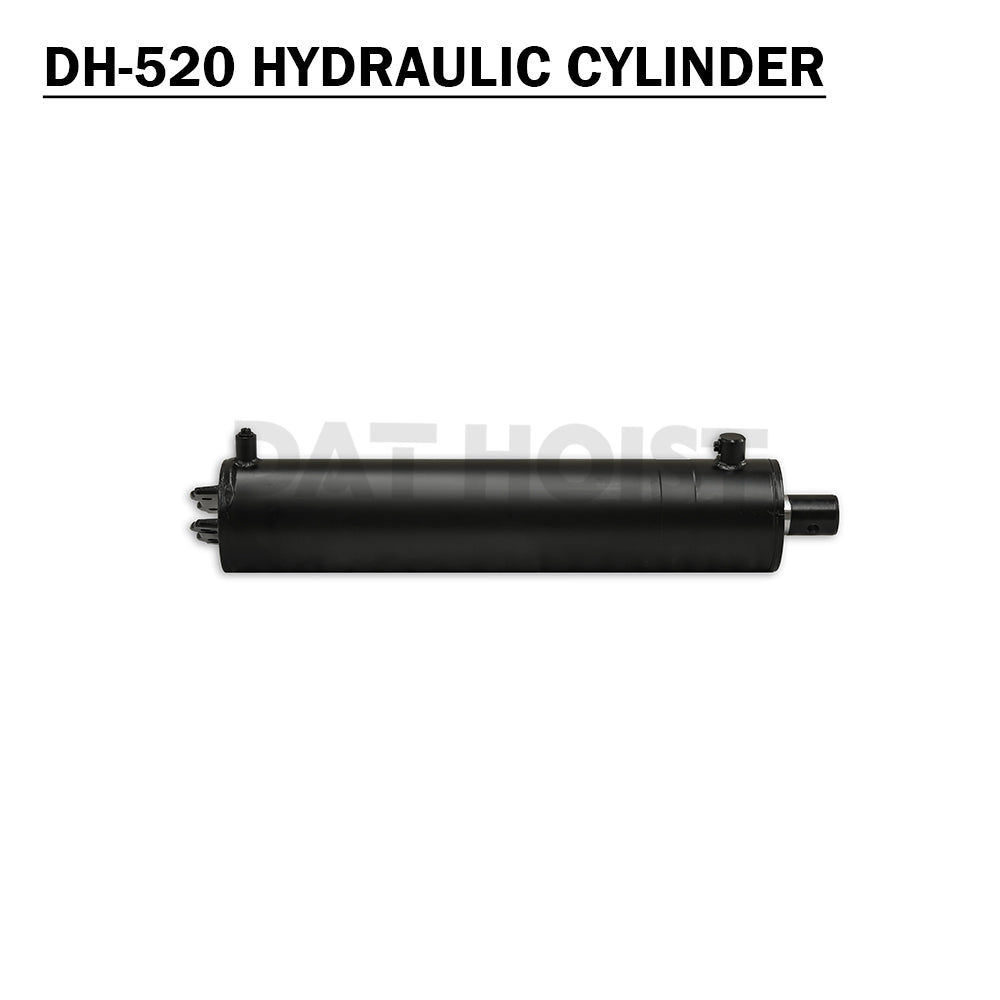

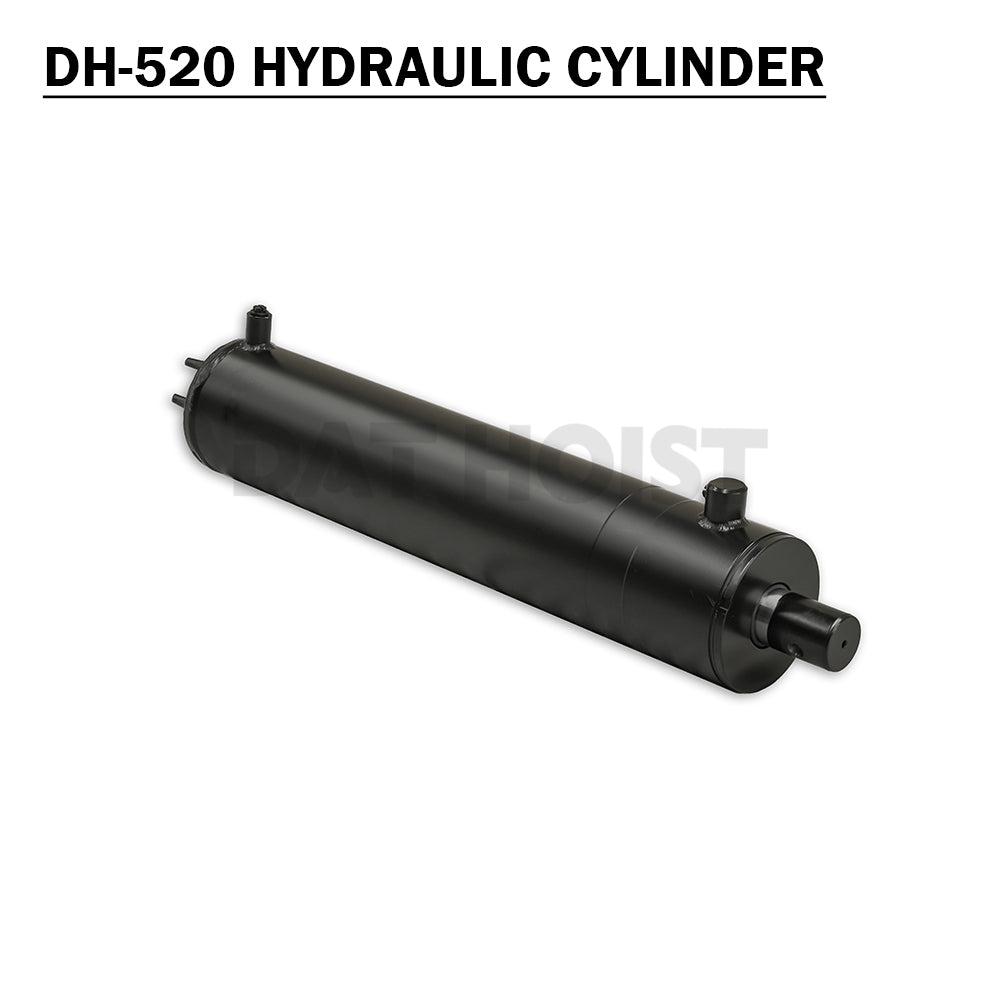

DH-520 Hydraulic Cylinder

DAT HOIST 520 Replacement Cylinder

Extended Stroke. Maximum Lifting Power.

Upgrade your dump bed system with the DAT HOIST 520 Replacement Cylinder, built for exceptional performance, high lifting capacity, and extended reach. Featuring a 5.5" diameter and a 20-inch stroke, this cylinder is perfect for longer beds and heavier payloads. Rated as a 10-ton unit, it can lift up to 12 tons depending on your setup and dump angle.

Key Features

• High Lifting Capacity
  Supports 6 to 12 tons, delivering powerful performance for the most demanding dump bed applications.

• Extended 20-Inch Stroke
  Designed for improved reach and flexibility, especially useful for longer beds and oversized loads.

• Reinforced Construction
  Manufactured with a 6.5mm (0.255") wall thickness, exceeding the standard 6.23mm (0.245"). Withstands up to 3200 PSI with no deformation.

Why Choose DAT HOIST?

• Precision Quality
  Engineered and built to meet rigorous industrial standards.

• Outstanding Support
  Dedicated customer service team with expert knowledge in hydraulic systems.

• Industry-Proven Expertise
  DAT HOIST is a trusted name in hydraulic technology, backed by years of real-world application experience.

Note:

• Lifting capacity varies depending on bed length, angle, and setup. Refer to the performance chart for details.

• This is a replacement cylinder only. For full conversion, the DH-520 scissor hoist kit is required.

Experience the unmatched power and reach of the DAT HOIST 520 Replacement Cylinder — built for big jobs and long beds.
