14ft Subframe Hoist Kit – Compatible with DH-520HD

In stock
$2,650.00
Standard
Free Shipping

Use this text to encourage communication or promote sharing on social networks.

You can also add links

DAT HOIST 14ft Subframe Hoist Kit – Compatible with DH-520HD

Product Overview

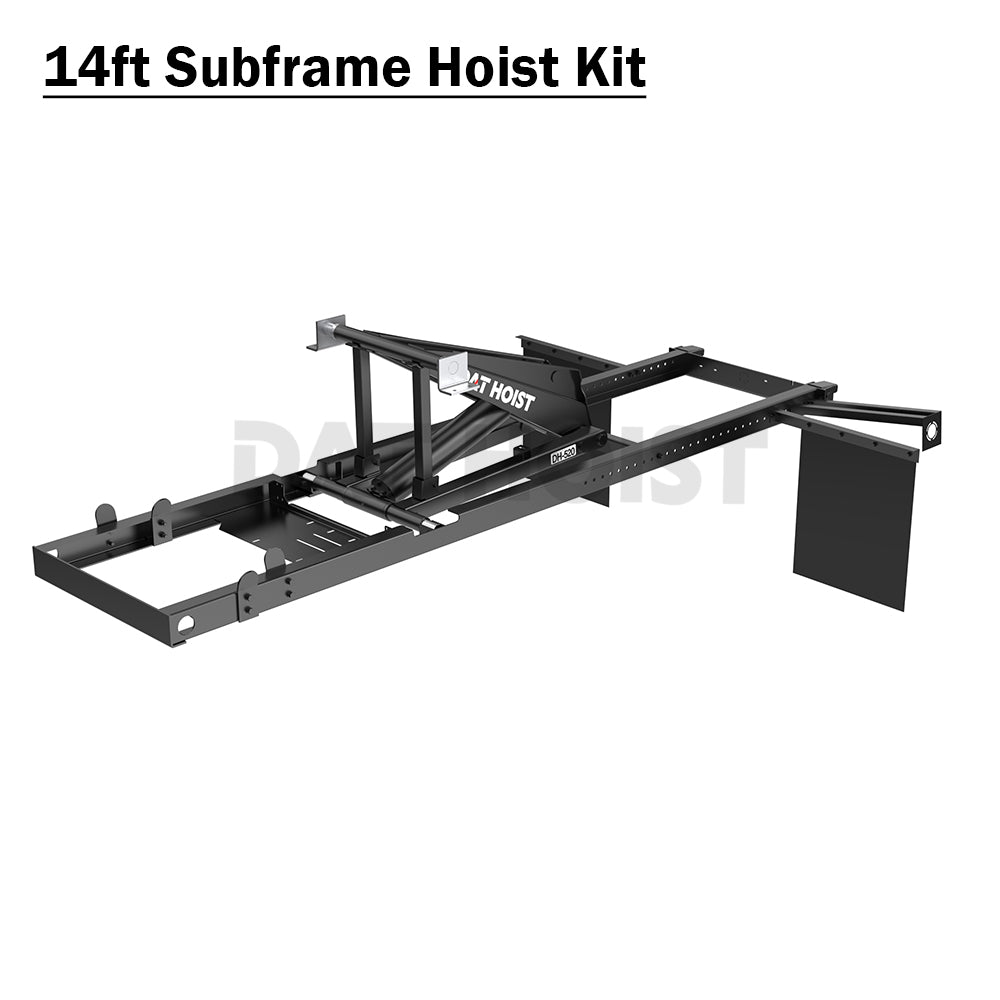

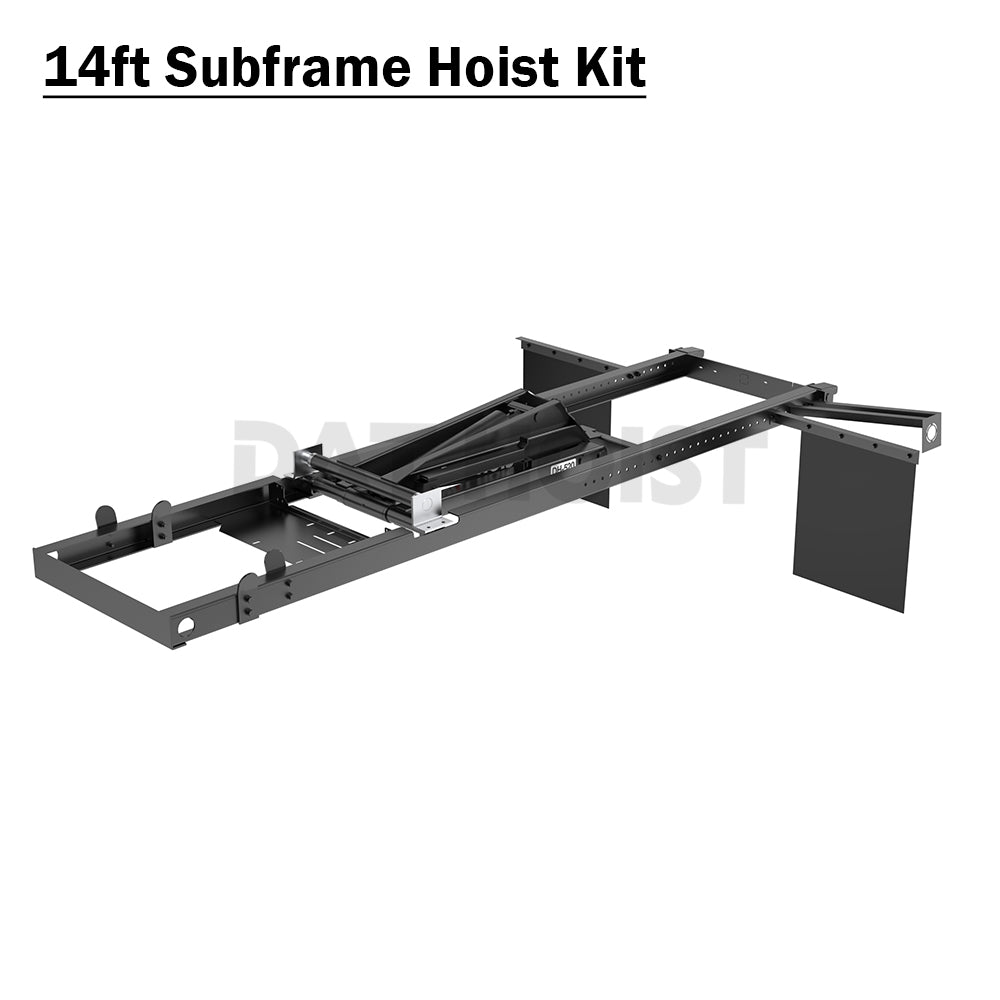

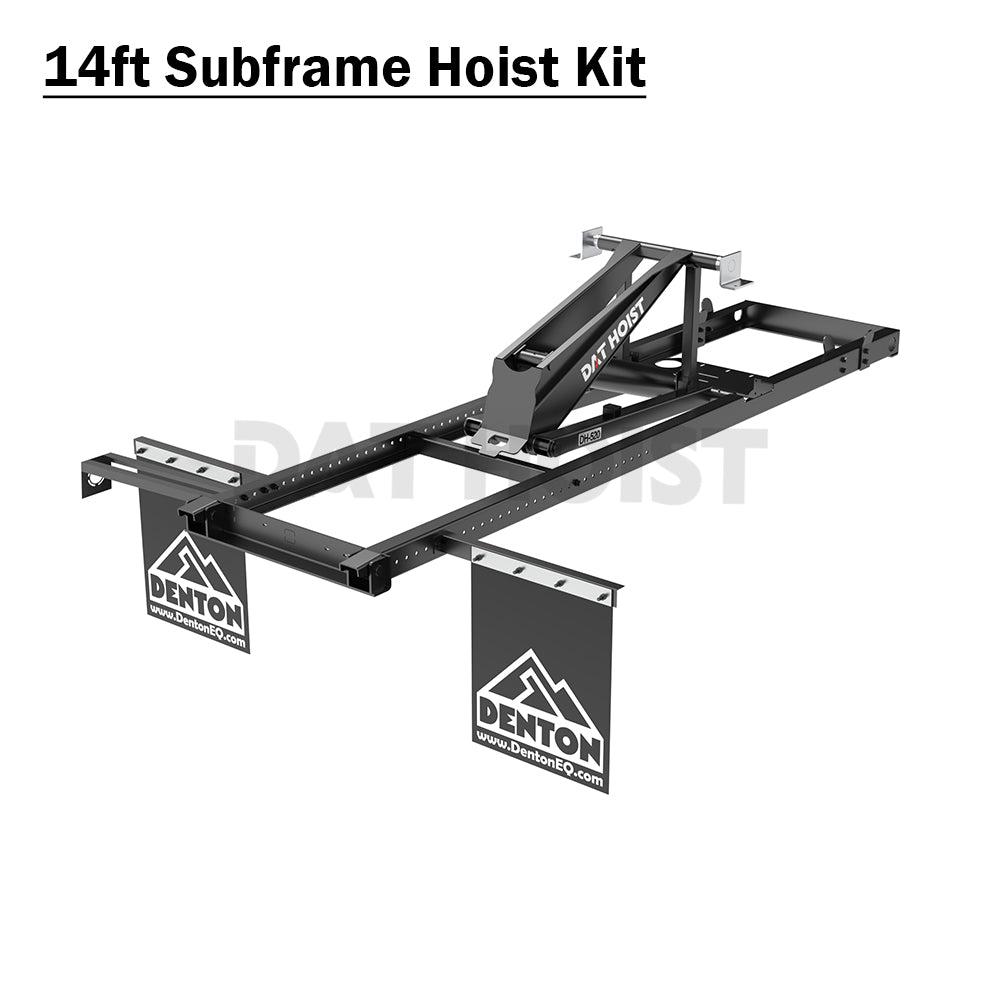

The DAT HOIST 14ft Subframe Hoist Kit is engineered to provide a strong, stable foundation for dump body installations using DH-520 and DH-520HD hydraulic scissor hoists. Designed specifically for 14 ft dump beds, this heavy-duty subframe system ensures proper alignment, reliable load support, and smooth dumping performance with a maximum dump angle of up to 45°.

Constructed from high-strength steel and reinforced at critical load-bearing points, this subframe hoist kit integrates seamlessly with DAT HOIST scissor hoist systems to form a complete, dependable dump body lifting solution. It is ideal for medium-duty dump trucks and trailers requiring consistent performance, structural integrity, and long-term durability.

Key Features

  • Optimized for 14 ft Dump Beds
    Precisely designed for 14-foot dump bodies, providing correct geometry and stable lifting performance.

  • Compatible with DH-520 / DH-520HD Scissor Hoists
    Pre-engineered mounting points allow seamless integration with DAT HOIST DH-520 and DH-520HD hydraulic scissor hoists for secure installation.

  • Heavy-Duty Steel Construction
    Fabricated from 1/4-inch high-strength steel, offering excellent resistance to flexing, fatigue, and deformation under load.

  • Precision Dump Angle – Up to 45°
    Engineered for efficient unloading with consistent dumping performance across various materials.

  • Welded & Reinforced Design
    Reinforced stress zones and clean weld lines enhance overall strength, safety, and service life.

  • Installation-Ready Configuration
    Ships with pre-drilled mounting holes, brackets, and support components for faster alignment with the hoist and dump bed.

Recommended Applications

This 14ft subframe hoist kit is commonly used for:

  • Medium-duty dump trucks

  • Dump trailers with 14 ft beds

  • Hydraulic scissor hoist installations

  • New dump body builds and retrofits

  • Commercial and fleet applications

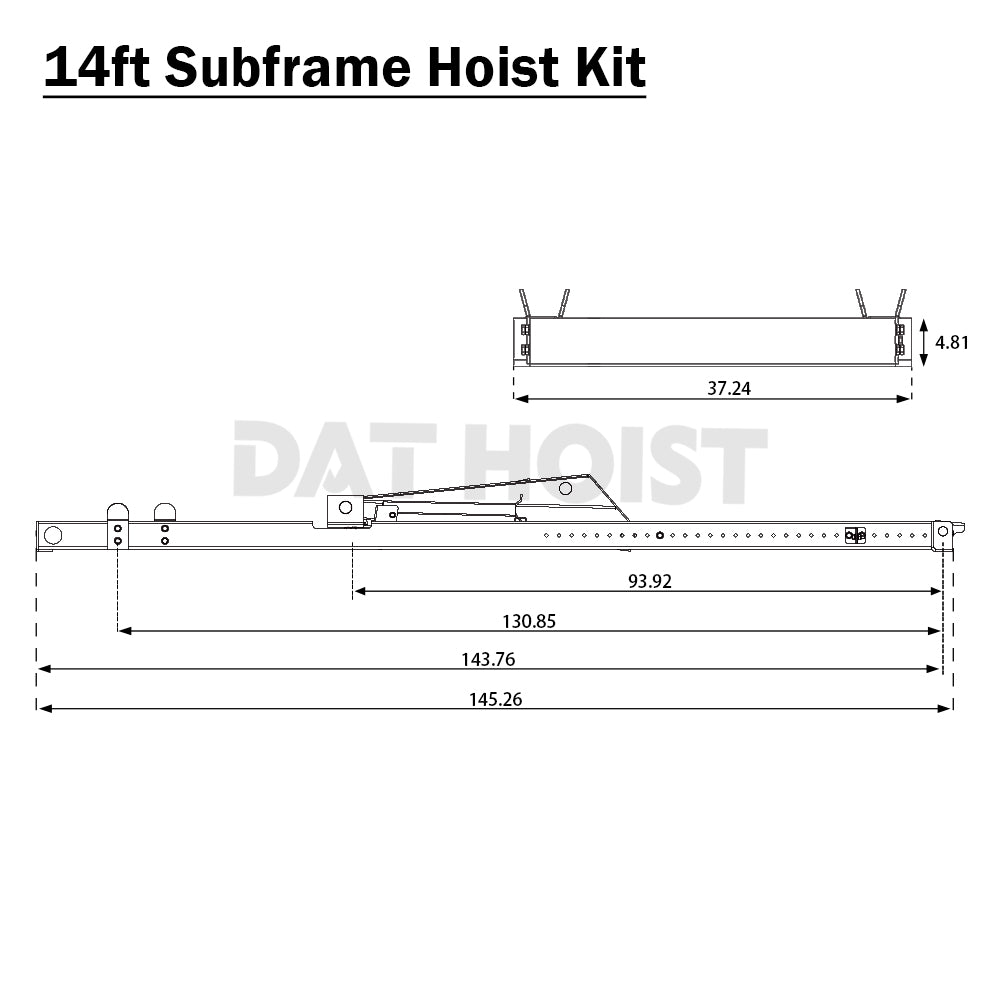

Technical Specifications
Specification Details
Dump Bed Length 14 ft
Max Dump Angle Up to 45°
Material 1/4" High-Strength Steel
Construction Welded & Reinforced
Hoist Compatibility DH-520 / DH-520HD Scissor Hoists
Application Dump Trucks & Dump Trailers

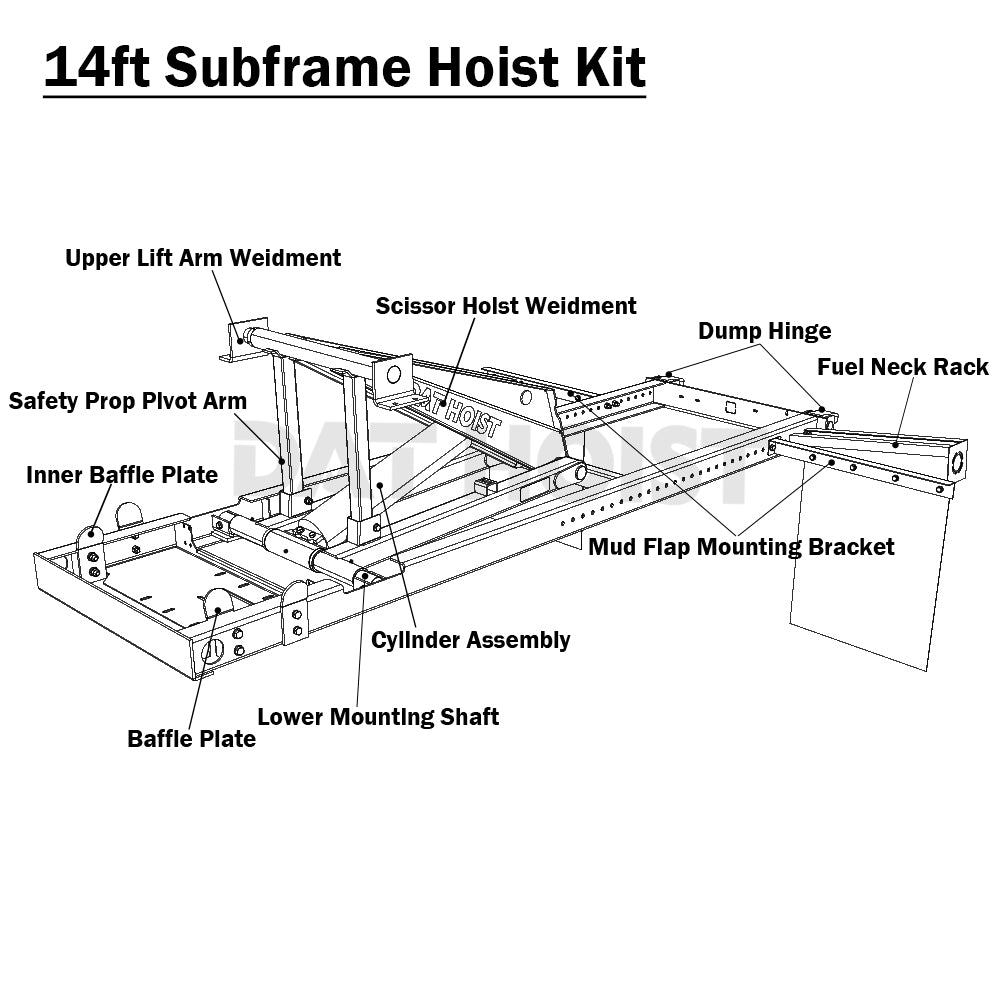

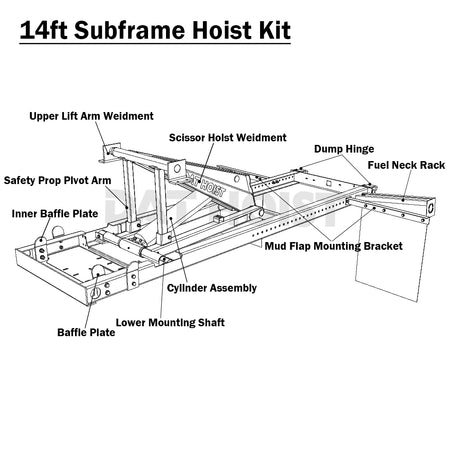

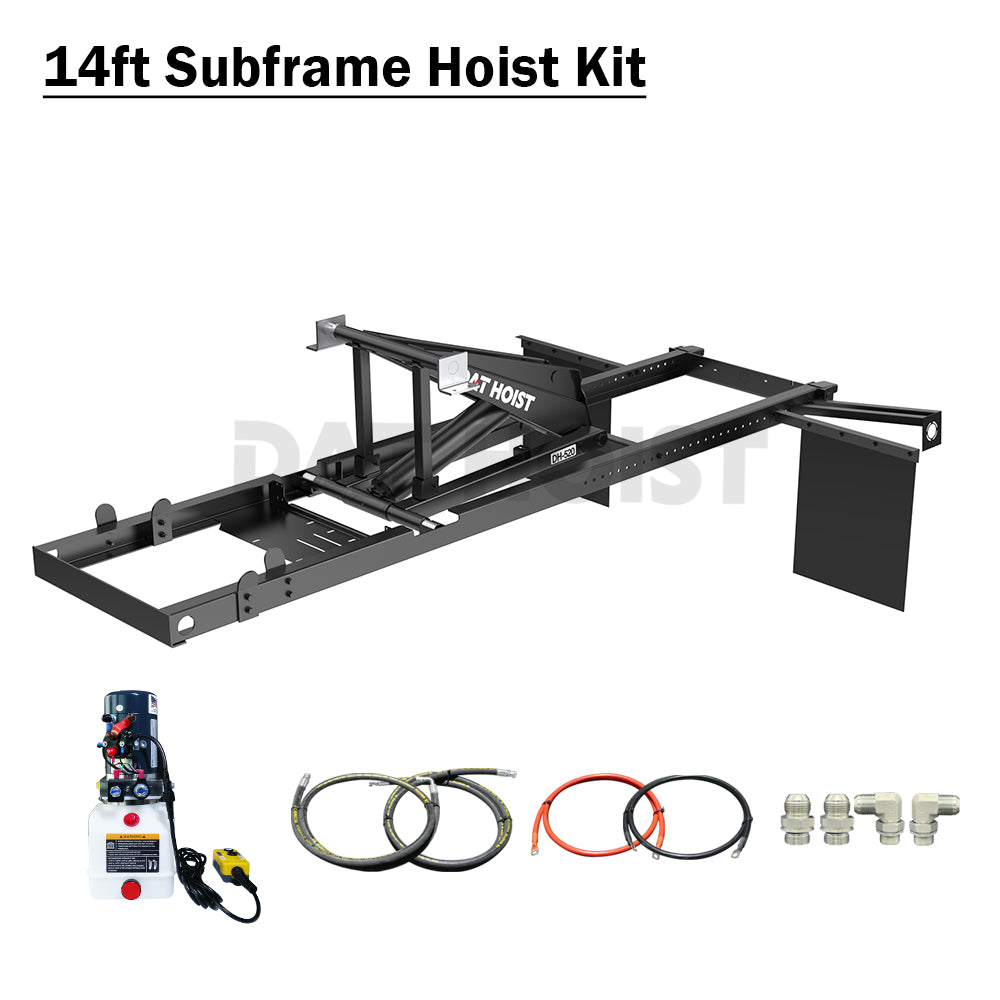

What’s Included in the 14ft Subframe Hoist Kit
Part Number Component Description Quantity
DH-520HD Hydraulic Scissor Hoist HD 520 1
DH-G1-ACC-002 516/520 HD Ring Collar 2
DH-G1-ACC-003 516/520 HD Upper Lifting Arm 2
SF-ISU-14 Subframe – Isuzu 14 ft 1
SF-ISU-ACC-001 Subframe Pin Shaft 1
SF-ISU-ACC-002 Subframe Baffle Plate 2
SF-ISU-ACC-003 Subframe Inner Baffle Plate 2
SF-ISU-ACC-004-1 Subframe L Bracket (Three Holes) 2
SF-ISU-ACC-005 Subframe L Bracket (Two Holes, Gas) 2
SF-ISU-ACC-007-LH Subframe Bracket – Left Mud Flap 1
SF-ISU-ACC-007-RH Subframe Bracket – Right Mud Flap 1
SF-ISU-ACC-008 Subframe Fuel Neck Rack 1
DH-DA-1.6KW-4QT-15FT Double-Acting Hydraulic Power Unit, 1.6KW, 4L Reservoir, 15 ft Control 1
HH-C-038-8FT-S Hydraulic Hose, 3/8", 8 ft (2.44 m), Straight Ends 1
HH-C-038-6FT-SE Hydraulic Hose, 3/8", 6 ft (1.83 m), One Straight & One 90° Elbow 1
HF-LIC3M-FL-916 Hydraulic Fitting, 3/8" Male 37° LIC Flare, 9/16"-18 2
HF-JIC3M-EL-06 Hydraulic Fitting, 3/8" Male JIC 37° Elbow 2
BC-001 2AWG 1.5 m Battery Cable (Red & Black) 1
Installation & Compatibility

This subframe hoist kit is designed for 14 ft dump beds and optimized for use with DAT HOIST DH-520 and DH-520HD hydraulic scissor hoists. Professional installation is recommended to ensure correct alignment, secure mounting, and safe, reliable dumping performance.

Frequently Asked Questions (FAQ)

Does this subframe hoist kit include a hydraulic scissor hoist?

Yes. This subframe hoist kit includes a compatible DAT HOIST hydraulic scissor hoist designed to work seamlessly with the subframe system.

Is a hydraulic power unit included in this kit?

Yes. The kit includes a double-acting hydraulic power unit, along with hydraulic hoses, fittings, wiring, and controls—providing a complete, ready-to-install lifting system.

What dump bed length is this subframe designed for?

This subframe kit is specifically engineered to match the listed dump bed length (such as 12 ft or 14 ft), ensuring proper alignment, load distribution, and optimal dumping geometry.

Why Choose DAT HOIST

DAT HOIST specializes in hydraulic scissor hoists, subframe systems, and complete dump body lifting solutions engineered for durability, reliability, and real-world performance. The 14ft Subframe Hoist Kit provides a proven foundation trusted by operators who demand strength, precision, and dependable dumping action.

Engineered for strength. Built to perform.
