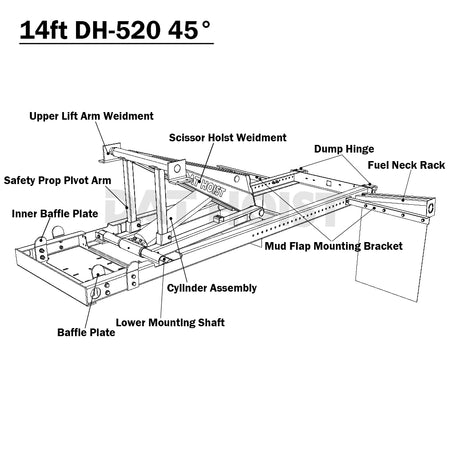

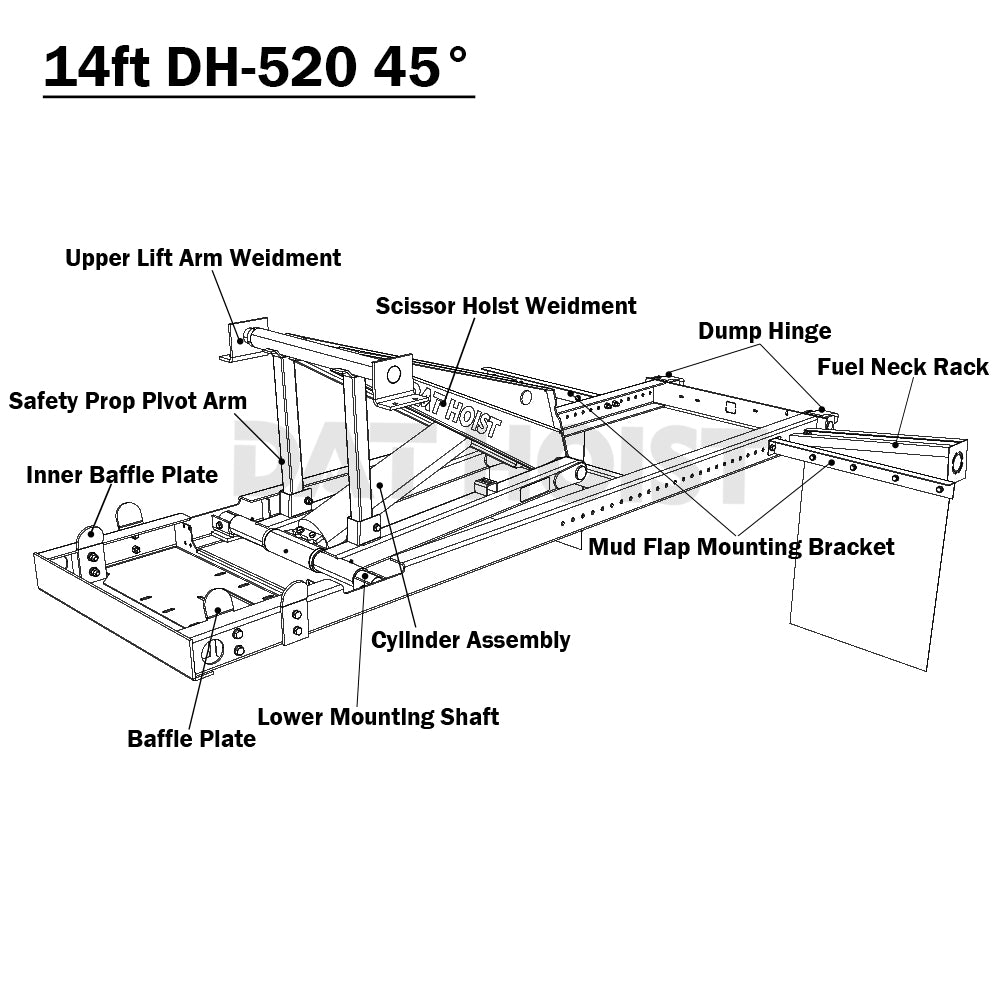

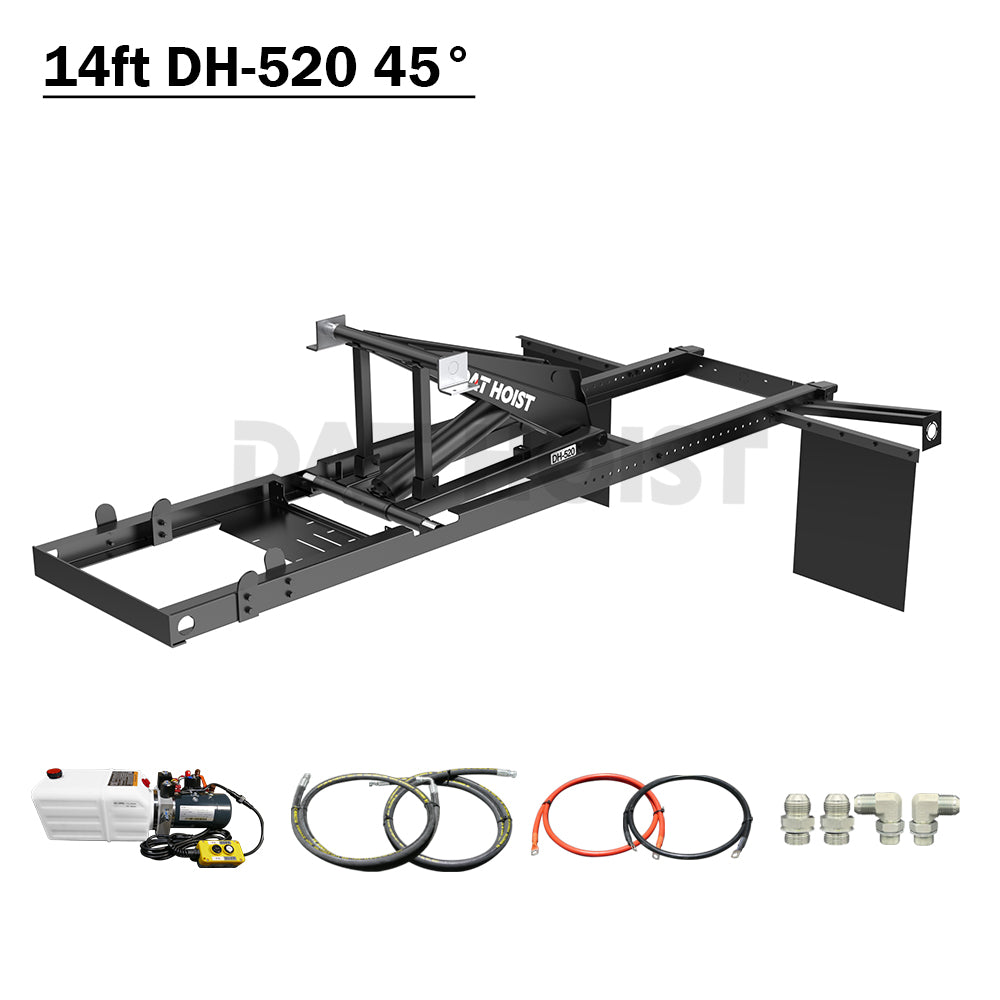

Subframe hoist kit 14ft DH-520 45°

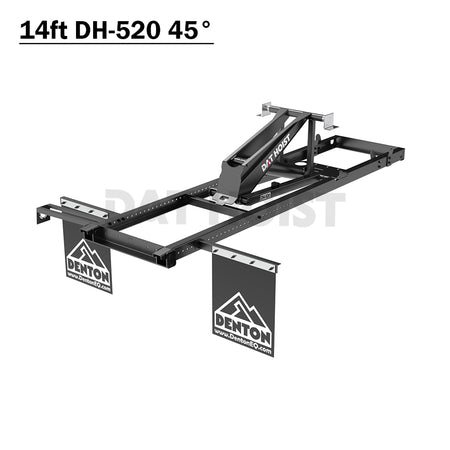

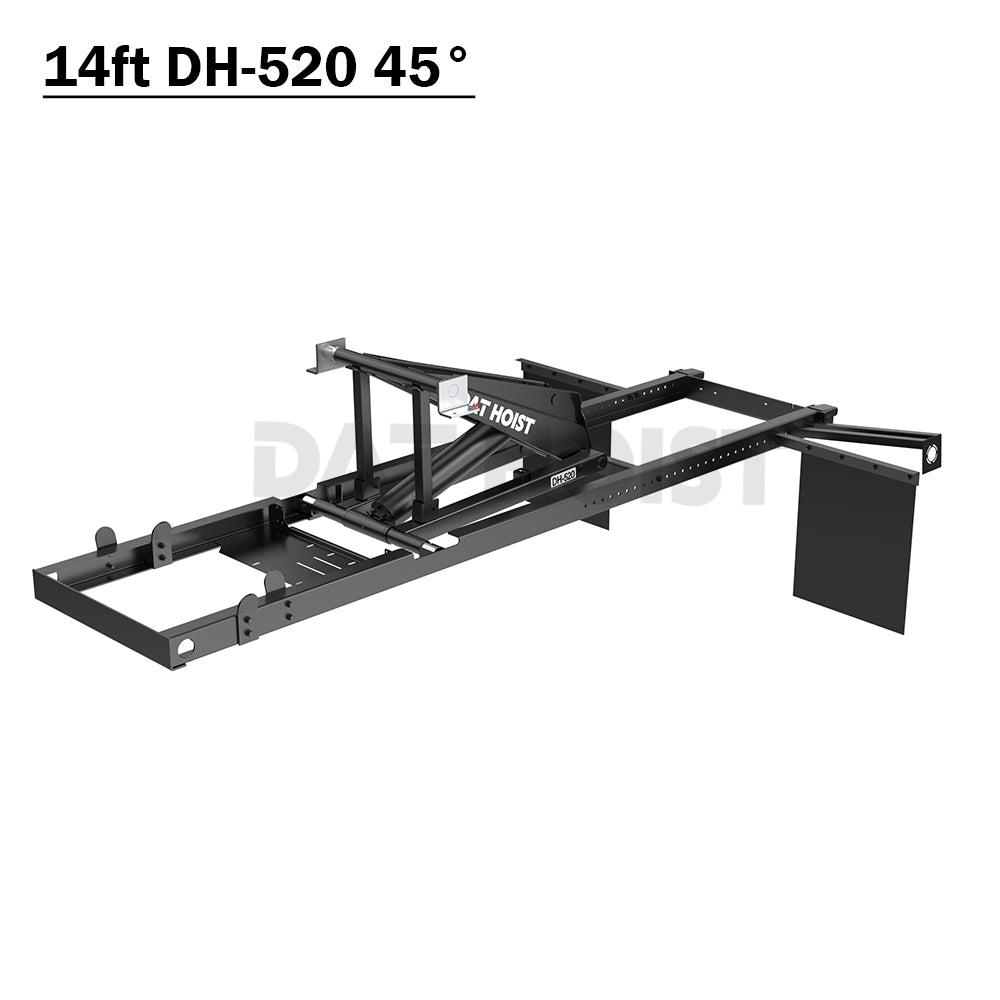

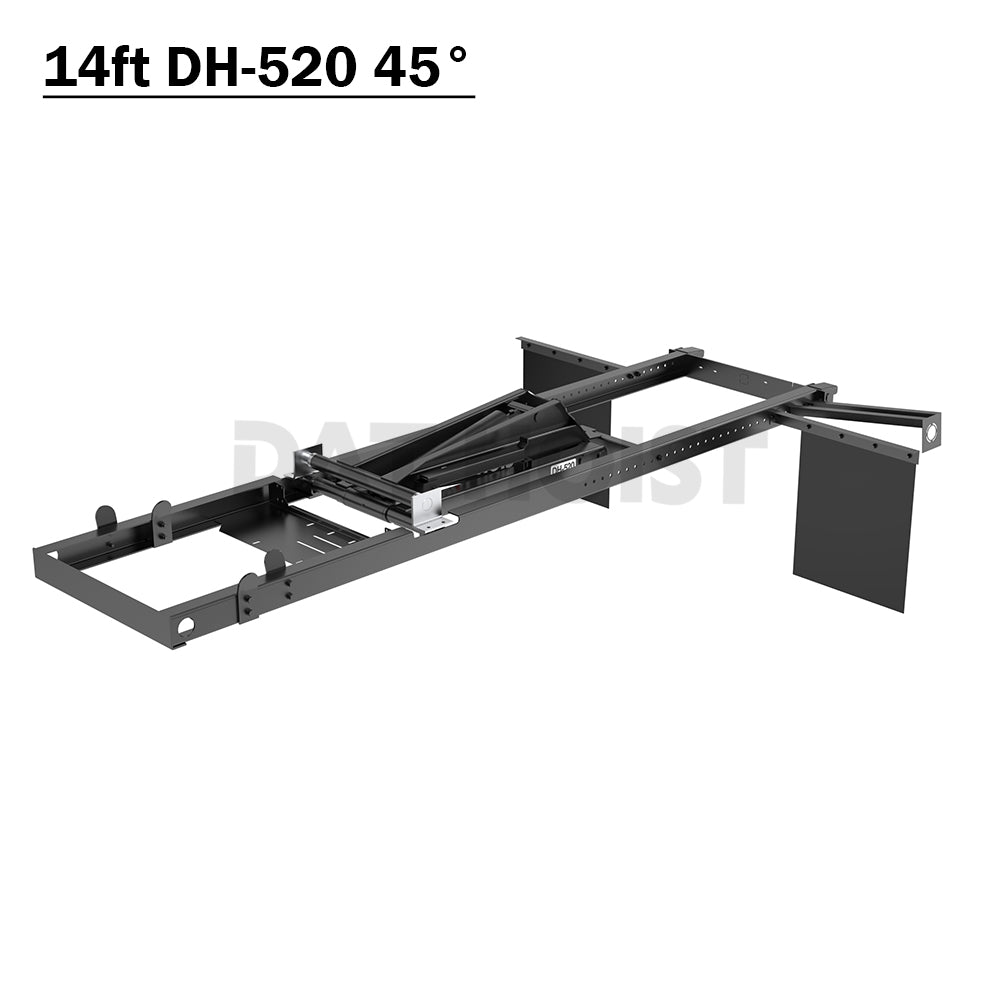

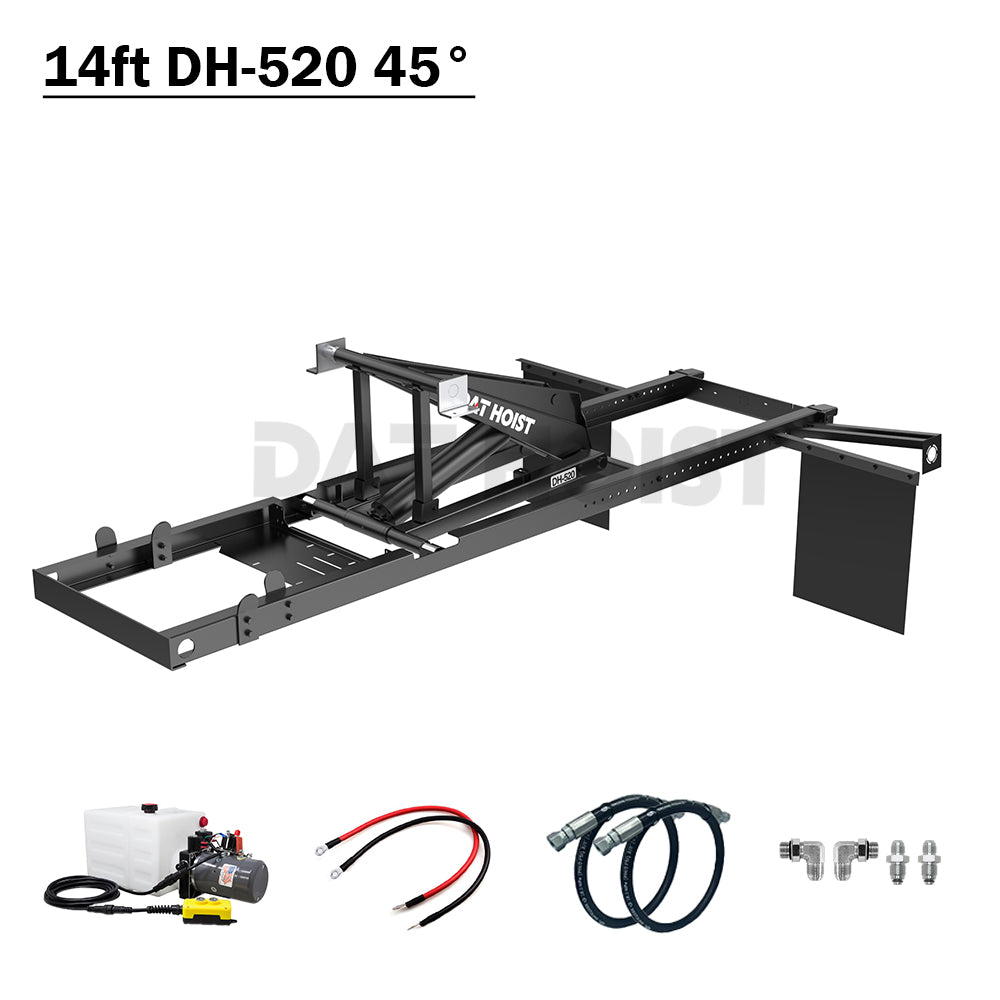

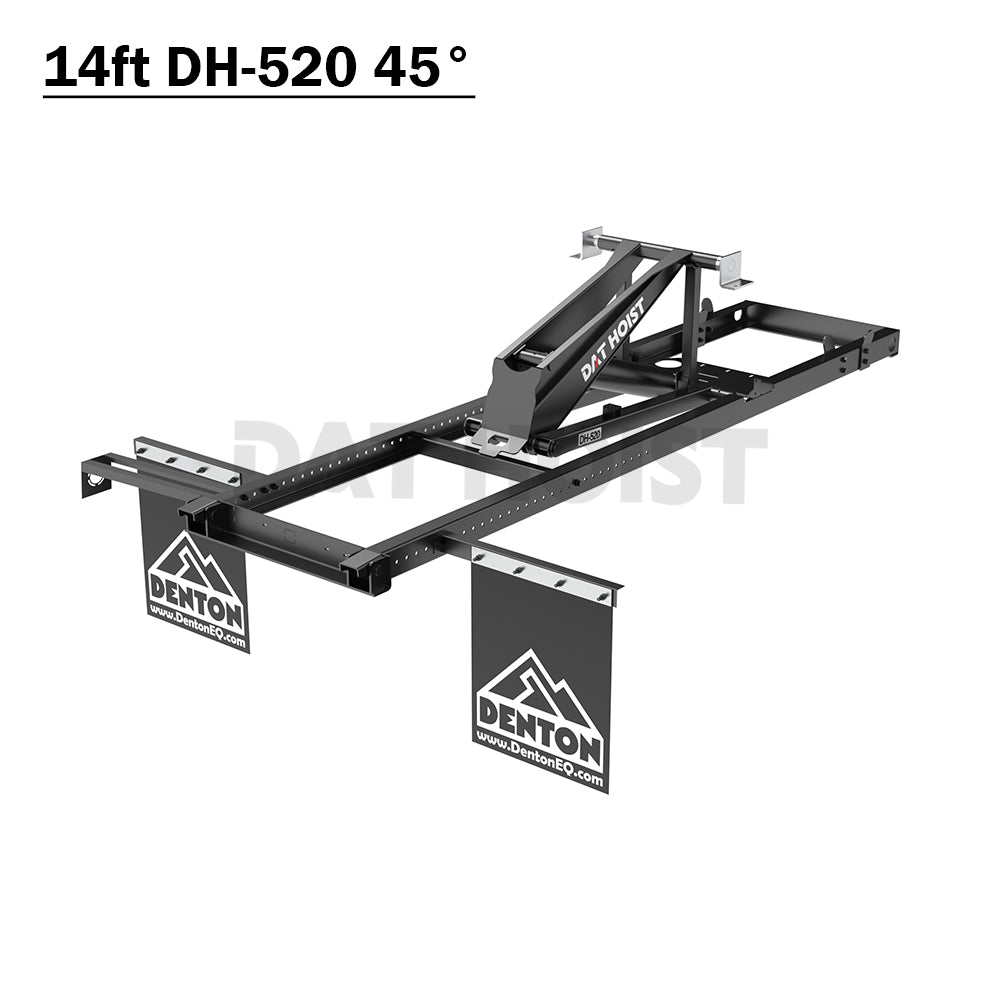

DAT HOIST 14ft Subframe Hoist Kit – Compatible with DH-520 / DH-520-HD

Heavy-Duty Steel Subframe | 45° Dump Angle | Ideal for Hydraulic Scissor Hoists

The DAT HOIST 14ft Subframe Hoist Kit is engineered to provide a strong, stable foundation for your dump bed system. Designed for use with DH-520 and DH-520-HD hydraulic scissor hoists, this subframe delivers reliable support and precise dumping performance at a maximum angle of 45°.

Key Features

• Optimized for 14ft Dump Beds
  Perfectly matched to dump bodies with a 14-foot length. Ideal for medium-duty dump trucks and trailers.

• Compatible with DH-520 / DH-520-HD Scissor Hoists
  Pre-engineered mounting points ensure seamless integration with DAT HOIST scissor hoist models for quick and secure installation.

• Heavy-Duty Steel Construction
  Fabricated from 11-gauge high-strength steel, this subframe offers long-lasting structural integrity and superior resistance to flex and fatigue under load.

• Precision Dump Angle – Up to 45°
  Designed for optimal dumping geometry, providing consistent unloading performance across a variety of materials.

• Welded & Reinforced Design
  Reinforced load points and clean weld lines provide added strength in high-stress areas, improving safety and long-term performance.

• Ready for Installation
  Ships with pre-drilled mounting holes and support brackets for faster installation and alignment with the hoist and bed.

Engineered for strength. Built to perform.
The DAT HOIST 14ft Subframe Kit is the perfect foundation for your hydraulic scissor hoist system — trusted by operators who demand quality, durability, and dependable dumping action.
