Single Axle Trailer Hanger Kit – Double Eye Springs | 2K–7K Axle Capacity | Weld-On
Description:

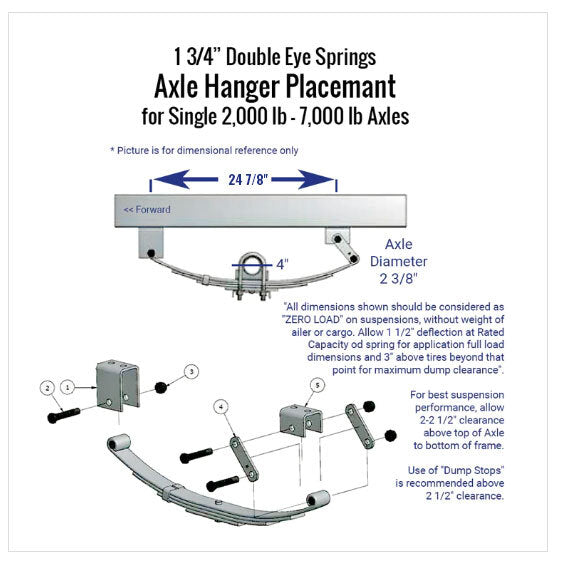

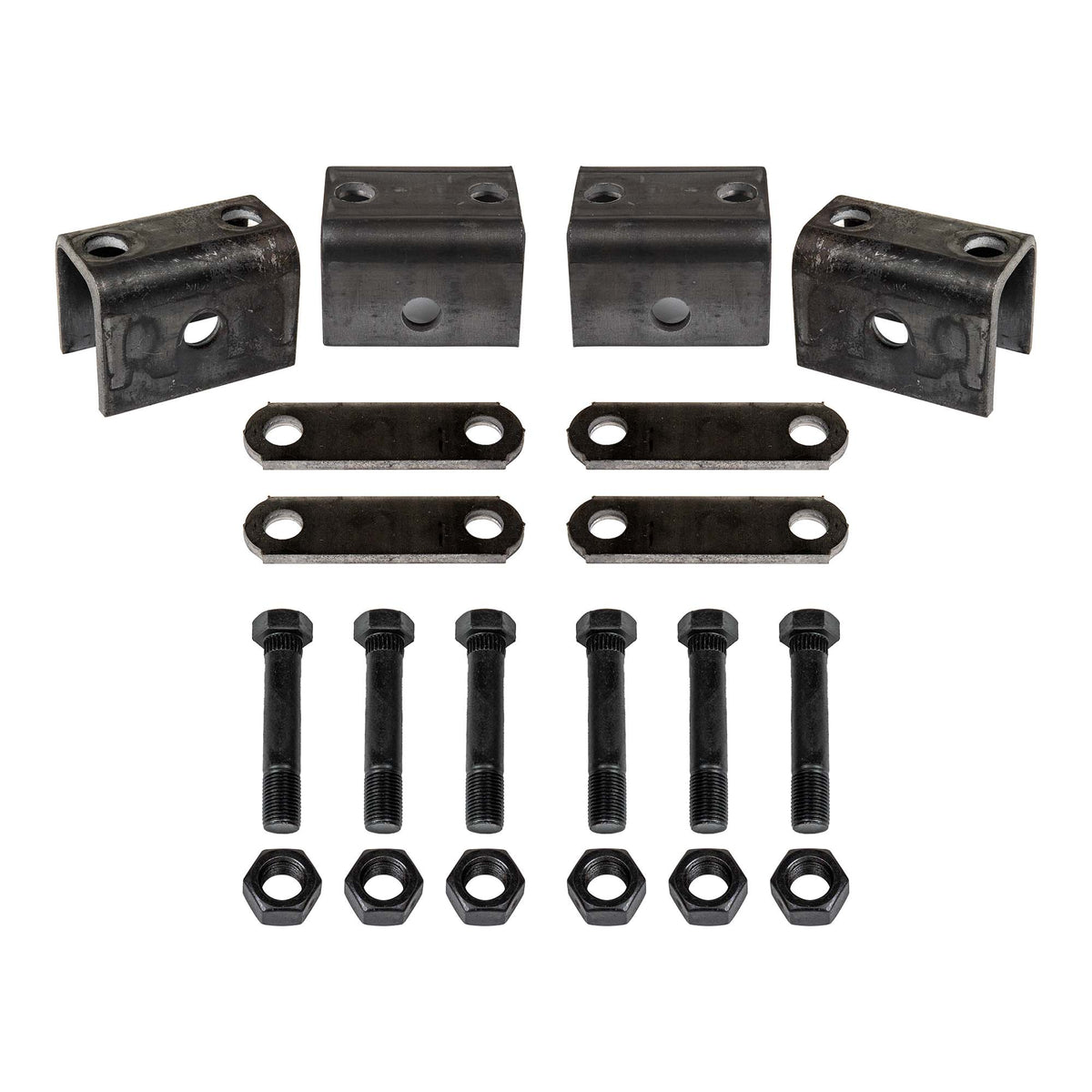

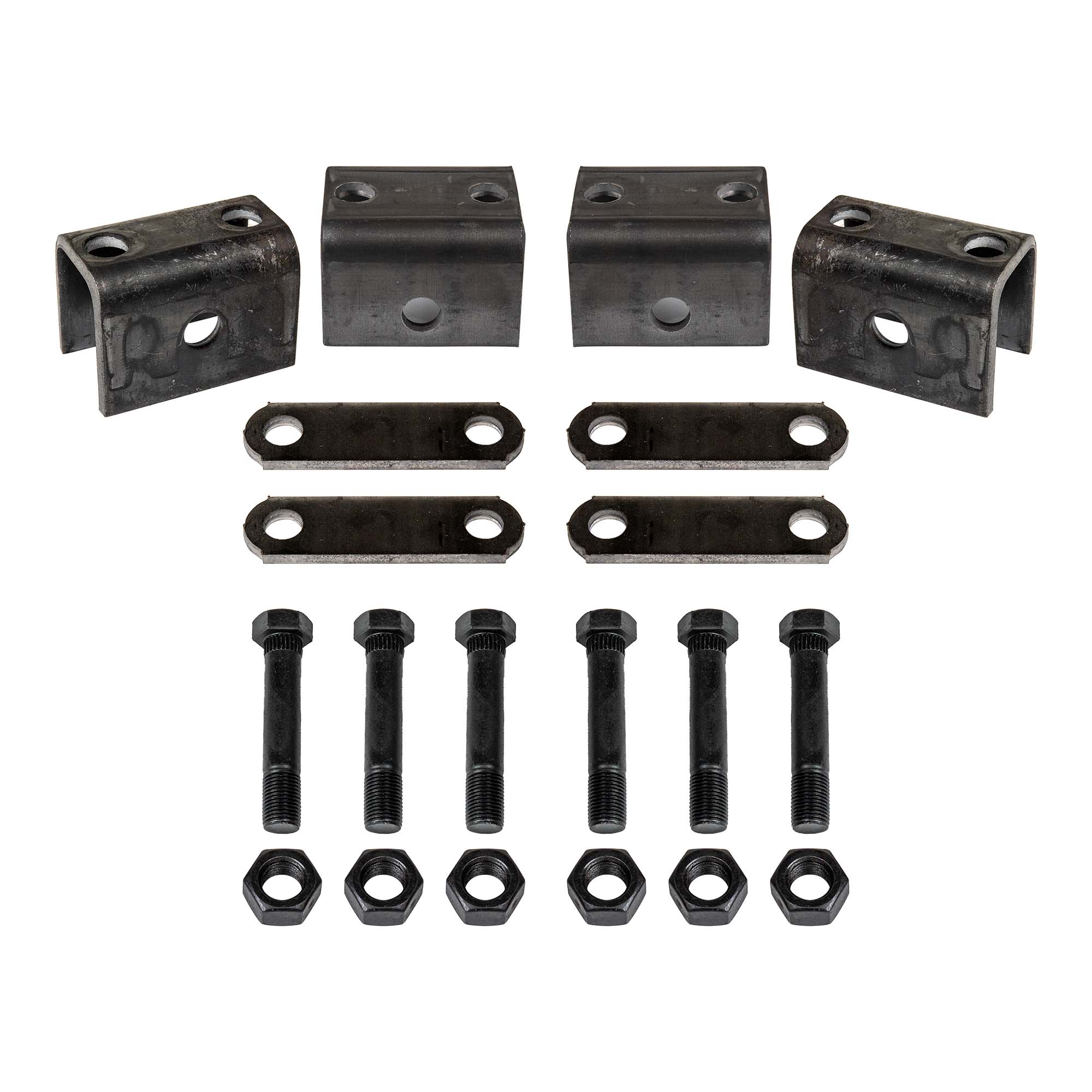

This single axle hanger kit is engineered for trailers with 1-3/4" wide double eye spring suspensions and axles rated from 2,000 to 7,000 lbs. It includes front and rear weld-on hangers, heavy-duty shackle straps, bolts, and lock nuts—everything you need to install or replace your trailer's suspension setup. The shorter shackle length provides a lower ride height, enhancing stability and performance for utility, cargo, and equipment trailers.

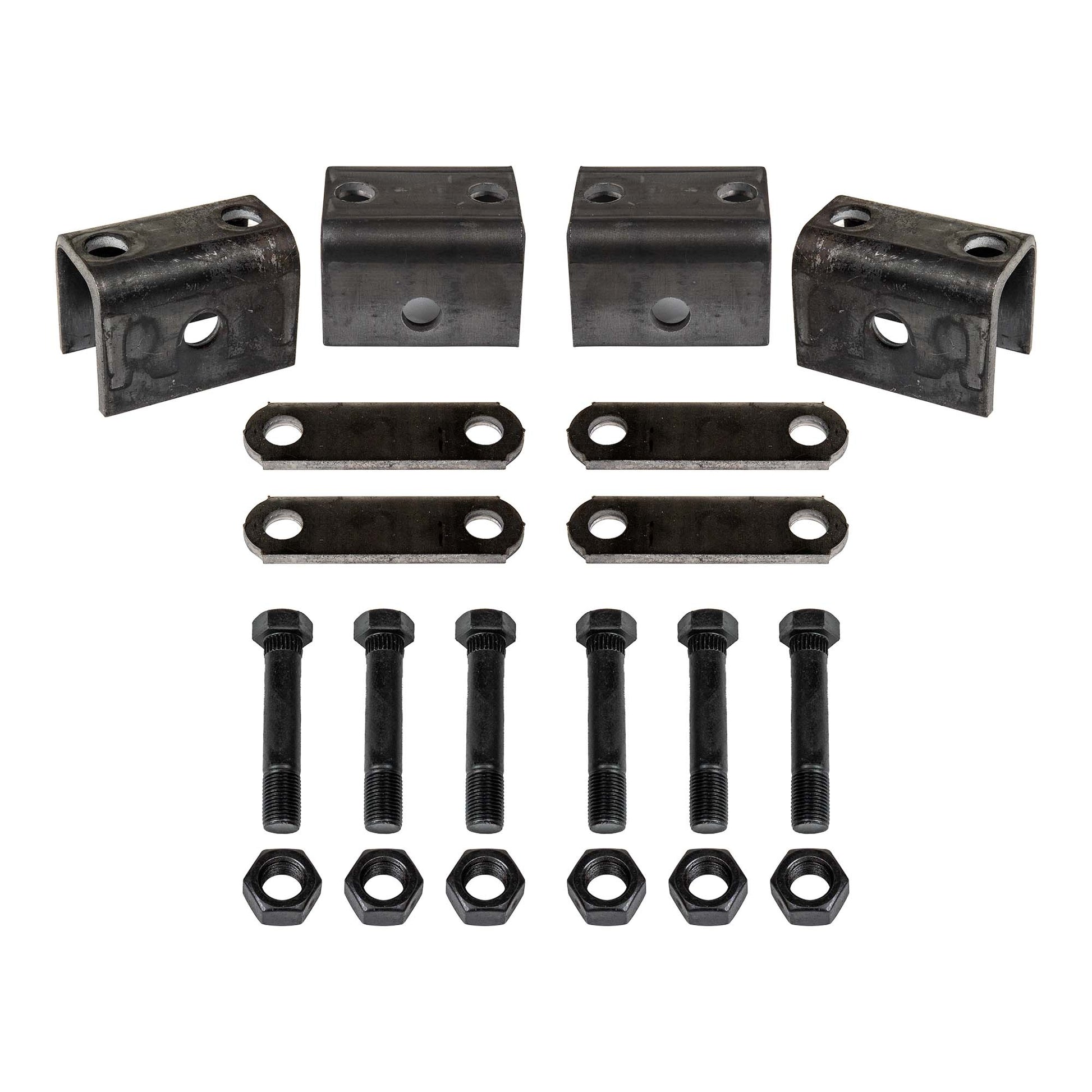

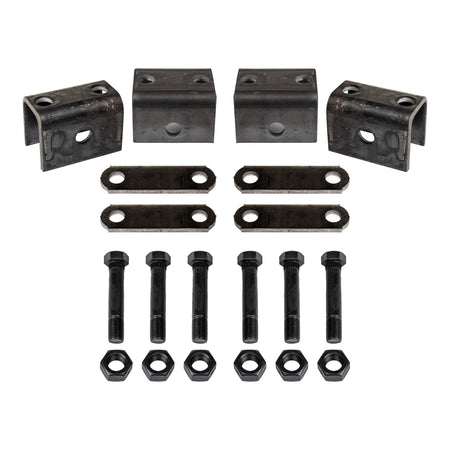

Specifications:
- Front Hangers (Qty: 2): 2" tall
- Rear Hangers (Qty: 2): 2" tall
- Shackle Straps (Qty: 4): 3-1/8" long
- Shackle Bolts (Qty: 6): 3" long × 9/16" diameter
- Lock Nuts (Qty: 6): 9/16" diameter
- Suspension Type: Double Eye
- Axle Compatibility: Single Axle (2000 lb – 7000 lb)
Key Features:
- Complete Kit: All required components for suspension installation included
- Heavy-Duty Build: Stamped steel parts ensure long-lasting weld-on strength
- Lower Ride Height: Short shackles help reduce trailer height for improved handling
- Versatile Compatibility: Fits 3.5K–7K axles from top trailer axle manufacturers
- Weld-On Mounting: Secure installation for various trailer builds
Ideal For:
- Utility trailers
- Equipment haulers
- Cargo trailers
- Flatbeds and landscape trailers
- Agricultural trailers
