Trailer Tandem Slipper Suspension / Hanger Kit for 12000 - 16000 lb axles
Regular price
$285.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Tandem Axle Trailer Hanger Kit – Slipper Springs | 12K–16K Axle Capacity | Weld-On
Description

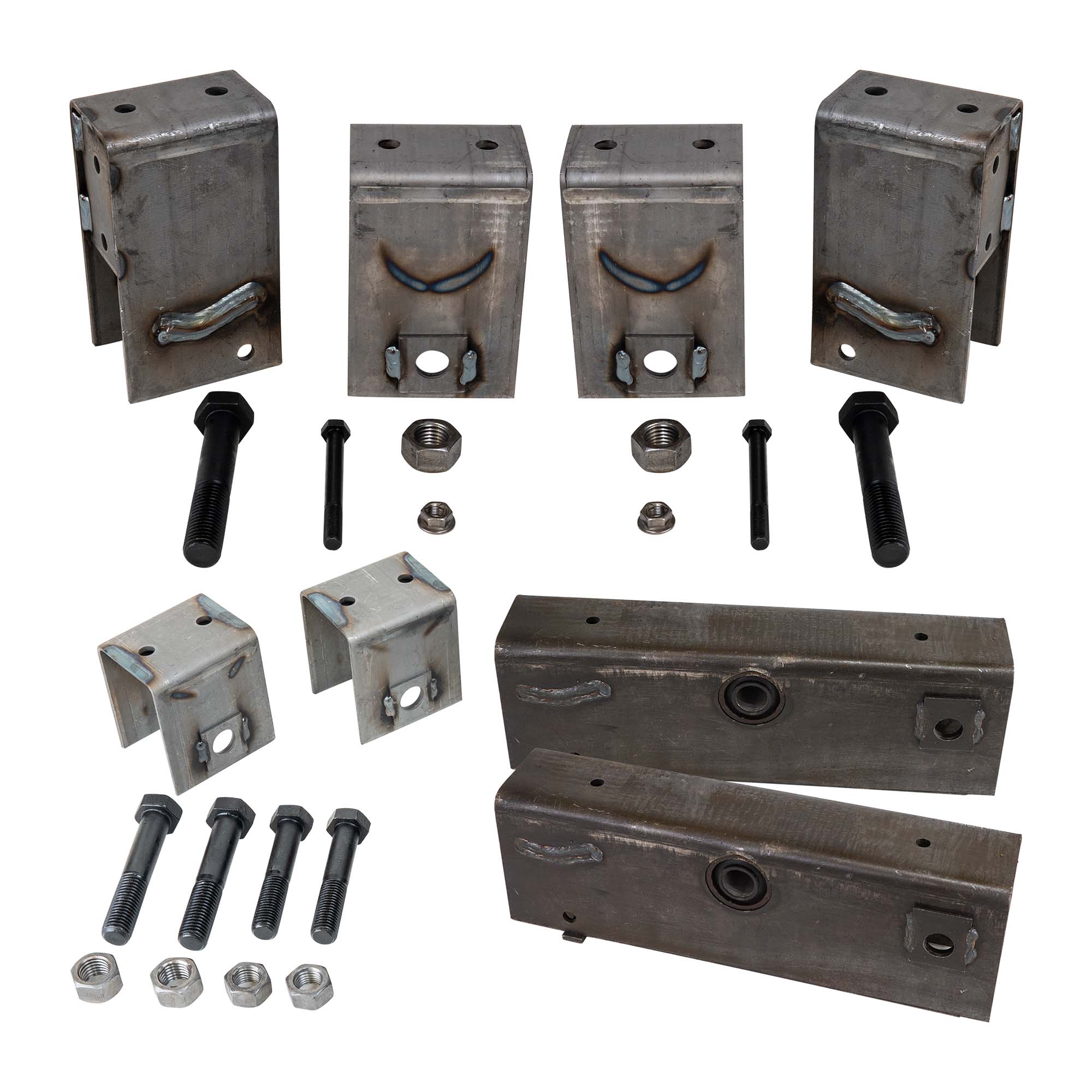

This tandem axle slipper hanger kit is engineered for trailers with slipper spring suspensions and axles rated from 12,000 to 16,000 lbs. It includes heavy-duty hangers, equalizers, bolts, and lock nuts—everything required to build or replace your trailer’s suspension system. Built for high-capacity trailers, this kit provides the strength and durability needed for demanding commercial and industrial hauling.
Specifications
- Front Hangers (Qty: 2): 6.25" tall
- Center Hangers (Qty: 2): 4.12" tall
- Rear Hangers (Qty: 2): 6.63" tall
- Equalizers (Qty: 2): 18.42" long straight
- Spring Keeper Bolts (Qty: 4): 1/2" diameter × 4.5" long
- Flange Lock Nuts (Qty: 4): 1/2" diameter
- Equalizer Bolts (Qty: 4): 1"-8 × 5-1/2"
- Equalizer Lock Nuts (Qty: 4): 1"-8 diameter
- Equalizer Bolts (Qty: 2): 1-1/8"
- Equalizer Lock Nuts (Qty: 2): 1-1/8"
- Capacity: 12,000–16,000 lbs
- Suspension Type: Slipper
- Axle Setup: Tandem Axle
Key Features
- Designed for tandem 12K–16K trailer axles
- Heavy-duty stamped steel construction for maximum durability
- Complete set of hangers, equalizers, bolts, and lock nuts included
- Provides reliable weld-on installation
- Built to handle extreme loads and heavy-duty applications
Ideal For
- Heavy equipment trailers
- Industrial transport trailers
- Agricultural trailers
- High-capacity cargo and flatbed trailers
